Acrylic Bathtub Installation Instructions
Safety Instructions
Always follow the safety precautions/warnings when using and installing the Acrylic Bathtub.
Failure to follow any of these Installation Instructions will void the warranty.
WARNING: Improper use or installation of this product may result in death or serious injury.
!
CAUTION: Improper use or installation of this product may result in injury or property damage.
!
This symbol indicates a prohibited use of the product.
This symbol is used to indicate a required step in the use of this product.
!
WARNING:
Please carry out the installation as described in
this manual. Improper installation could result in
!
damage, leaks, fire or electrical shocks.
Connect to a proper water source to avoid the
!
risk of skin irritation.
After opening, properly dispose of any unneeded
!
packaging materials. Box or plastic materials my
pose a suffocation hazard.
Be sure that any electrical installation is per-
formed by a licensed electrician in accordance
!
with all laws and regulations.
!
a ground fault circuit interrupter (GFCI). Such GFCI should be provided by the installer and should be tested on a
routine basis. To test the GFCI push the reset button. Power should be restored. If the GFCI fails to operate in
this manner, the GFCI is defective. If the GFCI interrupts power without the test button being pushed there is a
ground current flowing, indicating the possibility of electric shock. Do not use the AirBath. Disconnect the AirBath
and have the problem corrected by a qualified service representative before using.
CAUTION:
When transporting the bathtub, do not hold by
!
the air hose, pump, control box or other external
parts or bump them against hard objects. Leaks may
result.
Do not bump the bathtub against, drop or store
any rigid objects into the tub. The tub may be-
come cracked, damaged and/or leak.
0GU5031, V.02
When installing, leave a 1/8” (3 mm) gap be-
!
tween the tub and any rigid wall or tile. Also,
carefully caulk all the edges to prevent leaks or damage
from thermal expansion.
Avoid mortar, plaster, or other adhesives from
contact with the bathtub surface. Damage to the
bathtub surface may result.
!
The electrical circuit supplied for the AirBath must include a suitable ground fault circuit interrupter (GFCI)
as required by NEC article 680.70. The unit must be connected only to a supply circuit that is protected by
!
Do not climb into the bathtub to perform any tasks
other than intended use. Injury or bathtub dam-
age could result.
Do not install the hot and cold water lines in
!
backwards. Scalding could result.
Check local laws and codes for any specific in-
!
structions on installation and/or use not covered
in this manual.
Notes
1. Ensure that the unit is the correct model and color and that expected parts are present.
2. Inspect for shipping damage. Any damage claims must be
made to the carrier immediately. Do not install the bathtub if
any finish damage is revealed.
3. For AirBaths make sure that all air hoses and electrical connections are properly connected.
4. Observe all installation procedures and local plumbing codes
and regulations.
5. Provide an appropriate, clean and level sub-floor.
ABA & ABY Installation
1
Prepare Location
• Remove old bathtub, if necessary.
• Prepare sub-floor and level, if necessary.
• Construct wooden frame.
• Use template to ensure correct framing.
• For AirBaths an access panel of at least 16” x 20” wide, or per
local code, must be installed at the blower end of the unit for
maintenance or servicing.
• Locate and install rough plumbing.
• All framing must be square and plumb.
• The bathtub cannot be hung by its lip. The bathtub weight
must be transferred solely through the feet.
6. Ensure adequate space for the bathtub and provide properly
dimensioned framing.
7. Do not remove protective plastic until necessary. Cover the
bathtub with cardboard for additional protection.
8. Do not place ladders, tripods, building material, waste or other
equipment in the bathtub.
9. See spec sheet for dimensional information.
10. Power Supply Specification (AirBath only):
60 Hz, 120 V, 1050 W
2
Install Drain (Sold Separately)
Install the drain according to the
manufacturer’s directions and local
codes. The template is designed for
bathtubs using Toto drains.
Note: Take care not to scrape or mar the bathtub while installing
the drain.
3
Test Fit
Test fit (dry fit) the bathtub in the frame to make sure the bathtub
will fit.
4
Seat the bathtub into the framing.
• Leave a 1/8” (3 mm) gap between the flange and the framing.
• Mortar should be used to secure and level the bathtub.
• Use two people to move the bathtub.
• Assure the bathtub is level in both directions for proper water
drainage.
• Any attached wood base should remain attached.
ABA & ABY Installation (continued)
Connect the drain to plumbing
5
• Follow local codes
• Make sure that connections are tight to avoid leaks.
Finish decking and seal bathtub
7
With Flange
Silicone
6
Make electrical connections (AirBath)
• All electrical connections must be made by a licensed electrician and
meet local codes. Refrain from using extension cords.
• Class A, 15 amp Ground Fault Control Interrupter (GFCI) with grounding
is required.
• The controller, blower and GFCI must be accessible.
With Tile-in Flange
• Pre-drill pilot holes through the tile-in flange.
• Mount with screw or nail to studs.
• Finish tiling the bathtub deck and be sure to seal the
bathtub lip to prevent leaks.
ABA & ABY Installation (continued)

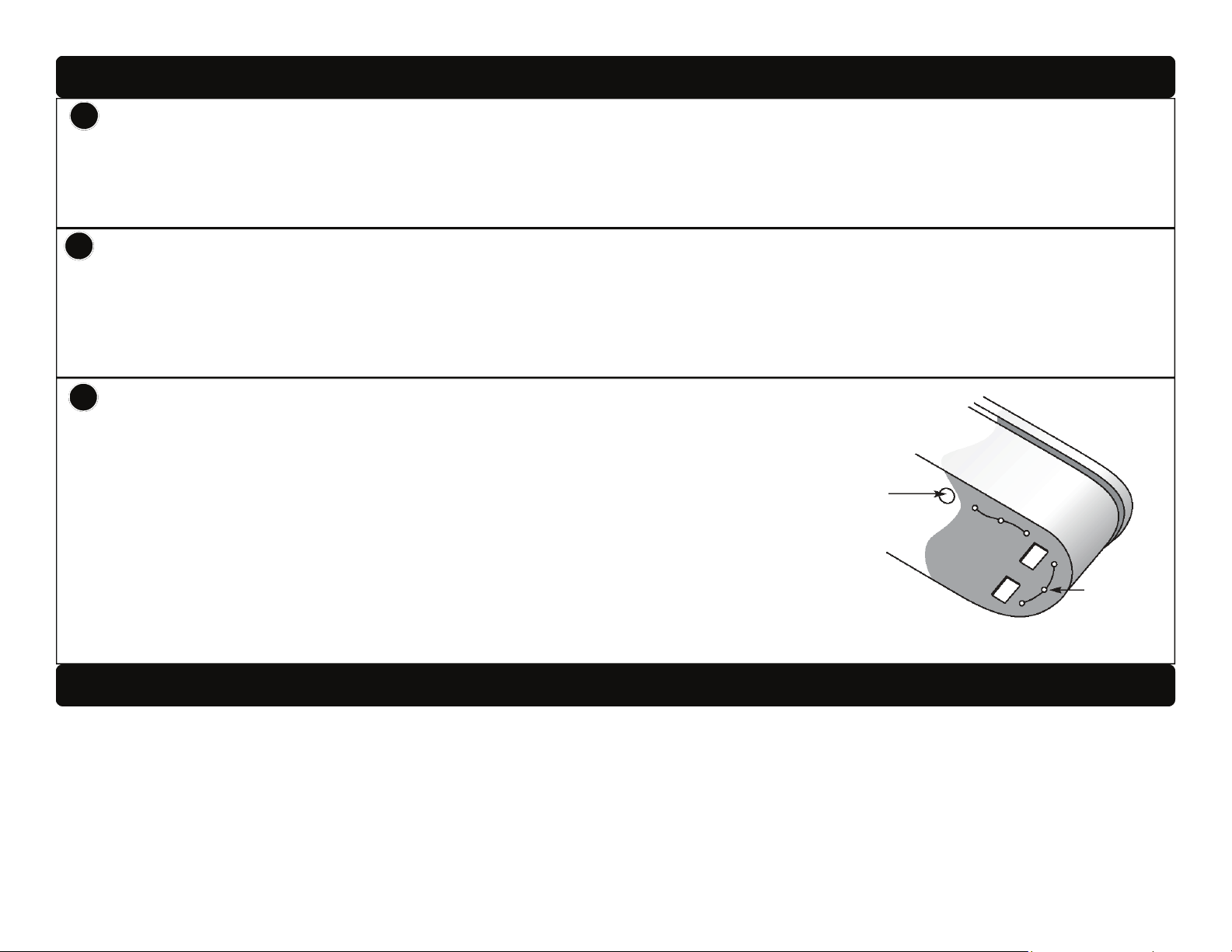

8
Check Installation
AirBaths: Make sure the blower has ample unobstructed space to draw air and that the space is clear of dust and debris.
All bathtubs: Make sure the bathtub is level and supported by the feet or wood base or mortar sub-floor and not the flange lip.
9
Clean Up
• When cleaning after installation, do not use abrasive cleaners, as they may scratch and dull the surface. Use warm water and a
liquid non-abrasive detergent to clean the surface.
• Stubborn stains, paint or tar can be removed with isopropyl (rubbing) alcohol. Rinse well and dry with a soft, clean cloth.
• Do not use metal scrapers, wire brushes or other metal tools.
10
Trial Operation
• Close the drain.
• Fill the bathtub.
• Check for leaks from the air jets (AirBath only).
• Check for leaks from the drain.
• Check plug voltage and verify the Control Panel activates then the “ON” button is
pressed. (AirBath only - see Owner manual)
• Check operation. (AirBath only - see Owner manual)
• After operation, drain the bathtub and run the Automatic Maintenance Cycle. (AirBath
only - see Owner manual)
Drain
Jet Fitting
To the installer
• Be sure to provide the customer with the Installation manual.
• Fill out the necessary warranty information on the back off the Owner manual (for AirBaths).
