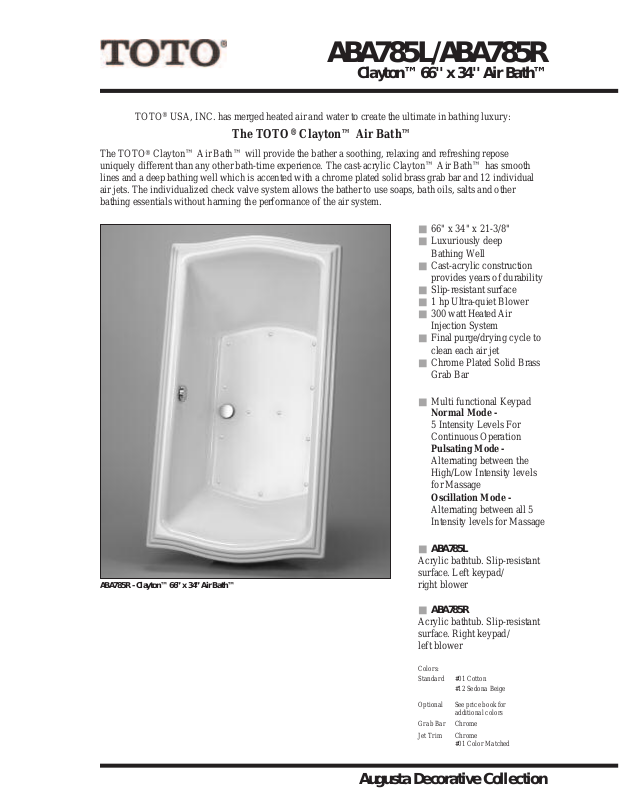

ABA785L/ABA785R
Clayton™ 66'' x 34'' Air Bath™
®
OTO
T
The TOTO®Clayton™ Air Bath™ will provide the bather a soothing, relaxing and refreshing repose
uniquely different than any other bath-time experience. The cast-acrylic Clayton™ Air Bath™ has smooth
lines and a deep bathing well which is accented with a chrome plated solid brass grab bar and 12 individual
air jets. The individualized check valve system allows the bather to use soaps, bath oils, salts and other
bathing essentials without harming the performance of the air system.
SA, INC. has merged heated air and water to create the ultimate in bathing luxury:
U
The TOTO®Clayton™ Air Bath™
■ 66" x 34" x 21-3/8"
■ Luxuriously deep
Bathing Well
■ Cast-acrylic construction
provides years of durability
■ Slip-resistant surface
■ 1 hp Ultra-quiet Blower
■ 300 watt Heated Air
Injection System
■ Final purge/drying cycle to
clean each air jet
■ Chrome Plated Solid Brass
Grab Bar
ABA785R - Clayton™ 66” x 34” Air Bath™
■ Multi functional Keypad
Normal Mode -
5 Intensity Levels For
Continuous Operation
Pulsating Mode -
Alternating between the
High/Low Intensity levels
for Massage
Oscillation Mode -
Alternating between all 5
Intensity levels for Massage
■ ABA785L
Acrylic bathtub. Slip-resistant
surface. Left keypad/
right blower
■ ABA785R
Acrylic bathtub. Slip-resistant
surface. Right keypad/
left blower
Colors:
Standard
Optional See price book for
Grab Bar
Jet Trim
#01 Cotton
#12 Sedona Beige
additional colors
Chrome
Chrome
#01 Color Matched
Augusta Decorative Collection
ABA785L/ABA785R
34” (864mm)
24” (610mm)
SECTION C-C
C
C
2”
(51mm)
24-3/8”
(619mm)
21-3/8”
(543mm)
66” (1676mm)
48” (1219mm)
30-3/4” (782mm)
ø
1-7/8”
(
48mm)
3
C
C
7-3/8”
(188mm)
7
Clayton™ 66'' x 34'' Air Bath™
■STYLE
Designed to match the our line of
residential bathroom products, TOTO’s
tubs complete any bathroom suite.
Lucite cast acrylic construction provides
the ultimate in strength and durability,
while a slip-resistant surface enhances
safety in the bath.
■SPECIFICATIONS
Size: 66"L x 34"W
Depth: 21-3/8"
Warranty: 5 Year Limited Warranty
on Acrylic Tub
1 Year Limited Warranty
on Components and Parts
Material: Lucite Cast Acrylic
Electrical Requirements:
15 AMP; 120V w/GFI
Shipping Weight:
ABA785L/ABA785R
120 lbs.
ABA785L Left keypad/right blower
ABA785R Right keypad/left blower
®
Shipping Dimensions:
ABA785L/ABA785R
67-1/4"L x 38-1/4"W
x 26"H
Gallons: ABA785L/ABA785R
80 to overflow
Fixture meets ANSI/ASME standard Z124.1,
ETL, and C-UPC requirements.
These dimensions and specifications are
subject to change without notice.
Use TOTO
in dimensions.
®
cut template to assure rough
ABA785R - Clayton™ 66” x 34” Air Bath™
TOTO U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (888) 295-8134 • Fax. (800) 699-4889 • www.totousa.com
TOTO LTD. 02/06 #DXXXXX
Printed in U.S.A.
©
Printed on recycled paper
REV 02/06
