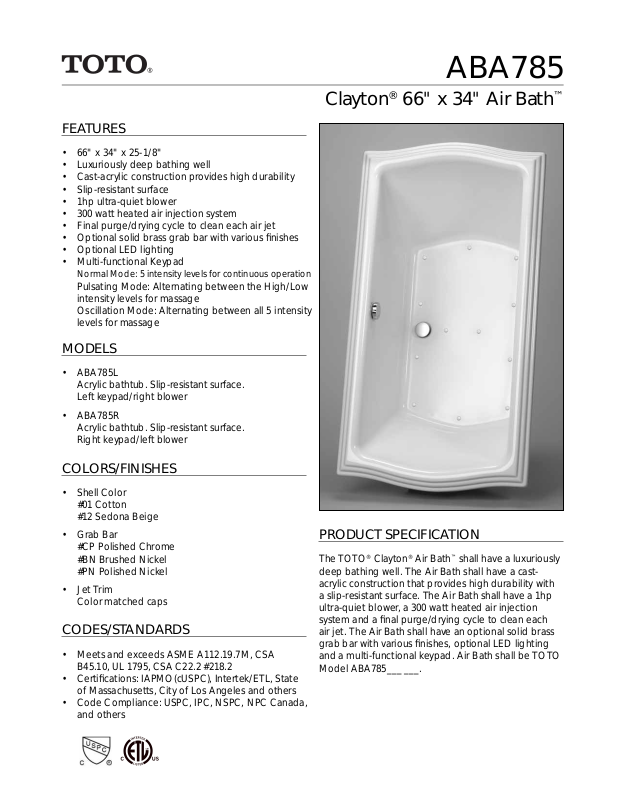

Factory Direct Hardware ABA785RL User Manual
ABA785
FEATURES
• 66" x 34" x 25-1/8"
• Luxuriously deep bathing well
• Cast-acrylic construction provides high durability
• Slip-resistant surface
• 1hp ultra-quiet blower
• 300 watt heated air injection system
• Final purge/drying cycle to clean each air jet
• Optional solid brass grab bar with various fi nishes
• Optional LED lighting
• Multi-functional Keypad
Normal Mode: 5 intensity levels for continuous operation
Pulsating Mode: Alternating between the High/Low
intensity levels for massage
Oscillation Mode: Alternating between all 5 intensity
levels for massage
MODELS
• ABA785L
Acrylic bathtub. Slip-resistant surface.
Left keypad/right blower
Clayton
®
66" x 34" Air Bath
™
• ABA785R
Acrylic bathtub. Slip-resistant surface.
Right keypad/left blower
COLORS/FINISHES
• Shell Color
#01 Cotton
#12 Sedona Beige
• Grab Bar
#CP Polished Chrome
#BN Brushed Nickel
#PN Polished Nickel
• Jet Trim
Color matched caps
CODES/STANDARDS
• Meets and exceeds ASME A112.19.7M, CSA
B45.10, UL 1795, CSA C22.2 #218.2
• Certifi cations: IAPMO(cUSPC), Intertek/ETL, State
of Massachusetts, City of Los Angeles and others
• Code Compliance: USPC, IPC, NSPC, NPC Canada,
and others
PRODUCT SPECIFICATION
The TOTO® Clayton® Air Bath™ shall have a luxuriously
deep bathing well. The Air Bath shall have a castacrylic construction that provides high durability with
a slip-resistant surface. The Air Bath shall have a 1hp
ultra-quiet blower, a 300 watt heated air injection
system and a fi nal purge/drying cycle to clean each
air jet. The Air Bath shall have an optional solid brass
grab bar with various fi nishes, optional LED lighting
and a multi-functional keypad. Air Bath shall be TOTO
Model ABA785___ ___.
ABA785
SPECIFICATIONS
• Size 66"L x 34"W
• Depth 21"
• Warranty 1 Year Limited Warranty on
acrylic tub
1 Year Limited Warranty on
components and parts
• Material Lucite Cast Acrylic
• Electrical Requirements 15 AMP; 120V w/ GFCI
• Shipping Weight 140 lbs.
• Shipping Dimensions 68"L x 39"W x 27"H
• Gallons 80 to overfl ow
Clayton® 66" x 34" Air Bath
™
DIA 2" THRU
(51mm)
C
C
66" (1676mm)
48" (1219mm)
30-3/4" (782mm)
(216mm)
2"
(51mm)
21-3/8"
(543mm)
8-1/2"
25-1/8"
(638mm)
34" (864mm)
24" (610mm)
SECTION C-C
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
These dimensions and specifi cations are subject to change without notice
# SS-00196, v.03
Printed in U.S.A. | © TOTO LTD. 07/09 | Printed on recycled paper ♻
