PARTS MANUAL
98/9947 SERIES EXIT DEVICES
JUNE 2005
PM989947_B
VD-GN-1032
Copyright © 2005 Ingersoll-Rand. All right s reserved.
INDEX
98/9947 Devices
Basic Device ............................................................................................................................... 4-5
Panic and Fire Metal Door Concealed V ertical Rods and Latches................................................ 6-7
WDC Wood Door Concealed V ertical Rods and Latches.............................................................. 8-9
Baseplate Assembly..................................................................................................................... 10
Center Case Assembly..................................................................................................................11
LBR (Less Bottom Rod) Fire Latch Kit...........................................................................................11
V ariations of the Basic Device
CD (Cylinder Dogging)........................................................................................................ 4-5
HD-EL (Hex Dogging/Electric Latch Retraction) .................................................................. 12
EL (Electric Latch Retraction) ............................................................................................. 13
SS (Signal Switch)..............................................................................................................13
RX (Request to Exit) .......................................................................................................14-15
LX (Latch Bolt Monitoring) ...............................................................................................14-15
CX Chexit............................................................................................................................ 16
CX-CD/SD ........................................................................................................................... 17
ALK Exit Alarm Kit..............................................................................................................18
Service Replacement Items ......................................................................................................19-20
General Information
Introduction..................................................................................................................................... 2
How to Order .................................................................................................................................. 2
Part Number Changes .................................................................................................................... 2
Finishes ......................................................................................................................................... 3
Outside Trim Functions .................................................................................................................. 3
Strikes............................................................................................................................................ 3
INTRODUCTION
This manual contains a listing of replaceable parts and assemblies for the 98/9947 Exit Hardware Devices. 98
Series and 99 Series devices are almost identical. The 99 Series has a grooved case; the 98 Series has a
smooth case.
HOW TO ORDER
Some parts are sold separately . Other items are available as p art of a kit or multiple quantity package.
For the best possible service when ordering replacement parts or assemblies, please provide the following
information:
• Part number or assembly number
• Description
• Quantity needed
• Finish desired (if available finished)
• Date of original purchase (if known)
T o find out the name of your local V on Duprin distributor or sales representative, cont act:
Von Duprin Division
Ingersoll-Rand Company
2720 T obey Drive
Indianapolis, Indiana 46219
Phone: (800) 999-0408
Fax: (800) 999-0328
Website: www .vonduprin.com
PART NUMBER CHANGES
This manual reflects the product as sold in June 2005. Because of changes to the product and/or
manufacturing process, part numbers can change.
Page 2 of 20
PM989947_B
98/99 SERIES FINISHES
OUTSIDE TRIM FUNCTIONS
992L
996L
992L-NL**
996L-NL**
991K
991K-NL**
* “BE” (Blank Escutcheon) no cylinder used - lever always active
** “NL” (Night Latch) rigid lever - key retracts latch bolt
*** ”DT” (Dummy Trim) rigid lever for pull operation
**** Optional Pull needs to be added
992L-BE*
996L-BE*
992L-DT***
996L-DT***
991K-BE*
991K-DT***
992EO
996EO
990EO
994L
994L-NL**
990DT***
994L-BE*
994L-DT***
990NL** 990TP 990TP-BE*
994EO
U.S. Std
Reference
US3
US4
US10
US15
US26
US26D
US28
US32D
313AN
315AN
BHMA
Reference
605
606
612
619
625
626
628
630
710
71 1
Description
Polished Brass
Dull Brass
Dull Bronze
Satin Nickel
Polished Chrome
Dull Chrome
Anodized Alum. (Clear)
Satin Stainless Steel
Anodized Alum. (313)
Dark Bronze
Anodized Alum. (Black)
1 10NL****376T
STRIKES
Screw Pkg 900285
338 Strike (T op) S t andard
Panic or Fire Exit Hardware
Screw
964191
283 Strike (T op)
Wood Frame
PM989947_B
385A Strike (Bottom)
Standard Panic or Fire
Exit Hardware
304L Strike (Bottom)
Panic or Fire
Exit Hardware
Page 3 of 20
98/9947 PANIC & 98/9947-F FIRE DEVICE
7A
8
9
7
7B
7B
1
10A
10
16
15
6
16
5
4
10B
17
11
13
12
18
P ANIC ONL Y
CD Conversion Kit
99 Series - 050115
98 Series - 050132
7B
P ANIC ONL Y
Hex Dogging Kit
99 Series - 050114
98 Series - 050117
Page 4 of 20
3B
3A
1
3
3C
14
2
2B
Fire or Less Dogging
Cover Plate Kit
99 Series - 050589
98 Series - 050588
PM989947_B
98/9947 PANIC & 98/9947-F FIRE DEVICE
Item No. Quantity Part No. Description Finish
1 900563 98/9947 Series Mounting Pkg. (1-3/4)
1 900568 98/9947 Series Mounting Pkg. (2-1/4)
1 1 090085 227 Dog Key 5/32” Hex (Pkg of 10)
1 1 090005 227 Dog Key 5/32” Hex (Pkg of 2)
2 1 090040 Hex Dog Shaft (Pkg of 2)
3 1 107813 Cylinder Mounting Pkg X
3A 1 050525 Cylinder Collar X
3B 1 050490 Cylinder Locating Washer - CD/SS
3C 1 050526 Cylinder Locknut
4 1 090046 CD Dogging Plug (Pkg of 2)
5 1 090045 CD Actuator Arm (Pkg of 2)
6 1 *PBKIT 98/99 Series Push Bar Retrofit Kit - 3’ Door X
6 1 *PBKIT 98/99 Series Push Bar Retrofit Kit - 4’ Door X
7 1 050014 98/99 Series End Cap Kit X
7A 1 050524 Impact Resistant End Cap Bracket
7B 1 090036 Cover Plate Anti-rattle S pring (Pkg of 10)
8 1 900597 Device End Cap and C/Case Screw Pkg. X
9 1 968144 99 Series Mechanism Case - 3’ Door X
9 1 968146 99 Series Mechanism Case - 4’ Door X
9 1 970191 98 Series Mechanism Case - 3’ Door X
9 1 970192 98 Series Mechanism Case - 4’ Door X
10 1 050529 98/99 Series Control Link Pin & Ret. Ring
10A 1 090031 98/99 Series Control Link Pin (Pkg of 10)
10B 1 090107 Retaining Ring (Pkg of 10)
11 2 090037 #8-32 x 3/8” Baseplate Screw (Pkg of 10)
12 2 090073 Mechanism Case Bracket Screw (Pkg of 10)
13*** 1 050022 98/9947/-F Center Case Kit Less Cover
14** 1 050073 98/9947/-F Center Case Cover Kit X
15 1 050491 Shock Absorber & Holder Assembly
16 2 090049 Push Bar Guide (Pkg of 10)
17 4 900892 Center Case Cover Screws (Pkg of 4) X
18 1 050564 Center Case Cover Bracket
X in “Finish” column designates finished items; finish must be specified when ordering.
* To order , specify device type, size, and finish. Example: PBKIT 98 3’ US28
**Includes parts for three piece cover conversion.
***Center case assembly parts shown on page 1 1.
PM989947_B
Page 5 of 20
98/9947 & 98/9947-F METAL DOOR VERTICAL RODS AND LATCHES
12
3
18
4
11
98/9948
Top Latch Kit
Std - 050494
EL - 050516
13
ES98/9948
T op Latch
Assembly
050128
2
6
10
8
5
7
9
10
7
Page 6 of 20
13
Rod Extension
6
4
1
5
3
Assembly
8’4” - 10’
Door Height
051808
98/9948
Bottom Latch
Assembly
050495
PM989947_B
98/9947 & 98/9947-F METAL DOOR VERTICAL RODS AND LATCHES
Item No. Quantity Part No. Description Finish
* 1 050047 98/9948 Latch Retrofit Kit-(non EL)
* 1 050048 98/9948-F Latch Retrofit Kit-(non EL)
* 1 050522 EL98/9948 Latch Retrofit Kit
* 1 050523 EL98/9948-F Latch Retrofit Kit
1** 1 050493 98/9947 Bottom Latch Kit
2** 1 050492 98/9947 Top Latch Kit
3** 2 109324 98/9947 Latch Mtg Bracket
3** 2 112868 98/9948 Latch Mtg Bracket
4 6 090059 Latch Bracket Mtg Screw (Latch)
5 6 090061 Latch Bracket Mtg Screw (Metal Door)
5 6 900856 Latch Bracket Mtg Screw (Wood Door)
6 2 090063 Retaining Ring (Pkg of 10)
7 2 090064 Latch Link Pin (Pkg of 10)
8 1 050574 Adjustable Top Rod 6’8” - 8’4” Door
9 1 050575 Adjustable Bottom Rod Kit
10 2 090071 98/9947 Rod Connecting Screw (Pkg of 2)
10 2 090072 98/9948 Rod Connecting Screw (Pkg of 2)
11 1 106222 Ratchet Release Pkg X
12 1 090070 Ratchet Release Screw
13 2 10981 1 98/9947 Adjusting Screw Package (Pkg of 2)
13 2 900898 98/9947 Adjusting Screw LBR Package
14 1 090065 Bolt Return S pring (Pkg of 10)
15 1 090066 Top Latch Compression Spring (Pkg of 10)
16 1 090069 Ratchet Lever S pring (Pkg of 2)
17 1 090062 Btm Latch Case Spirol Pin (Pkg of 10)
18 1 970978 98/9947 Ratchet Release Spacer
X in “Finish” column designates finished items; finish must be specified when ordering.
*Retrofit kit includes items 1-3 to convert 98/9947 to 98/9948.
**Each latch kit (item 1-2) includes only one latch mtg bracket (item 3). Panic device uses
only 1 mounting bracket per latch while Fire (F) device uses 2 per latch. For service
replacement only . Refer to retrofit kits to convert 98/9947 to 98/9948.
16
15
PM989947_B
98/9947 T op Latch
17
14
17
98/9947 Bottom Latch
Page 7 of 20
98/9947 & 98/9947-F WDC (WOOD DOOR CONCEALED)
VERTICAL RODS AND LATCHES
5
2
6
7
10
8
3
4
11
12
19
18
9
13
10
7
1
5
6
4
3
Page 8 of 20
PM989947_B
98/9947 & 98/9947-F WDC (WOOD DOOR CONCEALED)
VERTICAL RODS AND LATCHES
Item No. Quantity Part No. Description Finish
1* 1 050493 98/9947 Bottom Latch Kit
2* 1 050492 98/9947 T op Latch Kit
3* 2 109324 98/9947 Latch Mtg Bracket
4 6 090059 Latch Bracket Mtg Screw (Latch)
5 1 900856 WDC Auxiliary Mtg. Package
6 2 090063 Retaining Ring (Pkg of 10)
7 2 090064 Latch Link Pin (Pkg of 10)
8 1 050582 WDC Adjustable T op Rod 6’8” - 8’4” Door
9 1 050583 WDC Adjustable Bottom Rod Kit
10 2 090071 98/9947 Rod Connecting Screw (Pkg of 2)
10 2 090072 98/9948 Rod Connecting Screw (Pkg of 2)
11 1 106222 Ratchet Release Pkg X
12 1 090070 Ratchet Release Screw (Pkg of 2)
13 2 109811 98/9947/48 Rod Adjust Pkg
13 1 900898 LBR Adjusting Screw Pkg
14 1 090065 Bolt Return S pring (Pkg of 10)
15 1 090066 Top Latch Compression Spring (Pkg of 10)
16 1 090069 Ratchet Lever S pring (Pkg of 2)
17 1 090062 Btm Latch Case Spirol Pin (Pkg of 10)
18 1 050088 98/9947WDC Scalp Plate X
19 1 970978 98/9947 Ratchet Release S pacer
X in “Finish” column designates finished items; finish must be specified when ordering.
*Each latch kit (item 1-2) includes only one latch mtg bracket (item 3). All WDC devices
require only 1 mounting bracket per latch.
16
14
17
15
17
PM989947_B
98/9947 T op Latch
98/9947 Bottom Latch
Page 9 of 20
98/9947 PANIC DEVICE BASEPLATE ASSEMBLY
Item No. Quantity Part No. Description Finish
1 1 090043 Dogging adapter (Pkg of 2)
2 1 090042 Dogging adapter spring (Pkg of 2)
3 1 090041 Dogging spring (Pkg of 2)
4 1 090040 Hex dogging shaft (Pkg of 2)
5 1 090044 Dogging hook (Pkg of 2)
6 1 090039 Latch return spring (Pkg of 10)
7 4 090038 Rubber bumper (Pkg of 4)
8 1 050491 S hock absorber
7
8
6
1
2
98/9947-F FIRE DEVICE BASEPLATE ASSEMBLY
Item No. Quantity Part No. Description Finish
1 4 090038 Rubber bumper (Pkg of 4)
2 1 090039 Latch return spring (Pkg of 10)
3 1 050491 Shock absorber
4
5
3
1
Page 10 of 20
3
1
2
PM989947_B
98/9947 DEVICE CENTER CASE ASSEMBLY
Item No. Quantity Part No. Description Finish
1 2 090107 Retaining Ring (Pkg of 10)
2 2 090079 Latch Bolt Pin (Pkg of 10)
3 1 090074 NL Drive Screw (Pkg of 10)
4 1 050565 Center Case Reinforcing Bracket
1
2
3
4
98/9947-F LBR (LESS BOTTOM ROD) FIRE LATCH KIT
Item No. Quantity Part No. Description Finish
1 1 050171 LBR Fire Latch/S trike kit
2 1 050509 LBR Fire Strike Plug
PM989947_B
1
Note: 499F Strike (not shown)
is included with P/N 050171
2
Page 11 of 20

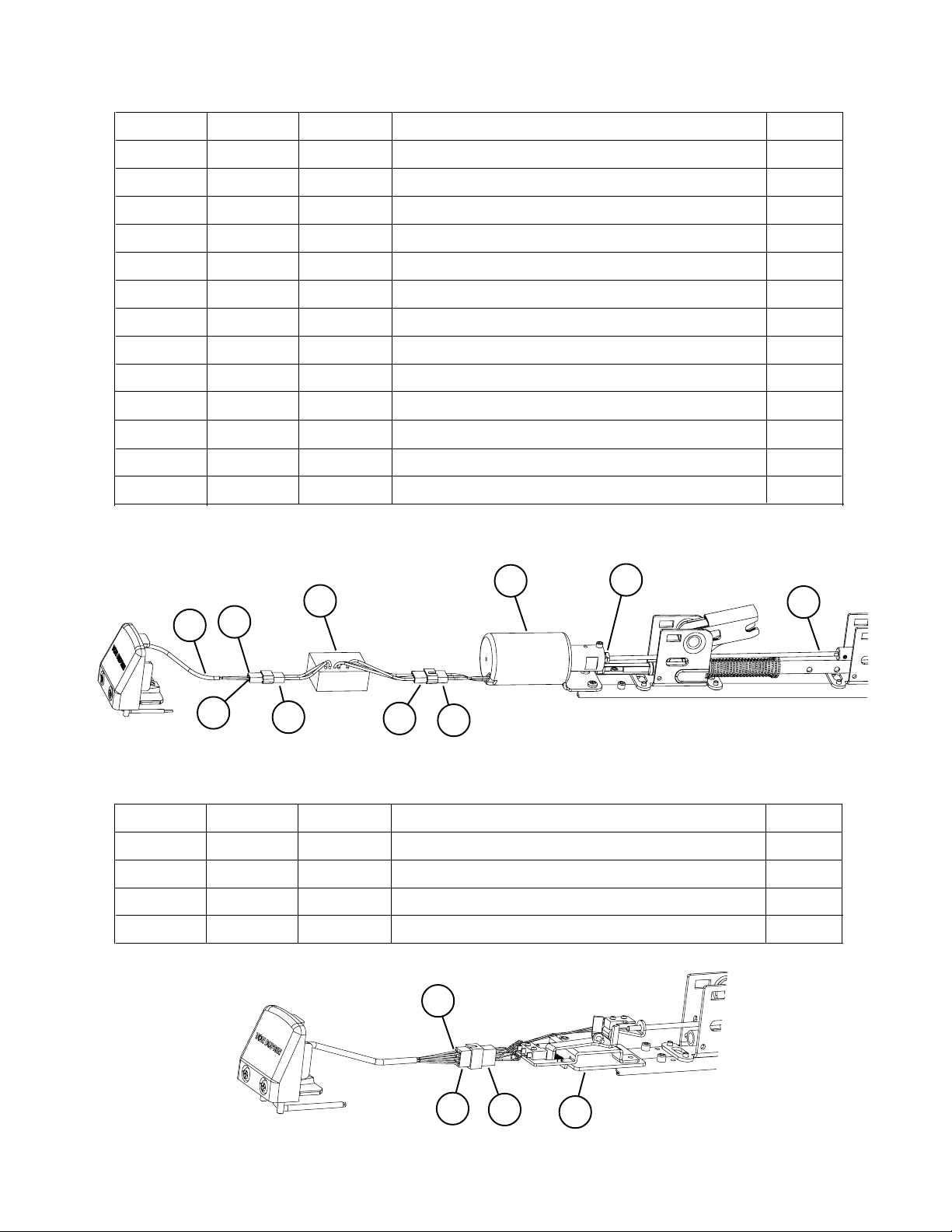

HD-EL9847/HD-EL9947 HEX DOGGING/ELECTRIC LATCH
RETRACTION OPTION - PANIC DEVICE ONLY
Item No. Quantity Part No. Description Finish
1 1 050531 EL Dogging Rod Kit - 3’ Device
1 1 050532 EL Dogging Rod Kit - 4’ Device
2 1 1 10388 EL 6’ Cable and Connector
3 1 050534 EL Potted Circuit Breaker
4 1 050536 HD-EL Solenoid
5 1 050537 HD-EL Solenoid Plunger
6 1 050538 EL Dogging Rod Retainer
7 1 050539 EL Receptacle Connector - 2 Position
8 2 050540 EL Female T erminal
9 1 050541 HD-EL Dog Screw
10 1 050542 HD-EL Solenoid Bracket
11 1 050543 HD-EL Dogging Spring
12 1 990599 EL Plug Connector - 2 Position
13 1 990857 EL Receptacle Connector - 3 Position
14 1 990858 EL Plug Connector - 3 Position
* 1 050384 HD-EL Conversion Kit - 3'
* 1 050385 HD-EL Conversion Kit - 4'
*Kit includes items 1-1 1 plus new control link, retaining ring, and baseplate screws.
9
4
3
2
7
8
12
13
14
10
6
5
11
1
Page 12 of 20
PM989947_B
EL9847/EL9947 SERIES ELECTRIC LATCH RETRACTION OPTION
Item No. Quantity Part No. Description Finish
1 1 050531 EL Dogging Rod Kit - 3’ device
1 1 050532 EL Dogging Rod Kit - 4’ device
2 1 1 10388 EL 6 ’ Cable and Connector
3 1 050534 EL Potted Circuit Breaker
4 1 050535 EL Solenoid Assembly
5 1 050538 EL Dogging Rod Retainer
6 1 050539 EL Receptacle Connector
7 2 050540 EL Female T erminal
8 1 990599 EL Plug Connector - 2 Position
9 1 990857 EL Receptacle Connector - 3 Position
10 1 990858 EL Plug Connector - 3 Position
* 1 050070 EL Conversion Kit - 3’
* 1 050078 EL Conversion Kit - 4’
*Kit includes items 1-7 plus new control link pin, retaining ring, and baseplate screws.
4
3
6
2
7
8
9
10
5
SS9847/SS9947 SERIES (SIGNAL SWITCH) OPTION
Item No. Quantity Part No. Description Finish
1 1 050544 SS Cable
2 1 050545 SS Housing
3 1 990601 SS Plug Connector - 6 Position
4 1 990602 SS Receptacle Connector - 6 Position
1
1
PM989947_B
3
4
2
Page 13 of 20
98/9947 SERIES LX (LATCH BOLT MONITOR) &
RX (REQUEST TO EXIT) OPTIONS
1
7
8
LX Switch
Wire Colors
Violet, Gray, White
(for Low Current
Violet, Gray, Black)
RX Switch
2
Wire Colors
Red, Y ellow, Blue
(for Low Current
Green, Y ellow, Blue)
7
Page 14 of 20
PM989947_B
98/9947 SERIES LX (LATCH BOLT MONITOR) &
RX (REQUEST TO EXIT) OPTIONS
Item No. Quantity Part No. Description Finish
1 1 050254 LX Switch Kit 3’ Device
1 1 050255 LX Switch Kit 4’ Device
1 1 050247 LX-EL Switch Kit
1 1 050283 LX-LC (Low Current) Switch Kit 3’ Device
1 1 050285 LX-LC (Low Current) Switch Kit 4’ Device
1 1 050287 LX-LC-EL (Low Current) Switch Kit
2 1 050251 RX Switch Kit
2 1 050281 RX-LC (Low Current) Switch Kit
3 1 050256 LX-RX Switch Kit 3’ Device
3 1 050257 LX-RX Switch Kit 4’ Device
3 1 050259 LX-RX-EL Switch Kit
3 1 050289 LX-RX-LC (Low Current) Sw. Kit 3’ Device
3 1 050291 LX-RX-LC (Low Current) Sw. Kit 4’ Device
3 1 050293 LX-RX-LC-EL (Low Current) Switch Kit
2 & 4 1 050270 RX-2 Switch Kit
4 1 050271 RX-AUX Switch Kit
5 1 964558 8-32 x 5/16” PPHMS
6 1 964019 #8 Washer
7 1 090099 Pine Tree Clip (Pkg of 10)
8 1 971091 LX Actuator
LX-RX Switch
3
7
Wire Colors
Red, Y ellow, Blue
(for Low Current
Green, Y ellow, Blue)
Wire Colors
Violet, Gray, White
(for Low Current
Violet, Gray, Black)
4
6
5
Wire Colors
Red, Y ellow, Blue
(for Low Current
Green, Y ellow, Blue)
RX-AUX Switch
PM989947_B
Page 15 of 20
CX98/9947 SERIES CHEXIT AND CX-RCM OPTION
Item No. Quantity Part No. Description Finish
1 1 050228 Chexit PCB Kit - 15 Second Release
1* 1 050700 Chexit PCB Kit - 30 Second Release
1 1 050701 Chexit PCB Kit - 0 Second Release
1 1 050702 Chexit PCB Kit - Boca 15 Second Release
1* 1 050703 Chexit PCB Kit - Boca 30 Second Release
2 1 050533 CX Solenoid and Plunger
3 1 1 131 1 1 Faceplate and Adapter X
4 4 963898 6-32 x 3/8” OPHMS Faceplate Screws X
5 1 991338 RCM 3 Wire RX Cable
6 1 991339 RCM 2 Wire Solenoid Cable
7 1 112018 Chexit Wiring Assembly
8 1 991336 CX-RCM Cable Assy - 5 Wire
9 1 090036 Cover Plate Anti-rattle S pring (Pkg of 10)
10 1 970513 LED Cover Mask - Chexit
11 1 970519 LED Cover - Chexit
12 1 113781 Sign 15 Second - Chexit
13 1 113782 Sign 30 Second - Chexit
*Over 15 seconds delay requires a letter of approval from authority having local jurisdiction.
Fax letter in with sales order. The order cannot be processed without the letter.
1
2
**RCM Kit Less Module - CX98 - 050376
**RCM Kit Less Module - CX99 - 050375
**Includes items 3-11
5
6
4
3
7
8
9
10
11
CX Cover Plate Kit
33A Series - 050669
35A Series - 050670
12
PUSH UNTIL ALARM SOUNDS
DOOR CAN BE OPENED IN 15 SECONDS
13
PUSH UNTIL ALARM SOUNDS
DOOR CAN BE OPENED IN 30 SECONDS
Page 16 of 20
PM989947_B
CX-CD/SD98/9947 SERIES OPTION
Item No. Quantity Part No. Description Finish
1* 1 050552 SD98/9947 RHR Center Case Kit Less Cvr
1* 1 050553 SD98/9947 LHR Center Case Kit Less Cvr
2 1 050562 SD98/9947 RHR Center Case Cover Kit X
2 1 050563 SD98/9947 LHR Center Case Cover Kit X
3 1 112409 CD-CX/SD Cylinder Dog Housing
4 1 112455 CX-CD/SD Cylinder Dog Bracket Kit RHR
4 1 112456 CX-CD/SD Cylinder Dog Bracket Kit LHR
5 4 900892 Center Case Cover Screws X
6 2 PkgServ .1018 8-32 x 1/4” UFPHMS (Pkg of 20)
7 1 964240 Bracket Set Screw
*Parts shown are for the CX-CD/SD option. For other available center case parts refer
to page 1 1.
4
2
5
6
3
7
1
RHR Shown
LHR Opposite
PM989947_B
Page 17 of 20
98/9947 ALK EXIT ALARM KIT
Item No. Quantity Part No. Description Finish
1 1 111795 ALK PCB Assembly
2 1 050525 Cylinder Collar X
3 1 969122 ALK Alarm Device Sign
4 1 969349 ALK Arming Label
5 1 969350 ALK Disarming Label
6 1 969354 Retainer Nut
7 1 970594 ALK Cylinder Spacer
8 1 090036 Cover Plate Anti-rattle spring (Pkg of 10)
9 1 971556 ALK Switch Actuator
10 1 971557 ALK Cylinder Bracket
11 1 990637 ALK Battery
12 1 050569 99 Series ALK Cover Plate Kit X
12 1 050570 98 Series ALK Cover Plate Kit X
X in “Finish” column designates finished items; finish must be specified when ordering.
EMERGENCY EXIT ONLY
ALARM WILL SOUND
12
2
8
10
7
1
11
3
A
M
R
A
S
I
D
R
M
Page 18 of 20
9
5
6
4
PM989947_B
98/9947 SERIES SERVICE REPLACEMENT ITEMS
Item No. Quantity Part No. Description Finish
1 1 050153 Old Style Hex Dogging Replacement Kit
2 1 963909 #22 Hitch Pin - Hex/CD Dogging Old S tyle
3 1 968112 Old Style Hex Dog Shaft
4 1 969941 Old Style Dogging Hook
5 1 968116 Old Style CD Actuator Arm
6 1 900905 Old Style End Cap and Bracket Assembly X
7 1 970548 Old Style Cover Plate Stop - End Cap
8 1 900901 Old Style End Cap Screw Package X
9 1 971082 Old Style 98/99 End Cap - Stainless S teel X
9 1 971083 Old Style 98/99 End Cap - Brass X
9 1 971084 Old Style 98/99 End Cap - Bronze X
9 1 971085 Old Style 98/99 End Cap - Aluminum X
X in “Finish” column designates finished items; finish must be specified when ordering.
OLD STYLE DOGGING PARTS
(FOR DEVICES SHIPPED BEFORE AUGUST 1997)
2
1
OLD STYLE END CAP PARTS
(FOR DEVICES SHIPPED
BEFORE JANUARY 2002)
Note: Newer style end cap kit
shown on pages 4-5. Newer style end
cap kit can be used on devices
manufactured before January 2002,
but mechanism case and cover plate
on hinge stile must have a square cut
and a clean edge.
3
4
5
9
8
7
6
PM989947_B
Page 19 of 20
98/9947 SERIES SERVICE REPLACEMENT ITEMS
Item No. Quantity Part No. Description Finish
1 1 050218 EL Solenoid Replacement Kit
X in “Finish” column designates finished items; finish must be specified when ordering.
EL SOLENOID REPLACEMENT KIT
(FOR DEVICES SHIPPED BEFORE JANUARY 1987)
Note: This kit replaces the old style EL solenoid parts with the new style.
1
Page 20 of 20
PM989947_B
Loading...
