Installation Instructions / Warranty
Downpour
27474XX1
27476XX1
Raindance
27493XX1
27479XX0
15” 27413XX1
9” 27422XX1
Axor Citterio M
27412XX1
27476XX127474XX1 27479XX0
27413XX1 27422XX1
27493XX1 27412XX1
Technical Data – 27474XX1/27476XX1/27493XX1
Max. flow rate 2.5 gpm
Note to users in Massachusetts: The maximum output temperature of the shower valve can be no higher
than 112° F.
Installation Considerations
For best results, Hansgrohe recommends that this unit be installed by a licensed, professional
•
plumber.
Please read over these instructions thoroughly before beginning installation. Make sure that
•
you have all tools and supplies needed to complete the installation.
2
Installation – 27479XX0
The extension pipe requires a 1/2" NPT male nipple,
extending 5/8" outside the finished ceiling surface.
Seal the ceiling around the
nipple with waterproof sealant.
Failure to seal the ceiling can
lead to possible water damage.
Wrap the threads on the ceiling nipple with Teflon tape.
Hold the escutcheon against the ceiling.
Screw the extension pipe onto the nipple.
3
Installation – 27413XX1/27422XX1/27412XX1
The showerarm requires a 1/2" NPT male nipple,
extending 5/8" from the surface of the finished wall.
Seal the wall around the nipple
with waterproof sealant.
Failure to seal the wall can lead
to possible water damage.
Wrap the threads on the nipple with Teflon tape.
Screw the showerarm onto the nipple. Push the
escutcheon against the wall
4
Installation – 27474XX1/27476XX1/
27493XX1

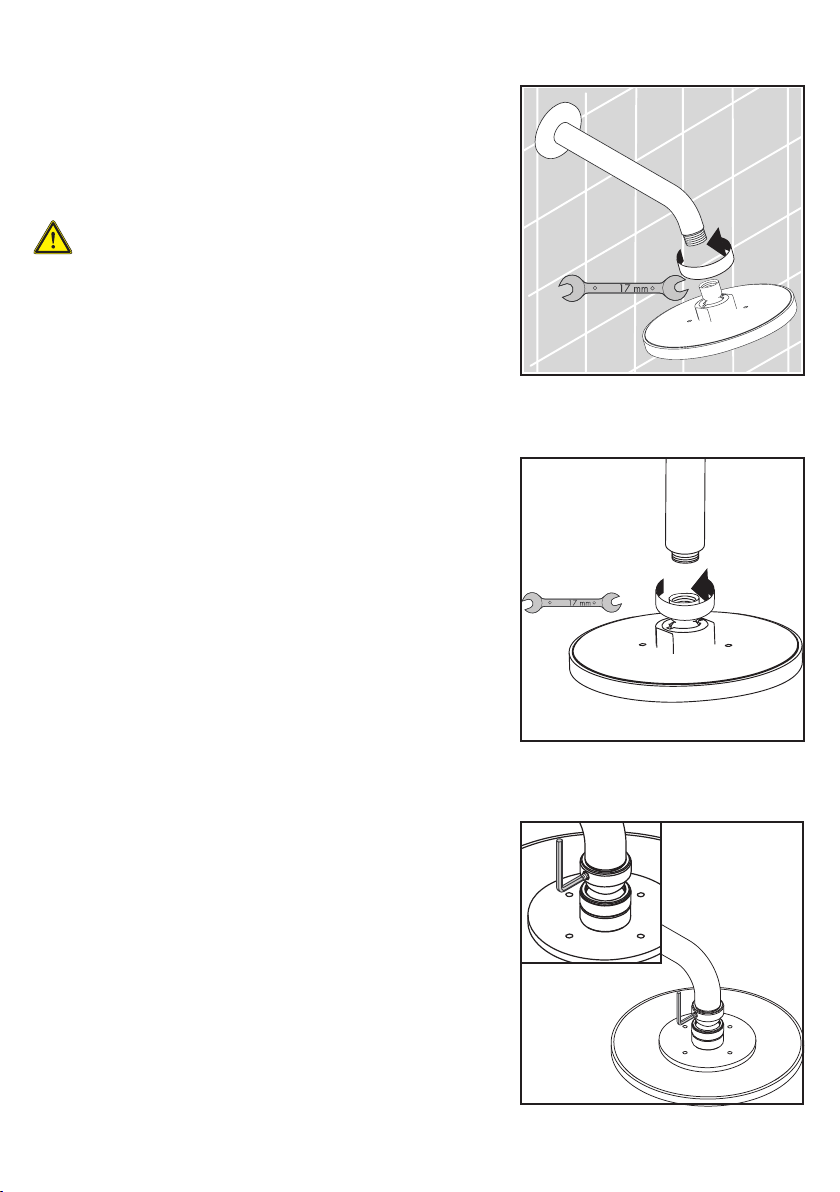

Screw the showerhead to the showerarm or extension
pipe.
Tighten with a wrench.
Do not overtighten, or damage may result.
Tighten the safety screw using a 2 mm Allen wrench.
Turn on the water and check the connection for leaks.
5
Scale Removal
The Raindance and Downpour showerheads use the Quick
Clean™ cleaning system.
Turn the water on lightly and rub the spray channels with a
finger or a sponge to dislodge any scale deposits.
To remove scale buildup on the spray face, pour about 3/4"
of a commercial scale remover, such as Lime-Away™ or CLR™,
into a shallow dish.
Always follow the label instructions on the
scale remover.
Soak the spray face in the solution.
Rinse the showerhead with clear water.
Install the showerhead.
Flush for at least one minute.
6

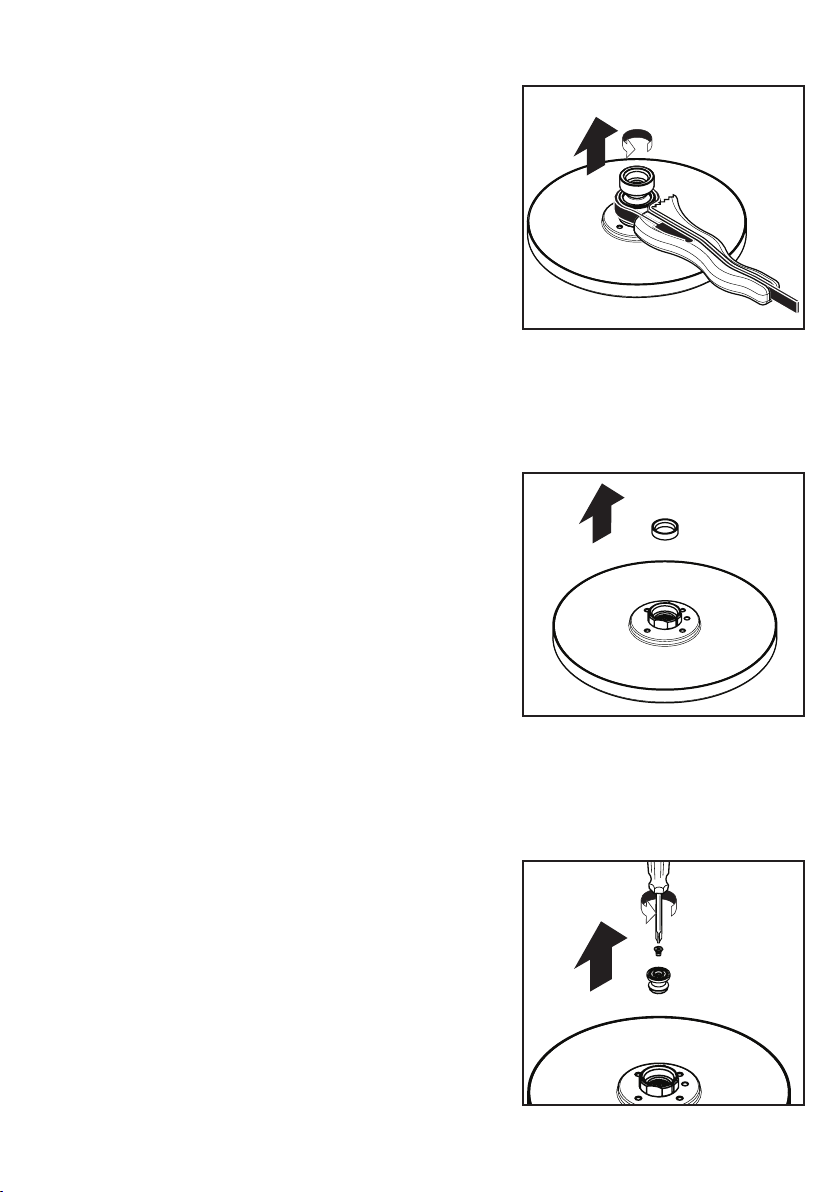

Clean the air nozzle
Remove the pivot ball assembly using a strap wrench*.
*available at hardware stores
Remove the retaining ring.
Unscrew the air nozzle screw. Remove the air nozzle
7
Soak the air nozzle in a commercial scale remover, such
as LimeAway™ or CLR™.
Always follow the label instructions on the
scale remover.
Rinse the nozzle with clear water.
Install the air nozzle. Tighten the screw.
8
Install the retaining ring.
Install the pivot ball assembly. Tighten using a strap
wrench.
9
Cleaning Recommendation for Hansgrohe Products
Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the
market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when
cleaning.
Cleaning Materials for Faucets and Showers
Acids are a necessary ingredient of cleaning materials for removing lime, however please pay attention to the following points
when cleaning faucets and showers:
Only use cleaning materials which are explicitly intended for this type of application.
•
Never use cleaning materials which contain hydrochloric, formic, phosphoric, or acetic acid, as they cause considerable
•
damage.
Never mix one cleaning material with another.
•
Never use cleaning materials or appliances with an abrasive effect, such as unsuitable cleaning powders, sponge pads,
•
or micro fiber cloths.
Cleaning Instructions for Faucets and Showers
Please follow the cleaning material manufacturer’s instructions. In addition, pay attention to the following points:
Clean the faucets and showers as and when required
•
Use the amount of cleaning product and the amount of time recommended by the manufacturer. Do not leave the cleaner
•
on the fixture longer than necessary.
Regular cleaning can prevent calcification.
•
When using spray cleaners, spray first onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can
•
enter openings and gaps and cause damage.
After cleaning, rinse thoroughly with clean water to remove any cleaner residue.
•
Important
Residues of liquid soaps, shampoos, and shower foams can also cause damage, so rinse with clean water after using.
Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage.
Components with damaged surfaces must be replaced or injury could result.
Damage caused by improper treatment is not covered under the warranty.
Limited Lifetime Consumer Warranty
This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This
warranty is limited to Hansgrohe products which are purchased by a consumer in the United States after March 1, 1996, and
installed in either the United States or Canada.
WHO IS COVERED BY THE WARRANTY
This warranty extends to the original consumer purchaser only. This warranty is non-transferable.
WHAT IS COVERED BY THE WARRANTY
This warranty covers only your Hansgrohe manufactured product. Hansgrohe warrants this product against defects in material
or workmanship as follows: Hansgrohe will repair at no charge for parts only or, at its option, replace any product or part of
the product that proves defective because of improper workmanship and/or material, under normal installation, use, service
and maintenance. If Hansgrohe is unable to provide a replacement and repair is not practical or cannot be timely made,
Hansgrohe may elect to refund the purchase price in exchange for the return of the product.
LENGTH OF WARRANTY
Replacement or repaired parts of products will be covered for the term of this warranty as stated in the following two sentences. If you are a consumer who purchased the product for use primarily for personal, family, or household purposes, this warranty extends for as long as you own the product and the home in which the product is originally installed. If you purchased
the product for use primarily for any other purpose, including, without limitation, a commercial purpose, this warranty extends
only (i) for 1 year, with respect to Hansgrohe and Commercial products, and (ii) for 5 years, with respect to AXOR products.
10
THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR:
A. Conditions, malfunctions or damage not resulting from defects in material or workmanship.
B. Conditions, malfunctions or damage resulting from (1) normal wear and tear, improper installation, improper mainte
nance, misuse, abuse, negligence, accident or alteration, or (2) the use of abrasive or caustic cleaning agents or “norinse” cleaning products, or the use of the product in any manner contrary to the product instructions. (3) Conditions in the
home such as excessive water pressure or corrosion.
C. Labor or other expenses for the disconnection, deinstallation, or return of the product for warranty service, or for installa
tion or reinstallation of the product (including but not limited to proper packaging and shipping costs), or for installation or
reinstallation of the product.
D. Accessories, connected materials and products, or related products not manufactured by Hansgrohe.
TO OBTAIN WARRANTY PARTS OR INFORMATION
Contact your Hansgrohe retailer, or contact Technical Service at:
Hansgrohe Inc.
1492 Bluegrass Lakes Parkway
Alpharetta GA 30004
Toll-free (800) 334-0455.
In requesting warranty service, you will need to provide
1. The sales receipt or other evidence of the date and place of purchase.
2. A description of the problem.
3. Delivery of the product or the defective part, postage prepaid and carefully packed and insured, to Hansgrohe Inc. 1492
Bluegrass Lakes Parkway, Alpharetta, Georgia 30004, Attention: Technical Service, if required by Hansgrohe.
When warranty service is completed, any repaired or replacement product or part will be returned to you postage prepaid.
EXCLUSIONS AND LIMITATIONS
REPAIR OR REPLACEMENT (OR, IN LIMITED CIRCUMSTANCES, REFUND OF THE PURCHASE PRICE) AS PROVIDED UNDER
THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. HANSGROHE NEITHER ASSUMES NOR AUTHORIZES
ANY PERSON TO CREATE FOR IT ANY OBLIGATION OR LIABILITY IN CONNECTION WITH THIS PRODUCT.
HANSGROHE SHALL NOT BE LIABLE TO PURCHASER OR ANY PERSON FOR ANY INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES, ARISING OUT OF BREACH OF THIS WARRANTY OR ANY IMPLIED WARRANTY (INCLUDING
MERCHANTABILITY).
Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from State
to State. You may be required by law to give us a reasonable opportunity to correct or cure any failure to comply before you
can bring any action in court against us under the Magnuson-Moss Warranty Act.
PRODUCT INSTRUCTIONS AND QUESTIONS
Upon purchase or prior to installation, please carefully inspect your Hansgrohe product for any damage or visible defect.
Prior to installing, always carefully study the enclosed instructions on the proper installation and the care and maintenance of
the product. If you have questions at any time about the use, installation, or performance of your Hansgrohe product, or this
warranty, please call or write to us or call us toll-free at 800 334 0455.
-
-
11
