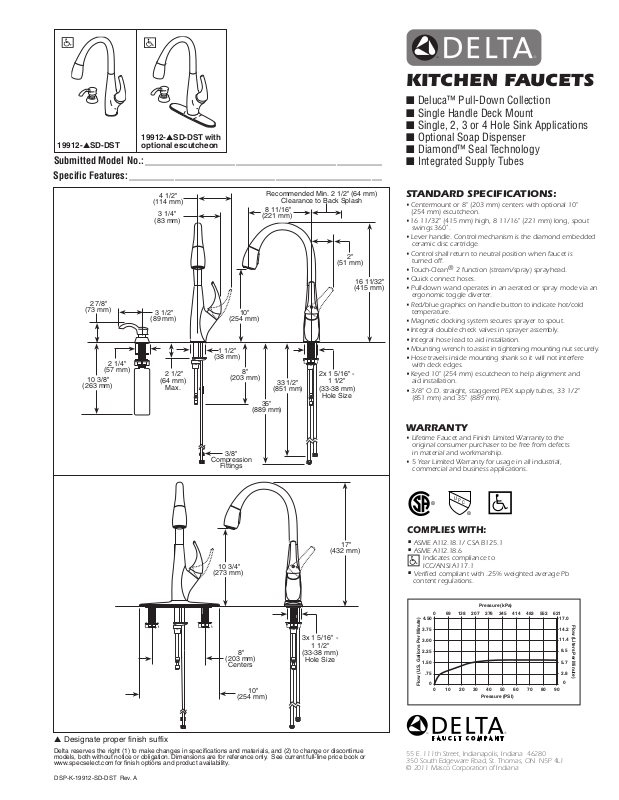

Factory Direct Hardware 19912-SD-DST User Manual

.75

1.50

2.25

3.00

3.75

0102030405060708090

Pressure (PSI)

Flow (U.S. Gallons Per Minute)

4.50

069 138 207 276 345 414 483 552 621

2.8

5.7

8.5

11.4

14.2

17.0

Pressure (kPa)

Flow (Liters Per Minute)

19912-▲SD-DST with

19912-▲SD-DST

optional escutcheon

Submitted Model No.: _______________________________________________ Specific Features: __________________________________________________

Recommended Min. 2 1/2" (64 mm)

Clearance to Back Splash

8 11/16"

(221 mm)

10"

33 1/2"

(851 mm)

35"

(889 mm)

(51 mm)

2x 1 5/16" -

1 1/2"

(33-38 mm)

Hole Size

16 11/32"

(415 mm)

2 7/8"

(73 mm)

(57 mm)

10 3/8"

(263 mm)

2 1/4"

4 1/2"

(114 mm)

3 1/4"

(83 mm)

3 1/2"

(89 mm)

2 1/2"

(64 mm)

Max.

(254 mm)

1 1/2"

(38 mm)

(203 mm)

KITCHEN FAUCETS

■ Deluca™ Pull-Down Collection

■ Single Handle Deck Mount

■ Single, 2, 3 or 4 Hole Sink Applications

■ Optional Soap Dispenser

■ Diamond™ Seal Technology

■ Integrated Supply Tubes

STANDARD SPECIFICATIONS:

•

Centermount or 8" (203 mm) centers with optional 10"

(254 mm) escutcheon.

•

16 11/32" (415 mm) high, 8 11/16" (221 mm) long, spout

swings 360˚.

•

Lever handle. Control mechanism is the diamond embedded

ceramic disc cartridge.

•

Control shall return to neutral position when faucet is

turned off.

•

Touch-Clean® 2 function (stream/spray) sprayhead.

•

Quick connect hoses.

•

Pull-down wand operates in an aerated or spray mode via an

ergonomic toggle diverter.

•

Red/blue graphics on handle button to indicate hot/cold

temperature.

•

Magnetic docking system secures sprayer to spout.

• Integral double check valves in sprayer assembly.

• Integral hose lead to aid installation.

• Mounting wrench to assist in tightening mounting nut securely.

• Hose travels inside mounting shank so it will not interfere with deck edges.

• Keyed 10" (254 mm) escutcheon to help alignment and aid installation.

• 3/8" O.D. straight, staggered PEX supply tubes, 33 1/2" (851 mm) and 35" (889 mm).

▲ Designate proper finish suffix

Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or www.specselect.com for finish options and product availability.

DSP-K-19912-SD-DST Rev. A

3/8"

Compression

Fittings

10 3/4"

(273 mm)

(203 mm)

Centers

(254 mm)

10"

(432 mm)

3x 1 5/16" -

1 1/2"

(33-38 mm)

Hole Size

17"

WARRANTy

•

Lifetime Faucet and Finish Limited Warranty to the original consumer purchaser to be free from defects in material and workmanship.

•

5 Year Limited Warranty for usage in all industrial, commercial and business applications.

COMPLIES WITH:

•

ASME A112.18.1 / CSA B125.1

•

ASME A112.18.6

Indicates compliance to ICC/ANSI A117.1

•

Verified compliant with .25% weighted average Pb

content regulations.
