Installation Instructions / Warranty
Massaud
18450001
2
Axor Massaud Free-Standing Tub Filler
18450001
Product Specification
Max. incoming water pressure 145 psi
Recommended water pressure 14.5 - 72 psi
Max. incoming hot water temp. 176oF*
Recommended incoming hot water temp 120oF - 140oF*
Flow rate @ 44 psi 5.8 gpm
Max. flow rate of handshower 2.5 gpm
Requires rough valve 10452181 (not included)
Protection against back siphonage provided by check valve
*Know and follow all applicable local plumbing codes when setting the temperature on the water heater. In Massachusetts,
the water heater may be set no higher than 112oF.
**
**There must be at least 3/8” clearance between the
top of the tub and the bottom of the handle. If there is
less than 3/8” clearance, order extension 97686000
from your dealer.
Installation Considerations
Rough valve 10452181 must be installed. The finished floor surface must be complete and made
watertight prior to installation of this tub filler.
This unit is not anti-scald. If required by local plumbing code, install remote pressure balance valve 13418181 (not included) to the hot and cold water supplies before they enter the
10452181 rough valve.
Suggested Tools for Installation (not included)
Cutting tool
8 mm Allen wrench
Level
Waterproof sealant
3
4
Installation
Turn the water off at the main before beginning.
Cut the plaster shield on the rough valve so that it is 3/8”
above the surface of the finished floor.
Remove the flush insert. Do not discard the screws.
Position the tub filler over the rough. Turn it so that the
spout faces in the correct direction.
Make sure that the unit is plumb. Install the three screws
included with the tub filler and the three screws reserved
from the flush insert. Tighten the screws with an 8 mm
Allen wrench.

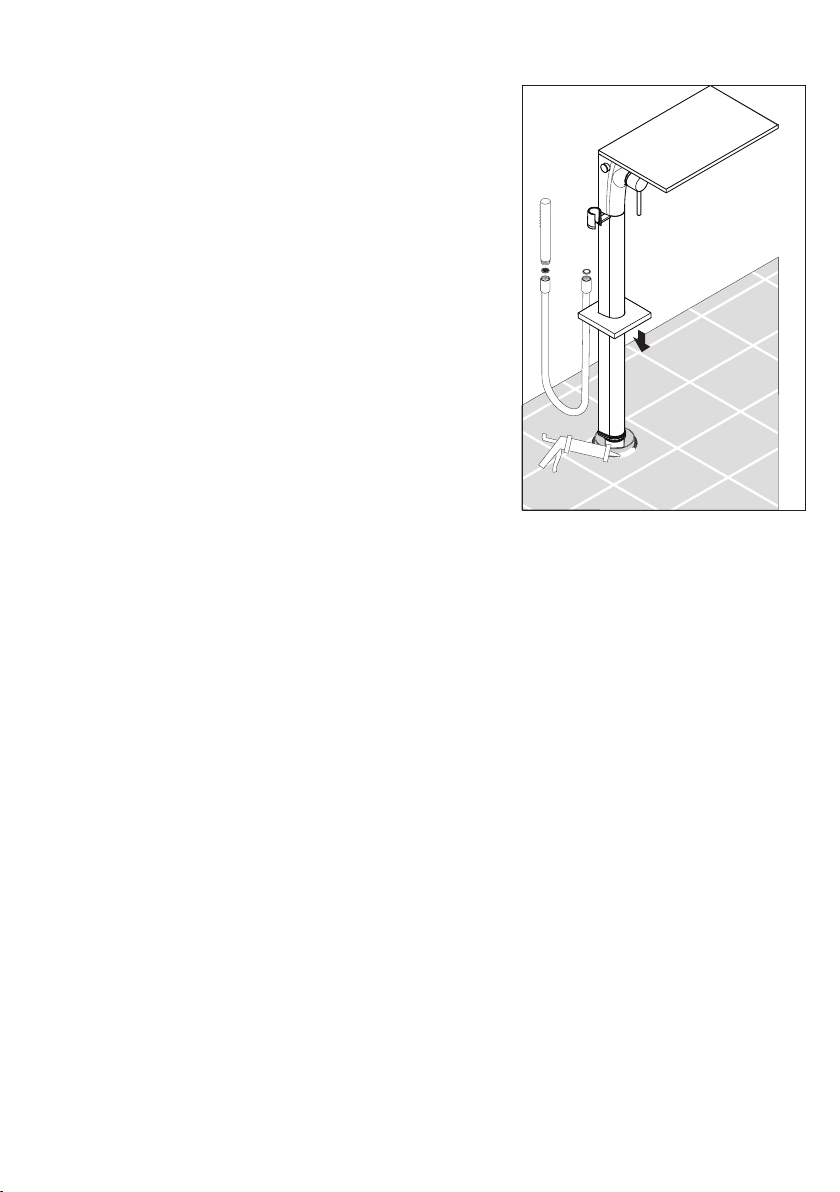

Seal the floor around the tub filler with waterproof sealant.
Lower the escutcheon to the floor.
Place the black rubber hose washer in one end of the hose.
Connect this end of the hose to the outlet port on the side
of the tub filler. Place the screen washer in the other end of
the hose. Connect this end of the hose to the handshower.
Place the handshower in the holder.
Set the high temperature limit stop, if required by local
plumbing code (see page 6).
5
6

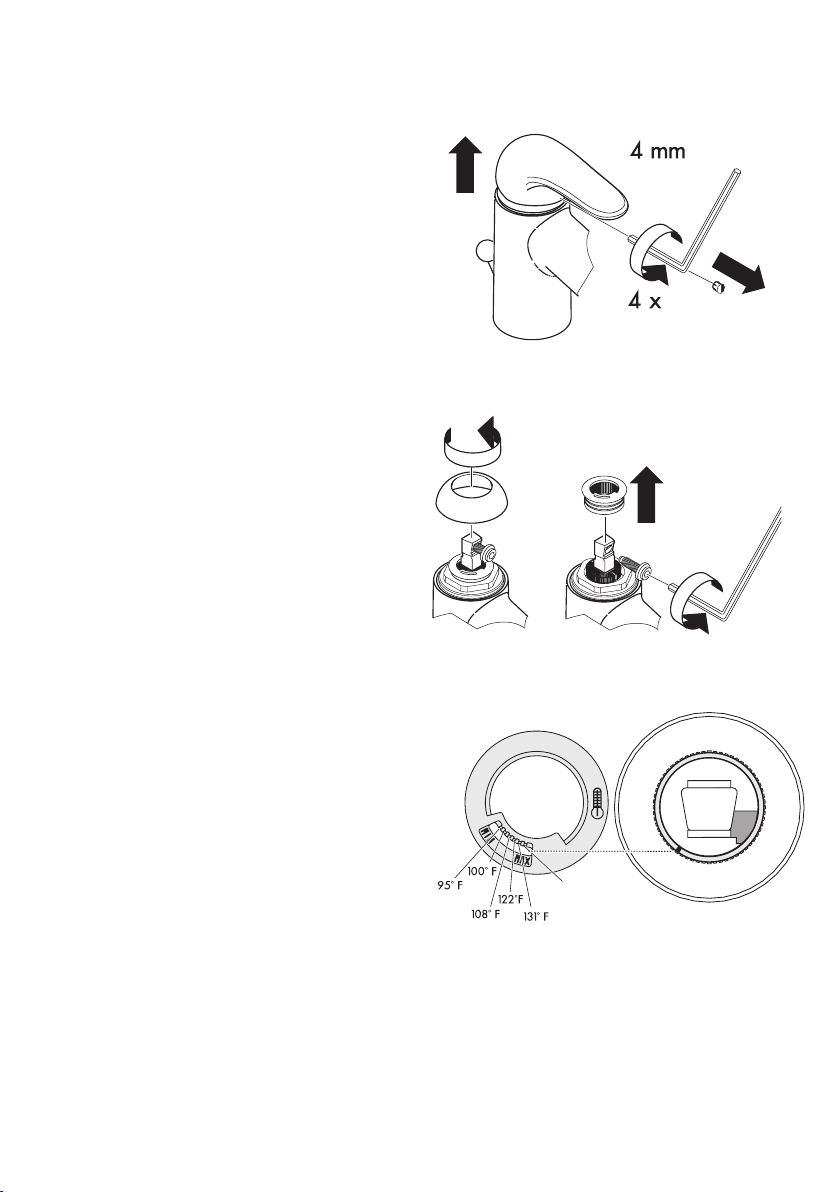

Re-set the High Temperature Limit Stop (optional)
Close the drain OR cover it with a wash cloth.
Use the included 4 mm Allen wrench to push the
screw cover into the handle. Retrieve the screw
cover when the handle is removed.
Use the 4mm Allen wrench to loosen the handle
screw 4 complete revolutions. Remove the
handle and put it in a safe place.
Remove the decorative nut cover and put it in a
safe place.
Remove the handle screw from the stem of the
cartridge. Remove the high temperature limit
stop.
Replace the high temperature limit stop so that
the pin on the cartridge is in the desired slot on
the limit stop. Note: the temperatures given in
the diagram assume a water heater temperature
of 140o F, a cold water temperature of 50o F
and a water pressure of 45 PSI.
Replace the decorative nut cover. Replace the handle screw. Use the Allen wrench to turn the
screw 4 revolutions.
Replace the handle. Finish tightening the handle screw. Turn on the water and test the faucet.
User Instructions
Pivot the lever upwards to turn the water on. Pivot it to
the right for cooler water, to the left for warmer water.
Pivot the lever downwards to turn the water off.
Pull out on the diverter knob to divert the water to the
handshower. When the water is turned off, the diverter
will reset to the spout position.

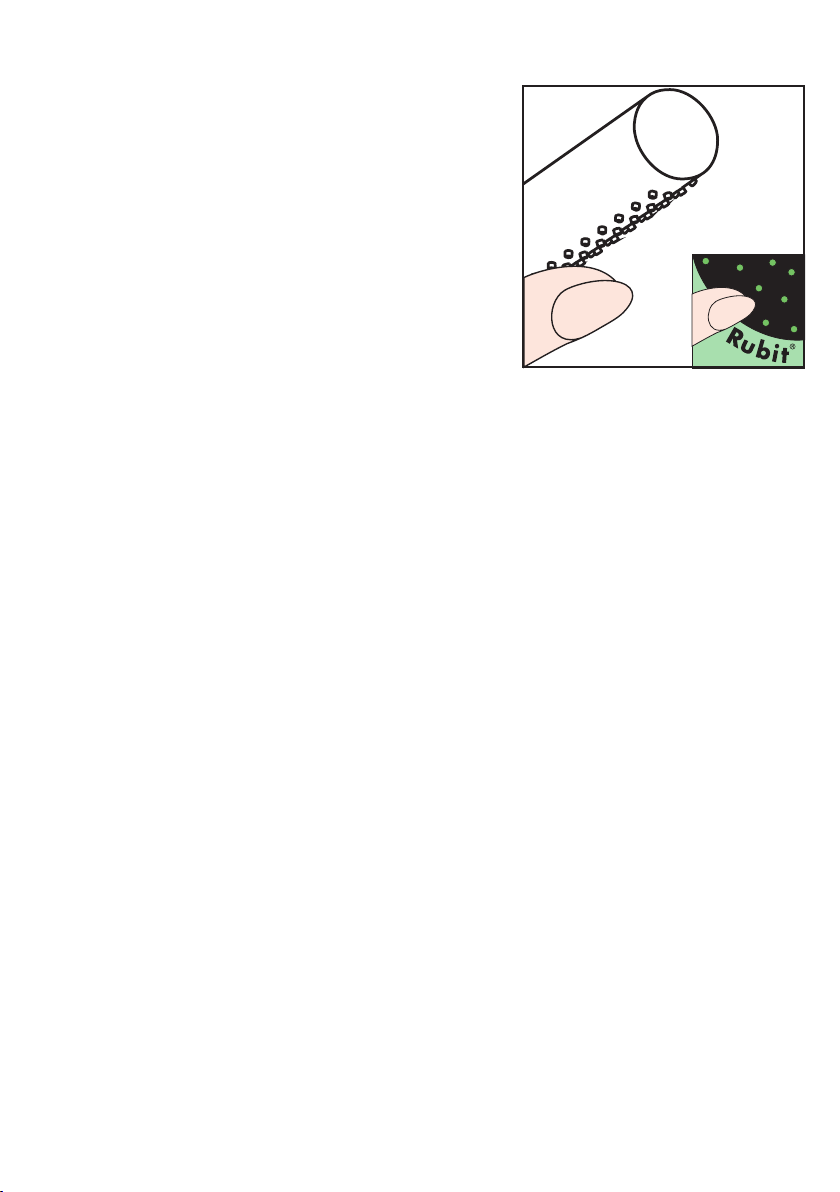

The handshower incorporates the RubitTM cleaning system.
If scale deposits are noticed in the spray channels, rub
across the channels with a finger or a sponge to dislodge
them.
Troubleshooting
Problem Possible Cause Solution
Insufficient water Screen washer dirty Remove and clean screen washer
Check valve faulty Replace check valve
Handle hard to move
Faucet drips
Water not hot enough High temperature limit stop set
Cartridge dirty or faulty Replace cartridge
Cartridge dirty or faulty Replace cartridge
Reset high temperature limit stop
incorrectly
7
8
Replacement Parts
12
11
1 handle 18493000
1.1 screw cover 96762000
2 flange 96763000
3 nut 97209000
4 cartridge 92730000
5 spray former 97447000
6 diverter 94077000
7 diverter knob 98705000
5
8 check valve 94074000
9 hose 28282000
10 screen washer 94246000
11 handshower 28531001
12 spout 98704000
13 set of 3 screws 97670000
6
10
7
9
13
8
4
3
1.1
2
1
44 x 2.5
29 x 3
Cleaning Recommendation for Hansgrohe Products
Modern sanitary faucetry and shower fixtures consist of very different materials to comply with the needs of the market with
regard to design and functionality.
To avoid damage and returns, it is necessary to consider certain points when cleaning:
Cleaning materials for faucets and shower products:
Acids are necessary ingredients of cleaning materials for removing lime. However, please pay attention to the following points
when cleaning faucets and shower products:
• Use only cleaning materials intended for the application.
• Never use cleaning materials which contain hydrochloric, formic, or phosphoric, or acetic acid, as these can cause
considerable damage.
• Do not mix one cleaning material with another.
• Do not use abrasives, such as cleaning powders, sponge pads, or microfiber cloths.
Cleaning Instructions for Faucets and Shower Products:
Please follow the cleaning material manufacturer’s instructions. In addition, please note the following:
• Clean your faucets and shower products as and when required.
• Follow the label instructions. Do not allow any cleaner to remain on the product for longer than necessary.
• Regular cleaning will prevent scale buildup and water spotting.
• When using spray cleaners, spray first onto a sponge or cloth. Do not spray directly onto the faucet or shower product
as drops could enter openings or gaps and cause damage.
• After cleaning, rinse thoroughly with clear water to remove any cleaner residue.
Important
Residues of liquid soaps, shampoos, and shower foams can also cause damage, so rinse with clean water after using.
Please note:
• If the surface is already damaged, the effect of cleaning materials will cause further damage.
• Components with damaged surfaces must be replaced, otherwise, this could cause injury.
• Damage caused by improper treatment will not be covered by our warranty.
9
10
Limited Lifetime Consumer Warranty
This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This
warranty is limited to Hansgrohe products which are purchased by a consumer in the United States after March 1, 1996, and
installed in either the United States or Canada.
WHO IS COVERED BY THE WARRANTY
This warranty extends to the original consumer purchaser only. This warranty is non-transferable.
WHAT IS COVERED BY THE WARRANTY
This warranty covers only your Hansgrohe manufactured product. Hansgrohe warrants this product against defects in material
or workmanship as follows: Hansgrohe will repair at no charge for parts only or, at its option, replace any product or part of
the product that proves defective because of improper workmanship and/or material, under normal installation, use, service
and maintenance. If Hansgrohe is unable to provide a replacement and repair is not practical or cannot be timely made,
Hansgrohe may elect to refund the purchase price in exchange for the return of the product.
LENGTH OF WARRANTY
Replacement or repaired parts of products will be covered for the term of this warranty as stated in the following two
sentences. If you are a consumer who purchased the product for use primarily for personal, family, or household purposes,
this warranty extends for as long as you own the product and the home in which the product is originally installed. If you
purchased the product for use primarily for any other purpose, including, without limitation, a commercial purpose, this
warranty extends only (i) for 1 year, with respect to Hansgrohe and Commercial products, and (ii) for 5 years, with respect to
AXOR products.
THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR:
A. Conditions, malfunctions or damage not resulting from defects in material or workmanship.
B. Conditions, malfunctions or damage resulting from (1) normal wear and tear, improper installation, improper
maintenance, misuse, abuse, negligence, accident or alteration, or (2) the use of abrasive or caustic cleaning agents or
“no-rinse” cleaning products, or the use of the product in any manner contrary to the product instructions. (3) Conditions
in the home such as excessive water pressure or corrosion.
C. Labor or other expenses for the disconnection, deinstallation, or return of the product for warranty service, or for
installation or reinstallation of the product (including but not limited to proper packaging and shipping costs), or for
installation or reinstallation of the product.
D. Accessories, connected materials and products, or related products not manufactured by Hansgrohe.
TO OBTAIN WARRANTY PARTS OR INFORMATION
Contact your Hansgrohe retailer, or contact Technical Service at:
Hansgrohe Inc.
1492 Bluegrass Lakes Parkway
Alpharetta GA 30004
Toll-free (800) 334-0455.
In requesting warranty service, you will need to provide
1. The sales receipt or other evidence of the date and place of purchase.
2. A description of the problem.
3. Delivery of the product or the defective part, postage prepaid and carefully packed and insured, to Hansgrohe Inc.
1492 Bluegrass Lakes Parkway, Alpharetta, Georgia 30004, Attention: Technical Service, if required by Hansgrohe.
When warranty service is completed, any repaired or replacement product or part will be returned to you postage prepaid.
EXCLUSIONS AND LIMITATIONS
REPAIR OR REPLACEMENT (OR, IN LIMITED CIRCUMSTANCES, REFUND OF THE PURCHASE PRICE) AS PROVIDED UNDER
THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. HANSGROHE NEITHER ASSUMES NOR AUTHORIZES
ANY PERSON TO CREATE FOR IT ANY OBLIGATION OR LIABILITY IN CONNECTION WITH THIS PRODUCT.
HANSGROHE SHALL NOT BE LIABLE TO PURCHASER OR ANY PERSON FOR ANY INCIDENTAL, SPECIAL, OR
CONSEQUENTIAL DAMAGES, ARISING OUT OF BREACH OF THIS WARRANTY OR ANY IMPLIED WARRANTY
(INCLUDING MERCHANTABILITY).
Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from
State to State. You may be required by law to give us a reasonable opportunity to correct or cure any failure to comply before
you can bring any action in court against us under the Magnuson-Moss Warranty Act.
PRODUCT INSTRUCTIONS AND QUESTIONS
Upon purchase or prior to installation, please carefully inspect your Hansgrohe product for any damage or visible defect.
Prior to installing, always carefully study the enclosed instructions on the proper installation and the care and maintenance of
the product. If you have questions at any time about the use, installation, or performance of your Hansgrohe product, or this
warranty, please call or write to us or call us toll-free at 800 334 0455.
11
Hansgrohe, Inc. • 1490 Bluegrass Lakes Parkway • Alpharetta, GA 30004
Tel. 770 360-9880 • Fax 770 360 9887
www.hansgrohe-USA.com
US - Installation Instructions • Part No. 90414321 • Revised 03/2007
