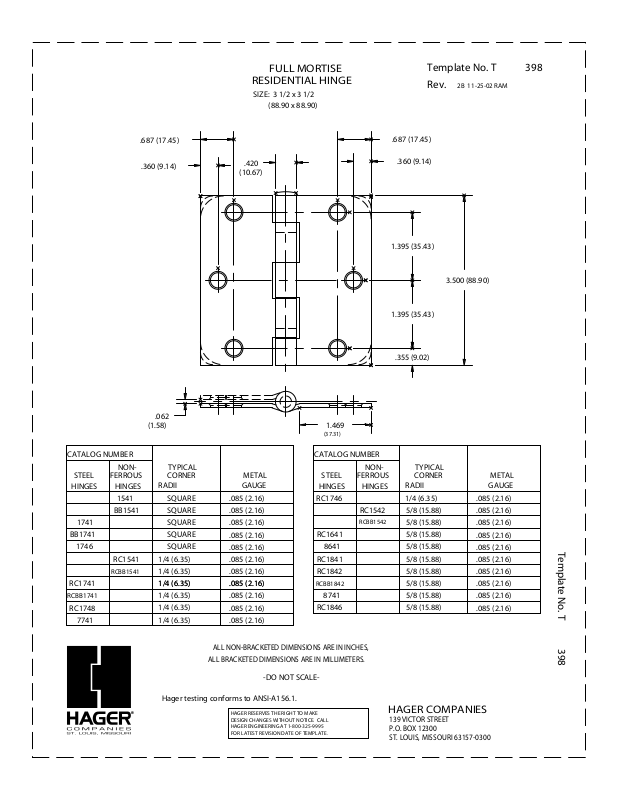

FULL MORTISE
RESIDENTIAL HINGE
SIZE: 3 1/2 x 3 1/2
(88.90 x 88.90)
Template No. T
2B 11-25-02 RAM
Rev.
398
.687 (17.45)
.360 (9.14)
.062
(1.58)
.420
(10.67)
1.469
(37.31)
.687 (17.45)
.360 (9.14)
1.395 (35.43)
3.500 (88.90)
1.395 (35.43)
.355 (9.02)
CATALOG NUMBER
STEEL
HINGES
NON-
FERROUS
HINGES
1541
TYPICAL
CORNER
RADII
SQUARE
BB1541 SQUARE
1741
SQUARE
BB1741 SQUARE
1746
RC1541
RCBB1541
RC1741
RCBB1741
RC1748
7741
SQUARE
1/4 (6.35)
1/4 (6.35)
1/4 (6.35)1/4 (6.35)
1/4 (6.35)
1/4 (6.35)
1/4 (6.35)
Hager testing conforms to ANSI-A156.1.
®
CATALOG NUMBER
METAL
GAUGE
.085 (2.16)
STEEL
HINGES
RC1746
.085 (2.16)
.085 (2.16)
.085 (2.16)
.085 (2.16)
.085 (2.16)
.085 (2.16)
.085 (2.16).085 (2.16)
.085 (2.16)
.085 (2.16)
RC1641
8641
RC1841
RC1842
RCBB1842
8741
RC1846
.085 (2.16)
ALL NON-BRACKETED DIMENSIONS ARE IN INCHES,
ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS.
-DO NOT SCALE-
HAGER RESERVES THE RIGHT TO MAKE
DESIGN CHANGES WITHOUT NOTICE. CALL
HAGER ENGINEERING AT 1-800-325-9995
FOR LATEST REVISION DATE OF TEMPLATE.
NON-
FERROUS
HINGES
RC1542
RCBB1542
TYPICAL
CORNER
RADII GAUGE
1/4 (6.35)
5/8 (15.88)
5/8 (15.88)
5/8 (15.88)
5/8 (15.88)
5/8 (15.88)
5/8 (15.88)
5/8 (15.88)
5/8 (15.88)
5/8 (15.88)
.085 (2.16)
.085 (2.16)
.085 (2.16)
.085 (2.16)
.085 (2.16)
.085 (2.16)
.085 (2.16)
.085 (2.16)
.085 (2.16)
.085 (2.16)
HAGER COMPANIES
139 VICTOR STREET
P.O. BOX 12300
ST. LOUIS, MISSOURI 63157-0300
METAL
Template No. T
398
