Installation Instructions / Warranty
Tango C
04272XX0
Talis C
14313XX1
Tango C
04271XX0
Metris C
31314XX1
Talis C
14314XX1
Metris C
31313XX1
04272XX0 04271XX0
14314XX1 14313XX1
31314XX1 31313XX1
2
Technical Information
Recommended water pressure 15 - 75 psi
Max. water pressure 147 psi
Recommended hot water temp. 120° - 140° F*
Max. hot water temp 165°F*
Flow rate – handshower 2.5 gpm max.
*Please know and follow all applicable local plumbing codes when
setting the temperature on the water heater.
Installation Considerations
For best results, Hansgrohe recommends that
•
this unit be installed by a licensed, professional plumber.
Please read over these instructions thoroughly
•
before beginning installation. Make sure that
you have all tools and supplies needed to
complete the installation.
Four-hole trim kits are for use only with rough
•
06646000.
Three-hole trim kits are for use only with rough
•
06607000.
The rough valve must be installed, and the
•
mounting surface must be nished and made
watertight before installation of this trim kit.
Four-hole models only: Protection against
•
backow is provided by check valve and an
automatically resetting diverter.
Keep this booklet and the receipt (or other
•
proof of date and place of purchase) for
this product in a safe place. The receipt is
required should it be necessary to request
warranty parts.
3
Installation
Remove the plaster shields from the valves.
Tango C only: Install the deco rings on the
handles.
Position the handle over the valve stem with the
lever in the desired “o” position.
Hold the lever in place with one hand. Use your
other hand to rotate the “bell” to secure it to the
valve.
Check the alignment of the handles.
4
If it is unsatisfactory, remove the handle, rotate it
slightly, and reinstall.
Talis C only
Rotate the escutcheon clockwise to secure it to the
valve.
Install the snap connector and screw.
Press the handle into place over the snap
connector.
Metris C only
Push the escutcheon over the valve stem.
Tighten the screw.
Install the snap connector and screw.
Press the handle into place over the snap
connector.
2 mm
5
Remove the plaster shield from the spout tee.
Remove the brass plug from the tee.
Three-hole models only:
Lightly lubricate the o-rings on the sealing ring using white plumbers grease.
Press the sealing ring into the spout tee.
Firmly press the spout over the sealing ring until it is
fully seated.
Tighten the screw using a 3 mm Allen wrench.
Do not overtighten the
screw.
Overtightening the screw
will deform the o-rings,
causing a leak.
6
3 mm
Four-Hole Models only
Install the pin on the diverter.
Press the guide bushing rmly into place.
The hole in the pin should be clearly visible
through the slot in the guide bushing.
Lubricate the diverter o-rings using white plumbers grease.
Press the diverter assembly rmly into the spout
tee until it is fully seated.
Firmly press the spout over the diverter.
Tighten the screw using a 3 mm Allen wrench.
Do not overtighten the
screw.
Overtightening the screw
will deform the o-rings,
causing a leak.
Install the diverter rod. The threaded end of the
diverter rod must go into the hole in the pin.
3 mm
7
Remove the plaster shield from the handshower
holder.
Pull out on the handshower hose.

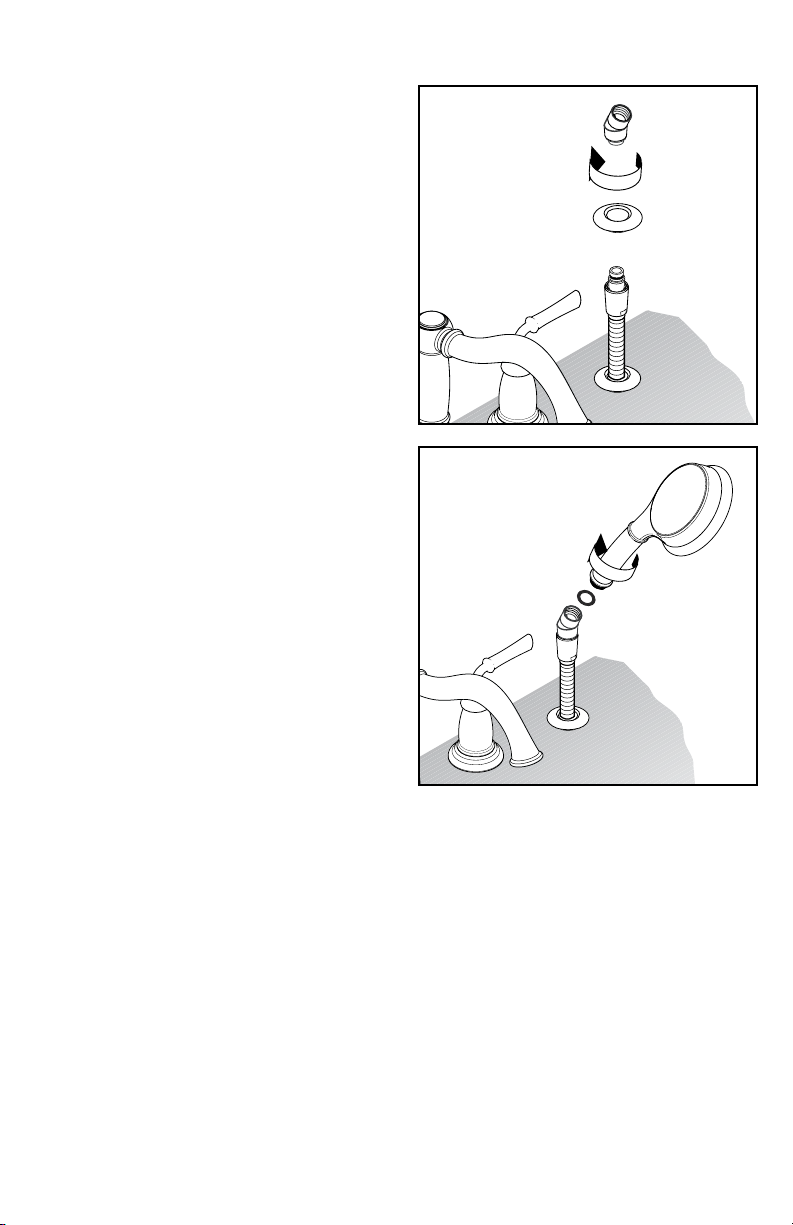

Screw the handshower holder escutcheon into
place.
Install the elbow.
Place a black rubber hose washer in the elbow.
Screw the handshower into the elbow.
Rest the handshower in the holder.
8
User Instructions
When the water is turned on, it will come through
the spout.
To obtain water from the handshower, push down
on the diverter knob.
The diverter will reset to the spout position when the
water is turned o.
o
on
9
Replacement Parts
Tango C
7
3
1
2
8
12
15
4
5
6
1
2
10
9
8
Talis C
13
11
16
14
14
12
10
15
4
5
6
16
10
9
11
Metris C
16
11
15
4
5
13
6
14
10
12
12
14
16
10
9
1 aerator 13956XX0
2 screw 96029000
3 handshower 04072XX0
4 elbow 28071XX0
5 check valve 94074000
6 ange 97159XX0
7 diverter knob 97144XX0
8 deco ring 88600XX0
9 sealing ring 88512000
10 aerator 13914XX0
11 handshower 28548XX1
12 diverter 96775000
13 diverter knob 98607XX0
14 screw 97660000
15 screen washer 94246000
16 snap connector 98932000
XX = color
00 = chrome
62 = oil rubbed bronze
82 = brushed nickel
83 = polished nickel
92 = rubbed bronze
Cleaning Recommendation for Hansgrohe Products
Modern lavatory faucets, kitchen faucets, and showers consist of very dierent materials to comply with the needs of the market with
regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning.
Cleaning Materials for Faucets and Showers
Acids are a necessary ingredient of cleaning materials for removing lime, however please pay attention to the following points when
cleaning faucets and showers:
Only use cleaning materials which are explicitly intended for this type of application.
•
Never use cleaning materials which contain hydrochloric, formic, phosphoric, or acetic acid, as they cause considerable
•
damage.
Never mix one cleaning material with another.
•
Never use cleaning materials or appliances with an abrasive eect, such as unsuitable cleaning powders, sponge pads, or micro
•
ber cloths.
Cleaning Instructions for Faucets and Showers
Please follow the cleaning material manufacturer’s instructions. In addition, pay attention to the following points:
Clean the faucets and showers as and when required
•
Use the amount of cleaning product and the amount of time recommended by the manufacturer. Do not leave the cleaner on the
•
xture longer than necessary.
Regular cleaning can prevent calcication.
•
When using spray cleaners, spray rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter
•
openings and gaps and cause damage.
After cleaning, rinse thoroughly with clean water to remove any cleaner residue.
•
Important
Residues of liquid soaps, shampoos, and shower foams can also cause damage, so rinse with clean water after using.
Please note: if the surface is already damaged, the eect of cleaning materials will cause further damage.
Components with damaged surfaces must be replaced or injury could result.
Damage caused by improper treatment is not covered under the warranty.
13
Limited Lifetime Consumer Warranty
This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This warranty is
limited to Hansgrohe products which are purchased by a consumer in the United States after March 1, 1996, and installed in either
the United States or Canada.
WHO IS COVERED BY THE WARRANTY
This warranty extends to the original consumer purchaser only. This warranty is non-transferable.
WHAT IS COVERED BY THE WARRANTY
This warranty covers only your Hansgrohe manufactured product. Hansgrohe warrants this product against defects in material or
workmanship as follows: Hansgrohe will repair at no charge for parts only or, at its option, replace any product or part of the product
that proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance. If
Hansgrohe is unable to provide a replacement and repair is not practical or cannot be timely made, Hansgrohe may elect to refund
the purchase price in exchange for the return of the product.
LENGTH OF WARRANTY
Replacement or repaired parts of products will be covered for the term of this warranty as stated in the following two sentences. If
you are a consumer who purchased the product for use primarily for personal, family, or household purposes, this warranty extends
for as long as you own the product and the home in which the product is originally installed. If you purchased the product for use
primarily for any other purpose, including, without limitation, a commercial purpose, this warranty extends only (i) for 1 year, with
respect to Hansgrohe and Commercial products, and (ii) for 5 years, with respect to AXOR products.
THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR:
A. Conditions, malfunctions or damage not resulting from defects in material or workmanship.
B. Conditions, malfunctions or damage resulting from (1) normal wear and tear, improper installation, improper maintenance,
misuse, abuse, negligence, accident or alteration, or (2) the use of abrasive or caustic cleaning agents or “no-rinse” cleaning
products, or the use of the product in any manner contrary to the product instructions. (3) Conditions in the home such as excessive water pressure or corrosion.
C. Labor or other expenses for the disconnection, deinstallation, or return of the product for warranty service, or for installation or
reinstallation of the product (including but not limited to proper packaging and shipping costs), or for installation or reinstallation
of the product.
D. Accessories, connected materials and products, or related products not manufactured by Hansgrohe.
TO OBTAIN WARRANT Y PARTS OR INFORMATION
Contact your Hansgrohe retailer, or contact Technical Service at:
Hansgrohe Inc.
1492 Bluegrass Lakes Parkway
Alpharetta GA 30004
Toll-free (800) 334-0455.
In requesting warranty service, you will need to provide
1. The sales receipt or other evidence of the date and place of purchase.
2. A description of the problem.
3. Delivery of the product or the defective part, postage prepaid and carefully packed and insured, to Hansgrohe Inc. 1492
Bluegrass Lakes Parkway, Alpharetta, Georgia 30004, Attention: Technical Service, if required by Hansgrohe.
When warranty service is completed, any repaired or replacement product or part will be returned to you postage prepaid.
EXCLUSIONS AND LIMITATIONS
REPAIR OR REPLACEMENT (OR, IN LIMITED CIRCUMSTANCES, REFUND OF THE PURCHASE PRICE) AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. HANSGROHE NEITHER ASSUMES NOR AUTHORIZES ANY
PERSON TO CREATE FOR IT ANY OBLIGATION OR LIABILITY IN CONNECTION WITH THIS PRODUCT.
HANSGROHE SHALL NOT BE LIABLE TO PURCHASER OR ANY PERSON FOR ANY INCIDENTAL, SPECIAL, OR
CONSEQUENTIAL DAMAGES, ARISING OUT OF BREACH OF THIS WARRANTY OR ANY IMPLIED WARRANTY (INCLUDING
MERCHANTABILITY).
14
Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may
not apply to you. This warranty gives you specic legal rights, and you may have other rights which vary from State to State. You may
be required by law to give us a reasonable opportunity to correct or cure any failure to comply before you can bring any action in
court against us under the Magnuson-Moss Warranty Act.
PRODUCT INSTRUCTIONS AND QUESTIONS
Upon purchase or prior to installation, please carefully inspect your Hansgrohe product for any damage or visible defect. Prior to
installing, always carefully study the enclosed instructions on the proper installation and the care and maintenance of the product. If
you have questions at any time about the use, installation, or performance of your Hansgrohe product, or this warranty, please call or
write to us or call us toll-free at 800 334 0455.
15
Hansgrohe, Inc. • 1490 Bluegrass Lakes Parkway • Alpharetta, GA 30004
Tel. 770-360-9880
• Fax 770-360-9887
www.hansgrohe-usa.com
US - Installation Instructions • Part No. 90101601 • Revised 01/2010
