Factory Direct Hardware 10882 User Manual
Installation Instructions / Warranty
FIX FIT STOP

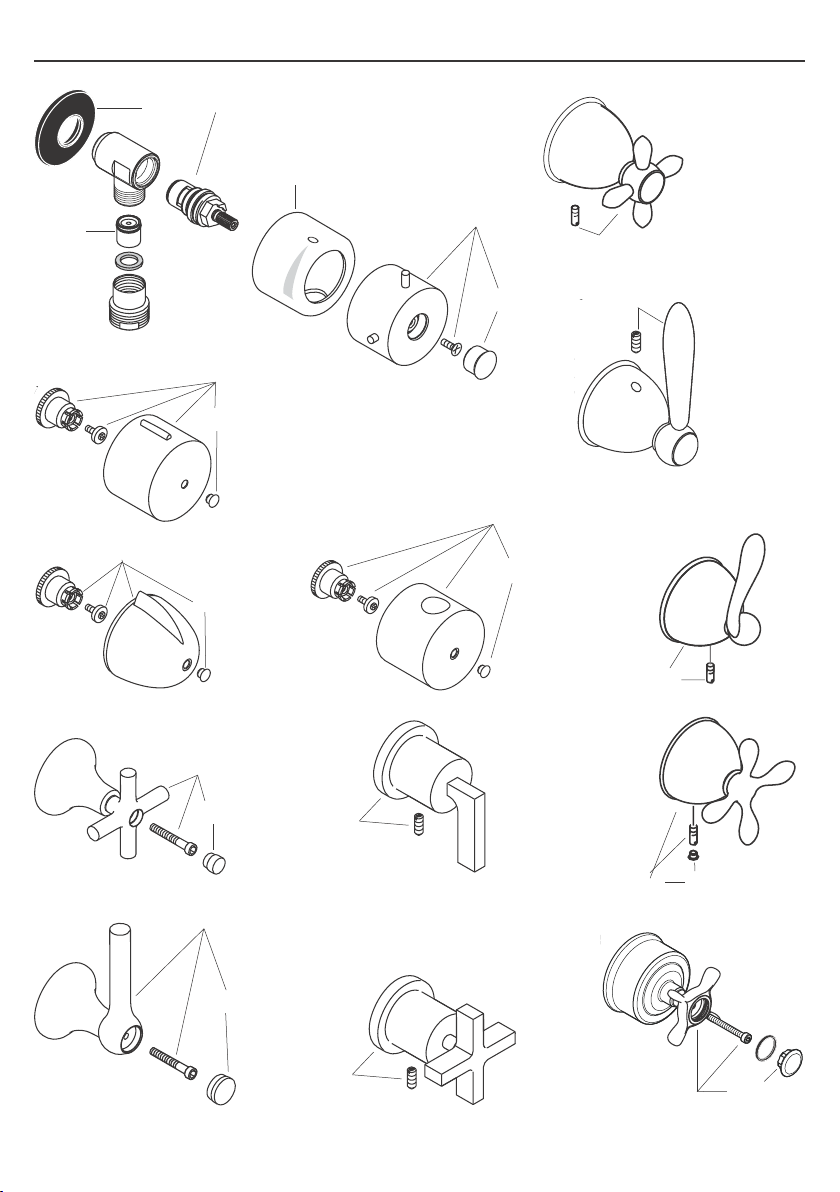

Starck
10882XX1
Phoenix
17982XX1
Terrano
37882XX1
Citterio
39882XX1
Montreux
16882XX1
Phoenix
17983XX1
37883XX1
39883XX1
Terrano
Citterio
Carlton
17882XX1
Steel
35882801
Carlton
17883XX1
Allegroh
36882XX1
Uno
38882XX1
Mondial/Metris/
Elegance/Sportive
27452XX1
3
1. This unit requires a 1/2” NPT male nipple, extending 7/16” outside the surface of the finished
wall.
1. Seal the wall around the male pipe fitting using
a good quality waterproof bathroom sealant.
Wrap thread clockwise with 2 - 3 layers of good
quality plumber's thread tape.
2. Position the gasket over the male threaded pipe
fitting. Screw the elbow firmly onto the pipe
fitting.
Test for leaks.
3. Slide the decorative cover over the elbow and
snap into place on the gasket.
Handle assembly
10882XX1 Starck
37882XX1 / 37883XX1 Terrano
16882XX1 Montreux
1. Push the handle onto the shaft.
2. Fix the screw.
3. Cover the hole by the plastic cap.
2
17885XX1 /17886XX1 Carlton
17982XX1 / 17983XX1 Phoenix
1. Push the handle onto the shaft.
2. Fix the screw.
35882801 Steel
36882XX1 Allegroh
38882XX1 Uno
27452XX1 Mondial/Metris/Elegance/Sportive
1. Lock the screw by hand only three turns.
2. Snap on the handle.
3. Fix the screw.
4. Cover the hole by the plastic cap.
Citterio 39882XX1 / 39883XX1
1. Install the handle fixation and lock the screw.
2. Snap on the handle.
3. Fix the hollow set screw with a hex wrench 2
mm.
3
