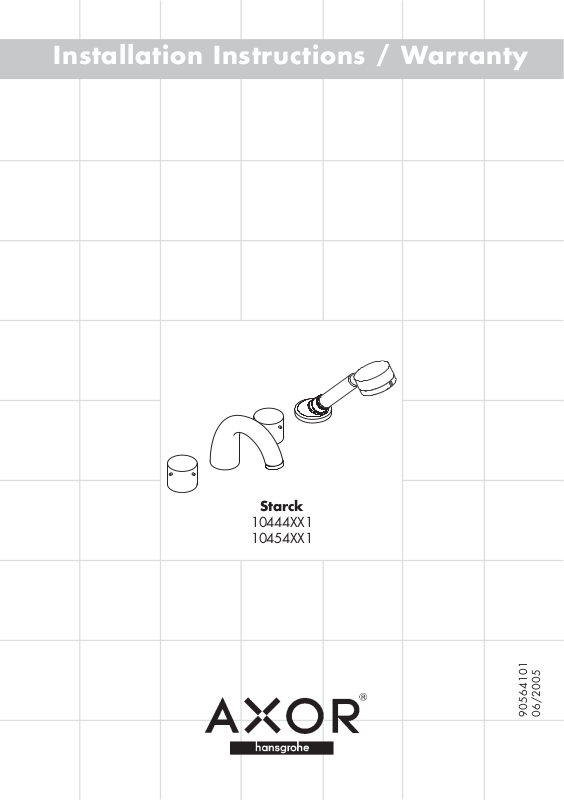

Installation Instructions / Warranty
Starck
10444XX1
10454XX1
90564101
06/2005
Starck 4-Hole Roman Tub Trim
10444XX1
10454XX1
10444XX1
10454XX1
Installation Considerations
• This trim kit must be used with rough-in
13444-181. The handshower must be
used.
• Backflow protection is provided by a
check valve in the handshower
connection hose. Additionally, the
diverter will automatically spring back to
the "spout" position if a backflow
condition exists.
Product Specifications
Recommended operating pressure 45 - 80 psi
Recommended hot water temperature 120o - 140o F*
Flow rate - handshower 2.5 gpm
Flow rate - valves approx. 6 gpm each
Hole sizes - see template included with rough-in for placement
Valves 1 3/16"
Spout 1 3/8"
Spout Adapter Pin 3/16"
Handshower 2"
Maximum mounting surface thickness 2"
90o Ceramic cartridge operation.
* Some governing agencies require that the water heater be set to 120o F or less. Please know and follow all applicable local codes when
setting the temperature on the water heater.
2
Replacement Parts
9
4
23x2,5
22x2
6
3
1
14x2,5
5
9x2,5
7
8
2
10
12
11
11x2
1 diverter knob 96086XX0
2 aerator cpl. 94034XX0
3 spout cpl. 10444XX1 96163XX0
4 spout cpl. 10458XX1 96138XX0
5 selector assy 94037000
6 handle 10991XX0
7 escutcheon for shower holder 94052XXX
8 filter packing (25) 94246000
9 handshower 38885X X 1
10 shower holder, assy 92380XX 0
11 hose 2,00 m 94148000
12 check valve 94074000
XX = Colors
00 = chrome
81 = satinox
82 = brushed nickel
3
1
Installation Instructions
• Remove the plaster guards (1) from the
valve corners and the spout adapter.
• Install the glide rings (2)
• Install the handles (3) by pressing
firmly over the handle snap
connectors.
• Turn the handles clockwise to make
sure that the valves are in the "off"
position.
CAUTION: Do not install the handles
unless the snap connectors are screwed
firmly to the stems.
2
3
• Remove the plug from the spout
adapter using a 27 mm wrench.
• Lubricate the o-rings on the diverter
with the enclosed lubricant. Install the
diverter by pushing firmly straight
down into the spout adapter.
• CAUTION: Do not remove the female
fitting and the white plastic clip from
the top of the diverter assembly!
These parts are necessary for the
installation of the diverter knob.
4
4
• Remove the diverter knob from the
spout (1). Use a small screwdriver to
push the screw and screw cover from
the diverter knob (2).
5
6
• Install the spout (1) to the spout
adapter over the diverter. Tighten the
set screw (2) with the enclosed 3 mm
allen wrench.
• Install the diverter knob (1) and screw
(2), using a small screwdriver (not
included). The screw will engage the
female fitting on the diverter stem.
• Install the gray screw cover (3).
5
7
• Pull the outer SecuflexTM hose through
the handshower mount.
8
9
• Lubricate the handshowr mount and
outer SecuflexTM hose with spray silicon
lubricant or with a tablespoon or so of
water.
• Pull the outer SecuflexTM hose
completely from the handshower
mount. Unscrew the outer Secuflex
hose (1) from the handshower
connector hose (2). Do not allow the
handshower connector hose to fall
back through the hole!
• Remove the brass plug (3) from the
handshower connector hose (2).
• Install the check valve(4) to the
handshower connector hose.
TM
6
10
• Use the enclosed cleaning towelette to
thoroughly clean the outer Secuflex
hose.
TM
11
12
• Feed the inner SecuflexTM hose through
the outer SecuflexTM hose (1)
• Attach the inner SecuflexTM hose to the
handshower connector hose (2).
• Remove the plaster guard from the
outer SecuflexTM hose (3).
• Remove the end cap and the liner
from the handshower holder.
• Compress the outer hose until you can
grasp the end of the inner hose
7
13
• Feed the inner hose through the
handshower holder (1), liner (2), and
end cap (3).
• Screw the end cap (4) over the end of
the handshower holder.
• Continue pulling "out" on the inner
hose (5).
14
15
• Place the handshower holder retainer
ring (1) over the hose and the
handshower holder.
• Install the screen washer and the
handshower on the hose (2).
• Use a knife to cut the o-rings at the
end of the outer hose.
• Feed the hoses back through the
handshower mount.
• Place the handshower holder onto the
handshower mount so that the pin on
the mount engages the corresponding
hole on the handshower holder.
8
16
• Secure the handshower holder to the
handshower mount with the retainer
ring.
User Instructions
• Turn the left handle for hot water, the right handle for cold.
• Pull up on the diverter knob to divert the water to the handshower. The diverter will
automatically reset to the tub spout when the water is turned off.
• The handshower uses the Rubit!TM self cleaning system. The spray channels are lined
with a material that resists scale deposits. If scale is noticed, turn the water on lightly
and rub across the channels with a thumb or a sponge to clear them of deposits.
• The check valve should be removed, inspected, and cleaned yearly.
9
Cleaning Recommendation for Hansgrohe Products
Modern faucetry and shower products utilize a combination of materials to comply with the needs of the market with regard to
design and functionality.
To avoid damage, it is necessary to use some caution when cleaning. Damage caused by improper treatment is not covered
under the Hansgrohe warranty.
Cleaning Materials for Faucets and Showers
• To remove lime scale, use only products made specifically for that purpose. Always follow the manufacturer’s
instructions when using.
• Do not use cleaners that contain hydrochloric, formic, acetic, or phosphoric acids, as these will cause considerable
damage to finishes and to plastic components.
• Never mix cleaning materials.
• Never use cleaners containing abrasives. Do not use abrasive cleaning cloths, pads, or sponges.
Cleaning Procedures
• Clean your faucets and shower products as and when required. Regular cleaning will prevent scale buildup and water
spotting.
• Follow the label instructions. Do not allow any cleaner to remain on the product for longer than necessary.
• When using spray cleaners, spray first onto a sponge or cloth – do not spray directly onto the product.
• After cleaning, rinse thoroughly with clear water to remove any cleaner residue.
Important
• Soap and shampoo residue can also cause damage to the product. Rinse well with clean water after use.
• If the surface is already damaged, harsh cleaning materials will cause further damage.
Limited Lifetime Consumer Warranty
This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This
warranty is limited to Hansgrohe products which are purchased by a consumer in the United States after March 1, 1996, and
installed in either the United States or Canada.
WHO IS COVERED BY THE WARRANTY
This warranty extends to the original consumer purchaser only.
WHAT IS COVERED BY THE WARRANTY
This warranty covers only your Hansgrohe manufactured product. Hansgrohe warrants this product against defects in material
or workmanship as follows: Hansgrohe will repair at no charge for parts only or, at its option, replace any product or part of
the product which proves defective because of improper workmanship and/or material, under normal installation, use, service
and maintenance. If Hansgrohe is unable to provide a replacement and repair is not practical or cannot be timely made,
Hansgrohe may elect to refund the purchase price in exchange for the return of the product.
LENGTH OF WARRANTY
Replacement or repaired parts of products will be covered for the term of this warranty as stated in the following two
sentences. If you are a consumer who purchased the product for use primarily for personal, family, or household purposes,
this warranty extends for as long as you own the product and the home in which the product is installed. If you purchased the
product for use primarily for any other purpose, including, without limitation, a commercial purpose, this warranty extends only
(i) for 1 year, with respect to Interaktiv and Retroaktiv products, and (ii) for 5 years, with respect to AXOR, ShowerPower and
Pharo products.
10
THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR:
A. Conditions, malfunctions or damage not resulting from defects in material or workmanship.
B. Conditions, malfunctions or damage resulting from (1) improper installation, improper maintenance, misuse, abuse,
negligence, accident or alteration, or (2) the use of abrasive or caustic cleaning agents or “no rinse” cleaning products,
or the use of the product in any manner contrary to the product instructions.
C. Labor or other expenses for the disconnection or return of the product for warranty service, or for installation or
reinstallation of the product.
D. Accessories or related products not manufactured by Hansgrohe.
TO OBTAIN WARRANTY SERVICE
Contact your Hansgrohe retailer, or write to Technical Service at:
Hansgrohe Inc.
1492 Bluegrass Lakes Parkway
Alpharetta GA 30004
Or, call Hansgrohe toll-free at (800) 334-0455.
In requesting warranty service, you will need to provide
1. The sales receipt or other evidence of the date and place of purchase.
2. A description of the problem.
3. Delivery of the product or the defective part, postage prepaid and carefully packed and insured, to Hansgrohe Inc. 1492
Bluegrass Lakes Parkway, Alpharetta, Georgia 30004, Attention: Technical Service, if required by Hansgrohe.
When warranty service is completed, any repaired or replacement product or part will be returned to you postage prepaid.
EXCLUSIONS AND LIMITATIONS
REPAIR OR REPLACEMENT (OR, IN LIMITED CIRCUMSTANCES, REFUND OF THE PURCHASE PRICE) AS
PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. HANSGROHE NEITHER
ASSUMES NOR AUTHORIZES ANY PERSON TO CREATE FOR IT ANY OBLIGATION OR LIABILITY IN
CONNECTION WITH THIS PRODUCT.
HANSGROHE SHALL NOT BE LIABLE TO PURCHASER OR ANY PERSON FOR ANY INCIDENTAL, SPECIAL, OR
CONSEQUENTIAL DAMAGES, ARISING OUT OF BREACH OF THIS WARRANTY OR ANY IMPLIED WARRANTY
(INCLUDING MERCHANTABILITY).
Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
This warranty gives you specific legal rights, and you may have other rights which vary from State to State.
You may be required by law to give us a reasonable opportunity to correct or cure any failure to comply before you can bring
any action in court against us under the Magnuson-Moss Warranty Act.
PRODUCT INSTRUCTIONS AND QUESTIONS
Upon purchase or prior to installation, please carefully inspect your Hansgrohe product for any damage or visible defect. Prior
to installing, always carefully study the enclosed instructions on the proper installation and the care and maintenance of the
product. If you have questions at any time about the use, installation, or performance of your Hansgrohe product, or this
warranty, please call or write to us at the toll-free number and address printed above.
11
