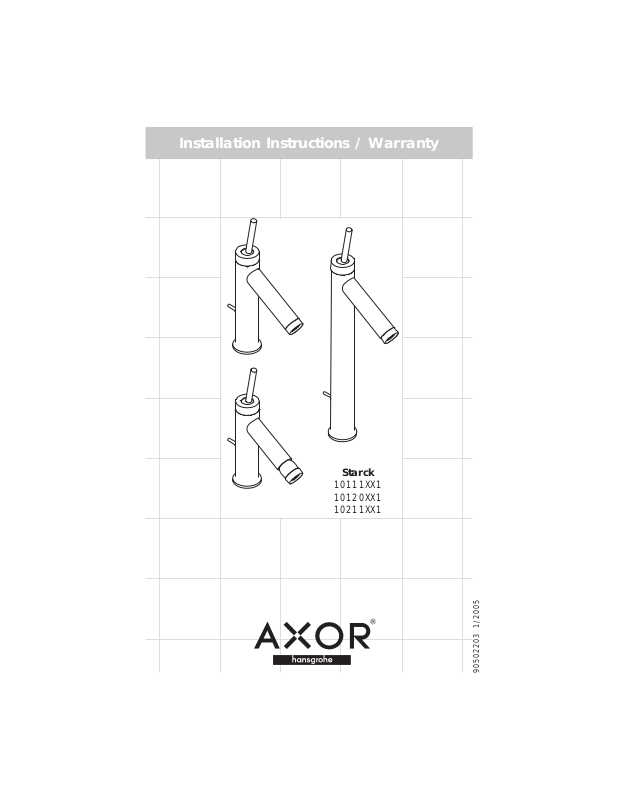

Factory Direct Hardware 10111 User Manual

Installation Instructions / Warranty

Starck

10111XX1
10120XX1
10211XX1

90502203 1/2005

Starck single control lavatory faucet
10111XX1
Starck tall single control lavatory faucet
10120XX1
Starck single control bidet faucet
10211XX1

T echnical Specification

Maximum water pressure 145 psi
Recommended water pressure 14.5 - 72 psi
Maximum hot water temp. 176o*
Recommended hot water temp 120o - 140o*
Max. flow rate @ 45 psi 2.2 gpm
Max. deck thickness 1 3/8”
Hole size in deck 1 3/8”

*Many municipalities require that the water heater be set
no higher than 120o. Please know and follow all
applicable plumbing codes when setting the temperature on
the water heater.

Installation considerations:

The supply hoses installed on this unit connect
to the supply stops with standard 3/8”
compression fittings. Supply stops and 3/8”
compression fittings are not included.

2

Installation Instructions

• Sit the faucet with black sealing ring in the faucet hole on top of the
mounting surface.

• From beneath, install the friction washer, metal washer, and mounting
nut. Tighten the mounting nut, taking care not to overtighten.

• Check the position of the faucet. When satisfied, use a slot-headed
screwdriver to tighten the tensioning screws.

• Feed the pull rod through the hole in the back of the faucet body.

• Attach the supply lines to the supply stops with standard 3/8"

compression fittings (not included)
