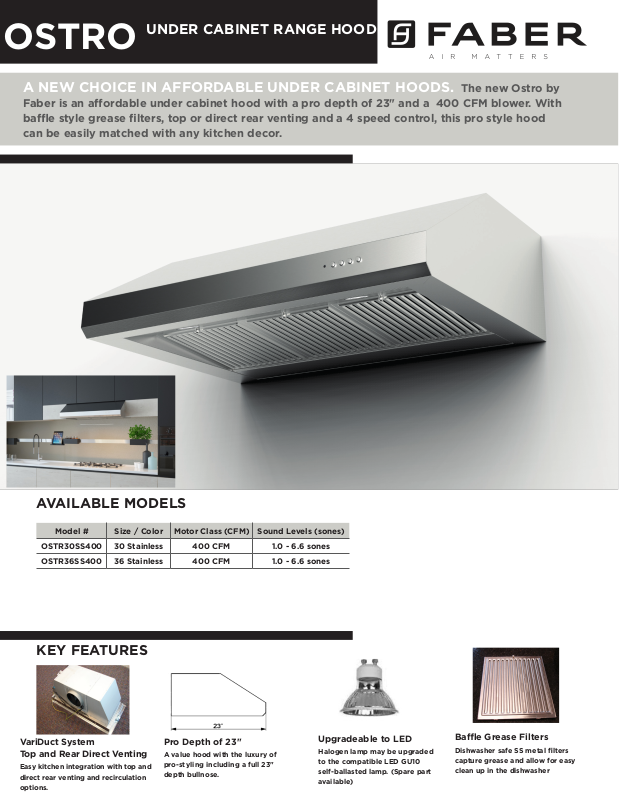

Faber W007096023 Specifications

UNDER CABINET RANGE HOOD

OSTRO

A NEW CHOICE IN AFFORDABLE UNDER CABINET HOODS. The new Ostro by

Faber is an aordable under cabinet hood with a pro depth of 23" and a 400 CFM blower. With
bae style grease filters, top or direct rear venting and a 4 speed control, this pro style hood
can be easily matched with any kitchen decor.

AVAILABLE MODELS

Model # Size / Color Motor Class (CFM) Sound Levels (sones)

OSTR30SS400 30 Stainless 400 CFM 1.0 - 6.6 sones

OSTR36SS400 36 Stainless 400 CFM 1.0 - 6.6 sones

KEY FEATURES

VariDuct System
Top and Rear Direct Venting

Easy kitchen integration with top and
direct rear venting and recirculation
options.

Pro Depth of 23"

A value hood with the luxury of
pro-styling including a full 23"
depth bullnose.

Upgradeable to LED

Halogen lamp may be upgraded
to the compatible LED GU10
self-ballasted lamp. (Spare part
available)

Bae Grease Filters

Dishwasher safe SS metal filters
capture grease and allow for easy
clean up in the dishwasher

UNDER CABINET RANGE HOOD

OSTRO

SPECIFICATIONS DIMENSIONS

depth / height 23" d / 10" h

convertible to ductless /
recirculating

controls 4 speed electronic push button controls

mounting height from
cooking surface

lighting 2 halogen / convertible to LED

vari-duct Yes - 6" round (top or back)

grease filters dishwasher safe stainless steel bae

make up air compliant* yes (400 CFM code areas)

ac power 350 watts / 2.9 amps

yes – kit sold separately

24'' - 30''

OVERALL DIMENSIONS

PERFORMANCE

SPEED 1 2 3 4

CFM 150 250 350 390

Sones 1.0 3.0 5.1 6.6

ACCESSORIES

# CFMRED2

CFM Reducer Kit*

For use in make up air environments where an under 300 cfm hood
is required. This kit reduces the ducting to 5” round and reduces the
cfm from 400 to under 300.

# DUCTGRT30 / DUCTGRT36 –

Ductless Vent Grate Kit

A 4” tall stainless steel vent grate which is installed between the
hood & the cabinet to recirculate the air back into the kitchen when
ducting outside isn’t possible. Includes the vent grate and hardware.

# FILTER1 –

Replacement Charcoal Filter Kit
High quality charcoal filter for use when recirculating the

air back into the kitchen. Filters out odor and should be
replaced every 6 months.

# FILTER1LL –

Long Lasting Charcoal Filter Kit

New washable charcoal filter can be recharged and washed
up to 8 times. For use when recirculating the air back into the
kitchen. Filters out odor and can last up to 4 years.

# FULL30 / FULL36

Full Width Duct Cover

12” high, extends full width of the hood.

WITH TELESCOPIC CHIMNEY KIT

WITH FULL WIDTH CHIMNEY KIT

# MUDAMPER6 / MUDAMPER8 –

Universal Make-Up Air Damper

Satisfies make-up air requirements, this kit uses an air switch to
activate the make-up air damper to open and bring fresh air into the
home when the hood fan is on. It then closes tightly when the hood
is o. The CFM level is not reduced with this accessory.

# TELEMAES

Telescopic Chimney Cover

24” wide, extends to accommodate 8 - 9 foot ceilings.

Rev :4/19

2 Cabot Road Hudson, MA 01749 • TEL: [phone] • E-Mail: [e-mail] www.faberonline.com

# WIREBOX –

Fixed Wiring Box

Replace the power cord with a hard wired box to power the range
hood

WARNING! Product specifications are subject to
change without notification. Consult the installation
instructions before you begin installing this range
hood. * Check local make up air codes for
guidelines.

Imagined in Italy
