Page 1
DAMA ISOLA 2019 SSV

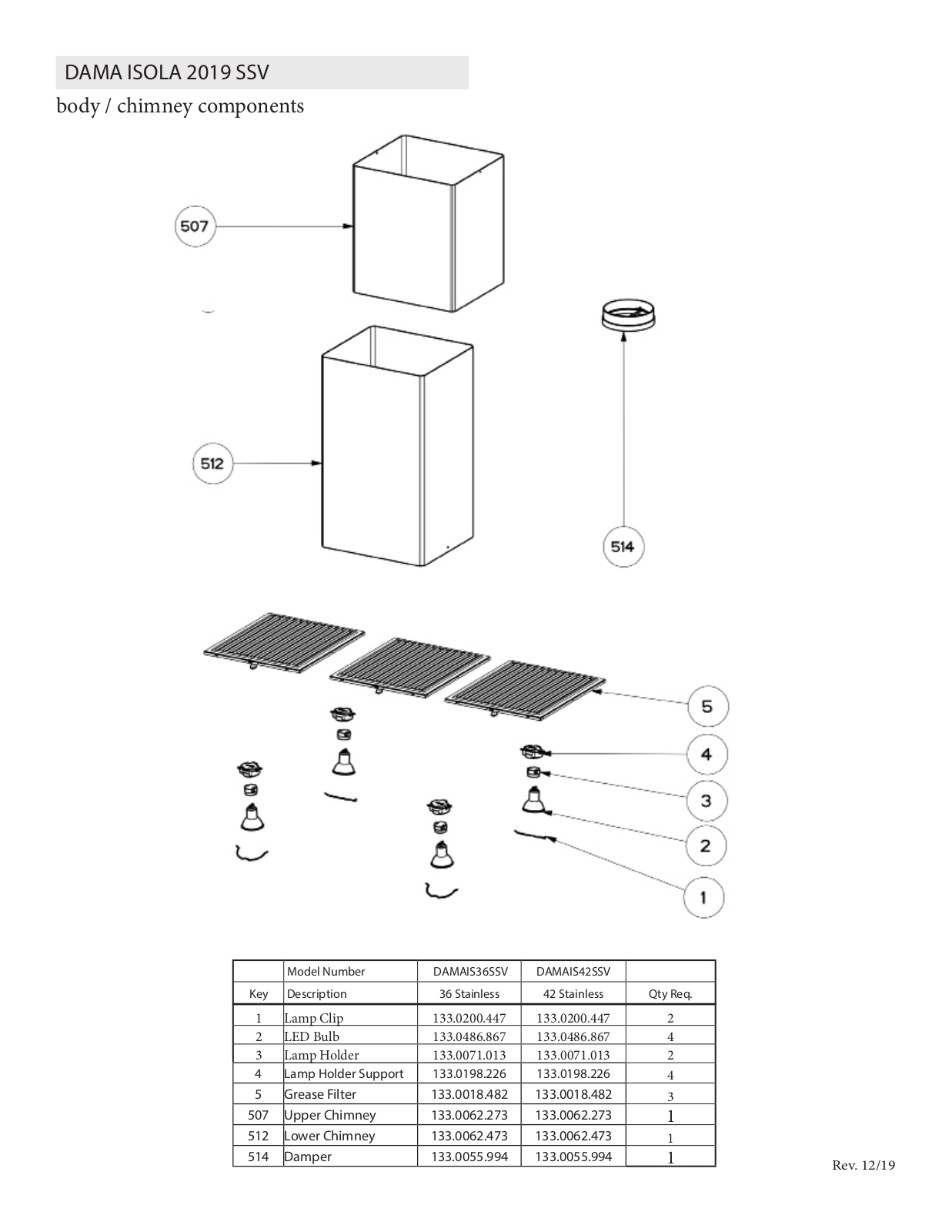

body / chimney components
Model Number DAMAIS36SSV DAMAIS42SSV
Key Description 36 Stainless 42 Stainless Qty Req.
1 Lamp Clip 133.0200.447 133.0200.447 2
2 LED Bulb 133.0486.867 133.0486.867 4
3 Lamp Holder 133.0071.013 133.0071.013 2
4 Lamp Holder Support 133.0198.226 133.0198.226
5 Grease Filter 133.0018.482 133.0018.482
507 Upper Chimney 133.0062.273 133.0062.273
512 Lower Chimney 133.0062.473 133.0062.473
514 Damper 133.0055.994 133.0055.994
4
3
1
1
1
Rev. 12/19
Page 2
DAMA ISOLA 2019 SSV

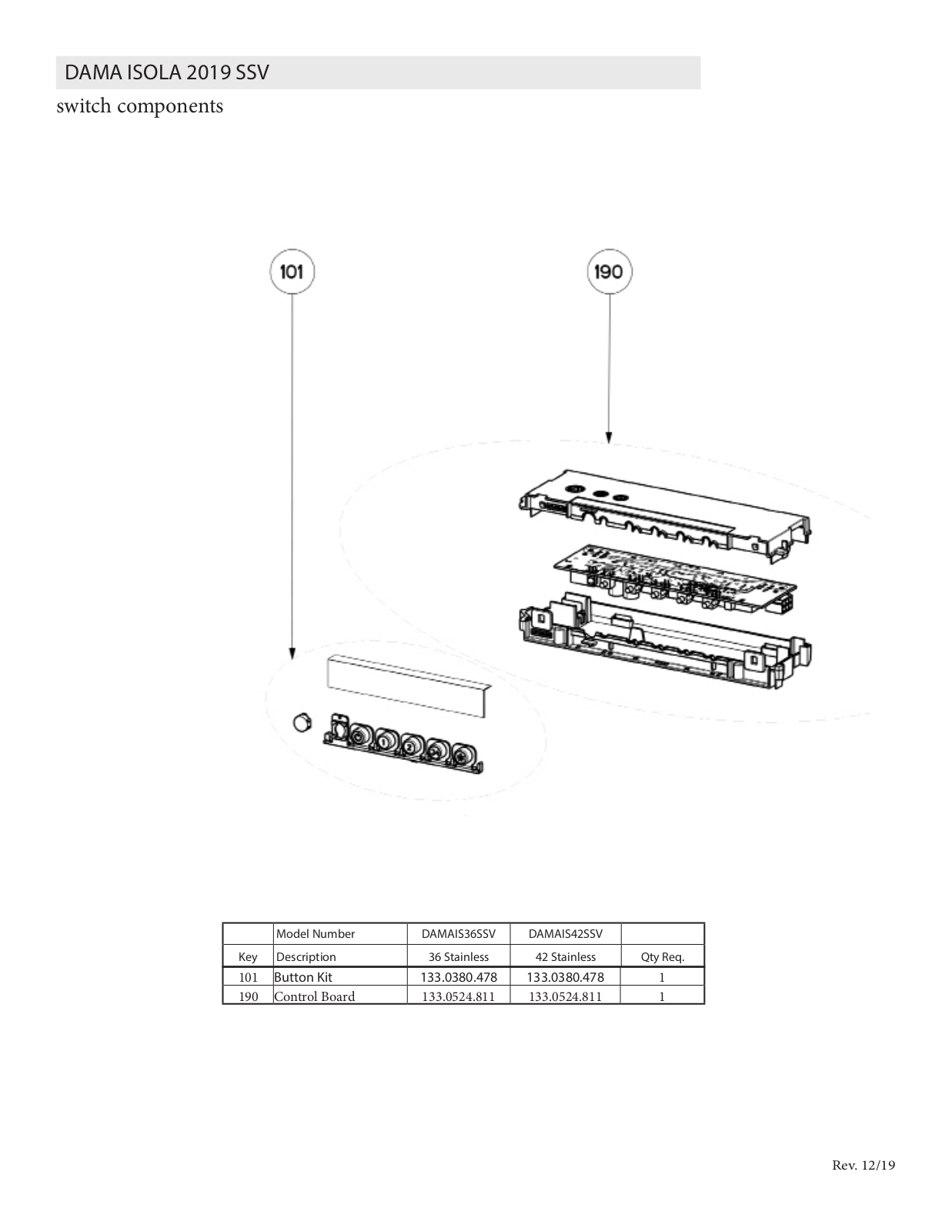

switch components
Model Number DAMAIS36SSV DAMAIS42SSV
Key Description 36 Stainless 42 Stainless Qty Req.
101 Button Kit 133.0380.478 133.0380.478 1
190 Control Board 133.0524.811 133.0524.811 1
Rev. 12/19
Page 3
DAMA ISOLA 2019 SSV

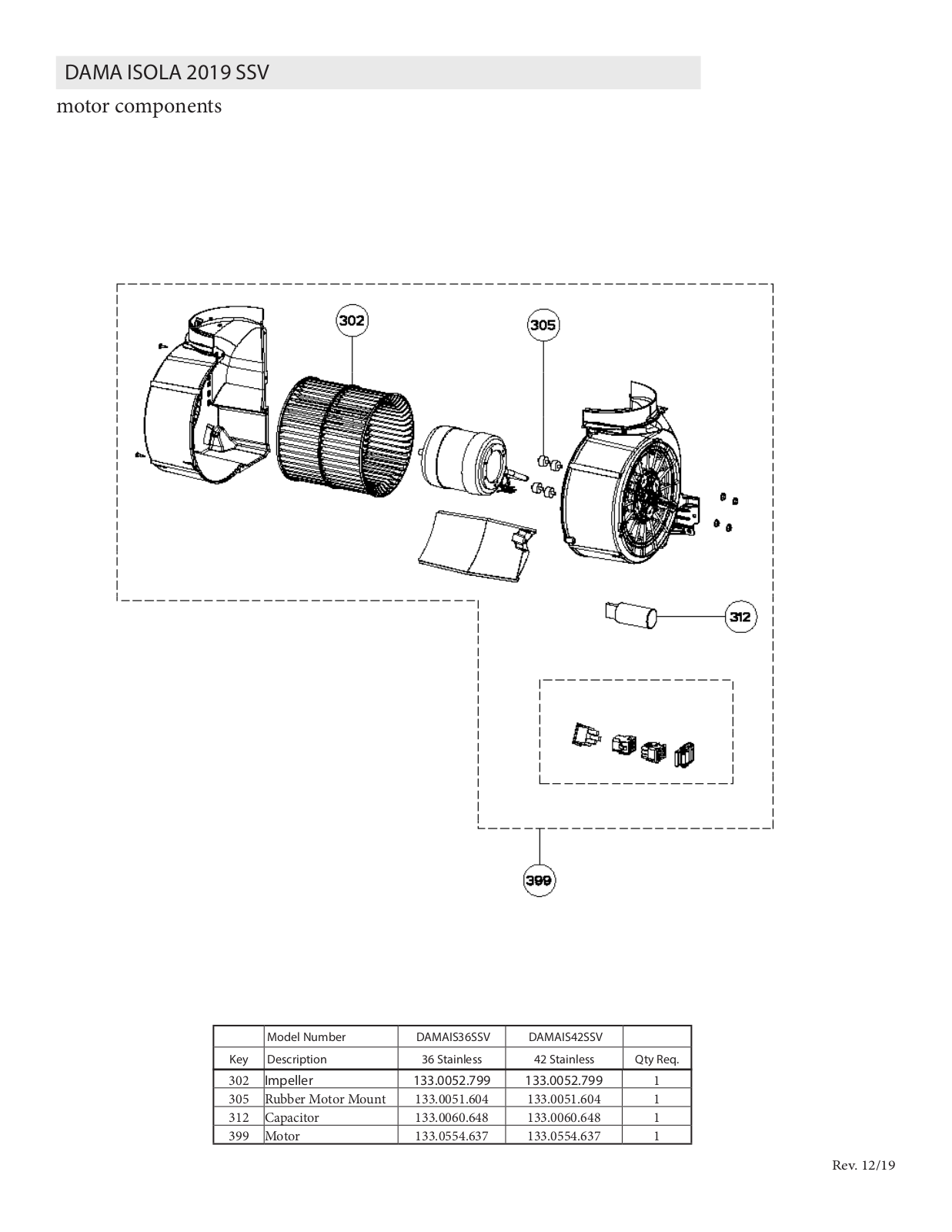

motor components
Model Number DAMAIS36SSV DAMAIS42SSV
Key Description 36 Stainless 42 Stainless Qty Req.
302 Impeller 133.0052.799 133.0052.799 1
305 Rubber Motor Mount 133.0051.604 133.0051.604 1
312 Capacitor 133.0060.648 133.0060.648 1
399 Motor 133.0554.637 133.0554.637 1
Rev. 12/19
Page 4
DAMA ISOLA

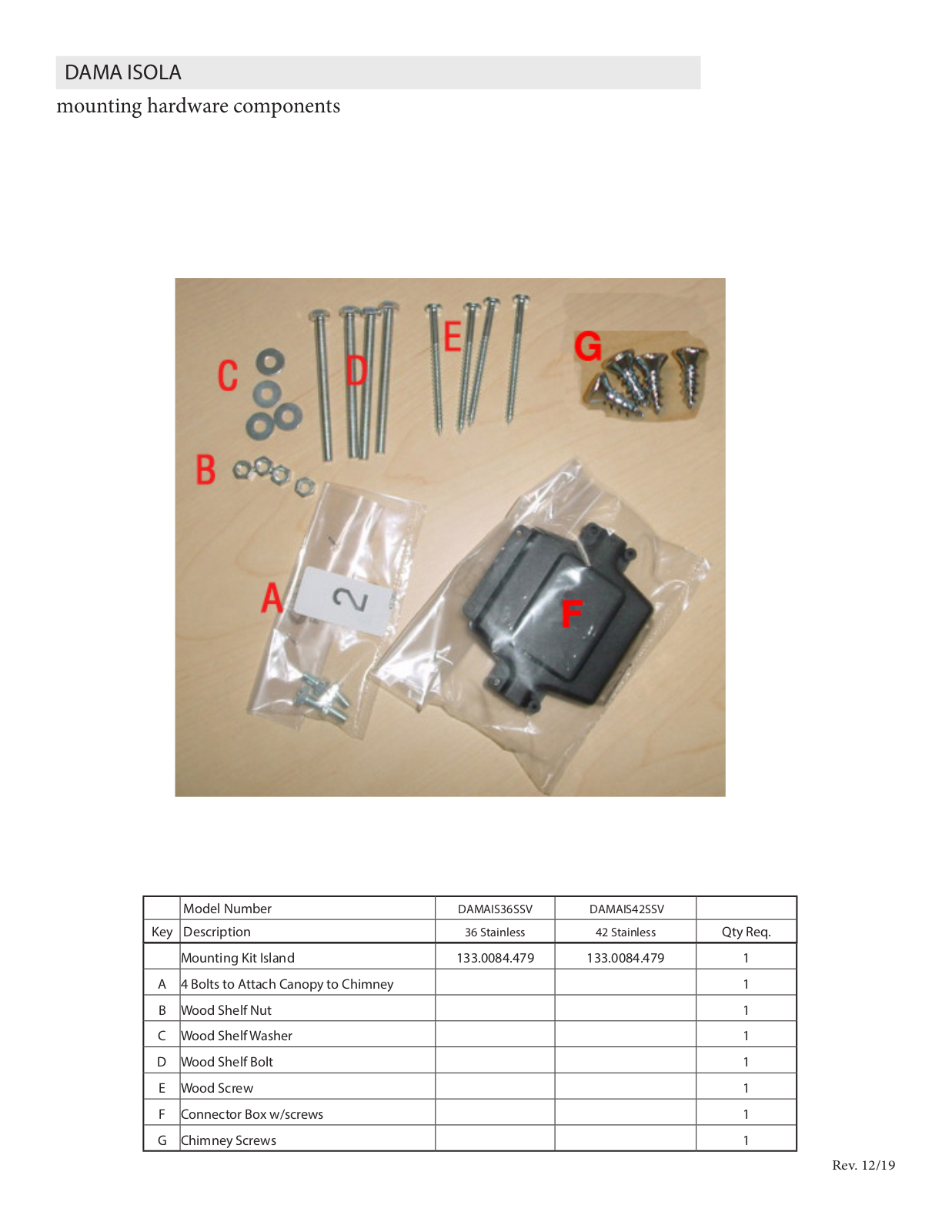

mounting hardware components
Model Number DAMAIS36SSV DAMAIS42SSV
Key Description 36 Stainless 42 Stainless Qty Req.
Mounting Kit Island 133.0084.479 133.0084.479 1
A 4 Bolts to Attach Canopy to Chimney 1
B Wood Shelf Nut 1
C Wood Shelf Washer 1
D Wood Shelf Bolt 1
E Wood Screw 1
F Connector Box w/screws 1
G Chimney Screws 1
Rev. 12/19
