Faber W007095957 Specifications

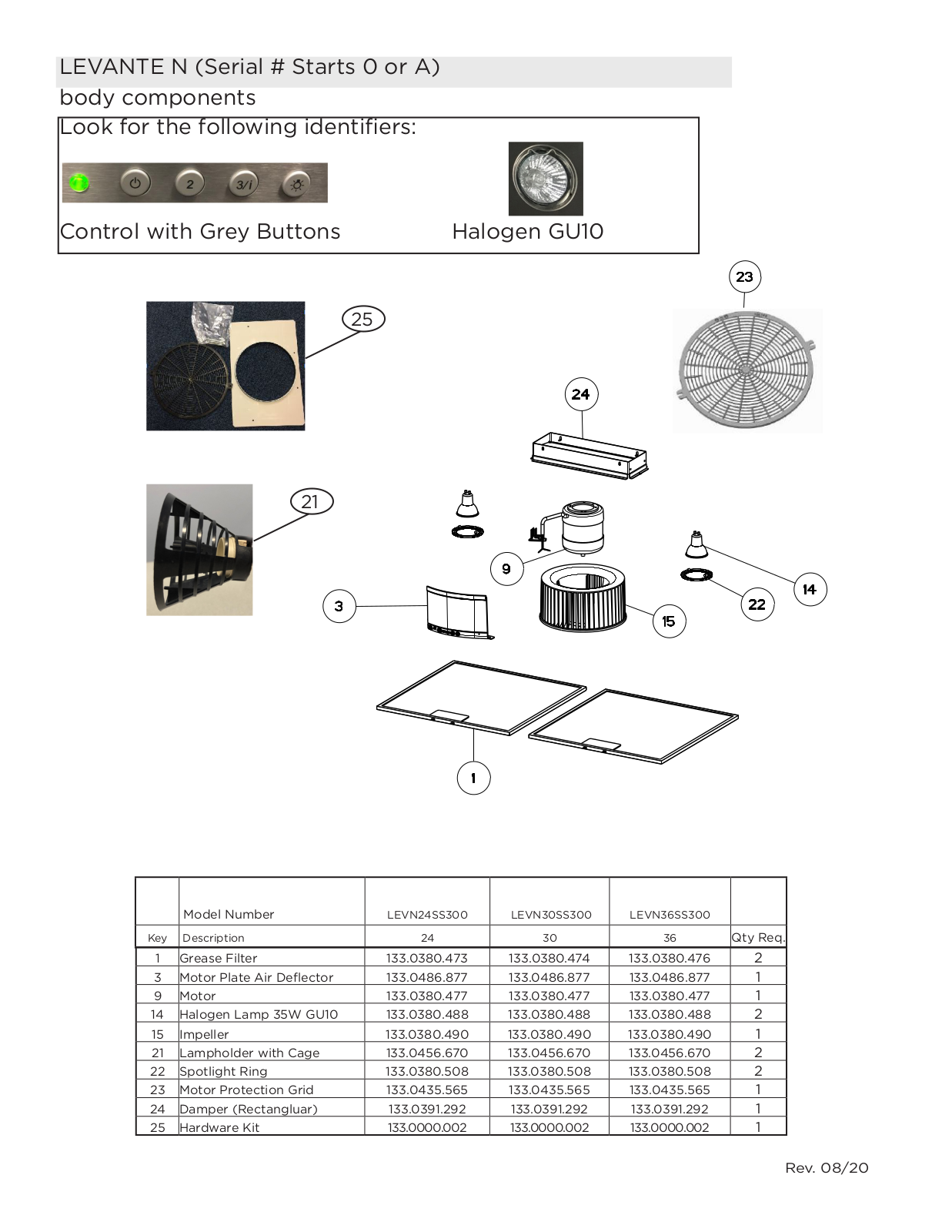

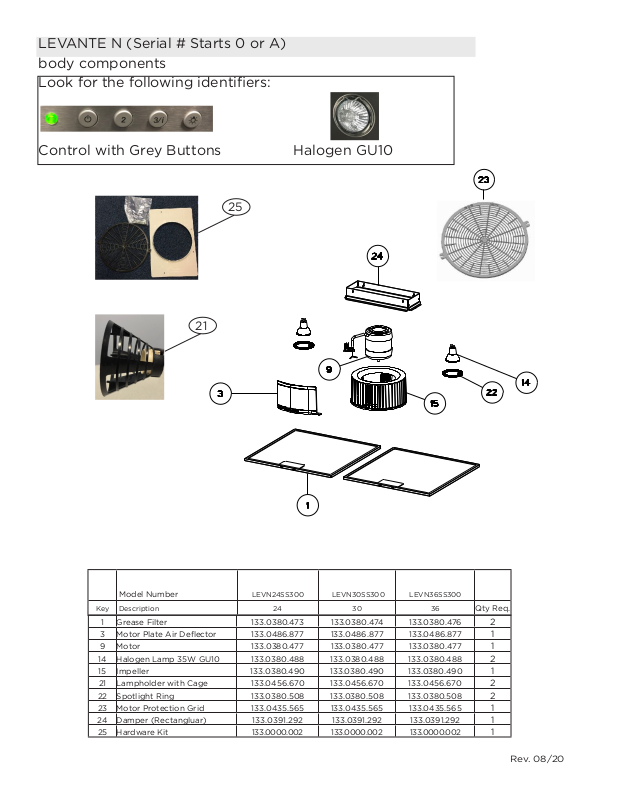

LEVANTE N (Serial # Starts 0 or A)
body components
Look for the following identifiers:

Control with Grey Buttons Halogen GU10

25

21

Model Number LEVN24SS300 LEVN30SS300 LEVN36SS300

Key Description 24 30 36 Qty Req.

1 Grease Filter 133.0380.473 133.0380.474 133.0380.476 2
3 Motor Plate Air Deflector 133.0486.877 133.0486.877 133.0486.877 1
9 Motor 133.0380.477 133.0380.477 133.0380.477 1

14 Halogen Lamp 35W GU10 133.0380.488 133.0380.488 133.0380.488 2
15 Impeller 133.0380.490 133.0380.490 133.0380.490 1

21 Lampholder with Cage 133.0456.670 133.0456.670 133.0456.670 2
22 Spotlight Ring 133.0380.508 133.0380.508 133.0380.508 2
23 Motor Protection Grid 133.0435.565 133.0435.565 133.0435.565 1
24 Damper (Rectangluar) 133.0391.292 133.0391.292 133.0391.292 1
25 Hardware Kit 133.0000.002 133.0000.002 133.0000.002 1

Rev. 08/20

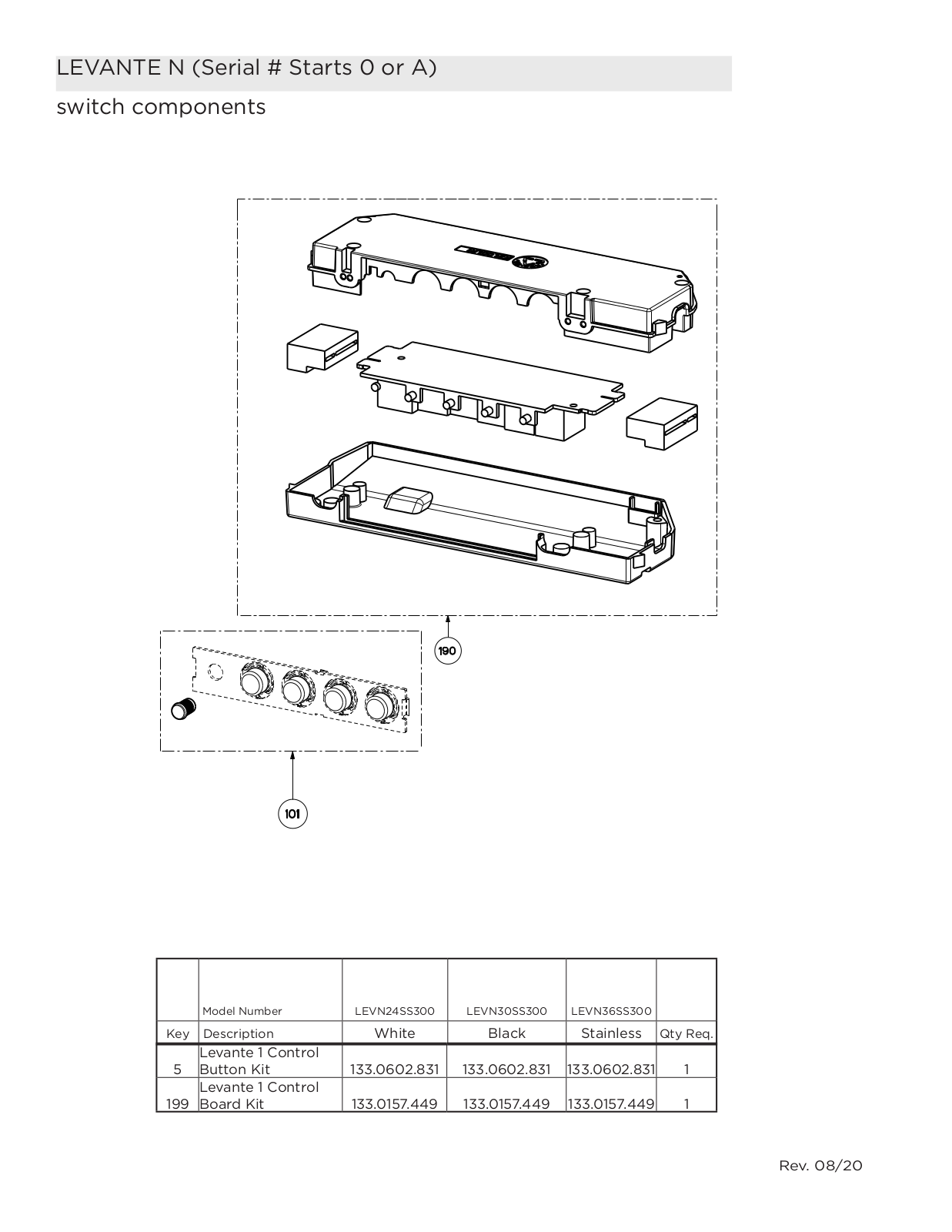

LEVANTE N (Serial # Starts 0 or A)

switch components

Model Number LEVN24SS300 LEVN30SS300 LEVN36SS300

Key Description White Black Stainless Qty Req.

Levante 1 Control

5

Button Kit 133.0602.831 133.0602.831 133.0602.831 1
Levante 1 Control

199

Board Kit 133.0157.449 133.0157.449 133.0157.449 1

Rev. 08/20
