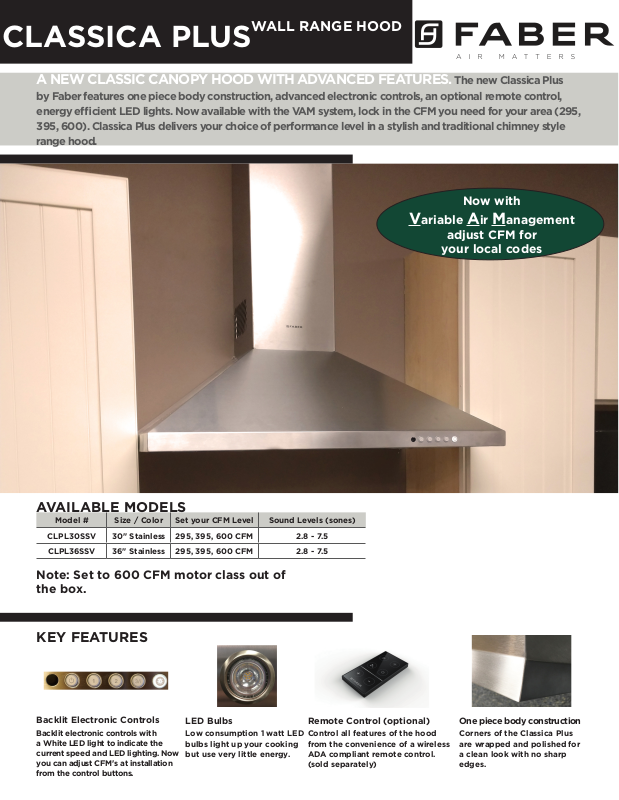

Page 1
CLASSICA PLUS
A NEW CLASSIC CANOPY HOOD WITH ADVANCED FEATURES. The new Classica Plus
by Faber features one piece body construction, advanced electronic controls, an optional remote control,
energy ecient LED lights. Now available with the VAM system, lock in the CFM you need for your area (295,
395, 600). Classica Plus delivers your choice of performance level in a stylish and traditional chimney style
range hood.
WALL RANGE HOOD
Now with
Variable Air Management
adjust CFM for
your local codes
AVAILABLE MODELS
Model # Size / Color Set your CFM Level Sound Levels (sones)
CLPL30SSV 30" Stainless 295, 395, 600 CFM 2.8 - 7.5
CLPL36SSV 36" Stainless 295, 395, 600 CFM 2.8 - 7.5
Note: Set to 600 CFM motor class out of
the box.
KEY FEATURES
Backlit Electronic Controls
Backlit electronic controls with
a White LED light to indicate the
current speed and LED lighting. Now
you can adjust CFM's at installation
from the control buttons.
LED Bulbs
Low consumption 1 watt LED
bulbs light up your cooking
but use very little energy.
Remote Control (optional)
Control all features of the hood
from the convenience of a wireless
ADA compliant remote control.
(sold separately)
One piece body construction
Corners of the Classica Plus
are wrapped and polished for
a clean look with no sharp
edges.
Page 2
WALL RANGE HOOD
CLASSICA PLUS
SPECIFICATIONS DIMENSIONS
min. / max. ceiling height 8' 3" 11/16" - 9' 5 1/4"
convertible to ductless /
recirculating
canopy depth / height 18 1/2" d / 9 13/16" h
high ceiling kit yes - reaches up to 11' ceilings
Variable Air Management yes (set to 295, 395, 600 CFM)
controls 4 speed electronic w/ white LED
lighting 2 x 1 (w) LED
ducting top 6" round
grease filters dishwasher safe mesh
10 minute intensive speed yes
15 minute auto shut o yes
ADA compliant yes (with remote control purchase)
power cord included yes
AC power 320 watts / 2.7 amps
PERFORMANCE
yes – kit sold separately
SPEED 1 2 3 BOOST
CFM 150 295 395 560
sones 2.8 4.3 6.0 7.5
ACCESSORIES
# FILTER1 –
Charcoal Filter Kit
High quality charcoal filter for
use when recirculating the air
back into the kitchen. Filters out
odor and should be replaced
every 6 months
# HIGHCLPL –
High Ceiling Kit
High ceiling kit replaces both
the upper & lower chimney
with 2 taller chimneys (32"
each) to reach up to 11'
# DUCTCLPL –
Ductless Conversion Kit
To convert the Tender to ductless, this kit includes charcoal
filters and a diverter to send the
air thru the side grates on the
lower chimney
Rev :4/19
2 Cabot Road Hudson, MA 01749 • TEL: (508) 358-5353 • E-Mail: [email protected] www.faberonline.com
# REMCTRL2 –
Remote Control
Control all features of the hood
from the convenience of a
wireless remote control
# WIREBOX –
Fixed Wiring Box
Replace the power cord with
a hard wired box to power the
range hood
# MUDAMPER6 / MUDAMPER8
Universal Make-Up Air Damper
Satisfies make-up air requirements,
this kit uses an air switch to activate
the make-up air damper to open and
bring fresh air into the home when
the hood fan is on. It then closes
tightly when the hood is off. The
CFM level is not reduced with this
accessory
WARNING! Product specifications are subject to
change without notification. Consult the installation
instructions before you begin installing this range
hood. * Check local make up air codes for
guidelines.
