BELLA ISOLA

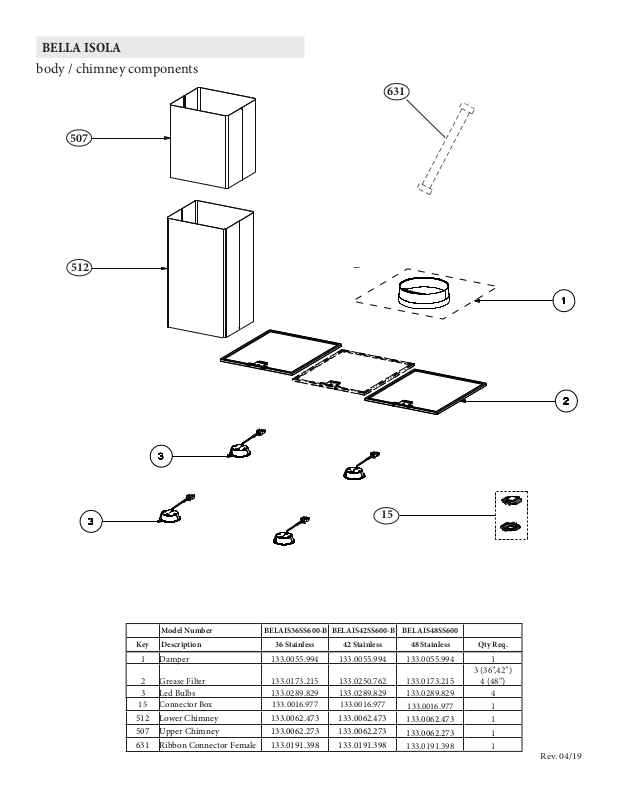

body / chimney components
507
512
631
15
Model Number BELAIS36SS600-B BELAIS42SS600-B BELAIS48SS600
Key Description 36 Stainless 42 Stainless 48 Stainless Qty Req.
1 Damper 133.0055.994 133.0055.994 133.0055.994 1
3 (36”,42”)
2 Grease Filter 133.0173.215 133.0250.762 133.0173.215
3 Led Bulbs 133.0289.829 133.0289.829 133.0289.829 4
15 Connector Box 133.0016.977 133.0016.977
512 Lower Chimney 133.0062.473 133.0062.473
507 Upper Chimney 133.0062.273 133.0062.273
631 Ribbon Connector Female 133.0191.398 133.0191.398
133.0016.977 1
133.0062.473 1
133.0062.273 1
133.0191.398 1
4 (48”)
Rev. 04/19
Page 2
BELLA ISOLA
Control components
Model Number BELAIS36SS600-B BELAIS42SS600-B BELAIS48SS600
Key Description 36 Stainless 42 Stainless 48 Stainless Qty Req.
101 Ribbon Connector Male 133.0177.803 133.0177.803 133.0177.803 1
199 Control Panel Board 133.0312.372 133.0312.372 133.0312.372 1
451 Mother Board 133.0455.790 133.0455.790 133.0455.790 1
452 Transformer 133.0299.377 133.0299.377 133.0299.377 1
Rev. 04/19
Page 3
BELLA ISOLA
motor components
Model Number BELAIS36SS600-B BELAIS42SS600-B BELAIS48SS600
Key Description 36 Stainless 42 Stainless 48 Stainless Qty Req.
302 Impeller 133.0151.809 133.0151.809 133.0151.809 1
303 Capacitor 25 MF 133.0060.648 133.0060.648 133.0060.648 1
305 Motor Rubber Kit 133.0051.604 133.0051.604 133.0051.604 1
399 Motor 133.0174.148 133.0174.148 133.0174.148 1
Rev. 04/19
Page 4
BELLA ISOLA

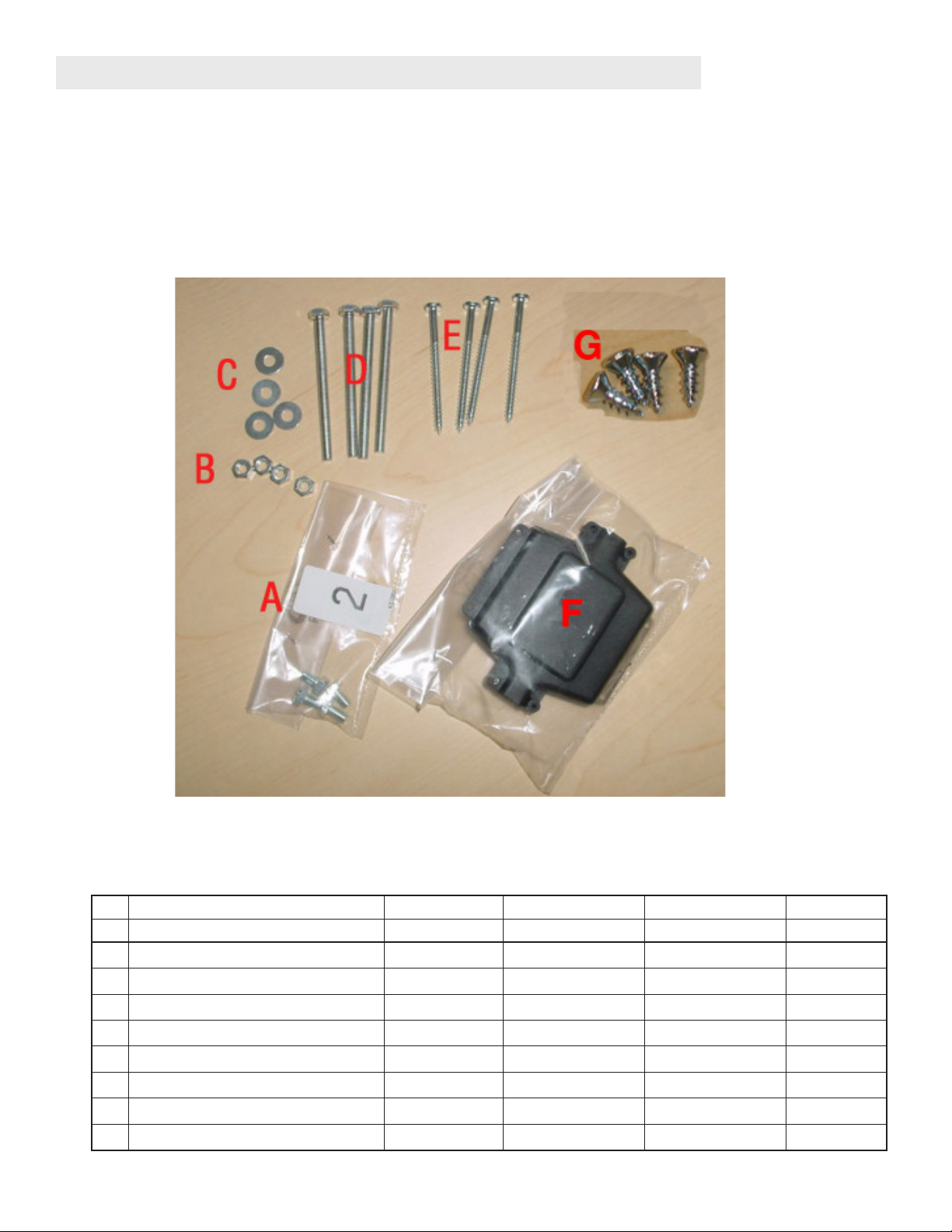

mounting hardware components
Model Number BELAIS36SS600-B BELAIS42SS600-B BELAIS48SS600
Key Description 36 Stainless 42 Stainless 48 Stainless Qty Req.
Mounting Kit Island 133.0084.479 133.0084.479 133.0084.479 1
A 4 Bolts to Attach Canopy to Chimney 1
B Wood Shelf Nut 1
C Wood Shelf Washer 1
D Wood Shelf Bolt 1
E Wood Screw 1
F Connector Box w/screws 1
G Chimney Screws 1
Rev. 02/17
