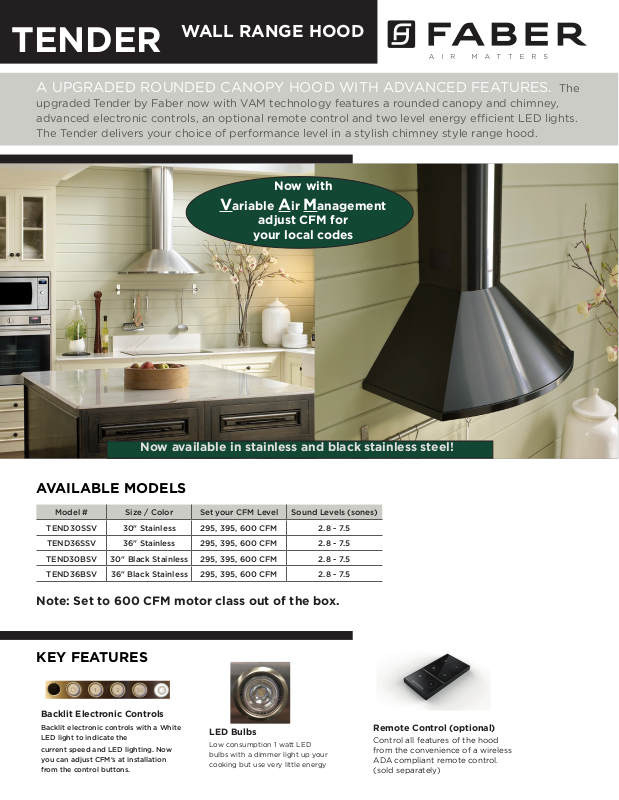

Faber TEND36BSV Specifications

TENDER

WALL RANGE HOOD

A UPGRADED ROUNDED CANOPY HOOD WITH ADVANCED FEATURES. The

upgraded Tender by Faber now with VAM technology features a rounded canopy and chimney,
advanced electronic controls, an optional remote control and two level energy ecient LED lights.
The Tender delivers your choice of performance level in a stylish chimney style range hood.

Now with

Variable Air Management

adjust CFM for

your local codes

Now available in stainless and black stainless steel!

AVAILABLE MODELS

Model # Size / Color Set your CFM Level Sound Levels (sones)

TEND30SSV 30" Stainless 295, 395, 600 CFM 2.8 - 7.5

TEND36SSV 36" Stainless 295, 395, 600 CFM 2.8 - 7.5

TEND30BSV 30" Black Stainless 295, 395, 600 CFM 2.8 - 7.5

TEND36BSV 36" Black Stainless 295, 395, 600 CFM 2.8 - 7.5

Note: Set to 600 CFM motor class out of the box.

KEY FEATURES

Backlit Electronic Controls

Backlit electronic controls with a White
LED light to indicate the

current speed and LED lighting. Now
you can adjust CFM's at installation
from the control buttons.

LED Bulbs

Low consumption 1 watt LED
bulbs with a dimmer light up your
cooking but use very little energy

Remote Control (optional)

Control all features of the hood
from the convenience of a wireless
ADA compliant remote control.
(sold separately)

TENDER

WALL RANGE HOOD

SPECIFICATIONS

min. / max. ceiling height 7' 7 1/2" - 9' 10 3/4"
convertible to ductless /

recirculating
canopy depth / height 19 21/32" d / 9 7/16" h

high ceiling kit yes - reaches up to 11' 4 1/2" ceilings

Variable Air Management yes (set to 295, 395, 600 CFM)

controls 4 speed electronic w/ white LED

lighting 2 x 1 (w) LED

ducting top 6" round

grease filters dishwasher safe mesh

10 minute intensive speed yes

15 minute auto shut o yes

ADA compliant yes (with remote control purchase)

power cord included yes

AC power 320 watts / 2.7 amps

PERFORMANCE

SPEED 1 2 3 BOOST

CFM 150 295 395 560

sones 2.8 4.3 6.0 7.5

yes – with DUCTCLPL

DIMENSIONS

Front View

ACCESSORIES

# FILTER1 –

Charcoal Filter Kit

High quality charcoal filter for use
when recirculating the air back into
the kitchen. Filters out odor and
should be replaced every 6 months

# DUCTCLPL –

Ductless Conversion Kit

To convert the Tender to ductless,
this kit includes charcoal filters and a
diverter to send the air thru the side
grates on the lower chimney.

# BAFFLE2 (30") /
BAFFLE3 – (36")

Bae Filter Kit

Upgrade mesh grease filters to stain­less bae grease filters. BAFFLE2
for 30" models, BAFFLE3 for 36"
models.

#HIGHTNDRBS­High Ceiling Chimney Kit

One tall upper chimney kit. For
black stainless steel only.

Rev :4/19

2 Cabot Road Hudson, MA 01749 • TEL: [phone] • E-Mail: [e-mail] www.faberonline.com

# REMCTRL2 –

Remote Control

Control all features of the hood from
the convenience of a wireless remote
control

# HIGHTNDR –

High Ceiling Kit

High ceiling kit replaces both the upper
chimney with a 39" chimney to reach
up to 11'

# FILTER1LL –

Long Lasting Charcoal
Filter Kit

New washable charcoal filter can
be recharged and washed up to 8
times. For use when recirculating
the air back into the kitchen. Filters
out odor and can last up to 4 years.

Side View

# MUDAMPER6 / MUDAMPER8

Universal Make-Up Air Damper

Satisfies make-up air requirements, this kit
uses an air switch to activate the make-up
air damper to open and bring fresh air into
the home when the hood fan is on. It then
closes tightly when the hood is off. The CFM
level is not reduced with this accessory.

# WIREBOX –

Fixed Wiring Box

Replace the power cord with a hard
wired box to power the range hood.

WARNING! Product specifications are subject to
change without notification. Consult the installation
instructions before you begin installing this range
hood. * Check local make up air codes for
guidelines.

Imagined in Italy
