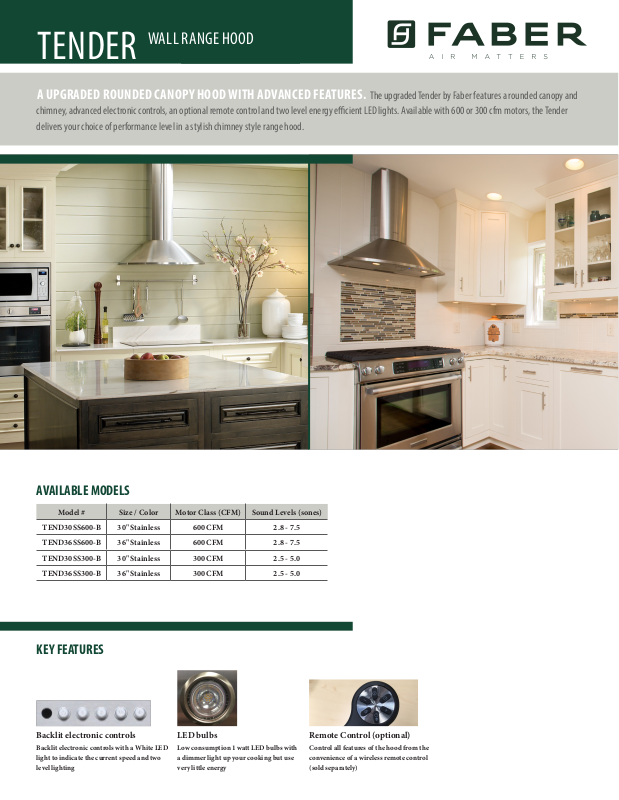

Faber TEND30SS300B Specifications

WALL RANGE HOOD

TENDER

A UPGRADED ROUNDED CANOPY HOOD WITH ADVANCED FEATURES. The upgraded Tender by Faber features a rounded canopy and

chimney, advanced electronic controls, an optional remote control and two level energy ecient LED lights. Available with 600 or 300 cfm motors, the Tender
delivers your choice of performance level in a stylish chimney style range hood.

AVAILABLE MODELS

Model # Size / Color Motor Class (CFM) Sound Levels (sones)

TEND30SS600-B 30" Stainless 600 CFM 2.8 - 7.5

TEND36SS600-B 36" Stainless 600 CFM 2.8 - 7.5

TEND30SS300-B 30" Stainless 300 CFM 2.5 - 5.0

TEND36SS300-B 36" Stainless 300 CFM 2.5 - 5.0

KEY FEATURES

Backlit electronic controls

Backlit electronic controls with a White LED

light to indicate the current speed and two

level lighting

LED bulbs

Low consumption 1 watt LED bulbs with

a dimmer light up your cooking but use

very little energy

Remote Control (optional)

Control all features of the hood from the

convenience of a wireless remote control

(sold separately)

WALL RANGE HOOD

TENDER

SPECIFICATIONS DIMENSIONS

min. / max. ceiling height 7' 9 1/8" - 9' 11 1/8"
convertible to ductless /

recirculating
canopy depth / height 19 5/8" d / 9 7/16" h

high ceiling kit yes - reaches up to 11' 4 1/2" ceilings

controls 4 speed electronic w/ white led

lighting 2 x 1 (w) led - two level

ducting top 6" round

grease lters dishwasher safe mesh

10 minute intensive speed yes

15 minute auto shut o yes

ADA compliant yes (with remote control purchase)

power cord included yes

AC power 320 watts / 2.7 amps

yes – kit sold separately

PERFORMANCE (600 CFM Motor shown)

SPEED 1 2 3 BOOST

CFM 150 300 450 560

sones 2.8 4.3 6.0 7.5

ACCESSORIES

# FILTER1 –

Charcoal Filter Kit

High quality charcoal lter for use
when recirculating the air back into
the kitchen. Filters out odor and
should be replaced every 6 months

# HIGHTNDR –

High Ceiling Kit

High ceiling kit replaces both the
upper chimney with a 39"

chimney to reach up to 11'

# DUCTCLPL –

Ductless Conversion Kit

To convert the Tender to ductless, this kit

includes charcoal lters and a

diverter to send the air thru the side

grates on the lower chimney.

# BAFFLE2 (30") / BAFFLE3 – (36")

Bae Filter Kit

Upgrade mesh grease lters to stainless

bae grease lters. BAFFLE2 for 30"

models, BAFFLE3 for 36" models.

# REMCTRL –

Remote Control

Control all features of the hood from the

convenience of a wireless remote control

# WIREBOX –

Fixed Wiring Box

Replace the power cord with a hard wired

box to power the range hood

# MUDAMPER6 / MUDAMPER8 –

Universal Make-Up Air Damper

Satises make-up air requirements,

this kit uses an air switch to activate the

make-up air damper to open and bring

fresh air into the home when the hood

fan is on. It then closes tightly when the

hood is o. e CFM level is not reduced

with this accessory.

Front View

Side View

Rev: 8/17

WARNING! Product specications are subject to change without
notication. Consult the installation instructions before you begin
installing this range hood

2 Cabot Road Hudson, MA 01749 • TEL: [phone] • E-Mail: [e-mail] www.faberonline.com

Imagined in Italy
