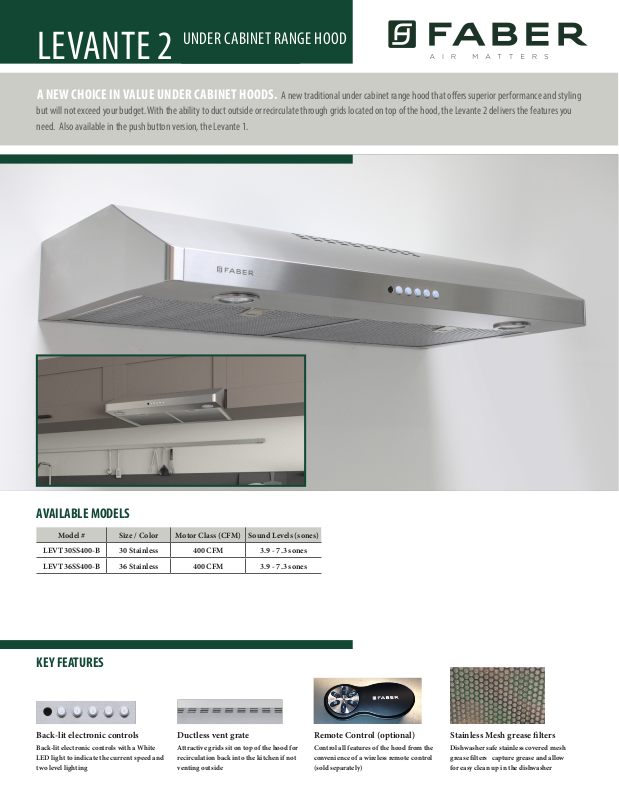

Faber LEVT36SS400B, LEVT30SS400B Specifications

UNDER CABINET RANGE HOOD

LEVANTE 2

A NEW CHOICE IN VALUE UNDER CABINET HOODS. A new traditional under cabinet range hood that oers superior performance and styling

but will not exceed your budget. With the ability to duct outside or recirculate through grids located on top of the hood, the Levante 2 delivers the features you
need. Also available in the push button version, the Levante 1.

AVAILABLE MODELS

Model # Size / Color Motor Class (CFM) Sound Levels (sones)

LEVT30SS400-B 30 Stainless 400 CFM 3.9 - 7.3 sones

LEVT36SS400-B 36 Stainless 400 CFM 3.9 - 7.3 sones

KEY FEATURES

Back-lit electronic controls

Back-lit electronic controls with a White

LED light to indicate the current speed and

two level lighting

Ductless vent grate

Attractive grids sit on top of the hood for

recirculation back into the kitchen if not

venting outside

Remote Control (optional)

Control all features of the hood from the

convenience of a wireless remote control

(sold separately)

Stainless Mesh grease lters

Dishwasher safe stainless covered mesh

grease lters capture grease and allow

for easy clean up in the dishwasher

UNDER CABINET RANGE HOOD

LEVANTE 2

SPECIFICATIONS DIMENSIONS

depth / height 20" d / 5 1/2" h
convertible to ductless /

recirculating
controls 4 speed electronic w/ white led

lighting 2 x 35 (w) halogen - two level

ducting top / rear (back) 7" round (top) / 3 1/4" x 10" (top or back)

grease lters dishwasher safe stainless mesh

10 minute intensive speed yes

15 minute auto shut o yes

ADA compliant yes (with remote control purchase)

AC power 350 watts / 2.9 amps

yes – kit sold separately

PERFORMANCE

SPEED 1 2 3 BOOST

CFM 150 250 350 390

Sones 3.9 5.0 6.0 7.3

Top Vi e w

Front View

Side View

ACCESSORIES

# FILTER5 –

Charcoal Filter Kit

High quality charcoal lter for use
when recirculating the air back into
the kitchen. Filters out odor and
should be replaced every 6 months

Rev: 6/16

2 Cabot Road Hudson, MA 01749 • TEL: [phone] • E-Mail: [e-mail] w ww.faberonline.com

# REMCTRL –

Remote Control

Control all features of the hood from the

convenience of a wireless remote control

WARNING! Product specications are subject to change without
notication. Consult the installation instructions before you begin
installing this range hood

Imagined in Italy
