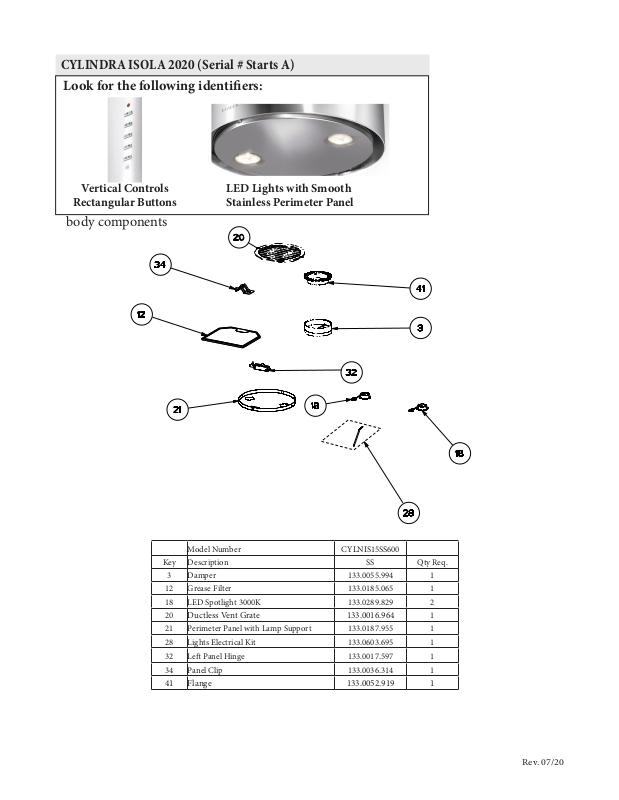

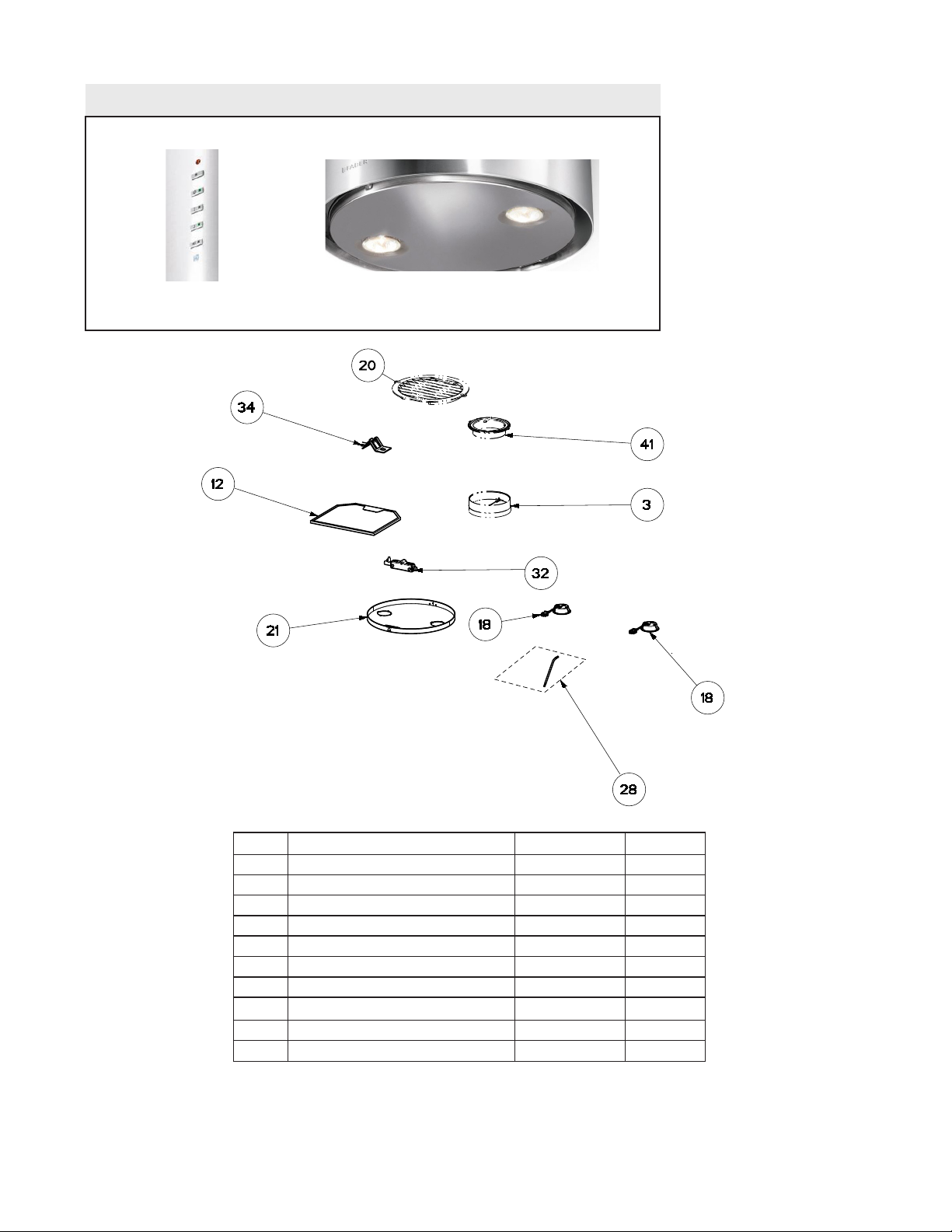

CYLINDRA ISOLA 2020 (Serial # Starts A)
Look for the following identiers:
Vertical Controls
Rectangular Buttons
body components
LED Lights with Smooth
Stainless Perimeter Panel
Model Number CYLNIS15SS600
Key Description SS Qty Req.
3 Damper 133.0055.994 1
12 Grease Filter 133.0185.065 1
18 LED Spotlight 3000K 133.0289.829 2
20 Ductless Vent Grate 133.0016.964 1
21 Perimeter Panel with Lamp Support 133.0187.955 1
28 Lights Electrical Kit 133.0603.695 1
32 Le Panel Hinge 133.0017.597 1
34 Panel Clip 133.0036.314 1
41 Flange 133.0052.919 1
Rev. 07/20
Page 2

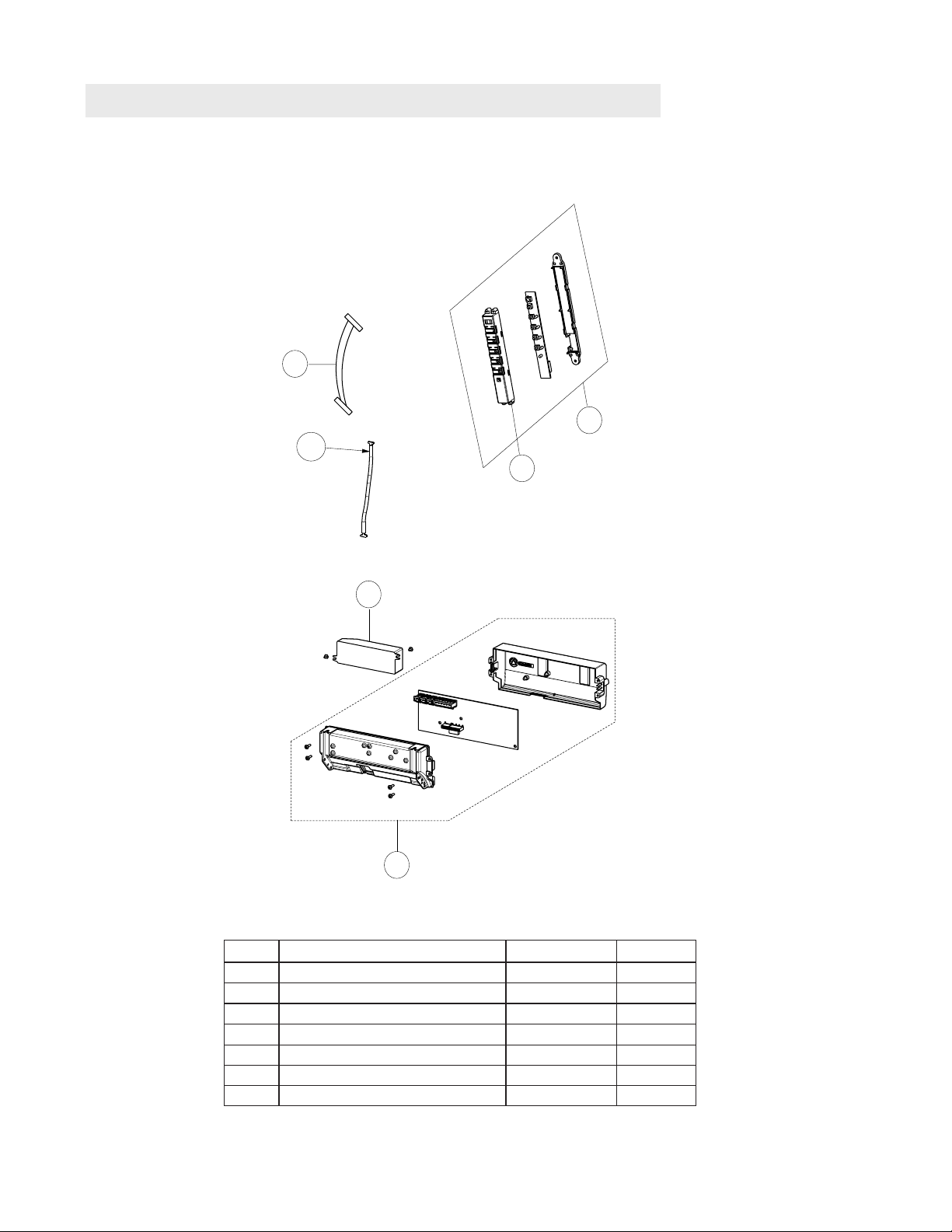

CYLINDRA ISOLA 2020 (Serial # Starts A)
control/electrical components
30
29
101
102
37
451
Model Number CYLNIS15SS600
Key Description SS Qty Req.
29 Ribbon Connector Male 133.0191.395 1
30 Ribbon Connector Female 133.0191.398 1
37 Transformer Kit 133.0299.377 1
101 Control Button Kit 133.0166.539 1
102 Control Buttons 133.0250.978 1
451 Control Board 133.0603.699 1
Rev. 07/20
Page 3

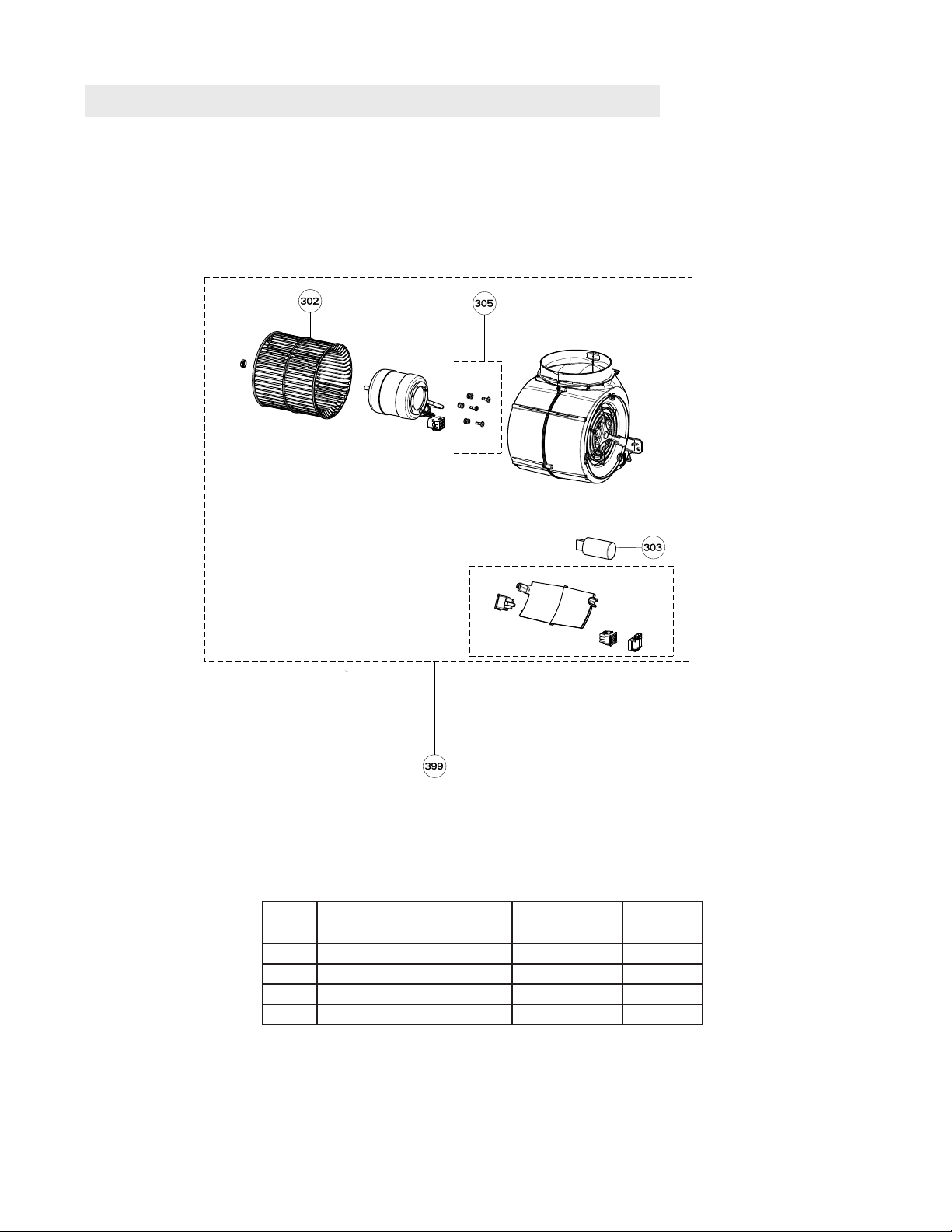

CYLINDRA ISOLA 2020 (Serial # Starts A)
motor components
Model Number CYLNIS15SS600
Key Description SS Qty Req.
302 Impeller 133.0151.809 1
303 Capacitor 133.0060.648 1
305 Motor Mounts 133.0151.811 1
399 Motor Kit 133.0603.700 1
Rev. 07/20
