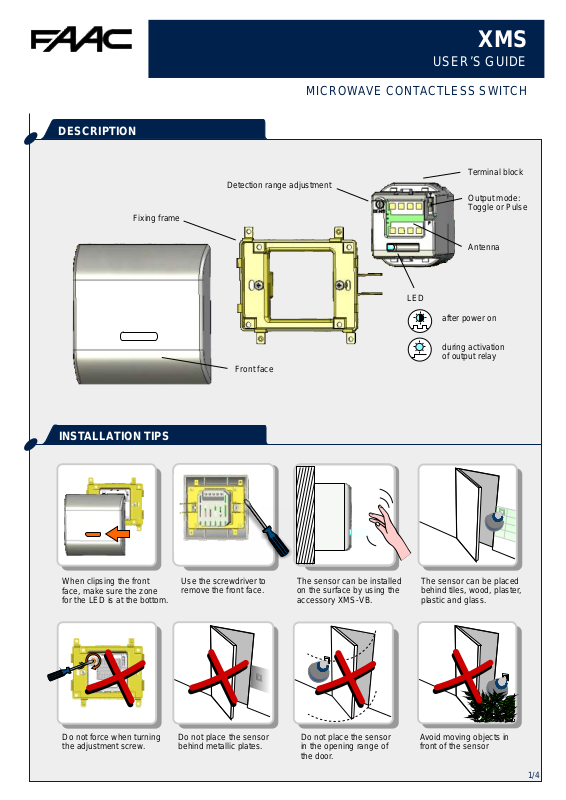

FAAC XMS User Manual

DESCRIPTION

XMS

USER’S GUIDE

MICROWAVE CONTACTLESS SWITCH

Terminal block

Detection range adjustment

Output mode:
Toggle or Pulse

Fixing frame

Antenna

LED

after power on

INSTALLATION TIPS

When clipsing the front
face, make sure the zone
for the LED is at the bottom.

Front face

Use the screwdriver to
remove the front face.

The sensor can be installed
on the surface by using the
accessory XMS-VB.

during activation
of output relay

The sensor can be placed
behind tiles, wood, plaster,
plastic and glass.

Do not force when turning
the adjustment screw.

Do not place the sensor
behind metallic plates.

Do not place the sensor
in the opening range of
the door.

Avoid moving objects in
front of the sensor

1/4

1/4

INSTALLATION

1

4

70mm

50mm

Make a hole as indicated and
insert the recessed box into the
opening. Pull the wires through
the box.

2

If you do not use the fixation
brackets, unscrew them.
Fix the screws of the recessed
housing in the oval holes.

5

10cm

50cm

3

POWER

NO

NC

COM

Connect the wires to the
terminal block. After
connection, the LED flashes.

10cm

50cm

6

7

Insert the housing into the
recessed box and tighten the
screws firmly.

TOGGLE MODE

T

P

Make sure the output mode is set to PULSE-mode (P) for standard door applications.

switch applications. In toggle mode, a
detection activates the relay and a
second detection deactivates it again. In
door applications, the door stays open
after the first activation.

PULSE MODE

automatic door applications. In pulse
mode, a detection activates the relay for
a short period of time (depending on the
duration of the movement in front of the
sensor).

8

Adjust the detection range according to the application.
Note that the detection range depends on the trajectory, size and
nature/material of the detected object.

: Recommended for

DOOR OPENS

: Recommended for

DOOR OPENS
AND CLOSES

“click”

9

min. 1s

DOOR CLOSES

DOOR OPENS
AND CLOSES

RELAY ON
RELAY OFF

RELAY ON
RELAY OFF

SILICONE

In order to increase water
resistance, place a silicone seal
on the front cover.

“click”

Clips the front cover on the
fixation braket. Make sure the
zone for the LED is at the
bottom, otherwise you risk
damaging the front face when
trying to clips it.

Make sure the LED-signal is
visible and test the good
functioning of the sensor by
moving the hand towards the
sensor.

2/4

TROUBLESHOOTING

SYMPTOM

The door does
not open even when
moving hand
towards the sensor.

The door remains
permanently open.

The door remains open
after
detection/activation.

LED

OFF

OFF

ON

ON

OFF

ON

POSSIBLE CAUSES

Bad or no power supply

Detection range is too small.

Wrong connection

The environment influences
the good functioning of the sensor.

Wrong connection

Wrong output mode

CORRECTIVE ACTION

Check power supply.

If LED switches on or flashes,
power connection is OK.

Adjust the detection range.
Remove any metal plates

in front of the sensor.

Check wiring and relay connection.

Remove any moving objects close
to the sensor.

Check wiring and relay connection.

Switch the output mode
to PULSE mode.

OFF

TECHNICAL SPECIFICATIONS

Technology:
Radiated frequency:
Radiated power density:
Detection range (hand):
Detection mode:
Speed of target to create detection:
Supply voltage:

Mains frequency:
Power consumption:
Output:

Max. voltage:
Max. current:
Max. switching power:

Output hold time:
Temperature range:
Degree of protection:

Norm conformity:
Material:
Colour:
Recommended wiring cable:

Wrong connection

Check wiring and relay connection.

Microwave motion sensor

24.150 GHz
<< 5mW/cm

2

+/- 10 to 50 cm if movement towards sensor at 90° (adjustable)*
Motion (bidirectional)
Min. 5Hz or +/- 3cm/s, Max. 200Hz or +/- 1.2m/s
12 - 24V AC +/- 10%
12 - 24V DC +30% / - 10%
50 - 60 Hz
< 1.2W
Relay with switch-over contact (free of potential)
48V AC - 60V DC
1A (resistive)
30W (DC) / 48VA (AC)

0.5s (in PULSE mode)

-20°C - +55°C
IP30 with cable connected
IP40 flush-mounted without front face
Ip52 flush-mounted with front face and silicone seal
IP52 mounted in surface mount box
R&TTE: 1999/5/EC; EMC: 2004/108/EC
ABS / PC
White
Stranded cable up to 16 AWG - 1.5mm

2

* The adjustment of the detection field below 10cm is possible, but the detection capability of the sensor can not be guaranteed!

Specifications are subject to changes without prior notice

3/4

ACCESSORIES

XMS - VB

LED SIGNAL

LED flashes

LED switches ON

LED is OFF

EU declaration of conformity

BEA hereby declares that the product FAAC XMS is in conformity with the basic
requirements and the other relevant provisions of the standards 1999/5/EC and
2004/108/EC.
