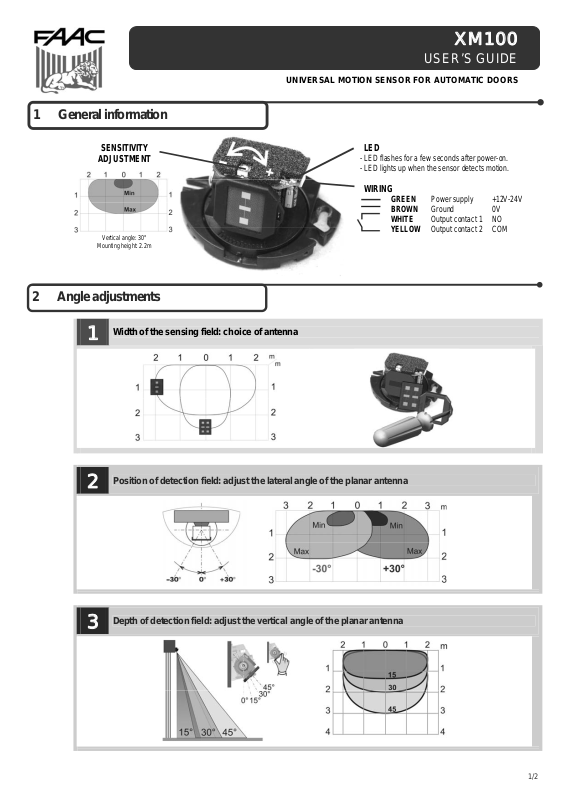

FAAC XM100 User Manual
1 General information
SENSITIVITY
ADJUSTMENT
Vertical angle: 30°
Mounting height: 2.2m
XM100
USER’S GUIDE
UNIVERSAL MOTION SENSOR FOR AUTOMATIC DOORS
LED
- LED flashes for a few seconds after power-on.
- LED lights up when the sensor detects motion.
WIRING
GREEN Power supply +12V-24V
BROWN Ground 0V
WHITE Output contact 1
YELLOW Output contact 2 COM
NO
2 Angle adjustments
1
2
Width of the sensing field: choice of antenna
Position of detection field: adjust the lateral angle of the planar antenna
Depth of detection field: adjust the vertical angle of the planar antenna
3
1/2
3 Installation tips
Avoid vibrations!!!
Do not cover the sensor! Avoid moving objects in
4 Troubleshooting
SYMPTOMS POSSIBLE CAUSES
The door will not open and no red LED
lights up.
The door opens and closes constantly. 1. The sensor "sees" the door moving. Increase the tilt angle and/or reduce the sensitivity.
2. Closing the door creates vibrations
The door will not close.
Red LED OFF
2. Improper output configuration Check the output configuration setting on each sensor
5 Technical specifications
Technology : microwave and microprocessor
Transmitter frequency : 24.175 GHz
Transmitter radiated power : <20 dBm EIRP
Transmitter power density : < 5 mW/cm²
Mounting height : from 1.8 m to 3 m
Tilt angles : 0° to 90° vertical and -30° to + 30° lateral
Detection area (mounting height = 2.2 m) : 4m (W) x 2m (D)
Detection mode : motion
Minimum speed : 5 cm/s (measured in the sensor axis)
Supply voltage : 12V to 24V DC +30% / -10%
Power consumption : < 2W (VA)
Output (electronic relay)
Max. current
Max. voltage
Temperature range : -20°C to +55°C
Norm Conformity
Degree of protection : IP54
Material : ABS & Polycarbonate
Color of head housing : black smoked, aluminum
Dimensions : 80 mm (W) x 60 mm (H) x 55 mm (D)
Weight : 140g
Length of cable : 2.5m
proximity of the sensor!
The sensor power is off.
picked up by the sensor.
1. On-Off switch at door control is in
wrong position or faulty.
: 250 mA
: 50 VDC/VAC
: R&TTE 1999/5/EC; EMC 2004/108/EC
Avoid HF lamps and
fluorescent lighting in
proximity of the sensor!
CORRECTIVE ACTION
Do not remove the protection
which avoids contact with the
electronical parts!
Check the wiring and the power supply.
Ensure that the sensor is correctly fixed.
Make sure that On-Off switch for door is in the ON or
AUTOMATIC position.
connected to the door operator.
Specifications are subject to changes without prior notice
The declaration of conformity is available on our website: www.faac.it
42.0805 / V1 – 01.08
FAAC S.p.A . - Via Benini, 1 40069 Zola Predosa - Italia - tel. +39 051 61724 - fax. +39 051 758518 - www.faacgroup.com
2/2
