Guide for the installer

Page 4

Notes on reading the instruction

Read this installation manual to the full before you begin installing the product.

The symbol indicates notes that are important for the safety of persons and for the good condition of the automated system.

The symbol draws your attention to the notes on the characteristics and operation of the product.

CE DECLARATION OF CONFORMITY

Manufacturer: FAAC S.p.A.

Address: Via Calari, 10 - 40069 - Zola Predosa - Bologna - ITALY

Declares that: Operator mod. 390 / 390 24390 / 390 24 with 230 V~ power supply

is built to be integrated into a machine or to be assembled with other machinery to create a machine under the provisions of Directive
2006/42/EEC;
conforms to the essential safety requirements of the following EEC directives:

2006/95/EC Low Voltage directive.
2004/108/EC Electromagnetic Compatibility directive.

and also declares that it is prohibited to put into service the machinery until the machine in which it will be integrated or of which it will
become a component has been identified and declared as conforming to the conditions of Directive 2006/42/EEC and subsequent
modifications.

Bologna, December 30, 2009

Managing Director

A. Marcellan

•

•

•

•

•

INDEX

IMPORTANT NOTES FOR INSTALLER page.5

1. DESCRIPTION AND TECHNICAL SPECIFICATIONS page.5

2. ELECTRICAL EQUIPMENT (standards system) page.5

3. INSTALLATION OF AUTOMATION page.5

3.1. PRELIMINARY CHECKS page.5

3.2. INSTALLATION DIMENSIONS page.5

3.3. INSTALLATION STEPS page.6

3.4. TEST OF THE AUTOMATION page.6

4. MANUAL OPERATING MODE page.6

5. RESTORING NORMAL OPERATING MODE page.6

6. MAINTENANCE page.6

7. REPAIRS page.6

390 / 390 24

ENGLISH

Guide for the installer

Page 5

Thank you for choosing our product. FAAC is sure that it will give you
all the performances you are looking for. All our products are the
result of a long experience in the field of the automated systems.

In the middle of the handbook you will find a detachable

brochure with the images for the installation.

These instructions apply to the following model:

390

The external automation with articulated arms automates residen­tial swing-leaf gates with leaves of up to 3m in length, and is ideal
for applications on large pilasters without the need to provide
niches (sometimes required to observe the installation dimensions
of piston driven devices).
It consists of an irreversible electro-mechanical operator with guard
and an articulated-arm activation system to be fitted to the gate
with the appropriate accessories.
The irreversible system ensures the gate is mechanical locked when
the motor is not operating. No lock need be installed for leaves
up to 2m in length.
A manual release makes it possible to move the gate in the event
of a power-cut or fault.

IMPORTANT NOTES FOR INSTALLER

Before starting the installation of the operator read this manual
completely.
Keep this manual for future reference.
Smooth operation and specifications are obtained only declared
following the directions given in this handbook and with acces­sories and safety devices FAAC.
The lack of a mechanical clutch device requires to ensure an
adequate level of security automation, the use of a central control
device with an electronically controlled clutch.
The automation was designed and built to control vehicular ac­cess. Avoid any other use.
The operator can not be used to handle emergency exit routes
or gates installed on emergency (escape routes).
If there is built-in anti motorize from a door to the walkway is requi­red to add a safety switch on the door, connected on the entry of
STOP, to inhibit the operation of automation with door open.
Everything that is not expressly stated in this manual is not al­lowed.

1. DESCRIPTION AND TECHNICAL SPECIFICATIONS

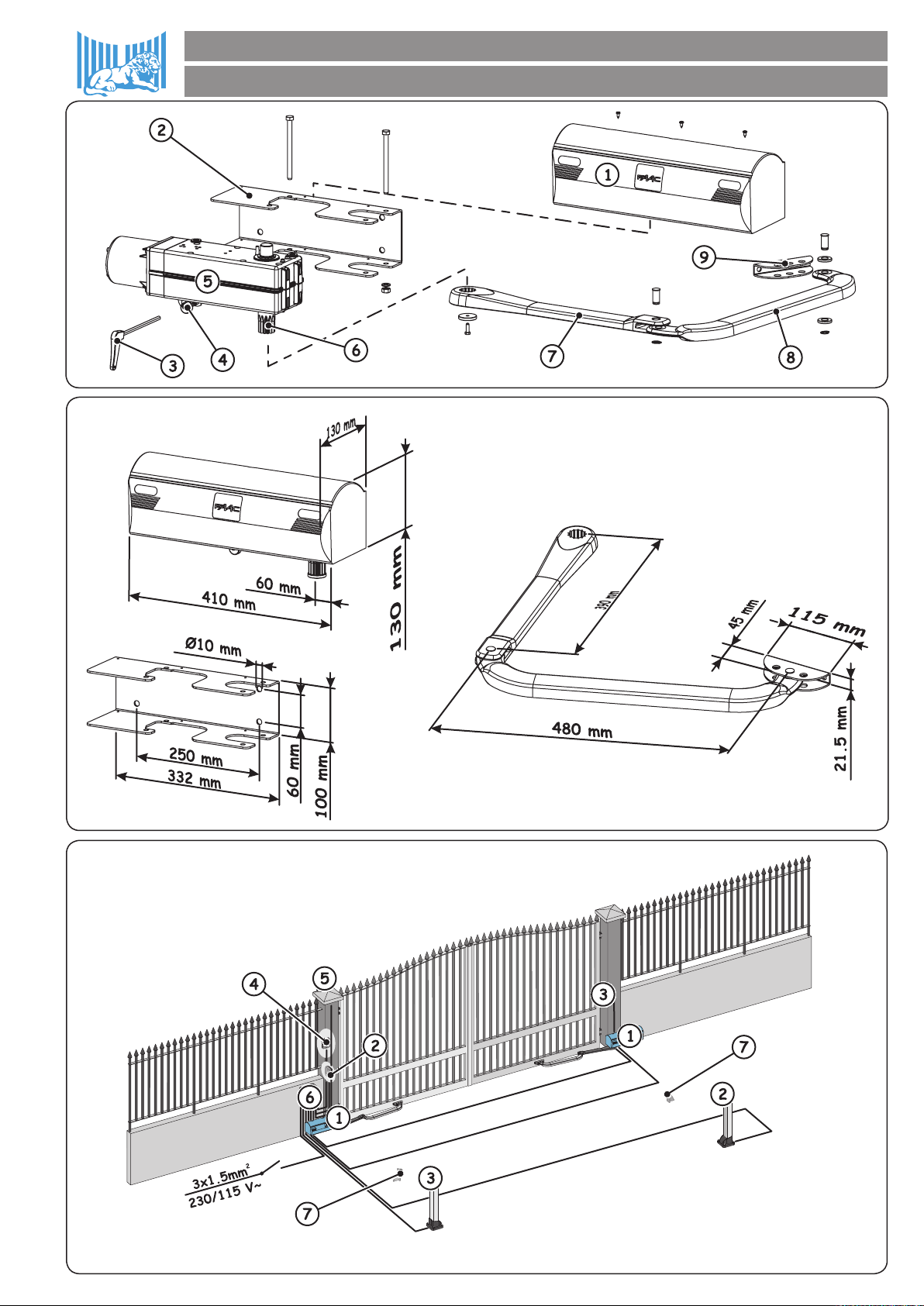

With reference to Figure 1

Pos Description

a

Guard

b

Operator securing base-plate

c

Release wrench

d

Release

e

Gearmotor

f

Transmission shaft

g

Straight lever of articulated arm

h

Curved lever of articulated arm

i

Front coupling

TAB. 1 TECHNICAL SPECIFICATION OF OPERATOR

MODEL 390

Power supply 230V~ 50Hz 24 Vdc
Power absorption 280 W 40 W
Current absorption 1.2 A 2 A
Max torque 250 Nm 200 Nm
Nominal Torque 170 Nm 140 Nm
Starting capacitor 8 µF /
Leaf max length

a

3 m

Thermal protection for winding 140 °C /
Reduction ratio 1:700
Angular velocity 8 °/sec
Ambient temperature -20 °C +55 °C
Use frequency at 20°C S3 - 30% S3 - 100%
Cycles / hour at 20°C >30 >100
Noise <70 dB(A)

•

•

•

•

•

•

•

•

MODEL 390

Weight of gearmotor 11.5 Kg
Protection class IP 44
Gearmotor overall dimension Vedi Fig. 2

a

An electrolock should be installed in the event of leaves excee-

ding 2 metres, in order to guarantee the leaf blocking.

2. ELECTRICAL EQUIPMENT (standards system)

With reference to Figure 3

Pos. Description

Cables

230 Vac 24 Vdc

a

Operators 4x1 mm

2

2x1.5mm

2

b

TX photocells 2x0.5 mm

2

c

RX photocells 4x0.5 mm

2

d

Key selector 2x0.5 mm

2

e

Flashing lamp 2x1.5 mm

2

f

Control unit 3x1.5 mm2 (power supply)

g

Mechanical stops —

To lay electrical cables, use adequate rigid and/or flexible

tubes.

Always separate low voltage accessories from those ope-

rating at 230 V~. To avoid any interference, always use
separate sheaths.

For the motor cable to use a sheath suitable for outdoor use,

a hand that is piped in special ducts always external use.

3. INSTALLATION OF AUTOMATION

3.1. PRELIMINARY CHECKS

To ensure safety and an efficient automation, make sure the

following requirements are met:

The gate structure must be suitable for automation. In particular,
make sure it is sufficiently sturdy and rigid, and that its dimensions
are in line with those indicated in the technical specifications.
Make sure that the leaves move properly and uniformly, without
any irregular friction during their entire travel.
Check if hinges are in good condition.
Make sure the travel limit mechanical stops are present. We
advise you to carry out any metalwork jobs before installing the
automation.

3.2. INSTALLATION DIMENSIONS

Establish the installation position of the operator by consulting

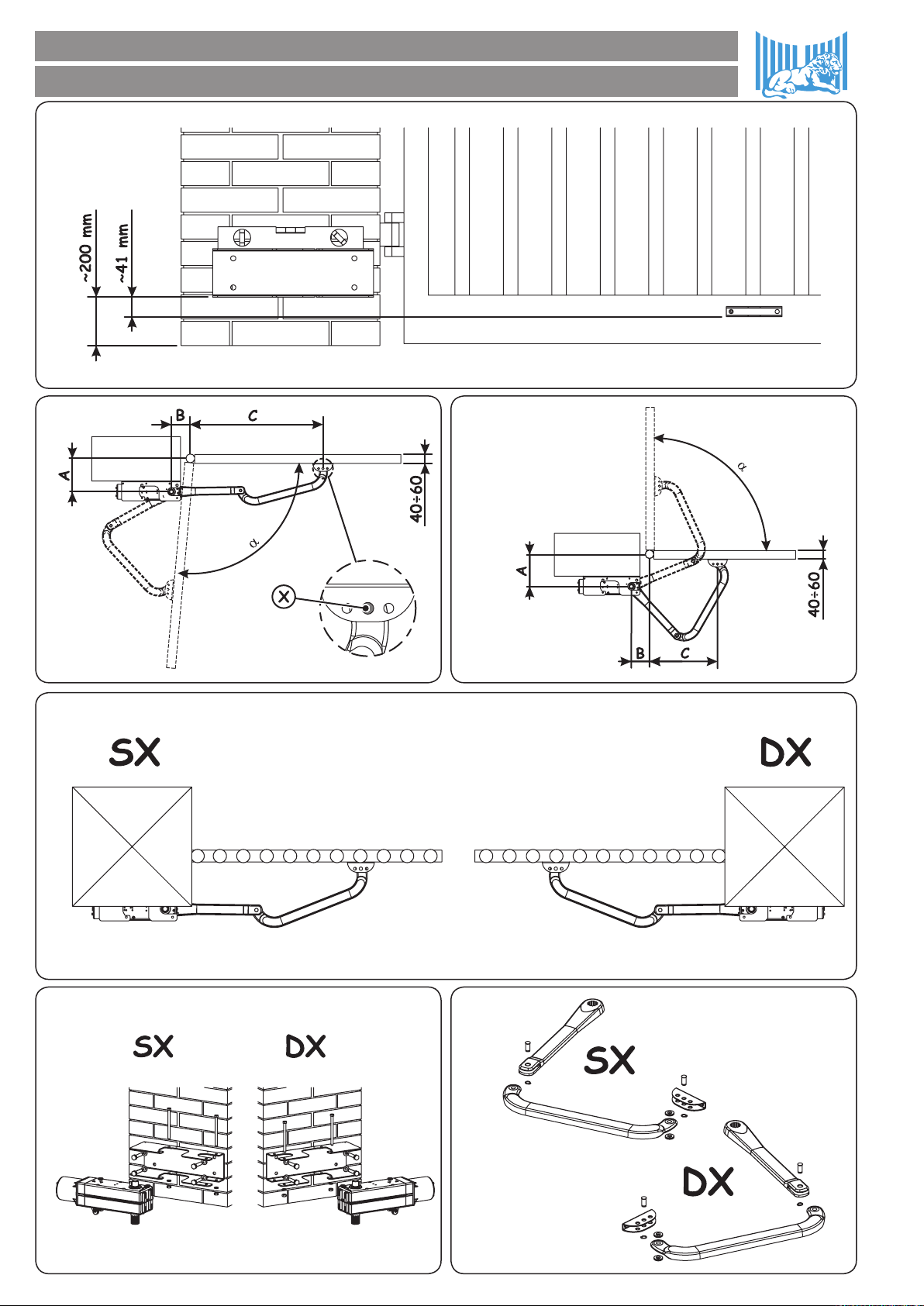

Fig. 4-5-6.

INWARD OPENING (Fig. 5)

A (mm) B (mm) C max. (mm)

a (°)

60 ÷ 110

110 ÷ 130

730

90

110 ÷ 160 720
160 ÷ 210 710
210 ÷ 260 700
260 ÷ 310 690
310 ÷ 360 670

60 ÷ 110 190 ÷ 210 650

120110 ÷ 160 230 ÷ 250 600
160 ÷ 210 290 ÷ 310 540
210 ÷ 260 310 ÷ 330 510 120

As for 120° openings the curved arm must be fixed to the

hole marked with the letter “X”

OUTWARD OPENING (Fig. 6)

A (mm) B (mm) C max. (mm)

a (°)

60 ÷ 110

110 ÷ 130

430

90

110 ÷ 160 380
160 ÷ 210 330
210 ÷ 260 280
260 ÷ 310 240

•

•

•

•

390 / 390 24

ENGLISH

Guide for the installer

Page 6

3.3. INSTALLATION STEPS

The operator, base-plate and articulated arm are designed either
for right-hand or left-hand (Fig. 7) installation.

Secure the base-plate to the pilaster, using Ø10 screws and suita­ble expansion plugs (Fig. 8), and check it is perfectly horizontal.
Fit the gearmotor unit on the base-plate and secure it with the
two screws, nuts and flexible washers (Fig.8).

The transmission shaft must always face downward.

Assemble the articulated arm and front coupling as shown in

Fig. 9.
Fit the straight lever of the articulated arm on the gearmotor shaft
and tighten it with the supplied screw and washer (Fig. 10).

Release the operator (chapter 4.)

Establish the securing position of the front coupling on the leaf,

observing dimension “C” defined previously (chapter 4.2). Check

that arm and coupling are perfectly horizontal.

The coupling may be welded directly onto the leaf (Fig. 11)

or screwed by using the threaded inserts (Fig. 12).

In both cases, mark the position of the front fitting and provisionally

remove the coupling from the arm in order to secure it.

After having fastened the front fitting, mount the arm again

Fit the guards on the operator (Fig. 10).

Re-lock the operator (chapter 5.)

Make the electrical connections of the selected electronic ap-

pliance, observing the annexed instructions.

3.4. TEST OF THE AUTOMATION

When you have finished installation, carefully check the operating
efficiency of the automation and of all accessories connected to
it, safety devices in particular.
Hand the “User’s Guide” page to the Client, and describe how
the operator should function and be used correctly, stressing the
potentially dangerous areas of the automation.

4. MANUAL OPERATING MODE

If the gate has to be operated manually in the event of a power-cut
or fault to the automation, use the release device as follows:

Cut power to the system.

Fit the supplied Allen wrench and turn it by about a half turn until

it stops, in the direction shown in Fig. 13, depending on type of

installation.

Move the gate by hand.

5. RESTORING NORMAL OPERATING MODE

To avoid an involuntary pulse from activating the gate during

the manoeuvre, before re-locking the operator , switch off
power to the system.

Fit the supplied Allen wrench and turn it by about a half turn until

it stops, in the direction shown in Fig. 13, depending on type of

installation.

make sure that the gate cannot be moved manually.

Restore power to the system.

6. MAINTENANCE

To ensure correct long-term operation and a constant level of
safety, we advise you to generally control the system at least
every 6 months. In the “User ’s Guide” booklet, there is a form for
recording jobs.

7. REPAIRS

The User must not in any way attempt to repair or to take direct

action and must solely contact qualified FAAC personnel or
FAAC service centres.

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•
