VTT001 and VTR001
Twisted Pair Transmitter and Receiver
User Guide
Twisted Pair
68-760-01 Rev. H
06 11
Safety Instructions • English
This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.
This symbol is intended to alert the user of the presence of uninsulated
dangerous voltage within the product’s enclosure that may present a risk of
electric shock.
Caution
Read Instructions • Read and understand all safety and operating instructions before using the equipment.
Retain Instructions • The safety instructions should be kept for future reference.
Follow Warnings • Follow all warnings and instructions marked on the equipment or in the user information.
Avoid Attachments • Do not use tools or attachments that are not recommended by the equipment
manufacturer because they may be hazardous.
Warning
Power sources • This equipment should be operated only from the power source indicated on the product. This
equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third
(grounding) pin is a safety feature, do not attempt to bypass or disable it.
Power disconnection • To remove power from the equipment safely, remove all power cords from the rear of
the equipment, or the desktop power module (if detachable), or from the power source receptacle (wall plug).
Power cord protection • Power cords should be routed so that they are not likely to be stepped on or pinched
by items placed upon or against them.
Servicing • Refer all servicing to qualified service personnel. There are no user-serviceable parts inside. To prevent
the risk of shock, do not attempt to service this equipment yourself because opening or removing covers may
expose you to dangerous voltage or other hazards.
Slots and openings • If the equipment has slots or holes in the enclosure, these are provided to prevent
overheating of sensitive components inside. These openings must never be blocked by other objects.
Lithium battery • There is a danger of explosion if battery is incorrectly replaced. Replace it only with the
same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the
manufacturer’s instructions.
Consignes de Sécurité • Français
Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le
matériel contient des instructions importantes concernant l’exploitation et la
maintenance (réparation).
Ce symbole sert à avertir l’utilisateur de la présence dans le boîtier
de l’appareil de tensions dangereuses non isolées posant des risques
d’électrocution.
Attention
Lire les instructions• Prendre connaissance de toutes les consignes de sécurité et d’exploitation avant
d’utiliser le matériel.
Conserver les instructions• Ranger les consignes de sécurité afin de pouvoir les consulter à l’avenir.
Respecter les avertissements • Observer tous les avertissements et consignes marqués sur le matériel ou
présentés dans la documentation utilisateur.
Eviter les pièces de fixation • Ne pas utiliser de pièces de fixation ni d’outils non recommandés par le
fabricant du matériel car cela risquerait de poser certains dangers.
Sicherheitsanleitungen • Deutsch
Dieses Symbol soll dem Benutzer in der im Lieferumfang enthaltenen
Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung
(Instandhaltung) geben.
Dieses Symbol soll den Benutzer darauf aufmerksam machen, daß im Inneren
des Gehäuses dieses Produktes gefährliche Spannungen, die nicht isoliert sind
und die einen elektrischen Schock verursachen können, herrschen.
Achtung
Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden, sollten Sie alle Sicherheits-und
Bedienungsanleitungen genau durchlesen und verstehen.
Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit des Produktes sollten Sie
aufbewahren, damit Sie im Bedarfsfall darauf zurückgreifen können.
Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und Anleitungen auf dem Gerät oder in der
Benutzerdokumentation.
Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte, die nicht ausdrücklich vom
Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen können.
Avertissement
Alimentations • Ne faire fonctionner ce matériel qu’avec la source d’alimentation indiquée sur l’appareil. Ce
matériel doit être utilisé avec une alimentation principale comportant un fil de terre (neutre). Le troisième
contact (de mise à la terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la
désactiver.
Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger, déconnectez tous les
cordons d’alimentation de l’arrière de l’appareil ou du module d’alimentation de bureau (s’il est amovible) ou
encore de la prise secteur.
Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de manière à ce que personne
ne risque de marcher dessus et à ce qu’ils ne soient pas écrasés ou pincés par des objets.
Réparation-maintenance • Faire exécuter toutes les interventions de réparation-maintenance par un
technicien qualifié. Aucun des éléments internes ne peut être réparé par l’utilisateur. Afin d’éviter tout danger
d’électrocution, l’utilisateur ne doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le
retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.
Fentes et orifices • Si le boîtier de l’appareil comporte des fentes ou des orifices, ceux-ci servent à empêcher les
composants internes sensibles de surchauffer. Ces ouvertures ne doivent jamais être bloquées par des objets.
Lithium Batterie • Il a danger d’explosion s’ll y a remplacment incorrect de la batterie. Remplacer uniquement
avec une batterie du meme type ou d’un ype equivalent recommande par le constructeur. Mettre au reut les
batteries usagees conformement aux instructions du fabricant.
Vorsicht
Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene Stromquelle betrieben werden.
Dieses Gerät wurde für eine Verwendung mit einer Hauptstromleitung mit einem geerdeten (neutralen) Leiter
konzipiert. Der dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese sollte nicht
umgangen oder außer Betrieb gesetzt werden.
Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten Sie alle Netzkabel aus der
Rückseite des Gerätes, aus der externen Stomversorgung (falls dies möglich ist) oder aus der Wandsteckdose
ziehen.
Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im Weg liegen und niemand
darauf treten kann oder Objekte darauf- oder unmittelbar dagegengestellt werden können.
Wartung • Alle Wartungsmaßnahmen sollten nur von qualiziertem Servicepersonal durchgeführt werden.
Die internen Komponenten des Gerätes sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks
versuchen Sie in keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines
elektrischen Schlags und/oder andere Gefahren bestehen.
Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist, dienen diese zur
Vermeidung einer Überhitzung der empndlichen Teile im Inneren. Diese Öffnungen dürfen niemals von
anderen Objekten blockiert werden.
Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird. Ersetzen Sie verbrauchte Batterien
nur durch den gleichen oder einen vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird.
Entsorgen Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.
Instrucciones de seguridad • Español
Este símbolo se utiliza para advertir al usuario sobre instrucciones importantes de operación y mantenimiento (o cambio de partes) que se desean
destacar en el contenido de la documentación suministrada con los equipos.
Este símbolo se utiliza para advertir al usuario sobre la presencia de elementos con voltaje peligroso sin protección aislante, que puedan encontrarse
dentro de la caja o alojamiento del producto, y que puedan representar
riesgo de electrocución.
Precaucion
Leer las instrucciones • Leer y analizar todas las instrucciones de operación y seguridad, antes de usar el
equipo.
Conservar las instrucciones • Conservar las instrucciones de seguridad para futura consulta.
Obedecer las advertencias • Todas las advertencias e instrucciones marcadas en el equipo o en la
documentación del usuario, deben ser obedecidas.
Evitar el uso de accesorios • No usar herramientas o accesorios que no sean especificamente
recomendados por el fabricante, ya que podrian implicar riesgos.
安全须知 • 中文
这个符号提示用户该设备用户手册中有重要的操作和维护说明。
这个符号警告用户该设备机壳内有暴露的危险电压，有触电危险。
注意
阅读说明书 • 用户使 用该设备前必须阅读并理 解所有安全和 使用说明。
保存说明书 • 用 户应保存安全说明书以备将来使用。
遵守警告 • 用户应遵守产品和用户指南上的所有安 全和操作说明。
避免追加 • 不要使 用该产品厂商没有推荐的工具或追加设备，以避免危险。
Advertencia
Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo de alimentación eléctrica
indicada en el mismo. La alimentación eléctrica de este equipo debe provenir de un sistema de distribución
general con conductor neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no
puentearia ni eliminaria.
Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida de alimentación
eléctrica al equipo, desenchufar todos los cables de alimentación en el panel trasero del equipo, o desenchufar
el módulo de alimentación (si fuera independiente), o desenchufar el cable del receptáculo de la pared.
Protección del cables de alimentación • Los cables de alimentación eléctrica se deben instalar en lugares
donde no sean pisados ni apretados por objetos que se puedan apoyar sobre ellos.
Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal calicado. En el interior no
hay partes a las que el usuario deba acceder. Para evitar riesgo de electrocución, no intentar personalmente la
reparación/mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes
peligrosos u otros riesgos.
Ranuras y aberturas • Si el equipo posee ranuras o orificios en su caja/alojamiento, es para evitar el
sobrecalientamiento de componentes internos sensibles. Estas aberturas nunca se deben obstruir con otros
objetos.
Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición incorrecta. Cambiar esta
batería únicamente con el mismo tipo (o su equivalente) recomendado por el fabricante. Desachar las baterías
usadas siguiendo las instrucciones del fabricante.
警告
电源 • 该设备只能使用产品上标明的电源。 设备必须使用有地线的供电系统供电。 第三条线（
地线）是安全设施，不能不用或跳 过 。
拔掉电源 • 为安全 地从设备 拔掉电源，请拔掉所有设备后或桌面电源的电源线，或任何接到市电
系统的电源 线。
电源线保护 • 妥善布线， 避免被踩踏，或重物挤压。
维护 • 所有维修必须由认证的维修人员进行。 设备内部没有用户可以更换的零件。为避免出现触
电危险不 要自己试 图打开设备盖子 维修该设备。
通风孔 • 有些设备机壳上有通风槽或孔，它们是用来防止机内敏感元件过热。 不要用任何东西
挡住通风孔。
锂电池 • 不正确的更换电池会有爆炸的危险。必须使 用与厂家推荐的相同或相 近型号的电池。按
照生产厂的建议处理废弃电 池。
ii
FCC Class A Notice
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
The Class A limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the
user will be required to correct the interference at his own expense.
NOTE: This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with
the unit to ensure compliance with FCC emissions limits.
For more information on safety guidelines, regulatory compliances, EMI/EMF compliance, accessibility, and
related topics, click here.
VTT001 and VTR001 User Guide • FCC Notice iii
Conventions Used in this Guide
In this user guide, the following are used:
NOTE: A note draws attention to important information.
TIP: A tip provides a suggestion to make working with the application easier.
CAUTION: A caution indicates a potential hazard to equipment or data.
WARNING: A warning warns of things or actions that might cause injury, death, or
other severe consequences.
Commands are written in the fonts shown here:
^AR Merge Scene,,Op1 scene 1,1 ^B 51 ^W^C
[01] R 0004 00300 00400 00800 00600 [02] 35 [17] [03]
E X! *X1&* X2)* X2#* X2!
CE
}
NOTE: For commands and examples of computer or device responses mentioned in
this guide, the character “0” is used for the number zero and “O” represents the capital letter “o.”
Computer responses and directory paths that do not have variables are written in the font
shown here:
Reply from 208.132.180.48: bytes=32 times=2ms TTL=32
C:\Program Files\Extron
Variables are written in slanted form as shown here:
ping xxx.xxx.xxx.xxx —t
SOH R Data STX Command ETB ETX
Selectable items, such as menu names, menu options, buttons, tabs, and field names are
written in the font shown here:
From the File menu, select New.
Click the OK button.
Copyright
© 2011 Extron Electronics. All rights reserved.
Trademarks
All trademarks mentioned in this guide are the properties of their respective owners.
VTT001 and VTR001 User Guide • Conventions iv
Contents
Introduction............................................................ 1
Features .............................................................. 2
Installation .............................................................. 3
Rear Panel Connectors ........................................ 3
Front Panel Connector and Indicator ................... 6
Cabling and Setup .............................................. 7
Compatibilty with Other Extron Products ......... 8
Cable Testing .................................................. 8
Equalizing Pair Skew ....................................... 9
Sharpness Adjustment .................................... 9
Mounting ..................................................... 10
Preparing the Wall Box .................................. 10
Reference Information ....................................... 18
Specifications .................................................... 18
Parts List ........................................................... 20
VTT001 MAAP and VTR001 MAAP .............. 20
VTT001 and VTR001 Tabletop ....................... 20
VTR001 AAP ................................................. 20
Included Parts ............................................... 20
Skew-Free A/V UTP Cables ............................ 20
Other Accessories ......................................... 21
VTT001 and VTR001 User Guide • Contents v
Introduction
The Extron® VTT001 twisted pair (TP) transmitter series and VTR001 twisted pair receiver
series provide a system for sending VGA, RGBHV, and RGBS signals up to 500 feet
(150 meters) over Extron Skew-Free™ A/V UTP cable. They can also send these signals over
CAT 5/5e/6 UTP cable.
Both transmitter and receiver have remote power capability. For transmission distances up
to 300 feet, the applied power is required at either the transmitter or the receiver. Greater
distances require power to be applied locally to both transmitter and receiver.
Depending on the model, both transmitter and receiver modules may be mounted in a wall,
a rack, or in other Extron products that accept a double-sized MAAP connector panel (such
as CPM101, CPM200, and CPM112R), or Extron AAP mounting products; or they may be set
on a tabletop. The MAAP models come in a black or white finish; the AAP model comes in
black, white, or gray finish; and the tabletop model comes in a black finish.
The following table specifies the maximum recommended transmission distances for the
VTT001/VTR001 pair at 60 Hz.
Video Resolution Recommended
640 x 480 500 feet
800 x 600 400 feet
1024 x 768* 300 feet
1280 x 960* 200 feet
1280 x 1024* 200 feet
1360 x 765 200 feet
1365 x 768 200 feet
1366 x 768 200 feet
1440 x 900 200 feet
1440 x 1050 200 feet
1600 x 1200* 150 feet
1920 x 1080 150 feet
NOTE: Video Resolutions marked with an asterisk (*)
have the same range specification at 75 Hz.
Maximum Range
NOTES: • Extron recommends using at least 50 feet of TP cable between the transmitter
and the receiver.
• It is possible to exceed the recommended distances. However, image quality
may be reduced.
VTT001 and VTR001 User Guide • Introduction 1
Features
• Video sharpness control — Optimizes the video image for different cable lengths
between transmitter and receiver.
• Removable faceplate — The module faceplate may be removed for tabletop use or
attachment to an equipment rack.
• Compatibility — The VTR001 receiver series also functions as the receiver for output
from the Extron IN1404XT video scaler, Extron TP T 15HD A, TP T 15HD AV, TP T BNC,
TP T 15HD 45, TPX 88, TPX 88 A, and TP T BNC DA4.
• Remote power capability — Both transmitter and receiver can be powered remotely
when cable runs are 300 feet or less.
VTT001 and VTR001 User Guide • Introduction 2
Installation
VTR001-VTT001 Panel Layout 2
The Installation section describes:
• Rear Panel Connectors
• Front Panel Connector and Indicator
• Cabling and Setup
Rear Panel Connectors
Figure 1. VTT001 MAAP and VTT001 Rear Panel Views
1a
VTT001 MAAP
TX
9VDC-12VDC
500mA
2a
VTT001
TX
9VDC-12VDC
500mA
2b
1a
NOTE: The VTT001 MAAP and VTT001 models differ in how they are mounted (see
Mounting).
Figure 2. VTR001 MAAP, VTR001, and VTR001 AAP Rear Panel Views
NOTE: The VTR001 MAAP, VTR001 AAP, and VTR001 models differ in how they are
mounted (see Mounting).
1b
1b
VTR001 MAAP
2a
VTR001 AAP
RX
9VDC-12VDC
500mA
2a
RX
9VDC-12VDC
500mA
VTR001
2b
RX
9VDC-12VDC
500mA
1b
VTT001 and VTR001 User Guide • Installation 3
Ä Transmitter output connector — A female RJ-45 connector on a 3 inch pigtail for the
Power Connection
Power
VTT001 Power Wiring.eps
VTT001 MAAP, or within the VTT001 model. Plug this connector to the UTP cable going
to the receiver.
CAUTION: Do not connect the transmitter to a computer data or
telecommunications network.
Å Receiver input connector — A female RJ-45 connector on a 3 inch pigtail for the
VTR001 MAAP and VTR001 AAP models, or within the VTR001 model. Plug this
connector to the UTP cable coming from the transmitter.
CAUTION: Do not connect the receiver to a computer data or telecommunications
network.
Ç Captive screw input power connector — Connect the included
12 VDC external power supply to the 2-pole female direct insertion
+
–
12VDC
captive screw connector. The VTT001 MAAP, VTR001 AAP, and the
VTR001 MAAP have this captive screw connector.
AA
Power Supply
Output cord
SECTION A–A
CAUTIONS: • Always use a power supply supplied by or specified by Extron. Use
of an unauthorized power supply voids all regulatory compliance
certification and may cause damage to the supply and the end
product.
• Unless otherwise stated, the AC/DC adapters are not suitable for
use in air handling spaces or in wall cavities. The power supply is
to be located within the same vicinity as the Extron A/V processing
equipment in an ordinary location, Pollution Degree 2, secured to
the equipment rack within the dedicated closet, podium or desk.
• The installation must always be in accordance with the applicable
provisions of National Electrical Code ANSI/NFPA 70, article 75 and
the Canadian Electrical Code part 1, section 16. The power supply
shall not be permanently fixed to building structure or similar
structure.
To verify correct polarity before connection, check the power supply no load output with
a voltmeter.
WARNING: The two power supply leads must be kept separated while the power
supply is plugged into an electrical outlet. Remove power before
wiring.
VTT001 and VTR001 User Guide • Installation 4

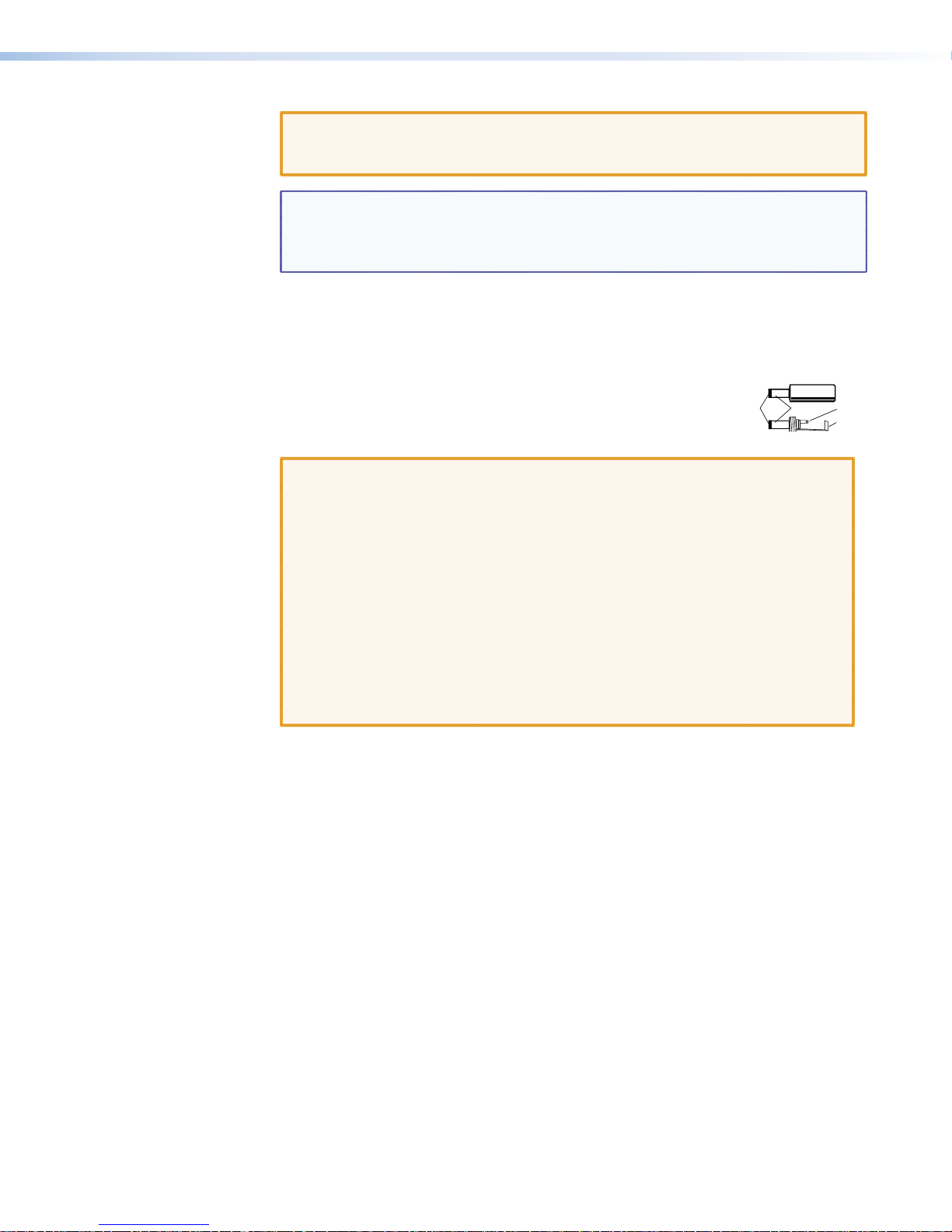

CAUTION: Do not tin the stripped power supply leads before inserting them into
the captive screw connector. Tinned leads are not as securely attached
as untinned leads and could slip out.
NOTE: Both transmitter and receiver have remote power capability. For transmission
distances up to 300 feet, the power is required only at either the transmitter
or the receiver. Greater distances will require power to be applied to both
transmitter and receiver.
É Power input jack — Connect the included 12 VDC external power supply to this
female jack. The VTT001 and the VTR001 use this power input connector (see the note,
caution, and warning for
The male power plug that connects to this input jack is shown
on the right.
CAUTIONS: • Always use a power supply supplied by or specified by Extron. Use
of an unauthorized power supply voids all regulatory compliance
certification and may cause damage to the supply and the end
product.
• Unless otherwise stated, the AC/DC adapters are not suitable for
use in air handling spaces or in wall cavities. The power supply is
to be located within the same vicinity as the Extron A/V processing
equipment in an ordinary location, Pollution Degree 2, secured to
the equipment rack within the dedicated closet, podium or desk.
• The installation must always be in accordance with the applicable
provisions of National Electrical Code ANSI/NFPA 70, article 75 and
the Canadian Electrical Code part 1, section 16. The power supply
shall not be permanently fixed to building structure or similar
structure.
Ç above).
Power plug
Tip (+)Sleeve Tip (+)
Sleeve
VTT001 and VTR001 User Guide • Installation 5
Front Panel Connector and Indicator
VTR001-VTT001 Panel Layout 2
VTR001-VTT001 Panel Layout 2
VTT001 MAAP
3
MAAP
1
VTT001
3
1
Figure 3. VTT001 MAAP and VTT001 Front Panel Views
VTR001 MAAP
VTR001 AAP
VTR001 AAP
3
MAAP
2
OUTPUT
OUTPUT
VTR001
3
2
3
VTR001 AAP
VTR001 AAP
2
Figure 4. VTR001 MAAP, VTR001, and VTR001 AAP Front Panel Views
NOTE: The VTR001 MAAP, VTR001 AAP, and VTR001 models differ in how they are
mounted.
The AAP version has a larger faceplate than the VTR001 MAAP.
a Transmitter video input connector — A female 15-pin HD VGA input for all models.
Plug a RGBHV/RGBS video signal into this connector.
b Receiver video output connector — A female 15-pin HD VGA connector for all
models. Connect a monitor, LCD projector, or other display device to output an RGBHV
or RGBS video signal.
c Power LED indicator — The LED lights green whenever power is applied.
VTT001 and VTR001 User Guide • Installation 6
Cabling and Setup
3P
4G
5G
6P
To install the VTT001 MAAP and VTT001 models and the VTR001 MAAP, VTR001 AAP, and
VTR001 models, follow these steps:
1. Turn all of the equipment off and, if applicable, disconnect it from the power source.
2. Connect the RJ-45 connectors of the transmitter and receiver to either end of the UTP
cable (see Cable Testing and Equalizing Pair Skew).
NOTE: RJ-45 termination must comply with the TIA/EIA T568A or TIA/EIA T568B
wiring standards for all connections, as shown below.
Pins:
12345678
TIA/EIA T568A TIA/EIA T568B
Pin
Wire color
White-green
1 Red/V. sync +
Green
2 Red/V. sync -
White-orange
Blue
White-blue
Orange
White-brown
7 Blue/H. sync +
Brown
8 Blue/H. sync -
Wire color
White-orange
Orange
White-green
Blue
White-blue
Green
White-brown
Brown
RGB Video
Signal
ower
reen +
reen -
ower
1&2
3&6 4&5
Twisted Pairs (4)
7&8
RJ-45
Connector
Figure 5. RJ-45 Pin Terminations
NOTES: • For best results, use Extron Skew-Free A/V UTP cable, available in bulk or
in various pre-terminated lengths. If necessary, regular CAT 5 cable may be
used. CAT 5e and CAT 6 cables are not recommended.
• If you are using Enhanced Skew-Free™ A/V cable, use the TIA/EIA T-568-A
standard only.
3. Connect the external power supply to the transmitter, the receiver, or both. Both
transmitter and receiver have remote power capability. For transmission distances up
to 300 feet, the applied power is only required at either the transmitter or the receiver.
Greater distances require power to be applied locally to both transmitter and receiver.
4. Connect an output display device to the 15-pin HD video output connector of the
receiver.
5. Connect a RGBHV/RGBS video source to the 15-pin HD video input connector of the
transmitter.
6. Power up the video input and output devices, then apply power to the power supply
and test for the display output. Adjust the sharpness, if necessary (see Sharpness
Adjustment). If a problem is encountered, check all connections before proceeding
further.
7. If the previous display test was successful, power off and disconnect all equipment,
detach all cables, and install the mountable transmitter and/or receiver (see Mounting).
VTT001 and VTR001 User Guide • Installation 7
NOTE: If the transmitter or receiver is to be wall-mounted and the power supply
will be inaccessible, power must be applied to the power supply before final
mounting.
Compatibilty with Other Extron Products
The VTT001 series and VTR001 series products can communicate with other Extron products.
The following tables indicate how the products interact.
TP T 15HD A
TP T 15HD AV
TP T BNC
TP T BNC DA4
TP T AV
TP T 460
TP T 468
IN1404XT TP T 15HD 45
VTR001 series
VTT001 series
A = RGB video only
B = incompatible
A
TP R BNC AV
A
A
TP R BNC A
A
A A
TP R AV
B A
TP R 15HD A
B
A
A
A A
NOTE: The VTT001 series and VTR001 series will not power the compatible Extron
products remotely.
Cable Testing
To ensure proper cable termination, each transmission cable system that uses CAT 5e or
CAT 6 cable should be tested (Extron Skew-Free A/V UTP cable does not need to be tested).
Testing the cable from the RJ-45 connections at the transmitter and receiver gives the most
accurate indications of cable problems.
There are two varieties of cable runs: simple runs, in which a single cable is terminated
only at the transmitter and receiver; and complex runs, which can include patch bays and
multiple terminations and lengths of cable. In either case, the entire cabling system should
be tested.
A complete test measures cable length and tests the wire map, attenuation, NEXT, PSNEXT,
ELFEXT, PSELFEXT, return loss, ACR and PSACR. All of these tests are critical for digital
data transfer. While all of these tests are important indicators of the quality of the cable
termination, the most critical testing parameters for video transfer are wire map (T568A or
T568B termination) and pair length measurements. The largest concern is equalization of
skew between cable pairs. Cable systems of 300 feet or less should exhibit no transmission
problems if they pass at least CAT 5e or preferably CAT 6-D5 channel certification testing.
The Microtest OMNI SCANNER 2 performs comprehensive certification testing to the
proposed CAT 6 standards. Other manufacturers also make testing equipment. The tests
include advanced diagnostics for troubleshooting the cause and location of many cable and
termination problems. For simple installation testing, the Microtest MICRO SCANNER PRO
tests wire map and cable length, including individual cable pair length.
VTT001 and VTR001 User Guide • Installation 8
Equalizing Pair Skew
Pair skew issues are eliminated when you use Extron Skew-Free A/V UTP cables.
The manufacturing process for CAT 5e or CAT 6 network UTP cable leads to a condition
called pair skew. For best results, pair skew needs to be equalized when using the CAT 5e or
CAT 6 cable in A/V applications. The design of Extron’s Skew-Free A/V UTP cable minimizes
pair skew to the point that equalization is not required.
Skew exists between pairs when the physical length of one wire pair is different from
another. As the transmission cable length increases, the amount of skew increases. Skew
affects the displayed image when the differential length between wire pairs exceeds two
feet, causing the timing of the red, green, and blue video signals to appear out of alignment
(horizontal registration errors). A white vertical line on a black field can appear as individual
red, green, and blue lines that are close together; the signal transmitted on the shortest wire
pair leads the other colors and appears to the left on the display.
UTP cable test equipment measures and reports wire pair length.
The report on the various pair lengths can be used in equalizing
pair skew. The nominal velocity of propagation (NVP — the speed
at which the signal travels on the transmission line, measured as
a percentage of the speed of light) of TP cable is very close to that
of conventional coaxial cable. The difference in NVP means that
Sharpness
an additional length of coaxial cable equal to the length of pair
skew, placed on the receiver’s output, equalizes the effects of pair
skew.
CAT 5 TP cable can lead to registration errors between the red,
green, and blue video signals. Pair skew can be measured with
test equipment or identified by viewing a crosshatch test pattern
SHARP
OUTPUT
VTR 001 MA AP
closely to determine if either the red, green, or blue video image
leads (appears to the left of) the other two video images. These
images can be minimized or eliminated by one of the following
methods:
• Switch to the Extron Enhanced Skew-Free A/V UTP cable.
• Add a skew compensation cable equal to the length of pair skew to the receiver’s
output.
• Install an Extron Skew Equalizer, SEQ 100 15HD (part number: 60-676-01), on the video
output of the receiver and adjust the skew for the leading video image.
Sharpness Adjustment
The longer the cable being used, the greater the signal loss. The image sharpness may
be enhanced by turning a peaking adjustment screw located on the top of the receiver.
Increased peaking can compensate for detail (mid- and high-frequency) loss from low
bandwidth system components or capacitance in long cables. Adjust this control using the
included adjustment tool (Extron part number: 100-014-01LF) while viewing the displayed
image to obtain the optimum picture sharpness. Turning the control clockwise increases
peaking and turning it counterclockwise decreases peaking.
VTT001 and VTR001 User Guide • Installation 9
Mounting
Connecting Shields_1-gang.eps
x
The mountable transmitter (VTT001 MAAP) and mountable receiver (VTR001 MAAP)
may be attached to a wall with either a stud-mounted wall box or with a wall mounting
bracket (Extron part number: 70-163-xx). Both installations require the double spaced
MAAP connector frame, such as the CPM101). The transmitter/receiver module can also be
attached to any Extron MAAP device that accepts a double spaced A/V connector panel, or
the modules may be rack mounted. The AAP version of the receiver mounts to Extron AAP
frames (see Other Accessories).
Preparing the Wall Box
For wall and furniture mounting installations, the installation site must be deep enough for
both the wall box and the cables. The box should be at least 2.5 inches (6.4 cm) deep. Install
cables into the wall, furniture, or conduits before installing a wall box or bracket.
1. Place the wall box or mounting bracket against the installation surface, and mark the
guidelines for the opening on the wall or furniture.
2. Cut out the material from the marked area.
3. Insert the wall box or bracket to check the size and fit of the opening. Enlarge or
smooth the edges of the opening if needed.
4. If using a wall box, feed cables through the punch-out holes on the wall box, and secure
them with cable clamps to provide strain relief.
5. Exposed cable shields (braids or foil) are potential sources of short circuits. Trim back
and/or insulate shields with heat shrink.
Screw
Braided Shield
Cable Clamp
Installation Cable
Foil Shield
Metal Wall Bo
Figure 6. Grounding Outer Braided and Foil Shields
WARNING: To prevent short circuits, the outer foil shield can be cut back to the
point where the cable exits the cable clamp. Both braided and foil
shields should be connected to an equipment ground at the other end
of the cable.
VTT001 and VTR001 User Guide • Installation 10
6. Insert the wall box or wall bracket into the opening, and attach it to the wall, stud, or
1-gang wall box.eps
furniture, leaving the front edge flush with the outer wall or furniture surface.
Wall Stud
Cable Clamp
Screws or NailsScrews or Nails
Installation Cable
Cable Clamp
Wall Stud
Installation Cable
Figure 7. Attaching a Wall Box to a Wall Stud
• To attach a wall box to wood, use four #8 or #10 screws or 10-penny nails. A
minimum of 0.5 inch (1.3 cm) of screw threads must penetrate the wood.
• To attach a wall box to metal, use four #8 or #10 self-tapping sheet metal screws or
machine bolts with matching nuts.
7. Mount the modules onto a faceplate or frame, then cable and test the transmitter/
receiver modules before fastening it into the wall box or bracket. The cables are
inaccessible after installation.
VTT001 and VTR001 User Guide • Installation 11
Wall box mounting
VTT001 install in wall box.eps
ame
1. Attach the transmitter/receiver modules to the mounting frame with the included #4-40
screws.
2. Attach all power and video cables to the rear of the transmitter/receiver. Power on the
transmitter/receiver now if the external power supply cannot be accessed once the
transmitter/receiver is mounted.
3. Attach the mounting frame (with the attached transmitter/receiver modules) to the wall
box, using the two included mounting screws.
Wall opening
flush with
edge of box
POWER
VTT001 MAA P
VIDEO INPUT
VTT00 1 M AAP
Extron
CPM101
Mounting Fr
Figure 8. Attaching the Mounting Frame to the Wall Box
4. Connect the video input and output devices to the front faceplates of the transmitter
and receiver, respectively.
5. Power on all devices.
VTT001 and VTR001 User Guide • Installation 12
Wall bracket mounting
VTT001 Wall Mounting w new Bracket.eps
1 MAAP
1. Attach the transmitter/receiver modules to the mounting frame with the included #4-40
screws.
2. Attach all power and video cables to the rear of the transmitter/receiver. Power on the
transmitter/receiver now if the external power supply cannot be accessed once the
transmitter/receiver is mounted.
3. Attach the mounting frame (with the attached transmitter/receiver modules) to the
mounting bracket using the two included mounting screws.
Backing Clip
Figure 9. Attaching the Mounting Frame to the Wall Mounting Bracket
Extron
CPM101
Mounting Frame
Extron
70-163-xx
Wall Mounting Bracket
POWER
INPUT
VTT00 1M AAP
VTT0 01 MAA P
Extron
VTT00
Twisted Pair
Transmitter
4. Attach the video input and output devices to the front faceplates of the transmitter and
receiver, respectively.
5. Power on all devices.
VTT001 and VTR001 User Guide • Installation 13
AAP mounting
VTT001CM AAP Install.eps
The VTR001 AAP version is mounted to the Extron AAP panel by inserting the two AAP studs
through the panel mounting holes and attaching the nuts, as shown below.
Cable
Clamp
#4-40 Nut w/ Captive
Washer
Figure 10. Attaching a VTR001 AAP to an Extron AAP Frame
AAP 102
AAP 102
Cable
VIDEO INPUT
VTR001 AAP
VTR001 AAP
UL rack mounting guidelines
The following Underwriters Laboratories (UL) guidelines pertain to the safe installation of the
device in a rack.
1. Elevated operating ambient temperature — If installed in a closed or multi-unit
rack assembly, the operating ambient temperature of the rack environment may be
greater than room ambient temperature. Therefore, install the unit in an environment
compatible with the maximum ambient temperature (Tma = +122 °F, +50 °C) specified
by Extron.
2. Reduced air flow — Install the equipment in a rack so that the amount of air flow
required for safe operation of the equipment is not compromised.
3. Mechanical loading — Mount the equipment in the rack so that a hazardous condition
is not achieved due to uneven mechanical loading.
4. Circuit overloading — Connect the equipment to the supply circuit and consider the
effect that circuit overloading might have on overcurrent protection and supply wiring.
Appropriate consideration of equipment nameplate ratings should be used when
addressing this concern.
5. Reliable earthing (grounding) — Maintain reliable grounding of rack-mounted
equipment. Pay particular attention to supply connections other than direct connections
to the branch circuit (that is, use of power strips).
VTT001 and VTR001 User Guide • Installation 14
Rack mounting
Various 1U rack space frames accommodate the VTT001 MAAP, VTR001 MAAP, and VTR001
AAP modules. The CPM133 is a one-third rack width frame that can be mounted to the
IN9080 rack mount shelf. The CPM112R, as shown below, is a full rack width frame that
holds six double sized modules.
Depending on the A/V connector frame used, the transmitters/receivers may be mounted to
the rack with or without the rack mount shelf.
1. For mounting without a rack mount shelf, mount the transmitter/receiver modules to
the A/V connector frame, then attach the frame directly to the rack.
POWER
VTT001 CM
VIDEO INPUT
Twisted Pai r Trans mitt er
CPM112R
A/V Connector Frame
VTT001 CM
Twisted Pai r Trans mitt er
VIDEO INPUT
POWER
VTT001 CM
VIDEO INPUT
Twisted Pai r Trans mitt er
POWER
VTT001 CM
VIDEO INPUT
Twisted Pai r Trans mitt er
POWER
VTT001 CM
Twisted Pai r Trans mitt er
POWER
VIDEO INPUT
POWER
VTT001 CM
VIDEO INPUT
Twisted Pai r Trans mitt er
(4) #4 - 40
Screws
Figure 11. CPM112R A/V Connector Frame Mounted Directly to a Rack
VTT001 and VTR001 User Guide • Installation 15
For mounting the VTT001 MAAP or VTR001 MAAP to a rack mount shelf, mount the
CPM1
A/V C
transmitter/receiver modules to the A/V connector frame, then attach the frame to the
shelf, as shown below.
RSB 129 (60-190-01)
Rack Mount Shelf
33 (60-584-15) or
onnector Frame
POWER
VTT001CM
VIDEO INPUT
Twisted Pair Tran smit ter
(4) #4 - 40
Screws
(4) #6 Screws
Figure 12. CPM133 A/V Connector Frame Mounted to a Rack Shelf
2. Attach all power and video cables to the rear of the transmitter/receiver. Power on the
transmitter/receiver now if the external power supply cannot be accessed once the
transmitter/receiver is mounted.
3. Attach the video input and output devices to the front faceplates of the transmitter and
receiver, respectively. Power on all devices.
For mounting the VTR001 AAP to a rack, mount the AAP modules to the Extron AAP
frame, then attach the frame to the rack, as shown below.
VTT001 and VTR001 User Guide • Installation 16
#10-32 Screw/
Nylon Captive
Cap Washer
#4-40 Nut with
AAP 301
Captive Washer
INPUT
VTT001 AAP
VTR001 AAP
Twisted Pair Transmitter
AAP 301
Architectural Frame
Figure 13. Extron AAP 301 Frame Mounted Directly to a Rack
VTT001 and VTR001 User Guide • Installation 17
Reference
Information
Specifications
Video
Number/signal type ........................ 1 set of proprietary analog signals
Connectors .................................... 1 female RJ-45 jack or
Video input
Number/signal type
VTT001 series .......................... RGBHV, RGBS
VTR001 series .......................... 1 set of proprietary analog signals from a VTT001 model
Connectors
VTT001 series .......................... 1 female 15-pin HD
VTR001 ................................... 1 female RJ-45 jack
VTR001 MAAP/AAP ................. 1 female RJ-45 jack on a 3" (7.6 cm) pigtail
Nominal level ................................. 0.7 Vp-p for RGB
Minimum/maximum levels .............. Analog: 0.3 V to 1.45 Vp-p with no offset at unity gain
Impedance ..................................... 75 ohms
Horizontal frequency ...................... 15 kHz to 130 kHz
Vertical frequency ........................... 30 Hz to 150 Hz
Video output
Number/signal type
VTT001 series .......................... 1 set of proprietary analog signals
VTR001 series .......................... RGBHV, RGBS
Connectors
VTT001 series .......................... 1 female RJ-45 jack
VTT001 MAAP ......................... 1 female RJ-45 on a 3" (7.6 cm) pigtail
VTR001 series .......................... 1 female 15-pin HD
Nominal level ................................. 0.7 V p-p for RGB
Minimum/maximum levels .............. 0.3 V to 1.45 Vp-p
Impedance ..................................... 75 ohms
Maximum resolution ...................... 1600x1200 or 1080p RGBHV
1 female RJ-45 jack on a 3" (7.6 cm) pigtail
NOTE: Refer to the user's manual for the maximum distances recommended for specific
Sync
Input type
VTT001 series .......................... RGBHV, RGBS
Output type
resolutions.
1080p component video is not supported.
VTT001 and VTR001 User Guide • Reference Information 18
VTR001 series .......................... RGBHV, RGBS
Input level ...................................... 2.0 V to 5.5 Vp-p with ±0.2 VDC offset max.
Output level ................................... 3.0 V to 4.0 Vp-p
Input impedance ............................ Hi-Z
Output impedance ......................... 75 ohms
Max. propagation delay .................. 580 ns
Max. rise/fall time ........................... 45 ns
Polarity ........................................... Negative
General
Recommended cable type .............. CAT 5/5e/6
Power supply .................................. External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1 A, 12 watts
NOTE: The VTT and VTR units will accept 7-15 VDC. However, if an input voltage below the
recommended 12 VDC is used, the maximum audio output level will be reduced.
Temperature/humidity .................... Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%,
noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%,
noncondensing
Cooling .......................................... Convection, no vents
Mounting
Rack mount ............................. Yes, with optional mounting hardware
Furniture or wall mount ........... Yes, with optional mounting hardware
Enclosure type ................................ Metal
Enclosure dimensions
VTT001/VTR001 MAAP
Faceplate ........................... 1.4" H x 2.2" W x <0.1" D (3.5 cm H x 5.6 cm W x 0.1 cm D)
(double space high MAAP plate)
VTR001 AAP
Faceplate ........................... 1.4" H x 3.5" W x 0.1” D (3.5 cm H x 8.9 cm W x 0.3 cm D)
VTT001 series
Device ................................ 1.4" H x 1.4" W x 1.4" D (3.5 cm H x 3.5 cm W x 3.5 cm D)
VTR001 series
Device ................................ 1.4" H x 1.4" W x 1.75" D (3.5 cm H x 3.5 cm W x 4.4 cm D)
Product weight ............................... 1.0 lbs (0.5 kg)
Shipping weight ............................. 3 lbs (2 kg)
Vibration ........................................ ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety ...................................... CE, c-UL, UL
EMI/EMC ................................. CE, C-tick, FCC Class A, ICES, VCCI
MTBF ............................................. 30,000 hours
Warranty ........................................ 3 years parts and labor
(double space high AAP plate)
(Depth excludes connectors.)
(Depth excludes connectors.)
NOTE: All nominal levels are at ±10%.
NOTE: Specifications are subject to change without notice.
VTT001 and VTR001 User Guide • Reference Information 19
Parts List
VTT001 MAAP and VTR001 MAAP
VTT001 and VTR001 Tabletop
VTR001 AAP
Description Part Number
VTT001 MAAP wall mount transmitter - black 70-284-11
VTT001 MAAP wall mount transmitter - white 70-284-21
VTR001 MAAP wall mount receiver - black 70-285-11
VTR001 MAAP wall mount receiver - white 70-285-21
NOTE: The MAAP models mount into MAAP (mini AAP) panels.
Description Part Number
VTT001 tabletop transmitter - black 60-581-01
VTR001 tabletop receiver - black 60-582-01
Description Part Number
VTR001 AAP (black) 70-259-11
VTR001 AAP (white) 70-259-21
NOTE: The VTR001 AAP device can be mounted in the Extron AAP
panels listed under “Other Accessories.”
Included Parts
Description Part Number
Power supply: universal, 12 VDC, 2.0 A
Sharpness adjustment tool
VTT/VTR User Guide
Skew-Free A/V UTP Cables
Description Part Number
UTP23SF-4/1000 1000' bulk (non-plenum) 22-141-03
UTP23SF-4P/1000 1000' bulk (plenum) 22-142-03
UTP23SF-4P/25 25' preterminated (plenum) 26-570-04
UTP23SF-4P/35 35’ preterminated (plenum) 26-570-05
UTP23SF-4P/50 50' preterminated (plenum) 26-570-06
UTP23SF-4P/75 75' preterminated (plenum) 26-570-07
UTP23SF-4/12 12' preterm. (non-plenum) 26-569-03
UTP23SF-4/25 25' preterm. (non-plenum) 26-569-04
UTP23SF-4/50 50' preterm. (non-plenum) 26-569-06
NOTE: Other cable lengths are available.
VTT001 and VTR001 User Guide • Reference Information 20
Other Accessories
Description Part Number
CPM101 MAAP plate, one-gang (black, white) 60-583-11, -21
CPM112R MAAP rack-mount connector panel 60-584-12
CPM133 one-third rack width panel 60-584-15
RSB 129 rack mount shelf 60-190-01
AAP 102 frame (black) 60-300-02
AAP 102 frame (white) 60-300-03
AAP 104 frame (black) 60-301-02
AAP 104 frame (white) 60-301-03
AAP 106 frame (black) 60-531-02
AAP 106 frame (white) 60-531-03
AAP 201 frame - half rack width, 1U (black) 60-302-02
AAP 202 frame - half rack width, 2U (black) 60-303-02
AAP 301 frame - full rack width, 1U (black) 60-632-02
AAP 302 frame - full rack width, 1U (black) 60-633-02
VTT001 and VTR001 User Guide • Reference Information 21
Extron® Warranty
Extron Electronics warrants this product against defects in materials and workmanship for a period of three years
from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty
workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components,
to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is
returned within the warranty period, with proof of purchase and description of malfunction to:
USA, Canada, South America,
and Central America:
Extron Electronics
1001 East Ball Road
Anaheim, CA 92805
U.S.A.
Europe, Africa, and the Middle
East:
Extron Europe
Hanzeboulevard 10
3825 PH Amersfoort
The Netherlands
Asia:
Extron Asia
135 Joo Seng Road, #04-01
PM Industrial Bldg.
Singapore 368363
Japan:
Extron Electronics, Japan
Kyodo Building, 16 Ichibancho
Chiyoda-ku, Tokyo 102-0082
Japan
China:
Extron China
686 Ronghua Road
Songjiang District
Shanghai 201611
China
Middle East:
Extron Middle East
Dubai Airport Free Zone
F12, PO Box 293666
United Arab Emirates, Dubai
Singapore
This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical
or mechanical abuse, abnormal operating conditions, or modifications were made to the product that were not
authorized by Extron.
NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return
Authorization) number. This will begin the repair process.
USA: (714) 491-1500 Europe: 31.33.453.4040
Asia: 65.6383.4400 Japan: 81.3.3511.7655
Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage
during shipment. Returned units must include the serial number and a description of the problem, as well as the
name of the person to contact in case there are any questions.
Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality,
performance, merchantability, or tness for any particular use. In no event will Extron Electronics be liable for direct,
indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been
advised of such damage.
Please note that laws vary from state to state and country to country, and that some provisions of this warranty may
not apply to you.
