Extron electronics VoiceLift, PVS 405D, VoiceLift VLS 1000D, VoiceLift VLS 2000D, VoiceLift VLS 2000DH Installation Manual

VoiceLift
Microphone
System

Featuring PVS 405D
PoleVault Digital Switcher

Installation Guide

VoiceLift

68-2548-20 Rev. B

06 14

Safety Instructions

Safety Instructions • English

WARNING: This symbol, , when used on the product, is intended to

alert the user of the presence of uninsulated dangerous voltage within the
product’s enclosure that may present a risk of electric shock.

ATTENTION: This symbol, , when used on the product, is intended

to alert the user of important operating and maintenance (servicing)
instructions in the literature provided with the equipment.

For information on safety guidelines, regulatory compliances, EMI/EMF
compatibility, accessibility, and related topics, see the Extron Safety and
Regulatory Compliance Guide, part number 68-290-01, on the Extron website,

www.extron.com.

Instructions de sécurité • Français

AVERTISSEMENT : Ce pictogramme, , lorsqu’il est utilisé sur le

produit, signale à l’utilisateur la présence à l’intérieur du boîtier du produit
d’une tension électrique dangereuse susceptible de provoquer un choc
électrique.

ATTENTION : Ce pictogramme, , lorsqu’il est utilisé sur le produit,

signale à l’utilisateur des instructions d’utilisation ou de maintenance
importantes qui se trouvent dans la documentation fournie avec le
matériel.

Pour en savoir plus sur les règles de sécurité, la conformité à la réglementation,
la compatibilité EMI/EMF, l’accessibilité, et autres sujets connexes, lisez les
informations de sécurité et de conformité Extron, réf. 68-290-01, sur le site
Extron, www.extron.com.

Sicherheitsanweisungen • Deutsch

WARNUNG: Dieses Symbol auf dem Produkt soll den Benutzer

darauf aufmerksam machen, dass im Inneren des Gehäuses dieses
Produktes gefährliche Spannungen herrschen, die nicht isoliert sind
und die einen elektrischen Schlag verursachen können.

Инструкция по технике безопасности • Русский

ПРЕДУПРЕЖДЕНИЕ: Данный символ, , если указан

на продукте, предупреждает пользователя о наличии
неизолированного опасного напряжения внутри корпуса
продукта, которое может привести к поражению
электрическим током.

ВНИМАНИЕ: Данный символ, , если указан на продукте,

предупреждает пользователя о наличии важных инструкций
по эксплуатации и обслуживанию в руководстве,
прилагаемом к данному оборудованию.

Для получения информации о правилах техники безопасности,
соблюдении нормативных требований, электромагнитной
совместимости (ЭМП/ЭДС), возможности доступа и других
вопросах см. руководство по безопасности и соблюдению
нормативных требований Extron на сайте Extron: www.extron.com,
номер по каталогу - 68-290-01.

Chinese Simplified（简体中文）

警告： 产品上的这个标志意在警告用户该产品机壳内有暴露的危险 电压，

有触电危险。

注意： 产品上的这个标志意在提示用户设备随附的用户手册中有

重要的操作和维护(维修）说明。

关于我们产品的安全指南、遵循的规范、EMI/EMF 的兼容性、无障碍
使用的特性等相关内容，敬请访问 Extron 网站 www.extron.com，参见
Extron 安全规范指南，产品编号 68-290-01。

Chinese Traditional（ )

警告: 若產品上使用此符 號，是為了提醒使用者，產品機殼內存在著

可能會導致觸電之風險的未絕緣危險電壓。

VORSICHT: Dieses Symbol auf dem Produkt soll dem Benutzer in der

im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise
zur Bedienung und Wartung (Instandhaltung) geben.

Weitere Informationen über die Sicherheitsrichtlinien, Produkthandhabung,
EMI/EMF-Kompatibilität, Zugänglichkeit und verwandte Themen finden Sie in
den Extron-Richtlinien für Sicherheit und Handhabung (Artikelnummer
68-290-01) auf der Extron-Website, www.extron.com.

Instrucciones de seguridad • Español

ADVERTENCIA: Este símbolo, , cuando se utiliza en el producto,

avisa al usuario de la presencia de voltaje peligroso sin aislar dentro del
producto, lo que puede representar un riesgo de descarga eléctrica.

ATENCIÓN: Este símbolo, , cuando se utiliza en el producto, avisa

al usuario de la presencia de importantes instrucciones de uso y
mantenimiento recogidas en la documentación proporcionada con el
equipo.

Para obtener información sobre directrices de seguridad, cumplimiento
de normativas, compatibilidad electromagnética, accesibilidad y temas
relacionados, consulte la Guía de cumplimiento de normativas y seguridad de
Extron, referencia 68-290-01, en el sitio Web de Extron, www.extron.com.

注意 若產品上使用此符號，是為了提醒使用者，設備隨附的用戶手冊中有重

要 的 操 作 和 維 護（ 維 修 ）説 明 。

有關安全性指導方針、法規遵守、E MI/EMF 相容性、存取範圍和相關主題的詳細資
訊，請瀏覽 Extron 網站：www.extron.com，然後參閱《Extron 安全性與法規
遵守手冊》，準則編號 68-290-01。

Japanese

警告: この記号 が製品上に表示されている場合は、筐体内に絶縁されて

いない高電圧が流れ、感電の危険があることを示しています。

注意: この記号 が製品上に表示されている場合は、本機の取扱説明書

に 記載さ れて いる重 要な操 作 と保 守 ( 整 備)の 指 示につ いてユーザ ー の 注
意を喚起するものです。

安全上のご注意、法規厳守、EMI/EMF適合性、その他の関連項目に
つ い て は 、エ クストロ ン の ウェ ブ サイト www.extron.com よ り 『 Extron Safety
and Regulatory Compliance Guide』 ( P/N 68-290-01) をご覧ください。

Korean

경고: 이 기호 가 제품에 사용될 경우, 제품의 인클로저 내에 있는

접지되지 않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을
경고합니다.

주의: 이 기호 가 제품에 사용될 경우, 장비와 함께 제공된 책자에 나와

있는 주요 운영 및 유지보수(정비) 지침을 경고합니다.

안전 가이드라인, 규제 준수, EMI/EMF 호환성, 접근성, 그리고 관련 항목에
대한 자세한 내용은 Extron 웹 사이트(www.extron.com)의 Extron 안전 및
규제 준수 안내서, 68-290-01 조항을 참조하십시오.

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part15 of the FCC rules. The ClassA limits provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause interference. This interference must be corrected at
the expense of the user.

NOTE: For more information on safety guidelines, regulatory compliances, EMI/EMF compatibility,

accessibility, and related topics, see the “Extron Safety and Regulatory Compliance

Guide

” on the Extron website.

Copyright

© 2014 Extron Electronics. All rights reserved.

Trademarks

All trademarks mentioned in this guide are the properties of their respective owners.

The following registered trademarks
RGBSystems, Inc. or Extron Electronics:

AVTrac, Cable Cubby, CrossPoint, eBUS, EDID Manager, EDID Minder, Extron, Flat Field, GlobalViewer, Hideaway, Inline, IPIntercom,
IPLink, Key Minder, LockIt, MediaLink, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, SoundField, SpeedMount, SpeedSwitch,
SystemINTEGRATOR, TeamWork, TouchLink, V-Lock, VersaTools, VN-Matrix, VoiceLift, WallVault, WindoWall, XTP, and XTPSystems

Registered Service Mark

AAP, AFL (Accu-RateFrameLock), ADSP(Advanced Digital Sync Processing), Auto-Image, CableCover, CDRS(ClassDRippleSuppression),
DDSP (Digital Display Sync Processing), DMI (DynamicMotionInterpolation), DriverConfigurator, DSPConfigurator, DSVP(Digital Sync
Validation Processing), EQIB, FastBite, FOXBOX, Global Configurator, IP Intercom HelpDesk, LinkLicense, MAAP, MicroDigital, ProDSP,
QS-FPC(QuickSwitch Front Panel Controller), Scope-Trigger, SIS, Simple Instruction Set, Skew-Free, SpeedNav, Triple-Action Switching, XTRA,
ZipCaddy, ZipClip

(SM)

: S3 Service Support Solutions

®

, registered service marks

Registered Trademarks

Trademarks

(SM)

, and trademarks

(®)

(™)

(TM)

are the property of

Conventions Used in this Guide

Notifications

The following notifications are used in this guide:

WARNING: Potential risk of severe injury or death.

AVERTISSEMENT : Risque potentiel de blessure grave ou de mort.

CAUTION: Risk of minor personal injury.

ATTENTION : Risque de blessuremineure.

ATTENTION:

• Risk of property damage.

• Risque de dommages matériels.

NOTE: A note draws attention to important information.

TIP: A tip provides a suggestion to make working with the application easier.

Software Commands

Commands are written in the fonts shown here:

^AR Merge Scene,,Op1 scene 1,1 ^B 51 ^W^C

[01] R 0004 00300 00400 00800 00600 [02] 35 [17] [03]

Computer responses and directory paths that do not have variables are written in the font
shown here:

Variables are written in slanted form as shown here:

Selectable items, such as menu names, menu options, buttons, tabs, and field names are
written in the font shown here:

Specifications Availability

Product specifications are available on the Extron website, www.extron.com.

E X! *X1&* X2)* X2#* X2! CE}

NOTE: For commands and examples of computer or device responses mentioned

in this guide, the character “0” is used for the number zero and “O” is the capital
letter “o.”

Reply from 208.132.180.48: bytes=32 times=2ms TTL=32

C:\Program Files\Extron

ping xxx.xxx.xxx.xxx —t

SOH R Data STX Command ETB ETX

From the File menu, select New.

Click the OK button.

Contents

Introduction .......................................................... 1

About this Guide................................................ 1

About the VoiceLift System ............................... 1

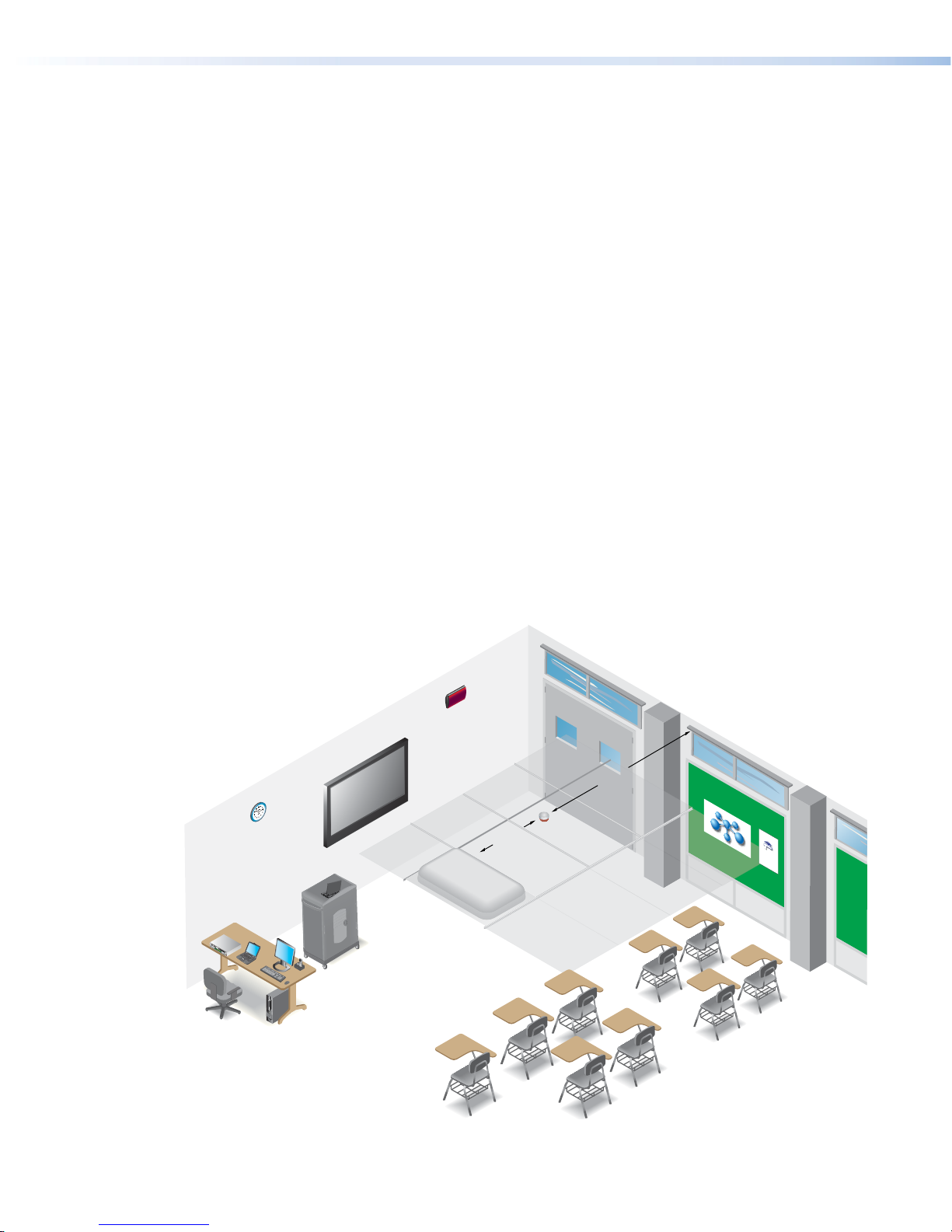

Application Diagram .......................................... 2

Planning the Installation .................................... 3

Receiver Coverage ........................................ 3

Room Considerations

Receiver Location .......................................... 7

PoleVault Switcher Location .......................... 8

Inventory ............................................................ 9

Installation Tools .......................................... 11

Items Not Included ...................................... 12

Optional Items ............................................. 12

.................................... 4

Installation Overview ....................................... 13

Stage 1 — Install the VLR 102 Receiver ......... 13

Stage 2 — Install the FF 120 Speakers

(VLS Only) ....................................................... 13

Stage 3 — Install the PVS 405D Switcher

(VLS Only) ....................................................... 13

Stage 4 — Connect the VLR 102 Receiver

to the PoleVault System ................................. 14

Stage 5 — Congure and Test the System ..... 14

Installation Procedures .................................... 14

Stage 1:
Mounting the Receiver

Receiver Housing and Back Plate ................... 15

Z-bracket and Mounting Screw (for

Installation in a Drop Ceiling) .......................... 15

Stage 1a — Installing the Receiver in a

Drop Ceiling .................................................... 17

Stage 1b — Installing the Receiver to a

Junction Box .................................................. 18

Stage 1c — Installing the Receiver on a

Wall or Other Hard Surface ............................ 19

Stage 1d — Installing the Receiver on a

Pole ................................................................ 21

................................... 15

Stage 2:
Mounting the FF 20 Speakers

FF 120 Flat Field Ceiling Speakers .................. 22

Speaker Cable ................................................. 22

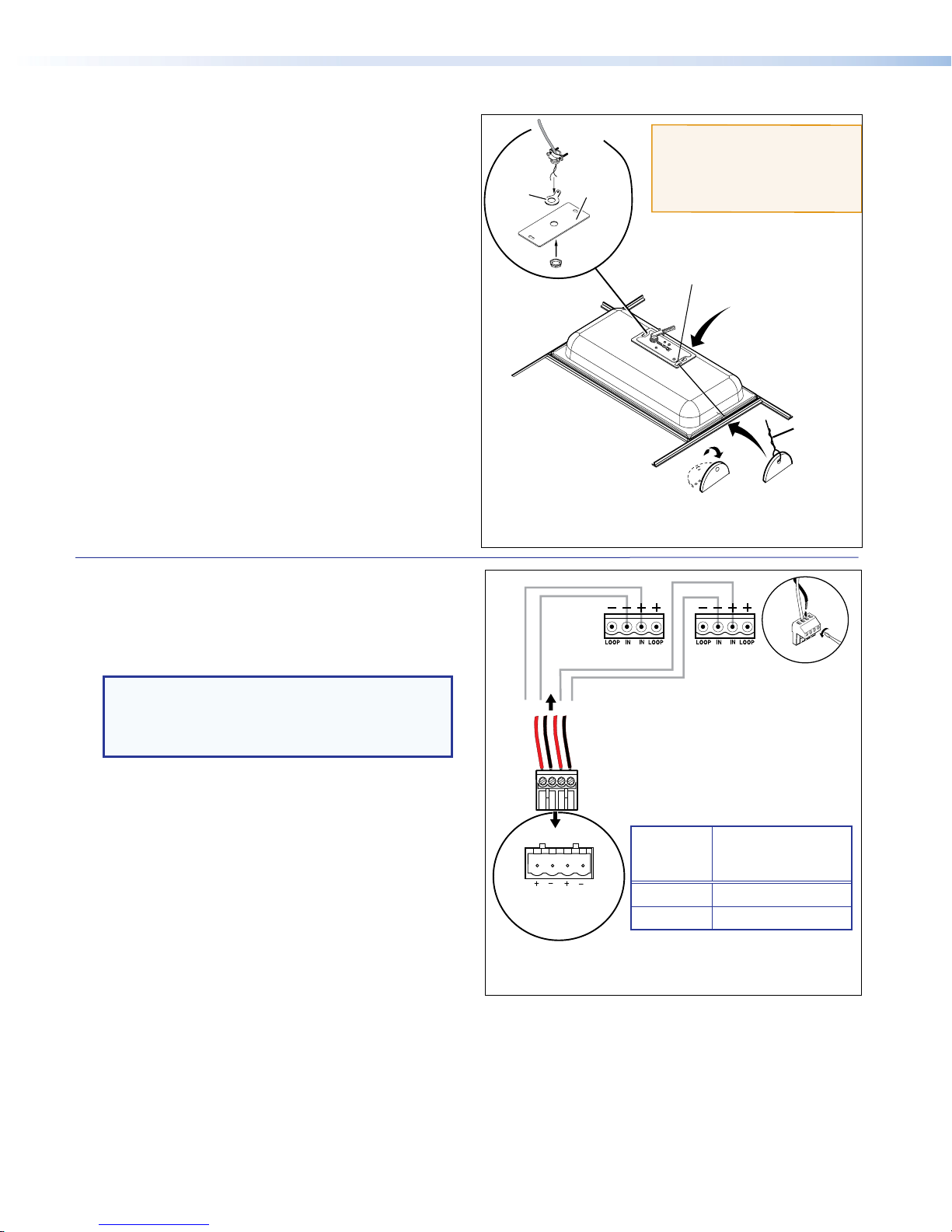

Speaker Mounting Procedure ......................... 23

...................... 22

Stage 3:
Installing the PoleVault Switcher

PVS 405D PoleVault Switcher ......................... 26

PoleVault Switcher Installation ........................ 27

................ 26

Stage 4:
Connecting the Cables

Receiver Dome ................................................ 28

STP Cable ....................................................... 28

Procedure ........................................................ 29

................................... 28

Stage 5:
Testing the System

........................................... 33

Installation Example — Setting Up an
Instant Alert

........................................................ 37

VoiceLift System with PVS 405D Installation Guide • Contents v

vi

VoiceLift System with PVS 405D Installation Guide • Contents

Introduction

This section provides an overview of the VoiceLift System and gives instructions for
planning the installation and preparing the site in which the system will operate. It also
provides a listing of the available system kits and their contents. Topics include:

• About this Guide

• About the VoiceLift System

• Application Diagram

• Planning the Installation

• Inventory

About this Guide

This guide provides steps to install and connect each component of the Extron VoiceLift
System. The VoiceLift VLR 102 receiver can be installed in a drop ceiling, a standard
junction box, an octagonal ceiling box, or a wall. It is assumed that the installer has
some knowledge of and experience with audio/video, electrical, or electronic device
installation.

ATTENTION:

• Installation and service must be performed by authorized personnel only.

• L’installation et l’entretien doivent être effectués par le personnel autorisé

uniquement.

• UL listed electrical boxes are recommended.

• Extron recommande d’installer le VLR 102 dans un boîtier d’encastrement

électrique mis à la terre, listé UL.

About the VoiceLift System

The VoiceLift System is a low-power classroom microphone amplication system
that ensures that an instructor can be clearly heard at a comfortable level throughout
the entire room (also referred to as a “soundeld system”). The pendant or hand-held
microphone picks up speech from the instructor or student and transmits it to the
VLR 102 receiver via an IR signal. From the receiver, the signal is sent to an Extron
PoleVault switcher, which amplies and powers speakers to improve the signal-to-noise
ratio to at least +15 dB.

Two types of VoiceLift system are available:

• VLM System — Consists of one or two pendant microphones or one pendant and

one handheld microphone, the IR receiver, and an optional charging station (this kit
can be added to an existing PoleVault system).

• VLS System — Consists of the VLM System kit components, a PoleVault switcher,

and two speakers.

See Inventory beginning on page 9 for more information on kit contents.

VoiceLift System with PVS 405D Installation Guide • Introduction 1

Application Diagram

The application diagram below shows a typical classroom installation incorporating the
VoiceLift System.

N
O I
I

UD
A

L

R

N

O I

DE
VI

1

O
DE
I
V

Y

2

PLA
IS
D

UX
A

F

O
E

OF

D
I
V

3

N
O

PC

E
M

4

LU

E

O
V

G
A
M

G

E
I

I
F

T

N

U

O
C

M

s

u
Pl
P
I
4
0

1
LC

TCP/IP

Network

M

VLP 202

Pendant
Microphone

N

O I
DI
U
A

N

I

ER

T
U
MP
O
C

WR
P

E
G
AR
H

Ex

C

t
r
o
n

N
O

G
H
C
/
E
T

MU

OFF/

E
xtr

on

VLC 202

Desktop Charging
Station

Extron
FF 120

Plenum Flat
Field® Speakers

VLR 102

Receiver

x
T

G
S

PVS 405D

Twisted Pair
Switcher

Figure 1. Typical Classroom Installation

2

VoiceLift System with PVS 405D Installation Guide • Introduction

Planning the Installation

In

Receiver

Before you begin the installation, consider the major factors discussed in the following
sections to ensure that the installation of the VoiceLift System is as smooth and trouble
free as possible and that the result meets the needs of the users. Placement of the
receiver (sensor location) is very important for optimal performance of the VoiceLift
System. Because IR technology requires line-of-sight placement, take into consideration
anything that could affect or block the transmission of the IR signal from the microphone
to the receiver (see Room Considerations on the next page).

5 ft. (1.5 m) to 40 ft. (10.2 m)

Flat Field Speaker

Out

VLR 102

Figure 2. VoiceLift Connections and Signal Path

Receiver Coverage

The VoiceLift receiver has the same room coverage pattern whether it is mounted on the
ceiling or a wall.

PVS 405D

PAGING
SENSOR

L

R

VOICELIFT

+V

AUX OVER PVT REMOTE

INPUT 5

L

R

POWER
12V
3A MAX

INPUTS OUTPUT AUDIO OUT

1/2

3/4

HDMI

SIGLINKSIG LINK

PVT IN PVT IN

PVS 405D PoleVault Switcher

VoiceLift

Receiver

VoiceLift

Microphone

AMPLIFIED AUDIO OUT

DO NOT
GROUND

OR SHORT

4/8

SPEAKER

Ω

OUTPUTS

RS-232

TxRxIRSG G

LR

LAN 1 LAN 2 LAN 3

Ceiling or Wall

Figure 3. VoiceLift Receiver Coverage

NOTE: Coverage is dependent mainly on the room environment, but also on the

microphone. You can attain maximum coverage when the batteries are fully
charged. Reception may decrease as the battery drains.

VoiceLift System with PVS 405D Installation Guide • Introduction 3

Room Considerations

The following room factors are important to consider when you are planning the
installation of a VoiceLift system:

Interference and noise sources

Infrared and radio frequency noise can reduce the performance of the microphone
system. To minimize noise in the system, avoid mounting the VoiceLift receiver near the
following items:

• Lighting, fluorescent or incandescent — Keep the receiver at least 2 feet

(61 centimeters) away from a light source. Do not place the receiver where light can
shine directly into it.

• Sunlight — Place the receiver at least 6 feet (1.8 meters) away from windows and

skylights. If this is not possible, cover windows and skylights with curtains, blinds, or
other covering options.

• Plasma displays — Avoid placing plasma displays in close proximity to the

microphone system.

• Electrical equipment — Take placement of electrical equipment such as power

lines or supplies, projectors, dimmers, and computers into consideration, as these
could interfere with the IR signal.

• Cellular phones — Keep cell phones at least 2 feet (61 centimeters) away from

both the receiver and the microphone.

• Other IR devices — Take placement of other IR devices such as assistive listening

devices or IR remote controls into consideration, as these could interfere with the IR
signal.

IR
Transmitter

Window

6 Ft.

Blue Jay Graduation

Class of 2009

Anaheim Family YMCA

Children’s Station

Plasma

2 Ft.

VLR 102

Receiver

Ceiling
Lighting

PWR

CHARGEOFF/MUTE/CHG ON

Extron

Extron

Figure 4. Potential Causes of Noise Interference

4

VoiceLift System with PVS 405D Installation Guide • Introduction

Line-of-sight obstructions between microphone and receiver

A clear line of sight between the microphone and the receiver is critical for best
performance. Take the following potential obstructions to the IR signal into consideration
when placing the receiver:

• Movable furniture (such as desks, tables, and podiums)

• Installed furniture (such as bookcases, racks, cabinets, workbenches, and sinks)

• Support pillars

• I-beams

• Projectors

VLR 102

Ceiling
Beams

Receiver

Blue Jay Graduation

Class of 2009

Anaheim Family YMCA

Children’s Station

Extron

PWR

CHARGEOFF/MUTE/CHGON

Extron

Extron

Not Good

Figure 5. Potential Line-of-Sight Obstructions

VoiceLift System with PVS 405D Installation Guide • Introduction 5

Reflection

Line of sight from the microphone to the receiver is ideal; however, reection of the IR
signal also plays a part in the coverage for most rooms. For example, if the speaker with
the microphone is facing a screen, the IR signal may reect off the screen surface to
the receiver in the middle of the room. Ideal conditions for reection are light colored,
smooth surfaces (for example, white drywall). Items to consider that may affect reection
include:

• Ceiling type (such as drop, spline, or hard lid)

• Wall type (such as drywall, cement, acoustical panel, or brick)

• Wall coverings (such as wall art, hangings, or dark colored paint)

• Curtains and blinds

• Furniture (such as bookcases or easels)

VLR 102

Extron

Receiver

Good

Extron

PWR

CHARGEOFF/MUTE/CHGON

Extron

Extron

Not Good

Blue Jay Graduation

Class of 2009

Anaheim Family YMCA

Children’s Station

Figure 6. Reflective Surfaces

6

VoiceLift System with PVS 405D Installation Guide • Introduction

Receiver Location

The best location to mount the receiver is on the ceiling in the center of the classroom.
If the receiver is wall-mounted, center it on the wall between 6 feet (1.8 meters) and
12 feet (3.6 meters) from the oor. These locations maximize the coverage and line of
sight to the microphone.

Avoid the corners of the room, alcoves, bays, or sheltered areas that can restrict
coverage. If the ceiling is over 12 feet (3.6 meters) high, consider mounting the receiver
on a pole to reduce the line-of-sight distance to the microphone.

PoleVault A-V Wallplate Location

Screen or White

Potential

VLR 102 IR
Receiver

Locations

TV / VCR / DVD
Inputs

Wall Mount

Board Location

Ceiling Mount

Student Desks

Figure 7. Diagram of a Classroom Installation

Instructor Desk

MLC Controller
Location

Projector and
Switcher
Location

Speaker
Locations

VoiceLift System with PVS 405D Installation Guide • Introduction 7

PoleVault Switcher Location

t

The PoleVault switcher can be mounted anywhere in the room, because the volume
controls are on the microphone. However, placing the switcher near the ceiling makes
cabling and upgrading to a full PoleVault system easier.

WARNING: Structural ceiling failure could cause serious injury or death. Check the

structural ceiling to ensure that it can handle a load four times the weight of the
nal setup.

AVERTISSEMENT : Un défaut dans la structure du plafond pourrait provoquer

des blessures graves voire mortelles. Vérier la structure du plafond an de
vous assurer qu’il peut supporter une charge quatre fois supérieure au poids de
l’installation nale.

PVS 405D

Digital PoleVaul
Switcher

PVS 405SA IP

POLEVAULT SWITCHER

PAGING
SENSOR

AUDIO LEVEL ADJUST

PEAK

SENSITIVITY

NORMAL

SIGNAL

VOICELIFT

PEAK

NORMAL

SIGNAL

INPUT

AUDIO

INPUTS

5

AUX
3

4

1

SELECT

2

CONFIG

R

PMK 560

Projector Mount Kit

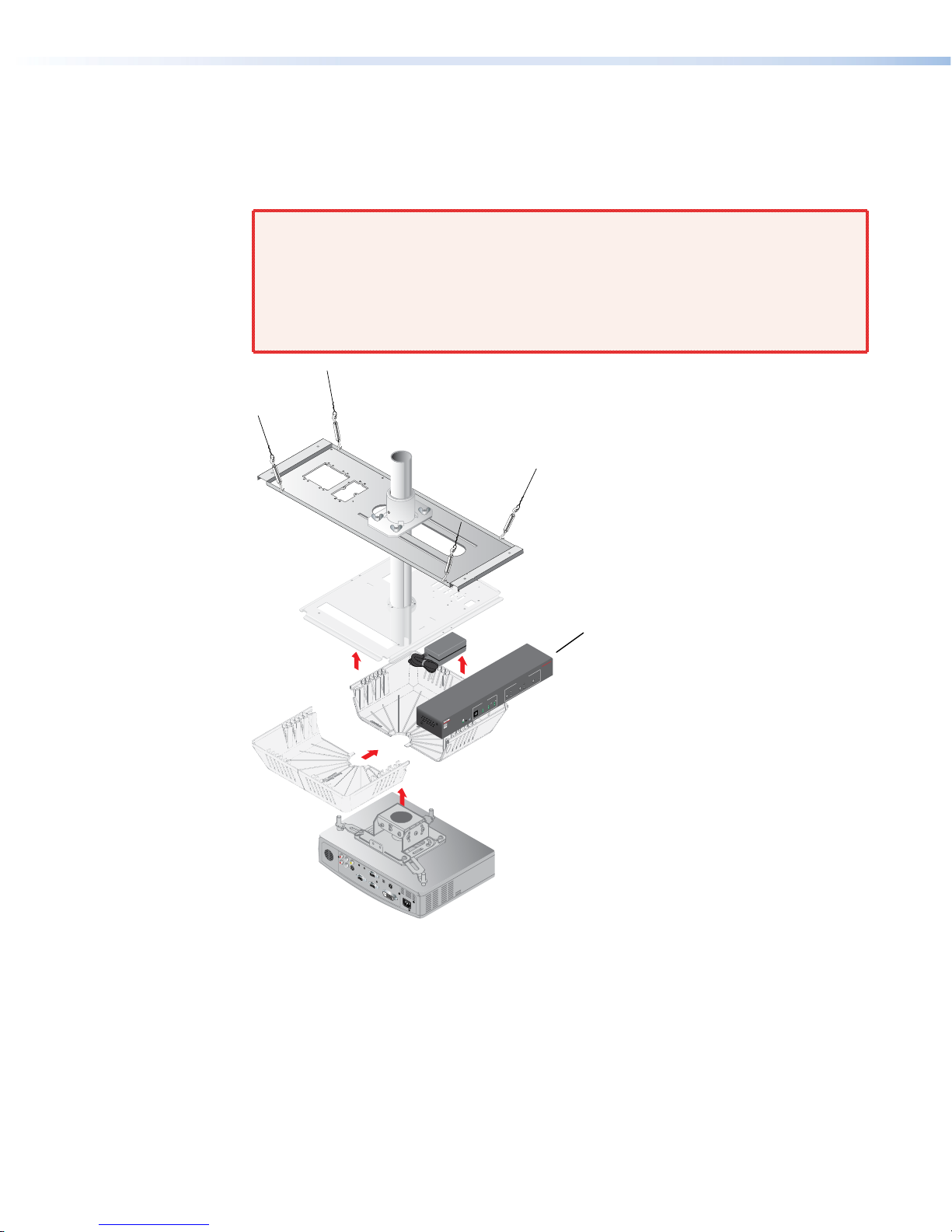

Figure 8. Mounting a PoleVault Switcher to a Projector Pole

Possible switcher mounting locations include:

• On a desk • Mounted to a wall

• Under a desk • Mounted to a ceiling pole

• In a cabinet • Above a drop ceiling (The PVS 405D is plenum rated.)

8

VoiceLift System with PVS 405D Installation Guide • Introduction

Inventory

The VoiceLift VLS System kit is available in three packaged congurations:

• VLS 1000D: Contains one VLP 102 Pendant Microphone, a VLR 102 Receiver, a

wall charger, and two FF 120 Flat Field speakers.

• VLS 2000D: Contains two VLP 102 Pendant Microphones, a VLR 102 Receiver, a

wall charger, a VLC 102 Charging Station, and two FF 120 speakers.

• VLS 2000DH: Contains one VLP 102 Pendant Microphone, one VLH 102 Handheld

Microphone, a VLR 102 Receiver, a wall charger, a VLC 202 Charging Station, and
two FF 120 speakers.

VoiceLift System with PVS 405D Installation Guide • Introduction 9

NOTE: If any items in the VoiceLift System or FF 120 boxes are damaged or missing,

contact the Extron S
contact numbers).

10

VoiceLift System with PVS 405D Installation Guide • Introduction

3

Sales and Technical Support Hotline (see the rear cover for

Installation Tools

Extron recommends the following equipment (not provided) to ensure that the VoiceLift
System is properly installed.

Safety Goggles

Utility Knives

Flashlight

Cable Cutters

Handsaw for

Cutting Drywall

RJ-45 Crimpers and Connectors

Power Drill

3/4-inch Extension Bit for

Drilling Through Fire Breaks

Marker Pen, Pencil

Tools for Terminating Cable

Tape Measure

Screw Driver Set

Stud Finder

Zip Ties

Fish Tape

Vacuum Cleaner

VoiceLift System with PVS 405D Installation Guide • Introduction 11

Items Not Included

The following items are not included. However, some or all of them may be needed for
the installation at your particular site.

• Additional length of RJ-45 cabling (CAT 5, 5e, or 6 with T568A or T568B

straight-through cabling)

• Installation hardware (may vary by installation):

• Electrical ceiling box

• Junction box

• Plaster ring

• Raceway

• Bolts for concrete structural ceilings where needed

• Dry wall anchors and screws

• Spare ceiling tiles in case of accidental damage during installation

• Safety wire, lag eye bolts, and strain reliefs

• Heat shrink

• Extension cord

Optional Items

The optional items listed below can be added to or substituted for items in the standard
VoiceLift System kits.

• VLP 202 Pendant Microphone (additional) or VLH 102 Handheld Microphone

• PVS 405D mounting options

• WMK 160 WallVault wall mounting kit

• PMK 560 pole mounting kit

12

VoiceLift System with PVS 405D Installation Guide • Introduction

Installation
Overview

This section provides an overview of the ve stages of installation for the VoiceLift
system and the steps required for each stage.

Stage 1 — Install the VLR 102 Receiver

Choose one of these installation types:

1a. Drop ceiling

c Cut a hole in the ceiling tile (page 17).
c Mount the receiver housing to the ceiling tile (page 17).
c (Optional) Attach a conduit to the back plate if needed (page 17).

1b. Junction box

c Install the junction box (page 18).
c Attach the receiver housing to the junction box (page 18).
c Attach a conduit to the junction box if needed (page 18).

1c. Wall or other hard surface

c Install a raceway if needed (page 19).
c Mark the mounting screw hole locations on the surface (page 19).
c If using a raceway, remove the appropriate knockout in the receiver

housing (page 19).

c Mount the receiver housing to the surface (page 20).

1d. Pole

c Attach the pole to the ceiling (page 21).
c Mount the receiver housing to the pole (page 21).

Stage 2 — Install the FF 120 Speakers (VLS Only)

c Cut the ceiling tile (page 23).
c Install the speakers in the drop ceiling (page 23).
c (Optional) Install a seismic safety cable at each speaker location (page 24).
c Terminate the speaker cable for the PVS switcher (page 24).

Stage 3 — Install the PVS 405D Switcher (VLS Only)

c Install the PoleVault switcher (page 26).

See the PoleVault Systems Featuring the PVS 405D Switcher Installation Guide
for the procedures.

VoiceLift System with PVS 405D Installation Guide • Installation — Overview 13

Stage 4 — Connect the VLR 102 Receiver to the PoleVault System

c Pull the cables to the receiver (page 29).
c Connect the cables to the receiver (page 29).
c Attach the receiver dome to the housing (page 30).
c Pull the cables to the PoleVault switcher (page 31).
c Connect the cables to the PoleVault switcher (page 32).

Stage 5 — Configure and Test the System

c Set up the microphones (page 33).
c Set the microphone gain and feedback suppressor (FBS) (page 34).
c Complete the installation (page 36).

Installation Procedures

The following sections contain instructions for installing the VoiceLift System. Where
possible, line drawings and photos from an actual installation are used to clarify some of
the steps discussed in the text. Each image has a circled number corresponding to the
step that is being described.

NOTES:

• Additional installation hardware is needed for this installation and should be

supplied by the installer (see Items Not Included on page 12 for a list of items
that you may need).

• Consider optional accessories for this installation (see Optional Items on

page 12 for a list of available accessories, or visit www.extron.com for details).

• See local building standards and codes to verify that the installation will meet

all the regulatory requirements. Observe all local and national building and
safety codes, UL requirements, and ADA Accessibility Guidelines.

• Before beginning the installation, be sure to check the contents of your

VoiceLift packages against the appropriate inventory list, beginning on page 9,
to ensure that you have received all of the necessary components.

VoiceLift System with PVS 405D Installation Guide • Installation — Overview14

Stage 1:

)

Conduit Knoc

Back Plate

Mounting the
Receiver

This stage consists of installing the VLR 102 receiver in a drop ceiling or on a wall.

Receiver Housing and Back Plate

kouts (2)

Figure 9. Receiver Housing and Back Plate

Where it goes: The housing attaches to the receiver dome, and the back plate

mounts to a ceiling tile or a wall.

What it does: Protects the receiver base plate and connectors. The housing

contains knockouts for different sizes of raceways, and the back
plate contains knockouts for a conduit.

Raceway Knockouts (2

Receiver
Housing

Z-bracket and Mounting Screw (for Installation in a Drop Ceiling)

Z-bracket

Figure 10. Z-bracket and Mounting Screw

Where it goes: The mounting screw passes through the receiver back plate, then
through the hole in the ceiling tile. The bracket is attached to
the screw on the back of the ceiling tile.

What it does: Fastens the receiver to a tile in a drop ceiling.

Mounting Screw

VoiceLift System with PVS 405D Installation Guide • Installation — Stage 1 15

Stage 1a: Installing the
VoiceLift Receiver in a Drop
Ceiling (page 17)

Stage 1b: Installing the
VoiceLift Receiver to a Junction
Box (page 18)

Stage 1c: Installing the
VoiceLift Receiver to a Wall
(page 19)

Stage 1d: Installing the
VoiceLift Receiver on a Pole
(page 21)

Figure 11. Diagrams of Stage 1 Mounting Options

NOTE: Observe all local and national building and safety codes to ensure that the

installation meets all regulatory standards.

VoiceLift System with PVS 405D Installation Guide • Installation — Stage 116

Stage 1a — Installing the Receiver in a Drop Ceiling

1. Cut a hole in the ceiling tile.

a. Remove the ceiling tile in which the receiver

will be installed.

b. Determine the receiver location, then cut a

hole in the ceiling tile 2 to 3.5 inches (5 to
9 cm) in diameter, using a circular saw (shown
at right) or other type of saw (saws are not
included).

NOTE: This hole should be large enough to

expose the conduit knockout and the hole for
the mounting screw in the receiver back plate,
but it should not exceed the diameter of the
receiver housing (4.75 inches [12.1 cm]).

2. Mount the receiver housing to the ceiling
tile.

a. Insert the ceiling bracket screw through the

back plate (attached to the housing) and the
hole in the ceiling tile.

Cut a hole in the ceiling tile.

Ï

b. Attach the Z-bracket loosely to the screw on

the back side of the ceiling tile.

c. Align the back plate knockout over the hole in

the tile.

d. Tighten the screw to secure the back plate

and the housing to the tile.

3. (Optional) Attach a conduit to the back plate
if needed (see figure 3).

NOTE: Observe all local and national building

and safety codes.

4. Replace the ceiling tile.

Secure the receiver back plate to the ceiling

Ø

tile and the Z-bracket.

Attach a conduit to the back plate if

3

desired.

VoiceLift System with PVS 405D Installation Guide • Installation — Stage 1 17

Stage 1b — Installing the Receiver to a Junction Box

Mounting Screws

x

Plaster
Ring

1. Install the junction box.

• Install the junction or ceiling box (not included)

flush with the mounting surface (follow the
instructions provided with the junction box).

• Use a one-gang plaster ring (Raco772) if the

junction box is larger than one-gang.

WARNING: Improper installation may result

in electrical shock or serious injury. All
electrical installation should be performed
by qualied personnel in accordance with
local and national building codes, re
and safety codes, and local and national
electrical codes.

AVERTISSEMENT :

Une installation
non-conforme peut entraîner un choc
électrique ou des blessures graves. Toute
installation électrique devrait être effectuée
par un personnel qualié, conformément
aux codes du bâtiment, aux codes incendie
et sécurité, et aux codes électriques locaux
et nationaux.

Attach the junction box flush with the

1

mounting surface.

2. Attach the receiver housing to the junction
box.

a. Align the receiver housing with the junction

box.

b. Secure the housing in place with the

appropriate screws (not included).

3. Attach a conduit to the junction box if
needed.

NOTE: Observe all local and national building

and safety codes.

Junction Bo
Mounting
Holes (2)

Ceiling Box
Mounting
Holes (2)

Attach the receiver housing to the junction

Ö

box.

Attach a conduit to the junction box if

3

needed.

VoiceLift System with PVS 405D Installation Guide • Installation — Stage 118

Raceway

Stage 1c — Installing the Receiver on a Wall or Other Hard Surface

1. Install a raceway if needed.

If using a raceway for the cables, install it at the
appropriate location on the mounting surface.

NOTE: Raceway knockouts on the receiver

housing fit common types of raceways
such as the Wiremold 500/700 series
and the Wiremold 2400 series. Follow the
instructions provided by the manufacturer
to install the raceway.

Install the raceway (if needed).

1

2. Mark the mounting screw locations on the
surface.

Use the screw holes in the receiver housing
as guides to mark the screw locations on the
mounting surface.

3. If using a raceway, remove the appropriate
knockout in the receiver housing.

a. Use a knife to score around the edge of the

selected raceway knockout to create a clean
edge.

b. Press on the scored section to remove it.

Mark mounting screw locations in the

2

surface.

Knockouts (2)

Remove a raceway knockout from the

3

housing, if needed.

VoiceLift System with PVS 405D Installation Guide • Installation — Stage 1 19

4. Mount the receiver housing to the surface.

If not using a raceway:

Mount the receiver housing and base to the
surface, using the appropriate screws for the type
of surface.

NOTE: Screws and wall anchors are not

included.

If using a raceway:

Position the receiver housing with the raceway
inserted through the knockout.

Mounting without a raceway

4

VoiceLift System with PVS 405D Installation Guide • Installation — Stage 120

Mounting with a raceway

4

Stage 1d — Installing the Receiver on a Pole

1. Attach the pole to the ceiling.

Attach the required length of ¾-inch (19 mm)
diameter electrical metal tubing (EMT) or downrod
to the ceiling.

NOTE: You can use ½-inch tubing for the

pole. However, the RJ-45 connector on the
twisted pair communication cable does not
fit through this size pole. To use tubing this
size, you must remove the connector from
the cable, pull the cable through the pole,
then reterminate the cable.

Example: If desired, you can attach the pole to a
junction box as shown at right.

2. Mount the receiver housing to the pole.

a. Remove a large knockout from the receiver

back plate to accommodate the ¾-inch
(19 mm) pole (see figure Õ at right).

Attach the pole to the ceiling (junction box is

1

optional).

b. Attach a ¾-inch (19 mm) clamp, compression,

or set screw connector to the other end of the
pole (see figure Ö below).

Attach a ¾-inch connector to the pole.

Ö

c. Remove the lock nut from the connector and

insert the connector into the large knockout
space on the metal back plate.

Remove the large knockout (outer ring).

Õ

d. Replace the lock nut onto the connector

and tighten it to secure the connector to the
housing.

–

×

VoiceLift System with PVS 405D Installation Guide • Installation — Stage 1 21

Attach the pole to the receiver back

Ø

plate.

Stage 2:

T- rails (2)

eet (10.6 m)

Mounting the
FF 20 Speakers

This stage consists of installing and connecting the FF 120 speakers (VLS only).

NOTE: The installation must conform to national and local electrical codes and UL

requirements (see the FF 120 Flat Field Speakers User Guide for details).

FF 120 Flat Field Ceiling Speakers

Speaker Cable

FF 120 Speakers (2)

Seismic Tabs
(1 at each end)

Te rminal Cover

Cable Clamps (2)

Anchor Rings (2)

Figure 12. FF 120 Ceiling Speaker

Where they go: Installed in ceiling tiles at locations selected for best acoustics

What they do: Receive and output the audio signal from the PVS 405D

switcher.

SPK 18, 35 f

Figure 13. SPK 18 Speaker Cable

What it does: For speaker installation, connects the ceiling speakers to the switcher.

VoiceLift System with PVS 405D Installation Guide • Installation — Stage 222

Speaker Mounting Procedure

1. Cut the ceiling tile.

See the FF 120 Flat Field Speaker User Guide,
available at www.extron.com, for instructions.

a. Remove the ceiling tiles where the speakers

will be installed.

TIP: For ease of working on the speaker

when it is replaced on the T-frame,
remove the adjacent tiles.

b. Mark a line 12 inches (30 cm) from and

parallel to one of the short edges of the tile.

c. Cut along the line and discard the short part.

TIPS:

• Use a ne hacksaw blade to cut the

tile without damaging the face.

• Place an empty box under the tile for

support and to collect the waste.

2. Install the speakers in the drop ceiling.

a. At the speaker location, lay one of the

supplied T-rails 12 inches (30 cm) from one
end of the T-frame. The speaker will be placed
into the small section.

b. Remove the terminal cover from the rear of a

speaker and attach the anchor ring and cable
clamp to the cover.

Mark a line on the ceiling tile.

Ï

Cut the ceiling tile on the marked line.

Ð

c. Place the speaker onto the T-frame and pass

the speaker cable through the cable clamp.

d. Connect the speaker wires to the terminals:

the red wire is positive (+) and the black
wire is negative (–)

e. Reattach the terminal cover and, if possible,

bend the seismic tabs down over the T-rails.

f. Replace the ceiling tile.

g. Repeat steps 2a through 2f for each speaker

that needs to be installed.

Place the T-rails on the T-frame.

Õ

Remove the terminal cover and attach the

Ö

ring and clamp to it.

VoiceLift System with PVS 405D Installation Guide • Installation — Stage 2 23

3. (Optional) Install a seismic safety cable at

ATTENTION:

• Repeated bending of the tab
may cause it to break off.

• Le fait de plier l’attache de
façon répétitive peut la casser.

Bend Up Tab

Anchor this end to a
suitable secure point.

Route the seismic
line through the
line retainer and
bendout tab.

Seismic
Safety
Cable

Top
Te rminal
Cover

Seismic
Anchor
Ring

Locking
Ring

Cable Clamp
Adapter

each speaker location.

a. Mark, drill, and install a lag eye bolt for the

seismic safety cables (not included) in the
ceiling above the speaker location.

b. Pass the seismic cable through the anchor

ring down to the nearest seismic tab and twist
the end around the cable five times.

c. Pass the other end of the cable up through

the lag eye bolt (see step 3a) and twist that
end around the cable five times.

- Þ Attach the seismic safety cable.

Ý

4. Terminate the speaker cable for the
PVS switcher.

To terminate the cable, strip the end of the cable

0.2 inch (5 mm) and secure the wires into the
supplied 4-pole captive screw connector.

NOTE: The correct speaker impedance

loading must be observed when you are
setting up a speaker system (see figure 14
on the next page for examples).

Speaker 1 Speaker 2

Audio Output

to Speakers

4-pole Captive
Screw Connector

AMPLIFIED OUTPUTS

LR

PVS Switcher

Rear Panel

Wire the captive screw connector.

4

4/8

Ohms

Speaker
Wire Color

To PVS 405D
Terminal (Left and
Right)

Red Positive (+)

Black Negative (-)

4-pole Captive
Screw Connector

VoiceLift System with PVS 405D Installation Guide • Installation — Stage 224

ers

AMPLIFIED OUTPUTS

Stereo or Dual Mono Output Using Parallel Speaker Wiring

FIG_Speaker Wiring Examples

AMPLIFIED OUTPUTS

Dual Mono Output

AMPLIFIED OUTPUTS

Mono +

Mono –

Stereo Output

8
ohms

8 Ohms

LR

8 Ohm Load

Mono +

or

Stereo L+

8
ohms

Mono –

or

Stereo L-

Mono +

Mono –

LR

4/8 Ohms

Stereo L+

Stereo L–

Mono +

or

Stereo R+

Mono –

or

Stereo R-

LR

8
ohms

4 Ohm Total Load4 Ohm Total Load

8 Ohms

Stereo R+

Stereo R–

8 Ohm Load

Two 8 ohm speak
wired in parallel
equal a 4 ohm load.

8
ohms

Figure 14. Speaker Wiring Examples

NOTE: By default, the switcher-amplifier is set for dual mono output. Use the Universal

Switcher Control software or the Extron Special Instruction Set (SIS™) commands to change
the setting to stereo if desired. For full details, see the PoleVault Systems Featuring the
PVS 405D Switcher Installation Guide, available at www.extron.com.

VoiceLift System with PVS 405D Installation Guide • Installation — Stage 2 25

Stage 3:

Po

Paging

Installing the
PoleVault Switcher

This stage consists of installing the PVS 405D PoleVault Switcher (VLS only). See the
PoleVault Systems Featuring the PVS 405D Switcher Installation Guide, delivered with
your PVS 405D switcher and also available at www.extron.com, for complete switcher
installation procedures.

PVS 405D PoleVault Switcher

LAN 1 LAN 2 LAN 3

L R

AMPLIFIED AUDIO OUT

4/8

DO NOT

Ω

GROUND
OR SHORT
SPEAKER
OUTPUTS

REMOTE

RS-232

IR

OVER PVT

TxRx

PVS 405SA IP

PAGING
SENSOR

VOICELIFT

R

AUDIO OUT

+V

L

OUTPUT

AUX

R

INPUT 5

INPUTS

L

HDMI

3/4

1/2

SIG LINK SIG LINK

PVT IN

POWER
12V
3A MAX

PVT IN

S G G

Audio Out

Port

Sensor

Port

Output to
Speaker

SIG LINK SIG LINK

POWER
12V
3A MAX

wer Supply

Connector

Figure 15. PVS 405D Switcher, Cable, and Power Supply

Where it goes: The PVS 405D and power supply can be installed in the
following locations:

What it does: Receives input video and audio signals from the AV source input
wall plates and audio signals from the VoiceLift VLR 102 Receiver.
Outputs and switches the signals to a projector and ceiling
speakers.

VoiceLift System with PVS 405D Installation Guide • Installation — Stage 326

INPUTS OUTPUT AUDIO OUT

1/2

3/4

HDMI

PVT IN PVT IN

PVS 405D

PAGING

SENSOR

L

R

VOICELIFT

+V

AUX OVER PVT REMOTE

INPUT 5

L

R

AMPLIFIED AUDIO OUT

DO NOT

GROUND

OR SHORT

4/8

SPEAKER

Ω

OUTPUTS

RS-232

IR

Tx Rx

SG G

LR

LAN 1LAN 2LAN 3

VoiceLift

Receiver Port

• A projector ceiling pole, with an Extron PMK 560 Pole Mount Kit

• A table top, cabinet, or shelf (Attach the four provided rubber

feet to the bottom of the unit.)

• On a wall, with an Extron WMK 160 WallVault Wall Mount Kit

PoleVault Switcher Installation

1. For assistance in selecting a location for the PVS 405D switcher within the room,

see Room Considerations on page 4.

2. Install the PVS 405D, following the instructions in the PoleVault Systems Featuring

the PVS 405D Switcher Installation Guide and the provided mounting kit user guide.

3. Make sure that the PVS 405D front and rear panels are accessible until installation

and testing of the VoiceLift System is complete.

VoiceLift System with PVS 405D Installation Guide • Installation — Stage 3 27

Stage 4:

DIP Switches

Connecting the
Cables

This stage consists of connecting the receiver and speakers to the PoleVault switcher.

Receiver Dome

RJ-45 Connectors

Locking
Tab (4)

Locking Tab
with Arrow

Captive Screw Connectors

Figure 16. Receiver Dome Features

Where it goes: Attaches to the receiver housing.

What it does: Receives signals from the microphone and sends them to the

switcher or amplier. Its top panel contains photodiode IR
sensors (inside), captive screw connectors for auxiliary input,
RS-232, contact input, and relay output; RJ-45 connectors for
power, communication, and audio output; and DIP switches.

STP Cable

Figure 17. STP Cable

Use a CAT 5, 5E, 6, 7 screened shielded twisted pair cable with T568A or T568B
straight-through wiring.

Where it goes: Attaches to the receiver RJ-45 Out port and to the VoiceLift
Receiver RJ-45 port on the PVS 405D switcher.

What it does: Provides power to the receiver and enables communication and
audio between the receiver and the PoleVault switcher.

28

VoiceLift System with PVS 405D Installation Guide • Installation — Stage 4

Procedure

1. Pull the cables to the receiver.

a. Pull the STP cable through the receiver

base, along with any other cables that will be
attached to the receiver (RS-232, STP cable
to a secondary receiver, and so on).

b. If mounting the receiver to a wall and using a

raceway, place the cables in the raceway and
replace the raceway cover.

2. Connect the cables to the receiver.

a. Connect the STP cable to the Receiver Out

port (the RJ-45 connector closest to the DIP
switches on the receiver base).

Pull the cables through the receiver base.

Î

Place the cables in the raceway and replace

Ï

the raceway cover.

Connect the STP cable to the Receiver Out

Õ

RJ-45 port.

VoiceLift System with PVS 405D Installation Guide • Installation — Stage 4 29

2. Connect the cables to the receiver

(continued).

b. Install any optional devices and connect their

cables to the appropriate ports on the receiver
base.

c. If desired, set the Tone DIP switch on the

receiver base:

• Up: Enable the microphone volume

change alert tone (default).

• Down: Disable the microphone volume

change alert tone.

NOTE: The Mix DIP switch should always

be set to Down. Leaving it in the Up
position could cause noise.

3. Attach the receiver dome to the housing.

OUT IN

O

N

CTS-2

12

MIX

TONE

Tx

RS-232

Rx

AUX IN

+

IN

CTC

NO

RLY

C

12

O
N

CTS-2

Base Plate

TONE

MIX

Set the Tone and Mix DIP switches (optional).

Ö

a. Place the dome onto the housing, aligning the

arrow etched on the dome locking tab with
the raised arrow on the housing rim. The two
tabs in the housing should slide into the two

Ta b

Arrow

slots in the base.

Arrow on Housing

Dot

Ta b

Arrow

Receiver
Dome

Arrow on Tab

Twist to
Lock

Align the arrows on the housing rim and the

Ü

Align Arrows

dome tab.

VoiceLift System with PVS 405D Installation Guide • Installation — Stage 430

3. Attach the receiver dome to the housing

(continued).

b. Twist the dome to the right (clockwise) until

it locks in place (approximately 1/8 turn). The
dot on the rim of the housing should now
align with the arrow on the dome locking tab.

4.

Pull the cables to the PoleVault switcher.

a. Remove the bottom covers of the PMK 560

projector mount.

b. Pull the cables from the receiver and from

the speakers in VLS systems to the PoleVault
switcher location.

Dot on Housing

Arrow on Tab

The arrow aligns with the dot when the dome

Ý

is in place.

c. Run the cables down through the projector

pole and the PMK mounting bracket.

VoiceLift System with PVS 405D Installation Guide • Installation — Stage 4 31

Audio Output

Receiver

5. Connect the cables to the PoleVault

switcher.

a. Disconnect the power cable from the

PoleVault switcher.

b. Plug the STP cable into the VoiceLift Receiver

RJ-45 port on the switcher.

c. Connect cable from the speakers to the

Amplified Audio Out connector on the
switcher (VLS systems only).

d. Reconnect the power cable to the switcher.

to Speakers

Speaker
Wire Color

PVS Terminal
(Left and Right)

Red Positive (+)
Black

Negative (–)

ìì

PVS 405D

PAGING

SENSOR

VOICELIFT

+V

AUX OVER PVT REMOTE

ëë

AMPLIFIED AUDIO OUT

DO NOT

GROUND

OR SHORT

SPEAKER
OUTPUTS

IR

SG G

VoiceLift

RS-232

Tx Rx

4/8

Ω

LR

LAN 1 LAN 2 LAN 3

POWER
12V
3A MAX

INPUTS OUTPUT AUDIO OUT

1/2

3/4

SIG LINK SIG LINK

PVT IN PVT IN

HDMI

L

INPUT 5

L

R

R

Figure 18. Connecting the Receiver to a PVS 405D Switcher

VoiceLift System with PVS 405D Installation Guide • Installation — Stage 432

Stage 5:
Testing the System

This stage consists of conguring, setting up, and testing the VoiceLift System.

1. Set up the microphones.

Set up each microphone in your VoiceLift system
as follows:

a. Set the channels using the rotary switch. A

and C are at 2.3 MHz, and B and D are at

2.8 MHz.

NOTES:

• Each microphone must be set to a

different frequency; in other words,
only channels A and B, A and D,
B and C, or C and D can be used
together (on the VLH 102 Handheld
Microphone you can select only
channels A and B).

• If the student is using a pendant

microphone, it is recommended
that you disable the volume buttons
by setting the channel to C or D.
This prevents the student from
inadvertently pressing both volume
buttons simultaneously and sending
an instant alert (see Installation

Example — Setting Up an Instant
Alert beginning on page 37).

b. (Pendant microphone only) Apply a Teacher,

Student, Mic 1, or Mic 2 label to the back of
the microphone.

A

B

C

D

ÎÎ



VLP 202 Pendant Microphone





A

B

ÎÎ

A

B

VOLUME

c. Remove the battery cover and insert the

battery.

d. Replace the battery cover.

VLH 102 Handheld Microphone

– Ð Set up the microphone.

Î

33VoiceLift System with PVS 405D Installation Guide • Installation — Stage 5

1. Set up the microphones (continued).

e. Attach the lanyard to the VLP 202 (pendant

microphone only).

i. Press the lanyard into the guides on either

side of the lanyard clip.

Guides on Lanyard Lock

Press lanyard into guides.

Clip

Top View

ii. Press the top of the microphone rear clip

to raise it.

iii. Slide the lanyard lock under the clip and

release the clip.

f. Charge the microphone for 5 hours.

2. Set the microphone gain and feedback

suppressor (FBS).

The VoiceLift feedback suppressor eliminates
feedback from the microphone. Follow these
steps to achieve the best performance from the
FBS:

a. Power on the VoiceLift system. The Power

LEDs on the microphone and receiver should
light green.

If the microphone has been in operation, cycle
power on the receiver to clear any existing
lters.

Lock

Attach the lanyard to the pendant

Ò

microphone.

Power LED

Power Switch

Power LED

Power Switch

VoiceLift System with PVS 405D Installation Guide • Installation — Stage 534

Power on the microphone.

Õ

Set the microphone gain and feedback

counterclockwise.

2.

suppressor (FBS) (continued).

b. Instructor: Place the lanyard with the

pendant microphone around your neck
and adjust the lanyard by sliding it through
the lanyard lock until the microphone is
approximately 4 inches (10.2 cm) below your
chin (see figure

Ö

).

Breakaway
Clasp

Student: Hold the pendant or handheld
microphone approximately 4 inches (10.2 cm)
from your mouth.

c. Turn off all program audio sources.

d. Lower the microphone input gain on the

PoleVault switcher to minimum by turning the
encoder counterclockwise two full rotations.

R
W
P

Extron

N
O

UTE

OFF/M

Instructor: Place the microphone on the

Ö

~ 4 inches (10.2 mm)

Lanyard

lanyard and adjust it.

AUDIO LEVEL ADJUST

INPUT

PEAK

VOICELIFT

NORMAL

SIGNAL

Tu rn the encoder

Lower the input gain on the PoleVault

Ø

PEAK

NORMAL

SIGNAL

PAGING

SENSOR

SENSITIVITY

switcher.

Lanyard
Lock

PVS 405D

POLEVAULT SWITCHER

e. Raise the volume on the VoiceLift microphone

to maximum by pressing and holding the
Volume Up button until the microphone stops
beeping.

f. Slowly raise the microphone gain level

on the PVS switcher while talking into the
microphone until feedback occurs. One click
of the encoder is 1 dB. The dynamic filters
begin to engage and to eliminate feedback. If
the feedback persists, lower the microphone
gain on the switcher until the feedback stops.

g. To set additional filters, walk around the

room while talking into the microphone. If the
feedback persists, lower the microphone gain
on the switcher and walk around the room
again.

NOTE: The highest gain achieved without

feedback is the maximum gain for the
VoiceLift system.

VoiceLift System with PVS 405D Installation Guide • Installation — Stage 5 35

Volume Up

Volume Up

A

B

VOLUME

Volume Down

– Ú Volume Up and Down buttons on the

Ù

Volume Down

VoiceLift microphone.

h. Lower the volume on the microphone to an

L R

DO NOT
GR
OUND
OR
S
H

OR
T

SP
E
A

KER

OUTPUTS

4
/
8
Ω

3A MAX

POWER
12V

HDMI

1/2

SIG LINKSIG

LINK

3/4

INPUTS

OUTPUT

AUDIO OUT

PVS 405SA IP

AMPL

I
FIED AUDIO

OU

T

PAGING
SENSOR

PVT IN

PVT IN

L

R

AUX

O
V
ER

PV

T

REMO

T

E

VOICELIFT

LAN

1 LAN 2 L

AN 3

INPUT 5

+V

L

R

R

S-232

T

x
Rx

I
R

SG

G

PVS 405D
Switcher

Projector
Pole

Cable Access Slot

Cable Slot
Cover

Power Supply

Power Cord Slot

appropriate level:

• The level of your speaking voice should be

enhanced, but not loud enough to sound
like a paging system.

• Check the LEDs on the PVS switcher. The

green Normal LED should light when you
speak, with the red Peak LED blinking
occasionally.

NOTE: The microphone audio should be

barely audible to the person speaking
into it. Have another person listen for
the audio levels and check for sound
quality.

3.

Complete the installation.

a. Test any optional devices that have been

installed.

b. Complete the mounting and installation of the

PoleVault switcher if necessary.

Level set too high.

PEAK

NORMAL

SIGNAL

Lower input gain.

Level has been
properly adjusted.

Signal threshold

-20 dBV (-18 dBu)

Check the PVS switcher LEDs while lowering

#

the microphone volume.

Complete the mounting of the PVS 405D.

Ý

VoiceLift System with PVS 405D Installation Guide • Installation — Stage 536

Installation
Example — Setting
Up an Instant Alert

This section describes an example of an optional instant alert setup, in which the relay
port of the VLR 102 is connected to a Digital I/O port of an Extron MLC 104 IP Plus. This
enables you to send out e-mail alerts from the classroom by holding down both Volume
buttons for 3 seconds.

1. Connect the receiver to the
MLC 104 IP Plus.

a. Wire one of the provided two-pole

captive screw connectors to one end of a
communication cable as follows:

• Connect the red wire to the NO (Normally

Open) pin.

• Connect the black wire to the C (Common

or ground) pin.

b. Plug the communication cable into the Rly

port on the receiver (see the illustration at

NOTE: If the controller and the switcher use

right.

separate power supplies, ground the common
(C) pin of the Rly port to the receiver using
a jumper between the common pin and the
ground pin on the Contact input (CTC), the
Aux Input (Aux In), or the RS-232 port (see the
illustration at right).

Connect a communication cable to the

Ï

VLR 102 Rly port.

VoiceLift System with PVS 405D Installation Guide • Installation Example

37

1. Connect the receiver to the MLC 104 IP Plus
(continued).

c. Pull the other end of the communication cable

to the MLC 104 IP Plus location.

d. Connect the other end of the communication

cable to one of the direct-insertion Digital I/O
ports on the MLC:

• Insert the black wire into the Ground port.

• Insert the red wire into the first available

Digital I/O port.

2. Configure the MLC 104 IP Plus.

a. Using Global Configurator, configure the MLC

Digital I/O port for digital input with pull-up.

Connect the communication cable to the

Ñ

Digital I/O port of the MLC.

Select Input With Pull-up.

Õ

b. Configure a monitor to send an e-mail when

the Digital I/O port closes.

NOTE: To configure the MLC, refer to the

Global Configurator help file.

3. Test the instant alert notification.

a. Ensure that the MLC 104 IP Plus is connected

to the network.

b. Press and hold the two Volume buttons on

the microphone simultaneously for 3 seconds.
The receiver LED blinks alternating amber and
green.

NOTE: Ensure the microphone is set for

either channel A or channel B.

c. Check for the arrival of the e-mail notification.

Configure the MLC Digital I/O port for

Ö

digital input with pull-up.

Press and hold both
halves of the Volume
button simultaneously.

A

B

VOLUME

Press and hold
both Volume
buttons
simultaneously.

VoiceLift System with PVS 405D Installation Guide • Installation Example38

Press and hold both Volume buttons for

Ý

3 seconds.

Extron Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three
years from the date of purchase. In the event of malfunction during the warranty period attributable directly to
faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or
components, to whatever extent it shall deem necessary to restore said product to proper operating condition,
provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America,
and Central America:

Extron Electronics
1230 South Lewis Street
Anaheim, CA 92805
U.S.A.

Europe and Africa:

Extron Europe
Hanzeboulevard 10
3825 PH Amersfoort
The Netherlands

Asia:

Extron Asia Pte Ltd
135 Joo Seng Road, #04-01
PM Industrial Bldg.
Singapore 368363
Singapore
