Extron electronics SCP 150L, SCP 150, SCP 150 AAP User Manual

Download

User’s Manual

Extron Electronics, USA

1230 South Lewis Street Anaheim, CA 92805 USA

714.491.1500 Fax 714.491.1517

Extron Electronics, Europe

Beeldschermweg 6C 3821 AH Amersfoort The Netherlands +31.33.453.4040 Fax +31.33.453.4050

Extron Electronics, Asia

135 Joo Seng Road, #04-01 PM Industrial Building Singapore 368363 +65.6383.4400 Fax +65.6383.4664

Extron Electronics, Japan

Kyodo Building 16 Ichibancho Chiyoda-ku, Tokyo 102-0082 Japan +81.3.3511.7655 Fax +81.3.3511.7656

www.extron.com

Secondary Control Panels for the

System 5 IP Switcher

68-717-01 Rev. A

03 05

SCP 150, SCP 150 AAP,

and SCP 150 L

Precautions

This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product's enclosure that may present a risk of electric shock.

Caution

Read Instructions • Read and understand all safety and operating

instructions before using the equipment.

Retain Instructions • The safety instructions should be kept for future

reference.

Follow Warnings • Follow all warnings and instructions marked on the

equipment or in the user information.

Avoid Attachments • Do not use tools or attachments that are not

recommended by the equipment manufacturer because they may be hazardous.

Warning

Power sources • This equipment should be operated only from the power source

indicated on the product. This equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third (grounding) pin is a safety feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all

power cords from the rear of the equipment, or the desktop power module (if detachable), or from the power source receptacle (wall plug).

Power cord protection • Power cords should be routed so that they are not likely to

be stepped on or pinched by items placed upon or against them.

Servicing • Refer all servicing to qualified service personnel. There are no user-

serviceable parts inside. To prevent the risk of shock, do not attempt to service this equipment yourself because opening or removing covers may expose you to dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are

provided to prevent overheating of sensitive components inside. These openings must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly replaced.

Replace it only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le matériel contient des instructions importantes concernant l’exploitation et la maintenance (réparation).

Ce symbole sert à avertir l’utilisateur de la présence dans le boîtier de l’appareil de tensions dangereuses non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de

sécurité et d’exploitation avant d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité afin de

pouvoir les consulter à l’avenir.

Respecter les avertissements • Observer tous les avertissements et

consignes marqués sur le matériel ou présentés dans la documentation utilisateur.

Eviter les pièces de fixation • Ne pas utiliser de pièces de fixation ni

d’outils non recommandés par le fabricant du matériel car cela risquerait de poser certains dangers.

Avertissement

Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation

indiquée sur l’appareil. Ce matériel doit être utilisé avec une alimentation principale comportant un fil de terre (neutre). Le troisième contact (de mise à la terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger,

déconnectez tous les cordons d’alimentation de l’arrière de l’appareil ou du module d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de

manière à ce que personne ne risque de marcher dessus et à ce qu’ils ne soient pas écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-

maintenance par un technicien qualifié. Aucun des éléments internes ne peut être réparé par l’utilisateur. Afin d’éviter tout danger d’électrocution, l’utilisateur ne doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et orifices • Si le boîtier de l’appareil comporte des fentes ou des orifices,

ceux-ci servent à empêcher les composants internes sensibles de surchauffer. Ces ouvertures ne doivent jamais être bloquées par des objets.

Lithium Batterie • Il a danger d'explosion s'll y a remplacment incorrect de la

batterie. Remplacer uniquement avec une batterie du meme type ou d'un ype equivalent recommande par le constructeur. Mettre au reut les batteries usagees conformement aux instructions du fabricant.

Safety Instructions • English

Consignes de Sécurité • Français

Sicherheitsanleitungen • Deutsch

Dieses Symbol soll dem Benutzer in der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam machen, daß im Inneren des Gehäuses dieses Produktes gefährliche Spannungen, die nicht isoliert sind und die einen elektrischen Schock verursachen können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden,

sollten Sie alle Sicherheits-und Bedienungsanleitungen genau durchlesen und verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit

des Produktes sollten Sie aufbewahren, damit Sie im Bedarfsfall darauf zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und

Anleitungen auf dem Gerät oder in der Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte,

die nicht ausdrücklich vom Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen können.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene

Stromquelle betrieben werden. Dieses Gerät wurde für eine Verwendung mit einer Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese sollte nicht umgangen oder außer Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen,

sollten Sie alle Netzkabel aus der Rückseite des Gerätes, aus der externen Stomversorgung (falls dies möglich ist) oder aus der Wandsteckdose ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht

im Weg liegen und niemand darauf treten kann oder Objekte darauf- oder unmittelbar dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von qualifiziertem

Servicepersonal durchgeführt werden. Die internen Komponenten des Gerätes sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse

aufweist, dienen diese zur Vermeidung einer Überhitzung der empfindlichen Teile im Inneren. Diese Öffnungen dürfen niemals von anderen Objekten blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird.

Ersetzen Sie verbrauchte Batterien nur durch den gleichen oder einen vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Este símbolo se utiliza para advertir al usuario sobre instrucciones importantes de operación y mantenimiento (o cambio de partes) que se desean destacar en el contenido de la documentación suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre la presencia de elementos con voltaje peligroso sin protección aislante, que puedan encontrarse dentro de la caja o alojamiento del producto, y que puedan representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de

operación y seguridad, antes de usar el equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad

para futura consulta.

Obedecer las advertencias • Todas las advertencias e instrucciones

marcadas en el equipo o en la documentación del usuario, deben ser obedecidas.

Evitar el uso de accesorios • No usar herramientas o accesorios que no

sean especificamente recomendados por el fabricante, ya que podrian implicar riesgos.

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo

de alimentación eléctrica indicada en el mismo. La alimentación eléctrica de este equipo debe provenir de un sistema de distribución general con conductor neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la

acometida de alimentación eléctrica al equipo, desenchufar todos los cables de alimentación en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera independiente), o desenchufar el cable del receptáculo de la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se

deben instalar en lugares donde no sean pisados ni apretados por objetos que se puedan apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal

calificado. En el interior no hay partes a las que el usuario deba acceder. Para evitar riesgo de electrocución, no intentar personalmente la reparación/ mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o orificios en su caja/alojamiento,

es para evitar el sobrecalientamiento de componentes internos sensibles. Estas aberturas nunca se deben obstruir con otros objetos.

Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición

incorrecta. Cambiar esta batería únicamente con el mismo tipo (o su equivalente) recomendado por el fabricante. Desachar las baterías usadas siguiendo las instrucciones del fabricante.

Instrucciones de seguridad • Español

Extron’s Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, Europe, Africa, and the Middle East: and Central America:

Extron Electronics, Europe Extron Electronics Beeldschermweg 6C 1230 South Lewis Street 3821 AH Amersfoort Anaheim, CA 92805, USA The Netherlands

Asia: Japan:

Extron Electronics, Japan Extron Electronics, Asia Kyodo Building 135 Joo Seng Road, #04-01 16 Ichibancho PM Industrial Bldg. Chiyoda-ku, Tokyo 102-0082 Singapore 368363 Japan

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions or non-Extron authorized modification to the product.

If it has been determined that the product is defective, please call Extron and ask for an Applications Engineer at (714) 491-1500 (USA), 31.33.453.4040 (Europe), 65.6383.4400 (Asia), or 81.3.3511.7655 (Japan) to receive an RA# (Return Authorization number). This will begin the repair process as quickly as possible.

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

iSCP 150 • Table of Contents

Chapter 1 • Introduction ..........................................................1-1

About the SCP 150, SCP 150 AAP, and SCP 150 L . 1-2

Features ...................................................................................... 1-2

Chapter 2 • Installation and Operation.......................... 2-1

Installation Overview ......................................................... 2-2

Installing or Replacing Button Labels .........................2-2

Mounting Options ..................................................................2-3

UL Requirements ....................................................................2-4

Preparing the Site .................................................................2-4

Installing the Electrical Box ............................................. 2-5

Cabling the Rear Panel .......................................................2-6

Pre-installation Testing/Troubleshooting .................. 2-8

Mounting the SCP ..................................................................2-8

Mounting in a wall box .......................................................... 2-8

Mounting in a rack ................................................................. 2-9

Mounting on a lectern ........................................................... 2-9

Front Panel Features .......................................................... 2-10

Resetting to Factory Firmware Version ................... 2-13

Chapter 3 • Remote Communication ............................... 3-1

Setting Up RS-232 Communication .............................. 3-2

Using Simple Instruction Set (SIS) Commands .......3-2

Host-to-SCP communications ................................................ 3-3

SCP-initiated messages ........................................................... 3-3

Error responses ..... ................................................................... 3-3

Using the command/response tables ....................................3-3

Symbol definitions ................................................................. 3-4

Special Function SIS Commands .................................... 3-7

Using the Switch/Function Button Table ............... 3-10

Switch number locations ......................................................3-11

Updating the Firmware .................................................... 3-12

Appendix A • Specifications, Part Numbers, Accessories, and Dimensions

............................................... A-1

Specifications ......................................................................... A-2

Included Parts ......................................................................... A-3

Table of Contents

SCP 150 • Table of Contents

Table of Contents, cont’d

SCP 150

Chapter One

Introduction

About the SCP 150, SCP 150 AAP, and SCP 150L

Features

All trademarks mentioned in this manual are the properties of their respective owners.

68-717-01 Rev. A

03 05

Accessories .............................................................................. A-4

Cables ......................................................................................... A-4

Panel Dimensions ................................................................. A-5

Templates ................................................................................. A-7

SCP 150 • Introduction

Introduction

SCP 150

Chapter Two

Installation and Operation

Installation Overview

Installing or Replacing Button Labels

Mounting Options

UL Requirements

Preparing the Site

Installing the Electrical Box

Cabling the Rear Panel

Pre-installation Testing/Troubleshooting

Mounting the SCP

Front Panel Features

Resetting to Factory Firmware Version

1-2

About the SCP 150, SCP 150 AAP, and SCP 150 L

The Extron SCP 150, SCP 150 AAP, and SCP 150 L are hardwired remote control panels for the Extron System 5 IP switcher. All models replicate the switcher’s volume, input switching, and system controls. The SCP 150 AAP also provides four spaces for the addition of optional architectural adapter plates (AAPs) or audio, relay, or IR control modules (ACMs, RCMs, IRCMs).

Unless otherwise noted or implied, the term “SCP” refers to all three models of the SCP 150 (SCP 150, SCP 150 AAP, and SCP 150 L).

The System 5 IP cannot be configured from the SCP control panels. All switcher setup must be done from the switcher or via RS-232. Refer to the System 5 IP manual for information on setting up the switcher.

The System 5 IP supports up to two SCPs. Up to four control modules and one IR Link infrared signal repeater can be daisychained with the panels. The SCP accepts signals from the optional IR 402 remote control.

The panels can be mounted in or on walls or furniture. The SCP 150 mounts in a 2-gang electrical box, surface mount box, or mounting bracket and the SCP 150 AAP mounts in a 4-gang electrical box, surface mount box, or mounting bracket.

The SCP 150 L fits into a compact lectern space, into a wall, or into an Extron UCM RAAP or UCM 10X8P faceplate.

Features

Gray, black, white, and RAL9010 white faceplates — The SCPs

are available in four colors for integration into a variety of environments.

Customizable, illuminated buttons — The panel buttons can be

easily identified, even in low light.

System expandability — The panels can be daisy-chained with

Extron’s control modules (IRCMs, ACMs, RCMs) and an IR Link to provide versatile remote control options.

Furniture and wall mountability — The SCPs can be mounted

in or on walls or furniture with the use of optional electrical boxes, surface mount boxes, or mounting brackets.

SCP 150 • Installation and Operation

Installation and Operation

Installation Overview

To install and set up an SCP 150, SCP 150 AAP, or SCP 150L, follow these steps:

Turn the equipment off. Make sure that the SCP and the System 5 IP switcher are disconnected from the power source.

Run cables through the wall or furniture where the SCP will be installed.

Prepare the site and install and ground the electrical box, surface mount box, or mounting brackets.

Set the panel address DIP switch on the back of the SCP.

Wire the 5-pole captive screw connectors on both ends of the cable that was installed in the wall or furniture in step

Plug the wired connectors into the CM/IR/SCP connectors on the back of the SCP and on the rear panel of the switcher.

Restore power to the switcher.

Press an input selection button. If the corresponding LED does not light or the switch to the selected input is not made, disconnect power from the switcher and verify correct connector wiring at both ends of the cable.

Mount the SCP in the electrical box, surface mount box, or mounting brackets. Make sure the faceplate is tied to an earth ground to prevent damage caused by electrostatic discharge.

Reconnect the switcher to the A/C power source.

2-2 2-3

Installing or Replacing Button Labels

You may wish to customize the SCP’s button labels. The labels can be changed at any time, but it is convenient to change them before you mount the panel. Follow these steps to change the translucent button labels:

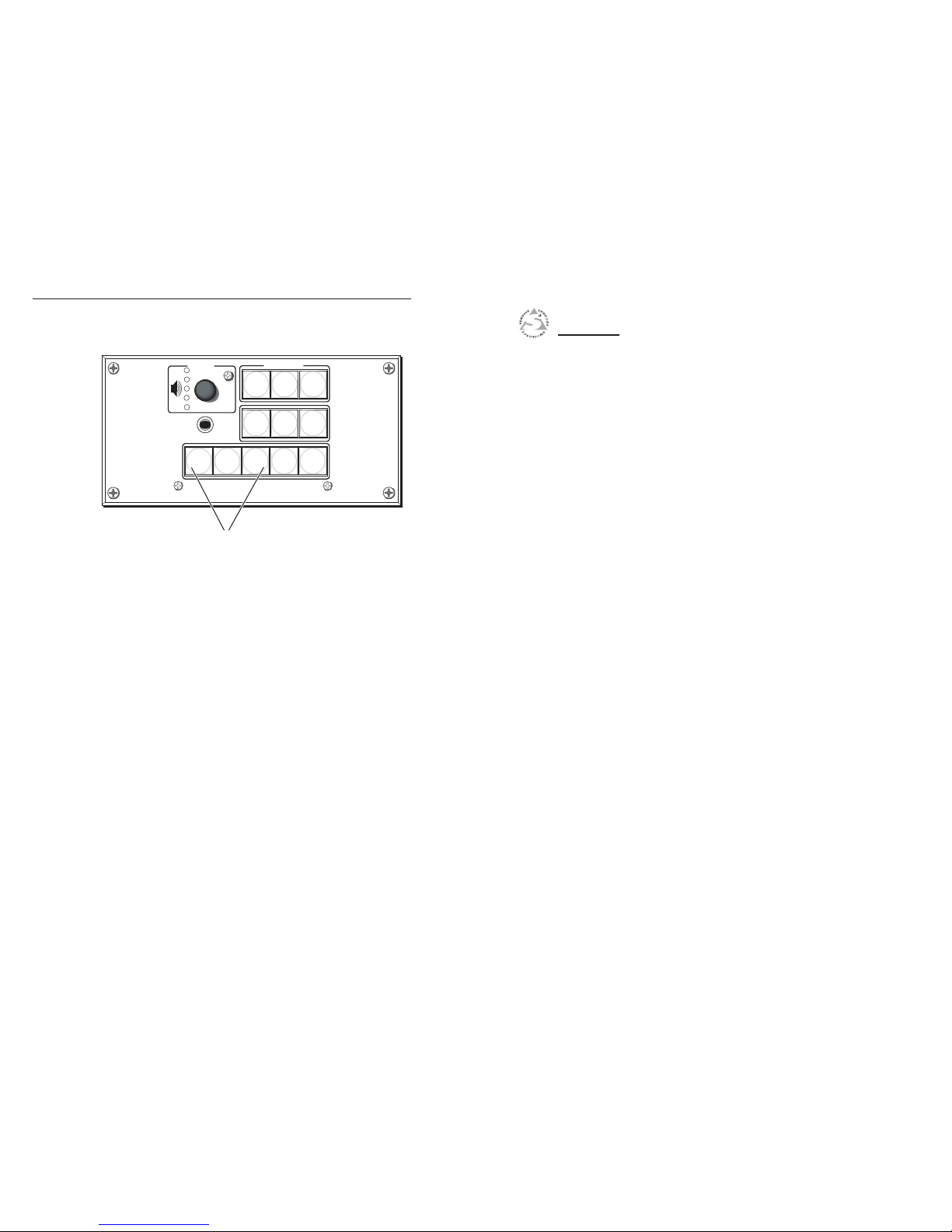

1. Remove the button from the panel: use a small, flat bladed

screwdriver such as an Extron Tweeker to gently pry a button out from the panel.

2. Locate the notch in the corner of one side of the clear outer

layer.

TEXT

Separate two piece button here.

Clear Button Cap

White Backing Plate

Align tabs and lock in place.

Use notch to remove button.

3. Separate the white backing from the clear button cap:

insert the blade of the small screwdriver into the corner notch and gently twist the blade.

4. Save the translucent, white backing plate, but remove the

text/label insert from the transparent button cap.

5. Select one of the premade button labels from the label

sheets included with the SCP. Remove the label from its backing and peel the protective film from the front of the label, if applicable.

You may also use a Brother P-Touch label maker to create custom labels. Cut the labels so they are square, 1/2 inch on each side.

6. Insert the button label into the clear button cap, align the

white backing plate with the cap and firmly snap it into place.

7. Gently but firmly press the reassembled button into place

in the panel.

8. Repeat steps 1 to 7 as needed to relabel other buttons.

Mounting Options

Mount the SCP 150 or SCP 150 AAP in an electrical box or surface mount box or use a mounting bracket to secure it to a wall, podium, table, or other furniture.

Electrical boxes can be attached to wall studs or to furniture. Use an electrical box deep enough to contain the SCP’s electrical components and the connected cables.

SCP 150 • Installation and Operation

Installation and Operation, cont’d

2-52-4

To mount the SCP 150 in areas of walls or furniture without studs, use an optional Extron 2-gang mounting bracket, part #70-086-01, -11, or -21. For the SCP 150 AAP, use an Extron 4-gang mounting bracket, part #70-086-03, -13, or -23.

To mount the SCP 150 externally on a wall or desktop, use an optional Extron 2-gang SMB surface mount box, part #60-640-02. For the SCP 150 AAP, use an Extron 4-gang SMB, part #60-642-02.

UL Requirements

The Underwriters Laboratories (UL) requirements listed below pertain to the installation of the SCP into a wall or furniture.

1. This unit is not to be connected to a centralized DC power

source or used beyond its rated voltage range.

2. This unit must be installed in a UL listed electrical wall

box.

The UL approved electrical box is not included with the SCP; the installer is responsible for obtaining and installing the box.

3. This unit must be installed in accordance with the

National Electrical Code.

Preparing the Site

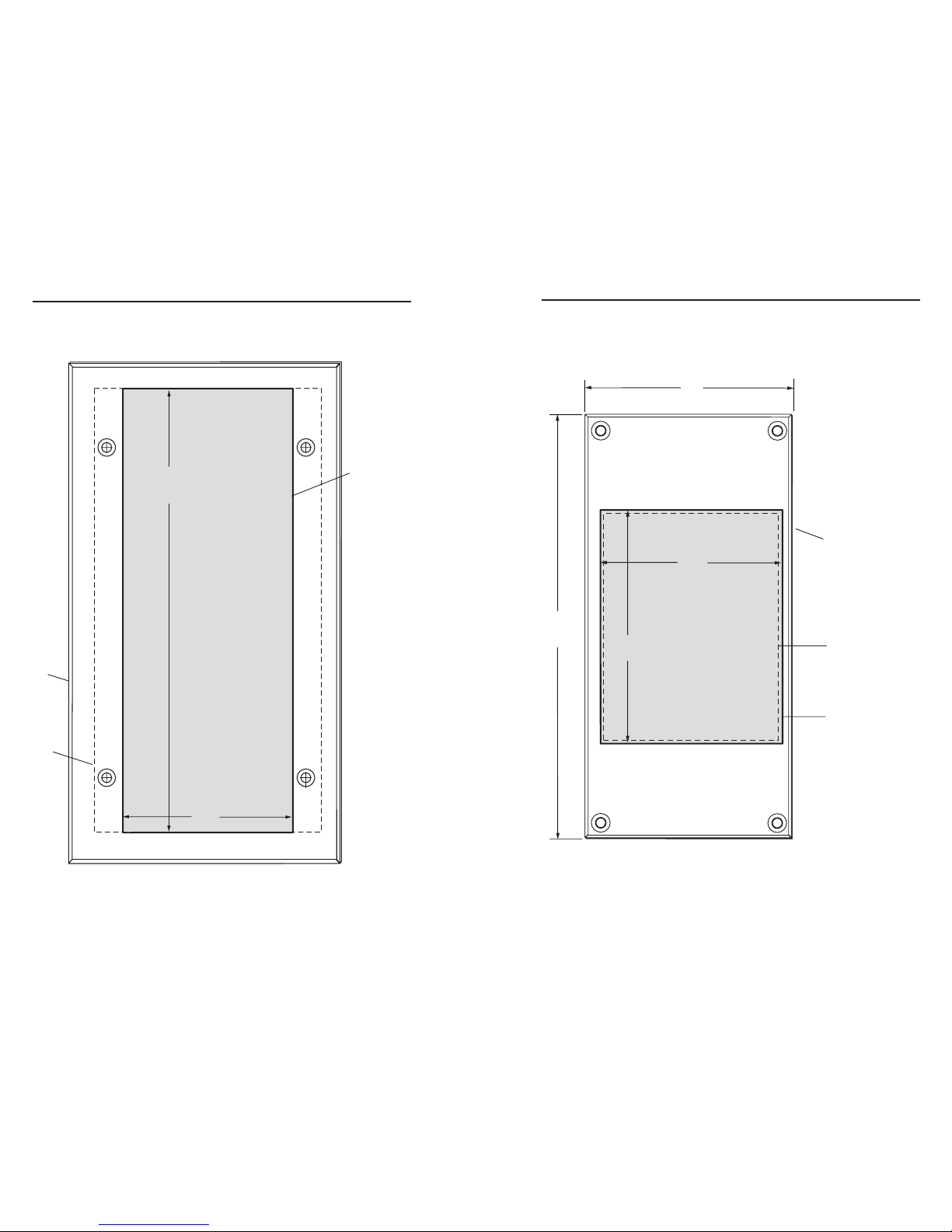

To mount the panel using either an electrical box or a mounting bracket, use one of the rough-in templates provided on pages A-7 through A-9 as a guide to measure and mark the hole in the wall or furniture through which the SCP will be mounted. The templates provide measurements for installing the panel with either an electrical box or a mounting bracket. You do not need the template if you are mounting the panel using an SMB.

The templates are not to scale and are provided for reference only.

To prepare the site:

1. Choose a mounting location. If using an electrical box to

wall-mount the panel, locate a stud to which the box will be attached.

2. Use the appropriate template and panel dimensions in

Appendix A to as a guide to measure and mark the area to cut out of the wall or furniture.

3. Cut out the opening in the wall or furniture.

Installing the Electrical Box

If you are using a mounting bracket or SMB instead of an electrical box, follow the mounting instructions that came with the bracket or SMB.

To install the electrical box:

1. Insert the electrical box into the opening, and attach

the wall box to the wall stud (2" x 4") or furniture with nails or screws, leaving the front edge flush with the surface, as shown in the following illustration.

Flush with Wall Surface

Screws or Nails

Wall Stud

Wall Box

To attach the wall box to wood, use four #8 to #10 wood or sheet metal screws. A minimum of 1/2 inch (1.25 cm) of screw threads must penetrate the wood. If the wood is a 2 x 4, such as a wall stud, 10-penny or larger nails can be used.

To attach the electrical wall box to metal, use four #8 or #10 sheet metal screws (self-tapping) or #8 or #10 machine bolts with matching nuts.

2. Feed the cables into the wall box. Cable clamps

should be used to hold the cables in place for strain relief.

3. Exposed cable shields (braids or foil) are potential

sources of short circuits. Trim back and/or insulate shields with heat shrink.

SCP 150 • Installation and Operation

Installation and Operation, cont’d

2-72-6

Cabling the Rear Panel

1ON234

Panel address DIP switch — If using two SCPs, set DIP switch 1 to assign a unique address to each panel. Set the switch to Off to assign address 00 and On to assign address 01. Switches 2 and 3 are not used.

The System 5 IP can support up to two SCPs. The panels must each have a unique address. DIP switch 4 is used to enable the RS-232/host port of the SCP 150. Note: If the SCP is connected to the System 5IP, set switch 4 to the “off” position.

CM/IR/SCP connectors — These two 5-pole captive screw connectors function in exactly the same way and can be used interchangeably. Connect one connector to a System 5 IP switcher and the other to a second SCP, an Extron control module (ACM, RCM, IRCM), or an Extron IR Link infrared signal repeater.

Two SCPs, up to four control modules, and one IR Link can be daisy-chained using these connectors. The maximum distance between the System 5 IP and a connected device is 200' (61 m). The switcher provides 12 VDC power to the SCP and any daisychained control devices via these connectors, so no additional power supply is required.

Wire the connectors as shown in the illustration on the next page. The illustration is a guide; the SCPs, control modules, and IR Link can be daisy-chained in combinations other than the one shown.

Serial/host port — Use this 3-pole captive screw connector to connect to your PC’s RS-232 port. Extron Simple Instruction Set (SIS) commands can then be issued from the PC to monitor and obtain information from the SCP. This port is also used for uploading firmware to the SCP, if necessary. Refer to chapter 3,

Remote Communication, for further details.

Do not connect to this port if the SCP is being used with the System 5IP.

ADBC EADBC E

Control Module

SCP 150

IR Link

IRCM-DV+ Control Module

IR Link

SCP 150

DVD CONTROL

PLAY NEXT PAUSE STOPTxREW

ENTER

TITLE

1ON234

SCP 150

INPUT1INPUT2INPUT3INPUT4INPUT

PROJECTORONPROJECTOR

OFF

FUNCTION BUTTON

PROJECTOR

LIGHTS ON

LIGHTS

OFF

VOLUME

SIGNAL

IR LINK

ADBC E

System 5 IP Rear Port

Modulated IR (IR Link)

SCP Communication (IR)

+12VDC

Control signal (IRCM)

Ground ( )

Modulated IR (IR Link)

IR Link

+12VDC

Control signal (IRCM)

Ground ( )

SCP 150 • Installation and Operation

Installation and Operation, cont’d

2-9

Mounting in a rack

The SCP 150 L is rack-mountable using the full rack width UCM-RAAP mounting plate. Mount the UCM-RAAP using the rack mounting screws included with the monting plate. Next, mount the SCP 150 L to the UCM-RAAP using the SCP’s four mounting screws, as show in the following diagram.

Extron SCP 150 L

Extron UCM-RAAP

Mounting on a lectern

The SCP 150 L is designed to be mounted on a lectern. To mount the SCP 150 L, cut a hole of the required size (see “Preparing the Site” in this chapter) and attach the SCP 150 L using the provided wood screws.

Extron SCP 150 L

Lectern

SCP 150

INP

LIG

LIGH

PUT

INPU

INP

2-8

Pre-installation Testing/Troubleshooting

Before mounting the SCP to the wall or furniture, test the system to make sure that the connections are correct and the panel is working correctly. Test the system by powering on the switcher, then pressing the input selection buttons on the SCP and watching the LEDs on the switcher to see if the system switches to the desired inputs.

The connections between the SCP and a System 5 IP equipped with front panel controls can be tested even if input/output devices are not available. For a System 5 IP without front panels controls, input 5 will be the only input available to view.

Mounting the SCP

Once the system has been cabled and tested, the SCP can be mounted to the wall or furniture. See Mounting Options, earlier in this chapter, for a description of the available brackets and boxes in which the SCP may be mounted.

Mounting in a wall box

1. With power removed, insert the SCP into the wall,

furniture, or SMB.

2. Secure it to the box or mounting bracket with the

provided machine screws. The following illustration shows an SCP mounted in an electrical box.

If you are not installing the SCP into a grounded metal electrical box, make sure that the faceplate is grounded to an earth ground.

150

VOLUME

PROJECT

SCP 150 • Installation and Operation

Installation and Operation, cont’d

2-10

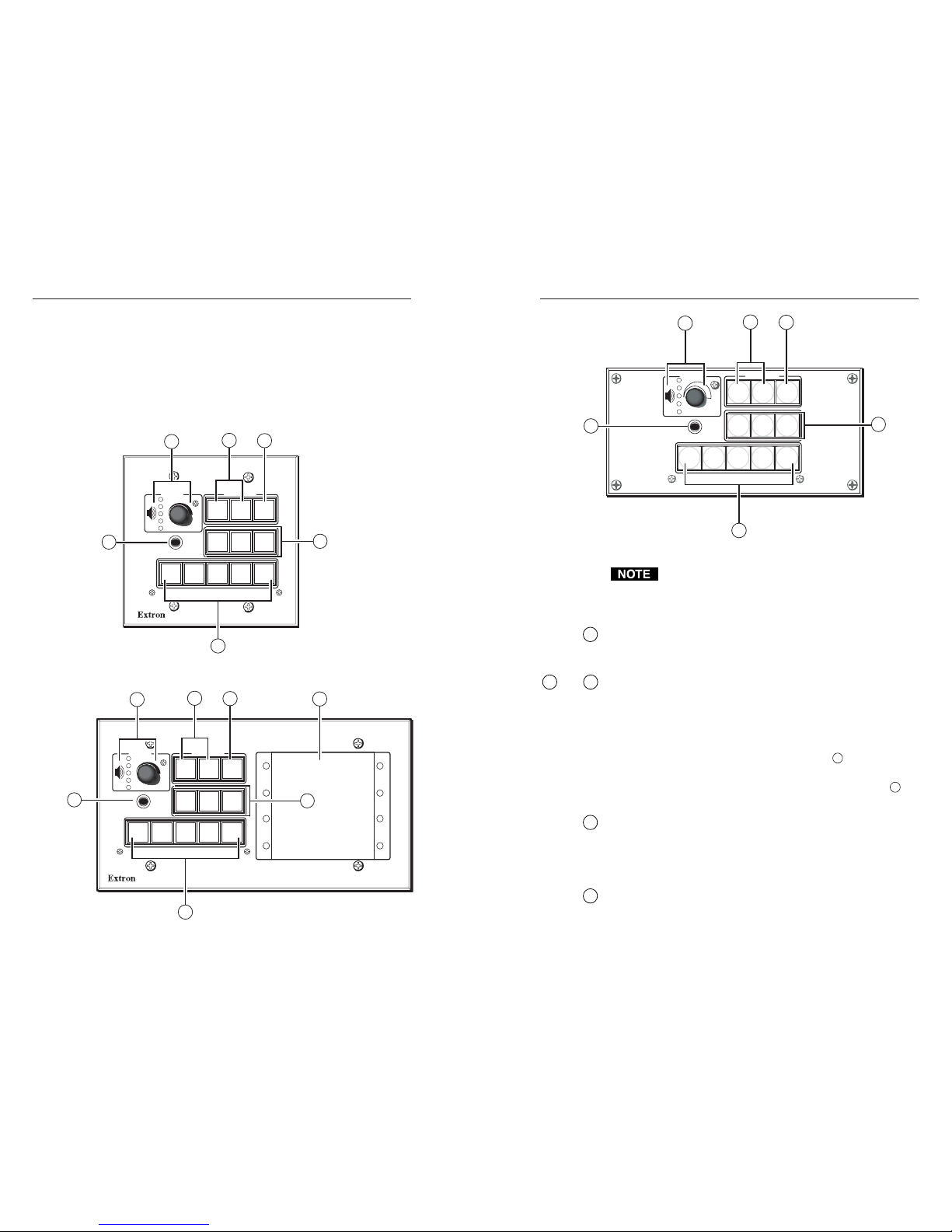

Front Panel Features

The controls on the SCP 150, SCP 150 AAP, and SCP 150 L replicate the System 5 IP’s volume, input switching, and system controls. All the button functions for the System 5 IP and the SCPs are configured via RS-232 or Ethernet control. See the System 5 IP user’s manual for instructions on configuring the buttons.

SCP 150

INPUT1INPUT2INPUT3INPUT4INPUT

PROJECTORONPROJECTOR

OFF

FUNCTION

BUTTON

PROJECTOR

LIGHTS

OFF

VOLUME

SCP 150

SCP 150 AAP

INPUT1INPUT2INPUT3INPUT4INPUT

PROJECTORONPROJECTOR

OFF

FUNCTION

BUTTON

PROJECTOR

LIGHTS

OFF

VOLUME

SCP 150 AAP

2-11

Extron

VOLUME

PROJECTORONPROJECTOR

OFF

FUNCTION

BUTTON

LIGHTSONLIGHTS

OFF

INPUT

PROJECTOR

SCP 150 L

All the buttons on the SCP can light bright green, red, or amber when selected in stand-alone mode (not connected to the System 5 IP). Unselected buttons light dim amber.

On and Off buttons — Press these buttons to turn the projector on and off. The buttons flash during the projector’s warm up or cool down cycle, and then light steadily.

and 3Function buttons — These buttons are fully configurable and

can be used to control the System 5 IP’s relays, execute IR or RS-232 commands, or trigger other buttons. Refer to the System 5 IP user’s manual for information on configuring these buttons.

The three function buttons in the middle row (

) replicate the three function buttons on a System 5 IP equipped with front panel controls. The single function button in the top row (

) is

an additional function button not found on the switcher.

Input selection buttons — These buttons replicate the five input selection buttons on a System 5 IP equipped with front panel controls. Press one of these buttons to select an input on the switcher. Refer to the System 5 IP user’s manual for more information on input selection.

IR signal pickup sensor — This sensor allows control of the SCP using an optional Extron IR 402 remote control. Point the remote directly at the sensor. The remote has a range of

SCP 150 • Installation and Operation

Installation and Operation, cont’d

2-12

approximately 30 feet (9.14 meters) within 40 degrees on either side of the axis. See the following illustration.

Extron

VOLUME

PROJECTORONPROJECTOR

OFF

FUNCTION BUTTON

LIGHTSONLIGHTS

OFF

INPUT

PROJECTOR

IR 402 Remote

SCP 150 L

40 40

30 feet maximum

Volume knob and indicator LEDs — Turn this knob to adjust the volume on the input that is currently selected. The five LEDs indicate the current volume level, as shown in the following illustration. The top LED is red and the others are green.

VOLUME VOLUME

VOLUME

LED Off

LED Blinking

LED On

0% (Min) or Mute

1-19%

20-39%

40-59%

60-89%

90-100% (Max)

VOLUME

AAP mounting spaces (SCP 150 AAP only) — Mount up to four single-space AAPs or control modules (IRCMs, ACMs, RCMs) here.

2-13

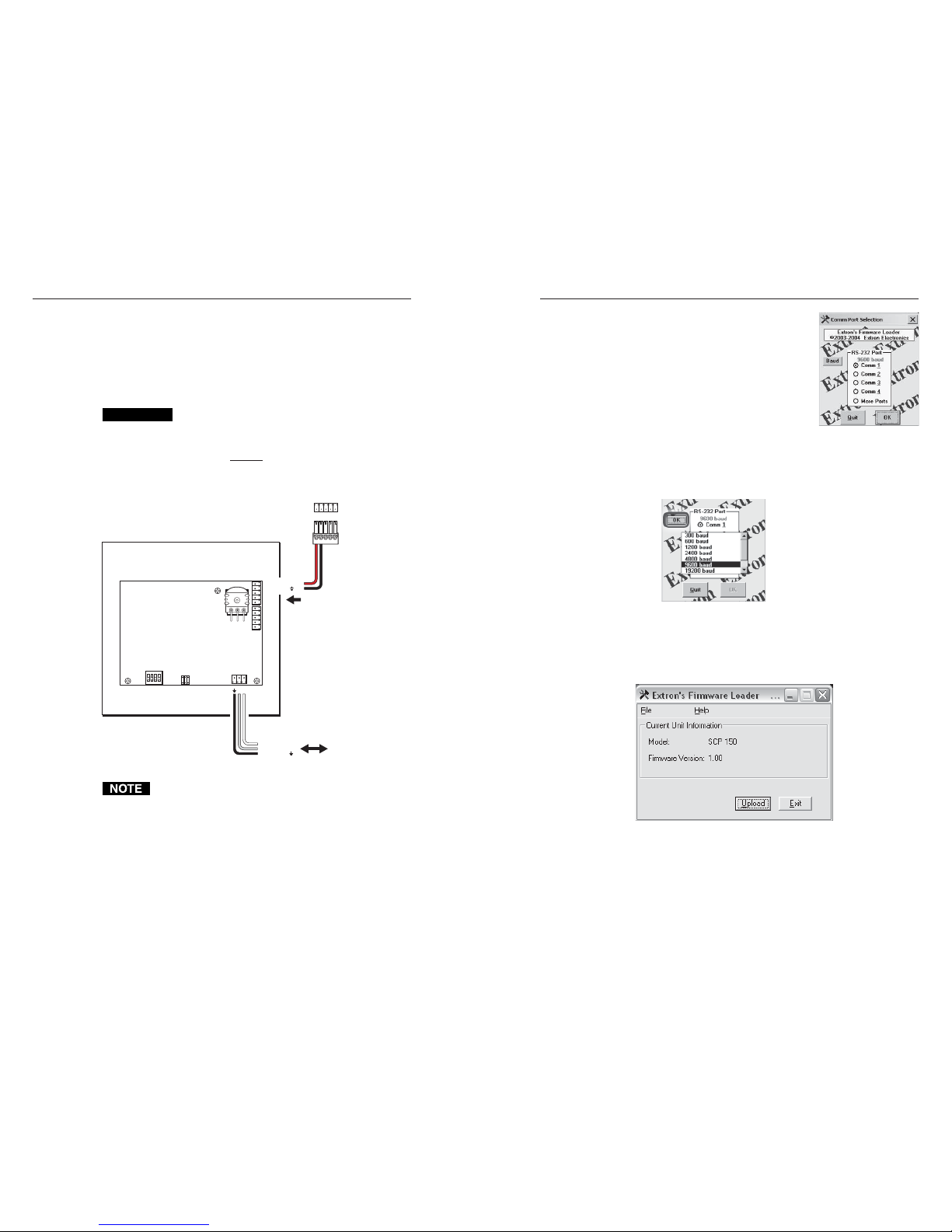

Resetting to Factory Firmware version

To reset the SCP to the firmware version with which it was delivered from the factory, press and hold the buttons numbered 1 and 3 on the front panel while applying power to the unit. See the following three illustrations.

SCP 150

PROJECTOR

VOLUME

o reset, press these two buttons simultaneously while applying power to the SCP 150.

Resetting the SCP 150 to factory defaults

SCP 150 AAP

PROJECTOR

VOLUME

To reset, press these two buttons

simultaneously while applying power to the SCP 150 AAP.

Resetting the SCP 150 AAP to factory defaults

SCP 150 • Installation and Operation

Installation and Operation, cont’d

SCP 150

2-14

Chapter Three

Remote Communication

Setting Up RS-232 Communication

Using Simple Instruction Set (SIS) Commands

Special Function SIS Commands

Using the Switch/Function Button Table

Updating the Firmware

Extron

VOLUME

PROJECTOR

To reset, press these two buttons

simultaneously while applying power to the SCP 150L.

Resetting the SCP 150 L to factory defaults

SCP 150 • Operation

Remote Communication

3-33-2

Setting Up RS-232 Communication

The RS-232 interface allows you to obtain information about the SCP and to activate certain SCP functions from a host computer or other device (such as a control system) attached to the rear panel RS-232 port (shown below).

Gnd Rx

3-pole captive screw connector for the RS-232 port on the SCP rear panel

Use the following protocol settings for your PC:

Baud rate: 9600 Data bits: 8 Parity: None Stop Bits: 1 Flow Control: None

The control device (host) can use the Extron Simple Instruction Set

™

(SIS™) commands.

In order to use the RS-232 port, DIP switch 4 must be set to the “on” position.

Using Simple Instruction Set (SIS) Commands

SIS commands can be used with the SCP only when it is in stand-alone mode; that is, DIP switch #4 on the rear panel is in the ON position. The available commands enable you to test the front panel LEDs and buttons, and to query for certain information about the SCP.

You cannot program any SCP buttons or switches using SIS commands. The SCP’s buttons only reflect what is programmed for the System 5 IP to which the SCP is connected.

Host-to-SCP communications

SIS commands consist of one or more characters per field. No special characters are required to begin or end a command sequence. When the SCP determines that a command is valid, it executes the command and sends a response to the host device.

Most responses from the panel to the host end with a carriage return and a line feed (CR/LF =

), which signals the end of the response character string. A string is one or more characters.

SCP-initiated messages

At power-up, the following SCP-initiated message appears:

This message is displayed only at power-up.

When a local event such as a front panel selection takes place, the SCP responds by sending a message to the host indicating what selection was entered (see Switch responses on page 3-5).

No response to these messages is required from the host.

Error responses

When the SCP receives a valid SIS command, it executes the command and sends a response to the host device. If the SCP is unable to execute the command because the command is invalid or contains invalid parameters, the SCP returns an error response to the host.

Error response codes and their descriptions are shown below. Each error response is followed by a carriage return.

E10 – Invalid command E13 – Invalid command parameter E23 – Bad checksum E28 – Bad filename/File not found

Using the command/response tables

The command/response tables on the following pages list valid command ASCII codes, the SCP’s responses to the host, and a description of the command’s function or the results of executing the command.

The ASCII to HEX conversion table on the next page is for use with the command/response tables.

SCP 150 • Remote Communication

Remote Communication, cont’d

3-4 3-5

ASCII to HEX Conversion Table

•

ASCII to Hex conversion table

Symbol definitions

= CR/LF (carriage return/line feed) (hex 0D 0A) = Soft carriage return (no line feed)

Esc

= Escape key

•

= Space

= Firmware number

If a command is not case-sensitive, this is indicated by showing the command letter in uppercase. followed by a

slash (/), then the same letter in lowercase.

Examples: Q/q, I/i

Command/response table for SIS commands

Command ASCII (Telnet) Hex Response Additional

(host to SCP) (host to SCP) (SCP to host) information

Query firmware version

Query Firmware version Q/q 51

Shows current firmware

version.

= current

firmware version number.

Query firmware version—factory and updated

0Q 30 51 x.xx, y.yyy

x.xx = factory firmware

version number format

y.yyy = updated firmware

version number format

Query firmware version—factory 1Q 31 51 x.xx

Query firmware version—updated 2Q 32 51 y.yy

Query part number N/n 4 E 60-495-00

Query firmware and build version +Q 2B 51 x.xx.xxxx

Query model name/description I/i 31 49 SCP150

Request control module and slave 3 2I 33 32 49 P1##

•

P2## P1## = SCP address #

information. P2## = SCP address #

SCP 150 • Remote Communication

Remote Communication, cont’d

3-6 3-7

Command/response table for SIS commands (continued)

Command ASCII (Telnet) Response Additional

(host to SCP) (SCP to host) information

Volume relative function

Volume up +V/v VolUp

Volume down -V/v VolDn

Upload firmware

Esc

Upload Go When you receive the Go

response, upload the firmware

according to your terminal

emulator’s procedure.

{Specified number of bytes of data} Upl

When upload is complete, you

receive the Upl

response.

Reset to default settings (Zap command)

Reset to factory defaults

Esc

zXXX ZapX Sets all button LEDs to amber.

Special Function SIS Commands

The syntax for setting a special function for an SCP 150 is X? * Y? * __ #, where X? is the value of the action to be performed, Y? is the value for the button or switch, and __ is the function number. To view a function’s setting, use __#, where __ is the function number. In the following table the values of the X? and Y? variables are different for each command/function. These values are given in the rightmost column.

SCP 150 • Remote Communication

Remote Communication, cont’d

3-8 3-9

Command/response table for special function SIS commands (continued)

Command ASCII Command Response

and

values

(host to SCP) (SCP to host) and additional descriptions

Read FPC lamp

* 51# Lmp

Indicates the LED color of the selected

button.

Volume LED control

FPC volume LED control

* 52# Vlmp

X? X?

LED blinking

LED selected:

order:

0 = off 0 = no LED

1 = bottom 1 = bottom LED

2 = blink on 2 = LED 2

3 = blink off 3 = LED 3

4 = chase up 4 = LED 4

5 = chase down 5 = LED 5

Read volume LED status

* 52# Vlmp

Command/response table for special function SIS commands

Command ASCII Command Response

and

values

(host to SCP) (SCP to host) and additional descriptions

Switch responses

Button press on front panel or remote (None) SwPrs *

is the switch number for the function

or button that was pressed. There are 11

options available (1-11). See the Switch/

Function Button Table, later in this chapter,

for these values.

Button release on front panel (None) SwRls *

is the function switch number or

button that was pressed ( 11 options). See

the Switch/Function Button Table for the

functions associated with the switches.

Front panel button LED control

FPC lamp control

* 51# Lmp

is the LED state:

is the button:

0 = all LEDs off 0 = no button

1 = green LED on 1 = projector on

2 = red LED on 2 = projector off

3 = green and red 3 = function button 1

LEDs on (Button 4 = function button 2

lights amber.) 5 = function button 3

4 = slow blink green 6 = input button 1

5 = slow blink red 7 = input button 2

6 = slow blink amber 8 = input button 3

7 = fast blink green 9 = input button 4

8 = fast blink red 10 = input button 5

9 = fast blink amber 11 = input button 6

SCP 150 • Remote Communication

Remote Communication, cont’d

3-10 3-11

Using the Switch/Function Button Table

Switches are assigned to specific buttons on the SCP, any attached remote control module (IRCM/RCM/ACM), or the IR 402 remote. Each time a button is pressed or released, or a knob is turned on the SCP or a control module, the switch number associated with that button appears on your PC terminal emulator screen (HyperTerminal, etc.) as part of the host response.

On most of the special function SIS commands, the switch number is the

value that you enter as part of the command. (See the Command/response table for special function SIS commands, earlier in this chapter.)

The following Switch/Function Button table shows which switch number is associated with each button or knob on the SCP, control module, or IR 402. In the Switch column, locate the switch number displayed on your terminal emulator, then look in the Function Button column beside the number to find out which button was pressed or released.

The SCP does not use all of the available buttons/ switches.

No buttons can be programmed via the SCP.

Switch Function Button

1 Power on 2 Power off 5 Function 1 (room) button 6 Function 2 (room) button 7 Function 3 (room) button 8 Function 4 (room) button 9 Input 1 selection button 10 Input 2 selection button 11 Input 3 selection button 12 Input 4 selection button 13 Input 5 selection button

Switch/Function Button table

Switch number locations

The following illustration shows the button/switch memory block numbering on the SCP 150 front panel. Refer to the Switch/Button table, on the previous page. The switch locations are the same on the SCP 150 AAP and SCP 150 L models.

SCP 150

PROJECTOR

VOLUME

Switch

Switch#2Switch

Switch

#11

Switch

#12

Switch

#13

Switch#9Switch

#10

Switch#6Switch

SCP 150 • Remote Communication

Remote Communication, cont’d

Updating Firmware

If necessary, you can replace the SCP’s firmware without changing firmware chips. This procedure must be performed using a PC on which the Firmware Loader Software has been installed. The PC’s RS-232 port must be directly cabled to the SCP’s RS-232 port.

CAUTION

Do not attempt to upload firmware if a System 5 IP

is connected to the SCP with any connections other

than power. The RS-232 cable from the PC must be

connected

directly to the SCP.

TxRxG

1ON234

SCP 150 Rear Panel

+12VDC

Ground ( )

G+V

CM IR

SCP

CM/IR/SCP

ECBDA

System 5 IP

Rear Panel

Power From System 5 IP

RS-232 to/from Host PC

Transmit (Tx) Receive (Rx) Ground (Gnd, )

TxRx

Each time that the existing firmware is replaced, the SCP is reset to the factory default settings.

Follow the directions below.

1. Visit the Extron Web site (www.extron.com) to find the

appropriate firmware file for the model of SCP that you want to update. Save the new firmware file to your PC, and write down its filename and save location for later use.

2. Connect a cable between the SCP’s RS-232 port and the

serial (RS-232) port of the PC (see chapter 2).

3. Set DIP switch 4 to the ON position.

4. Power on the SCP. See the

previous caution.

5. On your PC, start the Firmware

Loader program. The screen on the right appears:

6. Select the COM port through

which the PC will communicate with the SCP via RS-232.

7. If the baud rate is not set to 9600,

do the following: a. Click the Baud button. A baud rate pop-up menu

appears, and the Baud button changes to OK.

b. From the pop-up menu, select 9600.

8. Click the OK button that was originally the Baud button

(circled in the figure above). The following window opens, indicating the current firmware version.

9. Click Upload. You are prompted to select the firmware file

that you downloaded in step 1. Click OK.

10. When the browser window opens, locate and select the

firmware file, then click Open to upload the firmware to the SCP.

3-12 3-13

SCP 150 • Remote Communication

Remote Communication, cont’d

SCP 150

Appendix A

Specifications, Part Numbers,

Accessories, and Dimensions

Specifications

Included Parts

Accessories

Cables

Panel Dimensions

Templates

The firmware update file must have a filename extension of .bin. If the file does not have that extension, it will not work properly.

11. Follow the instructions on the screen to upload the

firmware.

12. When the firmware uploading is complete, the following

dialog box appears:

Click OK to exit the Firmware Upload program.

3-14

SCP 150 • Specifications, Parts, Accessories, Dimensions

Specifications, Parts, Accessories, Dimensions

A-3A-2

Control/remote — control pad

Serial control port ........................ RS-232, via a 3.5 mm captive screw

connector, 3 pole

Baud rate and protocol ............... 9600 baud, 8 data bits, 1 stop bit, no parity

Serial control pin configurations A = TX, B = RX, C = GND

IR remote control ........................ IR 402 (optional)

30' maximum, 40 degrees off axis

Program control .......................... Extron’s Simple Instruction Set (SIS

™

)

General

Power ............................................ 12 VDC, at 0.5 A, from the System 5 IP

switcher

Temperature/humidity .............. Storage: -40 to +158 °F (-40 to +70 °C) /

10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) /

10% to 90%, noncondensing

Rack mount .................................. No, but furniture/wall mountable with

included faceplates and electrical boxes or

optional mounting bracket kits or AAP wall

plates.

Enclosure type .............................. Metal

Enclosure dimensions

SCP 150 faceplate ............. 4.5" H x 4.6" W x 0.1" D (2 gang)

11.4 cm H x 11.7 cm W x 0.3 cm D

SCP 150 AAP faceplate.... 4.5" H x 8.25" W x 0.1"D (4 gang)

11.4 cm H x 11.7 cm W x 0.3 cm D

SCP 150 L faceplate .......... 3.2" H x 6.5" W x 0.1"D

8.0 cm H x 16.5 cm W x 0.3 cm D

Circuit board (all models) 2.9" H x 3.5" W x 0.5" D

7.4 cm H x 8.9 cm W x 1.3 cm D

[Allow at least 1.5" (3.8 cm) depth in the

wall or furniture. Depth excludes

connectors, knob, and buttons.]

Product weight............................. 0.3 lbs (0.1 kg)

Shipping weight ........................... 2 lbs (1 kg)

Vibration ....................................... ISTA 1A in carton (International Safe

Transit Association)

Listings .......................................... UL, CUL as a component of the System 5 IP

Compliances ................................. CE as a component of the System 5 IP

MTBF ............................................. 30,000 hours

Warranty ....................................... 3 years parts and labor

All nominal levels are at ±10%.

Specifications are subject to change without notice.

Included Parts

These items are included in each order for an SCP 150, SCP 150 AAP, or SCP 150 L:

Replacement

Included parts part number

SCP 150 (controller only - no faceplate) 60-495-00 SCP 150 (gray, black, white, RAL9010) 60-495-01, -02, -03, -05 SCP 150 AAP (gray, black, white, RAL9010)

60-496-01, -02, -03, -05

SCP 150 L (black, white, RAL 9010) 60-495-32, -33, -35

3.5 mm, 5-pole captive screw connector (2) 10-319-01

3.5 mm, 3-pole captive screw connector (1) 10-265-03 Button labels (text) 33-954-01 Button labels (symbols) 33-955-01 International faceplate labels

(gray, black, white) 33-953-01, -02, -03 Tweeker (small screwdriver) SCP 150 User’s Manual

Specifications, Parts, Accessories, Dimensions, cont’d

SCP 150 • Specifications, Parts, Accessories, DimensionsSCP 150 • Specifications, Parts, Accessories, Dimensions

Panel Dimensions

SCP 150

R. 070 TOP EDGE ALL AROUND.

(.10 THK.)

Ø.219 THRU wØ.392 x 82° NEAR SIDE

.000

2X .576

2X 1.000

1.563

2X 3.858

4.500

.000

.675

2.360

3.925

4.600

4X R.25

2X 2.980

1.805

SEE DETAIL "B"

3.195

Ø.520 THRU

3.390

1.300

2.330

2.705

2.905

2X 3.105

3.305

3.505

2.375

5X .905

1.320

3X Ø.120 THRU wØ.220 X 82° (CODED 'F')

4X Ø.160 THRU wØ.290 X 82° (CODED "E")

2X 1.394

2X 3.206

5X Ø.125 THRU

wØ.180 X 90°

FAR SIDE

SCP 150 AAP

DETAIL `A'

DETAIL `B'

1.880

.940

.320

.640

3.110

1.555

.320

.640

2.100

2.810

+0.015-0.000

2.750

DETAIL `C'

3.000

1.500

.350

.700

8X Ø.170 THRU

3.520

+.010-.000

1.375

1.370

2.740

1.760

1.050

1.405

4x R.050

8.250

4.500

4X R.25

4X Ø.160 THRU

w Ø.290 X 82°

(CODED E)

SEE DETAIL "C"

6.200

.000

SEE DETAIL "B"

(.10 THK)

R.070 TOP EDGE ALL AROUND

2X 1.000

.675

3.925

2.200

2X 3.858

1.563

2X .576

2.360

2X 2.980

SEE DETAIL "A"

1.805

3.195

Ø.219 THRU

wØ.392 X 82°

NEAR SIDE

5X .903

1.320

3.390

2.330

2.705

2.905

2X 3.105

3.305

3.505

2.375

1.300

Ø.520 THRU

5X Ø.125 THRU

wØ.180 X 90°

FAR SIDE

3X Ø.120 THRU

wØ.220 x 82°

(CODED 'F')

2X 1.405

2X 6.845

A-4 A-5

Accessories

These items may be ordered separately:

Accessories Part number

2-gang mounting bracket (gray, black, white, RAL9010)

70-086-01, -11, -21, -25

4-gang mounting bracket

(gray, black, white, RAL 9010)

70-086-03, -13, -23, -25 2-gang SMB surface mount box 60-640-02 4-gang SMB surface mount box 60-642-02 Button labels (international text) 33-956-01 IR 402 remote control 70-207-01

Cables

These cables may be ordered separately:

Comm-Link cable Part number

50 feet/15.2 meters long 26-461-01 100 feet/30.5 meters long 26-461-02 200 feet/61 meters long 26-461-03 400 feet/122 meters long 26-461-04 Bulk 500 feet/152.4 meters long 22-119-02 Bulk 1000 feet/304.8 meters long 22-119-03

Specifications, Parts, Accessories, Dimensions, cont’d

SCP 150 • Specifications, Parts, Accessories, DimensionsSCP 150 • Specifications, Parts, Accessories, Dimensions A-7

Templates

The templates are not to scale and are provided for reference only.

SCP 150

Cut-Out Template for Extron's SCP 150

TEMPLATE IS NOT FULL SIZE.

To install SCP 150 directly into furniture, cut along this line.

Top Panel

Electrical Box

2.8"

(7.1 cm)

3.6"

(9.15 cm

)

SURFACE CUT-OUT AREA

FOR FURNITURE MOUNT

Location of SCP 150

A-6

2X .380

1.710

2.770

2X .250

1.625

2.250

4.875

2.755

.219

.392 X 82°

.120

.220 X 82°

MARKED F

0.100

2X 6.250

.156

.290 X 82°

MARKED E

2X 2.855

3.150 2X .295

.000

6.500

SCP 150 L

Specifications, Parts, Accessories, Dimensions, cont’d

SCP 150 • Specifications, Parts, Accessories, DimensionsSCP 150 • Specifications, Parts, Accessories, Dimensions

SCP 150 L

6.5"

(16.5 cm)

Cut-Out Template for Extron's SCM-150L

TEMPLATE IS NOT FULL SIZE.

To install SCP 150 directly into furniture, cut along this line.

Top Panel

2.85"

(7.2 cm)

3.6"

(9.15 cm)

SURFACE CUT-OUT AREA

FOR FURNITURE MOUNT

3.15"

(8.0cm)

Location of SCP 150

A-9

2.8" (7.1 cm)

Electrical Box

SCP 150 AAP

TEMPLATE IS NOT FULL SIZE.

Top Panel

Cut-Out Template for Extron's SCP 150 AAP

To install SCP 150

directly into furniture,

cut along this line.

7.2" (1

8.3 cm)

SURFACE CUT-OUT AREA

FOR FURNITURE MOUNT

A-8

Extron electronics SCP 150L, SCP 150, SCP 150 AAP User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
