Chapter One

RGB 130

Introduction

About this Manual

About the Interfaces

Features

134

xixi

xi xi

150

xi Table of Contents

xixi

xi xi

xixi

Introduction

About this Manual

This manual documents three universal interfaces: RGB 130xi, RGB 134xi, and RGB 150xi. Unless otherwise specified, any references to “the interface” shall refer to the features or operation of all three interfaces.

About the Interfaces

The RGB 130xi, 134xi, and 150xi are universal interfaces with a video bandwidth of 300 MHz and a horizontal frequency range of 15-150 kHz.

Features

2-color power/signal LED — When the interface is On, the

power/signal LED will light amber. When the interface is On and a signal is present, the LED will light green.

Gain/peak control— Increases signal voltages to

compensate for signal degradation caused by long cable lengths.

Stereo audio — Front panel audio input and a 3.5 mm

captive screw output connector on the rear panel.

Horizontal and vertical shift — The picture can be shifted

horizontally and vertically for the RGB 130xi and RGB 134xi. The RGB 150xi of fers horizontal shifting only. A min/max LED indicator lights red whenever the shifting reaches its lower and upper limits.

ADSP™ (Advanced digital sync processing) — Allows

sync processing operations, such as horizontal centering, to occur without affecting the signal’s sync timing. This allows horizontal centering to be applied to signals that are output to digital display devices, such as LCD projectors, DLP (digital light amplifier) projectors, and plasma displays.

Under/through desk mounting — The interfaces are

capable of being mounted either under or through a desk or other suitable surface using the optional mounting kit.

1-1

RGB 130

134

xixi

xi xi

150

xi Introduction

xixi

xi xi

xixi

RGB 130

xixi

134

xixi

150

xixi

Chapter Two

Controls and Installation

Front and Rear Panels

Installation

RGB 130

xixi

134

xixi

xi xi

150

xi Introduction

xixi

xi xi

Controls and Installation

Front and Rear Panels

RGB 150

xixi

xi front panel features

xixi

INPUTS

AUDIO ANALOG

21 3 54 76

Figure 2-1 — RGB 150

2-color power/signal LED — lights amber to indicate

power On only; lights green to indicate power On with video signal present

Audio input jack — 3.5 mm stereo input

Analog input connector — HD 15-pin male analog

video input connector ID bit termination DIP switches — provides proper

ID bit termination for a laptop computer that is not attached to a local monitor

BUFFERED LOCAL MONITOR OUTPUT

ID PIN 4

ID PIN 11

xixi

front panel

xixi

UNIVERSAL INTERFACE W/ADSP

RGB 150

MIN/MAX

H. SHIFT

RGB 130

Buffered local monitor output — HD 15-pin female

for output to a local monitor Horizontal shift control knob — adjusts horizontal

shifting of the remote output display device Min/max LED — lights red whenever the lower and

upper limits of the horizontal shift control are reached

, 134

xixi

, 150

xi xi

xi Controls and Installation2-1

xi xi

xixi

RGB 150

xixi

xi rear panel features

xixi

100-240 0.5A MAX.

GAIN/ PEAK

SOG

DDSP

SERR

SPARE

50/60 Hz

100%

UNITY

50%

213

Figure 2-2 — RGB 150

AC power input — standard IEC AC power

connector (100 - 240VAC 50/60 Hz) 3-position gain/peak switch — unity*; gain with 50%

peaking; and gain with 100% peaking DIP switches — 4 switches to control sync on green

on output, Digital Display Sync Processing, serration pulse, and a spare (refer to the section “Setting the DIP switches”)

BNC output — 6 BNC connectors to output RGsB,

RGBS, and RGBHV Stereo audio output — 3.5 mm captive screw audio

connector

xixi

rear panel

xixi

OUTPUT

* Unity sets the output level equivalent to the input, with no

added peaking

If the signal cable between the interface and the display device is shorter than approximately 125

feet, and the level/peak switch is set to a setting other than Unity, the image may be overcompensated. If the edges of the image seem to exceed their boundaries, or if thin lines and sharp edges look thick and fuzzy, try changing the gain/ peak setting.

RGB 130

xixi

134

xixi

xi xi

150

xi Controls and Installation 2-2

xixi

xi xi

Controls and Installation, cont’d

RGB 130

xixi

xi front panel features

xixi

INPUTS

AUDIO ANALOG/ECL

21 3 4 5 6 7

Figure 2-3 — RGB 130

2-color power/signal LED — lights amber to indicate

power On only; lights green to indicate power On with video signal present

Audio input jack — 3.5 mm stereo input

Analog/ECL input connector — 9-pin D male analog

video input connector MBC power — 2.5 mm jack provides power for

MBC buffer Horizontal shift control knob — adjusts horizontal

shifting of the remote output display device

MBC

H. SHIFT V. SHIFT

POWER

xixi

front panel

xixi

UNIVERSAL INTERFACE W/ADSP

RGB 130

MIN/MAX

RGB 130

Vertical shift control knob — adjusts vertical

shifting of the remote output display device Min/max LED — lights red whenever the lower and

upper limits of the horizontal/vertical shift control are reached

, 134

xixi

, 150

xi xi

xi Controls and Installation2-3

xi xi

xixi

RGB 130

xixi

xi rear panel features

xixi

100-240 0.5A MAX.

50/60 Hz

GAIN/ PEAK

SOG

DDSP

SERR

100%

UNITY

50%

21 3

SPARE

Figure 2-4 — RGB 130

AC power input — standard IEC AC power

connector (100 - 240VAC 50/60 Hz) 3-position gain/peak switch — unity*; gain with 50%

peaking; and gain with 100% peaking DIP switches — 4 switches to control sync on green

on output, Digital Display Sync Processing, serration pulse, and 75-ohm input termination (refer to the section “Setting the DIP switches”)

BNC output — 6 BNC connectors to output RGsB,

RGBS, and RGBHV Stereo audio output — 3.5 mm captive screw audio

connector

OUTPUT

xixi

rear panel

xixi

* Unity sets the output level equivalent to the input, with no

added peaking.

If the signal cable between the interface and the display device is shorter than approximately 125

RGB 130

xixi

134

xixi

xi xi

150

xi Controls and Installation 2-4

xixi

xi xi

Controls and Installation, cont’d

RGB 134

xixi

xi front panel features

xixi

INPUTS

AUDIO ANALOG/ECL

Figure 2-5 — RGB 134

2-color power/signal LED — lights amber to indicate

MBC

POWER

xixi

H. SHIFT V. SHIFT

front panel

UNIVERSAL INTERFACE W/ADSP

654

power On only; lights green to indicate power On with video signal present

Audio input jack — 3.5 mm stereo input

Analog/ECL input connector — 9-pin D male analog

video input connector MBC power — 2.5 mm jack provides power for

MBC buffer Horizontal shift control knob — adjusts horizontal

shifting of the remote output display device

RGB 134

MIN/MAX

Vertical shift control knob — adjusts vertical

shifting of the remote output display device Min/max LED — lights red whenever the lower and

upper limits of the horizontal shift control are reached

, 134

xixi

, 150

xi xi

xi Controls and Installation2-5

xi xi

RGB 130

xixi

RGB 134

SOG

DDSP

SERR

SPARE

100-240 0.5A MAX.

50/60 Hz

OUTPUT 1 OUTPUT 2

RHGVB

UNITY

50%

100%

GAIN/ PEAK

xixi

xi rear panel features

xixi

Figure 2-6 — RGB 134

AC power input — standard IEC AC power

xixi

rear panel

xixi

connector (100 - 240VAC 50/60 Hz) 3-position gain/peak switch — unity*; gain with 50%

peaking; and gain with 100% peaking DIP switches — 4 switches to control sync on green

on output, Digital Display Sync Processing, serration pulse, and a 75-ohm input termination (refer to the section “Setting the DIP switches”)

BNC output 1 — 6 BNC connectors to output RGsB,

RGBS, and RGBHV Stereo audio output — 3.5 mm captive screw audio

connector BNC output 2 — 6 BNC connectors to output RGsB,

RGBS, and RGBHV

* Unity sets the output level equivalent to the input, with no

added peaking.

If the signal cable between the interface and the display device is shorter than approximately 125

RGB 130

134

xixi

xi xi

150

xi Controls and Installation

xi xi

2-6

Controls and Installation, cont’d

Installation

Easy setup procedure

Except where noted, the installation procedures for the RGB 130xi, 134xi, and 150xi are the same. See “Cabling” in this chapter for more information.

If desired, mount the interface to a desk or other suitable surface using Extron’s optional mounting kit. See “Mounting the interface” in the next section.

Turn off power to the computer or workstation and its monitor. Turn off power to the projector or display device. Disconnect the power cord from the interface.

Connect the computer to the Analog/ECL* input connector on the front of the interface. If an MBC interface output cable is being used with the RGB 134xi, connect the MBC cable to the Analog/ECL connector and connect the MBC power cable to the MBC power jack. Refer to the diagram in the “Cabling” section of this chapter.

For the RGB 150xi, if a local computer monitor is

being used, connect the monitor to the Buffered Local Monitor Output connector.

2-7

RGB 130

For audio connections, please refer to the following “Cabling” and “Connecting audio output” sections.

Connect the projector or other output display device

to the interface’s BNC output connectors, as described in the “Cabling” section.

Set the interface’s DIP switches. Refer to the section

“Setting the DIP switches” at the end of this chapter. Power on the computer, monitor, projector/display

device, and the interface. The image should now display on screen. If it does not, double check steps 2 through 7 and make adjustments as needed. To adjust horizontal and vertical sync polarity and to set vertical sync pulse width, please refer to the “Setting internal jumpers” section at the end of this chapter.

* RGB 150xi is analog only

, 134

xixi

xi xi

, 150

xi Controls and Installation

xi xi

xixi

Mounting the interface

To mount the interface under a desk or in a podium, do the following:

1. Attach the mounting brackets to the interface using six machine screws supplied with the mounting kit (see figure 2-7).

INPUT

Figure 2-7 — Attaching the under desk brackets

2. Using the to-scale template at the back of this manual to guide you, mark the four screw holes on the underside of the surface to which you are mounting the interface. Use the under desk mounting template.

3. Drill four pilot holes, each 3/32” in diameter by 1/4” deep, where marked.

BUFFERED LOCAL MONITOR OUTPUT

H. SHIFT

MAC INTERFACE W /ADSP

RGB 103 xi

4. Using the four wood screws provided, attach the brackets under the mounting surface (see figure 2-8).

INPUT

BUFFERED LOCAL MONITOR OUTPUT

H. SHIFT

MAC INTERFACE W /ADSP

RGB 103 xi

Figure 2-8 — Mounting the interface under a

desk

RGB 130

xixi

134

xixi

xi xi

150

xi Controls and Installation

xixi

xi xi

2-8

Controls and Installation, cont’d

To mount the interface through a desk or table, do the following:

1. Attach the mounting brackets to the interface using four machine screws and washers (supplied with the mounting kit), as indicated in figure 2-9.

MONITOR OUTPUT

BUFFERED LOCAL

H. SHIFT

MAC INTERFACE W /ADSP

RGB 103 xi

Figure 2-9 — Attaching the through desk

brackets

2. Using the to-scale template at the back of this manual to guide you, mark the four screw holes on the underside of the surface to which you are mounting the interface. Use the through desk mounting template to cut the hole.

INPUT

2-9

RGB 130

3. Drill four pilot holes, each 3/32” in diameter by 1/4” deep, where marked.

4. Using the four wood screws provided, attach the brackets to the mounting surface, as shown in figure 2-10.

INPUT

MONITOR OUTPUT BUFFERED LOCAL

H. SHIFT

MAC INTERFACE W /ADSP

RGB 103 xi

Figure 2-10 — Mounting the interface in a

table

, 134

xixi

xi xi

, 150

xi Controls and Installation

xi xi

xixi

Cabling

Each interface can connect to the computer or workstation’s local monitor and to a projector or other display device.

The diagrams below show how to connect each of the interfaces.

1. Connect the computer to the interface’s Analog/ECL connector.

AUDIO

INPUT

MBC

POWER

UNIVERSAL INTERFACE W /ADSP

H. SHIFT

MIN/MAX

MBC Buffer

MBC/LBC

Cable

Front

SUN or SGI Computer

Figure 2-11 — RGB 130

AUDIO

INPUT

MBC

POWER

UNIVERSAL INTERFACE W

H. SHIFT

IN/M

MBC Buffer

MBC/LBC

Cable

Front

RGB 130 xi

OUTPUT

SPARE

SERR DDSP SOG OUT

LEVEL/

100-240V 0.5A

PEAK

0.8V 50%

UNITY

0.9V 100%

50/60 Hz

Power

xixi

xi installation

xixi

Rear

RGB 134 xi

/ADSP

OUTPUT

SPARE

SERR DDSP SOG OUT

LEVEL/

100-240V 0.5A

PEAK

0.8V 50%

UNITY

0.9V 100%

50/60 Hz

Rear

Audio

Monitor Projector

Projector

Output 2

Output 1

SUN or SGI Computer

Figure 2-12 — RGB 134

RGB 130

xixi

134

xixi

150

xixi

Power

Audio

Monitor

xixi

xi installation

xixi

xi xi

xi Controls and Installation 2-10

xi xi

Controls and Installation, cont’d

Front

PC Computer

Figure 2-13 — RGB 150

AUDIO

INPUT

ID PIN 4 ID PIN 11

UNIVERSAL INTERFACE W

RGB 150 xi

H. SHIFT

/ADSP

MIN/MAX

SPARE

SERR DDSP SOG OUT

LEVEL/

100-240V 0.5A

PEAK

0.8V 50%

UNITY

0.9V 100%

50/60 Hz

Power

xixi

xi installation

xixi

Rear

OUTPUT

Audio

Monitor Projector

2. Connect the interface cable marked “Video input” to the computer’s video output (where the monitor was originally connected).

3. For audio connections, refer to the following “Connecting Audio” section for important information concerning unbalanced and balanced audio. Connect audio input to the interface’s front panel audio input jack. Connect audio output to the captive screw connector on the interface’s rear panel.

4. Use BNC cables to attach the interface to a projector or other display device.

2-11

RGB 130

RHGVB

RGsB

RHGVB

RGBS

RHGVB

RGBHV

xixi

, 134

xixi

RGsB – If coax cables are connected and terminated (75 ohms) to the red, green, and

blue channels only, and the SOG OUT switch is set to on (see page 2-14), the output will be sync on green.

RGBS – If the S (composite sync) cable is

connected, the output will be composite sync.

RGBHV – If both the H & V cables are

connected, the sync output is separate horizontal and vertical.

xixi

xi xi

, 150

xi Controls and Installation

xixi

xi xi

Connecting audio output

Before connecting audio, determine whether your audio system is unbalanced or balanced. Then, follow the instructions below to connect unbalanced audio, or the instructions for “Balanced audio” to connect balanced audio.

Wiring the audio incorrectly may damage the audio output circuits.

Unbalanced audio

To attach the interface to an unbalanced audio system, do the following:

1. Attach the audio cable to an unbalanced powered speaker input connector (tip and sleeve), as shown here.

Tip Sleeve

2. Attach the audio cable to the audio cable connector (Extron part number 10-319-10). Fasten the captive screws inside the audio cable connector as shown in figure 2-14.

Unbalanced Output

Tip

See Warning

Sleeve (s)

Tip

See Warning

Connect the sleeve(s) to ground (GND). Connecting the sleeve(s) to a negative (-)

terminal will damage audio output circuits.

Figure 2-14 — Fastening captive screws

RGB 130

xixi

134

xixi

xi xi

150

xi Controls and Installation 2-12

xixi

xi xi

Controls and Installation, cont’d

3. Slide the audio cable connector into the audio output connector on the interface.

Balanced audio

To attach the interface to a balanced audio system, do the following:

1. Attach the audio cable to a balanced speaker input connector (tip, ring, and sleeve).

Tip (+) Sleeve

Ring (-)

Tip (+)

2. Attach the audio cable to the audio cable connector (Extron part number 10-319-10). Fasten the captive screws inside the audio cable connector as shown in figure 2-14.

Balanced Output

Tip

Ring

Sleeve (s)

Tip

Ring

Sleeve

2-13

RGB 130

Connect the sleeve(s) to ground (GND). Connecting the sleeve(s) to a negative (-)

terminal will damage audio output circuits.

3. Slide the audio cable connector into the audio output connector on the interface.

, 134

xixi

xi xi

, 150

xi Controls and Installation

xi xi

xixi

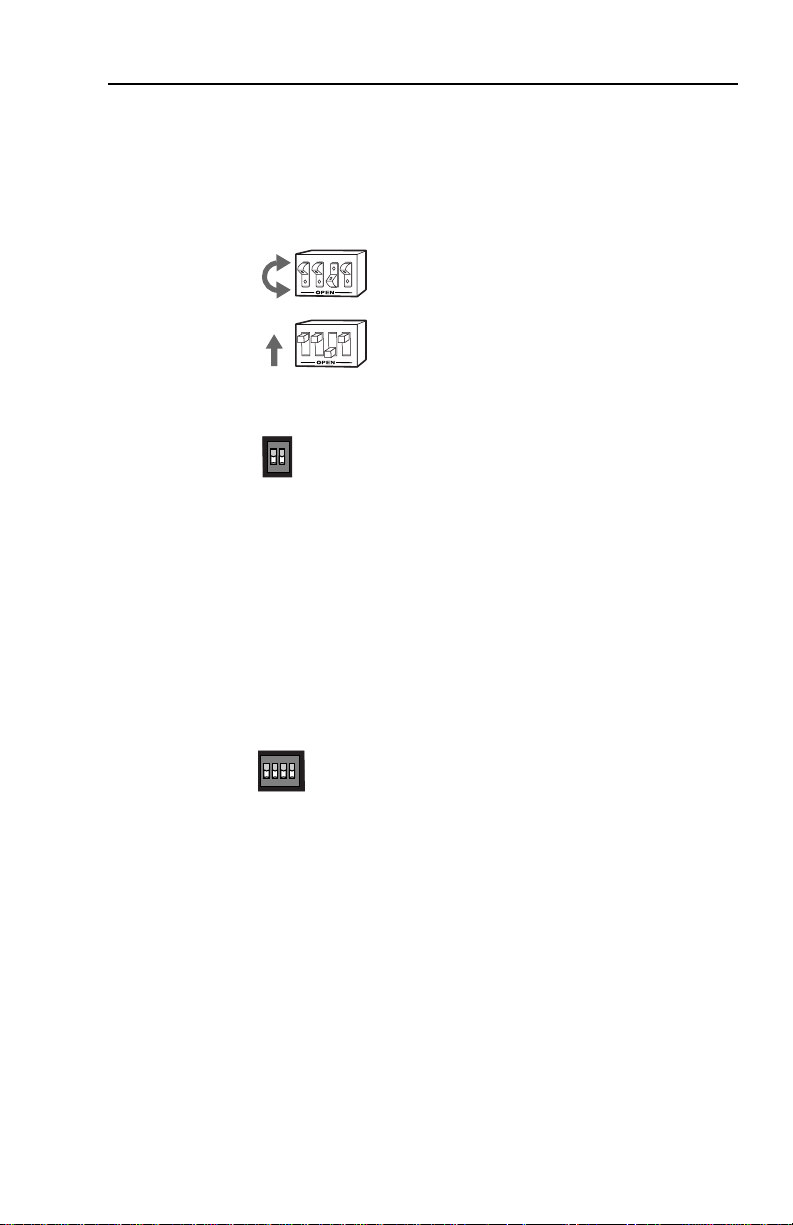

Setting the DIP switches

DIP switches can be found on the front panel of the RGB 150xi and on the rear panels of the RGB 150xi, 130xi, and 134xi. The switches may be either the rocking type or the sliding type.

To set the rocking-type DIP switches, use a

341

small screwdriver to depress the appropriate end of each switch.

3412

To set the sliding-type DIP switches. use a small screwdriver to slide the switch to the on/closed or off/open position.

The RGB 150xi has two pin termination DIP

ID PIN 4

ID PIN 11

switches to provide proper ID bit termination for a laptop computer that is not attached to a local monitor.

ID PIN 4 & ID PIN 11

ON — Set both pins to On if you are using the

RGB 150xi interface with a laptop computer that is not attached to a local monitor.

OFF — Set both pins to Off if you are attaching a

local monitor to the interface.

The RGB 130xi, 134xi, and 150xi have four DIP

SOG

DDSP

SERR

75 Ohm

switches on the rear panel to control: sync on green output, digital display sync processing, serration pulse, and 75-ohm input termination (except for the RGB 150xi which has a spare).

SOG (sync on green output)

ON — If this switch is set to On, the interface

outputs a composite sync signal on top of the green video signal via the G output connector (RGsB).

OFF — If the SOG feature is set to Off, output is

RGBS or RGBHV, depending on how the interface and projector are cabled.

RGB 130

DDSP™ (digital display sync processing)

ON — If this switch is set to On, the interface

does not perform sync processing. This may be necessary for digital display

134

xixi

xi xi

150

xi Controls and Installation 2-14

xixi

xi xi

xixi

Controls and Installation, cont’d

devices, such as LCD (liquid crystal display), DLP (digital lamp processing) and plasma displays.

OFF — If this switch is set to Off, the interface

performs sync processing operations, such as horizontal shift, using Extron’s ADSP™.

Turning on the DDSP feature disables the horizontal shift control.

SERR (serration pulse)

Many display devices, such as LCD and DLP projectors and plasma displays, must not have serration pulses present in the sync signal in order to display images properly. Flagging or bending at the top of the video image is a sign that the serration pulses should not be present.

ON — When this switch is set to On, serration

pulses are present with sync signal output

OFF — When this switch is set to Off, serration

pulses are not present with sync signal output

RGB 130

75 Ohm (input termination)

ON — 75-ohm input termination OFF — High impedance input termination

, 134

xixi

, 150

xi xi

xi Controls and Installation2-15

xi xi

xixi

Setting internal jumpers

The jumpers inside the interface(s) are set at the factory for optimal use by most systems. However, you can change a jumper setting to meet the needs of a particular system.

The user-configurable, internal jumpers control the following functions:

• horizontal and vertical sync polarity

• vertical sync pulse width. Follow these steps to change the jumper settings. The

RGB 134xi is shown for illustration, but the steps apply to all interfaces.

1. Remove power from the interface by disconnecting the AC power cord from the unit.

2. Open the cover of the interface (the top half of the enclosure), as shown below. Remove the screws from the enclosure, and lift the cover straight up.

Do not touch any switches or electronic components inside the interface. Doing so could damage the interface.

Slide cover back slightly, lift straight up.

AUDIO

INPUT

MBC

POWER

UNIVERSAL INTERFACE W /ADSP

H. SHIFT

RGB 134 xi

H. SHIFT

MIN/MAX

Figure 2-15 — Opening the interface cover

3. Note the positions of jumpers J20 and J40 before changing jumper settings. The illustration of the following circuit board shows the locations of the J20 and J40 jumpers. There are two possible setting combinations for 3-pin jumpers:

RGB 130

xixi

134

xixi

xi xi

150

xi Controls and Installation 2-16

xixi

xi xi

Remove (6) Screws

Controls and Installation, cont’d

2 and 3

pins 1 and 2 connected:

pins 2 and 3 connected:

Rear

J19

J20

J40

Front

J20: Sync polarity jumper

J40: Vertical sync width jumper

1 and 2

Power Supply

2-17

RGB 130

Figure 2-16 — Circuit board jumper locations

4. Configure the jumpers. To configure the jumpers, use pliers to pull the jumper shunt off the pins, then place the jumper on the appropriate pins.

Figure 2-17 — Changing jumper settings

, 134

xixi

xi xi

, 150

xi Controls and Installation

xixi

xi xi

xixi

The jumpers perform the following functions:

J20: Sync polarity jumper — This jumper adjusts the

Negative Follow

Wide Short

output sync polarity. Horizontal (H) and vertical (V) sync output can either follow input sync polarity, or be forced to negative.

• If the jumper is placed on pins 1 and 2, output H and V sync polarities will be forced to negative.

• If the jumper is placed on pins 2 and 3, output sync polarity will follow input sync polarity: the output sync signal’s polarity will be the same as the input polarity. This is the default setting.

J40: Vertical sync width jumper — This jumper

adjusts the vertical sync pulse width. Some digital display devices have very specific requirements for incoming sync pulse width. If no picture displays, the picture cuts in and out, or the picture is scrambled, try adjusting the vertical sync pulse width or switching from ADSP™ to DDSP™.

• If the jumper is placed on pins 1 and 2, the output vertical sync pulse will be wide.

• If the jumper is placed on pins 2 and 3, the output vertical sync pulse will be short (narrow). This is the default setting.

5. Replace and fasten the enclosure cover, reversing step 2.

RGB 130

xixi

134

xixi

xi xi

150

xi Controls and Installation

xixi

xi xi

2-18

RGB 130

xixi

, 134

xixi

, 150

xi xi

xi Controls and Installation2-19

xi xi

RGB 130

xixi

134

xixi

150

xixi

Appendix

RGB 130

Specifications

Accessories and Part Numbers

Mounting Templates

134

xixi

xi xi

, 150

xi Operation

xi xi

xixi

Appendix

Specifications — RGB 130xi, 134xi, 150xi

Video input

Number/type .............................. 1 analog RGBHV, RGBS, RGsB,

RsGsBs

Connectors.................................... 1 15-pin HD male (150xi)

1 9-pin D male (130xi and 134xi)

Nominal level(s) .......................... Analog — 0.3V to 1.5V p-p

Maximum level(s) ....................... Analog — 1.5V p-p

Impedance .................................... 75 ohms or (for 130xi and 134xi) HI

Z, switchable - set to 75 ohms if no

local monitor is connected

Horizontal frequency ................. Autoscan 15 kHz to 125 kHz

Vertical frequency ....................... Autoscan 30 Hz to 120 Hz

Return loss .................................... -30dB @ 5 MHz

Maximum DC offset ................... 4.0V

Video throughput

Gain ............................................... Unity, 0.725V p-p, 0.750V p-p

Bandwidth .................................... 300 MHz (-3dB)

Video output

Number/type/format ................ 1 (2 if 134x i) analog RGBHV,

Connectors.................................... 6 BNC (2 x 6 if 134xi) female

Nominal level .............................. Unity, 0.725V p-p /50% peaking,

Impedanc e .................................... 75 ohms

Return loss .................................... -30dB @ 5 MHz

Sync

Input type ..................................... RGBHV TTL (±), RGBS TTL (±),

Output type .................................. RGBHV (±), RGBS(±), RGsB (-)

Input level .................................... 2.0V to 5.5V p-p with ±0.2VDC

Output level ................................. 4.0V to 5.0V p-p

Input impedance ......................... 10 kohms

Output impedance ...................... 75 ohms

Max. propagation delay ............. 48 nS

A-1

RGB 130

xixi

, 134

xixi

, 150

xixi

RGBS, RGsB

1 15-pin HD female localmonitor

(150xi only) output (buffered)

0.750V p-p /100% peaking

RGsB 0.3V (-), RsGsBs 1.3V (-)

offset (max.)

xi xi

xi Appendix

xi xi

Max. rise/fall time ...................... 3.5 nS

Polarity .......................................... RGBHV: when RGBHV is input,polarity

follows input; otherwise negative

RGBS, RGsB:............................ negative

Audio input

Number/type .............................. 1 PC level stereo, unbalanced

Connectors.................................... 1 3.5 mm stereo jack, 2 channel; tip (L),

ring (R), sleeve (ground)

Impedance .................................... 10 kohms, DC coupled

Minimum level ............................ 100mV

Maximum level............................ +8.5dBu,(unbalanced) @ stated %THD+N

Audio throughput

Gain ............................................... Unbalanced 0dB, balanced +6dB

Frequency response .................... ±0.05dB @ 20 Hz to 20 kHz

THD + Noise ................................ 0.03% @ 1 kHz, 0.3% @ 20 kHz at rated

maximum output drive

S/N ................................................ >90dB, output 14dBu, balanced

Stereo channel separation .......... >95dB @ 1 kHz to 20 kHz

Audio output

Number/type .............................. 1 stereo (2 channel), balanced/

unbalanced

Connectors.................................... 3.5 mm stereo captive screw terminal, 5

conductor, for left and right output

Impedance .................................... 50 ohms, unbalanced, 100 ohms balanced

Gain error ..................................... ±0.1dB channel to channel

Drive (600 ohm)........................... +14dBu, balanced at stated %THD+N

General

Power ............................................ 100VAC to 240VAC, 50/60 Hz, 15 Watts,

internal, auto-switchable

MBC power jack .......................... 9.0VDC, 150 mA

Temperature/humidity ............. Storage -40° to +158°F (-40° to +70°C) /

10% to 90%, non-condensing

Operating +32° to +122°F (0° to +50°C) /

10% to 90%, non-condensing

Rack mount .................................. No

Furniture mount .......................... Yes, with optional kits, #70-077-01 and

#70-077-02

RGB 130

xixi

134

xixi

xi xi

, 150

xi Appendix A-2

xixi

xi xi

Appendix, cont’d

Enclosure type ............................. Metal

Enclosure dimensions of 130xi and 150xi

........................................................ 1.70" H x 6.35" W x 6.00" D

4.32 cm H x 16.13 cm W x 15.24 cm D

Enclosure dimensions of 134xi

........................................................ 1.68" H x 8.70" W x 6.00" D

4.26 cm H x 22.09 cm W x 15.24 cm D

Shipping weight .......................... 6 lbs (2.7 kg)

Vibration ....................................... NSTA 1A in carton (National Safe Transit

Association)

Approvals ..................................... UL, CE, FCC Class A

MTBF ............................................. 30,000 hours

Warranty....................................... 2 years parts and labor

Specifications are subject to change without notice.

A-3

RGB 130

xixi

, 134

xixi

, 150

xixi

xi xi

xi Appendix

xi xi

Accessories and Part Numbers

Thunder™ Mounting Kits

Under desk mounting kit .................. 70-077-01

Through desk mounting kit .............. 70-077-02

Monitor breakout cables: RGB 130

MBC VGA/XGA HR .......................... 26-162-01

MBC Mac/Quadra .............................. 26-018-01

MBC SUN Sparc HR ........................... 26-424-01

MBC SGI/13W3 HR............................ 26-425-01

Laptop breakout cables:

Laptop breakout cables are available in 3’, 6’, and 12’ lengths with or without audio. Contact Extron for the specific cable for your application.

LBC VGA HR 6’................................... 26-224-01

LBC Mac HR 6’ .................................... 26-363-01

LBC SUN HR 6’ (61 kHz)................... 26-413-01

LBC SUN HR 6’ (71 kHz)................... 26-413-02

LBC SUN HR 6’ (81 kHz)................... 26-413-03

LBC VGA HR 6’ A............................... 26-441-02

LBC Mac HR 6’ A ................................ 26-442-02

LBC SUN HR 6’ A (61 kHz)............... 26-443-02

LBC SUN HR 6’ A (71 kHz)............... 26-444-02

LBC SUN HR 6’ A (81 kHz)............... 26-445-02

Signal input cable kits for RGB 150

VGA 6’ HR............................................ 26-112-15

VGA 3’ HR A ....................................... 26-491-01

VGA 6’ HR A ....................................... 26-491-02

VGA 12’ HR A ..................................... 26-491-03

Mac Adapter kit................................... 70-078-01

Mac Adapter kit with Audio............. 70-078-02

13W3 Adapter cable kit ...................... 70-079-01

13W3 Adapter cable kit with Audio 70-079-02

xixi

xi and RGB 134

xixi

RGB 130

134

xixi

xi xi

, 150

xi Appendix A-4

xixi

xi xi

xixi

Appendix, cont’d

BNC cables

BNC-5 3’ HR........................................ 26-260-15

BNC-5 6’ HR........................................ 26-260-01

BNC-5 12’ HR...................................... 26-260-02

BNC-5 25’ HR...................................... 26-260-03

BNC-5 50’ HR...................................... 26-260-04

BNC-5 75’ HR...................................... 26-260-16

BNC-5 100’ HR.................................... 26-260-05

BNC-5 3’ HRP ..................................... 26-378-01

BNC-5 6’ HRP ..................................... 26-378-02

BNC-5 12’ HRP ................................... 26-378-03

BNC-5 25’ HRP ................................... 26-378-04

BNC-5 50’ HRP ................................... 26-378-05

BNC-5 75’ HRP ................................... 26-378-06

BNC-5 100’ HRP ................................. 26-378-07

Miscellaneous

Output audio connector: five pole

3.5mm captive screw terminal .......... 10-319-10

Installation cable: bulk 14

conductor, non-plenum ..................... 22-120-02

Installation cable: bulk 17

conductor, plenum.............................. 22-111-03

A-5

RGB 130

xixi

, 134

xixi

, 150

xixi

xi xi

xi Appendix

xi xi

RGB 130

134

xixi

xi xi

, 150

xi Appendix A-6

xixi

xi xi

xixi

A-7

RGB 130

xixi

, 134

xixi

, 150

xixi

xi xi

xi Appendix

xi xi

RGB 130

134

xixi

xi xi

, 150

xi Appendix A-8

xixi

xi xi

xixi

A-9

RGB 130

xixi

, 134

xixi

, 150

xixi

xi xi

xi Appendix

xi xi

FCC Class A Notice

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

Note: This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with the unit to ensure compliance.

Extron’s Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of two years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

Extron Electronics 1230 South Lewis Street Anaheim, CA 92805, U.S.A.

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions or non-Extron authorized modification to the product.

If it has been determined that the product is defective, please call Extron and ask for an Applications Engineer at (714) 491-1500 to receive an RA# (Return Authorization number). This will begin the repair process as quickly as possible.

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state, and that some provisions of this warranty may not apply to you.

RGB 130

134

xixi

, 150

xi xi

xi Appendix

xi xi

xixi

EXTRON ELECTRONICS/RGB SYSTEMS, INC. 1230 South Lewis Street, Anaheim, CA 92805

800.633.9876 714.491.1500 FAX 714.491.1517 USA

EXTRON ELECTRONICS, EUROPE Beeldschermweg 6C, 3821 AH Amersfoort +31.33.453.4040 FAX +31.33.453.4050 The Netherlands

EXTRON ELECTRONICS, ASIA 41B Kreta Ayer Road, Singapore 089003 +65.226.0015 FAX +65.226.0019 Singapore

EXTRON ELECTRONIC INFORMATION E

XTRON

WEB™: www.extron.com

XTRON

FAX™: 714.491.0192

E 24-hour access — worldwide!

Extron Electronics RGB 150x User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
