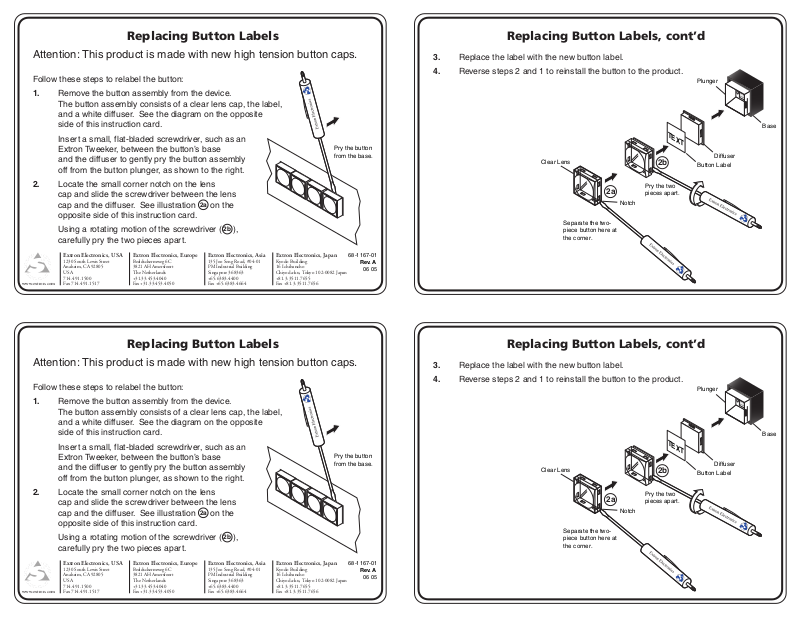

Replacing Button Labels, cont’dReplacing Button Labels

Attention: This product is made with new high tension button caps.

Follow these steps to relabel the button:

1. Remove the button assembly from the device. The button assembly consists of a clear lens cap, the label, and a white diffuser. See the diagram on the opposite side of this instruction card.

Insert a small, flat-bladed screwdriver, such as an Extron Tweeker, between the button’s base and the diffuser to gently pry the button assembly off from the button plunger, as shown to the right.

2. Locate the small corner notch on the lens cap and slide the screwdriver between the lens cap and the diffuser. See illustration on the opposite side of this instruction card.

Using a rotating motion of the screwdriver ( ), carefully pry the two pieces apart.

www.extron.com

Extron Electronics, USA

1230 South Lewis Street Anaheim, CA 92805 USA

714.491.1500 Fax 714.491.1517

Extron Electronics, Europe

Beeldschermweg 6C 3821 AH Amersfoort The Netherlands +31.33.453.4040 Fax +31.33.453.4050

Extron Electronics, Asia

135 Joo Seng Road, #04-01 PM Industrial Building Singapore 368363 +65.6383.4400 Fax +65.6383.4664

Extron Electronics, Japan

Kyodo Building 16 Ichibancho Chiyoda-ku, Tokyo 102-0082 Japan +81.3.3511.7655 Fax +81.3.3511.7656

Pry the button from the base.

68-1167-01

Rev. A

06 05

3. Replace the label with the new button label.

4. Reverse steps 2 and 1 to reinstall the button to the product.

TEXT

Clear Lens

Separate the twopiece button here at the corner.

Notch

Pry the two pieces apart.
