Extron Electronics Extender Plus User Manual

Download

Extender Plus Series

VGA-UXGA Line Drivers with Audio

User Guide

Line Drivers

68-2320-01 Rev. A

12 12

Safety Instructions

Safety Instructions • English

WARNING: This symbol, , when used on the product, is intended

to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.

ATTENTION: This symbol, , when used on the product, is intended

to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide, part number 68-290-01, on the Extron website, www.extron.com.

Instructions de sécurité • Français

AVERTISSEMENT: Ce pictogramme, , lorsqu’il est utilisé sur

ATTENTION: Ce pictogramme, , lorsqu’il est utilisé sur le produit,

signale à l’utilisateur des instructions d’utilisation ou de maintenance importantes qui se trouvent dans la documentation fournie avec le matériel.

Pour en savoir plus sur les règles de sécurité, la conformité à la réglementation, la compatibilité EMI/EMF, l’accessibilité, et autres sujets connexes, lisez les informations de sécurité et de conformité Extron, réf. 68-290-01, sur le site Extron, www.extron.fr.

le produit, signale à l’utilisateur la présence à l’intérieur du boîtier du produit d’une tension électrique dangereuse susceptible de provoquer un choc électrique.

Sicherheitsanweisungen • Deutsch

WARNUNG: Dieses Symbol auf dem Produkt soll den Benutzer

darauf aufmerksam machen, dass im Inneren des Gehäuses dieses Produktes gefährliche Spannungen herrschen, die nicht isoliert sind und die einen elektrischen Schlag verursachen können.

VORSICHT: Dieses Symbol auf dem Produkt soll dem Benutzer in

der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Chinese Simplified（简体中文）

警告：产品上的这个标志意在警告用户该产品机壳内有暴露的危险

电压，有触电危险。

注意：产品上的这个标志意在提示用户设备随附的用户手册中有

重要的操作和维护(维修）说明。

关于我们产品的安全指南、遵循的规范、EMI/EMF 的兼容性、无障碍使用的特性等相关内容，敬请访问 Extron 网站 www.extron.com，参见 Extron 安全规范指南，产品编号 68-290-01。

Chinese Traditional（繁體中文）

警告: 若產品上使用此符號，是為了提醒使用者，產品機殼內存在著

可能會導致觸電之風險的未絕緣危險電壓。

注意 若產品上使用此符號，是為了提醒使用者。

有關安全性指導方針、法規遵守、EMI/EMF 相容性、存取範圍和相關主題的詳細資訊，請瀏覽 Extron 網站：www.extron.com，然後參閱《Extron 安全性與法

規遵守手冊》，準則編號 68-290-01。

Japanese

警告: この記号が製品上に表示されている場合は、筐体内に絶縁されて

いない高電圧が流れ、感電の危険があることを示しています。

注意:この記号が製品上に表示されている場合は、本機の取扱説明書に記載されている

重要な操作と保守 (整備 )の指示についてユーザーの注意を喚起するものです。

安全上のご注意、法令遵守、EMI/EMF適合性、その他の関連項目については、エクストロンのウェブサイト www.extron.comより

『Extron Safety and Regulatory Compliance Guide』 (P/N 68-290-01) をご覧く

ださい。

Weitere Informationen über die Sicherheitsrichtlinien, Produkthandhabung, EMI/EMF-Kompatibilität, Zugänglichkeit und verwandte Themen finden Sie in den Extron-Richtlinien für Sicherheit und Handhabung (Artikelnummer 68-290-01) auf der Extron-Website, www.extron.de.

Instrucciones de seguridad • Español

ADVERTENCIA: Este símbolo, , cuando se utiliza en el producto,

avisa al usuario de la presencia de voltaje peligroso sin aislar dentro del producto, lo que puede representar un riesgo de descarga eléctrica.

ATENCIÓN: Este símbolo, , cuando se utiliza en el producto, avisa

al usuario de la presencia de importantes instrucciones de uso y mantenimiento recogidas en la documentación proporcionada con el equipo.

Para obtener información sobre directrices de seguridad, cumplimiento de normativas, compatibilidad electromagnética, accesibilidad y temas relacionados, consulte la Guía de cumplimiento de normativas y seguridad de Extron, referencia 68-290-01, en el sitio Web de Extron,

www.extron.es.

Korean

경고: 이 기호 , 가 제품에 사용될 경우, 제품의 인클로저 내에 있는

접지되지 않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을 경고합니다.

주의: 이 기호 , 가 제품에 사용될 경우, 장비와 함께 제공된 책자에 나와

있는 주요 운영 및 유지보수(정비) 지침을 경고합니다.

안전 가이드라인, 규제 준수, EMI/EMF 호환성, 접근성, 그리고 관련 항목에 대한 자세한 내용은 Extron 웹 사이트(www.extron.com)의 Extron 안전 및 규제 준수 안내서, 68-290-01 조항을 참조하십시오.

Conventions Used in this Guide

The following notifications are used:

CAUTION: A caution indicates a situation that may result in minor injury.

ATTENTION: Attention indicates a situation that may damage or destroy the product or

associated equipment.

NOTE: A note draws attention to important information.

Specifications Availability:

Product specifications are available on the Extron website, www.extron.com.

Trademarks

All trademarks mentioned in this guide are the properties of their respective owners.

Introduction............................................................ 1

About this Guide ................................................. 1

About the Extender Plus Series

VGA Line Drivers ............................................... 1

Differences between the models ..................... 1

Features ......................................................... 1

Installation and Operation .................................. 2

UL Guidelines ..................................................... 2

Installation Instructions ....................................... 2

Preparing the Site and

Installing the Wall Box .................................... 2

Front Panel Features and Cabling ....................... 4

Rear Panel Features and Cabling ........................ 5

Features ......................................................... 5

Cabling ........................................................... 7

EDID Minder Operation ....................................... 8

Storing a display EDID .................................... 8

Using the pre-programmed Extron EDID ......... 8

Pre-Installation Testing and

Troubleshooting ................................................. 9

Mounting .......................................................... 10

Mounting the Extender Plus AAP .................. 10

Mounting the Extender Plus D ...................... 11

Application Diagrams ........................................ 12

Reference Information ...................................... 13

Part Numbers ................................................... 13

Included Parts .............................................. 13

Accessories .................................................. 13

Dimensions....................................................... 15

Template........................................................... 16

Extron Warranty

vExtender Plus Series • Contents

Introduction

This section covers the following topics:

• About this Guide

• About the Extender Plus Series VGA Line Drivers

About this Guide

This guide contains information about the Extron Extender Plus Series line drivers, and instructions for operation and configuration. “Extender” and “line driver” are used to refer to the models interchangeably when instructions apply to both models.

About the Extender Plus Series VGA Line Drivers

The Extron Extender Plus Series are one-input VGA-QXGA line drivers with audio and EDID Minder® capability. There are two models in the series:

• Extender Plus AAP

• Extender Plus D

The Extenders boost the video signal between a laptop or desktop computer and a monitor or projector. Each has a 400 MHz (-3 dB) video bandwidth.

Each line driver accepts one computer video input and one stereo audio input. Each Extender also features one buffered VGA-type RGB output and one stereo audio output. With an optional Mac/VGA adapter, the Extender can also buffer Macintosh signals.

Differences between the models

Both Extender Plus models are functionally identical but they have different mounting options.

For details about mounting the Extender Plus AAP, and the Extender Plus D, see “Preparing the Site and Installing the Wall Box” on the next page.

Features

Video signal boosting — The selectable gain setting boosts video signals to compensate for signal degradation caused by long cables. The Extender can send a high resolution signal up to 250 feet (75 m) through Extron M59 Series mini high resolution cable.

Sync restoration — Each Extender restores low level sync voltages found on many laptop PCs (as low as two volts) to normal TTL levels.

Audio buffering — Unbalanced stereo audio inputs can be output as balanced audio for long cable runs.

EDID Minder — EDID Minder is available for VGA signals, allowing the EDID of any VGA display to be stored and emulated, or any of 14 pre-installed factory EDID files to be selected and presented to the source.

Extender Plus Series • Introduction 1

Installation and

Operation

This section covers the following topics:

• UL Guidelines

• Installation Instructions

• Front Panel Features and Cabling

• Rear Panel Features and Cabling

• EDID Minder Operation

• Pre-Installation Testing and Troubleshooting

• Mounting

• Application Diagrams

ATTENTION: Potential damage to property. Installation and service must be

performed by authorized personnel only (see “Installation Instructions,” below). Use a UL-approved electrical box (see “UL Guidelines,” below).

UL Guidelines

1. The Extender must be installed in an Underwriters Laboratories (UL) listed junction box.

The UL-approved electrical wall box (junction box) is not included with the unit; the installer is responsible for obtaining and installing the box.

2. The unit must be installed in accordance with the National Electrical Code and with local

electrical codes.

Installation Instructions

Depending on the model, the Extenders can be mounted into furniture, a wall, an Ackermann floorbox, or an Extron HSA 400 Series or HSA 800 Series enclosure.

Preparing the Site and Installing the Wall Box

Considerations

Choose a location that allows cable runs without interference. Allow enough depth for both the wall box and the cables. You may need to install the cables into the wall, furniture, or conduits before installing the line driver.

• The Extender Plus AAP can be installed in an Extron two-gang, four-gang, or half rack

width AAP Architectural Adapter Plate or in the faceplate of another Extron device that accepts double-space AAPs, such as an interface or distribution amplifier. See the mounting instructions for the adapter plate or device.

• The Extender Plus D can be installed in a standard or compact one-gang wall box

The installation must conform to national and local electrical codes and to the size requirements of the Extender. See the Extender Plus D “Dimensions” on page 15 and “Template” on page 16.

Extender Plus Series • Installation and Operation 2

Procedure

Connecting Shields.eps

Cab

1-gang wall box.eps

Installation Cab

1. See the template that corresponds to the wall box being used.

NOTE: The templates are not shown at full size. Pay attention to the measurements

shown on the templates.

2. Mark the guidelines for the opening on the wall or furniture.

• If installing the Extender in a wall box, place the box against the installation surface

and draw a line on it around the outside of the box.

• If installing the Extender without a wall box (using mud rings or fastening it directly

to the wall or furniture), measure and mark the surface for the cutout area indicated in the template.

3. Cut out the material from the marked area.

4. Check the opening size by inserting the wall box (if used) or the Extender (if no box is

used) into the opening. The box and line driver should fit easily into the opening. Enlarge or smooth the edges of the opening if needed.

5. Feed cables through the wall box punch-out holes, and secure them with cable clamps

to provide strain relief.

6. Trim back and insulate foil or braided shields with heat shrink (see figure 1).

ATTENTION: Potential damage to property. Exposed cable shields (braids or

foil) can cause short circuits. To prevent short circuits, cut back the outer foil shield to the point where the cable exits the cable clamp. Both braided and foil shields should be connected to an equipment ground at the other end of the cable.

Metal Wall Box

le Clamp

Install Cable

Foil Shield

Screw

Braided Shield

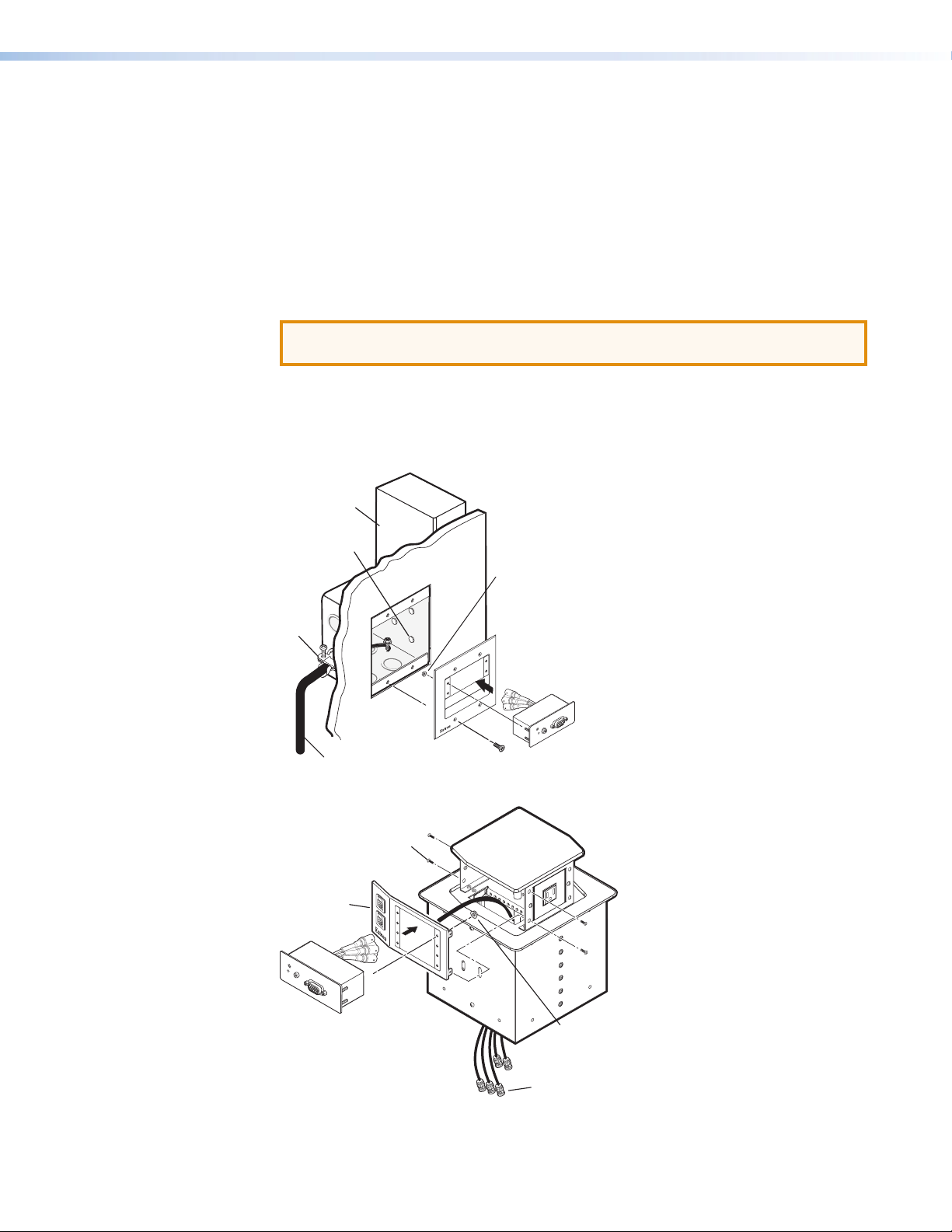

Figure 1. Grounding Outer Braided and Foil Shields

7. Insert the wall box into the opening, and attach it to the wall, stud, or furniture.

• If installing the Extender in a two- or four-gang AAP plate, use nails or screws to

attach the wall box to the wall stud or furniture, leaving the front edge of the wall box flush with the outer wall or furniture surface. See figure 2, which applies to one, two-, three-, and four-gang wall boxes.

Wall Stud

Cable Clamp

Installation Cable

Wall Stud

Cable Clamp

Screws or NailsScrews or Nails

Figure 2. Attaching a Wall Box to a Wall Stud

Extender Plus Series • Installation and Operation 3

• If attaching the wall box to wood, use four #8 or #10 screws or 10-penny nails. A

Tip (L)

minimum of ½ inch (1.3 cm) of screw threads must penetrate the wood.

• If attaching the wall box to metal studs or furniture, use four #8 or #10 self-tapping

sheet metal screws or machine bolts with matching nuts.

8. Set the gain switch, then cable and test the line driver before fastening the line driver

into the wall box. The switch and cables are not accessible after installation. See “Rear Panel Features and Cabling” on page 5 for details.

Front Panel Features and Cabling

COMPUTER IN

EXTENDER Plus AAP

AUDIO IN

COMPUTER IN

AUDIO IN

a Power/signal LED — This LED lights:

• Amber to indicate that the Extender is receiving power.

• Green to indicate that an active signal with separate horizontal sync is present at

the input and the Extender is receiving power.

NOTE: The LED remains lit amber when the input signal is HDTV component video,

RGsB, or RsGsBs.

b Audio input connector — Plug a 3.5 mm stereo plug into this

jack for unbalanced audio input. Wire the male plug as shown at right.

c Computer In connector (RGB video) — Attach a cable

from the computer to the Extender via this female 15-pin HD connector.

Extender Plus Series • Installation and Operation 4

Ring (R)

Sleeve ( )

3.5 mm Stereo Plug Connector

(unbalanced)

Rear Panel Features and Cabling

NOTE: Mount the Extender Plus AAP to a wall plate or device faceplate before the final cabling.

Features

0.2 A MAX

12V

SELECT

EDID GAIN

STORE

NORM

EXTENDER Plus D

MED

HIGH

COMPUTER

OUT

POWER

60Hz50

1 2

L R

AUDIO OUT

EDID

SELECT

POWER

12V

0.2 A MAX

EXTENDER Plus AAP

COMPUTER

OUT

GAIN

HIGH

NORM

MED

AUDIO OUT

STORE

a EDID Rotary switch (see page 6)

b Dip switches (see page 6) c EDID store LED (see page 6) d EDID store button (see page 6) e Gain switch (see page 6) f Power connector (see page 6)

g Audio output connector (see page 7) h RGB output connectors (see page 7)

Extender Plus Series • Installation and Operation 5

a EDID Rotary Switch — Position 0 of this 16-position rotary switch is used to record an

EDID from a display. See “Storing a display EDID” on page 8. Positions 1 through F select pre-programmed EDID resolutions. See “Using the

pre-programmed Extron EDID” on page 8.

b DIP switch — Position 1 selects the vertical refresh frequency for the pre-programmed

EDID. When switched to Off, the EDID selected by rotary positions 1through F are based on 50 Hz. When switched to On, they are based on 60Hz (default position). Position 2 is not used.

NOTE: Configuring the EDID rotary and DIP switches allows a user to select a

pre-programmed EDID based on the native rate of a display (for example, 1280x1024 @ 60 Hz) and a desired signal type (such as digital), but does not necessarily force a video source to output that rate. Since EDID is not limited to reporting a single video rate (such as the native rate), each Extron EDID also lists other common video rates that the video source can use.

c EDID Store LED — This dual color LED:

• Lights green to indicate that the Extender is receiving power.

• Flashes red when EDID is being stored (after the EDID store button has been

pressed), returning to green when EDID storing is complete.

d EDID Store button — Press this recessed push button to initiate EDID storage from

a display (temporarily) connected to the VGA input. The EDID is stored to the user slot (position 0 on the rotary switch). While EDID is being stored, the LED flashes red, returning to green when storage is complete. The VGA display must then be disconnected from the VGA input for installation. See “Storing a display EDID” on page 8 for more details.

e Gain switch — Use this switch to compensate for cable resistance and capacitance.

Using an Extron Tweeker or a small screwdriver, slide this switch to select the level of video gain that yields the sharpest, smear-free picture.

f Power connector — Connect a 12 VDC power supply to this

• Normal — Unity gain (no signal boost)

• Medium — Mid-level peaking and gain

• High — Maximum amount of peaking and gain. Select this for use with longer

cables.

NOTE: Adjust the gain before installing the Extender into a wall, furniture, or

equipment, as the gain switch is not accessible after installation.

– +

3.5 mm, 2-pole direct insertion captive screw connector. Wire the connector as shown at right.

Do not tin the wires!

ATTENTION: Potential damage to property.

• Do not tin the wires. For best results and to reduce the risk of short circuits, trim

just 3/16 inch (5 mm) of the jacket from the wires.

• Always use a power supply supplied by or speciﬁed by Extron. Use of an

unauthorized power supply voids all regulatory compliance certiﬁcation and may cause damage to the supply and the end product.

Power

12 VDC

Extender Plus Series • Installation and Operation 6

ATTENTION:

• Unless otherwise stated, the AC/DC adapters are not suitable for use in air

handling spaces or in wall cavities. The power supply is to be located within the same vicinity as the Extron AV processing equipment in an ordinary location, Pollution Degree 2, secured to the equipment rack within the dedicated closet, podium or desk.

• The installation must always be in accordance with the applicable provisions of

National Electrical Code ANSI/NFPA 70, article 75 and the Canadian Electrical Code part 1, section 16. The power supply shall not be permanently ﬁxed to building structure or similar structure.

g Audio output connector — Insert wires into and tighten the screws on this 3.5 mm,

5-pole direct insertion captive screw connector for unbalanced or balanced audio output. Wire the connector as shown in figure 3.

ATTENTION: Potential damage to property. Connect the sleeve to the ground

(Gnd) terminal. Connecting the sleeve to a negative (-) terminal will damage the audio output circuits.

h RGB video output connectors — Attach coaxial cables from the Extender to the

display device via these female BNC connectors. These BNCs are on pigtail wires secured to the Extender by tie wrap.

Cabling

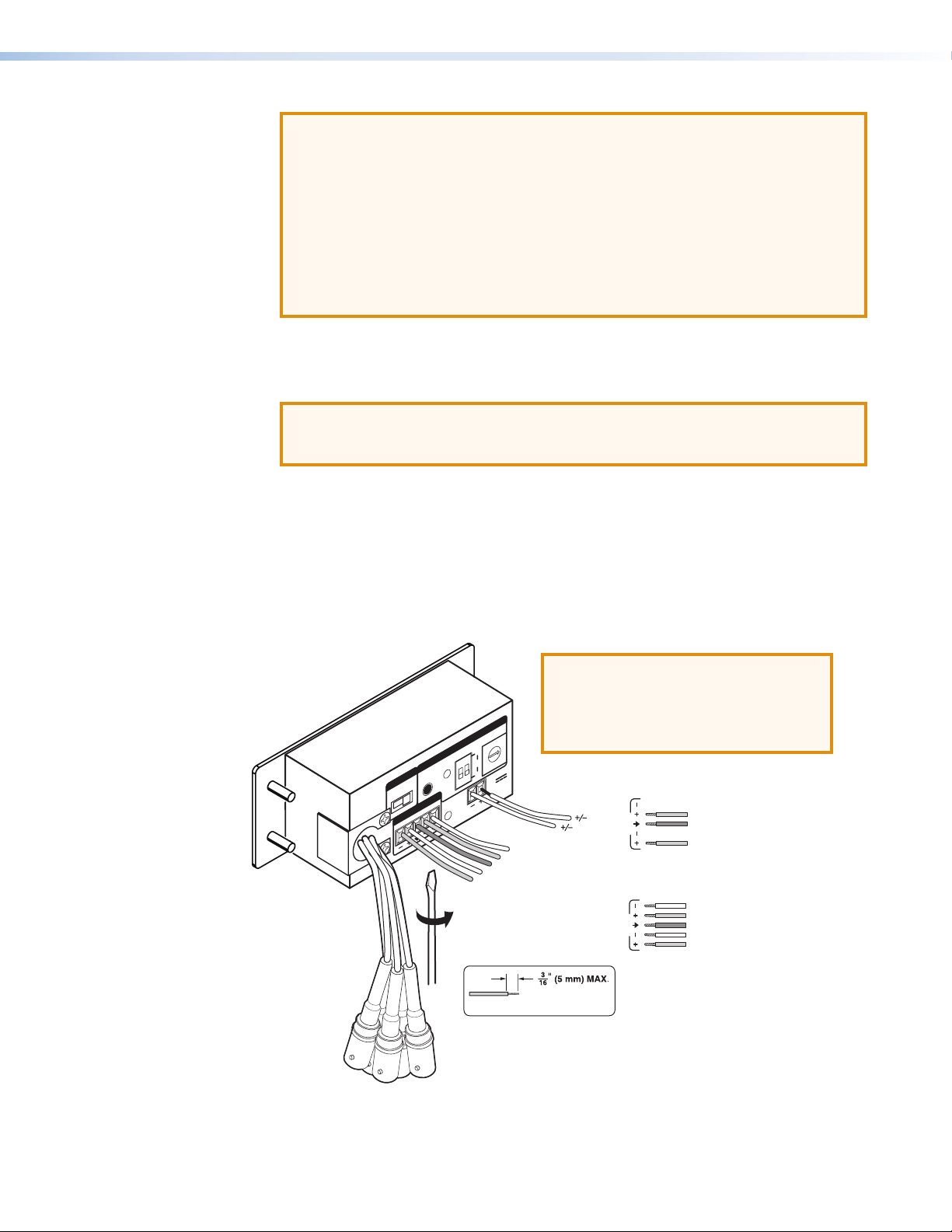

Figure 3 shows the Extender Plus AAP wired for balanced audio output. The Extender Plus D has the same circuit board configuration.

ATTENTION: Potential damage to

property. For unbalanced audio,

connect the sleeve(s) to the ground

NORM

GAIN

STORE

MED

HIGH

EXTENDER Plus D

COMPUTER

AUDIO OUT

OUT

L R

SELECT

EDID

POWER

1 2

12V

0.2 A MAX

Right Ring

Right Tip

Sleeve (s)

Left Ring

Left Tip

Do not tin the wires!

contact. DO NOT connect the sleeve(s) to the negative (-) contacts.

Power

12 VDC

NO Ground Here

Audio

Right Tip Sleeve (s)

NO Ground Here

Left Tip

Audio

Unbalanced Output

Audio

Right Ring Right Tip Sleeve (s) Left Ring Left Tip

Balanced Output

Figure 3. Extender Plus AAP Wired for Balanced Audio Output

Extender Plus Series • Installation and Operation 7

EDID Minder Operation

EDID Minder enables continuous EDID communication to the input source. EDID provides information about a display identity. The continuous EDID communication ensures the source boots up properly and outputs content to the display reliably.

The Extender Plus models offer two ways of doing this:

• EDID Record — Enables the device to record EDID directly from a display. See

“Storing a display EDID” below.

• Pre-programmed EDID — The Extender Plus models contain pre-programmed EDIDs

with the most common display native resolutions for both 50 and 60 Hz. Along with the native rate, each pre-programmed EDID also lists other common video rates that the video source can use. See “Using the pre-programmed Extron EDID” below.

Storing a display EDID

To store a new EDID into the memory:

1. Turn the rotary switch to position 0.

NOTE: The DIP switch positions have no effect in this mode.

2. Apply power to the Extender by connecting the 12 VDC power supply. The EDID Store

LED lights green when power is available.

3. Connect the display device to the input of the Extender using a VGA cable.

4. Power on the display device.

5. Press and release the recessed EDID store button. The EDID Store LED flashes red

while storing the EDID, then turns solid green when the EDID data has been stored. The display and the power supply can now be disconnected.

Using the pre-programmed Extron EDID

NOTE: Configuring the EDID rotary and DIP switches allows a user to select a

pre-programmed EDID based on the native rate of a display (for example, 1280x1024 @ 60 Hz) and a desired signal type (such as digital), but does not necessarily force a video source to output that rate. Since EDID is not limited to reporting a single video rate (such asthe native rate), each Extron EDID also lists other common video rates that the video source can use.

1. See Table 1 on the next page to see which resolution corresponds to each rotary

switch position (1-F). Select the rotary switch position that corresponds to the native resolution of the display.

2. To use the EDID, set the rotary switch to the position selected in step 1. The switch

clicks as it moves through the positions.

Extender Plus Series • Installation and Operation 8

Rotary Switch

Position

0 User-Recorded EDID 1 800x600 2 1024x768 3 1280x720 4 1280x768 5 1280x800 6 1280x1024 7 1360x768 8 1366x768 9 1400x1050 A 1440x900 B 1600x1200 C 1680x1050 D 1920x1080 E 1920x1200

F N/A

Table 1 — Rotary Switch Position

3. Set the first DIP switch based on the vertical refresh of the native rate of the display

(default is On, 60Hz).

Resolution

Pre-Installation Testing and Troubleshooting

Before mounting the line driver, test the system to make sure that the connections and settings are correct.

1. Apply power to the line driver. The power/signal LED on the line driver lights amber to

indicate that it is receiving power.

2. If the LED does not light, check the wiring at both the line driver and the power supply,

and make sure the power supply is connected to a power source.

If the image does not appear or there is no sound

1. Make sure that all the devices are powered on.

2. Ensure that the connectors are wired correctly at both ends of the cables. Audio

cables must be wired for an unbalanced stereo input signal and for the appropriate (unbalanced or balanced) output signal.

3. If the input is from a laptop computer and no picture appears, use a laptop breakout

cable for the input connection. Check the computer user guide or contact Extron to determine if special commands are required to output video to the external video port. Also, many laptop screens shut off after the external video port is activated.

4. Call the Extron S3 Sales and Technical Support Hotline if the image still does not appear

or there is no sound.

If the image is not displayed correctly

1. If the picture is too bright or too dark, if the edges of the image seem to exceed their

boundaries, or if thin lines and sharp edges look thick and fuzzy, change the gain setting. See the Gain switch, item e on page 6.

2. If the picture appears and is stable, but it has ghosting or blooming, verify that the video

input is properly terminated. If this does not resolve the problem, try using a different input cable. Poor quality or damaged cable can cause ghosting and blooming.

3. If the picture still fails to display correctly, call the Extron S3 Sales and Technical Support

Hotline.

Once the system has been cabled and tested, the line driver can be installed in the wall, furniture, or equipment.

Extender Plus Series • Installation and Operation 9

Mounting

Mounting the Extender Plus AAP

The Extender Plus AAP and any other adapter plates must be attached to a device faceplate or AAP wall plate and cabled before the device or wall plate is installed in a wall or furniture.

1. Before attaching any user-supplied cables, insert the Extender Plus AAP output BNC

connectors and wires through the opening in the front of the wall plate or device faceplate.

ATTENTION: Potential damage to property. Be careful not to damage

connectors while placing the Extender through the opening.

2. Insert the threaded standoffs of the AAP through the holes in the device faceplate or

AAP wall plate.

3. Using the provided #4-40 nuts and captive washers, secure the Extender to the

faceplate or wall plate.

Wall Stud

Screws or Nails

Cable Clamp

Installation Cable

#4-40 Nut w/ Captive Washer

AAP 102

COMPUTER IN

AUDIO IN

EXTENDER AAP Plus

Extender Plus AAP

Figure 4. Mounting the Extender Plus AAP to a Device or Wall Plate

Two Screws Each Side

HSA 822

Front Panel

AUDIO IN

COMPUTER IN

EXTENDER AAP Plus

HSA 822

Extender Plus AAP

#4-40 Nut w/ Captive Washer

Connects to AAP Cable

Figure 5. Mounting the Extender Plus AAP to an HSA Faceplate

Extender Plus Series • Installation and Operation 10

4. Repeat steps 1, 2, and 3 to mount other AAPs. Cover any openings in the faceplate

with blank plates (provided with the faceplate or HSA device).

5. Be sure to include the AAP connectors as part of the installation pretest before final

installation of the faceplate.

For more detailed installation information, see the installation guide shipped with the faceplate or the HSA.

Mounting the Extender Plus D

1. Remove power from the line driver by disconnecting the power supply.

2. Place the Extender Plus D through the opening in the wall or furniture and into the wall

box. Take care not to damage the output cables, which fit behind the line driver at the back of the wall box.

3. Mount the Extender Plus D to the wall box with machine screws as shown in figure 6.

Wall Box

Wall opening

is flush with

edge of box.

AUDIO IN

COMPUTER IN

Extron Extender Plus D

VGA-QXGA Line Driver with Audio

Decora

Wall Plate

Figure 6. Mounting the Extender Plus D to the Wall Box

4. Attach the Decora® wall plate to the Extender Plus D as shown in figure 6.

5. Reconnect the power supply and restore power to the equipment.

Extender Plus Series • Installation and Operation 11

Application Diagrams

Mini HR Cable

Wall Stud

Extender Plus D

AUDIO IN

COMPUTER IN

Projector

Audio

Laptop w/ Audio

Mini HR Cable

Projector

Laptop w/ Audio

LOCAL MONITOR

H. SHIFT

AUTO

POWER

AUDIO

CS PIN 9

COMPUTER IN

AUDIO IN

BUFFERED

INPUT

ID PIN 11 ID PIN 4

EXTENDER AAP Plus

RGB 568

Extender Plus AAP

RGB 468

SVGA Compatible Computer w/ Audio

Extender Plus Series • Installation and Operation 12

Reference

Information

This section contains the following information:

• Part Numbers

• Dimensions

• Template

Part Numbers

Included Parts Part numbers

Extender Plus D (white) 60-1261-22

Extender Plus AAP (black) 60-1262-12

Extender Plus AAP (white) 60-1262-22

Included Parts

This section lists part numbers for each Extender and Extender kit.

Included Parts (Extender Plus D) Part numbers

1 gang mud ring / mounting bracket (black, white)

Decora wall plate, 1 gang, white

12 VDC, 1.0 A external power supply 70-775-01

IEC cord

Extender Plus Series Setup Guide

Included Parts (Extender Plus AAP) Part numbers

12 VDC, 1.0 A external power supply 70-775-01

IEC cord

Extender Plus Series Setup Guide

Accessories

AAP mounting accessories Part numbers

AAP 102 – 2 gang wall plate (black, white)

AAP 104 – 4 gang wall plate (black, white)

60-300-02, -03

60-301-02, -03

Extender Plus Series • Reference Information 13

AAP mounting accessories Part numbers

AAP 201 – half rack wide, 1U high AAP mounting frame (black)

60-302-02

Mud rings/mounting brackets Part numbers

MR 100 – 1-gang modular plastic mud ring (black, white)

MR 300 – 3-gang modular plastic mud ring (black, white)

70-519-12, -13

70-519-32, -33

Extender Plus Series • Reference Information 14

Dimensions

NOTE: The drawings in this section are not full size. Do not scale.

Extender Plus D Dimensions

4.10"

(104.14 mm)

2.70"

(68.6 mm)

0.10" (2.5 mm)

1.35"

(34.3 mm)

Both Ends

2.62"

(66.5 mm)

1.37"

(34.8 mm)

Side View

Extender Plus Series • Reference Information 15

1.29"

(32.8 mm)

Front View

Template

Cut-Out

Extender Plus D Template

NOTE: The drawing below is not full size. Do not scale.

Template for

Extender Plus D

(Front View)

2.79"

(7.09 cm)

Top Panel

1.44"

(36.6 mm)

Location of

4.50"

(11.43 cm)

2.83"

(71.9 mm)

SURFACE

CUT-OUT AREA

FOR

FURNITURE

MOUNT

Extender Plus D

To install an Extender Plus D directly into furniture or wall, cut along this line

Extender Plus Series • Reference Information 16

Extron Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, and Central America:

Extron Electronics 1230 South Lewis Street Anaheim, CA 92805 U.S.A.

Europe and Africa:

Extron Europe Hanzeboulevard 10 3825 PH Amersfoort The Netherlands

Japan:

Extron Electronics, Japan Kyodo Building, 16 Ichibancho Chiyoda-ku, Tokyo 102-0082 Japan

China:

Extron China 686 Ronghua Road Songjiang District Shanghai 201611 China

Asia:

Extron Asia 135 Joo Seng Road, #04-01 PM Industrial Bldg. Singapore 368363

Middle East:

Extron Middle East Dubai Airport Free Zone F12, PO Box 293666 United Arab Emirates, Dubai

Singapore

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions, or if modiﬁcations were made to the product that were not authorized by Extron.

NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return

Authorization) number. This will begin the repair process.

USA: 714.491.1500 or 800.633.9876 Europe: 31.33.453.4040 Asia: 65.6383.4400 Japan: 81.3.3511.7655

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or ﬁtness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

Extron Headquarters

+1.800.633.9876 (Inside USA/Canada Only)

Extron USA - West Extron USA - East +1.714.491.1500 +1.919.850.1000 +1.714.491.1517 FAX +1.919.850.1001 FAX

Extron Europe

+800.3987.6673 (Inside Europe Only)

+31.33.453.4040 +31.33.453.4050 FAX

Extron Asia

+800.7339.8766 (Inside Asia Only)

+65.6383.4400 +65.6383.4664 FAX

Extron Japan

+81.3.3511.7655 +81.3.3511.7656 FAX

Extron China

+4000.398766 Inside China Only

+86.21.3760.1568 +86.21.3760.1566 FAX

Extron Middle East

+971.4.299.1800 +971.4.299.1880 FAX

Extron Korea

+82.2.3444.1571 +82.2.3444.1575 FAX

Extron India

1800.3070.3777 Inside India Only

+91.80.3055.3777 +91.80.3055.3737 FAX

Extron Electronics Extender Plus User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction

• About this Guide

• About the Extender Plus Series VGA Line Drivers

About this Guide

About the Extender Plus Series VGA Line Drivers

Differences between the models

Features

• UL Guidelines

• Installation Instructions

UL Guidelines

Installation Instructions

Preparing the Site and Installing the Wall Box

Front Panel Features and Cabling

Rear Panel Features and Cabling

Features

Cabling

EDID Minder Operation

“Storing a display EDID” below.

Storing a display EDID

Using the pre-programmed Extron EDID

Pre-Installation Testing and Troubleshooting

Mounting

Mounting the Extender Plus AAP

Mounting the Extender Plus D

Application Diagrams

• Part Numbers

Part Numbers

Included Parts Part numbers

Included Parts

Accessories

Dimensions

Template

Extron Warranty
