Extender Wall Mount Series

VGA Line Drivers with Audio for Wall Mount Applications

l in e D ri ve r s

Comm on f eAt ures

•

Inputs: Female 15-pin HD and 3.5 mm mini stereo jack

•

Outputs: Female BNC and captive screw connector

•

300 MHz (-3 dB) RGB video bandwidth

•

Compatible with VGA-QXGA resolutions

• Three-position peaking/gain control helps maintain video signal integrity over
long cable runs

• Active PC audio interfacing converts unbalanced audio to balanced line
level audio

•

Restores low level sync to TTL level

•

ID bits terminated on pins 4 and 11

•

Dual color LED power indicator

•

External universal power supply included, part # 70-055-01

DesC ri Pt io n

The Extron Extender WM Series is a family of one input, one buffered output line drivers for
sending high resolution VGA video and audio signals up to 250 feet (75 meters) through high
quality cable, such as Extron MHR-5 Mini High Resolution Cable.

Extender Series line drivers provide video amplification and peaking to compensate for the
voltage losses and high frequency attenuation that normally occur in long cable runs. A three
position dipswitch lets the installer select the appropriate signal boost for various cable lengths,
providing a more detailed image with greater contrast.

Each model also restores the low level sync voltages found on many laptops to normal TTL
levels. This sync restoration prepares the signals for long cable runs and offers enhanced
compatibility with a wide range of computers, display devices, and cable types.

Active audio buffering allows unbalanced PC audio to be converted to balanced line level stereo
audio, eliminating noise usually associated with unbalanced audio when distributed over long
cable runs.

For simple and versatile connections, video output is on five female BNCs on a three-inch (8 cm)
pigtail, while audio signals are output on a captive screw connector. A 100-240VAC external
power supply is included.

moun ti nG C onfiG ur Ati on s

Extender D

The Extender D mounts in an included Decora®-style wall plate and can be used with or
without a one-gang electrical box.

Extender AAP

The Extender AAP is a stand-alone, double space AAP - Architectural Adapter Plate. Available
in black, white, and RAL9010 white.

Extender WM

The Extender WM can be wall-mounted in a one-gang box and fits flush into a wall, podium,
or table.

Extender WM AAP

The Extender WM AAP is similar to the Extender WM, but has four single space AAP openings.
The Extender WM AAP can be wall-mounted in a three-gang box and fits flush into a wall,
podium, or table.

Extender MK

The Extender MK fits flush within an electrical knock-out switch box, also known as an MK box,
which is manufactured by MK Electric Company and frequently used in the United Kingdom,
Singapore, and Australia. One version includes two faceplates, one black and one white. Another
version is available in RAL9010 white.

507

www.extron.com

© 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice.

USA West

+1.714.491.1500 / +80 0.633.9876
+1.714.491.1517 FAX

USA East

+1.919.86 3.1794 / +80 0.633.9876
+1.919.86 3.1797 F AX

China

+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX

Japan

+81.3. 3511.7655
+81.3. 3511.7656 FAX

Europe

+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X

Dubai

+97 1.4.299 1800
+97 1.4.299 1880 FAX

Asia

+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX

Continued

Extender D

VGA Line Driver with Audio for Decora®-style Wall Plate

uni qu e f eAt ure s

•

Mounts in an included Decora®-style wall plate

•

Decora trim plate included

moDeL version D esCriPti on PArt #

Extender D Decora mount, White - 3" (8 cm) pigtails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-759-22

Extender Wall Mount Series

l in e D ri ve r s

Extender WM

VGA Line Driver with Audio for One-Gang Electrical Wall Box

uni qu e f eAt ure s

•

Wall-mountable in a one-gang box and fits flush into a wall, podium, or table

moDeL version D esCriPti on PArt #

Extender WM Black - 3" (8 cm) pigtails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-398-12

Extender WM White - 3" (8 cm) pigtails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-398-22

Extender AAP

VGA Line Driver with Audio - AAP Version

uni qu e f eAt ure s

•

Installs in products that accept a double space AAP - Architectural Adapter Plate

moDeL version D esCriPti on PArt #

Extender AAP Black - 3" (8 cm) pigtails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70-147-12

Extender AAP White - 3" (8 cm) pigtails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70-147-22

Extender AAP EX Black - 18" (46 cm) extended pigtails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70-147-72

508

China

+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX

Japan

+81.3. 3511.7655
+81.3. 3511.7656 FAX

Europe

+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X

Dubai

+97 1.4.299 1800
+97 1.4.299 1880 FAX

Asia

+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX

China

+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX

Japan

+81.3. 3511.7655
+81.3. 3511.7656 FAX

Europe

+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X

Dubai

+97 1.4.299 1800
+97 1.4.299 1880 FAX

Asia

+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX

Continued

Extender Wall Mount Series Accessories

oPtionAL ACCessor ies moDeL Des CriPtion PAGe PArt #

MR 100 One-Gang Mud Ring, Black . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 821 70-519-12

MR 100 One-Gang Mud Ring, White . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 821 70-519-13

MR 300 Three-Gang Mud Ring, Black . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 821 70-519-32

MR 300 Three-Gang Mud Ring, White. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 821 70-519-33

Extender Wall Mount Series

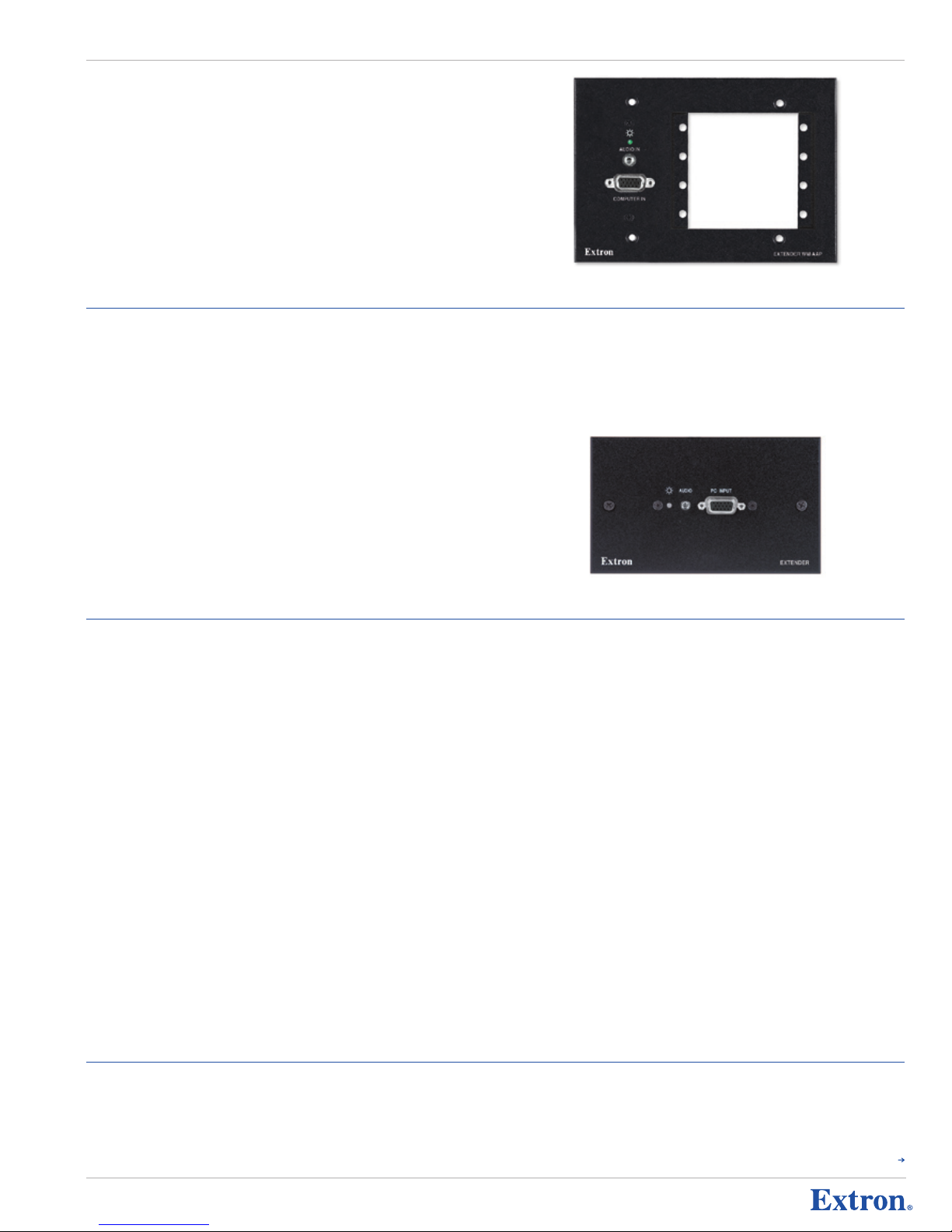

l in e D ri ve r s

Extender WM AAP

VGA Line Driver with Audio with AAP Mounting Frame

uni qu e f eAt ure s

•

Wall-mountable in a three-gang wall box

•

Opening for up to four single space AAP-Architectural Adapter Plates

moDeL version D esCriPti on PArt #

Extender WM AAP Black - 3" (8 cm) pigtails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-405-12

Extender WM AAP White - 3" (8 cm) pigtails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-405-22

moDeL version D esCriPti on PArt #

Extender MK MK - Black & White - 3" (8 cm) pigtails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-406-12

Extender MK

VGA Line Driver with Audio For Electric Wall Boxes

uni qu e f eAt ure s

•

Includes black and white faceplates

•

Designed for mounting in a two-gang MK Electric type British Standard electrical

wall box

Exclud es use w/ “Ex tender D” model & “Ex tender MK” mo del

509

www.extron.com

© 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice.

USA West

+1.714.491.1500 / +80 0.633.9876
+1.714.491.1517 FAX

USA East

+1.919.86 3.1794 / +80 0.633.9876
+1.919.86 3.1797 F AX

China

+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX

Japan

+81.3. 3511.7655
+81.3. 3511.7656 FAX

Europe

+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X

Dubai

+97 1.4.299 1800
+97 1.4.299 1880 FAX

Asia

+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX

sPeC if iC Ati ons

viD eo

Gain .. .. . .. .. .. . .. .. . .. .. . .. .. . .. .. . 0 dB, 0.6 dB, 1.2 dB, selectable

(when input is 0.7 Vp-p, output is 0.7 V, 0.75 V, 0.8 Vp-p)

Bandwidth .. .. . .. .. . .. .. . .. .. . .. .. 300 MHz (-3 dB)

NOTE: ID bits are terminated (pins 4 and 11).

viD eo in Pu t

Number / Signal type . .. .. . .. .. . 1 VGA–QXGA RGBHV, RGBS, RGsB, RsGsBs, component video,

HDTV component video

Connectors . .. .. . .. .. . .. .. . .. .. .. . (1) 15-pin HD female

Nominal level . .. . .. .. . .. .. . .. .. . . 0.7 Vp-p for RGB

Minimum / Maximum levels .. . Analog: 0.3 V to 1.5 Vp-p with no offset at unity gain

Impedance .. .. . .. .. . .. .. . .. .. . .. .. 75 ohms

Horizontal frequency.. . .. .. . .. .. 15 kHz to 135 kHz

Vertical frequency .. . .. .. .. . .. .. . 30 Hz to 170 Hz

Input coupling .. .. . .. .. . .. .. . .. .. . DC

viD eo ou tP ut

Number / Signal type . .. .. . .. .. . 1 VGA–QXGA RGBHV, RGBS, RGsB, RsGsBs, component video,

HDTV component video

Connectors . .. .. . .. .. . .. .. . .. .. .. . 5 BNC female

Nominal level . .. . .. .. . .. .. . .. .. . . 0.7 Vp-p for RGB

Minimum / Maximum levels .. . Analog: 0.3 V to 1.5 Vp-p with no offset at unity gain

Impedance .. .. . .. .. . .. .. . .. .. . .. .. 75 ohms

DC offset .. .. . .. .. . .. .. . .. .. . .. .. . . ±5 mV with input at 0 offset

Return loss . .. .. . .. .. . .. .. . .. .. . .. <-35 dB @ 5 MHz

syn C

Input type .. .. . .. .. .. . .. .. . .. .. . .. . RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level component video sync

Output type .. .. .. . .. .. . .. .. . .. .. . . RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level component video sync

Input level . .. . .. .. . .. .. . .. .. . .. .. . 2.0 V to 5.0 Vp-p

Output level . .. . .. .. . .. .. . .. .. . .. . TTL: 5 Vp-p, unterminated

Input impedance . .. . .. .. . .. .. . .. 510 ohms

Output impedance . .. . .. .. . .. .. . 75 ohms

Max. propagation delay .. .. . .. . 18.8 ns

Max. Rise / Fall time . .. .. .. . .. .. 4 ns

Polarity .. .. . .. .. . .. .. . .. .. . .. .. . .. . Positive or negative (follows input)

AuD io

Gain .. .. . .. .. .. . .. .. . .. .. . .. .. . .. .. . Unbalanced output: 0 dB; balanced output: +6 dB

Frequency response .. .. . .. .. . .. 20 Hz to 20 kHz, ±0.5 dB

THD + Noise .. . .. .. . .. .. . .. .. . .. .. 0.025% @ 1 kHz, 0.020% @ 20 kHz at nominal level

S/N .. .. . .. .. . .. .. .. . .. .. . .. .. . .. .. . . >90 dB at rated maximum output

Stereo channel separation . .. . >75 dB @ 20 Hz to 20 kHz

AuD io in Pu t

Number / Signal type . .. .. . .. .. . 1 stereo, unbalanced

Connectors . .. .. . .. .. . .. .. . .. .. .. . (1) 3.5 mm mini stereo jack

Impedance .. .. . .. .. . .. .. . .. .. . .. .. >10k ohms unbalanced, DC coupled

Nominal level . .. . .. .. . .. .. . .. .. . . -10 dBV (316 mVrms)

Maximum level . .. . .. .. .. . .. .. . .. +6 dBV, (unbalanced) at 1% THD+N

AuD io ou tP ut

Number / Signal type . .. .. . .. .. . 1 stereo, balanced/unbalanced

Connectors

Extender WM, Extender WM AAP,
Extender D

. .. .. . .. .. . .. .. . .. .. . .. .. (1) 3.5 mm direct insertion captive screw connector, 5 pole

Extender AAP, Extender MK

.. . .. . (1) 3.5 mm captive screw connector, 5 pole

Impedance .. .. . .. .. . .. .. . .. .. . .. .. 50 ohms unbalanced, 100 ohms balanced

Nominal level . .. . .. .. . .. .. . .. .. . . -2 dBu, balanced; -10 dBV unbalanced

Maximum level (Hi-Z) .. . .. .. . .. . +14 dBu, balanced, at 1% THD+N

Maximum level (600 ohm) . .. . . +6 dBm, balanced, at 1% THD+N

NOTE: 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu.

Gen er AL

External power supply . .. . .. .. . 100 VAC to 240 VAC, 50/60 Hz, external, universal; to 12 VDC,

1 A (max.), regulated

Power input requirements .. . .. 12 VDC, 0.2 A

Temperature / Humidity .. .. . .. . Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Rack mount

Extender AAP

. .. .. . .. .. . .. .. . .. .. . . No, but wall or furniture mountable with optional AAP mounting faceplates

All other models

.. . .. .. . .. .. . .. .. . . No, but wall or furniture mountable in a standard U.S. electrical wall box

Enclosure type .. .. .. . .. .. . .. .. . .. Metal (Extender D has a metal faceplate and a plastic Decora wall plate.)

Enclosure dimensions

Extender AAP

Faceplate . .. .. . .. .. . .. .. . .. .. . .. .. . 1.4" H x 3.5" W x 0.1" D (3.6 cm H x 8.9 cm W x 0.3 cm D)

(double space high AAP plate)

Buffer. .. .. . .. .. . .. .. .. . .. .. . .. .. . .. . 1.1" H* x 2.75" W x 1.2" D (2.8 cm H* x 7.0 cm W x 3.0 cm D)

(*Height excludes BNC connectors and cables.)

Extender WM

Faceplate . .. .. . .. .. . .. .. . .. .. . .. .. . 4.5" H x 2.8" W x 0.1" D (11.4 cm H x 7.1 cm W x 0.3 cm D) (1 gang)

Buffer. .. .. . .. .. . .. .. .. . .. .. . .. .. . .. . 2.7" H x 1.8" W x 0.75" D* (6.9 cm H x 4.6 cm W x 1.9 cm D*)

(*Depth excludes BNC connectors and cables.)

Extender WM AAP

Faceplate . .. .. . .. .. . .. .. . .. .. . .. .. . 4.5" H x 6.4" W x 0.1" D (11.4 cm H x 16.3 cm W x 0.3 cm D) (3 gang)

Buffer. .. .. . .. .. . .. .. .. . .. .. . .. .. . .. . 2.7" H x 1.8" W x 0.75" D* (6.9 cm H x 4.6 cm W x 1.9 cm D*)

(*Depth excludes BNC connectors and cables.)

Extender MK

Faceplate . .. .. . .. .. . .. .. . .. .. . .. .. . 3.4" H x 5.7" W (8.6 cm H x 14.4 cm W) (UK knockout box size)

Buffer. .. .. . .. .. . .. .. .. . .. .. . .. .. . .. . 1.1" H* x 2.75" W x 1.2" D (2.8 cm H* x 7.0 cm W x 3.0 cm D)

(*Height excludes BNC connectors and cables.)

Extender D

Faceplate . .. .. . .. .. . .. .. . .. .. . .. .. . 2.6" H* x 1.3" W x 0.1" D (6.6 cm H* x 3.3 cm W x 0.3 cm D) (Fits the opening

in a 1 gang Decora faceplate. *Height is 3.8” [9.7 cm] including mounting tabs.)

Buffer. .. .. . .. .. . .. .. .. . .. .. . .. .. . .. . 2.7" H x 1.8" W x 0.75" D* (6.9 cm H x 4.6 cm W x 1.9 cm D*)

(*Depth excludes BNC connectors and cables.)

Product weight

Extender AAP

. .. .. . .. .. . .. .. . .. .. . . 0.2 lbs (0.1 kg)

Extender WM

.. . .. .. . .. .. . .. .. . .. .. 0.2 lbs (0.1 kg)

Extender WM AAP

.. .. . .. .. . .. .. . .. 0.4 lbs (0.2 kg)

Extender MK

. .. .. . .. .. .. . .. .. . .. .. . 0.5 lbs (0.3 kg)

Extender D

. .. .. . .. .. . .. .. . .. .. . .. .. 0.2 lbs (0.1 kg)

Shipping weight

Extender AAP

. .. .. . .. .. . .. .. . .. .. . . 2 lb (1 kg)

All other models

.. . .. .. . .. .. . .. .. . . 3 lbs (2 kg)

Vibration . .. .. . .. .. . .. .. . .. .. . .. .. . ISTA 1A in carton (International Safe Transit Association)

Listings .. . .. .. . .. .. . .. .. . .. .. . .. .. . UL, CUL

Compliances . .. .. . .. .. . .. .. . .. .. . CE, FCC Class A, VCCI, AS/NZS, ICES

MTBF . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. 30,000 hours

Warranty .. . .. .. . .. .. .. . .. .. . .. .. . . 3 years parts and labor

NOTE: All nominal levels are at ±10%. Specifications are subject to change without notice.

Extender Wall Mount Series

l in e D ri ve r s

510
