MPA 152 Plus

ENERGY STAR® Qualiﬁed Stereo Mini Power Ampliﬁer

User Guide

Audio

68-1320-03 Rev. A

11 13

Safety Instructions

Safety Instructions • English

WARNING: This symbol, D, when used on the product, is intended

to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.

ATTENTION: This symbol, I, when used on the product, is

intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide, part number 68-290-01, on the Extron website, www.extron.com.

Instructions de sécurité • Français

AVERTISSEMENT: Ce pictogramme, D, lorsqu’il est utilisé sur

le produit, signale à l’utilisateur la présence à l’intérieur du boîtier du produit d’une tension électrique dangereuse susceptible de provoquer un choc électrique.

ATTENTION: Ce pictogramme, I, lorsqu’il est utilisé sur le

produit, signale à l’utilisateur des instructions d’utilisation ou de maintenance importantes qui se trouvent dans la documentation fournie avec le matériel.

Pour en savoir plus sur les règles de sécurité, la conformité à la réglementation, la compatibilité EMI/EMF, l’accessibilité, et autres sujets connexes, lisez les informations de sécurité et de conformité Extron, réf. 68-290-01, sur le site Extron, www.extron.com.

Sicherheitsanweisungen • Deutsch

WARNUNG: Dieses Symbol D auf dem Produkt soll den Benutzer

darauf aufmerksam machen, dass im Inneren des Gehäuses dieses Produktes gefährliche Spannungen herrschen, die nicht isoliert sind und die einen elektrischen Schlag verursachen können.

Инструкция по технике безопасности • Русский

ПРЕДУПРЕЖДЕНИЕ: Данный символ, D, если указан

на продукте, предупреждает пользователя о наличии неизолированного опасного напряжения внутри корпуса продукта, которое может привести к поражению электрическим током.

ВНИМАНИЕ: Данный символ, I, если указан на продукте,

предупреждает пользователя о наличии важных инструкций по эксплуатации и обслуживанию в руководстве, прилагаемом к данному оборудованию.

Для получения информации о правилах техники безопасности, соблюдении нормативных требований, электромагнитной совместимости (ЭМП/ЭДС), возможности доступа и других вопросах см. руководство по безопасности и соблюдению нормативных требований Extron на сайте Extron: www.extron.com, номер по каталогу - 68-290-01.

Chinese Simplified（简体中文）

警告：D产品上的这个标志意在警告用户该产品机壳内有暴露的危险

电压，有触电危险。

注意：I 产品上的这个标志意在提示用户设备随附的用户手册中有

重要的操作和维护(维修）说明。

关于我们产品的安全指南、遵循的规范、使用的特性等相关内容，敬请访问 Extron 网站 www.extron.com，参见 Extron 安全规范指南，产品编号 68-290-01。

EMI/EMF 的兼容性、无障碍

Chinese Traditional（繁體中文）

警告: D 若產品上使用此符號，是為了提醒使用者，產品機殼內存在著

可能會導致觸電之風險的未絕緣危險電壓。

VORSICHT: Dieses Symbol I auf dem Produkt soll dem Benutzer in

der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Weitere Informationen über die Sicherheitsrichtlinien, Produkthandhabung, EMI/EMF-Kompatibilität, Zugänglichkeit und verwandte Themen finden Sie in den Extron-Richtlinien für Sicherheit und Handhabung (Artikelnummer 68-290-01) auf der Extron-Website, www.extron.com.

Instrucciones de seguridad • Español

ADVERTENCIA: Este símbolo, D, cuando se utiliza en el producto,

avisa al usuario de la presencia de voltaje peligroso sin aislar dentro del producto, lo que puede representar un riesgo de descarga eléctrica.

ATENCIÓN: Este símbolo, I, cuando se utiliza en el producto, avisa

al usuario de la presencia de importantes instrucciones de uso y mantenimiento recogidas en la documentación proporcionada con el equipo.

Para obtener información sobre directrices de seguridad, cumplimiento de normativas, compatibilidad electromagnética, accesibilidad y temas relacionados, consulte la Guía de cumplimiento de normativas y seguridad de Extron, referencia 68-290-01, en el sitio Web de Extron,

www.extron.com.

注意I 若產品上使用此符號，是為了提醒使用者，設備隨附的用戶手冊中有重要

的操作和維護（維修）説明。

有關安全性指導方針、法規遵守、EMI/EMF 相容性、存取範圍和相關主題的詳細資訊，請瀏覽 Extron 網站：www.extron.com，然後參閱《Extron 安全性與法規遵守手冊》，準則編號 68-290-01。

Japanese

警告: この記号 D が製品上に表示されている場合は、筐体内に絶縁されて

いない高電圧が流れ、感電の危険があることを示しています。

注意:この記号 I が製品上に表示されている場合は、本機の取扱説明書に記載されて

いる重要な操作と保守(整備)の指示についてユーザーの注意を喚起するものです。

安全上のご注意、法令遵守、EMI/EMF適合性、その他の関連項目については、エクストロンのウェブサイト www.extron.comより

『Extron Safety and Regulatory Compliance Guide』 (P/N 68-290-01) をご覧く

ださい。

Korean

경고: 이 기호 D, 가 제품에 사용될 경우, 제품의 인클로저 내에 있는

접지되지 않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을 경고합니다.

주의: 이 기호 I, 가 제품에 사용될 경우, 장비와 함께 제공된 책자에 나와

있는 주요 운영 및 유지보수(정비) 지침을 경고합니다.

안전 가이드라인, 규제 준수, EMI/EMF 호환성, 접근성, 그리고 관련 항목에 대한 자세한 내용은 Extron 웹 사이트(www.extron.com)의 Extron 안전 및 규제 준수 안내서, 68-290- 01 조항을 참조하십시오.

FCC Class B Notice

ClassB digital device, pursuant to part15 of the FCC rules. These limits provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This equipment has been tested and found to comply with the limits for a

NOTE: For more information on safety guidelines, regulatory compliances, EMI/

EMF compatibility, accessibility, and related topics, see the Extron Safety and

Regulatory Compliance Guide on the Extron website.

Trademarks

All trademarks mentioned in this guide are the properties of their respective owners.

The following registered trademarks(®), registered service marks(SM), and trademarks(TM) are the property of RGBSystems, Inc. or Extron Electronics:

Registered Trademarks (®)

AVTrac, Cable Cubby, CrossPoint, eBUS, EDID Manager, EDID Minder, Extron, Flat Field, GlobalViewer, Hideaway, Inline, IPIntercom, IPLink, Key Minder, LockIt, MediaLink, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, SoundField, SpeedMount, SpeedSwitch, System Integrator, TeamWork, TouchLink, V‑Lock, VersaTools, VN‑Matrix, VoiceLift, WallVault, WindoWall, XTP and XTP Systems

Registered Service Mark(

AAP, AFL (Accu‑Rate Frame Lock), ADSP (Advanced Digital Sync Processing), AIS (Advanced Instruction Set), Auto‑Image, CDRS (Class D Ripple Suppression), DDSP (Digital Display Sync Processing), DMI (Dynamic Motion Interpolation), DriverConfigurator, DSPConfigurator, DSVP (Digital Sync Validation Processing), FastBite, FOXBOX, IP Intercom HelpDesk, MAAP, MicroDigital, ProDSP, QS‑FPC (QuickSwitch Front Panel Controller), Scope‑Trigger, SIS, Simple Instruction Set, Skew‑Free, SpeedNav, Triple‑Action Switching, XTRA, ZipCaddy, ZipClip

) : S3 Service Support Solutions

Trademarks (

)

Conventions Used in this Guide

Notiﬁcations the following are used:

ATTENTION: Attention indicates a situation that may damage or destroy the product

or associated equipment.

NOTE: A note draws attention to important information.

Speciﬁcations Availability

Product speciﬁcations are available on the Extron website, www.extron.com.

Introduction............................................................ 1

Important Safety Instructions .............................. 1

About the MPA 152 Plus .................................... 2

MPA 152 Plus Features ...................................... 2

Panels and Cabling .............................................. 4

MPA 152 Plus Rear Panel Features .................... 4

Power Connector ........................................... 4

Audio Inputs ................................................... 6

Remote Control .............................................. 7

Audio Output .................................................. 9

Setup and Operation .......................................... 10

Front Panel Features and Operation ................. 10

Setting Input Level ........................................ 10

Setting Bass and Treble ................................ 11

Remote Control Options ................................... 11

Defeating the Auto Power‑down Timer ............. 12

Troubleshooting ................................................ 13

Ampliﬁer Fails to Exit Standby Mode

Promptly ...................................................... 13

Ampliﬁer Enters Standby Mode Too Early ...... 13

Mounting ............................................................... 14

Rack Mounting ................................................. 14

UL Guidelines for Rack Mounting .................. 14

Rack Mounting Procedure ............................ 15

Back of the Rack Mounting .......................... 15

Other Mounting Options ................................... 15

MPA 152 Plus • Contents v

MPA 152 Plus • Contents vi

Introduction

This manual contains information about the Extron MPA 152 Plus mini power ampliﬁer with instructions for experienced installers on how to install, conﬁgure, and operate the equipment. Unless otherwise speciﬁed, in this manual “ampliﬁer” or “MPA” refer to the MPA152 Plus.

This section provides the following information:

• Important Safety Instructions

• About the MPA 152 Plus

• MPA 152 Plus Features

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the instructions of the

manufacturer.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding‑type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for safety. If the provided plug does not ﬁt into the outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments or accessories speciﬁed by the manufacturer.

12.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualiﬁed service personnel. Servicing is required when the

apparatus has been damaged in any way, such as if the power‑supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip‑over.

MPA 152 Plus • Introduction 1

About the MPA 152 Plus

Speakers

The MPA 152 Plus is an ENERGY STAR qualiﬁed ampliﬁer with an Extron exclusive, highly efﬁcient, advanced Class D ampliﬁer design. It also features patented CDRS (Class D Ripple Suppression) technology that provides a smooth, clean audio waveform and an improvement in signal ﬁdelity over conventional Class D ampliﬁers. The high efﬁciency design generates very little heat and allows the ampliﬁer to be fanless and operated in environments with little or no ventilation.

This stereo integrated mini power ampliﬁer delivers up to 15watts(rms) per channel stereo or dual mono into a 4 ohm sound system, or 8watts(rms)per channel into an 8ohm system. This model features a 90 dB signal‑to‑noise ratio with 0.1% THD+N, offering exceptional performance for speaker systems requiring compact, economical, audio ampliﬁcation.

Front panel controls allow easy adjustment of bass and treble volume and input level.

The quarter rack size allows a variety of mounting options. The unit complies with UL 2043 for smoke and heat release for in‑the‑ceiling installations. It can be installed in the plenum space of the ceiling. Alternatively, the units can be mounted on a tabletop, in a rack, under a desk, or in a projector mounting kit.

MPA 152 Plus Features

VID

DISPLAY

VID

VOLUME


ONFIG

MLC 104 IP PLUS

Extron

Extron MLC 104 IP Plus

MediaLink Controller with IP Link

Laptop

INPUTS

MPA 152 Plus

POWER 12V

0.7A MAX

Extron MPA 152 Plus

Mini Power Amplier

Projector

RS-232 or IR Projector control

Audio

OUTPUT REMOTE

/ Ω 8

CLASS 2 WIRING

50mA

VC G

10V

Audio

Extron SM 3

Full-range

Audio

S-Video

RGBHV

Video

DVD/VCR Combo

Figure 1. Typical Application for the MPA 152 Plus

30 watts (rms) output power — Delivers up to 15watts(rms) per channel, stereo or dual mono, into a 4 ohm speaker system or up to 8watts(rms) per channel into an 8ohm system. Provides signiﬁcant audio output for small integration projects with moderate sound system needs.

Improved signal-to-noise ratio — The 90 dB unweighted signal‑to‑noise ratio allows very low‑noise operation, ensures quiet, hiss‑free ampliﬁcation, and maintains audio signal integrity.

ENERGY STAR qualified amplifier — The MPA 152 Plus conserves energy and reduces operating costs.

MPA 152 Plus • Introduction 2

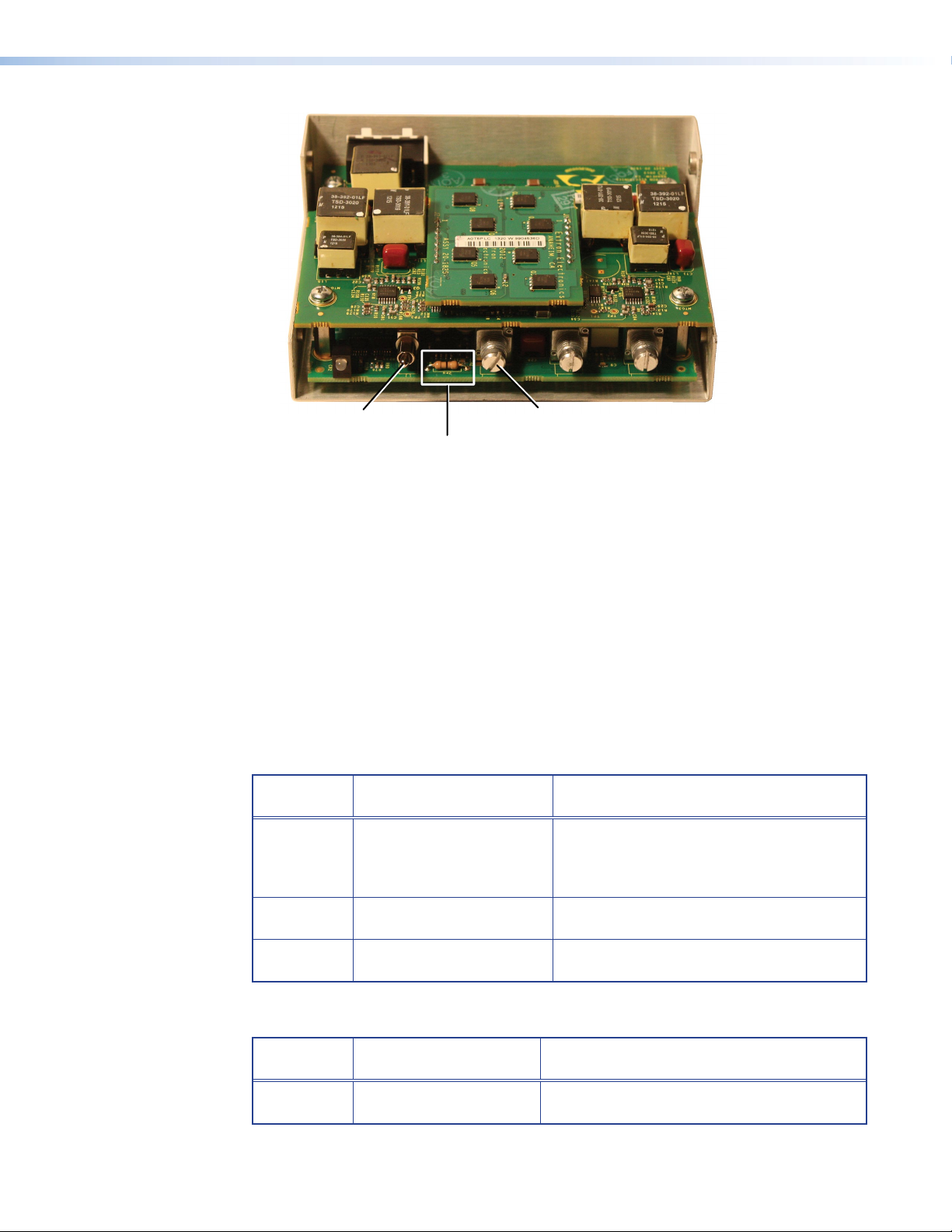

Defeatable auto power-down timer for 24/7 applications — Ensures that the

ampliﬁer is always active for 24/7 operation in critical applications, while still retaining the ENERGYSTAR qualiﬁcation.

Extron patented CDRS - Class D Ripple Suppression — CDRS is an Extron patented technology that provides a smooth, clean audio waveform and an improvement in signal ﬁdelity over conventional Class D ampliﬁer designs. CDRS eliminates the high frequency switching ripple characteristic of Class D ampliﬁers, a source of RF emissions which can interfere with sensitive AV equipment such as wireless microphones.

Front panel bass, treble, and input level controls — These are ﬂush mounted and detented. They allow quick attenuation of input signal and ±10 dB bass and treble shelving controls.

Stereo or Dual Mono toggle switch — Allows the user to choose between stereo output or to sum the left and right inputs and produce dual mono outputs (see ﬁgure7 on page9). This eliminates the need for external summing products in monoaural installations.

UL 2043 plenum rated — The MPA 152 Plus complies with UL 2043 for smoke and heat release for installation within a plenum airspace above a drop ceiling (power supply excluded). Above‑the‑ceiling placement conceals the ampliﬁer to prevent theft, and is convenient for installing equipment when space inside the room is limited.

Three audio inputs — Accept balanced or unbalanced stereo line‑level signals on a captive screw connector and unbalanced stereo line‑level signals on an RCA stereo pair, and a 3.5 mm stereo mini jack. This ensures the ampliﬁer can be easily integrated with a wide variety of sources and projectors.

The three stereo inputs are individually buffered and can be connected to three separate sources at the same time without altering performance.

Auto power-down with fast power-up — The MPA 152 Plus meets ENERGY STAR qualiﬁcation requirements with an auto power‑down feature that automatically places the ampliﬁer into standby after 25 minutes of inactivity, dramatically reducing power consumption. It quickly returns to full power status in less than one second upon signal detection. This feature can be defeated to allow for 24/7 operation.

Quick-plug speaker outputs — Speaker output is on a screw‑lock captive screw connector for quick installation.

Volume and mute remote control — A rear panel, three‑pin captive screw remote input connector allows remote adjustment of volume and muting.

Always-on clip limiting — Reduces gain automatically to prevent ampliﬁer clipping.

Compact size — The ampliﬁers are housed in a 1U high, 3 inch deep, quarter rack wide

metal enclosure, which offers ﬂexible mounting options.

MPA 152 Plus • Introduction 3

Panels and Cabling

This section discusses the MPA 152 Plus rear panel features and cabling.

MPA 152 Plus Rear Panel Features

The rear panel of the MPA 152 Plus (shown in ﬁgure 2 below) allows the user to connect

power (see below), audio input (see page 6), remote control (see page7), and audio output (see page9).

MPA 152 Plus

0.7A MAX

Figure 2. MPA 152 Plus Rear Panel Features

Power Connector

Power connector — The MPA 152 Plus ships with the Extron 24 watt PS 1220

desktop power supply.

ATTENTION: When the PS 1220 power supply is connected to the

Connect one end of the DC power cord to one of the two pole, 3.5 mm captive screw outlets on the power supply. Connect the other end into the power receptacle on the rear panel of the amplifier, as shown in figure 3 on the following page. The power cord connectors are correctly wired when shipped.

OUTPUT REMOTE

4Ω8

CLASS 2

INPUTS

POWER 12V

1 2 3 4 5 6

WIRING

VCG

10V 50mA

MPA152Plus, it must not be shared with any other devices.

MPA 152 Plus • Panels and Cabling 4

PS 1220

A 152 Plus

Amplier

POWER 12V

0.7A MAX

DC Power Cord Captive Screw Connector

Power Receptacle

Power Supply

Output Cord

Power Supply

AC Power Cord

DO NOT USE

DC Power Outputs

Captive Scr Connector

Wrap

Tie

Figure 3. Power Connector

ATTENTION:

• Always use a power supply supplied by or specified by Extron. Use of an

unauthorized power supply voids all regulatory compliance certification and may cause damage to the supply and the end product.

• The amplifier is suitable for use in environmental air space in accordance

with Section300.22.C of the National Electrical Code, and Sections 2‑128, 12‑010(3) and 12‑100 of the Canadian Electrical Code, Part 1, C22.1.

• Unless otherwise stated, the AC/DC adapters are not suitable for use in air

handling spaces or in wall cavities. The power supply is to be located within the same vicinity as the Extron AV processing equipment in an ordinary location, Pollution Degree 2, secured to the equipment rack within the dedicated closet, podium, or desk.

• Although the amplifier is plenum rated, the power supply provided with it

is not. The power supply must not be placed in the plenum space. Cables to and from the amplifier must also be plenum rated. The DC power cord provided with the unit is not plenum rated.

• The installation shall be in accordance with the applicable provisions of

National Electrical Code ANSI/NFPA 70, article 725 and the Canadian Electrical Code part1, section 16.

• The power supply shall not be permanently fixed to building structure or

similar structure.

• The length of the exposed wires in the stripping process is critical. The ideal

length is 3/16 inches (5 mm). Any longer and the exposed wires may touch, causing a short circuit between them. Any shorter and the wires can be easily pulled out even if tightly fastened by the captive screws.

NOTE: Do not tin the wires. Tinned wire does not hold its shape and can become

loose over time.

MPA 152 Plus • Panels and Cabling 5

Audio Inputs

Tip (+)

RCA Connector

Tip (L)

3.5 mm TRS Connector

Slee

Balanced Mono Input

Unbalanced Mono Input

Slee

Use the rear panel receptacles (see ﬁgure 4) to connect audio sources to the ampliﬁer. Wire the connectors as shown below.

INPUTS

2 43

Figure 4. Audio Inputs

RCA unbalanced stereo input connectors — These

receptacles accept unbalanced, line level audio signals. The input can be stereo, using two RCA connectors, or mono, using a single RCAconnector plugged into the left receptacle.

Sleeve ( )

If unused, the receptacles automatically terminate to lower the noise floor.

3.5 mm unbalanced stereo input jack — This input also

Ring (R)

accepts unbalanced, line level audio signals through a 3.5 mm tip‑ring‑sleeve (TRS) stereo connector. If unused, the receptacle automatically terminates to lower the noise ﬂoor.

Sleeve ( )

Captive screw balanced

or unbalanced audio input connector — This 5‑pole 3.5 mm

Tip

Ring

Sleeves

Tip

Ring

captive screw receptacle accepts line level, balanced or unbalanced, mono or stereo audio signals.

See the attention (on page 5) and

note (on page5) for important

Unbalanced Stereo Input

Tip

information about connecting wires to

Balanced Stereo Input

Tip

Ring

Sleeve

captive screw connectors.

Depending on the position of the front panel toggle switch (see figure8 on page 10), the right and left channels may be output as a stereo signal or as a dual mono signal. See Audio Output on page 9 for more information.

MPA 152 Plus • Panels and Cabling 6

Remote Control

Ground (Pin 3)

V 10k ohm

REMOTE

Remote input connector — This 3‑pin, captive screw port allows

Wiring for remote control

Options for remote control include the Extron VC50, VCM100AAP, VCM100MAAP, VCM200 series, and MLAVC10 Plus. Third party 10k potentiometer volume controllers can also be connected to this port.

Figure 5 and the instructions below show the wiring for the VCM 100 MAAP. Wiring other remote control connectors is similar.

an audio controller to control volume and mute levels remotely. See

Remote Control Options on page 11 if using a MediaLink controller.

REMOTE

VCG

10 V (Pin 1)

10V 50mA

VCG

10V50mA

olume Pot

2k ohms

Mute Switch

Vol/Mute (Pin 2)

Figure 5. Remote Control Wiring

• Pin 1 is for 10 VDC reference voltage output.

• Pin 2 (C) has two functions:

• Volume control: it can be used as a variable voltage input between 0 and 10 VDC,

with 0 V giving full attenuation and 10 V giving maximum volume.

• Mute: it can be used for remote control muting. Sound is muted while this pin is

shorted to ground.

• Pin 3 is for the ground connection.

NOTE: All nominal levels are at ±10%.

Controlling multiple ampliﬁers with one volume controller

Several MPA 152 Plus units can be daisy‑chained so that one volume controller can simultaneously regulate the volume of all the amplifiers.

NOTES:

• As additional amplifiers are added to the daisy chain, the sensitivity of the

volume potentiometer changes. The maximum volume level (fully clockwise) is not affected. However the effectiveness of the minimum volume level (fully counterclockwise) in reducing the volume to inaudible levels decreases as more amplifiers are added to the daisy chain.

• When more than two amplifiers are attached to the chain, sound may begin

to be heard even if the levels have been set to their lowest. The muting of the output however can be remedied with a contact closure button attached between the C (volume or mute) and G (ground) pins of the first amplifier in the chain.

MPA 152 Plus • Panels and Cabling 7

To regulate multiple ampliﬁers with a single volume controller, follow these instructions:

10V 50m

10V 50mA

VOL/MUTE

Ext MP Daisy Chain

1. Attach all three pins of the volume controller to the corresponding pins on the first

MPA152Plus unit only:

• Ground ( ) to ground (G)

• Vol/Mute to C

• 10 V to V.

2. Use jumper wires to connect the C (Volume and Mute) pins of the ﬁrst ampliﬁer and

each successive ampliﬁer.

3. Use jumper wires to connect the ground pins of the ﬁrst ampliﬁer and each successive

ampliﬁer.

Extron

10V

VCM 100 AAP

ron

A 152 Plus

VCG

Figure 6. Regulating Multiple Amplifiers with a Single Volume Controller

NOTE: The 10V pin of the volume controller connects to the first MPA 152 Plus

only. There are no jumper wires linking it to subsequent amplifiers.

MPA 152 Plus • Panels and Cabling 8

Audio Output

Captive

Stereo/Dual Mono Switch

OUTPUT

Speaker receptacle — This 4‑pole, 5 mm screw lock

captive screw receptacle is used to connect the ampliﬁer to the speakers.

With an 8 ohm load, the amplifier produces up to 8watts per channel. With a 4 ohm load, the amplifier produces up

4Ω8

CLASS 2

WIRING

to 15watts per channel. See the attention (page 5) and note (page 5) for important information about

connecting wires to captive screw connectors.

ATTENTION: Do not short the + and – outputs to each other, as this will damage

the amplifier.

Left

Right

Screw

RCA

TRS

Captive

Screw

RCA

TRS

Stereo

Dual Mono

Stereo

Amp Stage

Figure 7. MPA 152 Plus Summing Diagram

Signal ﬂow is as follows:

1. The MPA 152 Plus sums and weights the left unbalanced signals from the TRS and

RCA receptacles. This summed, unbalanced signal is then summed with the left balanced signal from the captive screw receptacle.

2. The right channel is handled in the same way.

3. The left and right channels are then sent to the output ampliﬁers in one of two ways,

depending on how the front panel switch is set.

• Stereo: The left and right channels are sent to the left and right output amplifers

respectively.

• Dual Mono: The left and right channels are summed and then the resulting mono is

fed to both of the output ampliﬁers.

The captive screw, RCA, and TRS inputs are buffered.

MPA 152 Plus • Panels and Cabling 9

Setup and Operation

This section discusses:

• Front Panel Features and Operation

• Remote Control Options

• Defeating the Auto Power-down Timer

• Troubleshooting

Front Panel Features and Operation

This section describes how conﬁgure the MPA 152 Plus, using the front panel controls and how to set up the remote control options.

Figure 8. MPA 152 Plus Front Panel

Power LED — The LED lights green when the MPA 152 Plus unit is receiving power

and active. It lights amber when the unit is powered down (after 25 minutes of inactivity).

Stereo or Dual Mono toggle switch — Allows the user to choose between stereo

output for stereo applications (default) or dual mono output for mono applications.

Level, Bass, and Treble potentiometers — Three front panel potentiometers are

used to optimize input level, bass, and treble settings.

Setting Input Level

Adjust the MPA 152 Plus input level as follows:

1. Unplug the Remote plug from the unit.

2. Set the volume of the audio source to its minimum level.

3. Turn the Level potentiometer fully counterclockwise to its minimum setting.

4. Set the volume of the audio source to its maximum level. No sound should come out.

5. Slowly increase the MPA 152 Plus level by rotating the Level potentiometer clockwise

until sound distortion starts. Lower the level slightly until the distortion disappears. At this setting, whatever the volume setting of the audio source, no clipping will occur.

STEREO

DUAL MONO

BASSLEVEL TREBLE

MPA 152 Plus

MINI POWER AMPLIFIER

MPA 152 Plus • Setup and Operation 10

Setting Bass and Treble

oller

Adjust the MPA 152 Plus bass and treble as follows:

1. Use the Bass potentiometer to increase or decrease the bass shelving ±10 dB at 80 Hz

2. Use the Treble potentiometer to increase or decrease the treble shelving ±10 dB at

Remote Control Options

and below.

10kHz and above.

NOTE: Turning the Bass or Treble potentiometers counterclockwise will decrease the

output at the specified frequencies. Turning the potentiometers clockwise will increase the output. When the potentiometer is in the center, flat response is achieved.

8 ohm Ceiling Speakers in Parallel

MUTE

VOLUME

VCM 100 AAP

Extron VCM 100 AAP

Volume/Mute Contr

VCR Composite Audio RCA

PROJECTOR

OFF

VOLUME

Extron

MLC 104 IP

Controller

DVD S-video Audio RCA

CONFIG

MLC 104 IP

ComLink

VGA w/ Audio Cable

INPUTS

MPA 152 Plus

POWER 12V

0.7A MAX

Variable Audio Output

Projector

4 /

8 CLASS 2

WIRING

OUTPUT REMOTE

V C G

10V 50mA

Extron MPA 152 Plus

Mini Power Ampliﬁer

IR Remote

Figure 9. Typical Application for the MPA 152 Plus, Using Remote Control

Using the IR remote for the projector — When using a projector with variable audio

outputs, connect the projector audio output to the MPA 152 Plus audio input. Use the IR remote for the projector to control the volume of the projector, which effectively controls the volume of the MPA 152 Plus.

Extron volume controllers — Extron provides a range of volume and mute controllers

for use with a projector that lacks variable audio outputs. These options control the MPA 152 Plus volume directly (see Wiring for remote control on page 7).

Using a MediaLink Controller — For a projector with variable audio output, connect

the projector audio output to the MPA 152 Plus audio input. Use a MediaLink controller to adjust the volume of the projector via RS‑232. MediaLink controllers can also use the IR remote to adjust the volume of the projector and, thus, the input to the ampliﬁer.

MPA 152 Plus • Setup and Operation 11

Defeating the Auto Power-down Timer

secure the top enclosure to the bottom.

The auto power‑down timer determines whether or not the ampliﬁer enters standby mode. The ampliﬁer powers down if the input signal remains below the input signal detection threshold for about 25 minutes.

The timer resets whenever the input signal exceeds the input signal detection threshold. Resetting the timer starts a new 25 minute countdown until the ampliﬁer powers down. Resetting the timer also causes an ampliﬁer that is already powered down to “wake up.”

There may be times when it is desirable to bypass the auto power‑down timer. However, this should be done as a last resort. Examples of when defeating the auto power‑down circuit might be required include:

• If the ampliﬁer is used in a paging system. When the ampliﬁer has already powered

down, the ﬁrst syllable might be cut off as the ampliﬁer wakes up from standby mode.

• If the input signal is so quiet that the level remains below the input signal detection

threshold for 25minutes, the timer would cut the audio in the middle of playback by placing the ampliﬁer into standby mode.

ATTENTION: The following procedure cannot be reversed and should be carried out

as a last resort. Be certain that you need to defeat the auto power‑down timer before continuing.

To defeat the auto power‑down timer, follow these instructions:

1. Disconnect power from the ampliﬁer.

2. Remove the four screws that secure the top

enclosure to the bottom enclosure (there are two screws on each side panel).

ATTENTION: Exercise caution when removing

the screws to avoid stripping the head.

3. Slide the top enclosure forward to clear the switch

and potentiometers on the front panel, then lift it straight up to separate it from the bottom enclosure.

The circuit boards are now exposed at the front.

INPUTS

MPA 152 Plus

POWER 12V

0.7A MAX

Four screws (two on each side)

OUTPUT REMOTE

CLASS 2 WIRING

V C G

10V 50mA

ATTENTION: Do not touch the electronic components or circuit board connectors

without being electrically grounded. Handle circuit boards by their edges only. ESD can damage circuits, even if you cannot feel, see, or hear it.

MPA 152 Plus • Setup and Operation 12

Resistor R42

Troubleshooting

Ampliﬁer Fails to Exit Standby Mode Promptly

Stereo to Dual Mono Toggle Switch

Level Potentiometer

Figure 10. Front View, Showing the Location of Resistor R42

4. Identify resistor R42 at the front of the bottom circuit board between the Stereo to Dual

Mono toggle switch (to the left) and the Level potentiometer (to the right). The resistor is shown in the white box in ﬁgure 10.

5. Remove the resistor using a pair of diagonal cutters to clip the wires attaching it to the

circuit board.

6. Re‑attach the top enclosure with the four screws removed in step 1.

Under different circumstances, the front panel LED lights green or amber to provide diagnostic information.

Power LED

Problem Description Problem Solution

Color

Amber No output signal. No input detected: verify that there is an

Green No output signal. The amplifier may be in mute mode. Check

Green or Amber

Slow to exit standby mode when a signal is present.

Ampliﬁer Enters Standby Mode Too Early

Power LED Color

Green or Amber

Problem Description Problem Solution

Enters standby mode early.

input signal. If a signal is present, raise the level of the source signal.

the Remote port.

The input signal may be too weak. Raise the level of the source signal.

MPA 152 Plus • Setup and Operation 13

Mounting

This section provides information about the mounting options for the MPA 152 Plus.

Rack Mounting

UL Guidelines for Rack Mounting

The following Underwriters Laboratories (UL) guidelines are relevant to the safe installation of this product in a rack:

1. Elevated operating ambient temperature — If the unit is installed in a closed

2. Reduced air flow — Install the equipment in the rack so that the equipment gets

3. Mechanical loading — Mount the equipment in the rack so that uneven

4. Circuit overloading — Connect the equipment to the supply circuit and consider

5. Reliable earthing (grounding) — Maintain reliable grounding of rack‑mounted

or multi‑unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient temperature. Therefore, install the equipment in an environment compatible with the maximum ambient temperature (TMA: +122 °F, +50°C) speciﬁed by Extron.

adequate air ﬂow for safe operation.

mechanical loading does not create a hazardous condition.

the effect that circuit overloading might have on overcurrent protection and supply wiring. Appropriate consideration of the equipment nameplate ratings should be used when addressing this concern.

equipment. Pay particular attention to supply connections other than direct connections to the branch circuit (such as the use of power strips).

MPA 152 Plus • Mounting 14

Rack Mounting Procedure

3.67"

The unit can be mounted on a compatible rack system (optional). Follow the instructions provided with the shelf accessories.

ATTENTION: Use only the two holes indicated in the diagram below for mounting

the MPA152Plus. The other four holes anchor stand‑offs for the internal circuit boards; using them may damage the amplifier and will not provide secure mounting for the unit.

1.44"

Hole for Rack Mounting Screw (#4-40 Thread)

Back of the Rack Mounting

Mount the unit at the back of a rack rail, following the instructions provided with the kit.

Other Mounting Options

• Tabletop placement — Place the unit in any convenient location.

• Plenum placement — The MPA 152 Plus ampliﬁer complies with Section 300.22 (c) of

• Under-desk mounting — Mount the unit under a desk or podium, following the

• Pole mounting — Mount the unit above a projector using a Pole Mounting Kit. Follow

• ZipClip 200 mounting — Mount the unit under furniture or to a rack rail using the

Figure 11. Base of MPA 152 Plus to Show Mounting Holes

the National Electrical Code and is suitable for use in an Environmental Air Space. It can be installed in the ceiling, out of sight, with reduced risk of theft.

ATTENTION: Although the ampliﬁer is plenum rated, the power supply provided

with it is not. The power supply must not be placed in the plenum space. Cables to and from the ampliﬁer must also be plenum rated. The DC power cord provided with the unit is not plenum rated.

instructions provided with the kit.

the instructions provided with the kit.

ZipClip 200. Follow the instructions provided with the mounting kit.

MPA 152 Plus • Mounting 15

Extron Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, and Central America:

Extron Electronics 1230 South Lewis Street Anaheim, CA 92805 U.S.A.

Europe and Africa:

Extron Europe Hanzeboulevard 10 3825 PH Amersfoort The Netherlands

Japan:

Extron Electronics, Japan Kyodo Building, 16 Ichibancho Chiyoda-ku, Tokyo 102-0082 Japan

China:

Extron China 686 Ronghua Road Songjiang District Shanghai 201611 China

Asia:

Extron Electronics Asia Pte. Ltd. 135 Joo Seng Road, #04-01 PM Industrial Bldg. Singapore 368363

Middle East:

Extron Middle East Dubai Airport Free Zone F12, PO Box 293666 United Arab Emirates, Dubai

Singapore

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions, or if modiﬁcations were made to the product that were not authorized by Extron.

NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return

Authorization) number. This will begin the repair process.

USA: 714.491.1500 or 800.633.9876 Europe: 31.33.453.4040 Asia: 65.6383.4400 Japan: 81.3.3511.7655

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or ﬁtness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

Extron Headquarters

+1.800.633.9876 (Inside USA/Canada Only)

Extron USA - West Extron USA - East +1.714.491.1500 +1.919.850.1000 +1.714.491.1517 FAX +1.919.850.1001 FAX

Extron Europe

+800.3987.6673 (Inside Europe Only)

+31.33.453.4040 +31.33.453.4050 FAX

Extron Asia

+65.6383.4400 +65.6383.4664 FAX

Extron Japan

+81.3.3511.7655 +81.3.3511.7656 FAX

Extron China

+86.21.3760.1568 +86.21.3760.1566 FAX

Extron Middle East

+971.4.299.1800 +971.4.299.1880 FAX

Extron Korea

+82.2.3444.1571 +82.2.3444.1575 FAX

Extron India

1800.3070.3777 (Inside India Only)

+91.80.3055.3777 +91.80.3055.3737 FAX

Extron electronic MPA 152 PLUS User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety Instructions

FCC Class B Notice

Conventions Used in this Guide

Contents

Introduction

Important Safety Instructions

About the MPA 152 Plus

MPA 152 Plus Features

Panels and Cabling

MPA 152 Plus Rear Panel Features

Power Connector

Audio Inputs

Remote Control

Audio Output

Setup and Operation

Front Panel Features and Operation

Setting Input Level

Setting Bass and Treble

Remote Control Options

Defeating the Auto Power-down Timer

Troubleshooting

Mounting

Rack Mounting

UL Guidelines for Rack Mounting

Rack Mounting Procedure

Back of the Rack Mounting

Other Mounting Options

Extron Warranty
