Introduction

This section gives an overview of the guide and describes the MLC 60 Series MediaLink® Controllers and their features. Topics include:

• About This Guide

• About the MLC 60 Series MediaLink Controllers

• System Requirements

About This Guide

This guide provides detailed information and best practice recommendations about cabling

and configuring the Extron MLC 60 Series MediaLink Controllers. It provides reference

information about specifications, dimensions, and programming of the controllers.

Throughout this guide the general terms “MLC” and “controller” are used interchangeably to refer to any MLC 60 Series controller. “MLC D models” applies to the MLC 62 RS D,

MLC 62 IR D, and the MLC 64 RS VC D. “MLC 62” applies to all MLC 60 Series models

except the MLC 64.

About the MLC 60 Series MediaLink Controllers

The Extron MLC 60 Series MediaLink Controllers are panels that control a wide range of

audio/video systems in any classroom, meeting facility, or auditorium via RS-232 or IR. They act as extended remote control panels, featuring eight (optionally six) labeled backlit buttons

for the MLC 62 models or six for the MLC 64 RS VC D. These buttons can be configured via the MLC Windows®-based configuration software to control power, input switching, and

volume on a display device or switcher. If desired, you can replace these buttons with ones having different labels, which also are provided with the controller.

The MLC 64 RS VC D model has, in addition to the configurable buttons, a volume control module containing an analog volume control knob and a Mute button. An Extron amplifier

can be connected to this module for volume control via the MLC.

All models can control a projector, display, or switcher via IR. In addition, the MLC 62 RS models can control display devices, switchers, and various other items such as lights, a projector lift, or a motorized screen via RS-232, IR, relays, or digital input.

The MLC controllers are housed in secure, compact, one-gang and two-gang sized enclosures, which can be mounted on a wall or furniture, with or without an electrical junction box or mounting bracket.

MLC Models

MLC 62 IR D — US model. Controls devices by IR only; has a one-gang Decora® faceplate and fits in a one-gang US electrical box.

MLC 62 RS D — US model. Controls devices by RS-232, IR, relays, and digital input; has a one-gang Decora faceplate and fits in a one-gang US electrical box.

MLC 62 RS EU — European model. Controls devices by RS-232, IR, relays, and digital input; has a one-gang Jung frame and fits over a standard one-gang EU electrical box.

MLC 60 Series MediaLink Controllers • Introduction 1

MLC 62 RS MK — UK model. Controls devices by RS-232, IR, relays, and digital input; has

MUTE

a standard MK sized frame and fits into a standard one-gang MK electrical box.

MLC 64 RS VC D — US model. Controls devices by RS-232, IR, relays, and digital input; has a two-gang Decora faceplate and fits in a two-gang US electrical box. Contains a volume control module with an analog potentiometer for volume control of an Extron

amplifier.

NOTE: Only an Extron amplifier with remote volume control capability can be used

with this model.

DISPLAY

VOLUME

Extron

OFF

VIDEO

LAPTOP

DISPLAY

OFF

VOLUME

VIDEO

MUTE

Extron

MLC 62 IR D MLC 62 RS D

DISPLAY

OFF

VOLUME

PC VIDEO

LAPTOP MUTE

Extron

LAPTOP

DISPLAY

VOLUME

Extron

OFF

VIDEO

MUTE

MLC 62 RS EU MLC 62 RS MK

DISPLAY

OFF

LAPTOP

VIDEO

AUX

Extron

VOLUME

VOLUM

MUTE

MLC 64 RS VC D

Figure 1. MLC 60 Series Models

MLC 60 Series MediaLink Controllers • Introduction 2

The five MLC models have the same button functionality and use the same configuration software. All models can be controlled by pressing the front panel buttons or via a host device using RS-232 communication and simple ASCII commands (Simple Instruction Set, SIS™). They differ from each other in the following ways:

• The MLC 62 IR D rear panel does not contain the Relay, Digital Input, or RS-232

control ports that the RS models have.

• The MLC 64 front panel has seven buttons, one of which (the Mute button) is located

below the Volume knob. This button is used only to mute and unmute the volume on an Extron amplier and cannot be congured to perform other functions.

• Some front, side, and rear panel connectors are located in different places on the

MLC RS D (US), EU (Europe), and MK (United Kingdom) models (see “Panels and

Connectors” in the “Features, Cabling, and Operation” section).

Faceplate alternatives

The MLC 60 Series models are available with the following faceplate configurations:

• MLC 62 IR D: The US IR model is delivered with two six-button faceplates in black and

white. One black and one white Decora wallplate are also provided. An eight-button faceplate is available to order.

• MLC 62 RS D: The US RS-232 model is delivered with two eight-button faceplates

in black and white. One black and one white Decora wallplate are also provided. A six-button faceplate is available to order.

• MLC 62 RS EU: The European model is delivered with six-button and eight-button

faceplates, both in RAL9010 white.

• MLC 62 RS MK: The UK model is delivered with six-button and eight-button

faceplates, both in white.

• MLC 64 RS VC D: The MLC 64 is delivered with seven-button faceplates in black and

white.

Features

Some of the features of MLC 60 Series include:

• Customizable buttons — Eight buttons are standard on the MLC 62 RS models,

prelabeled as shown in ﬁgure 1 on the previous page. The MLC 62 IR D has six

prelabeled buttons, and the MLC 64 RS VC D has seven.

An additional set of prelabeled buttons is included with each model, enabling the controller to be customized to suit the application.

Additional buttons are available to order for all models, labeled in English (the default) and other languages. Buttons can be ordered with custom labeling as well.

• Button backlighting — The front panel buttons are backlit to facilitate use in

low-light environments and to provide certain status (such as whether power is on or off, or which input has been selected).

• Alternative six-button conﬁguration (MLC 62 RS models only) — For

applications in which input device or button functions are not necessary, the standard

eight-button faceplate on the MLC 62 RS can be replaced with a six-button one. Each

pair of source selection buttons can be changed to a long, single function button.

• Device drivers — A wide variety of Extron certied, ready-to-use device drivers are

available via the MLC conﬁguration software, the provided MLC software disk, and

the Extron website (www.extron.com).

MLC 60 Series MediaLink Controllers • Introduction 3

• IR and RS-232 ports — The MLC 64 and the MLC 62 RS models each have a

dedicated serial port for communicating with most types of projectors or ﬂat panel displays via unidirectional RS-232. They also have an IR/S port, which can be conﬁgured for IR or RS-232 control.

The MLC 62 IR D has only an IR port, which is used for IR communication only.

IR and RS-232 display drivers can be downloaded and used to configure the controller.

• Relays (RS models) — Two relay ports enable control of room devices such as lights,

motorized screens, and projector lifts.

• Digital Input (RS models) — A Digital Input port enables monitoring of a switch or

sensor to control devices.

• IR Learning — The MLC can be conﬁgured by IR learning, using the remote control

of a switcher or display device to create an IR driver that enables the MLC to control the device.

• USB conﬁguration port — The MLC can be congured via a USB mini B port,

located on the front or side panel (depending on the model). This port can also temporarily provide power to the MLC during conﬁguration.

• Volume adjustment:

• The MLC 62 models have individual Volume Up and Down buttons for audio level

control, with ve LEDs that indicate current audio settings.

• The MLC 64 has a volume control module with an analog potentiometer knob to

control the audio level for an Extron amplier that is enabled for remote volume

control. The volume control module also contains a Mute button for muting and unmuting the audio (this button cannot be reprogrammed).

NOTE: Only Extron amplifiers can be controlled via the MLC 64 volume

control module.

• Macro capability — Each button can be congured to execute multiple actions

through the serial or IR control ports. For example, a button can be configured so that

a single press triggers commands to turn on a display, select the RGB input of the

display, and trigger a relay.

• Toggling — Buttons can be placed in toggle mode, which adds exibility by enabling

two different sets of commands to be executed with alternating presses of the button.

• Built-in speaker — A speaker provides audible feedback to conﬁrm user actions

when buttons are pressed (except for the Mute button on the VCM module of the MLC 64 RS VC D).

• Inactivity timer for display shutoff — An adjustable timer controls automatic

shutdown after a speciﬁed period of inactivity.

• Front panel security lockout — If the MLC is installed in an unsecured environment

where easy access is not desirable, a security lockout feature can be implemented to lock out all front panel controls.

• Activity LED — A small LED at the top of the MLC front panel lights red, green, or

amber to indicate button presses, data transfer, front panel lockout, and other actions.

• Section 508 Compliant — The MLC meets or exceeds accessibility standards

for Electronic Information Technology. For more information about the Extron Commitment to Accessibility, see the Extron Accessibility web page at

www.extron.com/company/article.aspx?id=accessibility.

MLC 60 Series MediaLink Controllers • Introduction 4

MLC Conﬁguration Software

The included MLC Configuration Program is used to configure the MLC buttons and

ports via an RS-232 or USB connection. This software, provided on a DVD that is

delivered with the product, enables you to set functions for the front panel buttons and to configure the MLC ports in order to control devices via the MLC. The software works in combination with the IR or RS-232 drivers, also provided with the MLC on

DVD or at www.extron.com (see “Installing the Configuration Software” in the

“Software-based Configuration” section to access this program).

Device Drivers

The MLC can control a switcher, projector, or other display device via IR or RS-232 communication. The MLC must have drivers loaded for the devices it will control in order to send commands to those devices. Drivers can be obtained in the following ways:

• You can install IR or an RS-232 driver ﬁles from a disk, download them from the

Extron website (www.extron.com), or download them from Extron via the driver subscription feature within the Windows-based conguration program. The drivers

are saved on your computer in a folder located at c:\Documents and Settings\

All Users\Shared Documents\Extron\Driver2 (Windows XP) or c:\Users\ Public\Documents\Extron\Driver2 (Windows 7). You can upload the desired

drivers to the MLC using the MLC conﬁguration software.

• You can capture IR commands from the IR remote control of a device through

IR Learning using the MLC conﬁguration program to create a driver that the MLC

can use. When a driver is created, it can be added to the conguration program so

that the commands can be used to conﬁgure the MLC to control the device (see the MLC 60 Series help to conﬁgure the MLC using IR Learning).

Application Diagrams

DISPLAY

OFF

VOLUME

VIDEO

MUTE

LAPTOP

Extron MLC 62 RS D

MediaLink Controller

LEFT

CLASS 2 WIRING

Audio

VGA

Amplied Output

Laptop w/ Audio

Extron SI 3

Surface-Mount Speakers

LINE LEVEL

MONO

AUX/MIX

ADJUST

-42dB TO

+24dB

VGA

RS-232 Switcher Control

RS-232/MLC/IR

PREAMP

AUDIO INPUTS

LINEOUT

Relay

12V

AMPLIFIED OUTPUT

RIGHT

STEREO OR DUAL MONO

ohm

4/8

VGA

RS-232 or IR Projector Control

Screen Control

Projector

Extron MLS 304SA

MediaLink® Switcher

Audio

100-240V

1.0A MAX.

Video

50-60Hz

INPUTS

Video

VGA

AUDIO

INPUTS

AUDIO

OUTPUTS

MONITOR OUT

VIDEO

DVD/VCR

Figure 2. MLC 62 RS D Controlling an MLS 304 SA Switcher and a Projector

MLC 60 Series MediaLink Controllers • Introduction 5

Video

Projector with Internal Speakers

VGA

Audio

IR Projector Control

DISPLAY

VOLUME

VIDEO

OFF

Audio

Extron MLC 62 IR D

MediaLink Controller

• IR Display Control

DVD

• On/O ff Control

• Input Switching

• Vo lume Control

Figure 3. MLC 62 IR D Controlling a Projector

Audio

DVD

Video

Audio

VGA

Audio

Laptop

VGA

RS-232 Display Control

Relay

DISPLAY

ON OFF

VOLUME

PC VIDEO

LAPTOP MUTE

Projector with Switched

TREBLE

BASSLEVEL

Audio Output

Extron SI 3

Surface-Mount Speakers

MPA 122

STEREO

MINI POWER AMPLIFIER

DUAL MONO

LIMITER

OFF

Extron MPA 122

Mini Power

Screen Control

Amplifier

Figure 4. MLC 62 RS EU Controlling a Projector and Screen

MLC 60 Series MediaLink Controllers • Introduction 6

Extron MLC 62 RS EU

MediaLink® Controller

System Requirements

RS-232 Display Control

Laptop

Document Camera

VGA

Extron MPA 152

Mini Power Amplier

Audio

S-video

DVD

Audio

Projector with Switched Audio Output

Video

Audio

VGA

Relay

4/8

OUTPUT

OHMS

CLASS 2 WIRING

REMOTE

DO NOT GROUND

OR SHORT

SPEAKER OUTPUTS!

MPA 152

VOL/MUTE

50mA

10V

INPUTS

LISTED

17TT AUDIO/VIDEO APPARATUS

POWER

12V 3A MAX

Screen Control

Volume Control

Extron

DISPLAY

LAPTOP

VIDEO

VOLUME

OFF

MUTE

AUX

MLC 64 RS VC D

MediaLink Controller

Extron SI 3

Surface-Mount Speakers

Figure 5. MLC 64 RS VC D Controlling a Projector and Screen

The minimum PC system requirements for installing the configuration software include:

• Intel® Pentium® III 1-GHz processor

• Microsoft® Windows XP SP2 and Windows 7

• Microsoft.NET Framework 2.0

• 512 MB of RAM

• 50 MB of available hard disk space

MLC 60 Series MediaLink Controllers • Introduction 7

Features, Installation, and Operation

This section describes the front, side, and rear panel features of the five MLC models, and provides procedures for installing and operating them. Topics include:

• Installation Checklist

• Panels and Connectors

• Installation

• Conﬁguring the MLC via the USB Port

• Mounting the MLC 60 Series Controllers

• Accessing Covered Panel Features After Mounting

• Front Panel Security Lockout (Executive Mode)

• Resetting the MLC Using the Reset Button

• IR Learning

Installation Overview

1. Prepare the installation site as follows:

a. Measure and cut the hole in the mounting surface.

b. Prepare and pull the cables through the electrical box or mounting bracket.

c. Install the electrical box or mounting bracket. (Installation instructions for the

electrical box are provided with it.)

2. (Optional) Make any desired changes to the buttons installed in the faceplate,

substituting any of the provided additional buttons (see Replacing Buttons, later in this section).

NOTE: The Mute button on the MLC 64 volume control module cannot be

3. Attach the cables to the rear panel connectors of the MLC and to the display device

or switcher. Attach optional IR Emitters if used, and any switches or sensors needed

for other room devices, such as lights, a motorized screen, and so forth). See the following sections as needed for cabling information:

• Rear Panel Features

• Wiring for RS-232 Control

• Wiring for IR Control

• Wiring the Relays Port

• Wiring the Digital Input Port

configured.

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 8

4. Wire and connect the MLC power supply (see “Connecting Power to the MLC,”

later in this section). Connect all other power cords and turn on all the devices, including the MLC.

5. Connect a conﬁguration cable from the computer to the MLC by doing either of the

following:

• Connect a USB A to mini B cable to the MLC USB conguration port and to a USB

port on your computer (see “Conﬁguring the MLC via the USB Port,” later in this section).

• Connect an RS-232 cable to the provided 3-pole connector and connect it

between the MLC Host/Cong port and the computer serial port (see “Wiring

the Host/Conﬁg Port,” later in this section).

6. Download and install the MLC Conﬁguration Program (see “Installing the

Conﬁguration Software,” in the “Software-based Conﬁguration” section).

7. Download or create drivers for the devices you will be connecting (see “Obtaining

Device Drivers” or “Conﬁguring Using IR Learning” in the “Software-based

Conﬁguration” section).

8. Conﬁgure the MLC buttons and ports using the conﬁguration program. (See the

conﬁguration program help ﬁle for these procedures. To access the help ﬁle, see “Installing the Conﬁguration Software” in the “Software Conﬁguration and Control” section.)

If you are configuring via the USB port, remove the USB cable when you are finished.

9. Test the system: press the MLC buttons, watch the display, and listen to the audio

output to determine whether the connected devices are responding correctly (powering on and off, switching inputs, and so forth). If not, ensure all devices are plugged in and receiving power. Check the cabling and make needed adjustments.

10. Disconnect power from the MLC at the source and from all other devices in the

system.

11. Mount the MLC to the mounting surface, following the appropriate procedure for

your MLC model, discussed later in this section:

• For MLC 62 D models, see “Mounting the MLC 62 D.”

• For MLC 62 RS EU and MK models, see “Mounting the MLC 62 RS EU and the

MLC 62 RS MK.”

• For the MLC 64, see “Mounting the MLC 64 RS VC D.”

12. Restore power to the MLC and to the connected devices.

Front and Left Side Panels

MLC D Front Panels

The front panels of the MLC 62 RS D, the MLC 62 IR D, and MLC 64 models contain buttons and indicators that are visible and accessible after the MLC has been mounted. Other front panel controls and connectors are located behind the MLC wallplate and are not visible after mounting (see “Controls behind the wallplate,” later in this section).

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 9

The numbered callouts below apply to all the following MLC D front panel drawings.

MUTE

a Activity LED b Display power On

and Off Buttons

c Volume buttons and

LEDs (MLC 62 models only)

MLC 62 D front panels

By default, the MLC 62 RS D has eight front panel buttons, and the MLC 62 IR D has six. Both models also have indicator LEDs for volume and activity.

d Input Selection buttons e Reset LED f Reset button g USB configuration port h DIP switches

DISPLAY

LAPTOP

OFF

VOLUME

VIDEO

MUTE

Extron

i IR Learning sensor j On button identification nub k Mute button (MLC 64 only) l Volume control knob

MLC 64 RS VC D only)

DISPLAY

OFF

VOLUME

VIDEO

Extron

MLC 62 RS D

MLC 62 IR D

Figure 6. MLC 62 RS D and MLC 62 IR D Front Panels

MLC 64 RS VC D front panel

The MLC 64 RS VC D front panel contains seven buttons, an Activity LED, and a volume

control knob.

DISPLAY

OFF

LAPTOP

AUX

VIDEO

Extron

VOLUME

VOLUM

MUTE

Figure 7. MLC 64 RS VC D Front Panel

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 10

Controls behind the wallplate

MUT

VOLU

The front panels of the MLC D controllers contain some controls and connectors that are located behind the wallplate when the controller is mounted. To access these features that are covered during normal operation, you must remove the wallplate (see “Accessing the

Covered MLC D Front Panel Features,” later in this section).

DISPLAY

OFF

VOLUME

VIDEO

MUTE

LAPTOP

Extron

MLC 62 RS D

DISPLAY

OFF

LAPTOP

VIDEO

AUX

Extron

MLC 64 RS VC D

VOLUME

MUTE

Figure 8. MLC D Front Panel Controls Behind the Wallplate

MLC 62 RS EU and MLC 62 RS MK Front and Side Panels

The MLC 62 RS EU and MLC 62 RS MK front panels contain the same buttons and

indicators as the MLC 62 D models. Other connectors and controls are on the left side

panel; to access these features, you must remove the MLC from the installation surface. When the MLC is removed, the wall frame is released from the mounting surface as

well, leaving the metal mounting bracket in place (see “Accessing the MLC 62 RS EU

and MLC 62 RS MK Side and Rear Panel Features,” later in this section, for removal

procedures).

DISPLAY

ON OFF

VOLUME

PC VIDEO

LAPTOP MUTE

Extron

Front View

Left Side View

Figure 9. MLC 62 RS EU and MLC 62 RS MK Front and Side Panels

NOTE: The MLC 62 RS MK is the same size and has the same front and side panel

features as the MLC 62 RS EU, with the exception of its larger wall frame,

which fits over an MK electrical box.

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 11

Front panel features

Activity LED — This bicolored LED lights green when the MLC front panel buttons

are pressed. It blinks red while enabling front panel lockout (executive mode).

Display power On and Off buttons — After conﬁguring these buttons, use them

to turn the connected display device or switcher on and off.

The face of the On button contains a nub (j), which helps you to identify the button

by touch. When the On button is pressed, it blinks rapidly while the connected device is warming up. When the Off button is pressed, it blinks slowly while the device is cooling down. When this delay period has elapsed, the power button that was

pressed remains brightly lit.

By default, only one of these two buttons can be selected (active) at once. Using the

MLC configuration software, you can associate other functions and relays with each of these buttons (see the configuration software help file).

Volume buttons and LEDs (MLC 62 models only) — Use these buttons to adjust

the audio volume. Each Volume button flashes when pressed and continues to flash

while being held.

The volume indicator LEDs above the buttons give indications of change to the volume

level as follows:

• When the RS-232 or IR/S port has been congured with a serial driver that

contains a volume table, the ve LEDs light in order from left to right to show

volume level increments.

• If the current driver does not contain a volume table, the rst two LEDs on the left

blink each time the Volume Down button is pressed, and the last two LEDs on the right blink each time the Volume Up button is pressed, indicating a volume level

decrement or increment.

Input selection buttons — These buttons can be used to select the desired audio or

video input for the connected device or for a variety of other functions. By default the

buttons are set up as follows:

• MLC 62 RS models: Three of these buttons are set to input mode, meaning that

they are a mutually exclusive group and only one of the buttons can be selected (active) at a time. The active input button remains brightly lit, while all other input buttons remain dimly lit. The fourth button, labeled Mute, is set in Toggle mode and is not grouped with the others.

• MLC 62 IR D: Two double-sized buttons are grouped in input mode and are

mutually exclusive.

• MLC 64 RS: Four double-sized buttons are grouped in input mode and are

mutually exclusive.

You can change this button behavior by using the configuration software to change the operating mode of the button (see the MLC 60 Series configuration program help file for more information).

Reset LED — Indicates the status of a reset in progress.

Reset button — Press this reset button to initiate factory ﬁrmware or conﬁguration

resets (see “Resetting the MLC Using the Reset Button,” later in this section).

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 12

USB conﬁguration port — Connect a USB cable (USB A to mini B) between

your computer and this port to conﬁgure the MLC via the conﬁguration software and to update the ﬁrmware. This port can also provide power to the MLC during conﬁguration.

NOTE: Do not use this port as the permanent power source for the MLC. It

should be used for power only during button and port configuration.

• On the MLC D models, the USB port is located at the right edge of the front

panel behind the wallplate. To access this port after installation, you must remove the wallplate from the unit.

• On the MLC 62 EU and MK, the USB port is located on the left side panel. To

access this port after installation, you must detach the MLC from the installation surface.

DIP switches — Reserved for future use

IR Learning sensor — This sensor enables the MLC to learn IR commands from the

hand-held remote control of a display device or switcher. The IR-learned commands are used to create an IR driver, then conﬁgured to be played back with any button press (see “IR Learning,” later in this section).

NOTE: Before performing IR Learning to create a driver, check to see if an Extron

driver exists for your device (see “Obtaining Device Drivers” in the “Software-based Configuration” section).

j On button Identication nub — Power On button face contains a raised nub that

helps you to identify the On button by touch in a dark or dimly lit room.

k Mute button (MLC 64 only) — Press this toggle button to mute and unmute the

volume on the Extron amplifier connected to the volume control module.

l Volume control knob (MLC 64 only) — Rotate this knob to increase or decrease the

volume on the Extron amplifier connected to the volume control module.

Buttons

The front panel button illumination provides status on what the MLC is doing. The buttons

are lit while the MLC has power. When a button has been pressed and is active or on, it lights brightly. While a button is inactive or off, it is lit dimly.

When buttons are grouped together, only the button that is pressed lights brightly. The

other buttons in the group remain dim. (See the configuration software help file for information on grouping buttons; see “Installing the Configuration Software” in the “Software Configuration and Control” section to obtain the software.)

You can remove buttons and replace them with buttons having different labels. You can then configure the new buttons with the functions that their labels represent, using the configuration software (see the MLC 60 Series configuration program help file for detailed procedures for configuring the buttons).

Each Display On/Off and input selection button can be set up to perform a sequence of

several functions, which can be combinations of the following options:

• A driver operation — Execute an RS-232 or IR control command that is part of a

device driver (for a projector, VCR, DVD player, switcher, and so forth).

• A relay operation — Execute a relay command to a room device such as a motorized

screen or a projector lift.

• Setting a time delay — Insert delays between executed commands.

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 13

• Setting the button ﬂashing rate — Specify fast or slow ﬂashing of a front panel

button and the number of seconds the button ﬂashes.

NOTE: While a button is flashing, all other front panel buttons are disabled.

• A user-deﬁned RS-232 operation — Issue a non-driver-associated RS-232 command

(one that you programmed separately), such as an SIS command, via the IR/S or the RS-232 port.

• Button emulation — Initiate a series of button functions with a single button press.

Rear Panel Features

See the wiring and installation sections, later in this section, for connection information.

GROUND

COMMON

GROUND

Tx/IR

GROUND

+12 VDC

HOST/

CONFIG

INPUT

DIGITAL

N/O

RELAYS

IR/ S

PORT B

RS-232

PORT A

PWR

12 V

0.4 A MAX

MLC 62 RS D and MLC 64 RS D

Rear Panel

MLC 62 IR D Rear Panel

GROUND

IR OUT

GROUND

+12 VDC

HOST/

PORT A

PWR

CONFIG

12V

0.4 A MAX

Figure 10. MLC 60 Series D Models Rear Panels

Tx/

RELAYS N/O

INPUT

DIGITAL

PORT A

PORT B

RS-232

IR/ S

0.4 A max

CONFIG

12 V

HOST/

PWR

Figure 11. MLC 62 RS EU and MLC 62 RS MK Rear Panel

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 14

a Host/Conﬁg port — This bidirectional RS-232 serial port can be used for

conguration and rmware updates in the same way as the USB port (g in the

“Front and Left Side Panels” section, earlier in this section). The baud rate is 9600

bps. This port can be used as a backup for the USB Conguration port (although you

cannot power a device through it).

b Digital Input port (RS models only) — This port enables the MLC to monitor

devices such as push buttons, switches, motion sensors, and moisture sensors and provides an additional way to trigger functions on the MLC. Connect a switch or a sensor to this 2-pole captive screw connector to initiate commands via the MLC to the display device, switcher, or other room devices such as lights or a motorized screen.

c Relay ports (RS models only) — These relays allow control of room devices such as

motorized screens, lights, and projector lifts. They are normally open relays and are

rated at 24 V, 1 A. Low-power devices can be connected directly to the relay ports; devices requiring more than 24 V can be connected through a third-party low-voltage controller (LVC).

d IR/S or IR port — This port provides unidirectional communication to control a

switcher or a display via RS-232 or IR. For IR control, one or two IR emitters can be connected with a maximum of 50 feet (15 m) distance from port to emitter.

• RS models: On all MLC 60 Series RS models, this port is labeled “Port B IR/S.” It

can be set up via the conﬁguration software to send out unidirectional RS-232 (the default) or IR commands. In the Configuration software, this port is called

Port B (IR/S)

• MLC 62 IR D: On the IR-only model, this port is labeled “Port A IR” and issues

only IR commands. In the Configuration software, this port is called Port A (IR).

e RS-232 port (RS models only) — This serial port, labeled “Port A RS-232,” provides

unidirectional communication to control a switcher or a display via RS-232. In the Configuration software, this port is called Port A (RS-232).

f PWR (power) connector — Connect the supplied 12 VDC, 1 A power supply (or

any other power supply capable of providing 12 VDC) to this 2-pole captive screw

connector.

CAUTIONS: • The power supply must not be permanently fixed to the building

structure or similar structures.

• The power supply must not be located within environmental air

handling spaces or the wall cavity.

• The installation must be in accordance with the applicable

provisions of the National Electrical Code ANSI/NFPA 70, Article 725 and the Canadian Electrical Code, Part 1, Section 16.

• The power supply must be located within the same vicinity as

the Extron AV processing equipment in an ordinary location,

Pollution Degree 2, secured to a podium, a desk, or an equipment rack within a dedicated closet.

• Always use a power supply specified by Extron for the MLC. Use

of an unauthorized power supply voids all regulatory compliance certification and may cause damage to the supply and the MLC.

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 15

Rear Panel Features on MLC 62 RS EU and MLC 62 RS MK Only

The items listed in this section are located on the rear panel of the MLC 62 RS EU and the

MLC 62 RS MK only. On the MLC D models, these items are on the front panel, behind the wallplate (see “Rear Panel Features” for the descriptions of features a through f).

Tx/

RELAYS

N/O

INPUT

DIGITAL

PORT A

PORT B

RS-232

IR/ S

0.4 A max

CONFIG

12 V

HOST/

PWR

Figure 12. Features on MLC 62 RS EU and the MLC 62 RS MK Rear Panels Only

g Reset LED — Indicates the status of a reset in progress.

Reset button — Press this reset button to initiate factory ﬁrmware or conﬁguration

resets (see “Resetting the MLC Using the Reset Button,” later in this section).

i DIP switches — Reserved for future use

MLC 64 RS VC D Volume Control Module Rear Panel

The MLC 64 RS VC rear panel is illustrated below. The MLC module rear panel (right

side as you view it from the back) has the same features as that of the MLC 62 RS D (see

figure 11, earlier in this section).

Figure 13. MLC 64 RS VC D Rear Panel VCM Features

VOL

GND

10V

j Volume control module connector (MLC 64 RS VC D only) — Connect an Extron

ampliﬁer to this 3-pole, 3.5 mm captive screw connector to enable volume and mute control by the MLC (see “Wiring the Volume Control Module (MLC 64 RS VC D

Only),” later in this section).

NOTE: Use only Extron amplifiers with the MLC 64 RS VC D.

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 16

Installation

The MLC 60 Series can be installed as listed below:

• The MLC 62 D models can be installed in a standard one-gang electrical wall box or a

one-gang Decora mounting bracket (“mud ring”).

• The MLC 64 RS VC D can be installed a two-gang electrical box or mounting bracket.

• The MLC 62 RS EU can be installed in a standard one-gang EU junction box.

• The MLC 62 RS MK can be installed in a standard one-gang MK junction box.

CAUTIONS: • Installation and service must be performed by authorized personnel

only. UL listed electrical boxes are recommended.

• Ensure that the junction box is grounded properly.

• When stripping wires for use with the captive screw connectors, leave

3/16 (5 mm) of bare wire to insert into the connector.

• Exposing more than 3/16 inch of the copper wires could allow the

stripped wires to touch each other, causing a short circuit. This could result in the external DC power supply overheating and burning.

• Stripping the wires to expose less than the recommended amount

may cause them to slide out of the connector too easily, even if they are tightly pinched by the captive screws.

Removing and Replacing the Faceplates

Each MLC model is delivered with a faceplate (bezel) attached. This faceplate can be

removed if you want to replace any of the buttons or exchange the faceplate for another.

Replacement kits containing six-button or eight-button faceplates and additional buttons can be ordered (see “Part Numbers and Accessories” in the “Reference Information”

section or the Extron website at www.extron.com for information on parts that are

provided or available to order for each MLC model).

Removing and replacing an MLC D faceplate

The MLC D models are delivered with a black faceplate attached. If desired, you can remove this faceplate and replace it with the white one that is also provided with the product. (Matching black and white Decora wallplates are also provided.)

1. Remove the faceplate from the MLC D as follows:

At the center top and bottom of the faceplate are tabs, which insert into slots on the MLC main board and hold the faceplate in place. For each tab:

a. Insert the at end of the provided Extron Tweeker or other small screwdriver into

the hole above or below the tab.

b. Pressing each tab in and up, pry the top and bottom of the faceplate away from

the board.

See the illustration on the next page.

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 17

DISPLAY

OFF

VOLUME

VIDEO

Extron

Figure 14. Removing the Faceplate (MLC 60 Series D Models)

2. If you are switching faceplates, transfer the buttons from the faceplate you removed

to the replacement one.

3. Make any desired button changes (see “Replacing Buttons,” later in this section).

4. To attach the faceplate, make sure that both the faceplate and the MLC board are

upright and line up the pegs in upper-left and lower-right corners on the back of the faceplate with the two diagonal holes on the MLC board.

5. Press the faceplate onto the board with the pegs in the holes until the tabs at the top

and bottom of the faceplate snap into their slots on the board (see the illustration below).

Insert peg on faceplate into hole.

Insert tab on faceplate into slot.

Ta b

Peg

DISPLAY

OFF

VOLUME

VIDEO

MUTE

LAPTOP

Figure 15. Attaching the Faceplate (MLC 60 Series D Models)

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 18

Removing and replacing the MLC 64 VCM module knob and

Use Allen Wrench

faceplate

The MLC 64 is provided with one black and one white VCM faceplate and volume control

knob. You can change the faceplate, knob, or both on the volume control module as described in the following procedures.

Replacing the MLC 64 volume control knob

NOTE: It is not necessary to remove the faceplate or the board from the wallplate

in order to replace the knob.

1. Rotate the knob to its lowest setting (the dot on the knob should be aligned with the

bottom edge of the volume icon on the faceplate) to line up the notch in the edge of the knob with the notch in the edge of the hole in the faceplate, enabling you to access the hex screw on the knob.

2. Insert the small Allen wrench (provided) into the opening created by the two notches,

until it stops.

3. Give the Allen wrench a one-half turn counterclockwise to loosen the hex screw

holding the knob.

Turn Knob to Expose Screw

VOLUME

to Loosen Screw

MUTE

Figure 16. Removing the Volume Knob

4. Lift off the knob.

5. Press the new knob onto the spindle of the VCM, making sure that the spindle is

turned all the way to the left and that the dot on the knob is aligned with the bottom edge of the volume icon on the faceplate.

6. Tighten the hex nut by inserting the Allen wrench and giving it one-half turn

clockwise.

Replacing the MLC 64 volume control module faceplate

To change the faceplate on the MLC 64 volume control module, you must remove the volume control module from the wallplate.

1. Remove the volume control knob from the faceplate (see “Replacing the MLC 64

volume control knob,” steps 1 through 4, above).

2. At the center top and bottom of the faceplate are tabs, which insert into slots on the

VCM module board and hold its faceplate in place. For each tab:

a. Insert the at end of the provided Extron Tweeker or other small screwdriver into

the hole above or below the tab (see the illustration on the next page).

b. Pressing each tab in and up, pry the top and bottom of the faceplate away from

the board.

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 19

VOLUME

MUTE

Figure 17. Removing the MLC 64 Volume Control Module Faceplate

3. Making sure that both the faceplate and the volume control module board are

upright, line up the pegs in the upper-left and lower-right corners of the new faceplate with the holes in the board.

4. Press the faceplate onto the board until the tabs at the top and bottom of the

faceplate snap into their slots on the board.

Removing and replacing the MLC 62 RS EU and MK faceplates

The MLC 62 RS EU and MK are each provided with an eight-button and a six-button

faceplate and matching wall frame. If desired, you can remove the faceplate to change buttons or to replace it with a different one.

1. Remove the MLC 62 RS EU or MLC 62 RS MK faceplate as follows:

a. On the right and left edges of the MLC faceplate are two pairs of slots, into which

two small tabs on either side of the MLC ﬁt. Insert the ﬂat end of the provided

Extron Tweeker or other small screwdriver into one of the side slots.

DISPLAY

VOLUME

OFF

VIDEO

LAPTOP

MUTE

Slot

Figure 18. Removing the Faceplate (MLC 62 RS EU and MLC 62 RS MK)

b. Press inward with the screwdriver until the tab snaps free of its slot.

c. Repeat steps a and b for the other tab on the same side of the faceplate.

d. Lift the faceplate up and off the MLC. If the faceplate does not come free of the

MLC, repeat steps a through c for the two tabs on the other side of the unit.

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 20

2. If you are switching faceplates, transfer the buttons from the faceplate you removed

to the replacement.

3. Make any desired button replacements (see “Replacing Buttons,” below).

4. Replace the faceplate as follows:

a. Hold the MLC with its board against the back of the faceplate, aligning the two

tabs on each side of the unit with the two slots on each side of the faceplate.

DISPLAY

LAPTOP

VOLUME

OFF

VIDEO

MUTE

Slot

Ridge on tab snaps into slot.

Figure 19. Replacing the Faceplate (MLC 62 RS EU)

b. Each tab has a ridge that must snap into a slot on the side of the MLC. Press the

MLC into the faceplate until the tab ridges snap into their slots. Check to make sure that all four tabs are securely in place.

Replacing Buttons

Additional labeled buttons are provided with the MLC and are available to order from the

Extron website at www.extron.com. These buttons can be used to replace the factory-

installed buttons in the MLC faceplate.

Each row of single-sized buttons is a single membrane. The entire membrane is removed,

so that the buttons are replaced in rows. To replace buttons on the MLC:

1. Remove the faceplate from the MLC (see “Removing and Replacing the

Faceplate,” earlier in this section).

2. From the front of the faceplate, press the button or button pair to be replaced back

through its slot in the faceplate until the membrane containing the buttons is free.

3. On the back of the faceplate, place the new button or row of buttons

through the one or two slots in which they will be installed. Line up the two pegs in the upper-left and lower-right corners of the new button membrane (see the illustration at right) with the holes located

MUTE

LAPTOP

at opposite corners of the empty pair of slots in the faceplate.

Pegs (2)

Figure 20. Replacing a Button Row

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 21

4. Press the two buttons into the faceplate until the pegs on the membrane are seated in

COMMON

HOST/

CONFIG

DIGITAL

INPUT

RELAYS

N/O

GROUND

COMMON

HOST/

CONFIG

DIGITAL

INPUT

RELAYS

GROUND

the corresponding holes.

5. Repeat steps 2 through 4 for any additional buttons that you want to replace, then

reattach the faceplate.

Wiring for RS-232 Control (RS Models Only)

The MLC 60 Series RS models can send out RS-232 commands through the Port A

RS-232 port (Port A) or the IR/S port (Port B) to control a display device or switcher that is

connected to the port.

Connecting to Port A RS-232

Port A RS-232 is a unidirectional serial port to which you can connect a display device or switcher for control via RS-232 as follows:

1. Connect the Rx pin on the display device or switcher to the Tx pin of Port A RS-232.

2. Connect the ground pin of the output device to the MLC Ground pin.

GROUND

Tx/IR

GROUND

+12 VDC

PORT B

PORT A

PWR

IR/ S

RS-232

12V

0.4 A MAX

Ground ( )

Transmit (Tx)

Ground ( )

Receive (Rx)

Display Device

MLC RS D Rear Panel

Figure 21. Connecting a Display Device to Port A RS-232 of an MLC RS D

Refer to the communication sheets for your device drivers for information on compatible baud rates and cabling type and distance. These communication sheets are accessed via

the MLC configuration software and also on the Extron web page at www.extron.com,

Download tab (see “Obtaining Device Drivers” in the “Software-based Configuration”

section or the configuration program help file to view the communication sheets and download the device drivers).

Connecting to Port B IR/S

This port can be used for either IR or RS-232 unidirectional serial communication. To control a display device or switcher via RS-232 from this port, connect the device as follows:

1. Connect the Rx pin on the display device or switcher to the Tx/IR pin of Port B IR/S.

2. Connect the ground pin of the output device to the MLC Ground pin.

GROUND

Tx/IR

GROUND

+12 VDC

PORT B

PORT A

PWR

N/O

IR/ S

RS-232

12V

0.4 A MAX

Ground ( )

Transmit (Tx/IR)

Ground ( )

Receive (Rx)

Display Device

MLC RS D Rear Panel

Figure 22. Connecting a Display Device to Port B IR/S of an MLC RS D

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 22

Wiring for IR Control

COMMON

HOST/

CONFIG

DIGITAL

INPUT

RELAYS

N/O

GROUND

To control devices via infrared (IR) commands from the MLC, connect one or two IR emitters to the IR/S port (RS models) or the IR port (IR model). The IR and IR/S ports provide unidirectional IR signal output to control a display, projector, switcher, or other device such

as a VCR or DVD player.

You can connect one or two single IR emitters or one dual IR emitter to the IR or IR/S port to control one or two devices. Because the MLC captive screw plugs have small openings

that accept just one wire per pole, to connect two IR emitters to the MLC, insert one ground wire (black) and one IR signal wire (black with a white stripe) in the MLC 62 IR or

IR/S port, then connect the IR emitters to those wires, as shown below.

Ground

IR Signal

(–)

(+)

One Dual IR Emitter

(–)

(+)

IR Signal

Ground

(+)

(–)

Two Single IR Emitters

VCR

(–)

(+)

DVD Player

Legend

(–)

(+)

Black Wire Black Wire with White Stripe

Figure 23. IR Emitters for the MLC 60 Series

For IR control, there can be a maximum of 50 feet (15 m) between the IR or IR/S port and the IR emitters.

Example: The illustration on the next page shows a single IR emitter connected to the IR/S port of an MLC 62 RS D or an MLC 64 RS D.

GROUND

IR/ S

Tx/IR

PORT B

GROUND

RS-232

PORT A

GROUND

+12 VDC

PWR

12V

0.4 A MAX

MLC RS D Rear Panel

Ground ( )

IR Signal

IR Emitter

50'

(15 m)

Figure 24. Connecting an IR Emitter to the IR/S Port of an MLC RS D

Wiring the Relays Port (RS Models Only)

Connect one or two devices such as room lights, a projector lift, or a motorized screen (shown in the example on the next page) to the Relays port. This port accommodates two relay connections.

To connect a device to one of the relay ports:

1. Connect the ground wire of the device to pin 3 of the provided 3-pole captive screw

connector.

2. Connect the signal wire of the device to pin 1 or 2 of the 3-pole connector.

3. Plug the 3-pole connector into the MLC 3-pole captive screw Relays port.

Example: In the illustration on the next page, a low-voltage controller connected to a motorized screen has been wired to pins 2 and 3 of the provided 3-pole captive screw

plug. When this connector is plugged into the rear panel Relays port, the device will

be connected to the MLC relay port 2 (pins 2 and Common of the MLC 3-pole Relays connector).

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 23

GROUND

HOST/

CONFIG

GROUND

INPUT

DIGITAL

COMMON

N/O

RELAYS

GROUND

IR/ S

Tx/IR

PORT B

GROUND

MLC RS D Rear Panel

RS-232

Pin:

3 2 1

Ground ( )

Signal 110/220 V

Power Supply

Low Voltage

Screen Control

Ground ( )

Motorized

Screen

Figure 25. Connecting a Motorized Screen to the Relay Port of an MLC RS D

To connect devices to both relay ports:

1. Connect the ground wires of both devices to pin 3 of the provided 3-pole captive

screw connector.

2. Connect the signal wire of one device to pin 2 and the other device to pin 1 of the

3-pole connector.

3. Plug the 3-pole connector into the MLC Relays port.

To define the operation of a relay and associate it with a button or a digital input, use the configuration software (see “Adding relays to buttons” or “Configuring the Digital

Input Port” in the “Software-based Configuration” section or the configuration software

help for setup procedures).

Wiring the Digital Input Port (RS Models Only)

The Digital Input port on the MLC rear panel lets you connect a switch or sensor to control other devices in the room that are connected to the MLC serial, IR, and relay ports. This port measures two states — high and low — of the connection between the switch or

sensor and the connected device. The port accepts 0 to 24 VDC input. The threshold voltages are as follows: a voltage below 1.0 VDC is measured as logic low, and a voltage above 1.5 VDC is measured as logic high.

There is also an internal, +5 VDC, selectable, pull-up resistor for this circuit. If a connected

device does not have its own power source and will be powered through the controller, configure this port (via the MLC configuration software) with Input with Pullup as the digital input mode. If the connected device provides its own power, select Input for the digital input mode (see the MLC 60 Series Configuration Program Help File to select the digital input mode).

In addition, you can program actions on this port, so that each time a high or low state is detected, one or more functions are performed. An example of this is front panel lockout, or executive mode (see the configuration software help file to configure the Digital Input port).

To wire the Digital Input connector:

1. Connect the ground port of the input device to pin 2 of a provided 2-pole captive

screw connector.

2. Connect the signal port of the input device to pin 1 of the captive screw connector.

3. Plug the wired connector into the MLC rear panel Digital Input connector.

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 24

Example: The diagram below shows a two-position switch connected to the Digital Input

port of an MLC 62 RS D.

Two-position Switch

GROUND

HOST/

CONFIG

GROUND

COMMON

MLC RS D Rear Panel

INPUT

DIGITAL

N/O

RELAYS

Pin:

2 1

Ground ( )

Digital Input 1

Figure 26. Connecting a Two-position Switch to the Digital Input Port

Wiring the Host/Conﬁg Port

The Host/Config port provides an alternative connection by which the MLC can be

configured and controlled from a host device or computer. (The primary means of

configuring the MLC is through the USB port; see “Configuring the MLC via the USB

Port,” later in this section.) In addition, SIS commands can be issued through this port

from the computer to control the MLC (see the “SIS Control” section).

The RS-232 protocol for this connection is 9600 baud, 1 stop bit, no parity, 8 data bits, no flow control.

Use a female 9-pin to bare wire RS-232 cable or a universal control cable (such as UC 50', Extron part number 26-518-01, or UC 100', part number 26-518-02) to connect a Windows-based PC or an RS-232 control system to the MLC via this 3-pole, 3.5 mm

captive screw connector as follows:

1. Wire the RS-232 cable to one of the 3-pole captive screw plugs provided with the

MLC, as follows:

• Receive wire to pin 1, which plugs into the Tx (transmit) port

• Transmit wire to pin 2, which plugs into the Rx (receive) port

• Ground wire to pin 3, which plugs into the _ (ground) port

GROUND

HOST/

CONFIG

GROUND

INPUT

DIGITAL

COMMON

N/O

RELAYS

GROUND

IR/ S

MLC 62 RS D Rear Panel

Tx/IR

GROUND

+12 VDC

RS-232

PWR

12V

0.2 A MAX

Pin:

3 2 1

Rx Tx

Ground Receive

Transmit

Ground ( ) Transmit (Tx)

Receive (Rx)

5 3

9 pin HD

Connector

To RS-232 Port on Computer or Control System

Figure 27. Connecting a Host Computer or Control System to the

Host/Config Port

2. Plug the 3-pole connector into the Host/Cong port on the MLC rear panel.

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 25

Wiring the Volume Control Module (MLC 64 RS VC D Only)

Connect the remote volume control port of an Extron amplifier to the 3-pole captive screw

connector on the rear panel of the MLC 64 volume control module, as shown in the figure below. No software configuration is required for this module.

NOTES: • Choose an Extron amplifier that is capable of remote volume control and

muting. Not all Extron amplifiers have remote volume control ports. The

MPA 122 or MPA 401 are examples of the type of amplifier to use.

• Use shielded cable for audio connections to avoid inducing noise.

1. Wire a 3-pole captive screw connector (provided) to an audio cable as shown below:

Vol/Mute

10V

Amplifier

123

Rear Panel

10 V

Vol/Mute

Ground

10V

VOL

GND

A B C

MLC 64 VCM

Rear Panel

Figure 28. Wiring the Volume Control Module

In figure 28:

• A = ground

• B = Volume and mute control with DC voltage. The range is 0 to 10 V, where 0 V

is mute and 10 V is maximum volume.

• C = 10 VDC reference voltage

2. Plug the wired connector into the 3-pole captive screw connector on the rear panel of

the MLC 64 volume control module.

3. Connect the other end of the audio cable to an Extron amplier that is capable of

remote volume control (such as the XPA 1002).

Connecting Power to the MLC

See “f PWR (power) connector,” earlier in this section, for important cautions about

power supplies. Connect the provided 12 VDC, 1 A power supply to the MLC as follows:

1. Wire one of the supplied 2-pole captive screw connectors as shown below.

Smooth

Ridges

Power Supply Output Cord

Figure 29. Wiring the Power Connector

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 26

SECTION A–A

3/16” (5 mm) Max.

2. Plug the connector into the rear panel Pwr connector. In the example below, a power

GROUND

Tx/IR

COMMON

HOST/

CONFIG

IR/ S

DIGITAL

INPUT

RELAYS

N/O

GROUND

supply is being connected to the Pwr connector of an MLC 62 RS D.

GROUND

RS-232

PORT A

GROUND

+12 VDC

PWR

12V

0.4 A MAX

Ground

12 VDC Input

MLC Rear Panel

Ground All Devices

External Power Supply (12 VDC)

Figure 30. Connecting a Power Supply to an MLC

Configuring the MLC via the USB Port

The mini-Type B USB port can be used to configure the MLC via the configuration software and to update the firmware. This USB port also functions as a power source for the MLC during configuration.

NOTE: Do not use this port as the permanent power source for the MLC. It should be

used for power only during button and port configuration.

1. If the MLC has already been installed, access the USB port as follows:

• MLC D models: Remove the wallplate from the unit to access the USB port,

which is located on the front panel behind the wallplate (see “Accessing the

Covered MLC D Front Panel Features,” later in this section).

• MLC 62 RS EU and MK: Remove the MLC from the installation surface to

access the USB port, which is located on the left side panel (see “Accessing

MLC 62 RS EU and MK Side and Rear Panel Features,” later in this section).

2. Connect a USB A to mini B cable between the USB conguration port and the USB

port on your computer.

DISPLAY

VOLUME

LAPTOP

OFF

VIDEO

MUTE

Mini Type B

USB

USB Cable

Type A

USB

Extron

MLC 62 D Front Panel

Figure 31. USB Port Connection for MLC D Models

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 27

USB Ports

USB 1

MLC 62 RS EU or

MLC 62 RS MK Left Side Panel

Mini Type B

USB

USB Cable

Type A

USB

USB Ports

USB 1

Figure 32. USB Port Connection for MLC 62 RS EU and MLC 62 RS MK

3. If this is the rst time you have connected an MLC to this USB port on your computer,

the Found New Hardware Wizard opens. On the rst screen, you can specify whether you want the computer to connect to Windows Update in order to search the web for the driver that it needs to communicate with the MLC via the USB port. (If the USB

driver already exists on your computer, select No, not this time.)

Figure 33. Found New Hard Wizard Opening Screen

• Select the Yes, this time only radio button if you want your computer to

connect to Windows Update only this one time.

• Select Yes, now and every time I connect a device if you want the computer

to automatically connect to Windows Update to search the web every time the MLC is connected to this USB port.

• Select No, not this time if you do not want the computer to connect to

Windows Update to search the web (for example, if the driver is already present

on your computer).

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 28

4. Click Next. On the next screen, make sure that the Install the software

automatically (Recommended) radio button is selected, then click Next. (You do

not need to insert a disc.)

Figure 34. Selecting the Radio Button to Install the USB Driver Automatically

Your computer locates the driver needed for it to communicate with the MLC

via the USB port. This driver is loaded to the computer hard drive when the MLC

configuration program is installed.

5. When the Completed screen appears, click Finish to close the wizard.

NOTE: This wizard appears only the first time you connect the MLC to each USB

port. You do not see the wizard again unless you connect the MLC to a

different USB port on your computer.

6. Conﬁgure the MLC ports and buttons as desired, using the MLC conﬁguration

program (see the conﬁguration software help ﬁle for information on these procedures). To obtain the software, see “Installing the Conﬁguration Software” in the “Software Conﬁguration and Control” section.

7. When nished conguring, disconnect the USB cable from the MLC, and replace the

faceplate or return the MLC to its position in the installation surface.

NOTES: • Unlike the rear panel Host/Config port, which can also be used to

configure the MLC, the cable to the USB port cannot remain connected when the MLC 62 RS EU or MLC 62 RS MK is mounted, or when the

MLC D wallplate is attached.

• If you want to upload a new conguration via USB after the MLC has

been mounted, you must detach the MLC D wallplate or remove the

MLC 62 RS EU or MLC 62 RS MK unit from the installation surface (see

“Accessing Covered Panel Features after Mounting,” later in this section, for the procedures).

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 29

IR Learning

The IR learning transceiver sensor on the MLC front or left side panel can receive and “learn” commands from the infrared remote controls of other devices via the MLC configuration software. IR Learning enables you to create an IR driver file to control the

projector or input devices such as a VCR or DVD player. IR Learning of projector control

codes is necessary only if there is no driver available for your projector or if you need to customize the driver.

The IR transceiver accepts infrared signals of 30 kHz to 60 kHz. Point the IR remote control directly at the transceiver for best results. The diagrams below indicate the best distances and angles at which to hold the remote control.

IR Learning Transceiver

DISPLAY

VIDEO

SET

INPUT

EFFECT ON/OFF

INPUT SELECT

PHONO

TV/DBS

ENT DISP

CD TAPE TUNER

1 2 3

4 5 6

7 8

REW

TIME/

LEVEL–

LEFTRIGHT

S-Video

DIR A

PAUSE

REC/

DLY/CNT/REAR

PAUSE

DVD/LD VCR

STOP

–+

PLAY

PRG+

TEST

PRG–

SKIP/CHAPTER

SLEEP

DECK

RGB1

A/B

+100

DOWN

TIME/

LEVEL+

MUTE

DIR B

POWER

RGB2

INPUTS

4"–14" (10–36 cm)

OFF

VOLUME

VIDEO

MLC 62 D Front Panel

Figure 35. IR Learning on an MLC D Model

IR Learning Transceiver

VIDEO

SET

INPUT

EFFECT

ON/OFF

INPUT SELECT

PHONO

TV/DBS

ENT DISP

CD TAPE TUNER

1 2 3

4 5 6

7 8

REW

TIME/

LEVEL–

LEFTRIGHT

S-Video

DIR A

PAUSE REC/

DLY/CNT/REAR

PAUSE

DVD/LD VCR

STOP

–+

PLAY

PRG+

TEST

PRG–

SKIP/CHAPTER

SLEEP

DECK

RGB1

A/B

+100

DOWN

TIME/

LEVEL+

MUTE

DIR B

POWER

RGB2

INPUTS

4"–14" (10–36 cm)

MLC 62 RS EU and MLC 62 RS MK Left Side Panel

Figure 36. IR Learning on an MLC 62 RS EU or MLC 62 RS MK

To set up the MLC for IR Learning, use the MLC configuration software (see the configuration software help file for the procedures).

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 30

Mounting the MLC 60 Series Controllers

When the system has been cabled, configured, and tested, the MLC can be installed in

a wall or furniture. After you have any desired changes to the faceplate or front panel buttons and configured the buttons, mount the MLC as described in the following sections.

Mounting an MLC 62 D

You can mount an MLC 62 RS D or MLC 62 IR D to a UL-approved one-gang sized

electrical junction box or Decora mounting bracket (included).

Mounting an MLC 62 D to an electrical junction box

CAUTION: Ensure that the junction box is grounded properly.

1. Mount the electrical junction box in the wall or furniture, following the directions

provided with the box.

2. Run the cables through the electrical box.

3. Connect all cables and disconnect power from all devices at the source.

4. Insert the MLC unit into the mounted electrical box.

5. Secure the MLC to the box using two of the provided screws in the slots at the top

and bottom of the unit.

6. Fasten the Decora wallplate onto the unit using two of the provided screws in the

holes at the top and bottom.

DISPLAY

OFF

MLC 62 D

VOLUME

LAPTOP

VIDEO

MUTE

Decora Wallplate

Electrical Box

Figure 37. Mounting an MLC 62 D in an Electrical Junction Box

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 31

Mounting an MLC 62 D to a Decora Mounting Bracket

A one-gang, Decora style mounting bracket (“mud rings”) is provided with the MLC 62 D models. If desired, you can mount the MLC to this type of bracket instead of to an electrical box. To mount the controller to a Decora style mounting bracket, follow these steps:

1. Cut a hole in the mounting surface large enough to accommodate the provided

one-gang mounting bracket.

2. Insert the mounting bracket into the hole.

3. Turn the two screws on the bracket so that the locking arms rotate behind the

mounting surface until they clamp securely to it. Do not overtighten.

4. Run the cables through the mounting bracket and attach them.

5. Place the MLC D onto the bracket so that the oval screw holes at the top and bottom

of the MLC line up with the oval holes at the top and bottom of the bracket.

6. Place the wallplate onto the MLC front panel, then attach both to the bracket, using

two of the provided screws in the holes at the top and bottom.

Wall

3.88"

2.16"

DISPLAY

OFF

VOLUME

VIDEO

Wall Mounting

LAPTOP

MUTE

Bracket

MLC 62 RS D

Wallplate

Figure 38. Mounting an MLC 62 D to a Decora Mounting Bracket

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 32

Mounting the MLC 64 RS VC D

Mounting an MLC 64 RS VC D to an electrical junction box

CAUTION: Ensure that the junction box is grounded properly.

1. Mount a two-gang electrical junction box in the wall or furniture, following the

directions provided with the box.

2. Run the cables through the electrical box.

3. Connect all cables and disconnect power from all devices at the source.

4. Place the MLC and VCM units side-by-side into the mounted electrical box.

5. Secure the MLC and VCM to the box using the provided screws in the oval slots at the

top and bottom of the two boards.

6. Fasten the wallplate onto the unit using the four provided black or white screws in the

holes at the top and bottom of the wallplate.

Wall

DISPLAY

Wall Box

LAPTOP

DOC CAM

VIDEO

VOLUME

OFF

MUTE

MLC 64 VC D

Wallplate

Figure 39. Mounting an MLC 64 D to an Electrical Box

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 33

Mounting an MLC 64 RS VC D to a Decora Mounting Bracket

A two-gang Decora mounting bracket is provided with the MLC 64. To mount the MLC 64 to this type of bracket:

1. Cut a hole in the mounting surface large enough to accommodate the provided

two-gang mounting bracket.

2. Insert the mounting bracket into the hole.

3. Turn the two screws on the bracket so that the locking arms rotate behind the

mounting surface until they clamp securely to it. Do not overtighten.

4. Run the cables through the mounting bracket and attach them.

5. Place the MLC 64 and the volume control module side-by-side onto the bracket so

that the centers of the oval screw holes at the top and bottom of both module boards line up with the four holes on the bracket.

6. Insert the four provided silver, rounded Phillips head screws through the oval holes

in the two MLC boards and then the round holes in the Decora mounting bracket behind, and tighten the screws.

7. Place the wallplate over the two MLC modules. The front panels should protrude

through the slots in the wallplate, while the two boards ﬁt into the recessed area on the back side of the wallplate.

8. Fasten the wallplate onto the MLC boards, using the four provided black or white

screws in the holes at the top and bottom of the wallplate.

Wall

4.06"

3.75"

LAPTOP

VIDEO

AUX

VOLUME

OFF

MUTE

Wall Mouting Bracket

DISPLAY

MLC 64 VC D

Wallplate

Figure 40. Mounting an MLC 64 D to a Two-gang Decora Mounting Bracket

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 34

Mounting the MLC 62 RS EU and the MLC 62 RS MK

CAUTION: Ensure that the junction box is grounded properly.

To mount the MLC 62 RS EU and MLC 62 RS MK to an electrical box:

1. Attach the provided metal mounting bracket to the mounted electrical box using two

of the included screws in the slots at the top and bottom of the bracket.

NOTES: • To keep the MLC securely in place and prevent it from being easily

pulled from its mounting surface, ensure that the side of the bracket with the word “Front” engraved on it faces out (away from the electrical box).

• If you want to be able to remove the MLC easily from its mounting,

attach the mounting bracket with “Front” facing inward, toward the junction box.

2. Run the cables through the electrical box and the plastic wall frame.

3. Connect all cables to the MLC and disconnect power from all devices at the source.

4. Align the wall frame to the metal mounting bracket on the mounting surface.

5. Holding the wall frame in place on the bracket, press the MLC into the frame until the

unit snaps into place.

Electrical Junction Box

Metal Bracket

DISPLAY

OFF

VOLUME

VIDEO

Wall Frame

LAPTOP

MLC 62 EU

MUTE

Figure 41. Mounting the MLC 62 RS EU to an Electrical Box

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 35

Wall

MLC 62 MK

Wall Box

Metal Bracket

DISPLAY

OFF

VOLUME

VIDEO

Frame

LAPTOP

MUTE

Figure 42. Mounting the MLC 62 RS MK to an External Electrical Box

Mounting the MLC EU in a Raceway Using Spacers (Optional)

If you are experiencing difficulty with the MLC EU staying in place when installed in a

cable raceway, this may be due to a gap between the metal mounting bracket and the wall frame.

When this gap exists, the tabs on the sides of the MLC do not reach the metal mounting

bracket and the MLC does not snap completely into the wall frame.

You can remedy this situation by installing a spacer (provided with the MLC EU) between

the metal mounting bracket and the rim of the junction box. This spacer appears very similar to the metal mounting bracket, except that it has holes instead of slots for the mounting screws, it is engraved with the words “Optional Spacer” and “Place behind bracket,” and has a slightly larger center opening than the mounting bracket.

NOTE: Do not attempt to use the spacer in place of the metal mounting bracket.

Because of its larger opening, the spacer will not hold the MLC EU in place in

the wall frame.

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 36

To mount the MLC EU to a raceway using the spacer:

Raceway

1. Mount the electrical box in the raceway.

2. Attach the spacer to the electrical box using two

of the included screws in the holes at the sides of the spacer. Leave the screw heads protruding

Junction Box

Mounting Bracket

approximately 1/8 inch from the surface of the spacer.

3. With the “Front” label toward you, place the metal

mounting bracket onto the spacer so that the screw heads pass through two of the slotted holes in

Spacer

opposite sides of the bracket.

NOTE: Ensure that the surface of the mounting bracket containing the word

“Front” is facing out (away from the spacer and junction box).

Junction Box

Metal Spacer

Metal Bracket

DISPLAY

OFF

Wall Frame

Cable Raceway

Figure 43. Mounting the MLC 62 RS EU Using a Spacer

MLC 62 RS EU

VOLUME

LAPTOP

VIDEO

MUTE

4. Rotate the mounting bracket as necessary to ensure that the MLC will be positioned

straight on the mounting surface and not skewed to either side.

5. Tighten the screws to secure the bracket to the spacer.

6. Pull the cables through the electrical box and the wall frame.

7. Disconnect power from all devices at the source and connect all cables to the MLC.

8. Align the wall frame with the metal mounting bracket on the mounting surface.

9. Press the MLC into the frame until the unit snaps into place.

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 37

Accessing Covered Panel Features After Mounting

After the MLC is installed in the mounting surface, you can still access the covered front panel features on the MLC D and the side and rear panel features on the

MLC 62 RS EU and MLC 62 RS MK, using the following procedures.

Accessing the Covered MLC D Front Panel Features

After the MLC D is mounted, the following front panel items are covered by the wallplate:

IR sensor, DIP switches, Reset button, and USB connector. To access these controls, remove

the two screws at the top and bottom of the wallplate and lift it off the MLC, as shown below.

DISPLAY

OFF

VOLUME

VIDEO

MUTE

LAPTOP

MLC 62 D

Wallplate

Figure 44. Removing the MLC D Wallplate

Accessing MLC 62 RS EU and MLC 62 RS MK Side and Rear Panel Features

To access the MLC 62 RS EU or MK side and rear panel features after the MLC has been

mounted, you must remove the MLC from the installation surface, leaving the metal

mounting bracket attached. (Without the MLC unit to hold it in place, the wall frame also

is removed.) A removal tool (shown at right) is provided with the product.

To remove the MLC from the mounting surface:

1. Insert the ﬂat tip of the removal tool in the center of the right or left edge of the MLC,

between the MLC and the wall frame, all the way to the line below the arrow on the tool.

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 38

Figure 45. Inserting the Removal Tool in an MLC 62 EU

2. Press the removal tool inward or toward the mounting surface to release the tab

holding the MLC in place in the wall frame.

3. If the MLC does not immediately come free of the frame, pry the unit outward (away

from the wall) until it is free of the installation surface, then lift it out.

To reinstall the MLC, place it in the wall frame, then press the unit into the metal mounting bracket until all four tabs snap into their slots.

Front Panel Security Lockout

To prevent accidental changes to settings, the MLC features a front panel security lockout

mode for disabling access to controls. When front panel lockout is enabled, all the front

panel buttons are disabled. If a button is pressed, all the buttons flash rapidly three times to indicate lockout, but no action occurs.

You can lock and unlock the front panel by the following methods:

• Front panel buttons

• The MLC conﬁguration software (see the MLC 60 Series Conﬁguration Program Help

File).

• SIS commands (see the Front panel lockout commands in the “SIS Control” section).

DISPLAY

VOLUME

LAPTOP

OFF

VIDEO

MUTE

Extron

Insert to line.

Locking Using the Front Panel Buttons

To lock the front panel using the buttons, press and hold the On and Off (top two) buttons simultaneously for 3 seconds. All the front panel

buttons and the red Activity LED flash three times rapidly.

To unlock the front panel, press and hold the On and Off buttons again for 3 seconds. All front panel buttons flash three times slowly while the

Activity LED blinks green three times.

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 39

DISPLAY

OFF

Press and hold for 3 seconds.

Resetting the MLC Using the Reset Button

If it becomes necessary to reset the MLC to its default factory firmware or to the default configuration settings that were implemented at the factory, you can use either the Reset button (see below) or the configuration software (see the software help file).

The Reset button is located on the front panel of the MLC D behind the wallplate, and on

the rear panel of the MLC 62 RS EU and MK. To access the Reset button, do one of the

following, depending on your MLC model:

• Remove the wallplate from the MLC D (see “Accessing the Covered MLC D

Front Panel Features,” earlier in this section), or

• Remove the MLC 62 RS EU or MLC 62 RS MK from the installation surface

(see “Accessing MLC 62 RS EU and MLC 62 RS MK Side and Rear Panel

Features,” earlier in this section).

Use the provided Extron Tweeker or other small screwdriver to press the Reset button.

Reset

DISPLAY

VOLUME

OFF

LED

Reset Button

Reset LED

Tx/

RELAYS

N/O

PORT A

PORT B

RS-232

IR/ S

0.4 A max

CONFIG

INPUT DIGITAL

12 V

HOST/

PWR

MLC D Front Panel

VIDEO

MLC 62 RS EU and MLC 62 RS MK Rear Panel

Figure 46. Reset Button Locations

You can perform two types of reset:

• Resetting to the default conﬁguration:

1. While the MLC is powered on, press and hold the Reset button. The Reset LED

remains lit while the button is being held.

2. After 3 seconds, the Reset LED blinks once. Release the button, then immediately

(within 1 second) press it again and release it quickly (momentary press).

When the reset is finished, the Reset LED blinks four times, indicating that the

reset was successful.

• Resetting to the factory ﬁrmware defaults:

1. With the MLC powered off, press and hold the Reset button.

2. Continue to hold the button while applying power to the MLC.

3. When the reset is complete, the front panel buttons scroll (blink in succession in

clockwise order). Release the Reset button.

MLC 60 Series MediaLink Controllers • Features, Installation, and Operation 40

Software-based Conﬁguration

This section describes basic procedures for setting up the MLC using the MLC 60 Series

Windows-based configuration program. The following topics are covered:

• About the MLC Conﬁguration Program

• Installing the Conﬁguration Software

• Starting the Conﬁguration Software

• Obtaining Device Drivers

For more detailed descriptions and additional configuration procedures, see the configuration program help file.

About the MLC Configuration Program

An MLC controller must be configured in order for it to be able to control other devices.

The Extron MLC 60 Series Configuration Program is used to set up the MLC front panel buttons and rear panel ports and to update firmware. Using this software, you can create

configurations on your computer for your MLC and then upload them to the computer via

the MLC USB or Host/Config serial port. (The MLC does not have to be connected to the

computer while you are creating the configurations.) See the “Features, Installation, and

Operation”section for pin assignments and other details on the configuration ports, and

the configuration software help file to create and upload the configurations.

NOTE: Extron recommends configuring and controlling the MLC via the USB port.

This port can supply power to the MLC during the configuration process.

Computer System Requirements

The minimum system requirements for the computer on which you install the MLC configuration program include:

• Intel Pentium III 1-GHz processor

• Microsoft Windows XP SP2 (32 bit) or Windows 7 (64 bit)

• Microsoft.NET Framework 2.0

• 512 MB of RAM

• 50 MB of available hard disk space

MLC 60 Series MediaLink Controllers • Software-based Configuration 41

Installing the Configuration Software

The software is provided on a DVD that is delivered with your MLC unit. You can also download it free of charge from the Extron website.

Downloading and Installing the Software from the Web

If you do not have the software on DVD, download it to your computer from the Extron

website as follows:

1. Visit the Extron website at www.extron.com and select the Download tab.

2. On the Download Center screen, click the Control Software button. A Control

Software screen is displayed, containing a list of control software products.

3. Click M on the linked alphabet at the top or bottom of the screen.

4. On the “M” software products page, scroll to locate MLC, and click the Download link

at the far right.

5. On the next screen, ﬁll in the required information.

6. Click the Download MLC60SWnxn.exe button.

7. Follow the instructions on the download screens to download the software and install

it on your computer.

Installing the Software from the DVD

If you have an Extron DVD containing the MLC software, install it on your computer as

follows:

1. Insert the disc into your computer drive. If the disc does not start automatically, open

your Windows Explorer and double-click Launch.exe on the disk drive to start it.

2. On the Extron software DVD screen, click the Software button.

Figure 47. Software Button on the DVD Opening Screen

MLC 60 Series MediaLink Controllers • Software-based Configuration 42

3. On the Control Software screen, scroll to locate the MLC 60 Series, and click the

Install link in the far right column.

4. Follow the on-screen instructions to complete the installation on your computer.

Starting the Configuration Software

To use the MLC to control devices, you must create one or more configurations for it, using the MLC configuration program. A configuration is a set of specifications for button command assignments and port parameters that enable the MLC to control your display device or switcher.

NOTE: Configurations can be created away from the job site and without the MLC

being connected to the computer.

After you have downloaded and installed the software (see “Installing the

Configuration Software,” earlier in this section) and device drivers if necessary (see

“Obtaining Device Drivers,” later in this section), begin by creating a new project.

An MLC project is a file (with an .mlp extension) that contains port and button configurations for one or more MLCs. A configuration must be created within a new or existing project. A project can be saved, copied, and edited (for example, by adding or changing configurations within it). You can also create a configuration and add it to an existing project. You can start a new project either when first opening the MLC software or while the software is open and another project is active.

To start the configuration program:

1. Open the MLC 60 Series software by selecting the MLC icon from the Start menu on

your computer desktop. Select All Programs\Extron Electronics\MLC 60\MLC 60. The Start Options window opens in front of the MLC 60 Conﬁguration Program main window.

2. On the Start Options window, select the Create a New Project radio button.

Figure 48. Start Options Window

3. Click OK. The Add Device dialog box opens, displaying a diagram of your MLC front

panel.

4. On the Add Device window, enter a name for your MLC in the Device Name ﬁeld.

This becomes the name of the ﬁrst conﬁguration in the new project.

MLC 60 Series MediaLink Controllers • Software-based Configuration 43

5. Select your MLC model from the Select Model drop-down menu.

Figure 49. Add Device Window with Select Model Menu Displayed

6. Click OK. The MLC 60 Series main window opens, with the device name you entered

displayed in the device conﬁguration tree (left column).

Figure 50. The MLC 60 Series Main Window

MLC 60 Series MediaLink Controllers • Software-based Configuration 44

The MLC 60 Series main window is divided into the following major sections (see the

illustration on the previous page):

a The device conﬁguration tree enables you to view the list of devices that have

been conﬁgured, and to organize and save all these device conﬁgurations in a single project ﬁle.

b The Front Panel tab screen enables you to conﬁgure the buttons and assign all

commands to them.

The following is displayed on the MLC window:

• The device conﬁguration name appears in the conﬁguration tree in the left

pane, with the names of the two ports to which a device can be connected and controlled via RS-232 or IR: Port A (RS-232) and Port B (IR/S) for the MLC 60 Series RS-232 models, or Port A (IR) for the MLC 62 IR D.

• The Front Panel screen is displayed in the main section of the window and

contains a diagram representing the front panel of your selected MLC. (If this screen appears blank when the window is opened, click on the name of the MLC device conﬁguration in the left pane to display it.)

• In the title bar, the project name is shown as “Unnamed Project*.” (The asterisk

following the name indicates that the project has not been saved since changes were made.)

7. Save and name your project as follows:

a. From the File menu, select Save As... .

b. On the Save As window, give your project ﬁle a name and save it to the desired

location on your computer.

NOTE: Your project is saved as a file with the extension .mlp.

You are now ready to create configurations for your MLC device by specifying parameters for its ports and buttons (see the configuration software help file for procedures).

Accessing the Help File

For instructions on creating configurations using the software, see the MLC 60 Series Configuration Program Help File. You can access the help file the following methods:

• From the Help menu, select MLC 60 Series Configuration Program Help.

• Click the Help icon on the main window toolbar.

• Press the <F1> key on your computer keyboard.

MLC 60 Series MediaLink Controllers • Software-based Configuration 45

Obtaining Device Drivers

The Extron drivers are control files (libraries) of commands created by Extron that are

specific to a particular display device or switcher. There are different sets of drivers for

serial (RS-232) and IR control. Before you can use the configuration software to configure

the MLC buttons and ports, the necessary drivers must be loaded onto your computer. You must then load the appropriate driver for your device to the MLC in order to configure it to control the device.

Serial and IR drivers are available at no charge from the Extron web site at

www.extron.com. You can download them directly from the web or through the

configuration software. The same drivers are also provided on the software DVD provided

with the MLC.

NOTES: By default,the drivers that you download are stored in the Driver2 folder on

your computer, located at:

• Windows XP — c:\Documents and Settings\All Users\

Shared Documents\Extron\Driver2

• Windows 7 — c:\Users\Public\Documents\Extron\Driver2

Downloading Drivers Using the Conﬁguration Program

The easiest way to obtain the drivers for your devices is via the MLC configuration program. (You can do this at any time while the software is open, regardless of whether a project has been created.)

1. Click Start > Programs > Extron Electronics > MLC 60 or double-click

the MLC software icon (shown at right) on your desktop to launch the MLC software application. The MLC Conﬁguration Program main window opens, with the Start Options window displayed in front of it.

2. On the Start Options window, click the Add Driver Subscriptions button.

Figure 51. Start Options Window

MLC 60 Series MediaLink Controllers • Software-based Configuration 46

The Driver Subscriptions window opens. In the Available Drivers Subscription section, select the device types for which you want to download drivers.

Figure 52. Driver Subscription Window

• To select all device types available from a manufacturer, select the check box in

front of the manufacturer name. Each manufacturer whose drivers you select is

listed in the Current Drivers Selection column.

• To select individual device types from a manufacturer, click the plus (+) sign

in front of the manufacturer name to expand it and display all the device types of that manufacturer for which drivers are available, then select the desired device check boxes. To hide the devices, click the minus (–) sign.

• To expand or collapse the list of manufacturers and view or hide

all their drivers, click the Expand all or Collapse all buttons (shown at right) at the top of either column.

NOTE: When you select a device, both the IR and serial drivers for it are

downloaded.

3. Make any desired optional selections:

• Select the Auto-check for new subscribed drivers check box if you want

the MLC to continually check for and download any updates to your subscribed

drivers. When a new version of any of your subscribed drivers is available on the Extron website, that new version is automatically downloaded when the

conﬁguration program is started.

• Click Set Proxy if you want to download your drivers using proxy server settings.

(Refer to the conﬁguration software help ﬁle for more information.)

If you want to close the window without downloading any drivers, click Close to save any changes you have made on this window or Cancel if you want to discard your changes.

MLC 60 Series MediaLink Controllers • Software-based Configuration 47

4. Click Download. The Driver Subscriptions Download window opens, displaying all

drivers that have been selected or previously downloaded to your computer.

Figure 53. Driver Subscription Download Screen

• If a driver on the list is new for your computer, it has the designation

“Waiting...” in the Status column.

• If a driver already exists on your computer, its designation is “Already in Driver

Catalog.”

NOTE: Your computer must have an active internet connection to download the

drivers.

5. On the Driver Subscription Download window, click Begin to download the drivers

listed in the Driver File section. While the download is in progress:

• The Progress Bar indicates the progress of the download.

• The Elapsed Time section shows the amount of time that has passed since the

download process started.

• As each new driver is downloaded, its designation in the Status column changes

to “Completed.”

6. When the Progress Bar and the Status column indicate that the download has

completed, click Close to close the Driver Subscription Download window.

Figure 54. Driver Subscriptions Download Screen after a Driver Download

7. Click Close on the Driver Subscriptions window when ﬁnished.

MLC 60 Series MediaLink Controllers • Software-based Configuration 48

Downloading Drivers from the Disc

The software DVD provided with the MLC contains the set of device drivers that are also available from the web. To load the drivers from the DVD to your computer:

1. Load the Extron Software Products DVD into your CD or DVD drive. The disc should

start automatically. If it does not, open your Windows Explorer and double-click

Launch.exe on the CD or DVD drive to start it.

2. On the opening screen, click the Drivers button or select the Drivers tab at the top

of the screen.

Figure 55. Drivers Tab and Button on the Software DVD Opening Screen

3. On the Drivers screen, select MLC 60 Series Device Drivers.

Figure 56. MLC 60 Series Link on the Drivers Screen of the Software DVD

MLC 60 Series MediaLink Controllers • Software-based Configuration 49

The MLC 60 Series Device Drivers screen opens, displaying a list of all available drivers for use with the MLC 60 Series controllers (see the example below).

Figure 57. MLC 60 Device Drivers Page on DVD

4. From the DVD, you can download either the current Extron driver package (containing

all IR and serial drivers that were available at the time the package was compiled), or an individual driver.

To download the driver package:

NOTE: You do not need to choose a type from the Select Interface Type

menu because the driver package contains both types.

a. Click Download install for current driver package. b. Click Run on each of the two File Download - Security Warning windows.

c. Follow the instructions on the Driver Install wizard screens to complete installation

of the driver package. Unless you specify otherwise, the driver le is placed at one

of the following locations on your computer:

• Windows XP — c:\Documents and Settings\All Users\

Shared Documents\Extron\Driver2

• Windows 7 — c:\Users\Public\Documents\Extron\Driver2

The MLC Configuration Program supports only driver package 8.1 or later.

MLC 60 Series MediaLink Controllers • Software-based Configuration 50

NOTE: The DVD may contain additional drivers that became available after the

current driver package was created. These new drivers may be on the

DVD, but have not been incorporated into the driver package.

To ensure that you are getting all the drivers currently available, use the configuration program to download the drivers (see “Downloading the

Drivers Using the Configuration Program,” earlier in this section).

To download a single driver:

a. From the Select Interface Type drop-down menu, select IR or Serial for the

type of drivers to view. When you make this selection, only drivers in the current

driver package are displayed.

b. If you want to view all the drivers of the selected type, including those outside the

current package, click View All.

c. To view additional pages of driver listings, click Next. Click Previous to page

backward through the drivers list.

d. Right-click on the name of the desired driver. From the pop-up menu, select

Save Target As... .

Figure 58. Saving a Single Driver to the Computer

e. On the Save window that opens, save the driver ﬁle in the Driver2 folder.

MLC 60 Series MediaLink Controllers • Software-based Configuration 51

Downloading Drivers from the Web

Drivers can also be obtained directly from the Extron website as follows:

1. Visit the Extron website at www.extron.com, and click the Download tab.

2. Click the Device Drivers link on the left panel of the Download Center screen.

3. From the drop-down menu on the Device Drivers screen, select MLC 60 Series.

Figure 59. Selecting MLC 60 Series from the Device Drivers Drop-down Menu

4. From the menus on the Extron Online Search Tool screen, select search criteria for the

drivers you want to download:

• From the Extron Product menu, select MLC 60 Series if it is not already

selected.

• From the Protocol Type menu, select IR, Serial, or All.

• From the Manufacturer menu, select the manufacturer of the device for which

you are downloading the drivers, or All to select all device manufacturers.

• From the Product Category menu, select the type of device (for example, video

projector) or All.

• From the Model menu, select the device model name or number, or All.

MLC 60 Series MediaLink Controllers • Software-based Configuration 52

As you make each selection, the driver list below changes to display all available drivers meeting your selected criteria.

Figure 60. Entering MLC 60 Series Driver Search Criteria

5. Click on the device name whose driver you want to download.

To download all the drivers in the current package, click the Download install for

driver package (Version n) link.

NOTE: The website may contain additional drivers that became available after

the current driver package was created. These new drivers may be on the website, but have not been incorporated into the driver package.

If you want to ensure that you are getting all the drivers currently available, use the configuration program to download the drivers (see “Downloading the Drivers using the Configuration Program,” earlier in this section).

6. On the Download Center screen, enter the requested information, and click the

Download drivername button.

7. Follow the directions on the download screens that follow. Unless you specify

otherwise, the driver ﬁle is placed at one of the following locations on your computer:

• Windows XP — c:\Documents and Settings\All Users\

Shared Documents\Extron\Driver2

• Windows 7 — c:\Users\Public\Documents\Extron\Driver2

MLC 60 Series MediaLink Controllers • Software-based Configuration 53

SIS Control

The MLC can be remotely controlled via a host computer or other control device that is

attached to the MLC rear panel Host/Config port. You can issue Simple Instruction Set (SIS) commands to the MLC via the RS-232 or USB interface of your computer or control device with a communication software program such as Extron DataViewer or HyperTerminal. This

section contains a list of the SIS commands available for the MLC and describes procedures for issuing them. The following topics are covered:

• Host-to-Controller Communications

• Using the Command and Response Table

• Command and Response Table for SIS Commands

Host-to-Controller Communications

SIS commands consist of strings of one or more characters per field. No special characters

are required to begin or end a command sequence. When the MLC determines that a

command is valid, it executes the command and sends a response to the host device.

Most responses from the MLC to the host end with a carriage return and a line feed (CR/LF = ]), which signals the end of the response character string.

Controller-initiated Messages

When a local event such as a front panel button press takes place, the MLC responds by

sending a message to the host, indicating what selection was entered. No response is required from the host.

The MLC sends the following copyright message only when it first powers on.

where MLC nn is the model name, vn.nn is the firmware version number and 60-nnnn-nn is the model number.

This message does not appear with a USB connection.

Error Responses

If the MLC is unable to execute a command it receives because the command is invalid or contains invalid parameters, the controller returns an error response to the host. This response consists of the letter E followed by a number and a carriage return with a line feed. The following error response codes can be returned:

E10 – Invalid command or parameter

E13 – Invalid value (out of range)

E14 – Not valid for this configuration E22 – Busy

MLC 60 Series MediaLink Controllers • SIS Control 54

Using the Command and Response Table

The Command and Response Table on the following pages lists valid ASCII command codes, the responses of the MLC to the host, and a description of the command function

or the results of executing the command. The ASCII to HEX conversion table below is for

use with the table.

Space

Symbol Deﬁnitions

]

= CR/LF (carriage return with line feed) (hex 0D 0A)

}

= Soft carriage return (no line feed) (hex 0D; web | )

• = Space

= Button number: 01, 02, 03, 04, 05, 06, 07, 08, 09, or 10

Buttons are numbered from front panel top left (01) to bottom right (10).

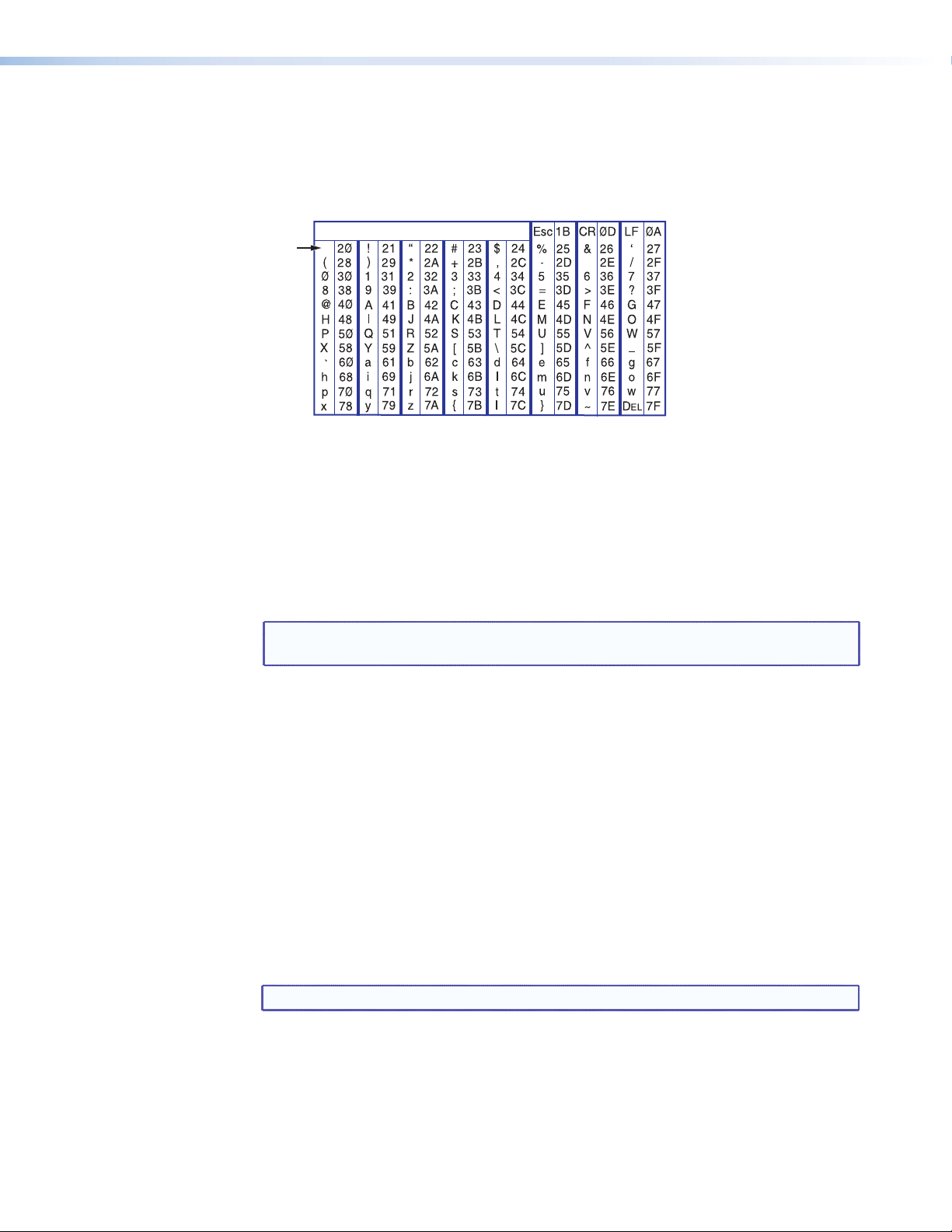

ASCII to Hex Conversion Table

= Escape key (hex 1B; web W)

•

NOTE: The Mute button on the MLC 64 VC D cannot be configured; therefore, it has

no number.

= Relay port number 1 = Relay 1 2 = Relay 2

= Pulse length in increments of 0.5 seconds. The default is 1 (0.5 seconds). 1 = 0.5 seconds 2 = 1 second ...

255 ≈ 130 seconds

= Digital input state 0 = low 1 = high

= Firmware version number (displayed to two decimal places: n.nn)

= Volume range level (a 3-digit number; for serial drivers with volume tables only)

NOTE: Only positive values are allowed. The volume table levels start with zero.

X1!

= Lockout (executive) mode 0 = Off 1 = On

MLC 60 Series MediaLink Controllers • SIS Control 55

X1@

= Name of the MLC device.

May be up to 24 alphanumeric characters. The first character must be alphabetic; the last character cannot be a hyphen or minus sign (-). No blank or space characters are permitted.

X2#

= Status 0 = disengaged (default) 1 = engaged

X2%

= Firmware compatibility version number (a 3-digit number listed to three decimal places: nnn.nnn)

X2^

= Device configuration compatibility version number (a 3-digit number listed to three decimal places: nnn.nnn)

X4(

= Default product name: MLC-62-RS, MLC-62-IR, or MLC-64-RS

X5)

= LED status

A 32-digit number, each digit of which represents the status of an LED on the

MLC front panel. In from 32 to 1; that is, the first digit on the left represents LED 32, the second digit

represents LED 31, and so on. The last digit of the number represents LED 1.

On the MLC 62 models, the LEDs are numbered as follows:

LED Number LED Location

1 Transmit red

2 Transmit green 3, 4, 5, 6 Four LEDs behind “Display” text 7 Button row 1, first LED (button 1) 8 Button row 2, second LED (button 2) 9, 10, 11, 12 Four LEDs behind “Volume” text 13, 14, 15, 16, 17 Volume level indicator LEDs 1 through 5 18 Button row 2, first LED (button 3) 19 Button row 2, second LED (button 4) 20 Button row 3, first LED (button 5)

22 Button row 3, third LED (button 6) 23 Button row 4, first LED (button 7)

25 Button row 4, third LED (button 8)

26 through 32 Not used (always 0)

X5)

, the LED statuses are represented in descending order

Button row 3, second LED (lights only if

buttons 5 and 6 are combined)

Button row 4, second LED (lights only if

buttons 7 and 8 are combined)

NOTE: Dual sized buttons, such as the input buttons on the MLC 62 IR D,

each take up an entire button row and have three LEDs apiece.

MLC 60 Series MediaLink Controllers • SIS Control 56

On the MLC 64, the LEDs are numbered as follows:

LED Number LED Location

1 Transmit red

2 Transmit green 3, 4, 5, 6 Four LEDs behind “Display” text 7 Button row 1, first LED (button 1) 8 Button row 1, second LED (button 2) 9, 10, 11 Button row 2, LEDs 1 through 3 12, 13, 14 Button row 3, LEDs 1 through 3 15, 16, 17 Button row 4, LEDs 1 through 3 18, 19, 20 Button row 5, LEDs 1 through 3

21 through 32 Not used (The status is always 0.)

Each digit in the

X21@

number can be 0 through 4, representing the following

possible LED statuses:

0 = off 1 = dim 2 = on (bright) 3 = slow blink 4 = fast blink

NOTE: Unless otherwise indicated, commands are not case-sensitive.

MLC 60 Series MediaLink Controllers • SIS Control 57

Command and Response Table for SIS Commands

Command

ASCII Command

(Host to Unit)

Button Selection

Trigger a button

B* X! BTNO

}

NOTES: • When you press a dual-sized button, such as the Input buttons on the MLC 64, different

numbers appear on your screen depending on which side of the button is pressed. For example, if you press the left side of the PC button on an MLC 64, the host response is

BtnoB*3, while pressing the right side of that button receives the response BtnoB*4. The

entire button lights, however, and the same command is issued regardless of which side is pressed.

• Use the MLC 60 Series Windows-based conguration software to congure the buttons

with commands.

Example

B*5BTNO

}

Discrete Audio Volume Adjustment on Devices with Volume Tables (MLC 62 RS models only)

Set volume level

Increment volume level

Decrement volume level

View current volume level

NOTE: Only positive values are allowed. Volume table levels start with 0 (zero). Setting a discrete volume level

that is outside of the volume table range results in an E13 error response.

V Vol X(

–V

Response

(Unit to Host)

BtnoB* X!

BtnoB*05

]

Vol X(

]

X( ]

]

Additional Description

Execute the commands

programmed to button X!. (This command produces the same results as pressing button X! on the front panel).

= 01, 02, 03, 04, 05, 06, 07,

08, 09, or 10.

Perform commands assigned to button 5.

Set volume table level to X(. X(

can be up to 3 digits; leading

zeros are optional.

Increase the volume by one volume table increment.

= current volume level. Decrease the volume by one volume table increment. Display the current volume level.

Increase and Decrease Audio Volume on Devices without Volume Tables (MLC 62 models only)

NOTE: Attempts to enter an X( V (Set volume level) command to set a discrete volume level on a device whose

driver does not include a volume table result in an E14 error response.

Increment volume level

Decrement volume level

View volume level

+V Vol+

–V Vol–

V ---

MLC 60 Series MediaLink Controllers • SIS Control 58

Increase the volume level by one step. Decrease the volume level by one step.

Command

ASCII Command

(Host to Unit)

Response

(Unit to Host)

Additional Description

Relay Functions (RS models only)

Pulse relay

Example:

Toggle relay

Force relay on

Force relay off

View relay state

*3*X# O Rly X@*

2*3*1O

*2 O

*1 O Rly X@*1

*0 O Rly X@*0

Rly2*1

Rly X@*

X2# ]

]

X2# ]

]

Set the length X# of the pulse speciﬁed for relay port

. Values for X# represent

increments of 0.5 seconds and can range from 1 (0.5 seconds) to 255 (approximately 130 seconds). The MLC response includes status the speciﬁed relay port.

For X@: 1 = Relay 1; 2 = Relay 2.

X2#

For

: 0 = open (disengaged;

1 = closed (engaged). Relay port 2 will remain closed for pulse intervals of 0.5 seconds. Close and open relay port

. Each time the command

is issued, the MLC toggles between the On and Off states.

The MLC response includes

X2#

status port.

Set relay port X@ to remain closed (on).

Set relay port X@ to remain open (off).

Show state For

for the speciﬁed relay

X2#

of relay port X@.

X2#

: 0 = open; 1 = closed.

X2#

for

Digital Input Data Port (RS models only)

View digital input state

]

X^ ]

View status X^ of the Digital

Input port. For X^: 0 = low; 1 = high.

Front Panel Lockout (Executive Mode)

Off On

View

0X 1X X

Exe0 Exe1

X1! ]

] ]

Unlock front panel buttons.

Lock all front panel buttons.

View front panel lockout status.

X1!

. For

X1!

, 0 = off; 1 = on.

Device Naming

Set unit name

Set unit name to factory default

View unit name

E X1@

•CN

}

} X1@ ]

Ipn•

X1@ ]

X4( ]

is:

X1@

for the MLC.

Set name can be up to 24 alphanumeric characters. The ﬁrst character

must be alphabetic; the last

character cannot be a hyphen or minus sign. No blank or space characters are permitted. Set the name of the MLC to its factory default name

X4(

• MLC-62-RS for RS models

• MLC-62-IR for IR models

• MLC-64-RS-D for MLC 64

Show the name of the MLC.

X4(

X1@

MLC 60 Series MediaLink Controllers • SIS Control 59

Command

ASCII Command

(Host to Unit)

Response

(Unit to Host)

Additional Description

Reset/Erase

Conﬁguration reset

ZXXX

}

ZapXXX

]

Reset the MLC conﬁguration to the factory default.

Information Requests

Query ﬁrmware version

Example

Query ﬁrmware compatibility version Query device conﬁguration compatibility version

NOTE: Compatibility version numbers are used to track and check for compatibility between the configuration

software, firmware, and device configuration versions on the MLC. The device and firmware compatibility numbers ( numbers,” and the three digits following the decimal point are “minor numbers.”

Whenever the major numbers match, they are considered to be compatible. The minor numbers are used to track changes that have been made but do not affect compatibility. However, if the minor numbers do not match, the version may not be backward compatible. (See “Updating Firmware” in the

MLC help file for more information on checking compatibility.)

Example

Request controller part number

Query model name

**Q

DIMQ

X* ]

1.00

X2% ]

} X2^ ]

X2%

}

and

X2^

) each consist of six digits. The first three digits are called “major

002.100

60-nnnn-nn

MLC•62•RS•D ] or MLC•62•RS•EU ] or MLC•62•IR•D ] or

MLC•64•RS•D

]

Display ﬁrmware version X* to two decimal places. The current ﬁrmware version is

1.00. Display ﬁrmware compatibility

X2%

version

View the device conguration

compatibility version number

X2^

Display the current device compatibility number 002.100.

Major number is 002; minor

number is 100. Show the MLC part number: MLC 62 RS D = 60-1005-02 MLC 62 RS EU = 60-1005-35 MLC 62 RS MK = 60-1005-23 MLC 62 IR D = 60-1006-02 MLC 64 RS D = 60-1182-02 Show the name of the MLC model.

MLC 60 Series MediaLink Controllers • SIS Control 60

Command

ASCII Command

(Host to Unit)

Response

(Unit to Host)

Additional Description

Query LED status

View LED status

} X5) ]

X5)

is a 32-digit number, of

which each digit represents the

status of an LED on the MLC

front panel.

On MLC 62 models, the LEDs are numbered as follows:

1 =Transmit red 2 = Transmit green

3-6 = Display text LEDs 1 through 4 7 = Button row 1, rst LED 8 = Button row 1, second LED 9-12 = Volume text LEDs 1 through 4

–

13-17 = Volume LEDs 1 through 5 18 = Button row 2, rst LED

19 = Button row 2, second LED 20 = Button row 3, rst LED

21 = Button row 3, second LED 22 = Button row 3, third LED

23 = Button row 4, rst LED 24 = Button row 4, second LED 25 = Button row 4, third LED

26-32 = Not used (Their status is always 0)

DISPLAY

VOLUME

LAPTOP

Extron

OFF

VIDEO

MUTE

–

X5)

, the LEDs are represented

in descending order from 32

to 1; that is, the rst digit represents LED 32, the second digit represents LED 31, and

so on. The last digit represents

LED 1. Each digit in

X5)

can be

0 through 4, representing the

following possible LED statuses:

0 = off 1 = dim 2 = on (bright) 3 = slow blink 4 = fast blink

NOTE: Dual sized buttons, such as the input buttons on the MLC 62 IR D, each take up an entire button row and have

three LEDs apiece.

Example (MLC 62)

}

00000001111121100000111124111104

]

(This example is illustrated in the diagram below.)

In this LED status number, for example, the rst digit on the right (LED 1) represents the red Transmit LED. Its status is 4, which indicates that it is blinking rapidly. The LEDs behind the

display text (3 through 6) have a status of 1, which means they are dimly lit.

Buttons 1 and 2 (Button Row 1)

Transmit Green

Behind “Display” Text

321

Transmit

Red

Buttons 7 and 8

(Button Row 4)

LED No.

32 31 30 29

Not used

10000000 1111000001121111 24 1111

27 26 25 24 23 22

Buttons 5 and 6

(Button Row 3)

20 19 18

On the MLC 64, the LEDs are numbered as follows:

1 =Transmit red

Buttons 3 and 4 (Button Row 2)

Volume Indicators

16 15 14 13 12 11 10 98765

Behind “Volume” Text

2 = Transmit green

–

3-6 = Display text LEDs 1 through 4 7 = Button row 1, rst LED 8 = Button row 1, second LED 9-11 = Button row 2, LEDs 1 through 3 12-14 = Button row 3, LEDs 1 through 3 15-17 = Button row 4, LEDs 1 through 3 18-20 = Button row 5, LEDs 1 through 3

21-32 = Not used (Their status is always 0.)

DISPLAY

ON OFF

LAPTOP

VIDEO

AUX

Extron

Example (MLC 64)

}

00000000000011111111122231111103

]

In this MLC 64 example, the red Transmit LED shows status 3 (blinking slowly). The LEDs

behind the Display text show status 1 (dimly lit). LEDs 9, 10, and 11 show status 2 (brightly lit) because the PC button (row 2) is active.

MLC 60 Series MediaLink Controllers • SIS Control 61

Reference Information

This section contains the specifications for all models of the MLC and lists names and part numbers of included parts and optional accessories for the product. Topics include:

• Speciﬁcations

• Part Numbers and Accessories

Specifications

MLC 62 Series Speciﬁcations

Control — host ports

Serial control port ........................... 1 bidirectional RS-232 on a 3.5 mm captive screw connector, 3 pole

Baud rate and protocol ................... 9600 baud, 8 data bits, 1 stop bit, no parity

Serial control pin conﬁguration ....... Pin 1 = Tx, pin 2 = Rx, pin 3 = GND

USB control ports

Decora® models ....................... 1 front panel female mini USB B

MK and EU models .................. 1 side panel female mini USB B

USB standards ................................ USB 2.0, low speed

IR learning frequencies ................... 30 kHz to 60 kHz

IR learning distance ........................ 4" (10 cm) to 14" (36 cm) from the receiver (on front panel for Decora models,

Program control ............................. Extron conguration program for Windows®

Control — serial port (RS models)

Display control port ........................ (1) 3.5 mm captive screw connector, 2 pole for unidirectional RS-232 control

Baud rate and protocol (RS-232) ..... 9600 (default), 19200, 38400, 57600, 115,200 baud; 8 (default) or 7 data bits;

Control — IR port (IR models) or IR/serial port (RS models)

IR control port ................................ (1) 3.5 mm captive screw connector, 2 pole for IR or IR/Serial* (transmit only)

Baud rate and protocol ................... For RS models:

Control — relay (RS models)

Number/type .................................. 2 momentary or latching (conﬁgurable via software)

Connector ...................................... (1) 3.5 mm captive screw connector, 3 pole

Contact rating ................................ 24 V, 1 A

side panel for MK and EU models)

Extron Simple Instruction Set (SIS™)

(±5 V)

1 stop bit; no parity (default), or even or odd parity

TTL level (0 to 5 V) modulated infrared control (all models) from 30 kHz up to 60 kHz, or ±5 V RS-232 control (RS models, transmit only) *For RS models, IR/serial ports are congurable via software, serial

communication is the default.

9600 (default), 19200, 38400, 57600, 115,200 baud; 8 (default) or 7 data bits; 1 stop bit; no parity (default), or even or odd parity

MLC 60 Series MediaLink Controllers • Reference Information 62

Control — digital input monitoring port (RS models)

Number/type .................................. 1 digital input (conﬁgurable)

Connector ...................................... (1) 3.5 mm captive screw connector, 2 pole

Digital inputs

Input voltage range ................. 0-24 VDC

Input impedance ...................... 12k ohms

Programmable pullup ............... 2k ohms to +5 VDC

Threshold low to high .............. >1.5 VDC

Threshold high to low .............. <1.0 VDC

General

Power supply .................................. External

Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1 A, 12 watts

Power input requirements .............. 12 VDC, 0.4 A, max.

Temperature/humidity .................... Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling .......................................... Convection, no vents

Mounting

Rack mount ............................. No

Furniture or wall mount

Decora® models ................. Mounts in a standard 1 gang US electrical junction box or with included mud

ring.

EU models.......................... Mounts in a standard 1 gang EU electrical junction box with 60 mm mounting

centers. An adapter frame is included.

MK models ........................ Mounts to a standard MK electric type British standard wall box or junction box.

Enclosure type ................................ Plastic

Enclosure dimensions

MLC 62 IR D, MLC 62 RS D

Faceplate ........................... Fits the opening in a 1 gang Decora style wallplate.

Device ................................ 4.2" H x 1.8" W x 1.5" D

(10.7 cm H x 4.6 cm W x 3.7 cm D)

(Depth includes connectors and buttons. Allow enough depth in the wall or

furniture for the device plus cable clearance.)

4.19”

(10.64 cm)

1.84”

(4.68 cm)

GROUND

IR OUT

GROUND

+12 VDC

MLC 62 IR D Rear

CONFIG

HOST/

12V

PWR

0.4 A MAX

1.78”

(4.53 cm)

1.13"

(2.87 cm)

2.77”

(7.04 cm)

4.19”

(10.64 cm)

1.84”

(4.68 cm)

GROUND

COMMON

GROUND

Tx/IR

GROUND

+12 VDC

(4.53 cm)

MLC 62 RS D Rear

CONFIG

HOST/

INPUT

DIGITAL

N/O

RELAYS

IR/ S

RS-232

12V

PWR

0.4 A MAX

1.78”

1.13"

(2.87 cm)

2.77”

(7.04 cm)

MLC 60 Series MediaLink Controllers • Reference Information 63

MLC 62 RS EU

0.41"

MLC 62 RS EU

Faceplate ........................... Fits the opening in a 1-gang EU, ts a Jung AS 500 wallplate or other European

frame that accepts 55 mm x 55 mm modules.

Wall frame ......................... 3.2" H x 3.2" W x 0.4" D

8.1 cm H x 8.1 cm W x1.0 cm D

Device ................................ 2.2" H x 2.2" W x 1.5" D

(5.5 cm H x 5.5 cm W x 3.7 cm D)

Depth includes connectors and buttons. Allow enough depth in the junction box for device plus cable clearance.)

2.79”

(7.08 cm)

RELAYS

N/O

INPUT DIGITAL

Tx/ IR

IR/ S

CONFIG HOST/

*1.83”

(4.64 cm)

RS-232

0.4A max

12V

PWR

0.98"

(2.47 cm)

1.85”

(4.69 cm)

* 2.02” (5.12 cm) (including tabs)

MLC 62 EU Rear

MLC 62 RS MK

Faceplate ........................... Fits the opening in a 1-gang Jung AS 500 wallplate or other European frame

that accepts 55 mm x 55 mm modules.)

Wall frame ......................... 3.4" H x 3.4" W x 0.4" D

8.6 cm H x 8.6 cm W x 1.1 cm D

Device ................................ 2.2" H x 2.2" W x 1.5" D

(5.5 cm H x 5.5 cm W x 3.7 cm D)

Depth includes connectors and buttons. Allow enough depth in the junction box for device plus cable clearance.)

(1.05 cm)

3.40"

(8.65 cm)

RELAYS N/O

Tx/

RS-232

IR/ S

0.4A max

12V

PWR CONFIG HOST/

INPUT

DIGITAL

*1.83"

(4.64 cm)

0.98"

(2.47 cm)

1.85"

(4.69 cm)

* 2.02" (5.12 cm) (including tabs)

MLC 62 RS MK Rear

MLC 60 Series MediaLink Controllers • Reference Information 64

Product weight

MLC 62 IR D, MLC 62 RS D ...... 1.0 lb (0.5 kg)

MLC 62 RS EU ......................... 1.0 lb (0.5 kg)

MK models .............................. 1.0 lb (0.5 kg)

Shipping weight ............................. 3 lbs (2 kg)

Vibration ........................................ ISTA 1A in carton (International Safe Transit Association)

Regulatory compliance

Safety ...................................... CE, c-UL, UL

EMI/EMC ................................. CE, C-tick, FCC Class A, ICES, VCCI Class A

Accessibility ............................. Section 508 of the Rehabilitation Act (29 U.S.C. 794d)

MTBF ............................................. 30,000 hours

Warranty ........................................ 3 years parts and labor

NOTES: • All nominal levels are at ±10%.

• Specifications are subject to change without notice.

MLC 60 Series MediaLink Controllers • Reference Information 65

MLC 64 RS VC D Speciﬁcations

Control — host ports

Serial control port ........................... 1 bidirectional RS-232 on a 3.5 mm captive screw connector, 3 pole

Baud rate and protocol ................... 9600 baud, 8 data bits, 1 stop bit, no parity

Serial control pin conﬁguration ....... Pin 1 = Tx, pin 2 = Rx, pin 3 = GND

USB control port ............................. 1 front panel female mini USB B

USB standards ................................ USB 2.0, low speed

IR learning frequencies ................... 30 kHz to 60 kHz

IR learning distance ........................ 4" (10 cm) to 14" (36 cm) from the receiver

Program control ............................. Extron conguration program for Windows®

Extron Simple Instruction Set (SIS™)

Control — serial port

Display control port ........................ (1) 3.5 mm captive screw connector, 2 pole for unidirectional RS-232 control

(±5 V)

Baud rate and protocol (RS-232) ..... 9600 (default), 19200, 38400, 57600, 115,200 baud; 8 (default) or 7 data bits;

1 stop bit; no parity (default), or even or odd parity

Control — IR/serial port

IR control port ................................ (1) 3.5 mm captive screw connector, 2 pole for IR/Serial* (transmit only)

TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz, or ±5 V RS-232 control (transmit only) *IR/serial ports are congurable via software; serial communication is the

default.

Baud rate and protocol ................... 9600 (default), 19200, 38400, 57600, 115,200 baud; 8 (default) or 7 data bits;

1 stop bit; no parity (default), or even or odd parity

Control — relay

Number/type .................................. 2 momentary or latching (conﬁgurable via software)

Connector ...................................... (1) 3.5 mm captive screw connector, 3 pole

Contact rating ................................ 24 V, 1 A

Control — digital input monitoring port

Number/type .................................. 1 digital input (conﬁgurable)

Connector ...................................... (1) 3.5 mm captive screw connector, 2 pole

Digital inputs

Input voltage range ................. 0-24 VDC

Input impedance ...................... 12k ohms

Programmable pullup ............... 2k ohms to +5 VDC

Threshold low to high .............. >1.5 VDC

Threshold high to low .............. <1.0 VDC

Control — peripheral audio equipment

Volume control ............................... 0 to 10 VDC variable voltage, positive logic (the higher the voltage, the higher

the volume)

Mute control .................................. Momentary push switch with latching contact closure during mute; LED mute

indication

Pin conﬁguration ............................ Pin 1 = +10 VDC, pin 2 = volume/mute (variable voltage), pin 3 = GND

Reference voltage ........................... 10 VDC

MLC 60 Series MediaLink Controllers • Reference Information 66

General

Power supply

MLC 64 RS D ........................... External

Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1 A, 12.0 watts

Remote volume control ............ 10 VDC, supplied by the Extron device being controlled

Power input requirements

MLC 64 RS D ........................... 12 VDC, 0.4 A, max.

Remote volume control ............ Unmute mode: 0.2 watts, 18 mA, 10 VDC

Mute mode: 0.4 watts, 42 mA, 10 VDC

Temperature/humidity .................... Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling .......................................... Convection, no vents

Mounting

Rack mount ............................. No

Furniture or wall mount ........... Mounts in a standard 2 gang US electrical junction box (1.50" depth) or with

included mud ring.

Enclosure type ................................ Plastic

Enclosure dimensions

Faceplate ................................. Fits the opening in a 2 gang Decora style wallplate.

Devices .................................... 4.2" H x 3.6" W x 2.5" D or 1.9" D*

Depth includes connectors and buttons. Allow enough depth in the junction

box for device plus cable clearance.

*Depth including the knob

3.61"

(9.17 cm)

HOST/

GROUND

4.19"

(10.64 cm)

GROUND

COMMON

GROUND

Tx/IR

GROUND

+12 VDC

1.74"

(4.4 cm)

DIGITAL

RELAYS

PWR

IR/ S

RS-232

CONFIG

INPUT

N/O

12V

0.4 A MAX

1.13"

(2.87 cm)

2.77”

(7.04 cm)

MLC 64 Rear

Product weight ............................... 1.1 lb (0.5 kg)

Shipping weight ............................. 3 lbs (2 kg)

Vibration ........................................ ISTA 1A in carton (International Safe Transit Association)

Regulatory compliance

Safety ...................................... CE, c-UL, UL

EMI/EMC ................................. CE, C-tick, FCC Class A, ICES, VCCI Class A

Accessibility ............................. Section 508 of the Rehabilitation Act (29 U.S.C. 794d)

MLC 60 Series MediaLink Controllers • Reference Information 67

MTBF ............................................. 30,000 hours

Warranty ........................................ 3 years parts and labor

NOTES: • All nominal levels are at ±10%.

• Specifications are subject to change without notice.

MLC 60 Series MediaLink Controllers • Reference Information 68

Part Numbers and Accessories

Included Parts

These items are included with the MLC 60 Series controllers:

MLC 62 RS D

Included Parts Replacement Part Number

MLC 62 RS D MediaLink Controller 60-1005-02 12 VDC, 1 A external power supply (PS 1210C) 70-775-01

Front faceplates, eight-button, 1 black and 1 white (Include additional buttons with assorted labels)

Decora wallplate, 1-gang, black

Decora wallplate, 1-gang, white

Extron Tweeker (slotted Phillips #1 screwdriver)

MLC 60 Series Setup Guide

1-gang Decora-style mud ring mounting bracket

(2) 3.5 mm 3-pole captive screw connectors

(4) 3.5 mm 2-pole captive screw connectors

Extron Software Products DVD

70-688-12

MLC 62 IR D

Included Parts Replacement Part Number

MLC 62 IR D MediaLink Controller 60-1006-02

12 VDC, 1 A external power supply (PS 1210C) 70-775-01 IR Emitter and Shield kit 70-283-01

Front faceplates, six-button, 1 black and 1 white (Includes additional buttons with assorted labels)

Decora wallplate, 1-gang, black

Decora wallplate, 1-gang, white

Extron Tweeker (slotted Philips #1 screwdriver)

MLC 60 Series Setup Guide

1-gang Decora-style mud ring mounting bracket

(1) 3.5 mm 3-pole captive screw connectors

(2) 3.5 mm 2-pole captive screw connectors

Extron Software Products DVD

70-688-02

MLC 60 Series MediaLink Controllers • Reference Information 69

MLC 62 RS EU

Included Parts Replacement Part Number

MLC 62 RS EU MediaLink Controller (RAL9010 white) 60-1005-35 12 VDC, 1 A external power supply (PS 1210C) 70-775-01

Front faceplate, 6 button (RAL9010 white)

Front faceplate, 8 button (RAL9010 white)

Jung AS500 wall frame (RAL9010 white)

Extron Tweeker (slotted Philips #1 screwdriver)

MLC 60 Series Setup Guide

(2) 3.5 mm 3-pole captive screw connectors

(4) 3.5 mm 2-pole captive screw connectors

Extron Software Products DVD

MLC 62 RS MK

Included Parts Replacement Part Number

MLC 62 RS MK MediaLink Controller (white) 60-1005-23 12 VDC, 1 A external power supply (PS 1210C) 70-775-01

Front faceplate, 6-button (white)

Front faceplate, 8-button (white)

Front wall frame (white)

Extron Tweeker (slotted Philips #1 screwdriver)

MLC 60 Series Setup Guide

(2) 3.5 mm 3-pole captive screw connectors

(4) 3.5 mm 2-pole captive screw connectors

Extron Software Products DVD

MLC 60 Series MediaLink Controllers • Reference Information 70

MLC 64 RS VC D

Included Parts Replacement Part Number

MLC 64 RS VC D MediaLink Controller 60-1182-02 12 VDC, 1 A external power supply (PS 1210C) 70-775-01

MLC 64 Front faceplate, black, six-button (Includes additional buttons with assorted labels)

MLC 64 Front faceplate, white, six-button (Includes additional buttons with assorted labels)

VCM front faceplates, 1 black and 1 white Volume control knobs, 1 black and 1 white

Decora wallplates, 2-gang, 1 black and 1 white

Extron Tweeker (slotted Philips #1 screwdriver)

Allen wrench (hex key) (for volume control knob removal)

MLC 60 Series Setup Guide

2-gang Decora-style mud ring mounting bracket

(2) 3.5 mm 3-pole captive screw connectors

(4) 3.5 mm 2-pole captive screw connectors

Extron Software Products DVD

MLC 60 Series MediaLink Controllers • Reference Information 71

Accessories

These optional items can be ordered separately:

Accessories Part Number For Model

English button kit (MLC 62 RS EU and MLC 62 RS MK models)

French and German button kit (MLC 62 RS EU and MLC 62 RS MK models)

MLA VC10 Plus Volume Control Module

(MLC 62 models)

MPA 152 Stereo Power Amplifier, 15 watts per channel

MPA 152 ENERGY STAR® Qualified Stereo

Power Amplifier

MPA 401 Mono Power Amplifier, 40 watts per channel

MLS 100A Four Input Stereo Audio MediaLink Switcher

MLS 102 VGA Two Input VGA and Four Input

Stereo Audio MediaLink Switcher

MLS 304SA Four Input MediaLink Switcher with stereo amplifier

USB CFG Cable, type A to mini B configuration

cable

MLC IR/RS-232 one projector communication cable, plenum 50'

MLM 62 D 8B faceplate replacement kit,

8-button (MLC D models only)

MLM 62 D 6B faceplate replacement kit,

6-button (MLC D models only)

70-728-01

70-728-11

60-1090-01 All MLC 62

60-844-01

60-844-02

60-845-01 All

60-497-01 All

60-497-04 All

60-550-02 All

26-654-06 All

26-621-50 All

70-688-12

70-688-02

MLC 62 RS EU, MLC 62 RS MK

All

MLC 62 RS D, MLC 62 IR D

MLC 60 Series MediaLink Controllers • Reference Information 72

Extron Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years

from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty

workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components,

to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, and Central America:

Extron Electronics 1001 East Ball Road

Anaheim, CA 92805

U.S.A.

Europe, Africa, and the Middle East:

Extron Europe Hanzeboulevard 10 3825 PH Amersfoort

The Netherlands

Asia:

Extron Asia 135 Joo Seng Road, #04-01 PM Industrial Bldg.

Singapore 368363

Japan:

Extron Electronics, Japan Kyodo Building, 16 Ichibancho

Chiyoda-ku, Tokyo 102-0082 Japan

China:

Extron China 686 Ronghua Road Songjiang District Shanghai 201611 China

Middle East:

Extron Middle East Dubai Airport Free Zone F12, PO Box 293666 United Arab Emirates, Dubai

Singapore

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical

or mechanical abuse, abnormal operating conditions, or modiﬁcations were made to the product that were not

authorized by Extron.

NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return

Authorization) number. This begins the repair process.

USA: (714) 491-1500 Europe: 31.33.453.4040 Asia: 65.6383.4400 Japan: 381.3.3511.7655

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage

during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or tness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been

advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

Extron USA - West Headquarters

+800.633.9876

Inside USA/Canada Only

+1.714.491.1500 +1.714.491.1517 FAX

Extron USA - East

+800.633.9876

Inside USA/Canada Only

+1.919.863.1794 +1.919.863.1797 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040 +31.33.453.4050 FAX

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400 +65.6383.4664 FAX

Extron Japan

+81.3.3511.7655 +81.3.3511.7656 FAX

Extron China

Sales: + 4000.EXTRON

+4000.398.766

Inside China Only

+86.21.3760.1568 +86.21.3760.1566 FAX

Extron Middle East

+971.4.2991800 +971.4.2991880 FAX

Extron electronic MLC 62 IR D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction

About This Guide

About the MLC 60 Series MediaLink Controllers

MLC Models

Features

Device Drivers

Application Diagrams

System Requirements

Features, Installation, and Operation

Installation Overview

Front and Left Side Panels

MLC D Front Panels

MLC 62 RS EU and MLC 62 RS MK Front and Side Panels

Buttons

Rear Panel Features

Rear Panel Features on MLC 62 RS EU and MLC 62 RS MK Only

MLC 64 RS VC D Volume Control Module Rear Panel

Installation

Removing and Replacing the Faceplates

Replacing Buttons

Wiring for RS-232 Control (RS Models Only)

Wiring for IR Control

Wiring the Relays Port (RS Models Only)

Wiring the Digital Input Port (RS Models Only)

Wiring the Volume Control Module (MLC 64 RS VC D Only)

Connecting Power to the MLC

Configuring the MLC via the USB Port

IR Learning

Mounting the MLC 60 Series Controllers

Mounting an MLC 62 D

Mounting the MLC 64 RS VC D

Mounting the MLC 62 RS EU and the MLC 62 RS MK

Mounting the MLC EU in a Raceway Using Spacers (Optional)

Accessing Covered Panel Features After Mounting

Accessing the Covered MLC D Front Panel Features

Accessing MLC 62 RS EU and MLC 62 RS MK Side and Rear Panel Features

Front Panel Security Lockout

Locking Using the Front Panel Buttons

Resetting the MLC Using the Reset Button

About the MLC Configuration Program

Computer System Requirements

Installing the Configuration Software

Downloading and Installing the Software from the Web

Installing the Software from the DVD

Starting the Configuration Software

Accessing the Help File

Obtaining Device Drivers

Downloading Drivers from the Disc

Downloading Drivers from the Web

SIS Control

Host-to-Controller Communications

Controller-initiated Messages

Error Responses

Using the Command and Response Table

Command and Response Table for SIS Commands

Reference Information

Specifications

Part Numbers and Accessories

Included Parts

Accessories

Extron Warranty
