V
ERSATOOLS
™
M
INIDISTRIBUTIONAMPLIFIERS
Video bandwidth:
435 MHz (-3db) on
composite models
Video bandwidth:
270 MHz (-3db) on
S-video models
Quarter rack width
metal enclosure
Versatile mounting
options including rack
and under-desk mounts
Unity audio gain:
selectable output audio
gain (captive screw
models only)
100-240VAC external
international power
supply
www.extron.com
DESCRIPTION
Composite Video Models
Extron VersaTools™ is a new line of compact, versatile solution
products designed for high-quality performance. VersaTools’ small,
quarter rack width enclosures, flexible mounting options (rack, underdesk, or stand-alone), and adaptable, external international power
supply allow for easy integration into both new and existing A/V
systems including boardrooms, training facilities, home theater,
command and control centers, and rental and staging environments.
The VersaTools line offers twelve affordable models of Mini
Distribution Amplifiers for the distribution of a single source input to
multiple outputs.
Composite models have 435 MHz (-3dB)
bandwidth to maintain signal integrity.
Video input and outputs are on female
BNC connectors.
AUD IN
AUD OUT VID IN VID OUT
MDA 3V 1——
MDA 3V Dual
MDA 5V
——
——
3
26
15
MDA 3AV
S-Video Models
MDA 3SVA
Stereo Audio Models
MDA 3A
SDI Model
Balanced/unbalanced stereo audio is
accepted on captive screw connectors.
S-video models have 270 MHz (-3dB)
bandwidth to maintain signal integrity.
Video input and outputs are on female
4-pin mini-DIN connectors.
Balanced/unbalanced stereo audio is
accepted on captive screw connectors.
Audio models are available with either
unbalanced RCA connectors or with
captive screw connectors (balanced/
unbalanced).
Captive screw models have selectable
output gain via DIP switch. This feature
provides unity gain for balanced or
unbalanced audio signals.
MDA 3AV
AUD IN
AUD OUT VID IN VID OUT
MDA 3SV 13
MDA 3SV Dual
MDA 5SV
MDA 3SVA
MDA 3A
MDA 3A RCA
MDA 5A RCA
——
——
——
AUD IN
AUD OUT
31
31
51
1313
26
15
1313
MDA 4V SDI
SDI model accepts and distributes 4fsc
PAL, 4fsc NTSC, component 4:2:2, and
widescreen 4:2:2 standard SDI signals on
female BNC connectors.
MDA 4V SDI
VID IN
VID OUT
41
SPECIFICATIONS
Video
Gain .................................................. Unity
Bandwidth
MDA 3SV/3SVA/3SV Dual,
MDA 5SV .................................... 270 MHz (-3dB)
MDA 3V/3AV/3V Dual,
MDA 5V ...................................... 435 MHz (-3dB)
Differential phase error...................... 0.05
Differential gain error........................ <0.05%, 0 to 50 MHz
K factor ............................................ <0.05%
Video input
Number/signal type
MDA 3SV/3SVA, MDA 5SV ...... 1 NTSC/PAL/SECAM S-video
MDA 3SV Dual............................ 2 NTSC/PAL/SECAM S-video
MDA 3V/3AV, MDA 5V ............ 1 NTSC/PAL/SECAM composite
MDA 3V Dual.............................. 2 NTSC/PAL/SECAM composite
Connectors
MDA 3SV/3SVA, MDA 5SV ...... 1 4-pin mini DIN female
MDA 3SV Dual............................ 2 4-pin mini DIN female
MDA 3V/3AV, MDA 5V ............ 1 BNC female
MDA 3V Dual.............................. 2 BNC female
Minimum/maximum levels
MDA 3SV/3SVA/3SV Dual,
MDA 5SV .................................... Y: 0.4 to 2.0V p-p with no offset
MDA 3V/3AV/3V Dual,
MDA 5V ...................................... 0.4 to 2.0V p-p with no offset at
Impedance ........................................ 75 ohms
Return loss ........................................ -40dB @ 0 to 10 MHz
Maximum DC offset ........................ 1.0V
Video output
Number/signal type
MDA 3SV/3SVA .......................... 3 S-video
MDA 3SV Dual............................ 6 S-video
MDA 5SV .................................... 6 S-video: 5 amplified for
MDA 3V/3AV .............................. 3 composite video
MDA 3V Dual.............................. 6 composite video
MDA 5V ...................................... 6 composite video: 5 amplified for
Connectors
MDA 3SV/3SVA .......................... 3 4-pin mini-DIN
MDA 3SV Dual............................ 6 4-pin mini-DIN
MDA 5SV .................................... 6 4-pin mini-DIN
MDA 3V/3AV .............................. 3 BNC female
MDA 3V Dual.............................. 6 BNC female
MDA 5V ...................................... 6 BNC female
Minimum/maximum level(s) ............ 0.4V to 2.0V p-p
Impedance ........................................ 75 ohms
Return loss ........................................ -30dB @ 5 MHz
DC offset .......................................... ±5mV maximum with input at 0
Sync
Standards .......................................... NTSC 3.58, NTSC 4.43, PAL,
Audio — MDA 3AV, MDA 3SVA, MDA 3A/3A RCA, MDA 5A RCA
Gain (RCA models) .......................... Unity
Gain (Captive screw models) ............ Selectable (via DIP switch)
Unbalanced out ............................ 0dB = unbalanced
Balanced out ................................ +6dB = unbalanced
Frequency response............................ 20 Hz to 20 kHz, ±0.05dB
THD + Noise.................................... 0.03% @ 1 kHz at rated maximum
S/N .................................................. >90 dB, balanced at rated
º
, 0 to 50 MHz
video
video
distribution, 1 passive loop-through
distribution, 1 passive loop-through
offset
SECAM
-6dB = balanced
0dB = balanced
output drive
maximum output drive
Stereo channel separation .................. >80 dB @ 1 kHz; >60 dB @
20 kHz
CMRR .............................................. >75 dB @ 20 Hz to 20 kHz
Audio input — MDA 3AV, MDA 3SVA, MDA 3A/3A RCA, MDA 5A RCA
Number/signal type
MDA 3A RCA, MDA 5A RCA.... 1 stereo unbalanced
MDA 3AV, MDA 3SVA, MDA 3A.. 1 stereo balanced/unbalanced
Connectors
MDA 3A RCA, MDA 5A RCA.... 2 RCA connectors
MDA 3AV, MDA 3SVA, MDA 3A.. 1 3.5 mm captive screw connector,
5 pole
Impedance
MDA 3A RCA, MDA 5A RCA.... >50 kohms unbalanced, DC
coupled
MDA 3AV, MDA 3SVA, MDA 3A.. >50 kohms unbalanced, >25 kohms
balanced, DC coupled
Maximum level.................................. +24 dBu (balanced or unbalanced)
at stated %THD+N
Audio output — MDA 3AV, MDA 3SVA, MDA 3A/3A RCA, MDA 5A RCA
Number/signal type
MDA 5A RCA.............................. 5 stereo, unbalanced
MDA 3A RCA.............................. 3 stereo, unbalanced
MDA 3AV, MDA 3SVA, MDA 3A.. 3 stereo, balanced/unbalanced
Connectors
MDA 5A RCA.............................. 10 RCA connectors
MDA 3A RCA.............................. 6 RCA connectors
MDA 3AV, MDA 3SVA, MDA 3A.. 3 3.5 mm captive screw
connectors, 5 pole
Impedance
MDA 3A RCA, MDA 5A RCA.... 50 ohms unbalanced
MDA 3AV, MDA 3SVA, MDA 3A.. 50 ohms unbalanced, 100 ohms
balanced
Gain error ........................................ ±0.1dB channel to channel
Maximum level (Hi-Z)...................... >+24dBu, balanced or unbalanced
at stated %THD+N
Maximum level (600 ohm)................ >+15dBm, balanced or unbalanced
at stated %THD+N
NOTE: 0dBu = 0.775 volts (RMS).
General
Power ................................................ 100VAC to 240VAC, 50/60 Hz,
5 watts, external, auto-switchable;
to 12VDC, 1 A (max.) power
supply. Product requires 0.4 A.
Rack mount ...................................... Yes, with optional 1U rack shelf,
part #60-190-01, or the VersaTools
rack shelf, part #60-190-20
Enclosure type .................................. Metal
Enclosure dimensions........................ 1.7" H x 4.3" W x 3.0" D (1U
high, quarter rack width) 4.2 cm H
x 11.0 cm W x 7.6 cm D (Depth
excludes connectors and knobs.)
Product weight: ................................ 0.7 lbs (0.3 kg)
Shipping weight: .............................. 3 lbs (1.4 kg)
Listings.............................................. UL, CUL
Compliances...................................... CE, FCC Class A, VCCI, AS/NZS,
ICES
MDA 4V SDI Distribution Amplifiers
Video
Gain .................................................. Unity
Resolution ........................................ 8 or 10 bits, automatic
Operation standards .......................... 143 Mb/s (4fscNTSC) 177 Mb/s
(4fscPAL) 270 Mb/s (4:2:2
component video) 360 Mb/s (4:2:2
widescreen component video),
autoselected
Equalization and relocking ................ Automatic for up to 30dB of cable
loss
Extron Electronics, USA
1230 South Lewis Street
Anaheim,
CA 92805
800.633.9876 714.491.1500
FAX
714.491.1517
Extron Electronics, Europe
Beeldschermweg 6C, 3821 AH Amersfoort
The Netherlands
+800.3987.6673 +31.33.453.4040
FAX +31.33.453.4050
Extron Electronics, Asia
135 Joo Seng Rd. #04-01
PM Industrial Bldg.
Singapore 368363
+65.6383.4400
FAX +65.6383.4664
Extron Electronics, Japan
Daisan DMJ Bldg. 6F, 3-9-1 Kudan Minami
Chiyoda-ku, Tokyo 102-0074
Japan
+81.3.3511.7655 FAX +81.3.3511.7656

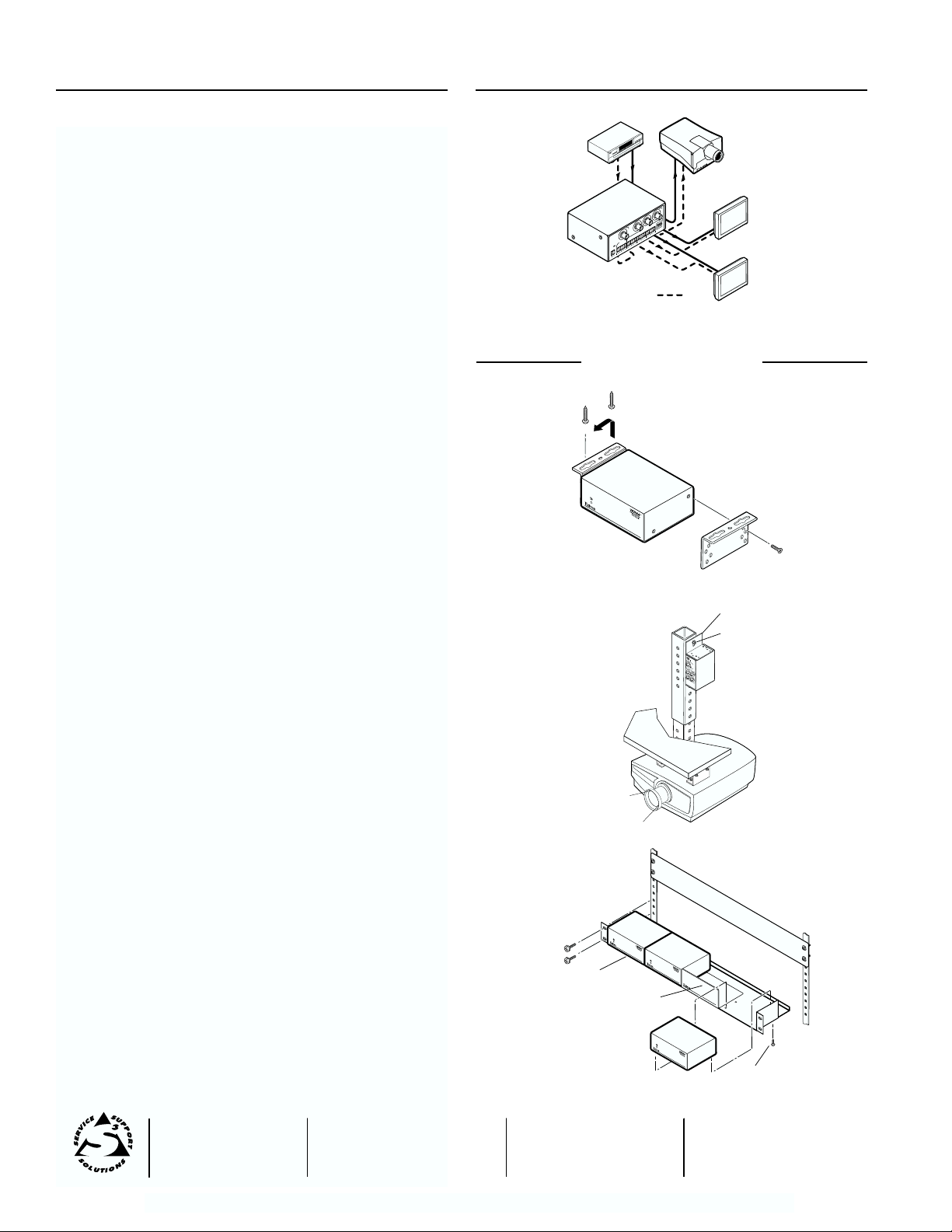

SPECIFICATIONS (Cont.)
Extron
MDA 3AV
Distribution
Amplifier
LCD Projector
HDTV Plasma
HDTV Plasma
Audio
M
DA
3AV
P
O
W
E
R
1
5V
.
34
A
M
A
X
L
R
LR
L
R
L
R
INPU
T
OU
TPU
TS
1
2
3
BA
L
1
2
3
U
NBAL
1
I
N
O
U
T
2
3
DVD
Ceiling
Digital Projector
Projector
Mounting
Bracket
Projector
Mount
Rack
Mount
Under Table
Mount
M
D
A
4
V
S
D
I
P
O
W
ER
1
5
V
.
5
A
M
A
X
1
2
3
4
S
D
I
I
N
P
U
T
S
D
I
O
UT
P
U
T
S
Mounting
Bolt
D
IS
T
RIB
U
T
IO
N
A
MP
L
IF
IER
(2) 4-40 x 1/8" screws
Use 2 mounting holes on
opposite corners
VersaTools Rack Shelf
1/4 Rack Width False Front
Face Plate
D
IS
TR
IB
UT
IO
N
A
M
PL
IFIE
R
DISTRIB
UT
IO
N
A
M
P
L
IF
IE
R
D
IS
TR
IBUT
IO
N
AM
P
L
IFIE
R
Video input
Number/signal type .......................... 1 SMPTE-259M serial digital
Connectors........................................ 1 BNC female
Minimum/maximum levels .............. 0.5V to 1V p-p with no offset
Impedance ........................................ 75 ohms
Return loss ........................................ -15dB @ 5 to 270 MHz
Maximum DC offset ........................ 5V
Video output
Number/signal type .......................... 4 reclocked SMPTE-259M serial
Connectors........................................ 4 BNC female
Minimum/maximum levels .............. 0V to 1.0V p-p
Impedance ........................................ 75 ohms
Return loss ........................................ -30dB @ 5 MHz
DC offset .......................................... ±5mV maximum with input at
Sync
Standards .......................................... 4fscNTSC, 4fscPAL, SMPTE-
General
Power ................................................ 100VAC to 240VAC, 50/60 Hz,
Rack mount ...................................... Yes, with optional 1U rack shelf,
Enclosure type .................................. Metal
Enclosure dimensions........................ 1.7" H x 4.3" W x 3.0" D (1U
component video
digital component video
0 offset
259M
5 watts, external, auto-switchable;
to 12VDC, 1 A (max.) power
supply. Product requires 0.4 A.
part #60-190-01, or the
VersaTools™ rack shelf,
part #60-190-20
high, quarter rack width) 4.2 cm H
x 11.0 cm W x 7.6 cm D
APPLICATION DIAGRAMS
Mounting Options
Product weight.................................. 0.5 lbs (0.2 kg)
Shipping weight ................................ 2 lbs (0.9 kg)
Listings.............................................. UL, CUL
Compliances...................................... CE, FCC Class A, VCCI, AS/NZS,
Warranty .......................................... 3 years parts and labor
Composite Video Models Part Number
MDA 3V .......................................... 60-439-01
MDA 3AV ........................................ 60-439-20
MDA 3V DUAL .............................. 60-439-10
MDA 5V .......................................... 60-446-01
S-Video Models
MDA 3SV ........................................ 60-444-01
MDA 3SVA ...................................... 60-444-20
MDA 3SV DUAL ............................ 60-444-10
MDA 5SV ........................................ 60-447-01
Stereo Audio Models
MDA 3A .......................................... 60-440-01
MDA 3A RCA.................................. 60-440-30
MDA 5A RCA.................................. 60-441-01
SDI Models
MDA 4V SDI .................................. 60-448-01
Accessories
P/S 100 ............................................ 60-357-01
ICES
Copyright © 2002 Extron Electronics. All rights reserved. All trademarks mentioned are the property of their respective owners.
02-03
68-659-01
REV. A
Loading...
