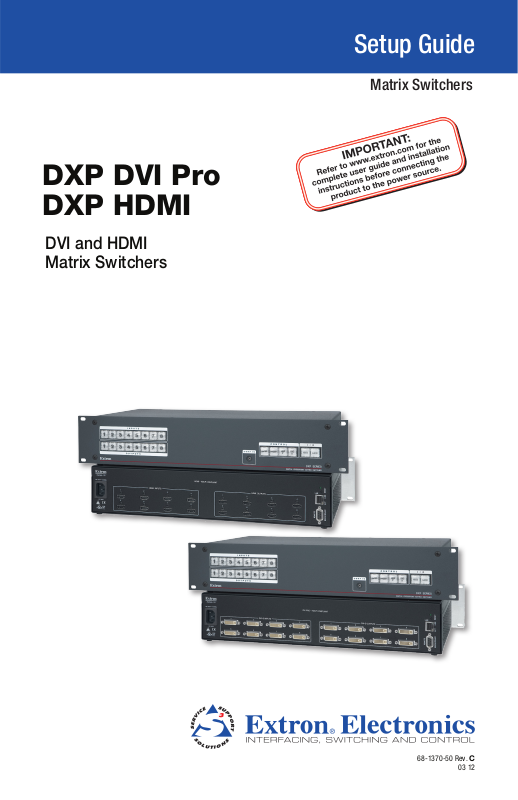

DXP DVI Pro DXP HDMI

DVI and HDMI Matrix Switchers

Setup Guide

Matrix Switchers

68-1370-50 Rev. C

03 12

Safety Instructions • English

This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.

Caution

Read Instructions • Read and understand all safety and operating instructions

before using the equipment.

Retain Instructions • The safety instructions should be kept for future reference. Follow Warnings • Follow all warnings and instructions marked on the

equipment or in the user information.

Avoid Attachments • Do not use tools or attachments that are not

recommended by the equipment manufacturer because they may be hazardous.

Consignes de Sécurité • Français

Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le matériel contient des instructions importantes concernant l’exploitation et la maintenance (réparation).

Ce symbole sert à avertir l’utilisateur de la présence dans le boîtier de l’appareil de tensions dangereuses non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de sécurité

et d’exploitation avant d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité aﬁn de pouvoir

les consulter à l’avenir.

Respecter les avertissements • Observer tous les avertissements et consignes

marqués sur le matériel ou présentés dans la documentation utilisateur.

Eviter les pièces de fixation • Ne pas utiliser de pièces de ﬁxation ni d’outils

non recommandés par le fabricant du matériel car cela risquerait de poser certains dangers.

Sicherheitsanleitungen • Deutsch

Dieses Symbol soll dem Benutzer in der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam machen, daß im Inneren des Gehäuses dieses Produktes gefährliche Spannungen, die nicht isoliert sind und die einen elektrischen Schock verursachen können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden,

sollten Sie alle Sicherheits-und Bedienungsanleitungen genau durchlesen und

verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit

des Produktes sollten Sie aufbewahren, damit Sie im Bedarfsfall darauf

zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und

Anleitungen auf dem Gerät oder in der Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte,

die nicht ausdrücklich vom Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen können.

Instrucciones de seguridad • Español

Este símbolo se utiliza para advertir al usuario sobre instrucciones importantes de operación y mantenimiento (o cambio de partes) que se desean destacar en el contenido de la documentación suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre la presencia de elementos con voltaje peligroso sin protección aislante, que puedan encontrarse dentro de la caja o alojamiento del producto, y que puedan representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de operación y

seguridad, antes de usar el equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad para

futura consulta.

Obedecer las advertencias • Todas las advertencias e instrucciones marcadas

en el equipo o en la documentación del usuario, deben ser obedecidas.

Evitar el uso de accesorios • No usar herramientas o accesorios que no sean

especiﬁcamente recomendados por el fabricante, ya que podrian implicar riesgos.

Warning

Power sources • This equipment should be operated only from the power source indicated

on the product. This equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third (grounding) pin is a safety feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all power cords

from the rear of the equipment, or the desktop power module (if detachable), or from the power source receptacle (wall plug).

Power cord protection • Power cords should be routed so that they are not likely to be

stepped on or pinched by items placed upon or against them.

Servicing • Refer all servicing to qualiﬁed service personnel. There are no user-serviceable

parts inside. To prevent the risk of shock, do not attempt to service this equipment yourself because opening or removing covers may expose you to dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are provided

to prevent overheating of sensitive components inside. These openings must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly replaced. Replace it

only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

Avertissement

Alimentations • Ne faire fonctionner ce matériel qu’avec la source d’alimentation indiquée sur

l’appareil. Ce matériel doit être utilisé avec une alimentation principale comportant un ﬁl de terre (neutre). Le troisième contact (de mise à la terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger,

déconnectez tous les cordons d’alimentation de l’arrière de l’appareil ou du module d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de manière

à ce que personne ne risque de marcher dessus et à ce qu’ils ne soient pas écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-maintenance

par un technicien qualiﬁé. Aucun des éléments internes ne peut être réparé par l’utilisateur. Aﬁn d’éviter tout danger d’électrocution, l’utilisateur ne doit pas essayer de procéder luimême à ces opérations car l’ouverture ou le retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et orifices • Si le boîtier de l’appareil comporte des fentes ou des oriﬁces, ceux-ci

servent à empêcher les composants internes sensibles de surchauffer. Ces ouvertures ne doivent jamais être bloquées par des objets.

Lithium Batterie • Il a danger d’explosion s’ll y a remplacment incorrect de la batterie.

Remplacer uniquement avec une batterie du meme type ou d’un ype equivalent recommande par le constructeur. Mettre au reut les batteries usagees conformement aux instructions du fabricant.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene Stromquelle

betrieben werden. Dieses Gerät wurde für eine Verwendung mit einer Hauptstromleitung

mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese sollte nicht umgangen oder außer

Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten Sie

alle Netzkabel aus der Rückseite des Gerätes, aus der externen Stomversorgung (falls dies möglich ist) oder aus der Wandsteckdose ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im

Weg liegen und niemand darauf treten kann oder Objekte darauf- oder unmittelbar

dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von qualiziertem Servicepersonal

durchgeführt werden. Die internen Komponenten des Gerätes sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist,

dienen diese zur Vermeidung einer Überhitzung der empndlichen Teile im Inneren. Diese

Öffnungen dürfen niemals von anderen Objekten blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird. Ersetzen Sie

verbrauchte Batterien nur durch den gleichen oder einen vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo de

alimentación eléctrica indicada en el mismo. La alimentación eléctrica de este equipo debe provenir de un sistema de distribución general con conductor neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida de

alimentación eléctrica al equipo, desenchufar todos los cables de alimentación en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera independiente), o desenchufar el cable del receptáculo de la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se deben

instalar en lugares donde no sean pisados ni apretados por objetos que se puedan apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal

caliﬁcado. En el interior no hay partes a las que el usuario deba acceder. Para evitar riesgo de

electrocución, no intentar personalmente la reparación/mantenimiento de este equipo, ya

que al abrir o extraer las tapas puede quedar expuesto a voltajes peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o oricios en su caja/alojamiento, es para

evitar el sobrecalientamiento de componentes internos sensibles. Estas aberturas nunca se deben obstruir con otros objetos.

Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición incorrecta.

Cambiar esta batería únicamente con el mismo tipo (o su equivalente) recomendado por el fabricante. Desachar las baterías usadas siguiendo las instrucciones del fabricante.

安全须知 • 中文

这个符号提示用户该设备用户手册中有重要的操作和维护说明。

这个符号警告用户该设备机壳内有暴

露的危险电压，有触电危险。

注意

阅读说明书 • 用户使用该设备前必须阅读并理

解所有安全和使用说明。

保存说明书 • 用户应保存安全说明书以备将来使

用。

遵守警告 • 用户应遵守产品和用户指南上的所有安

全和操作说明。

避免追加 • 不要使用该产品厂商没有推荐的工具或

追加设备，以避免危险。

警告

电源 • 该设备只能使用产品上标明的电源。设备

必须使用有地线的供电系统供电。第三条线（地线）是安全设施，不能不用或跳过。

拔掉电源 • 为安全地从设备拔掉电源，请拔掉所有设备后

或桌面电源的电源线，或任何接到市电系统的电源线。

电源线保护 • 妥善布线，避免被踩踏，或重物挤压。维护 • 所有维修必须由认证的维修人员进行。设备内部

没有用户可以更换的零件。为避免出现触电危险不要自己试图打开设备盖子维修该设备。

通风孔 • 有些设备机壳上有通风槽或孔，它们是用来防止

机内敏感元件过热。不要用任何东西挡住通风孔。

锂电池 • 不正确的更换电池会有爆炸的危险。必须使用

与厂家推荐的相同或相近型号的电池。按照生产厂的建议处理废弃电池。

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause

undesired operation.

The Class A limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

NOTE: This unit was tested with shielded cables on the peripheral devices. Shielded cables

must be used with the unit to ensure compliance with FCC emissions limits.

Conventions Used in this Guide

In this user guide, the following are used:

CAUTION: A caution indicates a potential hazard to equipment

NOTE: A note draws attention to important information.

TIP: A tip provides a suggestion to make working with the

WARNING: A warning warns of things or actions that might

or data.

application easier.

cause injury, death, or other severe consequences.

Trademarks

All trademarks mentioned in this guide are the properties of their respective owners.

Introduction .......................................1

About this Guide ................................1

About the DXP DVI Pro and DXP

HDMI Series Matrix Switchers ..........1

Application Diagram Examples .........2

Setup ....................................................5

Setup Procedure .................................5

Rear Panels and Connections ............6

Front Panel Conﬁg Port ...................10

Operation ..........................................13

Front Panel Features ........................13

Operations ........................................15

Creating a Tie ...............................15

Saving or Recalling a Preset ........16

Locking and Unlocking the

Front Panel (Executive

Modes) ........................................16

Viewing Ties (and Muting

Outputs) ......................................18

Selecting the RS-232/RS-422 Port

Protocol and Baud Rate (Rear

Panel) ..........................................19

Remote Control ...............................21

Establishing a Network

(Ethernet) Connection ...................21

Connection Timeouts...................22

Number of Connections ..............22

Verbose Mode ..............................22

SIS Commands ..................................22

Host-to-switcher Instructions ......22

EDID (Extended Display

Identiﬁcation Data) ....................23

Command and Response Table

for SIS Commands ..........................25

Installing and Starting the Matrix

Switchers Control Program ............33

Installing the Program .................33

Starting the Program ...................34

Accessing the HTML Pages ..............36

Loading the Start-up Page ..........36

Using the Web Pages to

Conﬁgure the DXP .....................38

DXP DVI Pro and DXP HDMI Series • Contents v

DXP DVI Pro and DXP HDMI Series • Contentsvi

Introduction

This section gives an overview of the Extron DXP 44/48/84/88 DVI Pro and DXP 44/48/84/88 HDMI Series Digital Matrix Switchers and provides application examples. The following topics are covered:

• About this Guide

• About the DXP DVI Pro and DXP HDMI Series Matrix Switchers

• Application Diagram Examples

NOTE: For more information on any subject in this guide, see the

DXP DVI Pro and DXP HDMI Series Digital Matrix Switchers User Guide, available on the Extron Product Software DVD

or at www.extron.com.

About this Guide

This setup guide allows you to easily and quickly set up and conﬁgure your DXP matrix switcher. Step by step instructions show you how to connect the hardware and to perform basic operations using both the front panel controls and selected Simple Instruction Set (SIS™) commands. The guide also shows you how to load and start up the Matrix Switchers Control Program and how to connect to the built-in HTML pages, which you can use to operate the switcher.

The terms “DXP,“ “switcher,” and “DXP switcher” are used interchangeably in this guide to refer to all DXP models. “DXP DVI Pro” refers to the four DVI models and “DXP HDMI” refers to the four HDMI® models.

About the DXP DVI Pro and DXP HDMI Series Matrix Switchers

The Extron DXP DVI Pro and DXP HDMI series are digital matrix switchers that route single link DVI-D signals or HDMI signals from multiple sources to any or all of up to eight DVI- or HDMI-equipped display devices. All DXP matrix switchers support resolutions of up to 1920x1200 and HDTV 1080p/60, and are HDCP-compliant, enabling simultaneous distribution of a single source signal to one or more compliant displays.

The following matrix sizes are available:

• DXP 44 DVI Pro and DXP 44 HDMI: 4 inputs by 4 outputs

• DXP 48 DVI Pro and DXP 48 HDMI: 4 inputs by 8 outputs

• DXP 84 DVI Pro and DXP 84 HDMI: 8 inputs by 4 outputs

• DXP 88 DVI Pro and DXP 88 HDMI: 8 inputs by 8 outputs

DXP DVI Pro and DXP HDMI Series • Introduction 1

The DXP DVI Pro and DXP HDMI series all provide easy integration in applications that require reliable DVI or HDMI signal routing. (A "DVI Pro" signal is HDCP-compliant; a standard DVI signal is not.)

They include several convenience features common to Extron matrix switchers such as the QuickSwitch Front Panel Controller (QS-FPC™), global presets, IP Link®, and Ethernet control.

NOTES: • The DXP DVI Pro fully supports HDMI video and

embedded audio signals when optional Extron DVI-to-HDMI adapters are used.

• The DXP HDMI fully supports single-link DVI video and embedded audio signals when the optional Extron HDMI-to-DVI adapters are used.

Application Diagram Examples

DVI 201xi Tx

POWER 12V

0.4A MAX

Extron DXP DVI Pro Series

HDCP-compliant DVI Matrix Switcher

Document Camera

DVS 304 DVI

100-240V 50/60 Hz

R-Y

B-Y

RGB/R-Y,Y,B-Y/YC/VID

RGB/R-Y,Y,B-Y/YC/VID SDI

SDI

G/YB

G/YB /VID

/VID

/R-Y

I N

P U

U T

B-Y

R-Y VID

VID

0.3A MAX

HV 1

DVI-I

DVD Player

SN XXXXXXXX E XXXXX 00/00 DVI DL TX

DVI-D INPUT

/B-Y

EDID

LOCAL MONITOR OUTPUT

STORE

DVI 201 Rx

LISTED 1T23

U S

I.T.E.

RS-232

O U

U T

LAN

RESET

U T

ACTLINK

DO NOT CONNECT OUTPUTS TO LAN

OUTPUTS

REMOTE DDC

EDID MINDER

DEFAULT EDID

CONTROL PASS-THRU

RxTx

1 2 3

OFF

INPUTS

DVI 201 Rx

POWER 12V

0.4A MAX DO NOT CONNECT INPUTS TO LAN

CONTROL PASS THRU

DVI-D OUTPUT

TxRx

DVI 201 Rx SERIES

DVI-D INPUTS

HDMI-DVI Adapters

DVI PRO - HDCP COMPLIANT

HD Satellite Receiver

FULL HIGH DEFINITION 1080P VIDEO OUTPUT

Blu-ray Player

DVI-D OUTPUTS

LAN

Laptop Laptop

REMOTE

Display 4Display 3Display 2Display 1

RESET

LINKACT

RS232/RS422

Displays 5 - 8

TouchLink

Control System

TCP/IP

IPL 250

COM

IR INPUTRELAY

TXRX

3142314231

™

100

LINK

ACT

Figure 1. Typical DXP DVI Pro Application

2 DXP DVI Pro and DXP HDMI Series • Introduction

Display 1Display 5

Display 7Display 3

Extron HDMI 201 Tx

HDMI Twisted Pair Extender

POWER 12V

HDMI INPUT

0.4A MAX

N/A

Laptop

Document Camera

Media PC Server

HD-DVD Player

Display 2Display 6

HDMI - HDCP COMPLIANT

Extron DXP HDMI Series

HDMI Matrix Switchers

HDMI 201 Tx

DDC REMOTE

RS-232

PASS THRU

TxRx

LOCAL

POWER 12V

0.4A MAX

Extron HDMI 201 Rx

HDMI Twisted Pair Extender

HDMI 201 Rx

RS-232

HDMI OUTPUT

PASS THRU

TxRx

HDMI INPUTS

LISTED 1T23

U S

I.T.E.

Figure 2. Typical DXP HDMI Application

HDMI OUTPUTS

HD-VTC

Game Console

HD Satellite Receiver

FULL HIGH DEFINITION 1080P VIDEO OUTPUT

Blu-ray Player

Display 8Display 4

RESET

LAN

LINKACT

REMOTE

RS232/RS422

POWER

LAN 12V 500mA MAX

TCP/IP

Network

COM1

TXRX

RTS CTS

INPUT

1234

Extron IPL 250

IP Link Ethernet Control Processor

COM 2 IR

RELAY

TXRX

SGSG

COM 3 IR

RELAY

TXRX

SGSG

Remote User and Administration Control

3DXP DVI Pro and DXP HDMI Series • Introduction

4 DXP DVI Pro and DXP HDMI Series • Introduction

Setup

This section describes the rear panels of the DXP switchers and provides instructions for cabling. It covers the following topics:

• Setup Procedure

• Rear Panels and Connections

• Front Panel Conﬁg Port

Setup Procedure

Follow these steps to set up and start operating the DXP switcher. See the "Operation" section for additional conﬁguration procedures you may want to perform to set up the switcher.

1. Turn off power to the input and output devices and disconnect

their power cords.

2. Connect DVI or HDMI input devices to the rear panel input

connectors (see "b Input connectors" on page 7).

3. Connect DVI or HDMI output devices to the rear panel output

connectors (see "c Output connectors" on page 8).

4. Change any required button labels (optional) (see "Replacing

Button Labels" in the "Reference Information" section of the DXP DVI Pro and DXP HDMI Series User Guide).

5. If desired, connect a computer or control system to the Remote

RS-232/RS-422 port or to the front panel Conﬁg RS-232 port (see "g Remote RS232/RS422 connector" on page 10).

6. If desired, connect a network WAN or LAN hub, a control

system, or a computer to the rear panel Ethernet RJ-45 port (see "d Ethernet port" on page 8).

7. Plug the DXP switcher into a grounded AC source, and connect

power to the input and output devices.

8. Select EDID ﬁles to apply to inputs as desired, using SIS commands,

the Matrix Switchers Control Program, or the DXP web pages. See "EDID (Extended Display Identication Data)" in the "Remote Control" section, or see the control program help ﬁle and the DXP DVI Pro and DXP HDMI User Guide for details.

9. Create ties as desired (see "Creating a Tie" in the "Operations"

section).

DXP DVI Pro and DXP HDMI Series • Setup 5

Rear Panels and Connections

Most of the connectors are on the rear panels of the DXP switchers. The following ﬁgures show the rear panels of the four DVI models and the four HDMI models.

NOTE: The illustrations below show DXP 88 DVI Pro and

DXP 88 HDMI models, with 8 input and 8 output connectors.

The rear panels of the other DXP models are identical to these models except for the number of inputs and outputs (see "About the DXP DVI Pro and DXP HDMI Series Matrix

Switchers" in the "Introduction" section for the available

matrix sizes).

DVI PRO - HDCP COMPLIANT

LISTED 1T23

U S

I.T.E.

DVI-D INPUTS

DVI-D OUTPUTS

RESET

LAN

LINKACT

REMOTE

RS232/RS422

Figure 3. DXP DVI Pro Rear Panel

HDMI - HDCP COMPLIANT

LISTED 1T23

U S

I.T.E.

HDMI INPUTS

HDMI OUTPUTS

RESET

LAN

LINKACT

REMOTE

RS232/RS422

Figure 4. DXP HDMI Rear Panel

WARNING: Remove power from the system before making any

connections.

CAUTION: Use electrostatic discharge precautions (be

electrically grounded) when making connections. Electrostatic discharge (ESD) can damage equipment, although you may not feel, see, or hear it.

AC power connector — Plug a standard IEC power cord into this

connector to connect the switcher to a 100 VAC to 240 VAC, 50 or 60 Hz power source.

6 DXP DVI Pro and DXP HDMI Series • Setup

Input connectors —

• DVI Pro series: Connect DVI-D source devices to these female

29-pin DVI-I input connectors. Only single-link DVI-D signals are supported.

• HDMI series: Connect HDMI source devices to these female

19-pin type A HDMI input connectors.

LockIt™ cable lacing brackets, one for each HDMI input and output connector, are provided with the DXP HDMI. These brackets can be used to secure the HDMI cables to the DXP connectors to reduce stress on the HDMI connectors and prevent signal loss due to loose cable connections.

To securely fasten an HDMI cable to the DXP using LockIt brackets:

1. Plug the HDMI cable into the panel connection.

Figure 5. Installing the LockIt Lacing Bracket

2. Loosen the HDMI connection mounting screw from the

panel enough to allow the LockIt lacing bracket to be placed over it. The screw does not have to be removed.

3. Place the LockIt lacing bracket on the screw and against

the HDMI connector, then tighten the screw to secure the bracket.

CAUTION: Do not overtighten the HDMI connector

mounting screw. The shield to which it fastens is very thin and can easily be stripped.

4. Loosely place the included tie wrap around the HDMI

connector and the LockIt lacing bracket as shown.

5. While holding the connector securely against the lacing

bracket, use pliers or similar tools to tighten the tie wrap, then remove any excess length.

7DXP DVI Pro and DXP HDMI Series • Setup

Output connectors —

NOTE: The switchers do not alter the video signal in any way.

The signal that is output by the switcher is in the same format as the input signal.

• DVI Pro series: Connect DVI output devices to these female

29-pin DVI-I output connectors.

• HDMI series: Connect HDMI output devices to these female

19-pin type A HDMI output connectors.

Ethernet port — If desired, connect the DXP switcher to a

computer, a network WAN or LAN hub, or a control system via this RJ-45 connector. With the Ethernet connection, you can use a computer to control the networked switcher with SIS commands, the Matrix Switchers Control Program, or the embedded HTML pages on the switcher.

Ethernet connection indicators — The Link and Act LEDs indicate the status of the Ethernet connection.

• Link: Indicates that the switcher is properly connected to an

Ethernet LAN. This green LED should light steadily.

• Act (Activity): Indicates transmission of data on the RJ-45

connector. This yellow LED should ﬂicker as the switcher communicates.

Ethernet links use Category (CAT) 3, 5e, or 6 unshielded twisted pair (UTP) or shielded twisted pair (STP) cables, terminated with RJ-45 connectors. Ethernet cables are limited to 328 feet (100 m).

NOTES: • Do not use standard telephone cables. Telephone

cables do not support Ethernet or Fast Ethernet.

• Do not stretch or bend the cables because this can cause transmission errors.

Pins:

12345678

Insert Twisted

Pair Wires

RJ-45

Connector

A cable that is wired as T568A at one end and T568B at the other (Tx and Rx pairs reversed) is a "crossover" cable.

Crossover Cable Straight-through Cable

End 1 End 2 End 1 End 2

Wire Color

White-green

Green

White-orange

Blue

White-blue

Orange

White-brown

Brown

T568A

Wire Color

White-orange

Orange

White-green

Blue

White-blue

Green

White-brown

Brown

T568B

Figure 6. RJ-45 Connector and Pinout Tables

8 DXP DVI Pro and DXP HDMI Series • Setup

Wire Color

Blue

White-blue

White-brown

Brown

T568B

A cable that is wired the same at both ends is called a "straight-through" cable, because no pin or pair assignments are swapped.

Wire Color

White-orangeWhite-orange

OrangeOrange

White-greenWhite-green

Blue

White-blue

GreenGreen

White-brown

Brown

T568B

The cable you use depends on your network speed. The switcher supports both 10 Mbps (10Base-T — Ethernet) and 100 Mbps (100Base-T — Fast Ethernet), half-duplex and full-duplex, Ethernet connections.

• 10Base-T Ethernet requires CAT 3 or higher UTP or STP cable.

• 100Base-T Fast Ethernet requires CAT 5e or higher UTP or STP

cable.

Terminate the Ethernet cable as required:

• Network connection — Wire as a patch (straight-through)

cable.

• Computer or control system connection — Wire as a

crossover cable.

NOTE: The factory default IP address is 192.168.254.254.

Reset LED — When the unit is being reset, this LED blinks the

appropriate number of times to indicate the level of reset that has been performed.

Reset button — This recessed button initiates four levels (modes)

of reset. Use a pointed object such as a small Phillips screwdriver or a stylus to press and hold the Reset button while the switcher is running or being powered up.

• Hard reset (mode 1) — Hold the Reset button while powering

up the switcher to restore the DXP to the default factory conditions. This reset restores the factory-installed ﬁrmware.

NOTE: This type of reset does not clear the current

conﬁguration.

• Events reset (mode 3) — Press and hold the Reset button

for 3 seconds, then release and press it again momentarily to toggle events monitoring on and off.

• IP settings reset (mode 4) — Press and hold the Reset

button for 6 seconds, then release it and press it again momentarily to reset the switcher IP functions.

NOTE: IP settings reset does not replace any user-installed

ﬁrmware.

• Absolute reset (mode 5) — Press and hold the Reset button

for 9 seconds, then release it and press it again momentarily to restore the switcher to the default factory conditions.

For more details on these reset modes, see the DXP DVI Pro and

DXP HDMI User Guide, available on the provided Extron Product Software DVD or the Extron website at www.extron.com.

9DXP DVI Pro and DXP HDMI Series • Setup

Remote RS232/RS422 connector — Connect an RS-232 capable

REMOTE

host device such as a computer or a touch panel control to the switcher via this 9-pin D connector for serial RS-232 or RS-422 control.

RS232/RS422

Figure 7. Remote RS232/RS422 Connector

In the "Remote Control" section, see “SIS Commands” for deﬁnitions of some of the SIS commands (serial commands to control the switcher via this connector) and "Installing and

Starting the Matrix Switchers Control Program" for details on

how to install and use the control software.

Front Panel Conﬁg Port

If desired, connect a control system or computer to the front panel RS-232 Conﬁg port. Protocol for the port is:

• 9600 baud

• 8 data bits

• 1 stop bit

• No parity

• No ﬂow control

RS-232 FunctionPin Function

— Tx Rx —

Gnd

— — — —

Not used Transmit data

Receive data Not used Signal ground Not used Not used Not used Not used

2 3 4 5 6 7 8 9

RS-422

— Tx– Rx–

—

Gnd

— Rx+ Tx+

—

Not used Transmit data (–) Receive data (–) Not used Signal ground Not used Receive data (+) Transmit data (+) Not used

RS-232 Configuration Port

Figure 8. Front Panel Conﬁg Port

10 DXP DVI Pro and DXP HDMI Series • Setup

CONFIG

ENTERPRESET

CONTROL

VIEW

I/O

AUDIO

ESC

VIDEO

DXP SERIES

DIGITAL MATRIX SWITCHER

An optional 9-pin D to 2.5 mm mini jack TRS RS-232 cable, part number 70-335-01, is available to connect to this port. (The port does not support RS-422.) The ﬁgure below shows the pin assignments for this cable.

6 feet

(1.8 m)

9-pin D Connection TRS Plug

Part #70-335-01

Tip

Ring

Sleeve (Gnd)

Pin 2 Computer Rx line Tip Pin 3 Computer Tx line Ring Pin 5 Computer signal ground Sleeve

Figure 9. 2.5 mm Connector Cable for the Conguration Port

11DXP DVI Pro and DXP HDMI Series • Setup

12 DXP DVI Pro and DXP HDMI Series • Introduction

Operation

This section describes the DXP front panel controls and the procedures to conﬁgure and begin to operate the DXP switchers. For additional operations and more details, see the DXP DVI Pro and DXP HDMI Series User Guide, available from the provided Extron software disc or from the Extron website at www.extron.com. Topics include:

• Front Panel Features

• Operations

Front Panel Features

The front panels of all DXP models have the same controls and layout (shown below). The front panel buttons are grouped into two sets, with the input and output buttons located on the left side of the control panel and the control buttons on the right side.

These illuminated push buttons can be labeled with text or graphics. You can set the buttons to have amber background illumination all the time, or you can disable the illumination (see “Setting the Background Illumination” in the "Operation" section of the DXP DVI Pro and DXP HDMI Series User Guide for the procedure).

The front panel buttons have multiple functions. The primary functions are listed in this section. For details on the primary and secondary button functions, see the DXP user guide.

OUTPUTS

CONFIG

CONTROL

VIEW ESC

ENTER PRESET

DIGITAL MATRIX SWITCHER

INPUTS

Figure 10. DXP Switchers Front Panel

Input buttons — The input buttons have two primary functions:

• Select an input.

• Identify the selected input.

Output buttons — The output buttons have two primary

functions:

• Select outputs.

• Identify the selected outputs.

DXP DVI Pro and DXP HDMI Series • Operation 13

I/O

AUDIO

VIDEO

DXP SERIES

Conﬁg port — This RS-232 port is an alternative to the rear panel

Remote RS232/RS422 connector. It supports RS-232 only. For more information about the Conﬁg port, see "Front Panel Conﬁg Port" in the "Setup" section.

Enter button — The Enter button has three primary functions:

• Saves changes that you make on the front panel.

• Indicates that a potential tie has been created but not saved.

• Indicates that a global preset has been selected to be saved or

recalled but the preset action has not been accomplished.

Preset button — The Preset button has two primary functions:

• Places the switcher in preset saving mode to save a

conﬁguration as a preset, and in preset recalling mode to activate a previously-deﬁned preset.

• Indicates when preset saving mode is active (blinks) and when

preset recalling mode is active (lights steadily).

View < button — The View < button has two primary functions:

• Places the switcher in view-only mode to display the current

conﬁguration.

• Indicates that the DXP is in view-only mode.

Esc > button — The Esc > button has two primary functions:

• Cancels operations or selections in progress and resets the

front panel button indicators.

NOTE: The Esc

• Indicates that the escape function has been activated (ﬂashes

once).

Video button — The Video button has one primary function:

Selects and deselects video for a conﬁguration that is being created or viewed. It lights green to indicate that video is available for conﬁguring or for viewing.

Audio button — The Audio button has one primary function:

Selects and deselects audio for a conﬁguration that is being created or viewed. It lights red to indicate that audio is available

for conﬁguring or for viewing.

14 DXP DVI Pro and DXP HDMI Series • Operation

conﬁguration or any presets.

button does not reset the current

Operations

utton lights to indicate the selection.

Creating a Tie

To tie an input to an output:

1. Press and release the Esc button to clear any input button, output

2. Press and release the Video and Audio I/O buttons to select or

button, or control button indicators that may be lit.

deselect video and audio as desired.

I / O

Green when selected

Off when deselected

VIDEO

AUDIO

Red when selected Off when deselected

Figure 11. Audio and Video I/O Buttons

NOTE: Audio or video can be broken away (selected, not tied)

by pressing only the Video or only the Audio button.

3. Press and release the desired input button.

The b

Figure 12. Select an Input for the Tie

4. Press and release the desired output buttons.

Amber indicates a video and audio tie. Green indicates a video-only tie. Red indicates an audio-only tie.

Figure 13. Select an Output for the Tie

5. Press and release the Enter button. All button indicators turn off.

ENTER

Green indicates the need

to confirm the change.

15DXP DVI Pro and DXP HDMI Series • Operation

Saving or Recalling a Preset

1. Save a preset — Press and hold the Preset button until it ﬂashes.

Recall a preset — Press and release the Preset button.

Save a preset

Recall a

preset

Figure 14. Saving or Recalling a Preset

2. Press and release the desired input or output button.

The button blinks red to indicate that this preset is selected to save or recall.

Figure 15. Press an Input or Output Button to Select a Preset

3. Press and release the Enter button.

Press and hold.

PRESET PRESET

2 seconds

Press and release.

PRESET PRESET

• All input and output buttons with assigned

presets light red.

• The configuration data at the assigned

preset locations is overwritten.

INPUTS

ENTER

The Enter button blinks red to indicate the need to activate the save or recall.

Preset button blinks.

Preset button lights.

Locking and Unlocking the Front Panel (Executive Modes)

The matrix switcher has three levels of front panel security lock that limit the operation of the switcher from the front panel:

• Lock mode 0 — The front panel is completely unlocked.

• Lock mode 1 — All changes are locked from the front panel

(except for setting lock mode 2). Some functions can be viewed.

• Lock mode 2 — Basic functions are unlocked. Advanced

functions, such as setting video and audio mute, are locked and can be viewed only.

• Basic functions consist of:

• Making ties

• Saving and recalling presets

• Changing lock modes

16 DXP DVI Pro and DXP HDMI Series • Operation

• Advanced features consist of:

• Setting video and audio output mutes

• Creating I/O groups

• Setting the RS-232/RS-422 port protocol and baud rate

NOTE: The switcher is shipped from the factory in lock

mode 2.

Selecting lock mode 2 or toggling between lock modes 2 and 0

NOTES: • If the switcher is in lock mode 0 or 1, this procedure

• If the switcher is in lock mode 2, this procedure selects

Toggle the lock on and off by pressing and holding the Enter, Video, and Audio buttons simultaneously until the following buttons blink twice (approximately 2 seconds).

• The Esc, Video, and Audio buttons blink if the DXP is now in lock

mode 2.

• The Video and Audio buttons blink if the DXP is now in lock

mode 0.

Press and hold simultaneously.

ENTER

selects mode 2.

mode 0 (unlocks the switcher).

I / O

VIDEO

AUDIO

2 seconds

I / O

VIDEO

The buttons blink twice.

AUDIO

Release the buttons.

Figure 16. Press and Hold the Enter and the Two I/O Buttons

Simultaneously

Selecting lock mode 2 or toggling between modes 2 and 1

NOTES: • If the switcher is in lock mode 1, this procedure selects

mode 2.

• If the switcher is in lock mode 2, this procedure selects

mode 1 (locks all switcher functions except selecting mode 2).

17DXP DVI Pro and DXP HDMI Series • Operation

Toggle the lock on and off by pressing and holding the Video and Audio buttons until the following buttons blink twice (approximately 2 seconds).

• The Esc, Video, and Audio buttons blink if the DXP is now in lock

mode 2.

• The Video and Audio buttons blink if the DXP is now in lock

mode 1.

Press and hold simultaneously.

I / O

VIDEO

AUDIO

2 seconds

I / O

VIDEO

The buttons blink twice.

AUDIO

Release the buttons.

Figure 17. Press and Hold the Two I/O Buttons Simultaneously

NOTE: To switch from lock mode 1 (front panel is completely

locked) to lock mode 0 (front panel is unlocked), you must ﬁrst switch to mode 2, then from mode 2 to mode 0.

Viewing Ties (and Muting Outputs)

1. Press the View button. Output buttons light for outputs that have

no ties established.

NOTES: • If an output button blinks, that output is muted.

• Mutes are protected when front panel lock mode 2

To enable changes to the mute settings, set the lock

2. Press an input button. The buttons for all tied outputs light

(amber for video and audio, green for video only, and red for audio only).

3. Press an output button. The buttons for the tied input and all tied

outputs light.

4. Press the View button. All input and output buttons become unlit.

To toggle mute on and off, press and hold the

output button for 2 seconds.

is selected. You can view the status of the output (muted or unmuted) in lock mode 2 but you cannot change it from the front panel (see "Locking and

Unlocking the Front Panel (Executive Modes)" on

page 16).

mode to 0.

18 DXP DVI Pro and DXP HDMI Series • Operation

Selecting the RS-232/RS-422 Port Protocol and Baud

The Control button that continues flashing indicates the baud rate as follows:

Enter — 9600 Preset — 19200 View — 38400 Esc — 115200

The I/O button that continues flashing indicates the protocol as follows:

Video — RS-232 Audio — RS-422

In this example, the port is set to RS-232 at 9600 baud.

Press and hold the Enter, Preset,

View, and Esc buttons.

All Control buttons light with one flashing.

Both I/O buttons light with one flashing.

2 seconds

I / O

AUDIO

C O N T R O L

PRESET

ENTER

ESCVIEW

C O N T R O L

ESCVIEW

ENTER

PRESET

VIDEO

Rate (Rear Panel)

NOTE: The serial port settings are protected when front panel

lock mode 2 is selected. You can view the settings in lock mode 2 but you cannot change them from the front panel.

To enable changes to the mute settings, set the lock mode to 0.

To view and conﬁgure the serial communications settings for the switcher from the front panel:

1. Simultaneously press and hold all four Control buttons

(Enter, Preset, View, and Esc) until all of them light or blink (approximately 2 seconds). In addition:

• The Control button that represents the current baud rate

blinks.

• The I/O button that represents the protocol blinks.

Figure 18. RS-232/RS-422 and Baud Rate Display

2. Release the Control buttons.

19DXP DVI Pro and DXP HDMI Series • Operation

3. To change a value, press and release the button that relates to the

desired value:

Press and release the buttons to configure the RS-232/RS-422 port as follows:

Baud rate: Enter — 9600 Preset — 19200 View — 38400 Esc — 115200

Serial protocol: Video — RS-232 Audio — RS-422

The selected buttons blink and the others remain lit.

In this example, the port is set to RS-422 at 38400 baud.

ENTER

C O N T R O L

PRESET

ESCVIEW

VIDEO

I / O

AUDIO

Figure 19. RS-232/RS-422 and Baud Rate Selection

4. Press and release an output button to exit the Serial Port

Conﬁguration mode.

20 DXP DVI Pro and DXP HDMI Series • Operation

Remote Control

This section describes selected SIS commands that pertain to system setup. It also contains instructions for obtaining, installing, and starting the Matrix Switchers Control Program and for accessing the DXP HTML pages. The following topics are discussed:

• Establishing a Network (Ethernet) Connection

• SIS Commands

• Installing and Starting the Matrix Switchers Control Program

• Accessing the HTML Pages

Establishing a Network (Ethernet) Connection

You can send SIS commands over an Ethernet link (rear panel RJ-45 LAN port) or a serial connection (front panel Conﬁg port or rear panel Remote RS232/RS422 port). The network connection procedure is described below; for information about the serial connection, see the DXP DVI Pro and DXP HDMI Series User Guide.

Establish a network connection as follows:

1. Open a TCP socket to port 23 using the switcher IP address.

NOTE: The factory default IP address is 192.168.254.254.

The switcher responds with a message consisting of the copyright date, the name of the product, ﬁrmware version, part number, and the current date and time.

Example (with an Internet connection):

Ddd, DD Mmm YYYY HH:MM:SS

NOTES: • If the switcher is not password-protected, the device is now

ready to accept SIS commands.

• If the switcher is password-protected, a password prompt

appears.

2. If the switcher is password-protected, enter the appropriate

password.

3. If the password is accepted, the switcher responds with Login

User or Login Administrator.

4. If the password is not accepted, the Password prompt reappears.

]

DXP DVI Pro and DXP HDMI Series • Remote Control 21

Connection Timeouts

The Ethernet link times out and disconnects after a designated period of no communications. By default, this timeout value is set to 5 minutes but the value can be changed.

NOTE: Extron recommends leaving the default timeout at

Number of Connections

A switcher can have up to 200 simultaneous TCP connections, including all HTTP sockets and Telnet connections. When the connection limit is reached, the switcher accepts no new connections until some have been closed. No error message or indication is given that the connection limit has been reached. To maximize performance of your switcher, keep the number of connections low and close unnecessary open sockets.

Verbose Mode

Telnet connections to a switcher can be used to monitor for changes that occur on the switcher, such as front panel operations and SIS commands from other Telnet sockets or a serial port. For a Telnet session to receive change notices from the switcher, the Telnet session must be in verbose mode 1 or 3 (see the Set verbose mode command in the Command and Response Table for SIS Commands).

SIS Commands

The switchers have SIS commands that you can use for operation and conﬁguration. You can issue these commands from a PC connected to either of the DXP serial ports or the Ethernet port (see "Rear Panels

and Connections" in the "Setup" section for connection information).

5 minutes and periodically issuing the Query (Q) command to keep the connection active or disconnecting the socket and reopening the connection when necessary.

Host-to-switcher Instructions

The switcher accepts SIS commands through the LAN port or through either serial port. SIS commands consist of one or more characters per command ﬁeld. They do not require any special characters to begin or end the command character sequence. Each switcher response to an SIS command ends with a carriage return and a line feed (CR/LF = ]), which signals the end of the response character string. A string is one or more characters.

22 DXP DVI Pro and DXP HDMI Series • Remote Control

EDID (Extended Display Identiﬁcation Data)

EDID is a communications protocol or instruction set for the identiﬁcation of display devices to computers using the DDC (Display Data Channel) transmission standard. EDID information consists of the resolution, refresh rate, and pixel clock information of a display device.

You can apply an EDID to a selected input by selecting one of the following categories of EDID ﬁles, shown in the EDID table on the

next page.

• The EDID of the display connected to an output (numbers 1

through the number of outputs on your DXP)

• One of 28 factory-loaded EDID ﬁles (numbers 9 through 36)

• One of the four user-deﬁned ﬁles, to which you have assigned

your own EDID values (numbers 37 through 40)

NOTES: • Multi-channel audio consists of:

PCM 2-channel audio (stereo) DTS 8-channel audio

AC-3 6-channel audio E-AC-3 8-channel audio

PCM 8-channel audio DTS-HD 8-channel audio

AC-3 8-channel audio MLP 8-channel audio

• 2-channel audio consists of PCM, 2-channel audio (stereo).

23DXP DVI Pro and DXP HDMI Series • Remote Control

EDID Table — DDC Source Selection

SIS Value

X1(

1 Output 1 21 1280x1024 60

2 Output 2 22 1280x1024 75

3 Output 3 23 1365x768 60

4 Output 4 24 1365x768 75

5 Output 5 25 1366x768 60

6 Output 6 26 1366x768 75

7 Output 7 27 1400x1050 60

8 Output 8 28 1600x1200 60

9 640x480 60 29

10 640x480 75 30

11 800x600 60 31

12 800x600 75

13 852x480 60 33

14 852x480 75 34

15 1024x768 60 35

16 1024x768 75 36

17 1024x852 60 37 User assigned

18 1024x852 75 38 User assigned

19 1280x768 60 39 User assigned

20 1280x768 75 40 User assigned

Resolution Refresh

(Hz)

SIS Value

X1(

Resolution Refresh

480p

2-channel audio

576p

2-channel audio

720p

2-channel audio

720p (default)

2-channel audio

1080p

Multi-channel

audio

1080i

2-channel audio

1080p

2-channel audio

1080p

2-channel audio

(Hz)

24 DXP DVI Pro and DXP HDMI Series • Remote Control

Command and Response Table for SIS Commands

NOTE: The following table is a partial list of SIS commands. For a complete listing, see the DXP DVI Pro and DXP HDMI Series User

Guide, "SIS Conﬁguration and Control" section.

Command Function

Output Switching

NOTES: Commands can be entered back-to-back in a string, with no spaces. For example: 1*1!02*02&003*003%4*8$.

• The matrix switchers support 1-, 2-, and 3-digit numeric entries (1*1!, 02*02&, or 003*003%).

• The & tie (output switching) command for RGB and the % tie command for video can be used interchangeably.

• The & view ties command for RGB and the % view ties command for video can be used interchangeably.

Tie input X@ to output X#, video and audio

Example

Tie input X@ to output X#, RGB only

Example (See second note, above.)

Tie input

Tie input X@ to output X#, audio only

NOTE: X@ = Input number

25DXP DVI Pro and DXP HDMI Series • Remote Control

to output X#, video only

Example

(See second note, above.)

Example:

= Output number 1 – maximum number of outputs for your model

ASCII Command (Host to Switcher)

X@*X#

! Out

1*3!

X@*X#

& Out

8*4&

X@*X#

% Out

7*5%

X@*X#

$ Out

6*4$

– maximum number of inputs for your model (0 = untied)

Response (Switcher to Host)

•InX@•All

Out3•In1•All

•InX@•RGB

Out4•In8•RGB

•InX@•Vid

Out5•In7•Vid

•InX@•Aud

Out4•In6•Aud

]

Additional Description

Tie video and audio of input X@ to output

. Tie input 1 video and audio to output 3. Video breakaway

Tie input 8 RGB to output 4.

Video breakaway Tie input 7 video to output 5.

Audio breakaway Tie input 6 audio to output 4.

26 DXP DVI Pro and DXP HDMI Series • Remote Control

Command Function

Quick Multiple Tie

Tie multiple inputs to multiple outputs, audio and video

Tie an Input to All Outputs

Tie an input to all outputs, audio and video

Tie an input to all outputs, RGB only Tie an input to all outputs, video only Tie an input to all outputs, audio only

View Ties

View audio and video tie View RGB output tie View video output tie View audio output tie

ASCII Command (Host to Switcher)

E+QX@*X#

% ... X@*X#!

Response (Switcher to Host)

}

]

Qik

InX@•All]

InX@•RGB] InX@ InX@•Aud]

•

Vid

]

X@] X@] X@] X@]

Additional Description

Tie multiple inputs X@ to multiple outputs X#.

Tie input X@ to all outputs, audio and video.

Video breakaway Video breakaway Audio breakaway

Video or audio tie X@ is tied to output X#. RGB input X@ is tied to output X#. Video input X@ is tied to output X#. Audio input X@ is tied to output X#.

NOTE: X@ = Input number

= Output number 1 – maximum number of outputs for your model

– maximum number of inputs for your model (0 = untied)

Command Function

Video and Audio Mute

Video mute Video unmute View individual output mute

Global Video mute Global Video unmute Audio mute Audio unmute View audio mute Global audio mute Global audio unmute View all output mutes

Example:

DXP 88 HDMI

NOTE: The "Mut" portion of the response appears only when the switcher is in verbose mode 2 or 3 (see the Set verbose mode

command under "IP Setup Commands," on page 31).

ASCII Command (Host to Switcher)

*1B VmtX#*1

*0B VmtX#*0

1*B

0*B

*1Z AmtX#*1

*0Z AmtX#*0

1*Z

0*Z

EVM}

Response (Switcher to Host)

] ]

X$]

]

Vmt1

]

Vmt0

] ]

X$]

]

Amt1

]

Amt0

X(n]

. . .

Mut02202000

]

Additional Description

Mute output X# (video off). Unmute output X# (video on). View video mute status for output X#.

For X$: 0 = unmuted, 1 = muted Mute all video outputs.

Unmute all video outputs.

Mute output X# audio (audio off). Unmute output X# audio (audio on). View audio mute status for output X#.

Mute all audio outputs. Unmute all audio outputs.

Each X( response is the mute status of an output, starting from output 1. n = the maximum number of outputs.

Audio for output 2, 3, and 5 is muted. Audio for all other outputs is unmuted.

NOTE: X# = Output number 1 – (maximum number of outputs for your model)

27DXP DVI Pro and DXP HDMI Series • Remote Control

= Mute status for individual output 0 = unmuted 1 = muted

= Mute status for all outputs (VM) 0 = no mutes 1 = video mute 2 = audio mute 3 = video and audio mute

28 DXP DVI Pro and DXP HDMI Series • Remote Control

Command Function

Save and Recall Presets

NOTE: If you try to recall a preset that is not saved, the matrix switcher responds with the error code E11.

Save current conﬁguration as a global preset

Example:

Recall a global preset

Example:

Front Panel Lock (Executive) Modes

NOTE: See “Locking and Unlocking the Front Panel (Executive Modes)” in the "Operation" section for more on the lock modes.

Lock all front panel functions Lock advanced front panel functions Unlock all front panel functions View lock status (executive mode)

EDID (Extended Display Identiﬁcation Data) Commands

Assign EDID data to an input Assign EDID data to all inputs

ASCII Command (Host to Switcher)

, Spr

. Rpr

E E

A X!*

X1(

EDID

*EDID

}

Response (Switcher to Host)

X&]

]

Spr09

X&]

]

Rpr05

]

Exe1

]

Exe2

]

Exe0

X$]

EdidAX!*

EdidA00*

X1(] X1(]

Additional Description

Save global preset X&. Command character is a comma.

Save current set of ties as preset 9. Command character is a period. Recall preset 5, which becomes the current

conﬁguration.

Enable lock mode 1. Enable lock mode 2. Enable lock mode 0.

Display current lock mode X$.

Assign EDID ﬁle Assign EDID information ﬁles to all inputs.

See the EDID Reference Table on page 24 for a list of values contained in each EDID ﬁle.

X1(

to input X!.

NOTE: X! = Input number 1 –

= Current front panel lock mode 0 = unlocked 1 = all front panel functions locked 2 = basic functions unlocked

= Global preset number 01 – 32

X1(

= EDID ﬁle reference number 01 – 40 (32 = default 720p @ 60 Hz)

maximum number of inputs for your model

Command Function

EDID (Extended Display Identiﬁcation Data) Commands (Continued)

Save output 1 EDID to user location (User-assigned ﬁle 37–40)

Export EDID ﬁle data

Import EDID ﬁle to a user ﬁle location

View EDID input data assignment

Information Requests

Information request

Example:

DXP 84 DVI Pro

Request part number

ASCII Command (Host to Switcher)

A X!EDID

X1(

}

EDID

} X2)]

EDID

}X2)

EDID

} X1(]

Response (Switcher to Host)

EdidS

EdidI

X1$

V8X4•A8X4

60-nnn[n]-01

X1(]

X1%

•A

]

X1$

]

Additional Description

Store the EDID of output 1 as userassigned EDID ﬁle

X1(

= 37–40.

Export binary data

X1(

ﬁle

to the computer.

Import EDID ﬁle binary data assigned EDID ﬁle

View number of EDID ﬁle assigned to input X!.

X1(

X2)

contained in EDID

X2)

X1(. X1(

= 37–40.

X1%]

X1$ X1$

X1%

is the video matrix size.

X1%

is the audio matrix size.

V A

The matrix is eight video and audio inputs by four video and audio outputs.

to user-

NOTE: X! = Input number 1 –

29DXP DVI Pro and DXP HDMI Series • Remote Control

X1$

= Total inputs Total number of inputs for this switcher

X1%

= Total outputs Total number of outputs for this switcher

X1(

= EDID ﬁle reference number 01 – 40 (32 = default 720p @ 60 Hz)

X2)

= EDID ﬁle data block 256 bytes of binary data

maximum number of inputs for your model

30 DXP DVI Pro and DXP HDMI Series • Remote Control

Internal

Command Function

Information Requests (Continued)

Query controller ﬁrmware version

Example:

Request system status

Example:

ASCII Command (Host to Switcher)

Response (Switcher to Host)

Additional Description

X2!]

1.23

]

The factory-installed controller ﬁrmware version is 1.23 (sample value only).

X1^•X1^•X1&•X1*•X$]

Display voltages

X1&

status X$. For X$: 0 = not OK, 1 = OK

3.29•4.85•+077.00•03750•1

, fan speed

]

X1^

, internal temperature

X1*

, and power supply

3.3 V Power System at 3.29

3.29 • 4.85 • +077.00 • 03750 • 1

5 V Power System at 4.85 V

IP Setup

Set IP address

Read IP address Set subnet mask Read subnet mask

NOTE: X$ = Mute status for individual output 0 = unmuted 1 = muted

X1^

= Voltage

X1&

= Internal temperature in degrees F

X1*

= Fan speed in RPM

X2!

= Firmware version number to second decimal place (n.nn)

X3^

= IP or Gateway address or subnet mask nnn.nnn.nnn.nnn

EX3^CI}

Ipi

X3^] ECI} X3^] EX3^CS}

Ips

X3^] ECS} X3^]

Temperature

Power supply is on and ok.

Fan 1 rotating at 3750 RPM

Command Function

IP Setup (Continued)

Set gateway IP address Read gateway IP address Set DHCP on and off Read DHCP on/off status Conﬁgure current port timeout Read current port timeout Conﬁgure global IP port timeout Read global IP port timeout

Set verbose mode Read verbose mode

ASCII Command (Host to Switcher)

EX3^CG}

Response (Switcher to Host)

X3^]

Ipg

ECG} X3^] EX4^DH}

Idh

X4^]

EDH} X4^]

E0*X5*TC} E

} X5*]

0TC

E1*X5*TC} E

} X5*]

1TC

EX5#CV}

Pti0*

Pti1*

X5#]

Vrb

ECV} X5#]

Additional Description

X5*]

31DXP DVI Pro and DXP HDMI Series • Remote Control

NOTE:

X3^

= IP or Gateway address or subnet mask nnn.nnn.nnn.nnn

X4^

= DHCP status 0 = DHCP off, 1 = DHCP on

X5#

= Verbose mode 0 = clear or none (default for Telnet connection) 1 = verbose mode (default for RS-232/RS-422 connection) 2 = tagged responses for queries 3 = verbose mode and tagged for queries

X5*

= Port timeout interval 1 (10 seconds) – 65000 (default is 30 = 300 seconds = 5 minutes)

32 DXP DVI Pro and DXP HDMI Series • Remote Control

Command Function

Reset

System reset to factory defaults

NOTE: This command excludes IP settings such as IP address, subnet mask, and gateway address. It does not remove the ﬁle system.

Absolute system reset

NOTE: This command includes resetting the IP address to 192.168.254.254 and the subnet mask to 255.255.0.0. The ﬁrmware version

remains the same.

ASCII Command (Host to Switcher)

ZXXX

ZQQQ

}

Response (Switcher to Host)

]

Zpx

]

Zpq

Additional Description

Clear all ties and presets and reset unit to factory default settings.

Installing and Starting the Matrix Switchers Control Program

Another way to operate the switcher is via the Matrix Switchers Control Program. This program is contained on the Extron Software Products DVD (included with the switcher). Run this program on a PC connected to either of the switcher serial ports or the Ethernet port. See "d Ethernet port", "g Remote RS232/RS422 connector," and "Front Panel Conﬁg Port" in the "Installation" section for connection information. The program must be installed on a computer; it cannot be run from the software disc.

NOTE: For details on operating the program, see the

DXP DVI Pro and DXP HDMI User Guide, “Matrix Software” section, and to the control program help ﬁle.

Installing the Program

1. Insert the DVD into the drive. The disc should start automatically.

The Extron software DVD window appears.

Figure 20. Software Button on the Software DVD Window

NOTE: If the DVD does not self-start, run Launch.exe from the

disc.

2. Click the Software tab.

33DXP DVI Pro and DXP HDMI Series • Remote Control

3. Scroll to the Matrix Switchers Control Program and click Install.

Figure 21. Matrix Switchers Control Program Install Link

4. Follow the on-screen instructions. The installation program creates

a C:\Program Files\Extron\Matrix_Switchers directory and an “Extron Electronics\Matrix Switchers” group folder. It installs the following four programs:

• MATRIX Switcher + Control Program

• MATRIX Switcher + Help

• Uninstall MATRIX Switcher

• Check for Matrix Updates

Starting the Program

1. To run the Matrix Switcher program, click Start >

All Programs > Extron Electronics > Matrix Switchers > MATRIX Switcher + Control Pgm. The Comm Port Selection

window appears.

Figure 22. Comm Port Selection Screen

2. Select the Comm (serial) port that is connected to the switcher or

select IP [LAN].

3. If you selected a Comm port, check the baud rate (shown in green

above the ports list). If you need to change it, click the Baud button and double-click the desired baud rate option on the drop-down menu that opens.

34 DXP DVI Pro and DXP HDMI Series • Remote Control

4. Click OK.

• If you selected a serial port in step 2, the Matrix Switchers

Control Program is ready for operation.

• If you selected IP [LAN] in step 2, the IP Connection

window appears.

Figure 23. Password Prompt for Control Program

a. Check the Matrix IP Address ﬁeld, which displays the last

Matrix IP address entered. If necessary, enter the correct IP address for your switcher in the ﬁeld.

NOTE: 192.168.254.254 is the factory-speciﬁed default

value for this ﬁeld.

b. If the switcher is password protected, enter the administrator

or user password in the Password ﬁeld.

c. Click Connect. The Matrix Switchers Control Program main

window opens.

Figure 24. Matrix Switchers Control Program Window

35DXP DVI Pro and DXP HDMI Series • Remote Control

Accessing the HTML Pages

Another way to operate the switcher is via its factory-installed HTML pages, which are always available and cannot be erased or overwritten. The switcher HTML pages are accessible through its LAN port, connected via a LAN or WAN, using a web browser such as Microsoft® Internet Explorer® (see d Ethernet port in the "Setup" section for connection information).

Loading the Start-up Page

NOTE: If your Ethernet connection to the matrix switcher is

1. In Microsoft Internet Explorer, click Tools > Internet

2. Clear the Use a proxy server... check box.

3. Click OK.

1. Open the web browser.

2. In the browser address ﬁeld, enter the DXP IP address.

3. Press the keyboard <Enter> key.

4. If the switcher is not password protected, it checks and

unstable, try turning off the proxy server in your web browser as follows:

Options > Connections > LAN Settings.

For details on operating the switcher via HTML pages, see the DXP DVI, DXP DVI Pro, and DXP HDMI Series User Guide, “HTML Operation” section.

NOTE: 192.168.254.254 is the factory-speciﬁed default value

for this ﬁeld.

downloads the HTML start-up page.

If the switcher is password protected, the Enter Network Password window opens.

NOTE: A User name entry is optional.

36 DXP DVI Pro and DXP HDMI Series • Remote Control

5. Enter the appropriate administrator or user password in the

Password ﬁeld and click OK.

Figure 25. Password Prompt for Web Pages

6. If you want your password to be ﬁlled in every time you open the

browser, select the Remember my password check box.

The System Status HTML page opens.

Figure 26. System Status Page (Start-up Page)

37DXP DVI Pro and DXP HDMI Series • Remote Control

Using the Web Pages to Conﬁgure the DXP

In addition to the System Status page, the DXP has three other pages: Conﬁguration, File Management, and Control. These pages are accessed by clicking the tabs at the top of the screen.

Status page

This page, shown in ﬁgure 27, allows you to monitor the system. The settings shown are not conﬁgurable from this page. The page has two sub-pages, which you can display by clicking their links on the sidebar menu: System Status and DSVP and HDCP.

Conﬁguration page

This page enables you to view and change IP administration and system settings, including e-mail settings and passwords. Sub-pages, selectable from the left sidebar menu, include: System Settings,

Passwords, Email Settings, and Firmware Upgrade.

Figure 27. System Settings Page

File Management page

This page enables you to upload ﬁles to the server within the DXP and to manage them.

38 DXP DVI Pro and DXP HDMI Series • Remote Control

Control page

This page lets you control ties and presets on the DXP.

Figure 28. Control Web Page

Select the following sub-pages from the left sidebar menu.

• The User Control sub-page lets you view and set input to output

ties, mute and unmute audio and video signal, and select EDID information for each input.

• On the Presets sub-page, you can save and recall global presets.

NOTE: For full details on using the web pages, see the DXP DVI Pro

and DXP HDMI User Guide, available at www.extron.com.

39DXP DVI Pro and DXP HDMI Series • Remote Control

40 DXP DVI Pro and DXP HDMI Series • Remote Control

Extron Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

Warranty

USA, Canada, South America, and Central America:

Extron USA 1001 East Ball Road Anaheim, CA 92805 U.S.A.

Europe, Africa, and the Middle East:

Extron Europe Hanzeboulevard 10 3825 PH Amersfoort The Netherlands

Asia: Extron Asia 135 Joo Seng Road #04-01 PM Industrial Bldg. Singapore 368363 Singapore

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions, or modiﬁcations made to the product that were not authorized by Extron.

NOTE: If a product is defective, please call Extron and ask for an Application

Engineer to receive an RA (Return Authorization) number. This will begin the repair process.

USA: (714) 491-1500 Europe: +31.33.453.4040 Asia: +65.6383.4400 Japan: +81.3.3511.7655

Japan: Extron Japan Kyodo Building, 16 Ichibancho Chiyoda-ku, Tokyo 102-0082 Japan

China: Extron China 686 Ronghua Road Songjiang District Shanghai 201611 China

Middle East: Extron Middle East Dubai Airport Free Zone F12, PO Box 293666 United Arab Emirates, Dubai

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or ﬁtness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

Extron USA Headquarters

+800.633.9876 (Inside USA/Canada Only)

Extron USA - West Extron USA - East +1.714.491.1500 +1.919.863.1794 +1.714.491.1517 FAX +1.919.863.1797 FAX

Extron Asia +800.7339.8766 Inside Asia Only

+65.6383.4400 +65.6383.4664 FAX

Extron Middle East +971.4.2991800 +971.4.2991880 FAX

Extron Europe +800.3987.6673 (Inside Europe Only) +31.33.453.4040 +31.33.453.4050 FAX

Extron Japan +81.3.3511.7655 +81.3.3511.7656 FAX

Extron Korea +82.2.3444.1571 +82.2.3444.1575 FAX

Extron India

1800.3070.3777 (Inside India Only) +91-80 3055.3777 +91 80 3055 3737 FAX

Extron China +4000.EXTRON +4000.398766 Inside China Only

+86.21.3760.1568 +86.21.3760.1566 FAX

Extron electronic DXP HDMI, 68-1370-50 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction

About this Guide

About the DXP DVI Pro and DXP HDMI Series Matrix Switchers

Application Diagram Examples

Setup

Setup Procedure

Rear Panels and Connections

Operation

Front Panel Features

Operations

Creating a Tie

Saving or Recalling a Preset

Locking and Unlocking the Front Panel (Executive Modes)

Viewing Ties (and Muting Outputs)

Remote Control

Establishing a Network (Ethernet) Connection

Connection Timeouts

Number of Connections

Verbose Mode

SIS Commands

Host-to-switcher Instructions

Command and Response Table for SIS Commands

Installing and Starting the Matrix Switchers Control Program

Installing the Program

Starting the Program

Accessing the HTML Pages

Loading the Start-up Page

Extron Warranty
