DVI & HDMI
DVI Twisted Pair
Transmitter
DVI 201xi Tx
n Transmits single link DVI/HDMI and
RS-232 over two CAT 5-type cables
n Sends 720p, 1080i, and XGA signals
over 200 ft (60 m), 1080p/60 and
1920x1200 over 100 ft (30 m)
n EDID Minder
n DVI input loop-through
n Supports DDC and HDCP
n Automatic input equalization
n Remote powering of receiver
n Bi-directional RS-232/IR
pass-through
n Rack Mountable
DVI 201xi Tx
Transmitter
The Extron DVI 201xi Tx is a twisted pair transmitter that works together with a
DVI 201 twisted pair receiver to send DVI or HDMI signals over distances of 200
feet or more using two standard CAT 5-type cables. The DVI 201xi Tx is ideal for
professional and residential applications that utilize fully digital, long distance
transmission of DVI or HDMI signals.
www.extron.com
DesCrIPtION
Features
The Extron DVI 201xi Tx is a twisted pair transmitter that enables DVI
or HDMI signals to be carried over distances significantly greater than
the specified 5 meter (15 foot) limitation for standard DVI cables.
Linked together using two economical and integration friendly CAT 5,
CAT 5e, CAT 6, or CAT 7 cables, the DVI 201xi Tx transmitter and
a DVI 201 or DVI 201 A D Twisted Pair Receiver work together to
send single link DVI-D or HDMI signals over 200 feet (60 meters) for
HDTV and XGA (1024x768). The DVI 201xi Tx includes EDID Minder,
automatic input equalization, and rack mount capability, all designed
to help optimize system integration for DVI signal transmission.
The DVI 201xi Tx features EDID Minder, which automatically manages
EDID - Extended Display Identification Data communication between
the input source and the display, ensuring the source powers up
properly and reliably delivers content to the display. The DVI 201xi Tx
also supports the long distance transmission of HDTV signals with
HDCP - High-bandwidth Digital Content Protection for copy
protection of digital television broadcasts and high resolution digital
video output from DTV tuners and DVRs, and Blu-ray Disc players.
The DVI 201xi Tx is fully compatible with HDMI signals when used
with the appropriate adapters from Extron.
Several features facilitate convenient, streamlined system integration.
Automatic input equalization reduces the need for additional signal
conditioning equipment by compensating for signal loss when using
long input cable assemblies. The DVI 201xi Tx includes a DVI loopthrough to support monitoring on a local display device. RS-232 or IR
signals from a third-party control system can also be transmitted over
the same cabling as the DVI signals, providing remote control of a
projector or flat-panel display. Furthermore, a DVI 201 or
DVI 201 A D receiver attached to the DVI 201xi Tx can be remotely
powered over this cabling, so that external power is necessary only at
the transmitter location.
n Transmits single link DVI-D/HDMI and RS-232 signals over
n Sends 720p, 1080i, and XGA (1024x768) signals over 200 feet
n DVI input loop-through – The DVI 201xi Tx features a DVI-D
n Supports DDC and HDCP – The DVI 201xi Tx fully supports long
n DDC routing to local or remote display – At the DVI 201xi Tx,
n EDID Minder – A selectable feature that enables automatic and
n Automatic input equalization – Actively conditions incoming DVI
n Remote powering of receiver – Only one power supply is
two CAT 5-type cables – Standard UTP/STP cables provide an
economical, easily installed cable solution.
(60 meters), 1080p/60 and 1920x1200 signals over 100 feet
(30 meters) – Utilization of STP - Shielded Twisted Pair cabling
provides added protection from outside interference and increases
overall signal transmission distances.
output for connection to a local monitor.
distance transmission of DDC and HDCP signals.
the DDC or HDCP signal is directed to either the local display
or the remote display, depending on which is more critical in
receiving the signal.
continuous EDID management between the input source and the
display. EDID Minder ensures that the source powers up properly
and reliably outputs content to the display.
signals to compensate for signal loss and timing errors when using
long DVI cables, low quality DVI cables, and source devices with
poor DVI signal output.
necessary to power both devices.
The DVI 201xi Tx transmitter is housed in a rack-mountable 1U, half
rack width metal enclosure. It can be matched with the DVI 201 or
DVI 201 A D Decora
requirements of a specific application.
DVID SL Pro Series
Single Link DVI-D Male to Male Cables
®
Twisted Pair Receiver to suit the installation
n Bi-directional RS-232/IR pass-through – Bi-directional RS-232
control or IR signals can be transmitted alongside the DVI signals,
so that the remote display can be controlled without the need for
additional cabling.
n LED indicator for source signal presence and power
n Fully supports HDMI signals when used with optional Extron
HDMI-DVI adapters – Supports CEC Consumer Electronics Control
signal transmission.
n Compatible with DVI 201 and DVI 201 A D Decora receiver –
Enables mixing and matching with desktop and wallplate receivers
to meet application requirements.
n Rack-mountable 1U, half rack width metal enclosure
n External universal power supply included – Provides worldwide
power compatibility.
DIgItal sIgNal CONDItIONINg
Although DVI signals are digital in nature, they are subject to loss when transmitted on standard DVI cables, due to the inherent properties of the
cable and the connectors. The proper “shape” of the three TMDS channels – also known as the “eye” pattern, as well as their timing to the clock
channel, are critical in ensuring proper DVI image display. Losses in these channels will result in “sparkles” on-screen, or a complete loss of the image. They are attributable to long cable lengths, poor quality cables and terminations, and even certain source devices which output substandard
DVI signals.
The DVI 201xi Tx features Automatic Input Equalization, which actively conditions incoming DVI signals, applying equalization to help reshape
and restore TMDS channels to proper levels. The clock channel is also regenerated to provide proper TMDS channel alignment. As shown below, a
compromised source-generated DVI signal is significantly improved when passed through the DVI 201xi Tx and subsequently transmitted to a DVI
201 Rx Twisted Pair Receiver. Automatic Input Equalization reshapes and restores the “eye” patterns to ensure high quality images at the display.

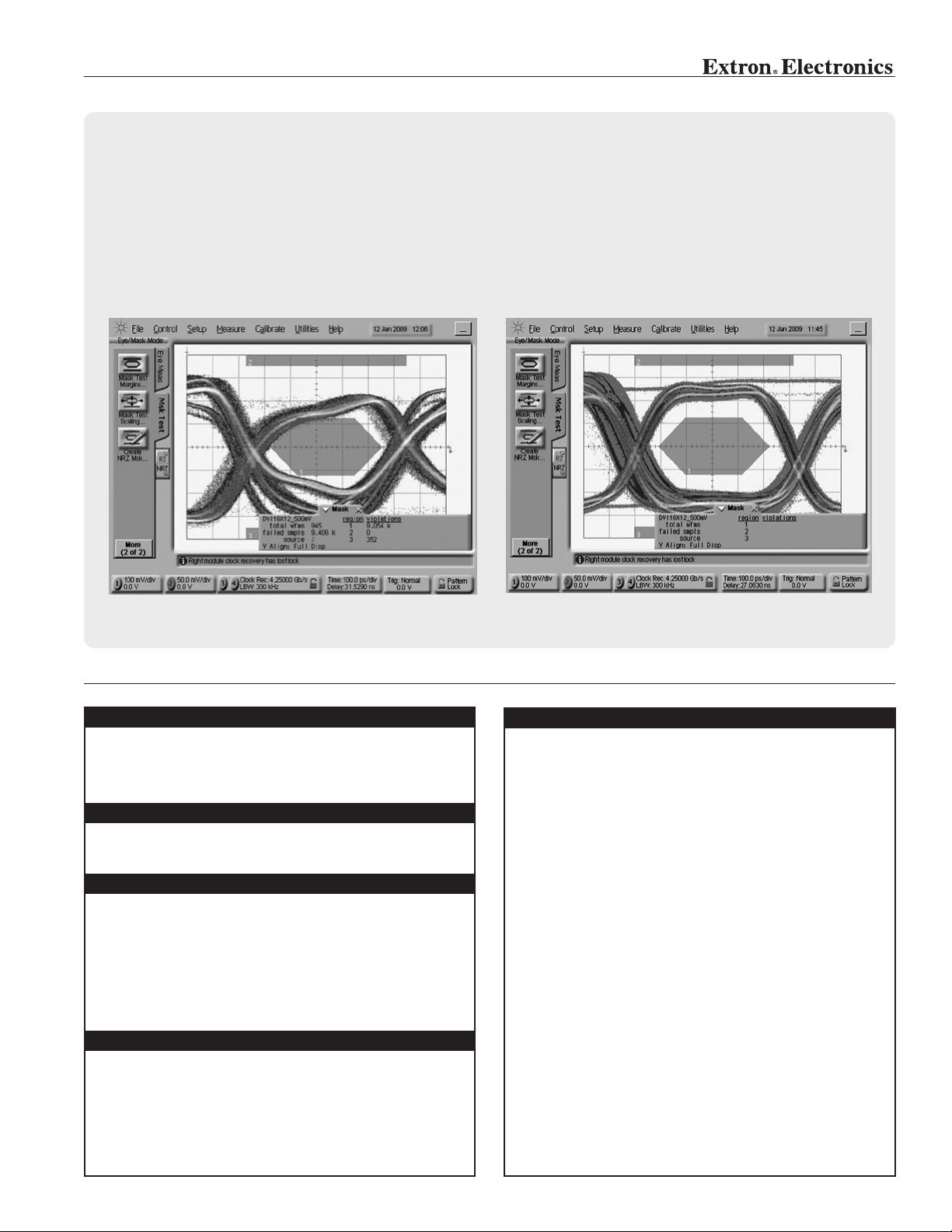

WITHOUT AUTOMATIC INPUT EQUALIZATION
Direct DVI output from a source device at 1600 x1200. Signal quality is
poor, and the "eye" pattern is significantly distorted.
The same DVI output is transmitted 100 ft (30 m) over CAT 5 cable
using the DVI 201xi Tx and DVI 201 Rx. The "eye" pattern is fully
restored.
sPeCIFICatIONs
Video
Maximum data rate ............................. 10 Gbps (3.3 Gbps per color)
Maximum pixel clock ........................... 165 MHz
Resolution range .................................. Up to 1920x1200 @ 60 Hz
Formats ................................................ RGB and YCbCr digital video
Standards ............................................. DVI 1.0, HDMI 1.2
Video input and loop through — transmitter
Number/signal type ............................. 1 single link DVI-D input
1 single link DVI-D local loop-through
Connectors ........................................... 2 DVI-I female (1 for input, 1 for loop-through)
interconnection between transmitter and receiVer
Connectors ........................................... (2) RJ-45 per unit for 2 CAT 5/5e/6/7 UTP or STP
(shielded twisted pair) cables connecting the
transmitter and receiver
Signal transmission distance
1080p or 1900x1200 @ 60 Hz
CAT 5/5e/6/7 STP
(shielded twisted pair) cable ............... Up to 125' (38 m)
CAT 5/5e/6 UTP cable ........................ 100' (30 m)
NOTE: The transmission distance varies greatly depending on the signal resolution and on
the type of cable, graphics card, and display used in the system.
control/remote — external deVice (pass-through)
Serial control port input ...................... RS-232 via (1) 3.5 mm, 3 pole captive screw
connector
general
External power supply ......................... 100 VAC to 240 VAC, 50-60 Hz, 6 W max.,
Power input requirements ................... 12 VDC, 0.4 A for both transmitter and receiver
Temperature/humidity ........................ Storage: -40 to +158˚F (-40 to +70˚C) / 10% to
Cooling ................................................. Convection, no vents
Mounting
Rack mount ........................................... Yes, with optional 1U, rack shelf
Enclosure type ...................................... Metal
Enclosure dimensions........................... 1.75" H x 8.75" W x 3.0" D (1U high, half rack
Product weight .................................... 0.6 lbs (0.3 kg)
Shipping weight ................................... 2 lbs (1 kg)
Vibration .............................................. ISTA 1A in carton (International Safe Transit
Regulatory compliance
Safety .................................................... CE, CUL, UL
EMI/EMC ............................................... CE, C-tick, FCC Class A**, ICES, VCCI
MTBF .................................................... 30,000 hours
Warranty .............................................. 3 years parts and labor
NOTE: **FCC testing is conducted with STP (shielded twisted pair) cable.
NOTE: All nominal levels are at ±10%.
Model Version Description Part number
DVI 201xi Tx DVI Twisted Pair Transmitter ......................................... 60-1013-12
DVI 201 Rx Receiver ...................................................................... 60-734-13
DVI 201 A D Rx Receiver - Black ............................................................. 60-865-22
DVI 201 A D Rx Receiver - White ............................................................ 60-865-23
WITH AUTOMATIC INPUT EQUALIZATION
external; to 12 VDC, 2 A, regulated
90%, noncondensing
Operating: +32 to +122˚F (0 to +50˚C) / 10% to
90%, noncondensing
wide)
(4.4 cm H x 22.2 cm W x 7.6 cm D)
(Depth excludes connectors.)
Association)
Specifications are subject to change without notice.

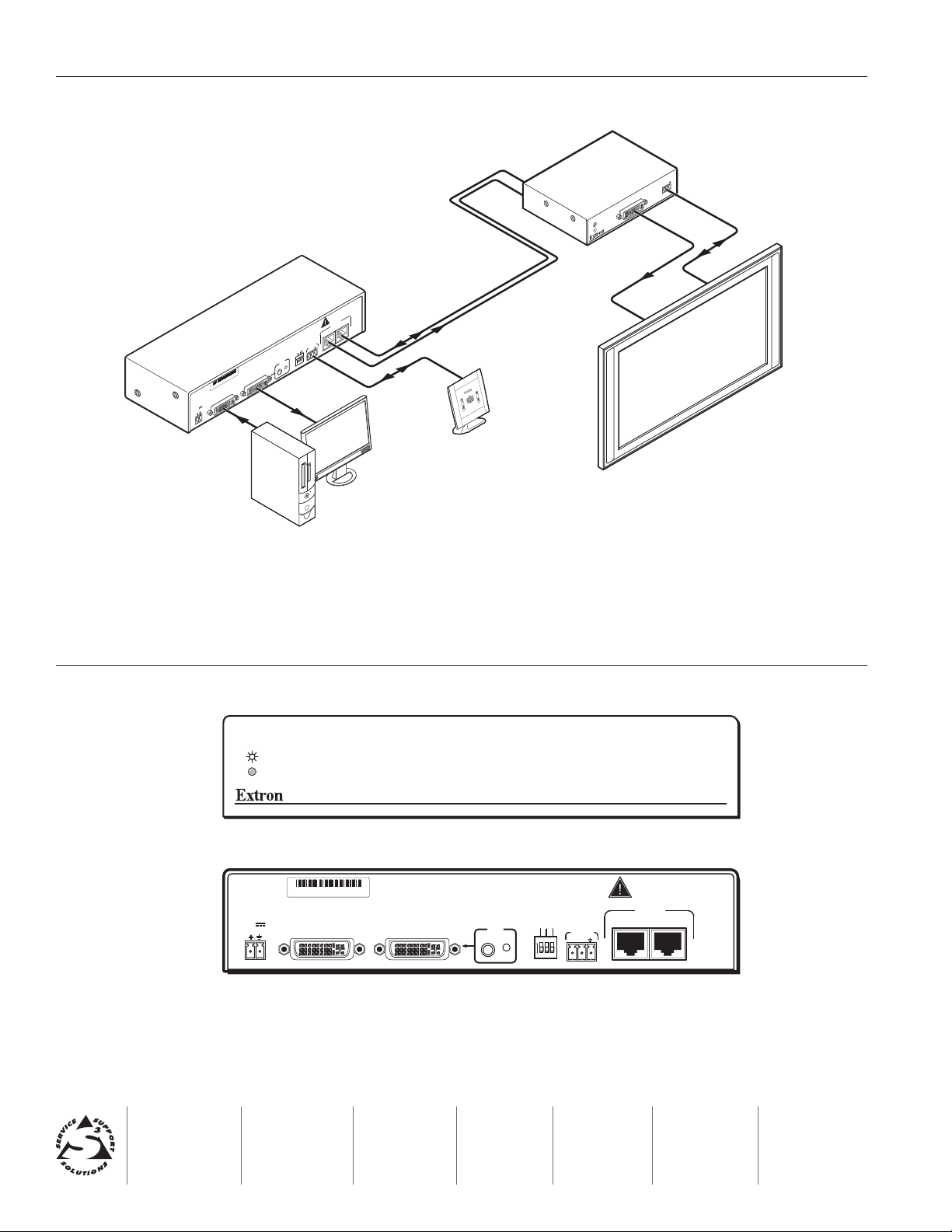

aPPlICatION DIagram
Extron USA - West
Headquarters
+800.633.9876
Inside USA / Canada Only
+1.714 .491.1500
+1.714 .491.1517 FA X
Extron USA - East
+800.633.9876
Inside USA / Canada Only
+1.919.863.1794
+1.919.863.1797 FA X
Extron EMEA
+800.3987.6673
Inside Europe Only
+31.33.453.4040
+31.33.453.4050 FAX
Extron Asia
+800.7339.8766
Inside Asia Only
+65.6383.4400
+65.6383.4664 FAX
Extron Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Extron China
+400.883.1568
Inside China Only
+86.21.3760.1568
+86.21.3760.1566 FAX
Extron Middle East
+971.4.2991800
+971.4.2991880 FAX
DVI-D INPUT
LOCAL MONITOR OUTPUT
DVI 201xi Tx
POWER
0.4A MAX
12V
EDID
OUTPUTS
1 2
DO NOT CONNECT
OUTPUTS TO LAN
DVI 201 Rx SERIES
DVI-D OUTPUT
CONTROL
PASS-THRU
TxRx
PC w/ DVI
Output
Local Monitor
Control
System
DVI Cable
RS-232
RS-232
Extron
DVI 201xi Tx
DVI Transmitter
Extron
DVI 201 Rx
DVI Receiver
CAT 5/5e/6/7 Cab les
up to 200 feet
Flat Pane l Displ ay
with DVI In put
DVI-D INPUT
LOCAL MONITOR OUTPUT
SN XXXXXXXX E XXXXX 00/00
DVI DL TX
DVI 201xi Tx
POWER
0.4A MAX
12V
STORE
EDID
ON
1 2 3
DEFAULT EDID
EDID MINDER
ON
OFF
REMOTE DDC
RxTx
CONTROL
PASS-THRU
OUTPUTS
1 2
DO NOT CONNECT
OUTPUTS TO LAN
DVI 201xi Tx
DVI TRANSMITTER
PaNel DrawINgs
© 2009 Extron Electronics. All rights reserved. All trademarks mentioned are the property of their respective owners.
DVI 201xi Tx Front
DVI 201xi Tx Back
09-02
68-1710-01
REV. A
