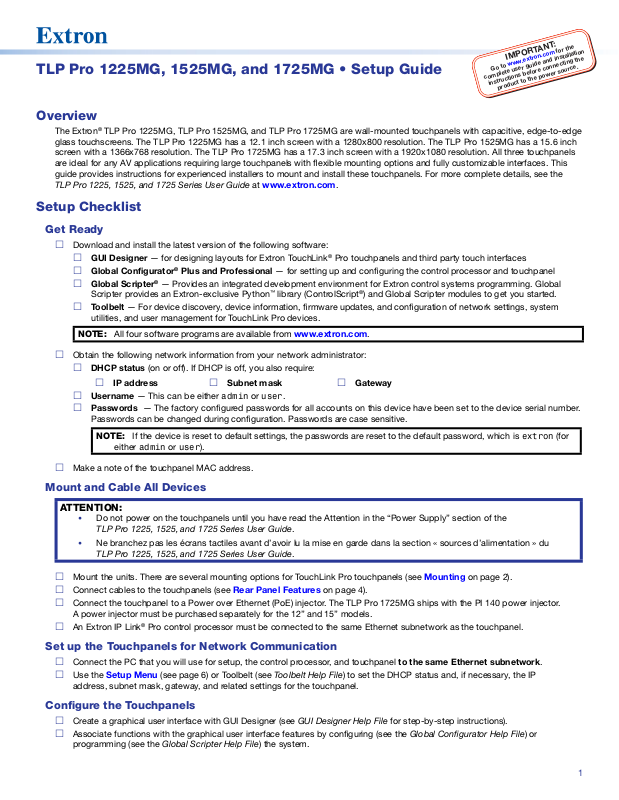

Extron TLP Pro 1225MG, TLP Pro 1525MG, TLP Pro 1725MG Setup Guide

IMPORTANT:

www.extron.com

TLP Pro 1225MG, 1525MG, and 1725MG • Setup Guide

Go to for the

complete user guide and installation

instructions before connecting the

product to the power source.

Overview

The Extron® TLP Pro 1225MG, TLP Pro 1525MG, and TLP Pro 1725MG are wall-mounted touchpanels with capacitive, edge-to-edge glass touchscreens. The TLP Pro 1225MG has a 12.1 inch screen with a 1280x800 resolution. The TLP Pro 1525MG has a 15.6 inch screen with a 1366x768 resolution. The TLP Pro 1725MG has a 17.3 inch screen with a 1920x1080 resolution. All three touchpanels are ideal for any AV applications requiring large touchpanels with exible mounting options and fully customizable interfaces. This guide provides instructions for experienced installers to mount and install these touchpanels. For more complete details, see the TLPPro 1225, 1525, and 1725 Series User Guide at

www.extron.com.

Setup Checklist

Get Ready

 Download and install the latest version of the following software:

 GUI Designer — for designing layouts for Extron TouchLink  Global Configurator  Global Scripter

Scripter provides an Extron-exclusive Python™ library (ControlScript®) and Global Scripter modules to get you started.

Plus and Professional — for setting up and conguring the control processor and touchpanel

— Provides an integrated development environment for Extron control systems programming. Global

 Toolbelt — For device discovery, device information, rmware updates, and conguration of network settings, system

utilities, and user management for TouchLink Pro devices.

NOTE: All four software programs are available from www.extron.com.

Pro touchpanels and third party touch interfaces

 Obtain the following network information from your network administrator:

 DHCP status (on or off). If DHCP is off, you also require:

 IP address  Subnet mask  Gateway  Username — This can be either admin or user.  Passwords — The factory congured passwords for all accounts on this device have been set to the device serial number.

Passwords can be changed during conguration. Passwords are case sensitive.

NOTE: If the device is reset to default settings, the passwords are reset to the default password, which is extron (for

either admin or user).

 Make a note of the touchpanel MAC address.

Mount and Cable All Devices

ATTENTION:

• Do not power on the touchpanels until you have read the Attention in the “Power Supply” section of the

TLPPro 1225, 1525, and 1725 Series User Guide.

• Ne branchez pas les écrans tactiles avant d’avoir lu la mise en garde dans la section «sources d’alimentation» du

TLPPro 1225, 1525, and 1725 Series User Guide.

 Mount the units. There are several mounting options for TouchLink Pro touchpanels (see Mounting on page 2).  Connect cables to the touchpanels (see Rear Panel Features on page 4).  Connect the touchpanel to a Power over Ethernet (PoE) injector. The TLP Pro 1725MG ships with the PI 140 power injector.

A power injector must be purchased separately for the 12” and 15” models.

 An Extron IP Link

Pro control processor must be connected to the same Ethernet subnetwork as the touchpanel.

Set up the Touchpanels for Network Communication

 Connect the PC that you will use for setup, the control processor, and touchpanel to the same Ethernet subnetwork.  Use the Setup Menu (see page 6) or Toolbelt (see Toolbelt Help File) to set the DHCP status and, if necessary, the IP

address, subnet mask, gateway, and related settings for the touchpanel.

Conﬁgure the Touchpanels

 Create a graphical user interface with GUI Designer (see GUI Designer Help File for step-by-step instructions).  Associate functions with the graphical user interface features by conguring (see the Global Conﬁgurator Help File) or

programming (see the Global Scripter Help File) the system.

TLP Pro 1225MG, 1525MG, and 1725MG • Setup Guide

Hold the touchpanel at a slight angle.

Mounting

ATTENTION:

• Do not install the TLP Pro 1225MG, TLP Pro 1525MG, or TLP Pro 1725MG in a re resistant rated wall or partition

assembly.

• Ne pas installer le TLP Pro 1225MG, le TLP Pro 1525MG, ou le TLP Pro 1725MG dans un mur résistant au feu ou une

cloison.

• All structural steps and electrical installation must be performed by qualied personnel in accordance with local and

national building codes and electrical codes.

• Toute étape structurelle et installation électrique, doit être effectuée par un personnel qualié, conformément aux codes

du bâtiment, aux codes incendie et sécurité, et aux codes électriques, locaux et nationaux.

Wall Mounting

The touchpanels can be wall mounted using the provided hardware. Where local codes require a rear metal enclosure, either model can be mounted using the Extron BB 700M (not provided). Figure 1 shows the TLP Pro 1525MG. Mount the TLP Pro 1225MG or TLP Pro 1725MG in the same way.

With a wall box

Some local building codes require the touchpanel to be mounted in a wall box such as the Extron BB 700M. This installation procedure is described below.

1. Cut a hole in the drywall, 9.6 inches (243 mm) wide

x 6.6 inches (166 mm) high, and install the BB 700M (see gure 1, 1), as described in the BB 700M Installation Guide (see

www.extron.com).

2. Place the metal mounting plate

against the wall, mark the four mounting holes, and drill four pilot holes (2) in those locations.

3. Secure the mounting plate with four

#10 screws (3).

4. Run and connect cables to the back

of the touchpanel (

, and see Rear

Panel Features on page 4).

5. Insert the two provided Phillips pan

head #6-32 x ¾ inch length screws with washers in the mounting screw slot (

, see gure 1, Back View

Install the BB 700M (optional).

inset). Leave a gap for the ange at the bottom of the mounting plate to t into.

6. Hold the touchpanel at a slight angle

and lower the notches at the top of the back panel over the hooks of the mounting plate (6).

7. Swing the bottom of the touchpanel

Add the mounting plate. Align with the wall box and mark holes for screws.

Secure the mounting plate to the wall with screws (4).

inwards so that it lies at against the mounting plate with the ange at the bottom of the mounting plate sitting in a groove in the bottom of the touchpanel.

8. Secure the touchpanel to the mounting plate with the

mounting screws (

Without a wall box

Back View

If the wall box is not required by local building codes, you can mount the touchpanel directly into drywall.

1. Download the cut-out template for your touchpanel from

www.extron.com

2. Use the template to mark the wall, cut the hole, and drill the four pilot holes. The size of the cut-out hole is 9.25 inches (235 mm)

. Print it at 100% (no scaling).

Figure 1. TLP Pro 1525MG Mounting

wide x 6.25 inches (159 mm) high.

3. Secure the mounting plate and complete the installation, as described in steps 3 through 8 above.

Mount the touchpanel over the two hooks on the mounting plate.

TLP Pro 1525MG

Place the provided mounting screws (2) with washers in the mounting screw slot in the touchpanel.

Secure the touchpanel by tightening the mounting screws against the base of the mounting plate.
