SW6 HDMI and SW8 HDMI • Setup Guide

The Extron SW6 and SW8 HDMI are six and eight input, one output, High-denition Multimedia Interface (HDMI) switchers. They
allow multiple HDMI signals, including digital video, 3D signals, and embedded multi-channel digital audio, to be switched to one
compatible display. These switchers support all standard single link HDMI (up to 2.25 Gbps) and DVI 1.0 signal formats and are
compatible at 60 Hz with all PC resolutions up to 2048 x 1080 and HDTV resolutions up to 1080p with 12-bit color. They are fully
HDCP compliant.

This guide provides instructions for an installer to set up and operate these switchers. For full installation, conguration, and
operation details, see the SW HDMI Series User Guide, available at www.extron.com.

Rear Panel Features and Connections

NOTE: Figure 1 shows an SW8 HDMI, which has eight input connectors. The rear panel of the SW6 HDMI is identical except

for the number of input connectors (six).

6

100-240V 0.3A MAX

1

50-60Hz

2 3 4 5 6 7 8

1

Figure 1. SW8 HDMI Rear Panel

Female IEC power connector

a

HDMI input connectors

b

HDMI output connector

c

INPUTS

OUTPUT

1234+V 5678+V

1234G567 8G

2

Contact closure port

d

RS-232 and auto-input switching connector

e

Tally Out port

f

3

Installation Steps

1. Turn off all of the equipment and disconnect it from the power source.

2. Mount the switcher on a rack shelf or furniture (optional. See the SW HDMI Series User Guide for the procedure).

3. Connect HDMI input sources to one or more of the SW HDMI input connectors (

NOTE: LockIt® cable lacing brackets, one for each HDMI input and output connector, are provided with the SW HDMI.

These brackets can be used to secure the HDMI cables to the rear panel connectors to reduce stress on the HDMI
connectors and prevent signal loss due to loose cable connections. For information on attaching the LockIt brackets,
see the SW HDMI Series User Guide, available at www.extron.com.

on the rear panel diagram in gure 1).

b

TALLY OUT

CONTACT

4

SW8 HDMI

REMOTE

RS-232 AUTO

Tx Rx G

5

4. Connect an HDMI output device to the output connector (

c

).

By default, the EDID of this device is stored at the HDMI inputs.

5. Connect control devices: Connect your computer to one of the

following SW HDMI communication ports to congure and control
the switcher via SIS commands:

z RS-232 port — Connect the unterminated transmit, receive,

and ground wires of the RS-232 cable to the rst three pins
on the provided 5-pole captive screw plug, as shown in the
illustration at right. Connect the plug to the rear panel Remote
shared connector (e in gure 1), and the other end of the
cable to your computer serial port. Protocol for the RS-232
port is 9600 baud, 8 data bits, 1 stop bit, no parity.

z Cong port — USB mini-B connector (

on the front panel

f

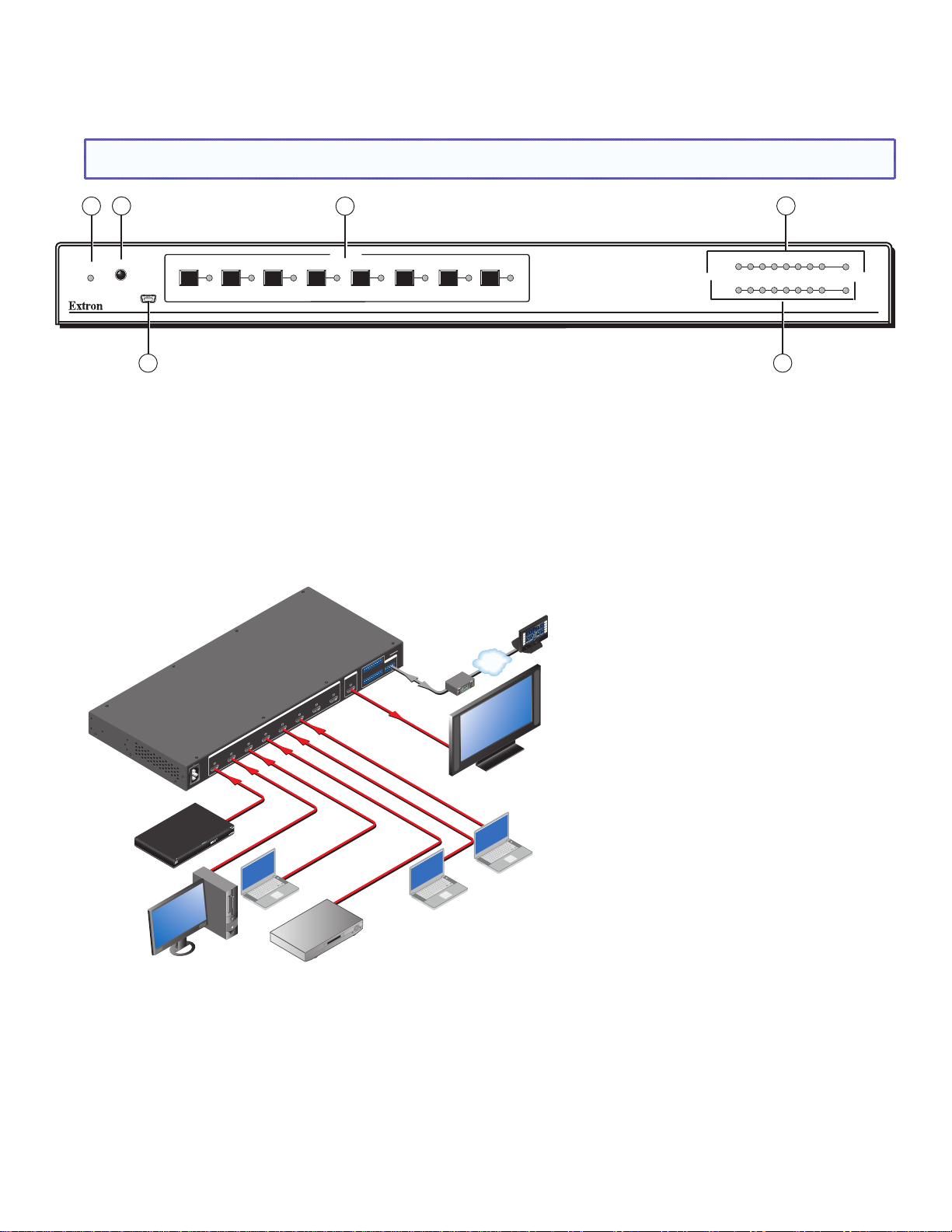

diagram on page 3) for USB control.

RS-232 Auto

G

TxRx

SW HDMI Series Switcher
Rear Panel
Remote Port

NOTE: If you use cable that has a drain
wire, tie the drain wire to ground at both ends.

Ground (G)
Receive (Rx)
Transmit (Tx)

Transmit (Tx)
Receive (Rx)

Computer or
Contr
RS-232 Port

1

Tally Out Port for Input Selection

SW6 HDMI and SW8 HDMI • Setup Guide (Continued)

6. Enable auto-input switching (optional). Use a jumper wire to connect pins 4 and 5 of the shared 5-pole captive screw

plug. Attach the plug to the remote connector (e on the rear panel diagram on the previous page) if this was not done in
step 5 for the RS-232 connection (see gure 2).

REMOTE

TALLY OUT

+v

RS-232 AUTO

1 2 3 4

OUTPUT

CONTACT

Tx Rx

1 2 3 4 G

4

Figure 2. Enabling Auto-input Switching

7. Connect a contact closure device (optional). Connect a push-button contact closure device to the Contact port (

the rear panel diagram on page 1) to enable input switching via contact closure.

a. Plug a 5-pole captive screw connector (provided) into one or both of the two

connectors of the dual Contact port.

b. Insert the signal wire of the contact closure device into the slot representing the

desired input number on the SW HDMI Contact port.

Pin 1 = Input 1 contact
Pin 2 = Input 2 contact
Pin 3 = Input 3 contact
Pin 4 = Input 4 contact
Pin 5 (G) = Contact ground

c. Insert the ground wire of the contact device into the G (ground) slot of the Contact port (pin 5 or 10).

Pin 6 = Input 5 contact
Pin 7 = Input 6 contact
Pin 8 = Input 7 contact (SW8 only)
Pin 9 = Input 8 contact (SW8 only)
Pin 10 (G) = Contact ground

1234+V 56 78+V

1234G567 8G Tx Rx

Contact Port for Input
Selection: SW6/SW8 HDMI

Press the button on the contact closure device to switch the connected input to the output.

8. Connect an indicator device to the Tally Out port (optional). To identify the currently selected input when the front

panel buttons are not visible, connect a device such as an LED to the input and +V pins of the Tally Out port (f on the rear

panel diagram on page 1). When the input you are using is selected, the corresponding tally out pin shorts to ground, which

activates the connected indicator.

a. Plug a 5-pole captive screw connector (provided) into one or both of the two Tally

Out connectors of the dual Tally Out port.

b. Insert the power wire for the contact indicator device into the +V slot of the Tally

Indication: SW6/SW8 HDMI

Out connector (pin 5 or 10).

REMOTE

TALLY OUT

CONTACT RS-232 AUTO

REMOTE

TALLY OUT

d

on

Pin 1 = Input 1 tally ground
Pin 2 = Input 2 tally ground
Pin 3 = Input 3 tally ground
Pin 4 = Input 4 tally ground
Pin 5 = +5 V

c. Insert the ground wire for the indicator into the slot on the Tally Out port that represents the input that you want to

monitor (pin 1, 2, 3, 4, 6, 7, 8, or 9).

Example: One way to use this port is to connect it to a contact closure device with an LED. Connect the contact device to
the Contact port as well. When you use the contact device to switch the input that you are using, the LED lights.

9. Power on the output display.

10. Connect power to the switcher.

11. Power on the source devices.

2

Pin 6 = Input 5 tally ground
Pin 7 = Input 6 tally ground
Pin 8 = Input 7 tally ground (SW8 only)
Pin 9 = Input 8 tally ground (SW8 only)
Pin 10 = +5 V

1234+V 56 78+V

CONTACT RS-232 AUTO

1234G567 8G Tx Rx
