Extron IN1804 User Manual

Download

IN1804 Series

Seamless Scaling Switchers

User Guide

Scalers

68-3274-01 Rev. C

02 20

Safety Instructions

Safety Instructions • English

WARNING: This symbol, , when used on the product, is intended to

alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.

ATTENTION: This symbol, , when used on the product, is intended

to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide, part number 68-290-01, on the Extron website, www.extron.com.

Sicherheitsanweisungen • Deutsch

WARNUNG: Dieses Symbol auf dem Produkt soll den Benutzer darauf

aufmerksam machen, dass im Inneren des Gehäuses dieses Produktes gefährliche Spannungen herrschen, die nicht isoliert sind und die einen elektrischen Schlag verursachen können.

VORSICHT: Dieses Symbol auf dem Produkt soll dem Benutzer in

der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Weitere Informationen über die Sicherheitsrichtlinien, Produkthandhabung, EMI/EMF-Kompatibilität, Zugänglichkeit und verwandte Themen finden Sie in den Extron-Richtlinien für Sicherheit und Handhabung (Artikelnummer 68-290-01) auf der Extron-Website, www.extron.com.

Istruzioni di sicurezza • Italiano

AVVERTENZA: Il simbolo, , se usato sul prodotto, serve ad

avvertire l’utente della presenza di tensione non isolata pericolosa all’interno del contenitore del prodotto che può costituire un rischio di scosse elettriche.

ATTENTZIONE: Il simbolo, , se usato sul prodotto, serve ad avvertire

l’utente della presenza di importanti istruzioni di funzionamento e manutenzione nella documentazione fornita con l’apparecchio.

Per informazioni su parametri di sicurezza, conformità alle normative, compatibilità EMI/EMF, accessibilità e argomenti simili, fare riferimento alla Guida alla conformità normativa e di sicurezza di Extron, cod. articolo 68-290-01, sul sito web di Extron, www.extron.com.

Instrucciones de seguridad • Español

ADVERTENCIA: Este símbolo, , cuando se utiliza en el producto,

avisa al usuario de la presencia de voltaje peligroso sin aislar dentro del producto, lo que puede representar un riesgo de descarga eléctrica.

ATENCIÓN: Este símbolo, , cuando se utiliza en el producto, avisa

al usuario de la presencia de importantes instrucciones de uso y mantenimiento recogidas en la documentación proporcionada con el equipo.

Para obtener información sobre directrices de seguridad, cumplimiento de normativas, compatibilidad electromagnética, accesibilidad y temas relacionados, consulte la Guía de cumplimiento de normativas y seguridad de Extron, referencia 68-290-01, en el sitio Web de Extron, www.extron.com.

Instructions de sécurité • Français

AVERTISSEMENT : Ce pictogramme, , lorsqu’il est utilisé sur le

produit, signale à l’utilisateur la présence à l’intérieur du boîtier du produit d’une tension électrique dangereuse susceptible de provoquer un choc électrique.

ATTENTION : Ce pictogramme, , lorsqu’il est utilisé sur le produit,

signale à l’utilisateur des instructions d’utilisation ou de maintenance importantes qui se trouvent dans la documentation fournie avec le matériel.

Pour en savoir plus sur les règles de sécurité, la conformité à la réglementation, la compatibilité EMI/EMF, l’accessibilité, et autres sujets connexes, lisez les informations de sécurité et de conformité Extron, réf. 68-290-01, sur le site Extron, www.extron.com.



Trademarks

All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks (®), registered service marks (SM), and trademarks (TM) are the property of RGBSystems, Inc. or ExtronElectronics (see the current list of trademarks on the Terms of Use page at www.extron.com):

Registered Trademarks (

)

Extron, Cable Cubby, ControlScript, CrossPoint, DTP, eBUS, EDID Manager, EDID Minder, Flat Field, FlexOS, Glitch Free. Global Configurator, GlobalScripter, GlobalViewer, Hideaway, HyperLane, IPIntercom, IPLink, KeyMinder, LinkLicense, LockIt, MediaLink, MediaPort, NetPA, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, ShareLink, Show Me, SoundField, SpeedMount, SpeedSwitch, StudioStation, SystemINTEGRATOR, TeamWork, TouchLink, V-Lock, VideoLounge, VN-Matrix, VoiceLift, WallVault, WindoWall, XPA, XTP, XTPSystems, and ZipClip

Registered Service Mark

(SM)

: S3 Service Support Solutions

Trademarks (™

)

AAP, AFL (Accu-RATEFrameLock), ADSP(Advanced Digital Sync Processing), Auto-Image, AVEdge, CableCover, CDRS(ClassD Ripple Suppression), Codec Connect, DDSP(Digital Display Sync Processing), DMI (DynamicMotionInterpolation), DriverConfigurator, DSPConfigurator, DSVP(Digital Sync Validation Processing), eLink, EQIP, Everlast, FastBite, Flex55, FOX, FOXBOX, IP Intercom HelpDesk, MAAP, MicroDigital, Opti-Torque, PendantConnect, ProDSP, QS-FPC(QuickSwitch Front Panel Controller), RoomAgent, Scope-Trigger, SIS, SimpleInstructionSet, Skew-Free, SpeedNav, Triple-Action Switching, True4K, True8K, Vector™ 4K, WebShare, XTRA, and ZipCaddy

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part15 of the FCC rules. The ClassA limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference. This interference must be corrected at the expense of the user.

ATTENTION:

NOTES: For more information on safety guidelines, regulatory compliances, EMI/EMF

• The Twisted Pair Extension technology works with unshielded twisted pair (UTP)

or shielded twisted pair (STP) cables; but to ensure FCC Class A and CE compliance, STP cables and STP Connectors are required.

• La technologie extension paires torsadées fonctionne avec les câbles paires

torsadées blindées(UTP) ou non blindées(STP). Afin de s’assurer de la compatibilité entre FCC ClasseA et CE, les câbles STP et les connecteurs STP sont nécessaires.

compatibility, accessibility, and related topics, see the Extron Safety and Regulatory

Compliance Guide on the Extron website.

VCCI-A Notice

Battery Notice

この装置は、クラスＡ情報技術装置です。この装置を家庭環境で使用すると、電波妨害を引き

起こすことがあります。その場合には使用者が適切な対策を講ずるよう要求されることがあります。ＶＣＣI－Ａ

This product contains a battery. Do not open the unit to replace the battery. If the battery needs replacing, return the entire unit to Extron (for the correct address, see the Extron Warranty section on the last page of this guide).

CAUTION: Risk of explosion. Do not replace the battery with an incorrect type. Dispose

of used batteries according to the instructions.

ATTENTION : Risque d’explosion. Ne pas remplacer la pile par le mauvais type de pile.

Débarrassez-vous des piles usagées selon le mode d’emploi.

Conventions Used in this Guide

Notifications

The following notifications are used in this guide:

CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessuremineure.

ATTENTION:

• Risk of property damage.

• Risque de dommages matériels.

NOTE: A note draws attention to important information.

TIP: A tip provides a suggestion to make working with the application easier.

Software Commands

Commands are written in the fonts shown here:

^AR Merge Scene,,0p1 scene 1,1 ^B 51 ^W^C.0 [01] R 0004 00300 00400 00800 00600 [02] 35 [17] [03] E X! *X1&* X2)* X2#* X2! CE}

NOTE: For commands and examples of computer or device responses used in this

guide, the character “0” is the number zero and “O” is the capital letter “o.”

Computer responses and directory paths that do not have variables are written in the font shown here:

Reply from 208.132.180.48: bytes=32 times=2ms TTL=32 C:\Program Files\Extron

Variables are written in slanted form as shown here:

ping xxx.xxx.xxx.xxx —t SOH R Data STX Command ETB ETX

Selectable items, such as menu names, menu options, buttons, tabs, and field names are written in the font shown here:

From the File menu, select New. Click the OK button.

Specifications Availability

Product specifications are available on the Extron website, www.extron.com.

Extron Glossary of Terms

A glossary of terms is available at http://www.extron.com/technology/glossary.aspx.

Introduction ...................................................1

About this Guide ................................................. 1

Product Description ............................................ 1

Models ........................................................... 1

Integrated Digital Twisted Pair Extension ......... 2

Features ............................................................. 2

Control Methods ................................................. 6

Application Diagrams .......................................... 7

Installation ..................................................... 9

Installation Overview ........................................... 9

Rear Panel Connections ................................... 10

Connection Details ........................................... 16

Analog Audio Connections ........................... 16

HDMI Connections ....................................... 17

Twisted Pair Recommendations for DTP2,

XTP, and HDBaseT Communication ............. 18

Wiring the Contact/Tally Connectors ............. 19

Connecting Using an SM Cable .................... 20

Operation ..................................................... 21

Front Panel Overview ........................................ 21

Powering Up .................................................... 22

Selecting an Input ............................................. 22

Using the On-Screen Menu System .................. 22

Menu Selection Buttons ................................ 22

Menu Overview ............................................. 23

Using the Menu Screens ............................... 24

Device Info Screen ........................................ 25

Quick Setup Submenu.................................. 26

Picture Controls Submenu ............................ 27

Input Submenu ............................................. 29

Output Submenu .......................................... 32

Audio Submenu ............................................ 35

Advanced Submenu ..................................... 37

Communication Submenu ............................ 40

Front Panel Lockout (Executive Modes) ............ 41

Input Presets .................................................... 42

Reset Modes .................................................... 42

RS-232 and IR Signal Insertion ......................... 43

Ethernet to RS-232 Insertion ........................ 44

Captive Screw IR Signal Insertion ................. 46

Unidirectional RS-232 Insertion via SIS

Commands ................................................. 47

SIS Conﬁguration and Control ........................ 48

Host and Switcher Communication .................. 48

Password Messages .................................... 49

Switcher-Initiated Messages ......................... 50

Error Responses ........................................... 50

SIS Overview .................................................... 51

Using the Command and Response

Tables .......................................................... 51

Symbol Definitions ........................................ 51

Command and Response Tables for IN1804

SIS Commands ............................................... 60

Conﬁguration Software ..................................... 82

Software Installation.......................................... 82

Software Download Center Page .................. 82

Software Connection ........................................ 84

Device Discovery Panel ................................. 84

TCP/IP Panel ................................................ 85

Offline Device Preview ................................... 86

Software Overview ............................................ 87

Software Menu ............................................. 87

Device Menu................................................. 90

viiIN1804 Seamless Scaling Switchers • Contents

Internal Web Page .............................................. 92

Accessing the Web Page .................................. 92

Disabling Compatibility Mode ........................ 93

Web Page Components ................................... 94

Device Info Panel .......................................... 95

Inputs Panel.................................................. 95

Roles and Permissions Panel ........................ 96

Device Status Panel ...................................... 97

Outputs Panel ............................................... 99

Firmware Panel ............................................. 99

Network Settings Panel .............................. 100

RS-232 Panel ............................................. 101

Reference Information ............................. 102

Mounting ........................................................ 102

Tabletop Mounting ...................................... 102

Rack Mounting ........................................... 102

Furniture Mounting...................................... 103

Downloading Updated Firmware ..................... 103

Licensed Third-Party Software Used in the

Switchers ...................................................... 104

IN1804 Seamless Scaling Switchers • Contents viii

Introduction

This section provides general information about this guide and the Extron IN1804. Topics in this section include:

• About this Guide

• Product Description

• Features

• Application Diagrams

• Control Methods

About this Guide

This guide describes how to install, configure, and operate the unit. In this guide, the terms “switcher” and “IN1804” are used interchangeably to refer to all

IN1804 models. The term “standard model” refers to the basic IN1804 containing no twisted pair input or output. “Twisted pair models” refers to the IN1804 DI, IN1804 DO, and IN1804 DI/DO.

Product Description

The Extron IN1804 is a compact, four input seamless scaling switcher that supports signal resolutions up to 4K @ 60 Hz, with 4:4:4 chroma sampling. It incorporates Extron-patented Vector 4K scaling technology specifically engineered for 4K signal processing applications. It features DisplayPort and HDMI inputs with DI, DO, and DI/DO models that provide Extron DTP2 extension of video, audio, and control signals up to 330 feet (100 meters) over a shielded CATx twisted pair cable.

The IN1804 Series also provide automatic switching, audio embedding and de-embedding, seamless transition effects, and logo keying. Designed for professional AV integration, the IN1804 can be controlled and configured via Ethernet, RS-232, USB, and contact closure with tally outputs.

Models

The IN1804 is available in the following models:

Model Description

IN1804 Standard model Inputs: 1 DisplayPort, 3 HDMI

IN1804 DI DTP2 input Inputs: 1 DisplayPort, 2 HDMI, 1 DTP2/XTP

IN1804 DO DTP2 output Inputs: 1 DisplayPort, 3 HDMI

IN1804 DI/DO DTP2 input and output Inputs: 1 DisplayPort, 2 HDMI, 1 DTP2/XTP

Outputs: 2 HDMI

Outputs: 1 DTP2/XTP/HDBT, 1 HDMI

IN1804 Seamless Scaling Switchers • Introduction 1

Integrated Digital Twisted Pair Extension

The DTP2 inputs and outputs are proprietary signals that are created within any of the Extron DTP Extender systems and transmitted over a single shielded twisted pair (STP) cable. The IN1804 accepts DTP inputs from transmitting devices such as the DTP T USW 333.

NOTE: Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for

optimal performance.

• The IN1804 DI and IN1804 DI/DO can receive signals from remote DTP or DTP2

transmitters at a conference table, lectern, or wall.

• The IN1804 DO and IN1804 DI/DO can transmit to a DTP or DTP2 receiver or directly to

an HDBaseT enabled display device.

All twisted pair models can be integrated into an XTP II matrix switcher system. Additionally, they can send power to selected DTP or DTP2 endpoints over the same shielded CATx cable, streamlining system design and installation.

DTP transmitters and receivers are available in compact, low-profile enclosures, plus decorator-style wallplate and floorbox versions to suit the installation requirements of a specific application.

RS-232 and IR signal insertion

Bidirectional RS-232 and IR signals can be inserted from a control system and transmitted over the single shielded CATx cable together with the video and audio, enabling control of a source or display. The DTP2/XTP/HDBT output on IN1804 DO and IN1804 DI/DO can be configured for compatibility with HDBaseT-enabled displays to send digital video and embedded audio, plus bidirectional RS-232 and IR signals up to 330 feet (100 meters) over a shielded CATx cable.

Features

Matrix switcher integration

In addition to supporting DTP endpoints, the IN1804 twisted pair models can be integrated into an XTP CrossPoint matrix switcher system. This enables facility-wide AV system applications with a centralized AV signal distribution infrastructure, as well as several presentation spaces with local AV switching and processing.

• Integration of DisplayPort, HDMI, and audio sources into presentation

systems — All IN1804 models provide centralized switching for a wide range of AV sources.

• DisplayPort, HDMI, and optional DTP2 inputs —

• IN1804 standard and IN1804 DO models feature one DisplayPort and three HDMI

inputs.

• The IN1804 DI and IN1804 DI/DO feature two HDMI, one DisplayPort, and one

DTP2 input.

• HDMI and optional DTP2 outputs —

• The IN1804 and IN1804 DI models feature dual mirrored HDMI outputs.

• The IN1804 DO and IN1804 DI/DO feature one DTP2 output and one mirrored

HDMI output.

IN1804 Seamless Scaling Switchers • Introduction 2

• Advanced Extron Vector 4K scaling engine — The Vector 4K scaling engine is

specifically designed for critical-quality 4K imagery, with best-in-class image upscaling and downscaling.

• Supports signal resolutions up to 4K @ 60 Hz with 4:4:4 color sampling.

• Supports DisplayPort Single Stream Transport (SST) data rates up to 21.6 Gbps.

• Supports HDMI 2.0 specification features — Features include data rates up to

18 Gbps, Deep Color, and HD lossless audio formats.

• Logo image keying and display — A logo graphic can be positioned and keyed over

the live video output. Logo graphics in BMP, GIF, JPG, PNG, or TIFF format can be uploaded to the unit. Full screen images up to 4K resolution can also be displayed to eliminate loss of video between presentations.

• Selectable seamless switching transitions — Seamless cut and fade, cut through

black, and fade through black transition effects are available.

• Auto-switching between inputs — Auto-input switching allows for unmanaged

installation in locations such as in a lectern or under a conference table. When multiple inputs are active, the switching priority is configurable, including last-connected input and user-selectable priority.

• HDCP 2.2 compliant — Ensures display of content-protected 4K video media and

maintains interoperability with earlier versions of HDCP.

• Stereo audio embedding — Analog audio signals can be embedded onto the DTP2

or HDMI output.

• Stereo audio de-embedding — Embedded HDMI two-channel PCM audio can be

extracted to the analog outputs, or multi-channel bitstream formats can be passed to the DTP2 or HDMI output.

• Displays user-supplied images for screen saver, corporate branding, logo

insertion, and HDCP notification — Custom, user-loaded images can be displayed as a screen saver after a predefined duration of inactivity at the video input, or whenever the input is disconnected between presentations. User-supplied images can also be displayed for HDCP Visual Confirmation, whenever HDCP-encrypted content is transmitted to a non-HDCP compliant display. A user-loaded image can be displayed as a corporate logo at any time during the video.

• Consumer Electronics Control (CEC) capability — Standard, built-in CEC

commands can be triggered to control displays or other AV devices connected to the HDMI or DTP2 outputs. The ability to control specific functions, such as power on and off, input selection, or volume level, is dependent on implementation by the device manufacturer.

• Integrated DTP2 extension — IN1804 DI and IN1804 DI/DO feature one DTP2/XTP

input. The IN1804 DO and IN1804 DI/DO feature one DTP2/XTP/HDBT output, which support transmission of video, audio, and control up to 330 feet (100 meters) over a shielded CATx cable.

• Compatible with CATx shielded twisted pair cable — IN1804 DI,

IN1804 DO, and IN1804 DI/DO support a maximum transmission distance of 330 feet (100 meters) for all compatible resolutions when used with CATx shielded twisted pair cable. Shielded twisted pair cabling with solid center conductor sizes of 24 AWG or better is recommended for optimal performance.

• Remote powering of DTP transmitter or receiver — IN1804 DI, IN1804 DO,

and IN1804 DI/DO can provide power to a DTP or DTP2 endpoint over the twisted pair connection, eliminating the need for a separate power supply at the remote unit.

IN1804 Seamless Scaling Switchers • Introduction 3

• RS-232 insertion from the Ethernet control port — Saves system resources

and simplifies installation by enabling a control processor to access remote RS-232 devices over Ethernet.

• Additional analog stereo audio signals accepted — IN1804 DI, IN1804 DO,

and IN1804 DI/DO support stereo analog audio signals for simultaneous transmission over the same shielded twisted pair cable.

• Bidirectional RS-232 and IR pass-through for AV device control —

Bidirectional RS-232 control and IR signals can be transmitted alongside the video signal over the DTP connection, allowing the remote device to be controlled without additional cabling. Bidirectional control extension eliminates control system wiring to remote devices.

• Compatible with all DTP-enabled products, plus XTP CrossPoint matrix

switchers — Enables mixing and matching with desktop and wallplate endpoints, as well as other DTP or DTP2-enabled products to meet application requirements. The twisted pair models can be integrated with XTP II matrix switchers to provide connectivity between presentation spaces and a larger, facility-wide system.

• DTP2 output compatible with HDBaseT-enabled devices — The IN1804 DO

and IN1804 DI/DO can be configured to send video and embedded audio, plus bidirectional RS-232 and IR signals, to an HDBaseT-enabled display.

• RJ-45 signal and link LED indicators for DTP port — Provides a means for

validating signal flow and operation, allowing quick identification of connectivity issues.

• User-selectable HDCP authorization — Allows inputs 2 through 4 to appear HDCP

compliant or non-HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non-HDCP mode.

• Key Minder continuously verifies HDCP compliance — Key Minder authenticates

and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments, while enabling simultaneous distribution of a single source signal to one or more displays.

• EDID Minder manages EDID communication between connected devices —

EDID Minder ensures the source powers up properly and reliably outputs content for display.

• Custom EDID and output resolutions supported — User-defined scaling output

resolutions can be supported by uploading custom EDID files, or capturing EDID from a display or other destination device.

• HDCP authentication and signal presence confirmation — Provides real-time

verification of HDCP status for each digital video input and output. This allows for simple, quick, and easy signal and HDCP verification through RS-232, USB, or Ethernet, providing feedback to a system operator or helpdesk support staff.

• HDCP Visual Confirmation — A full-screen green signal is sent when

HDCP-encrypted content is transmitted to a non-HDCP compliant display, providing immediate visual confirmation that protected content cannot be viewed on the display.

• Aspect ratio control — The aspect ratio of the video output can be controlled by

selecting a fill mode, which provides a full screen output, or a follow mode, which preserves the original aspect ratio of the input signal.

• Motion-adaptive deinterlacing for signals up to 1080i — Advanced deinterlacing

for all interlaced signals up to 1080i delivers optimized image quality.

IN1804 Seamless Scaling Switchers • Introduction 4

• Automatic 3:2 and 2:2 pulldown detection — Advanced film mode processing

techniques help maximize image quality for content sources that originated from film.

• Auto-Image setup — When Auto-Image is activated, the unit automatically optimizes

the image by analyzing and adjusting to the video input signal.

• Auto Input Memory — When Auto Input Memory is activated, the unit stores size,

position, and picture settings based on the incoming signal. When the same signal is detected again, these image settings are recalled from memory.

• Input presets — Memory presets are available to store and recall optimized image

settings.

• Output muting control — The video and audio output can be muted independently.

• Image freeze control — A live image can be frozen using RS-232, USB, or Ethernet

control.

• On-screen menus — Intuitive on-screen menus allow for easy system setup using

the front panel controls. Key parameters such as input and output video formats are conveniently grouped on the initial Quick Setup screen, while additional screens provide full control over the unit’s other functions and settings.

• Picture controls — Controls are provided for brightness, contrast, and detail, as well

as horizontal and vertical sizing, and positioning.

• Internal video test patterns and pink noise generator — All IN1804 models offer

several video test patterns and audio pink noise to facilitate proper system setup and calibration of display devices.

• HDMI to DVI Interface Format Correction — Automatically enables or disables

embedded audio and InfoFrames, and sets the correct color space for proper connection to HDMI and DVI displays.

• Color bit depth management — Automatically adjusts color bit depth based on the

display EDID, preventing color compatibility conflicts between source and display.

• Audio file playback — Up to 16 prerecorded messages may be stored and played

back over the program audio output.

• Output volume control — Provides master volume control for the analog line level

output, two-channel PCM HDMI audio, and DTP analog audio for the IN1804 DO and IN1804 DI/DO models.

• Audio input gain and attenuation — Gain or attenuation can be adjusted for the

analog audio input to eliminate noticeable differences when switching between sources.

• Audio switching transitions — The audio output level automatically ramps down and

then ramps up to match the video during switching transitions.

• Integrated audio delay — The audio output is automatically delayed to compensate

for latency introduced by the video processing.

• Audio input assignment — The audio input can be associated with one or more video

inputs.

• Multiple embedded audio formats — All IN1804 models are compatible with a broad

range of multi-channel audio signals, providing reliable operation with HDMI sources.

• Output Standby Mode — All models can be set to automatically mute video and sync

output to the display device when no active input signal is detected. This allows the projector or flat-panel display to automatically enter into standby mode to save energy and enhance lamp or panel life.

• Power Save Mode — All IN1804 models can be placed in a low power standby state

to conserve energy when not in use.

IN1804 Seamless Scaling Switchers • Introduction 5

• Front panel security lockout — This feature locks out all front panel functions. All

functions, however, are available through Ethernet, USB, or RS-232 control.

• Ethernet monitoring and control — Enables control and proactive monitoring over a

LAN or WAN.

• Built-in web pages — Enables the use of a standard browser for device monitoring

and troubleshooting over an intuitive web interface.

• RS-232 control port — Enables the use of serial commands for integration into

a control system. Extron products use the Simple Instruction Set (SIS) command protocol, a set of basic ASCII commands that allow for quick and easy programming.

• Contact closure remote control with tally output — Contact closure ports enable

remote video input selection control, while tally outputs provide +5 VDC to illuminate LEDs for video input identification. The contact and tally ports may be configured for independent use when the IN1804 is connected to an external control processor.

• Compatible with Teamwork Show Me Cables — Show Me cables provide

convenient connectivity and user input selection and control for TeamWork Collaboration Systems.

• Front panel USB configuration port — Enables easy system configuration without

having to access the rear panel.

• Front panel LED indicators for signal presence, HDCP status, and power —

Provides visual indication of system status for real-time feedback and monitoring of key performance parameters.

• Extron Product Configuration Software (PCS) — The PCS program enables

configuration of multiple products using a single software application.

• Compact 1U, half rack width metal enclosure — The half rack width enclosure

can be mounted under furniture using the UTS Series Under Table Shelf System or MBU 123 Low Profile Mount Kit, available separately.

• Includes LockIt HDMI cable lacing brackets

• Internal Extron Everlast power supply — Provides worldwide power compatibility,

with high-demonstrated reliability and low power consumption for reduced operating cost. The Extron Everlast Power Supply is covered by a 7-year parts and labor warranty.

Control Methods

Control the IN1804 series switchers using one or more of the following methods:

• The front panel controls and the on-screen display (OSD) menu (see Using the

• A computer, a touch screen panel, or any other device that sends and receives

• The Extron Product Configuration Software (PCS) on a computer with a Windows®

• Internal web pages, providing a web browser-based interface for monitoring the

On-Screen Menu System on page 22).

serial communications through the USB, RS-232, or Ethernet port. Use the Extron DataViewer utility on the computer to enter SIS commands (see SIS Configuration

and Control beginning on page 48).

operating system (see Configuration Software beginning on page 82 and the IN1804 Series PCS Help File).

switcher from a computer over a LAN network (see Internal Web Page beginning on page 92).

IN1804 Seamless Scaling Switchers • Introduction 6

Application Diagrams

Extron

Transmitter

The following diagrams show examples of typical applications for different IN1804 models.

ow Me Cable

USB CHARGER

125 VAC. 50-60 Hz 12A MAX

PRESS PRESS

PCSHARELINKON/OFF

Tablet

Smartphone

Extron Cable Cubby 500 CCB

Cable Access Enclosure

Laptop

Extron IPCP Pro 250

Control Processor

POWER 12V 1A MAX

COM 1

Tx Rx RTSCTS

VOL

VCG

Display

MODEL 80

COM 2

DIGITAL I/O

IPCP PRO 250

Tx Rx

1 2 3 4 G

RELAYS

eBUS

IR/S

1 2 C

+V+S-SG

S G

PWROUT = 6W

LAN

RS-232

ShareLink 250 W

Wireless

VGA OUT HDMI OUT

AUDIO

OUT

LAN / PoE

1234

WiFi

POWER

Extron

USB 3

2.3A MAX

ShareLink 250 W

Wireless Collaboration Gateway

HDMI

DisplayPort

100-240V ~0.7A MAX

50-60 Hz

2CT3CT4CT5CT6CT7

/TALLY

CONTACT

INPUTS

Extron IN1804

Seamless Scaling Switcher

LINRLOUT

CT GV+

3 4 1A

AUDIO

REMOTE

RS-232

TxRx G

OUTPUTS

RESET

HDMI/CEC1BHDMI/CEC

FLAT PANEL

LAN

HDMI

Figure 1. IN1804 Standard Model Application Example — Teamwork System

LAN

Extron IN1804 DI

Seamless Scalin Switcher

FLAT PANEL

4K Display

FLAT PANEL

4K Display

LINRLOUT

SIGINLINK

RS-232

Tx Rx G

REMOTE

HDMI/

CEC

RESET

OUTPUTS

HDMI/CEC1BHDMI/CEC

Ethernet

LAN

HDMI/ CEC

MODEL 80

Tablet

Computer

4K Media Player

HDMIDisplayPort

OUT

Smartphone

LAN / PoE

Extron ShareLink 250 W

Wireless Collaboration

USB 3

2.3A MAX

HDMI

100-240V ~1.0A MAX

50-60 Hz

2CT3CT4CT5CT6CT7

/TALLY

CONTACT

INPUTS

CT GV+

AUDIO

OVER TP

3 41A

Tx Rx G

POWER

VGA OUT HDMI OUT

AUDIO

ShareLink 250 W

Gateway

COM 1

COM 2

DIGITAL I/O

Laptop

INPUTS

POWER 12V

AUDIO

1A MAX

HDMI

Laptop

SIG LINK

OVER DTP2

RS-232

DTP2 OUT

TxRx Tx RxG

Tx Rx RTSCTS

POWER

VOL

12V

VCG

1A MAX

Extron TLP Pro 725T

" Tabletop

Ethernet/PoE

LAN

Ethernet

Extron IPCP Pro 250

Control Processor

TouchLink Pro

Touchpanel

IPCPPRO 250

Tx Rx

1 2 3 4G

RELAYS

eBUS

IR/S

12C

+V+S-SG

PWR OUT =6W

LAN

CATx Cable

up to 330' (100 m)

Extron DTP2 T 211

Figure 2. IN1804 DI Meeting Room Application Example

IN1804 Seamless Scaling Switchers • Introduction 7

LAN

4K Display

4K Media Player

Ext IN

Seamless Scaling Switcher

Laptop

100-240V ~1.0A MAX

50-60 Hz

Laptop

Computer

DisplayPort

2CT3CT4CT5CT6CT7

/TALLY

CONTACT

INPUTS

CT GV+

3 4 1B

LINRL OUT

AUDIO

OUTPUTS

RS-232

RESET

Tx Rx G

REMOTE

SIG

LINK

OVER TP

Tx Rx G

OUT

HDMIHDMIHDMI

CATx Cable up to 330' (100 m)

POWER 12V

--A MAX

OVER DTP2

RS-323 IR

TxRx TxRxG

SIG LINK

DTP2 IN

OUTPUTS

Ethernet

HDMI/CEC

Extron DTP2 R 211

AUDIO

Receiver

HDMI/CEC

Figure 3. IN1804 DO Training Room Application Example

Extron

LAN

IN1804 DO Seamless Scaling Switcher

MODEL 80

FLAT PANEL

4K Display

MODEL 80

FLAT PANEL

Smartphone

Laptop

MODEL 80

DTP2 T 211

Laptop with 4K Video Output

HDMI

STATUS

SEND

INPUT

POWER

LINK

CONFIG

OUTPUT

OFF

Extron DTP2 T 211

Tablet

Transmitter

CATx Cable up to 330' (100 m)

CONFIG

132

ron

1804 DI/DO

Laptop with 4K Video Output

Local 4K Monitor

DisplayPort

SIGNAL

STATUS

INPUT 1

HDCP IN

INPUT 2

HDCP OUT 1A

INPUT 3

HDCP OUT 1B

AUTO SW

INPUT 4

ENTER

IN1804 DI/DO

HOLDFOR 720p/1080p

HDMI

Ethernet

LAN

Ethernet

Figure 4. IN1804 DI/DO Application Example

Facility/Room Wireless Access Point

CONFIG

HDMI

WINDOW

PASS-THROUGH

Extron ShareLink Pro 1000

Collaboration Gateway

AUTO

SWITCH

Extron DTP2 R 212 SA

Receiver

INPUTS

CONFIG

MODE NORM/AUTO

CATx Cable up to 330' (100 m)

SIGNAL

HDCP

HDMIDECODER

FLAT PANEL

OUTPUTINPUT

USB

HD PASS

HD WIN STANDBY

DECODER

SCREEN

ShareLink Pro 1000

HDMI

4K Display

RS-232

HDMI

OUTPUT

INPUTS

SIGNAL

HDCP

DTP2 R 212 SERIES

Audio

Extron IPCP Pro 250

Control Processo

IPCP PRO 250

COM

RTS

IR/S

RELAYS

eBUS

I/O

1000

CTS

LIMIT

LINK

ACT

2241321

OVER

Ethernet

Extron SM 3

Surface Mount Speakers

LAN

IN1804 Seamless Scaling Switchers • Introduction 8

Installation

This section contains information on how to connect cables to the IN1804 models. Topics in this section include:

• Installation Overview

• Rear Panel Connections

• Connection Details

Installation Overview

1. Turn off or disconnect all related equipment. Ensure that video sources and output

displays are all turned off and disconnected from the power source.

2. Mount the switcher (see Mounting on page 102).

3. Connect input sources (see Rear Panel Connections on page 10).

4. Connect output devices (see Rear Panel Connections).

5. Connect desired control devices (see Rear Panel Connections).

6. (Optional) Connect contact closure and tally indicator devices and any needed Show

Me cables (see Wiring the Contact/Tally Connectors on page 19).

7. Connect a power source to the switcher (see AC power connector on page 11).

8. Configure the switcher using any of the following methods:

• Front panel menus (see Operation beginning on page 21)

• PCS (see Configuration Software beginning on page 82 to download the

software, and see the IN1804 Series PCS Help File to configure the system)

• SIS commands (see SIS Configuration and Control, beginning on page 48)

IN1804 Seamless Scaling Switchers • Installation 9

Rear Panel Connections

Figures 5 through 8 show the rear panels of the four IN1804 models: IN1804 (standard), IN1804 DI, IN1804 DO, and IN1804 DI/DO.

CT GV+

100-240V ~0.7A MAX

50-60 Hz

/TALLY

CONTACT

INPUTS

2CT3CT4CT5CT6CT7

3 4 1A

Figure 5. IN1804 Standard Rear Panel

100-240V~1.0A MAX

CONTACT

INPUTS

50-60 Hz

Figure 6. IN1804 DI Rear Panel

2CT3CT4CT5CT6CT7

/TALLY

CT GV+

OVER TP

Tx Rx G

AUDIO

LINRL OUT

SIGINLINK

RS-232

RESET

Tx Rx G

REMOTE

OUTPUTS

HDMI/CEC1BHDMI/CEC

LAN

K J

RS-232

RESET

Tx Rx G

REMOTE

OUTPUTS

HDMI/CEC1BHDMI/CEC

LAN

100-240V~1.0A MAX

CONTACT

50-60 Hz

INPUTS

2CT3CT4CT5CT6CT7

/TALLY

CT GV+

3 4 1B

LINRLOUT

AUDIO

SIG

OUTPUTS

OUT

RS-232

Tx Rx G

REMOTE

LINK

RESET

OVER TP

Tx Rx G

LAN

HDMI/CEC

Figure 7. IN1804 DO Rear Panel

OUT

RS-232

Tx Rx G

REMOTE

LINKSIGINLINK

RESET

OVER TP

Tx Rx G

LAN

HDMI/CEC

100-240V ~ --A MAX

50-60 Hz

/TALLY

CONTACT

INPUTS

2CT3CT4CT5CT6CT7

OVER TP

Tx Rx G

LINRLOUT

AUDIO

CT GV+

34 1B

OUTPUTS

SIG

Figure 8. IN1804 DI/DO Rear Panel

IN1804 Seamless Scaling Switchers • Installation 10

AC power connector

DisplayPort input connector — Input 1

HDMI input connectors —

Inputs 2-4 (standard and DO models) Inputs 2-3 (DI and DI/DO models)

Over TP IR pass-through input port

(DI and DI/DO models)

DTP2/XTP input connector — Input 4

(DI and DI/DO models)

DTP2/XTP/HDBT output connector —

Output 1A (DO and DI/DO models)

Over TP IR pass-through port

(DO and DI/DO models)

AC Power connector — Connect a standard IEC power cord (provided) from a

100 to 240 VAC, 50-60 Hz power source to this connector. The front panel button LED for the selected input (see figure 16, B) on page 21) blinks for approximately 30 seconds. When the unit is ready for operation, the input selection LED lights steadily. If auto-input switching has been enabled, the Auto SW LED lights also (see Auto

Switch on the OSD Advanced submenu on page 39).

DisplayPort input connector (input 1) — Connect a DisplayPort source to this

female DP connector.

HDMI input connectors — Connect HDMI video sources to these female HDMI

connectors. (The standard and DO models have three HDMI input connectors while the DI and DI/DO models have two.)

HDMI mirrored output connectors —

Outputs 1A and 1B (Standard and DI models)

HDMI output connector — Output 1B

(DO and DI/DO models)

LAN connector

Reset button

Reset LED

Remote RS-232 connector

Analog audio output connector

Analog audio input connector

+V connector (for tally voltage output)

Ground pin (for contact/tally ports)

Contact/Tally ports

TIP: Use Extron HDMI LockIt Lacing Brackets to secure HDMI cables to the

device (see HDMI Connections on page 17).

Over TP IR pass-through port for input (IN1804 DI and IN1804 DI/DO only) —

To transmit and receive infrared data to and from a source connected to the DTP2 transmitter or XTP matrix switcher, connect a control device (such as an Extron IPCP Pro Control Processor) to this 3-pole IR Over TP captive screw port (see the illustration at right).

NOTE: RS-232 communication can also be sent to the far end

of the twisted pair connection, but it must be done through RS-232 insertion via Ethernet. A signal sent to an IN1804 LAN port can be routed to the RS-232 port of any connected twisted pair device (see Ethernet to RS-232 Insertion on page 44).

IN1804 Tx, Rx, and G Pins

RxTx

IR C ontro Device

RxTx

IN1804 Seamless Scaling Switchers • Installation 11

DTP2/XTP input connector (input 4, IN1804 DI and IN1804 DI/DO only) —

Connect a DTP2 transmitter or XTP matrix switcher to this DTP IN RJ-45 connector to send and receive DTP or XTP signals over a single twisted pair cable (see Twisted Pair

Recommendations for DTP2, XTP, and HDBaseT Communication on page 18 for

wiring and cable recommendations). The input 4 connector has the following LEDs:

• Signal LED — Lights when the switcher is receiving an active video signal from a

DTP2 transmitter.

• Link LED — Lights when a valid link is established to a DTP transmitter.

ATTENTION:

• Do not connect these ports to a computer or telecommunications network.

• Ne connectez pas ces ports à des données informatiques ou à un réseau de

télécommunications.

• DTP2 remote power is intended for indoor use only. No part of the network that

uses DTP2 remote power should be routed outdoors.

• L’alimentation DTP2 à distance est destiné à une utilisation en intérieur

seulement. Aucune partie du réseau qui utilise l’alimentation DTP2 à distance ne peut être routée en extérieur.

NOTE: Depending on the connected transmitter, the DTP2 input can travel up to

330 feet (100 meters) without loss of signal integrity.

DTP2/XTP/HDBT output connector (output 1A, IN1804 DO and IN1804 DI/DO

only) — The DTP output signal can travel up to 330 feet (100 meters) without a loss of signal integrity.

Connect a DTP or DTP2 receiver, an XTP matrix, or an HDBaseT-compatible device to this twisted pair OUT connector. For cable wiring and recommendations, see Twisted

Pair Recommendations for DTP2, XTP, and HDBaseT Communication.

The output 1A connector has the following LEDs:

• Signal LED — Lights when the switcher is sending a signal.

• Link LED — Lights when a valid link is established.

Signal Support

DTP Mode HDBaseT Mode

• HDCP-compliant digital video

• Embedded audio into the TMDS output

or analog audio

• DTP standard IR pass-through signals

on the associated 3-pole captive screw connector

• Ethernet insertion of RS-232 control

signals

• Remote power to a DTP receiver

• HDCP-compliant digital video

• Embedded audio into the TMDS

output

• IR pass-through signals on the

associated 3-pole captive screw connector

• Ethernet insertion of RS-232 control

signals

IN1804 Seamless Scaling Switchers • Installation 12

ATTENTION:

• Do not connect this connector to a computer or telecommunications network.

• Ne connectez pas ce port à des données informatiques ou à un réseau de

télécommunications.

• DTP remote power is intended for indoor use only. No part of the network that

uses DTP remote power should be routed outdoors.

• L’alimentation DTP à distance est destiné à une utilisation en intérieur

seulement. Aucune partie du réseau qui utilise l’alimentation DTP à distance ne peut être routée en extérieur.

Over TP IR pass-through port (IN1804 DO and IN1804 DI/DO

only) — To transmit or receive infrared data to and from a sink connected to your DTP2 receiver, XTP matrix, or HDBaseT display, connect a control device (such as an Extron IPCP Pro Control Processor) to the 3-pole IR Over TP captive screw port (see the illustration at right).

NOTE: RS-232 communication can also be sent to the far end

IN1804 Tx, Rx, and G Pins

RxTx

IR C ontro Device

RxTx

HDMI/CEC mirrored output connectors (outputs 1A and 1B, standard IN1804

and IN1804 DI only) — Connect one or two HDMI or DVI (with an appropriate adapter) output devices to rear panel HDMI output connectors 1A, 1B, or both for HDMI video with embedded audio. These mirrored outputs display the same image. You can use either of the connectors for a local monitor to display the OSD menus (see Operation beginning on page 21).

HDMI/CEC output connector (output 1B, IN1804 DO and IN1804 DI/DO only) — Connect an HDMI or DVI (with an appropriate adapter) output device to this rear panel HDMI output connector for HDMI video with embedded audio. This HDMI/CEC output and DTP2/XTP/HDBT output 1B are mirrored, displaying the same image.

TIP: Use Extron HDMI LockIt Lacing Brackets to secure HDMI cables to the

device (see HDMI Connections on page 17).

Consumer Electronics Control (CEC) — CEC control commands are basic control functions such as power on and off, input switching, volume, and mute. The IN1804 can issue CEC commands to a display device through the HDMI output connectors.

LAN connector — To control the IN1804 device through Ethernet, connect a LAN to

this RJ-45 LAN connector. Ethernet control allows you to configure and control the IN1804 from a remote location

using SIS commands, the PCS software, or the embedded web pages. In addition, RS-232 communication can be sent to the far end of the twisted pair

connection. A signal sent to an IN1804 LAN port can be routed to the RS-232 port of any connected twisted pair device (see Ethernet to RS-232 Insertion on page 44).

IN1804 Seamless Scaling Switchers • Installation 13

When connected to an Ethernet LAN, the IN1804 can be accessed from a computer

RS-232

Connector

Inser

wisted

Pins:

running a standard Internet browser. Use a patch or crossover cable to connect the IN1804 to a computer, control device, router, or switch. The default IP address of the switcher is 192.168.254.254, the default subnet mask is 255.255.255.0, and the default gateway address is 0.0.0.0.

The LAN connector contains two LEDs (see the illustration at right):

• Act LED — This amber LED blinks to indicate LAN signal activity.

• Link LED — This green LED lights steadily to indicate a LAN

connection.

Figure 9 shows how to wire the LAN connector.

Pin T568A

Wire Color

T568B

Wire Color

12345678

1 White-green White-orange 2 Green Orange 3 White-orange White-green 4 Blue Blue 5 White-blue White-blue 6 Orange Green 7 White-brown White-brown 8 Brown Brown

t T

Pair Wires

RJ-45

Figure 9. Connecting to the LAN Port

Reset button — This recessed button initiates levels (modes) of reset on the IN1804.

To initiate the different reset levels, use a pointed object such as an Extron Tweeker (or other small Philips screwdriver) or a stylus to press and hold the button while the switcher is running or while it is being powered up (see Reset Modes beginning on page 42).

Reset LED — This green LED remains lit while the IN1804 has power. While the Reset

button (see J, above) is being pressed and held, this LED blinks every 3 seconds to indicate the level of reset initiated if the button is released at that point (see Reset

Modes for more information).

Remote RS-232 connector — Connect a host device to this 3-pole captive screw

connector for RS-232 serial control. The baud rate is 9600.

Tx Rx G

Do not tin the wires!

Ground (G) Receive (Rx) Transmit (Tx)

Bidirectional

Figure 10. RS-232 Wiring

Controlling

Device

Ground (G) Receive (Rx) Transmit (Tx)

IN1804 Seamless Scaling Switchers • Installation 14

Analog audio output connector — Connect a balanced or unbalanced audio

output device to this 5-pole captive screw Audio Out connector (see Analog Audio

Connections on page 16).

ATTENTION:

• For unbalanced audio, connect the sleeves to the ground contact. Do not

connect them to negative (–) contacts (see the Extron Audio Wiring Card).

• Pour l’audio asymétrique, connectez les manchons au contact au sol. Ne

PAS connecter les manchons aux contacts négatifs (–) (voir le Audio Wiring Card d’Extron).

• The length of the exposed wires in the stripping process is critical. The ideal

length is 3/16 inch (5 mm). If the exposed portion is longer, the wires may touch, causing a short circuit between them. If the exposed wires are shorter, they can be easily pulled out, even if tightly fastened by the captive screws.

• La longueur des câbles exposés est primordiale lorsque l’on entreprend

de les dénuder. S’ils sont un peu plus longs, les câbles exposés pourraient se toucher et provoquer un court circuit. S’ils sont un peu plus courts, ils pourraient sortir, même s’ils sont attachés par les vis captives.

• Do not tin the wires. Tinned wire does not hold its shape and can become

loose over time.

• Ne pas étamer les câbles. Les câbles étamés ne sont pas aussi bien ﬁxés

dans les terminaisons des connecteurs à vis captives et pourraient sortir.

Analog audio input connector — Connect a balanced or unbalanced audio source to

this 5-pole captive screw Audio In connector to embed analog audio in the HDMI output signal. Input gain range is -18 dB to +24 dB. The default is 0 dB (see Analog Audio

Connections).

+V connector — The +V pin constantly outputs +5 VDC power with 200 mA total

(shared between pins). Use this pin when power is needed for external Tally LEDs, such as those on the Extron CCB 30 contact closure remote.

Ground pin for Contact/Tally ports (see “Q Contact/Tally ports,” below)

Contact/Tally ports — (Optional) Wire contact closure and tally devices or Show Me

cables to these seven 2-pole captive screw connectors as desired. Each port contains two pins, labeled C and T.

• Ports 1 through 4 (for input switching) — Each Contact/Tally connector is labeled

with the number of the video input associated with it. Wire a push-button switch or other contact closure device to pin C (contact) and pin G (ground) of the 2-pole connector (P). These ports can also be used for AV mute and sync mute.

Alternatively, wire an SM cable to the C and T pins (see Connecting using an SM

Cable on page 20 for connection instructions).

• Ports 5 through 7 (configurable via PCS) — Wire a switch to contact port pin C

pin to initiate a command on the IN1804 (for example, video or audio mute), or to issue a CEC command to connected display devices.

See Wiring the Contact/Tally Connectors on page 19 for more information.

IN1804 Seamless Scaling Switchers • Installation 15

Connection Details

Slee

No Ground Here

Unbalanced Audio InputBalanced Audio Input

Slee

Do not tin the wires!

Analog Audio Connections

Wire the audio input and output connectors as shown in figure 11. Use the supplied tie wrap to strap the audio cable to the extended tail of the connector.

Tip

Ring

ves Tip

Ring

Balanced Audio Output

Tip

Ring

ves Tip

Ring

Sleeves

No Ground Here

Unbalanced Audio Output

Tip

Sleeve

Tip

Sleeve

Tip

Figure 11. Analog Audio Wiring Configuration

ATTENTION:

• The length of the exposed wires in the stripping process is critical. The ideal

• La longueur des câbles exposés est primordiale lorsque l’on entreprend de

les dénuder. La longueur idéale est de 5mm (3/16inches). S’ils sont un peu plus longs, les câbles exposés pourraient se toucher et provoquer un court circuit. S’ils sont un peu plus courts, ils pourraient sortir, même s’ils sont attachés par les vis captives.

• Do not tin the wires. Tinned wire does not hold its shape and can become

loose over time.

• Ne pas étamer les câbles. Les câbles étamés ne sont pas aussi bien ﬁxés

dans les terminaisons des <connecteurs> à vis captives et pourraient sortir.

• For unbalanced audio, connect the sleeves to the ground contact. Do not

connect them to negative (–) contacts (see the Extron Audio Wiring Card).

• Pour l’audio asymétrique, connectez les manchons au contact au sol. Ne

PAS connecter les manchons aux contacts négatifs (–) (voir le Audio Wiring Card d’Extron).

IN1804 Seamless Scaling Switchers • Installation 16

HDMI Connections

Use an Extron LockIt cable lacing bracket to secure HDMI cables to the device.

NOTE: The HDMI device must have an HDMI connection mounting screw for this

bracket to be used.

To securely fasten an HDMI cable to a device:

Figure 12. Mounting a LockIt Cable Lacing Bracket

1. Plug the HDMI cable into the panel connection (see figure 12, 1).

2. Loosen the HDMI connection mounting screw from the panel enough to allow the

LockIt lacing bracket to be placed over it (2). The screw does not have to be removed.

3. Place the LockIt lacing bracket on the screw and against the HDMI connector, then tighten

the screw to secure the bracket (3).

4. Loosely place the included tie wrap around the HDMI connector and the LockIt lacing

bracket as shown.

5. While holding the connector securely against the lacing bracket, use pliers or a similar

tool to tighten the tie wrap, then remove any excess length (4).

ATTENTION:

• Do not overtighten the HDMI connection mounting screw. The shield to which

it is fastened is very thin and can easily be stripped.

• Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage auquel

elle est attachée est très ﬁn et peut facilement être dénudé.

IN1804 Seamless Scaling Switchers • Installation 17

Twisted Pair Recommendations for DTP2, XTP, and HDBaseT Communication

12345678

RJ-45

Connector

Insert Twisted

Pair Wires

Pins:

Use the following pin configurations for shielded twisted pair cables used for DTP or HDBaseT communication.

Pin T568B

Wire Color

1 White-orange 2 Orange 3 White-green 4 Blue 5 White-blue 6 Green 7 White-brown 8 Brown

Figure 13. Twisted Pair Cable Configuration

Supported cables

The switchers are compatible with shielded twisted pair (F/UTP, SF/UTP, and S/FTP) cable.

ATTENTION:

• Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201

cable to link the device with DTP transmitters or receivers.

• N’utilisez pas le câble AV Skew-FreeUTP version améliorée UTP23SF d’Extron ou

le câble STP201 pour relier le appareil avec les émetteurs ou les récepteurs DTP.

Cable recommendations

Extron recommends using the following practices to achieve full transmission distances and reduce transmission errors when connecting to a remote DTP2 endpoint, XTP matrix switcher, or HDBaseT receiver:

• Use the following Extron XTP DTP 24 SF/UTP cables and connectors for the best

performance:

• XTP DTP 24/1000 Non-Plenum 1000' (305 m) spool 22-236-03

• XTP DTP 24P/1000 Plenum 1000' (305 m) spool 22-235-03

• XTP DTP 24 Plug Package of 10 101-005-02

• If not using XTP DTP 24 cable, at a minimum, Extron recommends 24 AWG, solid

conductor, STP cable with a minimum bandwidth of 400 MHz.

• Terminate cables with shielded connectors to the TIA/EIA-T568B standard.

• Limit the use of more than two pass-through points, which may include patch points,

punch down connectors, couplers, and power injectors. If these pass-through points are required, use shielded couplers and punch down connectors.

IN1804 Seamless Scaling Switchers • Installation 18

NOTE: When using shielded twisted pair cable in bundles or conduits, consider the

111

444333

222

following:

• Do not exceed 40% ﬁll capacity in conduits.

• Do not comb the cable for the ﬁrst 20 meters, where cables are straightened,

aligned, and secured in tight bundles.

• Loosely place cables and limit the use of tie wraps or hook-and-loop fasteners.

• Separate twisted pair cables from AC power cables.

Wiring the Contact/Tally Connectors

The CONTACT/TALLY portion of the rear panel on all models contains seven sets of contact and tally captive screw connectors (numbered 1 through 7), each with two pins labeled C and T, for contact closure and tally indicator devices. The CONTACT/TALLY panel also contains a 2-pole captive screw connector with a G (ground) pin and a +V pin that provides +5 VDC power to the indicator devices connected to the tally (T) ports.

These ports can be used for triggering and feedback associated with the selected input, for contact-based input switching, and for other triggered functions such as CEC display control or video mute. Contact/Tally ports are typically used with Extron Show Me (SM) cables or with external equipment (such as the Extron CCB 30) to control IN1804 functions, depending on which Contact/Tally port is used.

CT3CT4CT5CT6CT7CT GV+

/TALLY

CONTACT

Figure 14. Contact/Tally Panel

• Contact/Tally ports 1 through 4 — (See figure 14, 1) Each CONTACT/TALLY

connector is labeled with the number of the video input associated with it. Wire a push button or other contact closure switch to pin C (Contact) and to the shared pin G (ground, 3).

• If using a tally indicator, connect the indicator device to the shared +V pin (5 VDC,

required for tally devices without a power supply, 4) and the T (Tally) pin. In other words, the V+ pin of the switcher connects to the voltage in (anode) of

the indicator, and the T pin connects to the tally output (cathode) of the indicator device.

NOTE: If the indicator has an internal power supply, it is not necessary to

connect it to the V+ pin. It can be connected directly to the T pin of the Contact/Tally input connector.

• If using an SM cable, see Connecting Using an SM Cable on the next page.

• Ports 5 through 7 (configurable via PCS) — (2) Wire a push button or other

contact closure switch to pin C and to the shared pin G. If using a tally indicator, connect the indicator device to the shared +V pin and the T pin.

See the IN1804 Series Help File for instructions on configuring these ports using PCS.

IN1804 Seamless Scaling Switchers • Installation 19

Connecting Using an SM Cable

Cable

The Contact/Tally connectors can also be used with Extron SM cables. Figure 15 shows how to wire an SM cable to a contact input.

Red

Figure 15. SM Cable Connecting Contact and Tally Ports

For each SM cable:

• Connect the red (contact) pigtail to the C pin corresponding to the input being used.

• Connect the black (tally out) pigtail to the T pin.

NOTE: In an SM cable, the ground source needed to trigger the contact and the

voltage to drive the tally indicator are supplied by HDMI source device. Therefore, it is not necessary to connect the cable to a G (ground) pin.

Black

IN1804 Seamless Scaling Switchers • Installation 20

Operation

This section contains information on the front panel operation, on-screen display menu system, presets, and reset modes of the switchers. Topics in this section include:

• Front Panel Overview

• Powering Up

• Selecting an Input

• Using the On-Screen Menu System

• Front Panel Lockout (Executive Modes)

• Input Presets

• Reset Modes

• RS-232 and IR Signal Insertion

Front Panel Overview

All IN1804 Series models have the same front panels.

CONFIG

Config port

Input selection buttons and LEDs

Signal LEDs

SIGNAL

INPUT 1

INPUT 2

INPUT 3

INPUT 4

STATUS

HDCP IN

HDCP OUT 1A

HDCP OUT 1B

AUTO SW

ENTER

CB D E F

Status LEDs

Menu and Enter buttons

Navigation buttons

HOLD FOR 720p/1080p

IN1804 DO

Figure 16. Front Panel Features (IN1804 DO Example)

USB configuration port — Connect a host device to the USB mini-B connector for

device configuration, control, file transfer, and firmware upgrades.

Input selection buttons and LEDs (1-4) — Press one of these four buttons to select

an input. Each button has a green LED that lights when the input is selected.

Signal (input) LEDs — For each input, these green LEDs light when an active video

signal is detected.

Status LEDs — These green LEDs light to indicate the state of their corresponding

HDCP and auto-switch settings:

• HDCP IN — Lights if the current input video signal is encrypted.

• HDCP OUT 1A and 1B — Light if the current output video signal is encrypted.

• AUTO SW — Lights if the unit is in an auto-switch mode.

Menu and Enter buttons — Press the Menu button to enter or exit the on-screen

menu system. Press the Enter button to select options from the OSD menus.

Navigation buttons — Press any of the four buttons to navigate the on-screen menu

system or change values of adjustable features.

IN1804 Seamless Scaling Switchers • Operation 21

Powering Up

When power is applied to the switcher, the Input 1 LED blinks prior to the full boot-up of the product. When boot-up is complete or nearing completion, each of the input LEDs lights, one at a time, in ascending order (1 through 4).

Next, each of the signal status LEDs lights in the same manner. When boot-up is complete and after the LED lighting sequences occur, normal operation begins.

Selecting an Input

Press any of the four input buttons on the front panel to select an input. The green LED for the selected input lights.

You can also select inputs via the Contact/Tally ports. See Wiring the Contact/Tally

Connectors on page 19 for more information.

Using the On-Screen Menu System

The OSD menus are used primarily for the initial setup of the device. The on-screen menu presents configuration options on a local monitor and can be adjusted with front panel controls.

NOTE: The on-screen menu has a default timeout of 60 seconds.

Menu Selection Buttons

111

ENTER

Figure 17. Menu Selection Buttons

• Menu button — Press the Menu button (see figure 17, 1) to activate or exit the

on-screen menu, deselect a submenu, or cancel a pending change.

• Enter button — Press the Enter button (2) to access the on-screen menu, select

submenus, or submenu items, or to accept pending changes.

• Navigation buttons — Press these buttons to navigate through the menu system:

• Press the

• Press the  (Right) arrow button (

• Press the  (Left) (

HOLD FOR 720p/1080p

submenu items.

submenu items. You can also use the navigation buttons to adjust settings according to specific setting directions.

(Up) (3) or the < (Down) (4) arrow button to navigate submenus or

) to access currently selected submenus or

) arrow button to exit currently selected submenus or

IN1804 Seamless Scaling Switchers • Operation 22

Menu Overview

In the on-screen menu, the product name is displayed at the top of the right column. The active input and output resolutions are displayed in the bottom border. The on-screen menu contains eight submenus with various submenu items of adjustable settings or device information (see the Submenus table, below).

Submenus Submenu Items

Device Info

(Read Only)

Quick Setup

Picture Controls Auto-Image Image Position Image Size Brightness

Input Selected

Output Output Rate

Audio Audio Mute Audio Format

Advanced Test Pattern Screen Saver Screen Saver

Communications Serial Port

Unit Name Firmware Temperature Active Input

INn: Input

Mode

Input Mode

and

Resolution

Baud Rate

INn: EDID

Film Detect

Mode

(Selected Input)

IN1804 DI

and Standard:

HDMI 1A

Format

IN1804 DO and DI/DO:

TP 1A Format

(Selected Input)

MAC Address DHCP IP Address Subnet Mask Gateway

Output Rate

and Resolution

Active Video HDCP

IN1804 DI

and Standard:

– – – –

IN1804 DO

and DI/DO:

TP 1A Mode

Audio Gain and

Attenuation

(Selected Input)

Timeout

Details

Audio Mute

Status

(Selected

Input)

Authorized

(Selected

Input)

HDMI 1B

Format

Audio Output

Format

Aspect Ratio

(Selected

Input)

Output 1A

Details

Test Pattern DHCP

Contrast (Selected

Input)

INn:EDID

HDCP

Notification

Output Volume

Auto Memory

(Selected

Input)

Output 1B

Details

Mode

Detail

Capture

EDID

User Logo Logo

Auto

Switch

IP Address

Position

(H and V)

Input

Switch

Effect

Factory

Reset

IN1804 Seamless Scaling Switchers • Operation 23

Using the Menu Screens

Figure 18. On-screen Menu Example

To open the on-screen menu:

1. Connect a display device to an HDMI output connector (see Rear Panel Connections

on page 10).

2. Press the Menu or Enter button to open the on-screen menu.

To navigate the on-screen menu:

1. Press the > and < buttons to move through the submenus (left) panel. The table on

the previous page shows the eight submenus and the items they contain.

2. Press Enter or  to select a submenu and display its items in the right panel.

3. Press the > and < buttons to move the blue

selection border to the desired submenu item (see the example at right).

4. Press Enter to select the item.

5. Press the  button to return to the list of submenus in the left panel.

To adjust the settings of a submenu item:

1. Navigate to an adjustable submenu item and press the Enter or  button to select the

item.

2. Press the  and  buttons to adjust the setting or select a specific adjustable setting

within the selected submenu item. If the selected submenu item has multiple adjustable settings, press the > and <

buttons to select a value.

3. Press the Enter button to accept the new value.

NOTE: To cancel a change, press the  button to return to the submenu list (left

column) without pressing Enter. Then, press the > or < button to move to a different submenu.

IN1804 Seamless Scaling Switchers • Operation 24

To exit the on-screen menu system:

From any menu screen, press the Menu button to close the on-screen menu and exit the system.

Device Info Screen

Figure 19. Device Info Screen

The read-only Device Info screen is listed first in the submenus (left) panel. This screen contains information about your IN1804, including unit name, firmware version, internal temperature in Celsius and Fahrenheit, selected input device format and signal information, and output signal information for all outputs.

IN1804 Seamless Scaling Switchers • Operation 25

Quick Setup Submenu

Figure 20. Quick Setup Submenu

The Quick Setup submenu is displayed by default when the OSD is first opened, and provides quick access to frequently-used settings. This submenu contains the following items, which also appear on other submenus in the system:

• INn: Input Mode — Displays the format of the selected input. For HDMI or DVI inputs,

this field is read-only. For twisted pair inputs, press the > and < buttons to select DTP or XTP.

• INn: EDID — Press the  and  buttons to select the resolution or the rate list. Press

the > and < buttons to navigate through the selected list. Selecting Auto (the default) from the resolutions list matches the current output resolution. There are five custom options, prefaced by C1 through C5.

• Output Rate — Press the > and < buttons to select from a list of output resolutions

and refresh rates (see Output Rate on the Output submenu on page 32). There are five custom options, prefaced by C1 through C5. The default setting is 1080p @ 60 Hz.

• Audio Mute — Press the navigation buttons to mute (On) or unmute (Off) the audio.

You can also select Analog to mute analog audio or Digital to mute embedded digital audio.

• Test Pattern — Press the navigation buttons to select an available test pattern to

display or to turn a test pattern off (see Test Pattern on the OSD Advanced submenu on page 37). The available test pattern selections are Crop, Alternating Pixels, Crosshatch, Color Bars, Grayscale, and Audio Test (pink noise). The default setting is Off.

• DHCP Mode — Press the > and < buttons to enable (On) or disable (Off) DHCP

mode.

• IP Address — Press the  and  buttons to switch between octets. Press the > and

buttons to change the value of a selected octet.

IN1804 Seamless Scaling Switchers • Operation 26

Picture Controls Submenu

Figure 21. Picture Controls Submenu

The Picture Controls submenu adjusts picture settings.

NOTE: When the aspect ratio changes as a result of Fill or Follow commands being

entered, the Image Position and Image Size values are updated accordingly.

• Auto-Image — To restore the image on the active input to the default size and position,

press the Enter button, then press  to execute an Auto-Image. Auto-Image updates horizontal and vertical image position, and horizontal and vertical image size settings.

NOTE: The Auto-Image submenu item is the same as the standard Auto-Image

Execute SIS command. However, there are other Auto-Image options available through SIS commands (see the Auto-Image SIS commands on page 61 or PCS (see the IN1804 Series PCS Help File). The options include to execute an Auto-Image and fill the output and to execute an Auto-Image and maintain the input aspect ratio. These commands ignore the current aspect mode setting, perform Auto-Image on the input, and then select Fill or Follow.

• The following is performed during an Auto-Image when the aspect ratio is set to

Fill:

• Horizontal and vertical image positions return to 0000.

• Horizontal and vertical image sizes match the current output resolution.

• The following is performed during an Auto-Image when the aspect ratio is set to

Follow:

• The horizontal and vertical image position and image size are set to maintain the

native aspect of the input rate with regard to the current output resolution.

Set the aspect ratio on the Advanced submenu (see INn: Aspect Ratio on page 38).

IN1804 Seamless Scaling Switchers • Operation 27

• Image Position — Press the  and  buttons to select the horizontal (H) or

vertical (V) position of the image. Press the > and < buttons to adjust the value of the selected position. The ranges are:

• Horizontal position: -4096 through +4096 pixels. The default is 0000.

• Vertical position: -2160 through +2160 lines. The default is 0000.

• Image Size — Press the  and  buttons to select the horizontal (H) or

vertical (V) size of the image. Press the > and < buttons to adjust the value of the selected position.

• Horizontal size (width): 10 through 8192 of signal.

• Vertical size (height): 10 through 4320 of signal.

• INn: Brightness — Press the > and < buttons to adjust the black level of the video

signal. The range is 0 through 127. The default is 64.

• INn: Contrast — Press the > and < buttons to adjust the range of white to black levels

of the video signal. The range is 0 through 127. The default is 64.

• Detail — Press the > and < buttons to adjust the image sharpness. The range is 0

through 127. The default is 64).

Adjusting the picture controls

When you select a Picture Controls submenu item, the OSD menu collapses so that the item is displayed alone on the screen to facilitate adjustment (see figure 22). The separate item field contains blue arrows that indicate which front panel arrow buttons to press to adjust the item.

Image Size

Figure 22. Example of a Selected Picture Controls Submenu Item

After selecting the item to adjust, do the following:

1. With the separate item field displayed, use the navigation buttons to select and adjust

the desired settings as indicated by the blue arrows on the screen. (To rapidly increment or decrement the values, press and hold the arrow button.)

Example: In figure 22, the blue right and left arrows before the H setting indicate that you can press the  and u buttons on the front panel to adjust the horizontal size. To adjust

the vertical size, press the

arrows after the V setting.

2. When finished, press Enter to return to the OSD menu.



H: *1920 V: *1080

and  buttons, as indicated by the blue up and down

IN1804 Seamless Scaling Switchers • Operation 28

Input Submenu

Figure 23. Input Submenu (IN1804 Standard and IN1804 DO)

The Input submenu adjusts the active input.

• INn: Input Type —

• On standard and DO models: Displays the format of the selected input

(read-only).

• On DI and DI/DO models: If input 4 (the DTP2/XTP input) is selected, use the

and  buttons to select between DTP and XTP. For all other inputs, this item is



read-only.

• INn: Film Detect — Film mode detection helps maximize image detail and sharpness

for video sources originating from film. After pressing Enter to select the item, press the

and  buttons to toggle between On (default) and Off.



If On is selected, the IN1804 detects and applies reverse pull-down for:

• 3:2 pull-down for 480i and 1080i @ 59.94 Hz

• 2:2 and 24:1 pull-down for 576i and 1080i @ 50 Hz

• Active Video — This view-only field shows the width in pixels (the H value) and the

height in lines (the V value) of the applied input signal.

• HDCP Authorized — This feature determines if a digital input reports as an HDCP

authorized sink to a source. Select this item to enable or disable HDCP communication by selecting whether the IN1804 input reports to the source as an authorized HDCP sink. After pressing Enter to select this item, press the  or  button to toggle between On (default) and Off.

For source devices that require encryption, enable HDCP Authorized. If HDCP Authorized is disabled for sources that require encryption (for example, a Blu-ray player), the output is muted or a warning message is displayed. Some source devices may encrypt their output even if the source material does not require HDCP encryption, preventing content from being displayed on a non-HDCP compliant display. Disable HDCP Authorized to allow the output of the switcher to remain unencrypted.

NOTE: HDCP Authorized is permanently enabled on DisplayPort Input 1.

IN1804 Seamless Scaling Switchers • Operation 29

• INn:EDID — Press the navigation buttons to select an EDID for the active input. Select

a discrete EDID from a list of factory-supplied EDID or select Auto to use the current output resolution and refresh rate. The Input EDID Resolutions table below lists the available EDID selections, including their SIS command variable numbers (see the Input

EDID commands on page 60 for information on the SIS commands).

Input EDID Resolutions

Input EDID

Resolution 23.98 Hz 24 Hz 25 Hz 29.97 Hz 30 Hz 50 Hz 59.94 Hz 60 Hz

640x480

800x600

1024x768

1280x768

1280x800

1280x1024

1360x768

1366x768

1440x900

1400x1050

1600x900

1680x1050

1600x1200

1920x1200

480p

576p

720p

1080i

1080p

2048x1080 (2K)

2048x1200

2048x1536

2560x1080

2560x1440

2560x1600

3840x2160

4096x2160*****

Automatic*

Output 1A HDMI Output 1B HDMI Custom EDIDs

38 39 40 41 42 43 44 45**

46 47 48 49 50 51 52 53

59 60 61 62 63 64*** 65*** 66***

69 70 71 73 73 74**** 75**** 76****

0* — Match current switcher output resolution

1 (EDID export only) 2 (EDID export only) 201 through 205

29 30 31 32 33 34

35 36 37

24 25

*Default input EDID **Default output resolution ***Rate supported only with 4:2:0 color sampling for IN1804 twisted pair models when in DTP, XTP, or

HDBT mode. 4:4:4 sampling is available via HDMI outputs or DTP2 endpoints only.

****Rate available only with 4:2:0 color sampling when using any twisted pair output. 4:4:4 sampling is

available via HDMI outputs only. *****4096x2160 rates are available only for output resolution and cannot be selected for input EDID.

IN1804 Seamless Scaling Switchers • Operation 30

• Capture EDID — Select this item to capture the EDID of the sink attached to the

output and save it to one of the five custom EDID slots. The IN1804 assigns the captured EDID to its selected input. To capture an EDID:

1. Select Capture EDID, then press Enter. A list of the five custom EDID slots is

displayed at the top of the OSD screen.

NOTES:

• If no EDID has been captured yet, the names displayed for the slots are

the default: 1080p @ 60 Hz.

• If an EDID has been applied to a slot, last three letters of the EDID ﬁle

name (in parentheses) represent the name of the display manufacturer (for example, EXN is an abbreviation of Extron).

111

Select Slot to Capture 1A EDID: 3840x2160 @ 30 Hz (GSM)

C1: C1:3840x2160 @ 30 Hz (GSM)

C2: C2:1920x1080 @ 60 Hz (EXN)

C3: C3:1920x1080 @ 60 Hz (EXN)

C4: C4:1920x1080 @ 60 Hz (EXN)

C5: C5:1920x1080 @ 60 Hz (EXN)

Figure 24. Custom EDID Slots List Example

2. Press the  or u button to select the display (output 1A or 1B) to assign the

custom EDID. (The arrow button you press is reflected in the upper-right corner of the screen [see figure 24, 1]).

3. Press the  or  button to highlight the slot to which you want to save the current

display EDID.

4. Press Enter. The display EDID is saved to the selected custom slot and assigned

to the connected inputs.

IN1804 Seamless Scaling Switchers • Operation 31

Output Submenu

Figure 25. Output Submenu

The Output submenu enables you to configure the output resolution, refresh rate, HDMI format, and HDCP notification. You can also select a user-loaded logo image to display and position it on the screen.

NOTE: Figure 25 shows the Output submenu of the IN1804 DO and DI/DO models.

The IN1804 DI and standard models have HDMI 1A Format as the second option (instead of TP 1A Format) and – – – – as the third option (instead of TP 1A Mode).

• Output Rate — Select this item to specify the output resolution and refresh rate. The

IN1804 Series switchers have a range of resolutions from which to choose (see the

Output Resolutions and Rates table on the next page for the available settings). The

available rates depend on the selected resolution. Five custom user-defined output rate slots are also available to be defined via SIS

commands or via the Capture EDID item on the Input menu. If a custom EDID has not been captured from a display device or has not been uploaded to the unit, these slots default to 1080p @ 60 Hz.

When a resolution is applied to a user-defined EDID slot, its name is displayed in the Output Resolution panel in the format cn: nnnnxnnnn @ nn (XXX). An example would be C1: 1280x780 @ 60 Hz (EXN) (the last three letters in parentheses represent the name of the manufacturer of the device).

NOTE: The five custom, user-defined output rates default to 1080p @ 60 Hz when

no custom EDID is captured or uploaded.

IN1804 Seamless Scaling Switchers • Operation 32

Output Resolutions and Rates

Resolution 23.98 Hz 24 Hz 25 Hz 29.97 Hz 30 Hz 50 Hz 59.94 Hz 60 Hz

640x480 X 800x600 X

1024x768 X

1280x768 X 1280x800 X 1280x1024 X 1360x768 X 1366x768 X 1440x900 X 1400x1050 X 1600x900 X 1680x1050 X

1600x1200 X 1920x1200 X 480p X X

576p X

720p X X X X X X

1080i X X X

1080p X X X X X X X X*

2048x1080 (2K) X X X X X X X X 2048x1200 X

2048x1536 X 2560x1080 X 2560x1440 X 2560x1600 X 3840x2160 X X X X X

4096x2160 X X X X X

X** X** X**

X*** X*** X***

*Default output resolution

**Rate supported only with 4:2:0 color sampling for IN1804 DI, DO, and DI/DO models when in

DTP, XTP, or HDBT mode. 4:4:4 sampling is available via HDMI outputs or DTP2 endpoints only.

***Rate available only with 4:2:0 color sampling when using any twisted pair output. 4:4:4

sampling is available via HDMI outputs only.

• HDMI 1A or TP 1A Format — After selecting HDMI 1A Format (IN1804 standard and

IN1804 DI) or TP 1A Format (IN1804 DO and IN1804 DI/DO) from the list of Output submenu items, press the  or  buttons to select the output format. The format choices include:

• Auto (based on the EDID of the sink) (default)

• DVI RGB 444

• HDMI RGB 444 Full

• HDMI RGB 444 Ltd

• HDMI YUV 444 Ltd

• HDMI YUV 422 Ltd

• HDMI YUV 420 Ltd*

*Available only for 3840x2160 and 4096x2160 resolutions.

IN1804 Seamless Scaling Switchers • Operation 33

• TP 1A Mode (IN1804 DO and IN1804 DI/DO only) — This item lets you select the

twisted pair mode of the DTP2/XTP/HDBT output on the IN1804 DO or IN1804 DI/DO. To switch among DTP, XTP, and HDBT modes for the TP output port, select this item and press the  or  buttons to select DTP, XTP, or HDBT.

NOTE: For the IN1804 standard and DI models this panel displays –– ––.

Mode selection is available only for the TP output (1A) on the IN1804 DO or IN1804 DI/DO.

• HDMI 1B Format — Select this option to specify an output format for HDMI output

connector 1B. Press the  and  buttons to step through the format options.

• Auto (based on the EDID of the sink) (default)

• DVI RGB 444

• HDMI RGB 444 Full

• HDMI RGB 444 Ltd

• HDMI YUV 444 Ltd

• HDMI YUV 422 Ltd

• HDMI YUV 420 Ltd*

*Available only for 3840x2160 and 4096x2160 resolutions

• HDCP Notification — This item lets you select what is displayed on the HDMI output

when the input signal contains HDCP-protected content and the output is a nonHDCP sink. After pressing Enter to select this item, press the  or  button to select between:

• Green w/OSD — Displays a green screen with the message HDCP Content on the

HDMI output display (default).

• Black Screen — Displays a black screen and the output sync is maintained.

• User Image — Displays a user-uploaded image. To upload images, use the PCS

software Logo screen (see the IN1804 Series Help File for instructions).

• User Logo — Select this item to enable or disable display of a user-uploaded logo

image. There are 16 slots available for storing logo files. To upload a logo file to the unit, use the Logo Config page of the PCS configuration program (see the IN1804 Series Help File for the procedures).

To select a logo to display:

1. Select User Logo from the Output menu and press Enter.

2. Press the  or  button to select a logo slot. By default the logo slots are named

01: Unassigned through 16: Unassigned. Use the Logo SIS commands (see the Logos commands beginning on page 67) or the Logo Config screen of the PCS configuration program (see the IN1804 Series Help File) to assign a logo file to the selected slot.

When a logo is assigned to a slot, its name changes from Unassigned to nn:Logo n. You can change this name via SIS or PCS commands.

The default selection for this menu is Off.

3. Press Enter to confirm your selection.

NOTE: To configure logo key effects (such as RGB keying, alpha keying, and so

on) and to key logos over live video see the IN1804 Series Help File.

IN1804 Seamless Scaling Switchers • Operation 34

• Logo Position — This item lets you specify a position for the selected logo on the

Audio Submenu

display relative to the upper-left corner of the logo. The default is H: 0000 V: 0000. To position the logo:

1. Press the Enter button to select Logo Position from the Output submenu. The

Logo Position item appears as a single field on the OSD.

2. Press the  or  buttons to select the horizontal position of the logo, and the u

or  button to select the vertical position.

3. Press the Enter button to confirm your selections.

4. Press  to return to the Output submenu.

Figure 26. Audio Submenu

The Audio submenu allows you to configure the audio settings. To use this submenu, press Enter to select this item, then press the  or  button to step through the selections.

• Audio Mute —Select this item to mute and unmute the output audio. You can make

the following audio mute selections:

• Off — Audio output is not muted (default).

• Analog — Mutes the analog audio output only.

• Digital — Mutes the embedded digital audio output only.

• On — Mutes both the analog and the embedded digital audio outputs.

IN1804 Seamless Scaling Switchers • Operation 35

• INn: Audio Format — Select this item to choose the audio format for the selected

input. The first item on the Audio menu shows the selected format of the audio.

NOTES:

• For the twisted pair inputs in DTP mode, the analog audio is taken from the

analog audio connector on the DTP Tx.

• For the TP inputs in XTP mode, the analog and Auto formats are not available.

Audio Format

Selection

None

Analog Audio

LPCM-2Ch

Multi-Ch

LPCM-2Ch Auto

(Default)

Multi-Ch Auto

Details

Configures input EDID with no audio support. All audio outputs are muted.

Configures input EDID with no audio support. Analog audio from the 5-pole captive screw input is passed to the 5-pole captive screw analog output and embedded into the HDMI output.

Configures input EDID for LPCM-2Ch support. Passes all digital audio input signals to the HDMI outputs. If LPCM-2Ch audio is present it is also de-embedded to the 5-pole captive screw analog output.

Configures input EDID for Multi-Ch support. Passes all digital audio input signals to the HDMI outputs. If LPCM-2Ch audio is present it is also de-embedded to the 5-pole captive screw analog output.

Configures input EDID for LPCM-2Ch support. Passes all digital audio input signals to the HDMI outputs. If LPCM-2Ch audio is present it is also de-embedded to the analog 5-pole captive screw output.

If no embedded audio is present on the input the IN1804 passes analog audio from the 5-pole captive screw input.

Configures input EDID for Multi-Ch support. Passes all digital audio input signals to the HDMI outputs. If LPCM-2Ch audio is present it is also de-embedded to the analog 5-pole captive screw output.

If no embedded audio is present on the input, the IN1804 passes analog audio from the 5-pole captive screw input.

value for the selected input. Press Enter to select this item, then press the  or  button to increase or decrease the gain or attenuation in 1 dB increments. The range is

-18 dB through 24 dB. The default is 12 dB.

NOTE: For DTP2/XTP input 4 on the IN1804 DI and DI/DO, the gain is fixed at 0 dB.

• Audio Output Format — Select this item to specify stereo or dual mono (Mono) for the

analog and embedded digital audio output. Press Enter to select this item, then press the  or  button to toggle between the two formats. The default is Stereo.

• Output Volume — Select this item to set the volume level in decibels for both the

analog and embedded digital audio outputs. Press Enter to select the item, then press the  or  button to raise or lower the volume in increments of 1 dB. The range is 0 dB through -100 dB. The default is -10 dB.

• INn: Analog Gain/Att — Select this item to set the analog input gain or attenuation

IN1804 Seamless Scaling Switchers • Operation 36

Advanced Submenu

Figure 27. Advanced Submenu

The Advanced submenu enables you to configure the global settings for the unit. The following items are available:

• Test Pattern — Lets you choose a test pattern to use in setting up a display when

outputting different resolutions. The test pattern selections include Crop, Alternating Pixels, Crosshatch, Color Bars, Grayscale, and Audio Test (pink noise). The default is Off.

The following test patterns are available:

Crop

Color Bars

Alternating Pixels

Grayscale

Crosshatch

Audio Test

Figure 28. Available Test Patterns

NOTES:

• By default all test patterns include a single pixel wide crop pattern line.

• The Audio Test pattern displays a crop pattern and also outputs pink noise at

48 kHz, 24 bit.

• Test pattern selections persist through a power cycle.

IN1804 Seamless Scaling Switchers • Operation 37

• Screen Saver — Configures device behavior when no active input signal is detected.

Options include a black (default) or blue screen, or a user provided logo file. Optionally, you can set a timeout to disable the output after a set duration to allow display devices (such as a display screen or projector) to enter a lower power or standby state to increase panel or lamp life.

To select the screen saver:

1. Select Screen Saver from the Advanced menu and press Enter.

2. Press the  or button to select the screen saver type. The menu selections are:

• Black (default)

• Blue with the OSD message IN1804 <model name> Input:n No Signal

• User Image — Displays an image that has been previously uploaded to the IN1804. The location of this image on the screen can be adjusted using the OSD menu (see Logo Position on the Output submenu on page 35), SIS commands (see the Logo Horizontal Shift and Vertical Shift commands on page 68) or PCS (see the IN1804 Series PCS Help File).

3. Press Enter to confirm your selection.

• Screen Saver Timeout — Lets you specify the number of seconds the selected

screen saver is displayed before the output sync times out. To set the sync timeout:

• Select Screen Saver Timeout from the Advanced menu and press Enter.

• Press the

or  button to select the amount of time before output sync times



out. You can select a duration of 0 (timeout is immediate) to 500 seconds before the output sync times out. Select Never (the default) to set the sync to never time out.

NOTE: The IN1804 exits screen saver mode when the front panel Menu or Enter

button is pressed, a video test pattern is activated, or an active input is detected. If the unit is in front panel lock mode (see Front Panel Lockout (Executive

Modes) on page 41), pressing a front panel button exits time out but access to

any front panel controls or the menu system is disabled.

• INn: Aspect Ratio — Sets the aspect ratio for the selected input to Fill (fills the entire

output raster) or Follow (follows the native aspect ratio of the input).

• In fill mode, if you want to set an aspect ratio adjustment for a single input rate,

you can select the correct image size and position manually from the Picture Controls submenu (Image Size and Position) (see Picture Controls

Submenu on page 27).

• In follow mode, each input rate is displayed with its native aspect ratio (4:3, 5:4,

16:9, or 16:10) with the correct letter box or pillar box settings, visible under the Image Size and Image Position items on the Picture Controls submenu.

If you want a single input to fill the screen in follow mode, you can manually set the Image Position item on the Picture Controls submenu to 0,0 and set the Image Size to match the current output rate X, Y.

• INn: Auto Memory — Enables or disables Auto Memory. When Auto Memory is set to

On (default), the IN1804 stores the current input configuration and picture control values. The switcher stores 32 auto memories per input, with input configuration and picture

control data for each video resolution. The default setting enables these memories to automatically recall input and picture controls for previously applied signals. When auto memories are disabled, the switcher treats every applied signal as a new source.

IN1804 Seamless Scaling Switchers • Operation 38

• Auto Switch — Press the  or  button to select the auto-input switch mode. Auto

Fade Through Black

Cut Through Black

Switch options are:

• Off (default) — Auto-input switching is disabled. Switching occurs only via the front

panel buttons or SIS commands.

• Last Connected — The IN1804 automatically switches to the most recently

connected input and retains a history of the order in which input signals were previously connected to the switcher. If an input is disconnected or the currently selected input is disabled, the IN1804 reverts to the connected inputs in order. See the example in the following table:

Step Connected Input Priority 1 Priority 2 Priority 3 Priority 4 1 Input 1 connected 1

2 Input 3 connected 3 1 3 Input 2 connected 2 3 1

4 Input 4 connected 4 2 3 1 5 Input 4 disconnected 2 6 Input 2 disconnected 3

• User Priority — You can define a priority for the connected inputs to be

selected. The default input selection order is low-to-high (the input with the lowest number is selected first, and so on).

• Input Switch Effect — Enables you to select the transition effect that is shown on the

display while the IN1804 is switching inputs (see the examples in figure 29). Press the

or  button to select from the following available effects:



1111

Seamless Cut

4444

Figure 29. Transition Effects

• Seamless Cut* — The last frame of video freezes on the screen, then cuts to the

newly selected input (1).

• Seamless Fade* (default) — Displays a final frozen frame of the previous input while

the newly selected input fades in (2).

• Fade thru Black — The current input fades to black before the newly selected

input fades in (3).

• Cut thru Black — The current input instantly cuts to black, then immediately cuts

to the newly selected input with no fading in or out (4).

*When a Seamless switch is performed between two inputs with resolutions of 4K @ 60 Hz, the OSD menu and logos are momentarily disabled during the transition.

222

Seamless Fade

333

IN1804 Seamless Scaling Switchers • Operation 39

However, for 4K @ 60 Hz rate only, either the input resolution or the output resolution can be at 4K @ 60, but not both. For example, the input can be 4K @ 60 Hz with a 4K @ 30 Hz output and vice versa, but both the input and output cannot be 4K @ 60 Hz.

NOTE: This special condition applies only to the currently selected input. For

example, if the current input is 4K @ 30 Hz and the output is 4K @ 60 Hz, and you switch to a 4K @ 60 source, the OSD menu and logo remain visible. However, if you switch back to the 4K @ 30 input, the OSD and logo are disabled.

• Factory Reset — Resets the unit to its factory default values (removing any

user-specified values) while retaining all TCP/IP settings. To reset using the OSD menu, press and hold the Enter button until Factory Reset is

displayed (approximately 5 seconds). The message remains for approximately 1 minute after the reset is complete to allow time for the display device to sync with the IN1804 output.

NOTE: The equivalent SIS command is E ZXXX }. This command does not affect

the current password, including the initial factory-set serial number.

For other reset methods, see Reset Modes on page 42.

Communication Submenu

Figure 30. Communication Submenu

The Communication submenu enables you to view the serial port baud rate and the unit media access code (MAC) address, and to configure the IP address, subnet mask, and gateway address, and DHCP mode.

• Serial Port Baud Rate — Displays the baud rate for the serial RS-232 port (view only).

• MAC Address — Displays the MAC address of the device (view only).

IN1804 Seamless Scaling Switchers • Operation 40

• DHCP Mode — When this mode is enabled (On), the unit obtains an IP address and

other network settings from the DHCP server. The default is Off. To enable or disable DHCP mode:

1. Select DHCP Mode from the Communications submenu and press Enter.

2. Press the > and < button to select On or Off and press Enter again.

You can also set the DHCP mode via an SIS commands (see the DHCP mode

commands on page 79), the PCS software, or the internal web page (see Network Settings Panel on page 100).

• IP Address — Press the  and u buttons to select an octet of the IP address.

Press the > and < buttons to adjust the value of the selected octet. The default is

192.168.254.254.

• Subnet Mask — Press the  and u buttons to select an octet of the subnet mask

address. Press the > and < buttons to adjust the value of the selected octet. The default is 255.255.255.0.

• Gateway — Press the  and u buttons to select an octet of the gateway address.

Press the > and < buttons to adjust the value of the selected octet. The default is

0.0.0.0.

Front Panel Lockout (Executive Modes)

The switchers have three modes of front panel security lock that limit the operation of the device from the front panel.

• Mode 0 — Unlocks front panel functions. This is the default setting.

• Mode 1 — Locks all front panel functions. Pressing the Menu button in this mode

causes the message Executive Mode 1 Enabled to appear on the display. This mode can be enabled or disabled by SIS commands (see the Front Panel Lock (Executive

Mode) commands on page 75) and via PCS (see the IN1804 Series PCS Help file). All

functions performed via USB, RS-232, or Ethernet remain available).

• Mode 2 — Locks all front panel functions except input switching. Pressing the Menu

button in this mode causes the message Executive Mode 2 Enabled to appear on the display. All functions performed via USB, RS-232, or Ethernet remain available.

To enable executive mode 2, press and hold the Menu and Enter buttons simultaneously for 2 seconds. This mode can be enabled or disabled by SIS commands (see the Front Panel Lock (Executive Mode) commands) and via PCS (see the IN1804 Series PCS Help file).

IN1804 Seamless Scaling Switchers • Operation 41

Input Presets

The IN1804 Series switchers have 128 memory slots in which you can save input presets. These presets allow a matrix switcher with multiple types of video inputs (such as an XTP) to be placed upstream from the IN1804 to expand the number of video sources.

Input presets can be saved and recalled through SIS commands (see the Presets

commands on page 70) and through PCS (see the IN1804 Series PCS Help File).

• When you recall an input preset, it fills the output raster based on the sizing and

positioning that it had at the time it was saved. For example, a video source that was configured to be zoomed when it was previously saved as a preset is still zoomed, even if recalled to a smaller output raster.

• Input presets can be saved based on one input rate and recalled to a different rate. This

enables presets to be used as aspect ratio or other quick-sizing shortcuts. Because the size and position is saved as a percent of the raster, the preset can be recalled to any scaled output and the saved size and position are scaled proportionally on the output.

Values for the following settings are saved in input presets:

• Preset name • Detail

• Audio gain and attenuation • Horizontal image position

• Film mode detection • Vertical image position

• Contrast • Horizontal image size (width)

• Brightness • Vertical image size (height)

Reset Modes

Saving a preset when using a matrix switcher

When using the IN1804 with a matrix switcher, do the following to save a preset:

1. Switch each input of the matrix to the IN1804.

2. Configure each input: size, position, detail, brightness, and contrast.

3. Save the settings to a preset for recall by the control system when that matrix input is

routed to any IN1804 input.

The IN1804 series switchers have three reset modes (numbered 1, 4, and

5). Use a small screwdriver or stylus to press and hold the recessed Reset button on the rear panel (see 2 in the image at right) to advance through the modes. The Reset LED (1) blinks to indicate each mode that is enabled (see the Reset Mode Summary table on the next page for a description of the reset modes and how to select them).

You can also perform resets using the OSD (see Factory Reset on the Advanced submenu on page 40), SIS commands (see the Resets commands on page 77), and PCS (see the IN1804 Series PCS Help file).

ATTENTION:

• Review the reset modes carefully. Using the wrong reset mode may result in

unintended loss of ﬂash memory programming, port reassignment, or processor reboot.

• Étudier de près les différents modes de réinitialisation. Appliquer le mauvais mode

de réinitialisation peut causer une perte inattendue de la programmation de la mémoire ﬂash, une reconﬁguration des ports ou une réinitialisation du processeur.

RESET

OUTPUTS

HDMI/CEC1BHDMI/CEC

LAN

IN1804 Seamless Scaling Switchers • Operation 42

NOTE: The reset modes listed close all open IP and Telnet connections and all sockets.

Each mode is a separate function, not a continuation from mode 1 to mode 5.

Reset Mode Summary

Mode Activation Result Purpose/Notes

Using an Extron Tweeker or other small

screwdriver, press and hold in the recessed Reset button for 30 seconds

while applying power to the switcher.

NOTE: After a mode 1 reset,

update the device with the latest firmware version. DO NOT operate with the firmware version that results from this type of reset. This temporarily resets the device

Use Factory Firmware

to factory default until power is recycled. To use factory default firmware, upload that version again.

The device reverts to the factory default firmware.

• Firmware reverts to the factory default for a

single power cycle.

• All user files and settings (drivers, audio

and video adjustments, IP settings, and so on) are maintained.

NOTE: If you do not want to update the

firmware or perform a mode 1 reset by mistake, cycle power to the device to return to the firmware version running prior to the reset.

Use mode 1 to revert to the factory default version if incompatibility issues arise with user-loaded firmware.

Hold down the Reset button until the Reset LED blinks twice (approximately

6 seconds). Then, press Reset momentarily (less than 1 second).

Settings

Reset IP

Hold down the Reset button until the Power LED blinks three times (approximately 9 seconds). Then,

press Reset momentarily (less than 1 second).

Reset to Factory Default

RS-232 and IR Signal Insertion

The twisted pair input and output ports allow you to insert RS-232 and IR control signals onto the same cable that carries video and audio to extend them to the Over TP port on a connected endpoint (see figure 31 on the next page, figure 32 on page 46, and figure 33 on page 47). The control signals can be inserted in the following ways:

• Ethernet to RS-232 insertion (see Ethernet to RS-232 Insertion on the next

page) — A control signal applied to the IN1804 LAN port can be routed to the RS-232 port of any connected twisted pair device. The RS-232 insert inputs and outputs inserted via Ethernet can support up to a 115K baud rate.

• Captive screw insertion (see Captive Screw IR Signal Insertion on page 46) — (IR

only) A control signal applied to the IR Over TP captive screw port is tied directly to the TP IN4 (DI and DI/DO models only) or to the TP Output 1A (DO and DI/DO models only). You must physically connect a cable to the captive screw connector where a control signal is to be inserted.

IP settings revert to factory defaults.

• Port mapping reverts to factory default.

• DHCP turns off.

• IP address is set to 192.168.254.254.

• Reset LED blinks four times in quick

succession during reset.

The device reverts to the factory defaults except for firmware.

• Mode 4 results are performed.

• All user modifiable configurations are reset

to default values including IP settings and real-time adjustments.

• All user loaded files are deleted.

• The Reset LED blinks 4 times in quick

succession during the reset.

Use mode 4 to reset all IP settings back to factory defaults.

Use mode 5 to restart with default configuration. This is equivalent to SIS

command ZQQQ. This reset also removes

the initial serial number password and sets it to no password.

IN1804 Seamless Scaling Switchers • Operation 43

• Unidirectional RS-232 insertion via SIS commands (see Unidirectional RS-232

HD Camera

Insertion via SIS Commands on page 47) — A control signal can be inserted to

the RS-232 port of any connected twisted pair device via SIS commands sent to the IN1804. This method is unidirectional, meaning that the unit receives no response from the device via the TP port.

Ethernet to RS-232 Insertion

Figure 31 is an example of an Ethernet to RS-232 insertion, in which an Extron controller provides control of an HD camera via the IN1804 DI and a DTP HDMI 4K 230 transmitter.

Configure this type of insertion as follows:

1. Connect a TP cable from the control system to the LAN port, directly or via a network.

2. If necessary to match the device to be controlled, configure the port RS-232 protocol

(baud rate, parity, data bits, and stop bits) (see RS-232 protocol on the next page ).

100-240V ~ 50-60Hz

1 2

SWITCHED 12 VDC

40W MAX TOTAL

3 4

1.2A MAX

12 VDC

Control Processor

142 3 7

TxRx GTxRxGTx Rx GTxRxG

5 6 8

COM

CTS

SGSG SGSG

RTS

5 6 7 8 5 6 7 8

SGSG SGSGTxRx GTxRxGTxRx GTxRxG

RTSCTS

PWR OUT = 12W

1 2 3 41 2 3 4

+V+S -S G

eBUS

3214G

FLEX I/ORELAYSIR/SERIAL

RS-232 Insertion

Network

LAN

100-240V~1.0A MAX

50-60 Hz

IN1804 DI

2CT3CT4CT5CT6CT7

/TALLY

CONTACT

INPUTS

CT GV+

POWER

AUDIO

12V

0.7A MAX

LINRL OUT

AUDIO

SIGINLINK

OVER TP

Tx Rx G

RS-232

INPUTS OVER DTP

SIG LINK

DTP OUT

RS-232

TxRx Tx RxG

RS-232

RESET

Tx Rx G

REMOTE

OUTPUTS

HDMI/CEC1BHDMI/CEC

LAN

DTP HDMI 4K 230 Tx

RS-232

Figure 31. Typical Ethernet to RS-232 Insertion to an Input Endpoint

3. Connect the TP cable to the endpoint as usual.

4. Connect a serial cable from the endpoint to the device to be controlled.

IN1804 Seamless Scaling Switchers • Operation 44

Port number

For Ethernet to RS-232 insertion, the insertion port number must be stated from a specific UART start point. This number is entered as the Telnet port number when you establish communication with the insertion port.

For the purposes of this discussion, consider the Ethernet insertion ports as serial (RS-232) ports. The input insertion port number is the UART start point + 1. The output insertion port number is the UART start point + 3. With the default UART start point of 2000, the input and output insertion ports are:

Input Port Insertion Port Output Port Insertion Port

4 2001 1A 2003

Changing the starting point

By default the UART start point is 2000. You can change the starting port number by any of the following methods:

• Using the Product Configuration Software (see IN1804 Series PCS Help file)

• Using SIS commands (see the Set UART start point SIS command on page 77)

RS-232 protocol

You also may need to set the RS-232 protocol of the addressed port to match the connected device. You can do this using any of the following methods:

• Using the Product Configuration Software (see the IN1804 Series PCS Help file).

• Using SIS commands (see the Serial Port Configuration SIS commands on

page 77).

IN1804 Seamless Scaling Switchers • Operation 45

Captive Screw IR Signal Insertion

Display

Figure 32 shows an example of a typical captive screw Ethernet insertion, in which an Extron control system provides IR control of a display via the switcher. Configure this type of insertion as follows:

100-240V ~ 50-60Hz

1.2A MAX

1 2

SWITCHED 12 VDC

40W MAX TOTAL

3 4

12 VDC

142 3 7

TxRx GTxRxGTx Rx GTxRxG

5 6 8

COM

CTS

SGSG SGSG

RTS

5 6 7 8 5 6 7 8

SGSG SGSGTxRx GTxRxGTx Rx GTxRxG

RTSCTS

PWR OUT = 12W

1 2 3 41 2 3 4

+V+S -S G

eBUS

FLEX I/ORELAYSIR/SERIAL

LAN

3214G

AV LAN

Control Processo

100-240V ~1.0A MAX

50-60 Hz

2CT3CT4CT5CT6CT7

/TALLY

CONTACT

INPUTS

CT GV+

3 4 1B

LINRL OUT

AUDIO

RS-232

RESET

Tx Rx G

REMOTE

SIG

LINK

OUTPUTS

OUT

OVER TP

Tx Rx G

LAN

HDMI/CEC

1804 DO

Front Panel

RS-232

TxRx Tx RxG

OVER DTP

SIG LINK

POWER

DTP HDMI 230 Rx

12V

0.7A MAX

DTP IN

Rear Panel

OUTPUTS

AUDIO

DTP HDMI 4K 230 Rx

HDMI

IR Emitter

Figure 32. Typical Captive Screw Insertion to an Input Endpoint

1. Connect the control system to the Over TP IR captive screw port (output port 1A in this

example).

2. Connect the TP cable from the IN1804 RJ-45 Out connector to the DTP input of the

endpoint.

3. Connect the endpoint to the device to be controlled.

4. Wire an IR emitter to the IR connector of the twisted pair receiver and place the emitter

on the display device.

IN1804 Seamless Scaling Switchers • Operation 46

Unidirectional RS-232 Insertion via SIS Commands

Display

Figure 33 shows an example of a typical connection for unidirectional RS-232 insertion via SIS commands.

100-240V ~ 50-60Hz

1.2A MAX

1 2

SWITCHED 12 VDC

40W MAX TOTAL

3 4

12 VDC

142 3 7

TxRx GTxRxGTx Rx GTxRxG

5 6 8

COM

RS-232

CTS

SGSG SGSG

RTS

5 6 7 8 5 6 7 8

SGSG SGSGTxRx GTxRxGTx Rx GTxRxG

RTSCTS

PWR OUT = 12W

1 2 3 41 2 3 4

+V+S -S G

eBUS

FLEX I/ORELAYSIR/SERIAL

LAN

3214G

AV LAN

Control Processo

100-240V ~ --A MAX

50-60 Hz

2CT3CT4CT5CT6CT7

/TALLY

CONTACT

INPUTS

CT GV+

34 1B

OVER TP

Tx Rx G

LINRLOUT

AUDIO

RS-232

RESET

Tx Rx G

REMOTE

SIG

LINKSIGINLINK

OUTPUTS

OUT

OVER TP

Tx Rx G

LAN

HDMI/CEC

1804 DI-DO

RS-232

Front Panel

OVER DTP

RS-232

TxRx Tx RxG

SIG LINK

POWER

DTP HDMI 230 Rx

12V

0.7A MAX

DTP IN

Rear Panel

OUTPUTS

AUDIO

DTP HDMI 4K 230 Rx

RS-232

HDMI

Figure 33. Typical Connection for Unidirectional RS-232 Insertion

1. Connect the control system to the Remote RS-232 port on the IN1804 rear panel.

2. Connect the TP cable from the IN1804 RJ-45 Out connector to the DTP input of the

endpoint.

3. Connect the output of the endpoint to the device to be controlled.

4. Connect a serial cable from the Over DTP RS-232 port of the twisted pair receiver to

the device to be controlled.

Entering SIS commands for RS-232 insertion

The following SIS command enables insertion of commands into an RS-232 data stream:

+snds

X5&

X3# }

X3#

= number of characters in the command

X5&

= TP port number

The unit sends the command when it detects that the specified number of characters (

X3#

)

have been entered. You can enter the SIS command through any means: Ethernet, USB, or an RS-232

connection. Any RS-232 command can be sent via this method. Typically, however, this command would be sent through an RS-232 connection to the Remote port on the IN1804.

In the following input selection example, 9 is the TP port and 13 is the number of characters in the command %1Bpoweron%0D (to select input 1):

+snds9*13

}

%1Bpoweron%0D

IN1804 Seamless Scaling Switchers • Operation 47

SIS Configuration and Control

The IN1804 series switchers can be configured and controlled via Extron Simple Instruction Set (SIS) commands when connected to a host computer or other device (such as a control system). Attach the host device to the rear panel RS-232 connector or LAN connector, or to the front panel USB port. Commands can be entered using a Telnet application such as the Extron DataViewer, available at www.extron.com (see the DataViewer Help file for more details). The default protocol for the RS-232 connection is 9600 baud, 8 data bits, 1 stop bit, no parity, and no flow control. This section describes SIS communication and control. Topics in this section include:

• Host and Switcher Communication

• SIS Overview

• Command and Response Tables for IN1804 SIS Commands

Host and Switcher Communication

SIS commands consist of one or more characters per field. No special characters are required to begin or end a command sequence. When the switcher determines that a command is valid, it executes the command and sends a response to the host device. All responses from the switcher to the host end with a carriage return and a line feed (CR/LF = ]), indicating the end of the response character string (one or more characters).

Copyright Information

The copyright message is displayed upon connecting to a switcher via TCP/IP or Telnet or after a power cycle via RS-232, and depends on the switcher model.

]

60-1699-nn Ddd, DD MMM YYYY HH:MM:SS ] (day, date, and time as in Mon, 18 Oct 2018 11:27:33)

• YYYY is the year.

• Vn.nn is the firmware version number.

• 60-1699-nn is the model part number.

]

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 48

Password Messages

If the IN1804 is protected by a password, the following password message prompts you for the password to access the switcher features.

]

Password

The prompt requires a password, followed by a carriage return. The prompt is repeated if the correct password is not entered.

• For initial setup: On the rear panel of the IN1804, a label is attached containing the

following text:

Pursuant to California Senate Bill 327, the password for all accounts on this device have been set to the device serial number. Passwords are case sensitive. See user guide for reset instructions.

This means that, for initial setup, you must enter the serial number of your unit at the password prompt (the serial number can be found on another label on the rear panel). This password allows administrator level access.

If the correct password is entered, access is granted and the command prompt is displayed. If the password is incorrect, the ]Password] prompt reappears.

NOTE: Performing a unit factory reset by entering a ZQQQ SIS command (see the

Absolute system reset SIS command on page 77) or a mode 5 reset via the rear panel Reset button (see page 43) removes the serial number password, leaving the unit with no password.

]

• After a password change: After the initial access, you can keep the serial number

password or change it. You can also set administrator and user level passwords (see the Passwords SIS commands on page 81).

When you enter the new password correctly, the unit responds with one of the following, depending on the password entered:

]

•

]

•

(If the password is not accepted, the Password prompt reappears.)

The Login Administrator response represents administrator level access, while the Login User response represents user level access. If the passwords are the same for both administrator and user, the unit defaults to administrator privileges.

If the unit is not password-protected, it is ready to accept SIS commands immediately after it sends the copyright message.

]

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 49

Switcher-Initiated Messages

When certain local events occur, such as a change in the status of a contact closure port, the switcher responds by sending a message to the host. No response is required from the host. The following messages may be sent:

• Reconfig] A change in the current input frequency was detected.

• HplgOX@*

For

• HdcpI X!*

• HdcpO X@*

• IN00•

removed) occurs on any input.

• Psav9] The unit has entered power save mode due to an internal overheating.

• Cntc

See Symbol Definitions beginning on the next page for an explanation of the X variables in these messages.

X7)]

A hot plug event was detected on output X@.

X7)

: 1 = assertion, 2 = de-assertion

X4$]

A change was detected in the HDCP status of input X!.

X4$]

A change was detected in the HDCP status of output X@.

X6!*X6!*X6!*X6!]

X7%*X7^

Contact closure port

Error Responses

When the switcher receives a valid command, it executes the command and sends a response to the host device. If the unit is unable to execute the command, it returns an error response to the host.

This message appears when a sync change (detected or

X6!

is the video signal status for each input.

X7%

(1 through 7) has changed status to

X7^

E01 — Invalid input number E17 — Invalid command for signal type E06 — Invalid switch attempt in this mode E22 — Busy E10 — Invalid command E24 — Privilege violation E11 — Invalid preset number E25 — Device not present E12 — Invalid port number E26 — Maximum number of connections exceeded E13 — Invalid parameter E28 — Bad filename or File not found E14 — Not valid for this configuration E33 — Bad file type for logo

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 50

SIS Overview

Space

Using the Command and Response Tables

Symbol Definitions

The Command and Response Tables for SIS commands, beginning on page 60, lists the commands that the switcher recognizes as valid, the responses that are returned to the host, a description of the command function or the results of executing the command, and examples of commands in ASCII (Telnet).

ASCII to Hex Conversion Table

•

Figure 34. ASCII to Hexadecimal Character Conversion Table

NOTE: Upper- and lowercase text can be used interchangeably unless otherwise stated.

•

= Space

]

= Carriage return with line feed

}

= Carriage return with no line feed

Pipe (can be used interchangeably with the } character)

= Escape

Can be used interchangeably with the E character

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 51

= Input selection — 1 through 4

1 = DisplayPort input 1 (all models) 2 = HDMI or DVI input 2 (all models) 3 = HDMI or DVI input 3 (all models) 4 = HDMI or DVI input 4 (IN1804 standard, and

IN1804 DO) TP (IN1804 DI and DI/DO)

= Output connector

1 = TP Output 1A (IN1804 DO and DI/DO)

HDMI output 1A (IN1804 and IN1804 DI)

2 = HDMI output 1B

= Digital video format

0 = No signal 1 = DVI 2 = HDMI 3 = DisplayPort

= Total lines Response is four digits, padded with zeros.

= Total pixels Response is four digits, padded with zeros.

= Active lines Response is four digits, padded with zeros.

= Active pixels Response is four digits, padded with zeros.

= Enable or disable

X1)

0 = Off or disabled 1 = On or enabled

= Internal temperature In degrees Celsius. Response is two digits, padded with

X1@

a zero.

= Horizontal and vertical

X1#

X1$

frequencies

= Text label

nnn.nn Response is three digits with two decimal

places, padded with zeros. (Example: 075.32) Up to 32 characters but cannot contain , * or |.

NOTES:

• Input presets saved without a name are given the default name INPUT PRESET nnn. The

default logo name is Logo nn (for example, Logo 05)

• Entering a single space in the ﬁeld repopulates it with the default name.

= Picture adjustment

X1%

= Horizontal and vertical position

X1^

(shift)

= Horizontal and vertical size

X1&

= EDID file 128 or 256 bytes of binary data

X2)

0-127 (default = 64)

Horizontal: -4096 through +4096 Vertical: -2160 through +2160

• The response is five digits, padded with zeros and

preceded by + or –.

• The logo vertical position allows up to ± 2400.

Horizontal = 10 to 8192 Vertical = 10 to 4320

The response is five digits, padded with zeros.

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 52

= EDID emulation or output rate

X2!

0 = Automatic (matches the current output resolution,

default)

1 = Output 1A (available for EDID export only) 2 = Output 1B (available for EDID export only) 10-76 = See the Input EDID table below. 201 – 205 = Custom EDID or output rates 1 – 5.

Input EDID

Resolution 23.98 Hz 24 Hz 25 Hz 29.97 Hz 30 Hz 50 Hz 59.94 Hz 60 Hz

640x480

800x600

1024x768

1280x768

1280x800

1280x1024

1360x768

1366x768

1440x900

1400x1050

1600x900

1680x1050

1600x1200

1920x1200

480p

576p

720p

1080i

1080p

2048x1080 (2K)

2048x1200

2048x1536

2560x1080

2560x1440

2560x1600

3840x2160

4096x2160*****

Automatic*

Output 1A HDMI Output 1B HDMI Custom EDIDs

38 39 40 41 42 43 44 45**

46 47 48 49 50 51 52 53

59 60 61 62 63 64*** 65*** 66***

69 70 71 73 73 74**** 75**** 76****

0* — Match current switcher output resolution

1 (EDID export only) 2 (EDID export only) 201 through 205

29 30 31 32 33 34

35 36 37

24 25

*Default input EDID **Default output resolution ***Rate supported only with 4:2:0 color sampling for IN1804 twisted pair models when in DTP, XTP, or

HDBT mode. 4:4:4 sampling is available via HDMI outputs or DTP2 endpoints only.

****Rate available only with 4:2:0 color sampling when using any twisted pair output. 4:4:4 sampling is

available via HDMI outputs only. *****4096x2160 rates are available only for output resolution and cannot be selected for input EDID.

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 53

= Test patterns

X2@

0 = Off (default) 1 = Crop 2 = Alternating pixels 3 = Crosshatch 4 = Color Bars 5 = Grayscale 6 = Audio test — Crop pattern with orbiting text AUDIO

TEST and outputting pink noise at LPCM-2Ch, 48 Hz, 24-bit.

= Input presets

X2^

= Output sync or OSD menu

X2*

timeout

1 through 128

Response is three digits, padded with zeros. Number of seconds before output sync or the OSD menu

times out.

1 through 500 seconds, in 1-second increments 0 = Output sync is instantly disabled with no active video

from the selected input (not allowed for MDUR command).

60 = Default for the MDUR command. 501 = Output sync never times out (default for SSAV

command).

= Front Panel Lockout (executive)

X2(

mode status

0 = Off or disabled (front panel controls fully accessible)

(default).

1 = Mode 1 — Complete front panel lockout 2 = Mode 2 — Input switching only

= Auto-input switch mode

X3)

= Auto-input switching priority

X3!

0 =

Disabled — Manual switching (default)

1 =

User-defined priority mode —

the input to which the user assigns priority. If no priority is assigned, the switcher selects the active priority input with the lowest number.

2 =

Last connected mode —

most recently applied input, and retains a history of the order in which active inputs are connected to the unit. If an active input is removed, the switcher switches to the most recently prioritized input.

Input number for input switching priority.

The switcher selects

The switcher selects the

1 = Input 1 2 = Input 2 3 = Input 3 4 = Input 4

= Auto-input switch timeout Number of seconds without video that elapse before

X3@

switching to the previous input.

1 through 500 in 1-second increments 3 = Default

0 =

= Number of characters Number of characters in the command being sent.

X3#

Immediately switch to most recent input if the current input is removed.

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 54

= Verbose mode

X3$

0 = None (default for LAN connection) 1 = Verbose mode (default for RS-232 and USB

connection)

2 = Tagged responses to queries 3 = Verbose mode and tagged responses

NOTES:

• In verbose response mode, the IN1804

returns unsolicited responses for value and setting changes that may result from a signal change, or a setting adjustment made via another interface.

Example: The IN1804 can send out a notice of a change in some setting without receiving a query via a PC or a control system. That change could have been a result of an internal process or a selection made via the PCS program. This is a verbose (wordy) relationship between the controller and a connected device.

• If tagged responses are enabled, all

“view” commands return the command string plus the data, the same as in responses for setting a value. For example:

Command: Response: Vtyp

(untagged)

X!*X#]

X#]

= Model name

X3%

= Part number

X3^

= Aspect ratio setting

X3(

IN1804, IN1804 DI, IN1804 DO, or IN1804 DI/DO

IN1804 (standard) — 60-1699-01 or 60-1699-11 IN1804 DI — 60-1699-02 or 60-1699-12 IN1804 DO — 60-1699-03 or 60-1699-13 IN1804 DI/DO — 60-1699-14

1 = Fill — Each input rate fills the entire output

raster (default).

2 = Follow — Each input rate is displayed with its

native aspect ratio.

= Screen saver mode

X4)

1 = Black screen (default) 2 = Blue screen with OSD text 3 = User image on black screen

= Video output mute

X4@

0 = Unmute 1 = Mute video to black screen 2 = Mute video and sync

= User logo number

X4#

1 through 16. The response is three digits padded with

leading zeros.

101 = No signal, screen saver user logo 201 = User HDCP logo

= HDCP status

X4$

0 = No sink or source device detected 1 = Sink or source detected but no HDCP present 2 = Sink or source detected with HDCP

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 55

= Video switch effect

X4%

0 = Cut through black — The input instantly cuts

to black, then cuts to the newly selected input with no fading.

1 = Fade through black — The input fades to black

before the newly selected input fades in.

2 = Seamless fade* (default) — Displays a final frozen

frame of the previous input while the newly selected input fades in.

3 = Seamless cut* — The last frame of video freezes on

the screen, then cuts to the newly selected input. *See Input Switch Effect on page 39 for information on

exceptions regarding Seamless effects.

= HDCP output mode

X4^

0 = Off — Disable all HDCP authentication and encryption

attempts.

1 = Follow input (default). 2 = Always encrypt. 3 = Follow input (with continuous authentication trials). 4 = Always encrypt (with continuous authentication trials).

= HDCP notification

X4&

0 = Black screen — Notification disabled (mute output) 1 = Green screen with OSD bug (orbiting message)

(default)

2 = User image with black screen background

= HDMI output format

X4*

0* = Auto — HDMI RGB Full to a CEA sink, DVI to a

non-CEA sink***

1* = DVI — RGB 444, 0-255. Valid for output rates up to

165 MHz.

2 = HDMI RGB Full — RGB 444 3 = HDMI RGB Limited — RGB 444 5 = HDMI YUV 444 Limited — YUV 444 7 = HDMI YUV 422 Limited — YUV 422 9** = HDMI YUV 420 Limited — Used for transmitting

4K @ 60 Hz at a 4K @ 30 Hz character rate.

= Audio output volume

X5)

= Audio output format

X5!

* If the IN1804 is in DVI mode and a rate greater than 165 MHz is selected, the HDMI output defaults to HDMI RGB 444 Full.

** 420 formats are available only when the current HDMI output resolution is 4K/UHD @ 50, 59.94, or 60 Hz and use half the TMDS character rate.

X4*

If rate other than 4K/UHD @ 50, 59.95, or 60 Hz,

is automatically set to 0, and an SIS response is broadcast.

*** DVI mode applies only up to a 165 MHz pixel clock.

is set to 9 and the output rate is changed to a

X4*

-100 to 0 in 1 dB steps

Example: -100 = -100 dB and 0 = 0 dB Default = -10 Response is three digits with a leading + or – sign.

1 = Dual mono 2 = Stereo (default)

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 56

= Audio input format

X5@

Format

Selection

0 =

1 =

2 =

3 =

4 =

5 =

None (input muted) —Configures input EDID with no audio support. All audio outputs are muted.

Analog input — Configures input EDID with no audio support. Analog audio from the 5-pole captive screw input is passed to the 5-pole captive screw

analog output and embedded into the HDMI output.* LPCM-2Ch — Configures input EDID for LPCM-2Ch support. Passes all digital

audio input signals to the HDMI outputs. If LPCM-2Ch audio is present it is also de-embedded to the 5-pole captive screw analog output.

Multi-Ch — Configures input EDID for Multi-Ch support. Passes all digital audio input signals to the HDMI outputs. If LPCM-2Ch audio is present it is also de-embedded to the 5-pole captive screw analog output.

LPCM-2Ch Auto (default) — Configures input EDID for LPCM-2Ch support. Passes all digital audio input signals to the HDMI outputs. If LPCM-2Ch audio is present it is also de-embedded to the analog 5-pole captive screw output.

If no embedded audio is present on the input the IN1804 passes analog audio from the 5-pole captive screw input.

Multi-Ch Auto — Configures input EDID for Multi-Ch support. Passes all digital audio input signals to the HDMI outputs. If LPCM-2Ch audio is present it is also de-embedded to the analog 5-pole captive screw output.

If no embedded audio is present on the input, the IN1804 passes analog audio from the 5-pole captive screw input.

Details

*On the IN1804 DI and DI/DO, when Input 4 is set to DTP mode, the switcher uses analog

audio from the remote DTP transmitter instead of analog audio from the rear panel of the IN1804. Analog and Auto formats are not allowed on input 4 of the IN1804 DI and DI/DO when they are set to XTP mode.

= Analog audio input gain

X5$

-18 through +24 dB 0 = default

Response is two digits.

X5%

NOTE: On IN1804 DI and DI/DO, analog gain adjustment is not available on TP Input 4

(fixed at 0 dB).

= Video signal status

0 = Video, TMDS, or DP signal not detected 1 = Video, TMDS, or DP signal detected

= Remote port number

X5&

1 = Remote port (3-pole captive screw) 4 = Universal asynchronous receiver-transmitter (UART)

on DTP input 4 (IN1804 DI and DI/DO only)

9 = UART on DTP/HDBT output 1A (IN1804 DO and

IN1804 DI/DO only)

= Baud rate

X5*

300, 600, 1200, 1800, 2400, 3600, 4800, 7200, 9600 (default), 14400, 19200, 28800, 38400, 57600, 115200

= Parity

X5(

X6)

X6!

= Data bits

= Stop bits

Odd, Even, None (default), Mark, Space

Only the first letter is required.

7 or 8 (default)

1 (default) or 2

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 57

= Power Save mode

X6@

0 = Full power mode (default) 1 = Lowest power state — TP remote power and TP

links are disabled. Input LEDS 1 through 4 cycle at a 500 ms interval.

2 = Lower power mode — TP links remain active,

including remote power, and Ethernet to RS-232 insertion. Input LEDS 1 through 4 cycle at a 500 ms interval.

9 = Low power state due to over-heating

(query-response only)

= Screen saver status

X6#

0 = Active input detected, timer not running 1 = No active input, timer running, output sync still active 2 = No active input, timer expired, output sync disabled

= Port timeout Set time in seconds before the port connection times out.

X6$

1 (10 seconds) through 65000 (650,000 seconds)

Default = 30 (300 seconds)

= Start point for UART ports Start point for UART ports:

X6%

+ 1 (IN1804 DI and DI/DO only)

X6%

+ 3 (IN1804 DO and DI/DO only)

= DTP remote power

X6^

TP IN4 = TP OUT 1A =

Default = 2000

0 = No remote power (default) 1 = DTP 2 = DTP2

= TP format

X6&

0 = DTP format (default) 1 = XTP format 2 = HDBaseT format

= Hot plug change or detection

X7)

1 = A new sink has been connection (assertion) 2 = HDBaseT format (available only on Output 1A of the

IN1804 DO and IN1804 DI/DO).

= Audio output mute

X7!

Local 5-pole captive screw analog output is muted for all IN1804 models

1 = Local 5-pole captive screw analog audio output

connectors are muted for all IN1804 models. Remote analog audio output connectors (DTP only) are muted on IN1804 DO and IN1804 DI/DO only)

2 = Embedded TMDS audio output

= Key effect variable

X7@

= Key effect setting

X7#

X7$

Key effect

0 = Transparency (available only when 1 = Red of RGB key (available only when 2 = Green of RGB key (available only when 3 = Blue of RGB key (available only when 4 = Level key (available only when

0 through 255

0 = Disabled

X7$

= 3)

= 1)

X7$

= 2)

1 = Transparency 2 = RGB key 3 = Level key 4 = Alpha key

= Contact/Tally port number

X7%

= Contact/Tally port mode and

X7^

status

= Audio playback file slot number

X8)

1 through 7

0 = Open 1 = Closed

1 through 16

Highest priority for playback is slot 1, descending to lowest priority slot 16.

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 58

= Unit name Unit name — A text string of up to 32 characters.

X8!

• A-Z, 0-9, and the hyphen (-) are permitted.

• The first character must be a letter.

• The last character cannot be a hyphen.

• Names are not case sensitive.

• Space or blank characters are not permitted.

= Playback state

X8@

= Repeat

X8#

= Playback delay Number of seconds to wait before the audio file repeats

X8$

0 = Stop or stopped 1 = Play or playing

0 = No 1 = Yes

NOTE: Setting the repeat mode to 0 during

continuous playback causes play to stop after the end of the current iteration.

(valid only if

X8#

= 1 [repeat]).

1 through 300 (1-300 seconds delay between audio

playbacks)

0 = No delay

= Configuration type

X8%

0 = IP configuration (ip.cfg) 2 = Unit-specific parameters (box.cfg)

= Number of open connections

X8^

= IP address

X8&

X8*

X8(

Gateway IP address

= Subnet mask

= Hardware (MAC) address

X9)

= Password • Length is 1-128 characters.

X9!

= Default unit name Combination of the model name and the last three

X9@

= Subnet mask in CISG

X9#

commands

0-<maximum number of open connections>

Format nnn.nnn.nnn.nnn Default = 192.168.254.254

Leading zeros in each of the four octets are optional in setting values, and are suppressed in returned values.

Format nnn.nnn.nnn.nnn Default = 0.0.0.0

Leading zeros in each of the four octets are optional in setting values, and are suppressed in returned values.

Format nnn.nnn.nnn.nnn Default = 255.255.255.0

Leading zeros in each of the four octets are optional in setting values, and are suppressed in returned values.

00-05-A6-xx-xx-xx

• All human-readable characters are allowed except|.

• The password cannot be a single space.

• Passwords are case-sensitive.

• A user password cannot be assigned if no

administrator password exists. An E14 error code is returned.

• If the admin password is cleared, the user password

is cleared as well.

hexadecimal character pairs of the unit MAC address (Example: IN1804-DO-15-9E-B0)

Prefix representing subnet mask bits (subnet mask value in CISG commands).

Default = /24, which represents the default subnet mask,

255.255.255.0.

NOTE: Unless otherwise indicated, commands are not case-sensitive.

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 59

Command and Response Tables for IN1804 SIS Commands

Command ASCII Command

(Host to Switcher)

Input Configuration

Input Selection

Select input View current input

Input Video Format

View detected input format

Input Name

Write input name View input name

Input EDID

Specify an EDID value View assigned EDID Save the output EDID to a

custom slot

View EDID native resolution

Example:

Export EDID file

Import EDID file

! In

EX!,X1$NI}

EX!NI}

EAX!*X2!

EAX!

ESX@*X2!

ENX2!

EdidN013*1280x768 @59.87Hz

EEX2!

EIX2!

Response (Switcher to Host)

X!]

X#]

Verbose modes 2 and 3:

VtypX!*

NmiX!,

X1$]

}

EDID

}

EDID

}

EdidAX!*

X2!]

}

EdidSX@*

nnnnxnnnn•@nn.nnHz

Verbose modes 2 and 3:

EdidN

,<filename>EDID

EdidE

,<filename>EDID

EdidI

•All

]

X#]

X1$]

X2!]

X2!

* nnnnxnnnn•@nn.nnHz

}

X2!]

}

X2!]

Additional Description

Select input X!. View the current input.

View video format X# of input X!.

Set name View name

Assign EDID View EDID Save the EDID of output X@ to

NOTE: For this command,

Show the resolution and refresh rate of EDID

Export EDID Import EDID

X1$

for input X!.

X1$

assigned to input X!.

X2!

to input X!.

X2!

for input X!.

be 201 through 205 only.

X2!

to <filename>.

X2!

from <filename>.

X2!

can

NOTES:

• For the Import EDID ﬁle command,

• <Filename> can optionally be a full path name. The EDID ﬁle format is .bin, with 128 or 256 bytes of binary data.

• Exporting a default EDID (

KEY:

= Input selection

X2!

value of 10 through 76) results in HDMI with LPCM-2Ch audio EDID being exported.

X2!

can be 201 through 205 only.

1 = DisplayPort input 1 (all models) 2 = HDMI or DVI input 2 (all models) 3 = HDMI or DVI input 3 (all models) 4 = HDMI or DVI (standard and DO), TP (DI and DI/DO)

= Output

1 = TP Output 1A (IN1804 DO and DI/DO)

HDMI output 1A (IN1804 and IN1804 DI)

2 = HDMI output 1B

= Input digital video format (view only)

X1$

= Input name (text label)

X2!

= EDID emulation

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 60

0 = No input signal detected, 1 = DVI, 2 = HDMI, 3 = DisplayPort

Can contain up to 32 characters, excluding , (comma) ,*, and |. See the input EDID table on page 53.

Command ASCII Command

(Host to Switcher)

Response (Switcher to Host)

Input Configuration (continued)

Auto-Image

Execute

Execute and fill

Execute and follow

HDCP Authorize

NOTE: DP Input 1 is fixed with HDCP Authorize enabled and cannot be configured.

1*0A Img1*0

1*1A Img1*1

1*2A Img1*2

]

Additional Description

Execute an Auto-Image for the current input (follows the current aspect ratio).

Execute an Auto-Image and fill the output raster.

Execute an Auto-Image and maintain the aspect ratio of the current input.

HDCP authorized Query HDCP authorized

status

Input Aspect Ratio (per input)

Set for fill

Set to follow

View aspect setting

Active Pixels and Lines

View active pixels

View active lines

3:2, 2:2, and 24:1 Film Mode Detection

Auto

Off View film mode setting

EEX!*X1)

EEX!

EX!

HDCP

*1ASPR

*2ASPR

ASPR

APIX

ALIN

*1FILM

*0FILM

FILM

HDCP

}

HdcpEX!*

X1)]

AsprX!*1

AsprX!*2

X3(]

X*]

Verbose modes 2 and 3:

ApixX!*

X*]

X(]

Verbose modes 2 and 3:

AlinX!*

X(]

FilmX!*1

FilmX!*0

X1)]

]

Configure HDCP Authorize for input X!. View HDCP Authorized setting for input

Set input X! to always fill the entire output raster.

Set input X! to maintain its current native aspect ratio.

View current aspect ratio setting input X!.

View active pixels X* on input X!.

View active lines X( on input X!.

Enable automatic film mode detection for input X! (default).

Disable film mode detection for input X!. View the film mode setting for input X!.

X3(

for

KEY:

= Input selection

= Active pixels

= Active lines

X1)

= On or Off status

X3(

= Aspect ratio setting

1 = DisplayPort input 1 (all models) 2 = HDMI or DVI input 2 (all models) 3 = HDMI or DVI input 3 (all models) 4 = HDMI or DVI (standard and DO models)

TP (IN1804 DI and DI/DO) Response is four digits, padded with zeros.

Response is four digits, padded with zeros.

0 = Off or disabled 1 = On or enabled (default)

1 = Fill — Each input rate fills the entire output raster (default) 2 = Follow — Each input rate is displayed with its native aspect

ratio.

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 61

Command ASCII Command

(Host to Switcher)

Input Configuration (continued)

Auto-input Switch Mode

Set the auto-input switch mode View auto-input switch mode

EX3)

AUSW

}

AUSW

} X3)]

Response (Switcher to Host)

X3)]

Ausw

Additional Description

Set the auto-input switch mode to

View current auto-input switch mode

X3)

Set user priority order for auto-input switch mode 1

NOTE: The Set Priority command returns an E13 error code unless the correct number of

View mode 1 priority order

Set timeout

View timeout

KEY:

X3)

= Auto-input switch mode

X3!

= Input number for setting user priority

X3@

= Auto-input switch timeout

EPX3!•X3!•X3!•X3!

ETX3@

} X3!•X3!•X3!•X3!]

P AUSW

}

AUSW

}

TAUSW

}

AUSW

X3!•X3!•X3!•X3!]

AuswP

X3@]

AuswT

X3@]

0 =

Disabled — Manual switching (default)

1 =

User-defined priority mode —

input to which the user assigns priority. If no priority is assigned, the switcher selects the active input with the lowest number.

2 =

Last connected mode —

Arrange input numbers in user priority order.

Set the input priority switching order, highest priority (ﬁrst) to lowest (last).

X3!

variables are entered.

View the order in which the inputs will be selected in auto-input switch mode 1 (highest to lowest priority). Set the amount of time without video to switch to the previous input. View the auto-input switch timeout duration in seconds.

The switcher selects the

1 = input 1, 2 = input 2, 3 = input 3, 4 = input 4

Amount of time without video that elapses before switching to the input with the next priority.

1 through 500 (in 1-second increments, default = 3 seconds) 0 =

Immediately switch to the input with the next priority if the current input is removed.

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 62

Command ASCII Command

(Host to Switcher)

Picture Adjustments

Freeze

Enable Disable View

KEY:

X1)

= On or Off status

Contrast

Set a specific value

Increment contrast value

Decrement value

View contrast

Brightness

Set a specific value

Increment value

Decrement value

View

1*1F Frz1*1 1*0F Frz1*0 1F

EX!*X1%

EX!

EX!*X1%

EX!

Detail Filter

Set detail level Increment value Decrement View

E1*X1% E

1+HDET

1–HDET

1HDET

Response (Switcher to Host)

X1)]

0 = Off or disabled 1 = On or enabled (default)

}

CONT

+CONT} ContX!*

– CONT}

} X1%]

CONT

BRIT} BritX!*

}

+ BRIT

–BRIT}

} X1%]

BRIT

}

HDET

} }

ContX!*

BritX!*

Hdet1* Hdet1* Hdet1*

} X1%]

] ]

X1%]

X1%] X1%] X1%]

Additional Description

Freeze the output on the screen. Unfreeze the output. Show the freeze status of the output.

Set the range of image light and dark values (contrast level) to

Increment contrast level

Decrement contrast level

View the current contrast level for input

Set the intensity of video light on the screen (brightness level) to current input.

Increment brightness level

Decrement contrast level

View the current brightness level for input X!.

Specify the detail (sharpness) level to Increment the detail level.

Decrement the detail level. View current detail setting

input.

X1%

for input

X1%

for input

X1%

for input

for the

for input

for the

X1%

KEY:

= Input selection

X1%

= Picture adjustment

1 = DisplayPort input 1 (all models) 2 = HDMI or DVI input 2 (all models) 3 = HDMI or DVI input 3 (all models) 4 = HDMI or DVI (standard and DO models)

TP (IN1804 DI and DI/DO)

0-127 (default = 64)

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 63

Command ASCII Command

(Host to Switcher)

Response (Switcher to Host)

Additional Description

Picture Adjustments (continued)

Horizontal Position (Shift) — Image

Specific value

Increment value Decrement value View

Vertical Position (Shift) — Image

Specific value

Increment value Decrement value View

Horizontal Size — Image

Specific value

Increase horizontal size Decrease horizontal size View

Vertical Size — Image

Specific value

Increase vertical size Decrease vertical size View

Compound Image Position and Size — Image

Specific value

View

I1*

I1+HCTR

I1–HCTR

I1HCTR

I1*

I1+VCTR

I1–VCTR

I1VCTR

I1*

I1+HSIZ

I1–HSIZ

I1HSIZ

I1*

I1+VSIZ

I1–V SIZ

I1VSIZ

X1^

X1&

}

HCTR

}

} X1^]

}

VCTR

}

} X1^]

}

HSIZ

}

} X1&]

}

VSIZ

}

} X1&]

E1,X1^*X1^*X1&*X1&

} X1^*X1^*X1&*X1&]

1XIMG

HctrI1*

VctrI1*

HsizI1*

VsizI1*

}

XIMG

Ximg1,

X1^]

X1&]

X1^*X1^*X1&*X1&]

Set the horizontal position of the image in relation to the top left corner of the output raster to

Shift the image right 1 pixel. Shift the image left 1 pixel. View image horizontal centering value

X1^

Set the vertical position of the image in relation to the top left corner of the output raster to

Shift the image down by 1 line. Shift the image up by 1 line.

View image vertical centering value

Set the horizontal size (width) of the image to

Widen the image by 1 pixel. Narrow the image by 1 pixel.

View image horizontal size

Set the vertical size (height) of the image

X1&

Make the image taller by 1 line. Shorten the image by 1 line.

View image vertical size

Set the horizontal (x) and vertical (y) position (

X1&

size ( View x, y position and x, y size for

image.

X1^

X1&

X1^

) and horizontal and vertical

) for the image.

X1^

KEY:

X1^

= Horizontal and vertical position (shift)

X1&

= Horizontal and vertical size

H = -4096 to +4096, V = -2160 to +2160

The response is five digits, padded with zeros and preceded by + or –.

H = 10 to 8192 V = 10 to 4320

The response is five digits, padded with zeros.

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 64

Command ASCII Command

(Host to Switcher)

Output Configuration

Output Video Mute

Mute output video Unmute output video Mute video and sync View mute status

Video Mute — All Outputs

Mute all outputs Mute sync and video Unmute video and sync View global mute

NOTE: Video is unmuted (default) after a power cycle.

KEY:

= Output

X4@

= Output video mute

*1B

*0B

*2B

Response (Switcher to Host)

X@*1]

Vmt

X@*0]

Vmt

X@*2]

Vmt

X4@ ]

]

Vmt1

]

Vmt2

]

Vmt0

X4@•X4@]

Verbose modes 2 and 3:

X4@•X4@]

Vmt

1 = TP Output 1A (IN1804 DO and DI/DO)

HDMI output 1A (IN1804 and IN1804 DI)

2 = HDMI output 1B 0 = Unmute video

1 = Mute video to black screen 2 = Mute video and sync

Additional Description

Mute video output X@. Unmute video output X@. Mute video and sync on output X@. View video mute status

Mute video on all outputs. Mute video and sync on all outputs. Display all outputs.

View video mute status outputs.

X4@

for output X@.

X4@

of both

Output Rate

Set output rate

View output rate

KEY:

X2!

= Output rate See the Input EDID table on page 53 for the

E1*X2!

1RATE

RATE

}

Rate1*

X2!]

Select output resolution and refresh rate

X2!

View the selected output rate.

X2!

rates.

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 65

Command ASCII Command

(Host to Switcher)

Output Configuration (continued)

TMDS Output Format

Set output format

EX@*X4*

VTPO

}

Response (Switcher to Host)

VtpoX@*

X4*]

Additional Description

Set the colorspace and format for HDMI output X@ to

X4*

View format setting

View auto output format

KEY:

X4*

EX@

= Output

= HDMI output format and colorspace

VTPO

*VTPO

}

X4*]

View the current output colorspace and format for output X@.

View the output format when set to 0 (Auto). (Responses can be 1 through 9.)

X4*

1 = TP Output 1A (IN1804 DO and DI/DO)

HDMI output 1A (IN1804 and IN1804 DI)

2 = HDMI output 1B 0* = Auto — HDMI RGB Full to a CEA sink, DVI to a non-CEA sink***

1* = DVI — RGB 444, 0-255, no audio, no InfoFrames. Valid for output

rates up to 165 MHz.

2 = HDMI RGB Full — RGB 444 3 = HDMI RGB Limited — RGB 444 5 = HDMI YUV 444 Limited — YUV 444 7 = HDMI YUV 422 Limited — YUV 422 9** = HDMI YUV 420 Limited — Used for transmitting 4K @ 60 Hz at a

4K @ 30 Hz character rate.

* If the IN1804 is in DVI mode and a rate greater than 165 MHz is

selected, the HDMI output defaults to HDMI RGB 444 Full.

** 420 formats are available only when the current HDMI output resolution

is 4K/UHD @ 50, 59.94,or 60 Hz and use half the TMDS character rate.

If 64-66 Hz or 74-76 Hz,

response is sent.

X4*

is set to 9 and the output rate is changed to a rate other than

X4*

is automatically set to 0, and an SIS

*** DVI mode applies only up to a 165 MHz pixel clock.

Power Save

Set power save mode

View power save mode

NOTE: If the unit overheats, it enters PSAV mode 9 (functionally equivalent to mode 1) and sends an unsolicited message

to all ports. All normal PSAV mode 1 functionality applies when the unit is in mode 9. You cannot set the unit to mode 9 manually, it enters that mode only when overheated.

KEY:

X6@

= Power save mode

EX6@

PSAV

}

PSAV

Psav

} X6@]

0 = Full power mode (default)

X6@]

Set the power save mode to

View the current power save mode.

X6@

1 = Lowest power state — TP remote power and TP links are

disabled. Input LEDs 1 through 4 cycle at a 500 ms interval.

2 = Lower power mode — TP links remain active, including remote

power, and Ethernet to RS-232 insertion. Input LEDs 1 through 4 cycle at a 500 ms interval.

9 = Low power state due to over-heating (query-response only)

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 66

Command ASCII Command

(Host to Switcher)

Output Configuration (continued)

Screen Saver

Set mode

M1*

X4)

SSAV

}

Response (Switcher to Host)

SsavM1*

X4)]

Additional Description

Set the screen saver mode for the output to

X4)

View mode

Set screen saver duration before output sync timeout

View screen saver duration before output sync timeout

View screen saver status

OSD Menu Duration

Set OSD duration View OSD duration

KEY:

X2*

= Output sync or OSD menu timeout

M1 SSAV

T1*

T1SSAV

S1SSAV

EX2*

MDUR

} X4)]

X2*

SSAV

}

Ssav T1*

X2*]

} X6#]

Verbose modes 2 and 3:

Ssav S 1*

}

MDUR

Mdur

} X2*]

Number of seconds before output sync or the OSD menu times out.

X2*]

X6# ]

X6#

X4)

for the

X2*

View the screen saver mode output. Default = 1 (black).

Set the screen saver timeout duration to

X2*

seconds. Default = 501 (never).

View screen saver timeout duration

View screen saver status

Set the OSD menu duration to View the OSD menu duration.

1 through 500 seconds, in 1-second increments 0 = Output sync is instantly disabled with no active video from the

selected input (not allowed for MDUR command).

60 = Default for the MDUR command. 501 = Output sync never times out (default for SSAV command).

X4)

= Screen saver mode

1 = Black screen (default) 2 = Blue screen with OSD text 3 = User image on black screen

X6#

= Screen saver status

0 = Active input detected, timer not running 1 = No active input, timer running, output sync still active 2 = No active input, timer expired, output sync disabled

Logos

Logo Assignment

Select image file

EAX4#

,lename LOGO

}

LogoA

X4#

,lename

]

Assign logo filename to logo slot

NOTES:

• The lename must consist of a full path name if the ﬁle is not in the /Graphics directory.

• The ﬁle name must include the extension (.png, .bmp, .jpg, .gif, .tif, and so on).

• If the ﬁle is not in the /Graphics directory, include a / before the ﬁlename to indicate that it is in the root directory.

Example: /Logo123.bmp.

View selected logo file

KEY:

X4#

= User logo number

EAX4#

LOGO

}

lename

]

1 through 16. The response is three digits padded with leading zeros.

View the logo filename assigned to logo

X4#

101 = No signal, screen saver user logo or image is displayed. 201 = User HDCP logo displayed

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 67

X4#

Command ASCII Command

(Host to Switcher)

Logos (continued)

Clear Logo

Clear logo slot

Logo Name

Write name

View logo name

Logo Availability

View logo availability

NOTE: The first 16 digits denote logo images, the digit immediately following the first * indicates the screen saver logo,

and the last digit (following the second *) indicates the HDCP logo.

Logo On or Off

Disable logo

Enable logo

View logo status

Horizontal Shift (Logo)

Specific value

Increment value Decrement value View

Vertical Shift (Logo)

Specific value

Increment value Decrement value View

X3*

ELX4#,X1$

ELX4#

Q LOGO} <16 characters>*<1 character>*<1 character>

E1*0LOGO

E1*

E 1LOGO

ELX4#*X1^

ELX4#

ELX4#*X1^

ELX4#

X4#

PRST} PrstX3*

}

UNAM

} X1$ ]

UNAM

}

X4#

LOGO

}

HCTR

}

+HCTR – HCTR

HCTR

+VCTR – VCTR

VCTR

}

VCTR

}

Response

Additional Description

(Switcher to Host)

Unam L

X4#]

X4#,X1$]

Clear logo slot to [unassigned].

Assign logo name

View the name assigned to logo

X4#

and change its name

X1$

to logo

]

Verbose modes 2 and 3:

Logo Q <16 characters>*<1 character>*<1 character>

1 = saved, 0 = empty

LogoE1*0

LogoE1*

X4#]

X4#

HctrL

X4#*X1^]

HctrL

X4#*X1^]

HctrL

X1^]

X4#*X1^]

VctrL

X4#*X1^]

VctrL

X4#*X1^]

VctrL

X1^]

]

X4#]

X1^]

Disable display of the current full screen notiﬁcation logo.

Display the logo assigned to slot

View logo slot enabled.

Set the horizontal centering of logo

X1^

Shift logo right 1 pixel. Shift logo left 1 pixel.

View horizontal centering value

Set the vertical centering of logo

X1^

Shift logo down 1 pixel. Shift logo up 1 pixel.

View vertical centering value

X4#

for which the logo is

X4#

]

X1^

X4#

X1^

X4#

KEY:

X1$

= Logo name (text label)

X1^

= Horizontal or vertical position (shift)

X4#

= User logo number

Up to 32 characters, excluding , (comma) ,*, and |. The position is ± the horizontal or vertical position of the highest output

resolution.

• Response is five digits, padded with zeros and preceded by + or –.

• The logo vertical position allows up to ± 2400.

1 through 16. The response is three digits padded with leading zeros. 101 = No signal, screen saver user logo or image is displayed. 201 = User HDCP logo displayed

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 68

Command ASCII Command

(Host to Switcher)

Logos (continued)

Logo Key Effect

Disabled Transparency RGB Key Level Key Alpha Key View setting

Logo Key Effect Level

Speciﬁc value

View setting

KEY:

X1^

= Horizontal or vertical position (shift)

X4#

= User logo number

X7@

= Key effect variable

E X4# E X4# E X4# E X4# E X4# E X4#

E X4#*X7@*X7#

EX4#*X7@

X7#

= Key effect setting

X7$

= Key effect

*0 LKEF *1 LKEF *2 LKEF *3 LKEF *4 LKEF

LKEF

} } } } }

} X7$]

*LKEY

}

LKEY

Response

Additional Description

(Switcher to Host)

X4#*0]

Lkef

X4#*1]

Lkef

X4#*2]

Lkef

X4#*3]

Lkef

X4#*4]

Lkef

Verbose modes 2 and 3:

X4#*X7$]

Lkef

Disable key effect for logo Enable transparency for logo Enable RGB key for logo Enable Level key for logo Enable Alpha key for logo View current key effect

X4#

X7$

X4#

for logo

X4#

}

X4#*X7@*X7#]

Lkey

X7#]

The position is ± the horizontal or vertical position of the highest output resolution.

• Response is five digits, padded with zeros and preceded by + or –.

• The logo vertical position allows up to ± 2400.

Set the level for key effect variable

X7#

for logo

View level

X7@

for logo

X4#

X7#

set for key effect variable

X4#

X7@

1 through 16. The response is three digits padded with leading zeros. 101 = No signal, screen saver user logo or image is displayed. 201 = User HDCP logo displayed

X7$

= 3)

= 1)

X7$

= 2)

0 = Transparency (available only when 1 = Red of RGB key (available only when 2 = Green of RGB key (available only when 3 = Blue of RGB key (available only when 4 = Level key (available only when

0 through 255 0 = Disable, 1 = Transparency, 2 = RGB key, 3 = Level key,

4 = Alpha key

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 69

Command ASCII Command

(Host to Switcher)

Presets

Input Presets

Values Saved in Input Presets

Preset Name Detail Audio Gain and Attenuation H Image Position Film Mode Detection V Image Position Contrast H Image Size Brightness V Image Size

Response (Switcher to Host)

Additional Description

Recall preset

Save preset

Delete preset

Input Preset Name

Write name

View name

NOTE: Unsaved input presets are shown as [unassigned]. To restore a default input preset name (with the format

X2^

X2*

PRST

E2*X2^,X1$

E2*X2^

PNAM

}

PNAM

} X1$]

Input Preset nnn with leading zeros), enter a single space character for

saved presets.

Auto Memories

Enable

EX!

*1AMEM

}

Disable

View setting

EX!

1 AMEM

*0 AMEM

}

} X1) ]

X2^]

2Rpr

X2^]

2Spr

PrstX2*

Pnam2*

AmemX!*1

AmemX!*0

Verbose modes 2 and 3:

AmemX!*

X2^]

X2^,X1$]

]

X1) ]

Recall input preset input.

Save input preset input.

Clear input preset to [unassigned].

Set the name of input preset View the name (

X1$

. These entries are valid only for previously

Set Auto Memory to On (default state) for input X!. Settings are automatically stored as presets. Previous settings for the incoming signal are recalled.

Set Auto Memory to Off for input X!. Manual recall of input presets is required to configure the input.

View current Auto Memory status for input X!.

X2^

for the selected

X2^

for the selected

X2^

and set its name

X1$

) of input preset

X2^

X1)

X1$

X2^

. .

KEY:

X1)

= On or off, enable or disable

X1$

= Preset name (text label)

X2^

= Input preset number

0 = Off or disabled 1 = On or enabled

Up to 32 characters, excluding , (comma) ,*, and |.

1 through 128. Response is three digits, padded with zeros.

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 70

Command ASCII Command

(Host to Switcher)

Audio Configuration

Audio Input Format

Set input audio format View audio input format

NOTE: Digital auto modes 4 and 5 detect and use embedded digital audio when present. If digital audio is not detected,

analog audio is used.

KEY:

= Input selection

X5@

= Audio input format

EIX!*X5@

EIX!

}

AFMT

} X5@]

AFMT

Response

Additional Description

(Switcher to Host)

AfmtI

X!*X5@]

Set the audio format for input X! to View audio input format

X5@

for input X!.

X5@

1 = DisplayPort input 1 (all models) 2 = HDMI or DVI input 2 (all models) 3 = HDMI or DVI input 3 (all models) 4 = HDMI or DVI (standard and DO models)

TP (IN1804 DI and DI/DO)

0 = None (input muted) 1 = Analog input — Configures input EDID with no audio support.

Analog audio from the 5-pole captive screw input is passed to the 5-pole captive screw analog output and embedded into the HDMI output.)

2 = LPCM-2Ch — Configures input EDID for LPCM-2Ch support.

Passes all digital audio input signals to the HDMI outputs. If LPCM-2Ch audio is present it is also de-embedded to the 5-pole captive screw analog output.

3 = Multi-Ch — Configures input EDID for Multi-Ch support. Passes

all digital audio input signals to the HDMI outputs. If LPCM-2Ch audio is present it is also de-embedded to the 5-pole captive screw analog output.

4 = LPCM-2Ch Auto (default) — Configures input EDID for LPCM-2Ch

support. Passes all digital audio input signals to the HDMI outputs. If LPCM-2Ch audio is present it is also de-embedded to the analog 5-pole captive screw output. If no embedded audio is present on the input the IN1804 passes analog audio from the 5-pole captive screw input.*

5 = Multi-Ch Auto — Configures input EDID for Multi-Ch support.

Passes all digital audio input signals to the HDMI outputs. If LPCM-2Ch audio is present it is also de-embedded to the analog 5-pole captive screw output. If no embedded audio is present on the input, the IN1804 passes analog audio from the 5-pole captive screw input.

*On Input 4 of the IN1804 DI and DI/DO, when set to DTP mode the switcher uses the analog audio source connected to the DTP Tx instead of the IN1804 DI or DI/DO rear panel captive screw input. When Input 4 is set for XTP mode, analog and auto audio modes are not available.

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 71

Command ASCII Command

(Host to Switcher)

Audio Configuration (continued)

Audio Output Mute

Enable global audio mute Disable global audio mute Enable or disable discrete

mute View discrete mute status

View global mute status

NOTE: Audio mute settings persist after a power cycle.

KEY:

X1)

= On or off, enable or disable

X7!

= Audio output mode

X7!*X1)

X7!

Z Amt

Response

Additional Description

(Switcher to Host)

]

Amt1

]

Amt0

X7!*X1)]

X1) ]

Verbose modes 2 and 3:

X1) ]

Amt

X1)•X1) ]

Verbose modes 2 and 3:

X1)•X1) ]

Amt

Mute all audio outputs. Unmute audio on all outputs.

Set mute of audio output

View mute status

X7!

View audio mute status outputs.

X7!

X1)

of audio output

X1)

of both

X1)

0 = Audio unmuted (default), 1 = Audio muted 1 = Local and remote (DTP only) 5-pole captive screw analog audio

output connectors (applies to IN1804 DO only)

2 = Embedded TMDS audio output

Audio Input Gain and Attenuation (analog audio only)

Set audio input gain or attenuation

Increment Decrement View gain

Volume

Set volume Increment volume Decrement volume View volume

Audio Output Format

Set audio output format View audio output format

KEY:

X5)

X5!

X5$

= Audio output volume

= Audio output format

= Audio input gain or attenuation

X5$

G Aud

-G

X5)

V Vol

–V

EO*X5!

O1AFMT

Aud

X5$]

Vol

X5)]

}

AFMT

AfmtO1*

} X5! ]

-100 to 0 in 1 dB steps. Default = -10 dB.

Example: -100 = -100 dB and 0 = 0 dB.

1 = Dual mono 2 = Stereo (default)

-18 through +24 dB

X5$]

X5$ ]

X5) ]

X5!]

Set the audio gain or attenuation on the analog input to

Increase audio level by 1 to Decrease audio level by 1 to

View audio gain level of the current input.

Set the output volume to Increase the output volume by 1.

Decrease the output volume by 1.

View current volume setting

Set the audio output format to View audio output format

X5$

X5)

X5!

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 72

Command ASCII Command

(Host to Switcher)

Response (Switcher to Host)

Additional Description

Audio Configuration (continued)

Configure Playback

Set file-to-slot association

EAX8)

,<lename>CPLY

}

CplyA

X8)

,<lename>

Assign a file to slot can include an optional path.

]

X8)

. <filename>

NOTES:

• <lename> must include the full path name if the ﬁle is not in the /Audio directory.

• The ﬁle name must include the extension. Example: song123.mp3.

• If the ﬁle is not in the /Audio directory, a / must be included in front of the name to indicate it is in the root directory.

Example: /song123.mp3.

Clear file-to slot-association View file-to-slot association Set repeat mode

View repeat mode Set delay

View delay

Write name

NOTE: Saving a file name as a single space repopulates the field with the default name.

View name

Set file playback volume

View file play back volume

NOTE: If the master output volume V setting (see the Volume commands on the previous page) does not match the file

playback level, the volume adjusts to the CplyV setting during playback. It returns to the previous program audio volume and mute settings when playback completes.

EAX8)

,•CPLY

CPLY

EMX8)*X8#

EMX8)

CPLY

EDX8)*X8$

EDX8)

CPLY

ENX8)*X1$

ENX8)

EVX5)

CPLY

} X5)]

VCPLY

}

CPLY

}

CplyA

<lename>

CplyM

} X8#]

}

CPLY

CplyD

} X8$]

}

CPLY

CplyN

} X1$]

}

CplyV

X8),•]

]

X8)*X8#]

X8)*X8$]

X8)*X1$]

X5)]

X8)

X8$

X8)

set

X8)

Remove audio file from slot View the audio file in slot

Set the audio playback repeat mode for

X8)

X5)

X8)

X8#

X8)

X1$

to the file in slot

slot View the repeat mode set for slot

Set the number of seconds the IN1804 waits before repeating playback of the file in slot

View number of seconds delay for slot

Assign name

View the name assigned to the file in slot

Set global minimum playback volume level

View the current global minimum volume level.

KEY:

X1$

= Playback text label

X5)

= Audio output volume

X8)

= Playback slot number

X8#

= Repeat play

X8$

= Playback delay

Up to 32 characters, excluding , (comma) ,*, and |.

-100 to 0 in 1 dB steps. Default = -10 dB. 1 through 16

Highest priority for playback is slot 1, descending to lowest priority 16.

0 = No repeat, 1 = Repeat

Number of seconds to wait before repeating playback on the current audio file, if repeat has been enabled.

1 through 300 (1-300 seconds delay between repeats). 0 = No delay

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 73

Command ASCII Command

(Host to Switcher)

Response (Switcher to Host)

Additional Description

Audio Configuration (continued)

Transport

Start and stop playback

EX8)*X8@

PLAY

}

Play

X8)*X8@]

X8)*0]

Start or stop the audio file playback. Unsolicited message sent when

playback of file

X8)

is complete.

NOTE: Audio file slots are in order of priority, highest (slot 1) to lowest (slot 16). During playback, if a higher priority slot

is requested, it takes precedence. The current slot stops playing and the selected higher priority slot begins. If a lower priority slot is requested during playback of a higher priority one, an E22—Busy error message is returned.

View slot status

Global playback status

KEY:

X8)

X8@

Advanced Configuration

Test Pattern

Set test pattern E View test pattern E

Switch Effects

Cut

Seamless cut

View setting Set output switch effect View setting

KEY:

X2@

X4%

= Playback slot number

= Playback state

= Test patterns

= Video switch effect

EX8)

PLAY

1TEST

U1*0SWEF

U1*1SWEF

U1SWEF

O1*

O1SWEF

} X8@]

PLAY

} X8)]

Verbose modes 2 and 3:

Play0*0 Play

]

X8)*1]

View playback status of the audio file in

X8)

slot View the slot (

No slot is currently playing. Playback is active on slot

X8)

) currently playing.

X8)

1 through 16

Highest priority for playback is slot 1, descending to lowest priority 16.

0 = Stop or stopped, 1 = Play or playing

X2@

TEST

}

Test1*

X2@]

Select a test pattern (

X2@

} X2@] View the currently selected test pattern.

Set the upstream video switch effect to Off. Set the switch effect to seamless cut (default): the last frame of video freezes on the screen, then immediately cuts to the newly selected input.

Show current switch effect setting Set the output switch effect to

View the current output switch effect.

X4%

}

SWEF

}

SwefU1*0

SwefU1*1

X4%]

SwefO1*

X4%]

]

X4%]

0 = Off (default), 1 = Crop, 2 = Alternating pixels, 3 = Crosshatch, 4 = Color Bars, 5 = Crayscale, 6 = Audio test (crop pattern with

orbiting text AUDIO TEST and outputting pink noise at LPCM-2Ch, 48 Hz, 24-bit)

0 = Cut through black — The input instantly cuts to black, then cuts

to the newly selected input with no fading.

1 =

Fade through black —

newly selected input fades in.

2 =

Seamless fade* (default) —

the previous input while the newly selected input fades in. 3 = Seamless cut* — The last frame of video freezes on the screen, then cuts to the newly selected input.

*See Input Switch Effect on page 39 for information on exceptions regarding Seamless effects.

The input fades to black before the

Displays a final frozen frame of

X4%

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 74

Command ASCII Command

(Host to Switcher)

Advanced Configuration (continued)

HDCP Output Mode

Set HDCP mode

View HDCP mode

HDCP Notification

Set HDCP notification View HDCP notification

Video Signal Presence

View signal presence

Front Panel Lock (Executive Mode)

Enable lock (mode 1) Enable lock (mode 2)

Disable lock mode

View lock mode status

KEY:

ESX@*X4^

ESX@

HDCP

X4&

N1*

N 1 HDCP

} X6!*X6!*X6!*X6!]

0LS

}

HDCP

} X4^]

}

HDCP

} X4&]

Response

Additional Description

(Switcher to Host)

HdcpSX@*

HdcpN1*

Verbose modes 2 and 3:

IN00•

Exe1

Exe2

Exe0

X2(]

X4^]

X4&]

Set the HDCP output mode output X@. View the HDCP output mode for output

Set the HDCP notification to View the HDCP notification selection.

View video signal status through 4.

X6!*X6!*X6!*X6!]

]

View current lock mode status

Lock all front panel controls. Lock all front panel functions except

input switching. Unlock all front panel controls. All front

panel adjustments can be made.

X4^

X4&

X6!

for inputs 1

X2(

for

= Output

1 =TP Output 1A (IN1804 DO and DI/DO)

HDMI output 1A (IN1804 and IN1804 DI)

2 = HDMI output 1B

X2(

= Front panel lock (executive mode)

0 = Off or disabled (front panel controls fully accessible) (default). 1 = Mode 1 — Complete front panel lockout 2 = Mode 2 — Input switching only

X4^

= HDCP output mode

0 = Off — Disable all HDCP authentication and encryption attempts. 1 = Follow input (default). 2 = Always encrypt. 3 = Follow input (with continuous authentication trials). 4 = Always encrypt (with continuous authentication trials).

X4&

= HDCP notification mode

0 = Black screen — Notification disabled (mute output) 1 = Green screen with OSD bug (orbiting message) (default) 2 = User image with black screen background

NOTE: A green screen with HDCP Content orbiting text or an HDCP user logo is visible only if a single non-

compliant display is attached, or if both attached displays are non-HDCP compliant. If the IN1804 is connected to one compliant and one non-compliant display at the same time, only a green or black screen with no text or logo appears on the non-compliant display.

X6!

= Video signal status

0 = Video, TMDS, or DP signal not detected 1 = Video, TMDS, or DP signal detected

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 75

Command ASCII Command

(Host to Switcher)

Advanced Configuration (continued)

Contact Port Status

View individual contact port status

View status of all contact ports

Tally Port Status

Set individual port state

Set states of all ports

View individual tally port status

View status of all tally ports

KEY:

X7%

= Contact/Tally port number

X7^

= Contact/Tally port state

Twisted Pair Protocol

Set input TP protocol (IN1804 DI and DI/DO only) View input TP protocol

Set output TP protocol (IN1804 DO and DI/DO only) View output TP protocol

DTP Remote Power Parameters

ATTENTION:

• Ensure that the correct remote DTP power setting is used. Sending DTP2 power to a DTP (series 1) endpoint can

result in hardware damage. Enable DTP2 power only to a compatible DTP2 endpoint.

• Assurez-vous de bien régler l’alimentation DTP à distance. L’envoi d’une alimentation DTP2 à un point de connexion

DTP (ancienne gamme) peut provoquer des dommages matériels. Assurez une alimentation DTP2 uniquement vers un point de connexion DTP2 compatible

Set input remote power (IN1804 DI and DI/DO only) View input remote power

Set output remote power (IN1804 DO and DI/DO only) View output remote power

KEY:

EX7%

CNTC

EX7%*X7^

EX7^

EX7%

TALY

I4*

I4HDBT

O1*

O1HDBT

I4*

I4RPWR

O1*

O1RPWR

} X7^]

CNTC

} X7^

}

TALY

...

TALY

X7^

}

TALY

} X7^]

} X7^

X6&

HDBT

}

} X6&]

X6&

HDBT

}

} X6&]

X6^

RPWR

}

} X6^]

X6^

RPWR

}

} X6^]

Response (Switcher to Host)

Verbose modes 2 and 3:

X7%*X7^]

Cntc

X7^]

•...

X7%*X7^]

Taly

X7^

Taly

•...

X7^]

...

X7^]

1 through 7 0 = Open, 1 = Closed

HdbtI4*

HdbtO1*

RpwrI4*

RpwrO1*

X6&]

X6^]

Additional Description

View the contact status

X7%

port

View status

Set the tally output state for port

X7^

Set all tally ports at once to port state

X7^

View the tally status

X7%

View status

Set the TP protocol for input 4 to

View current TP protocol setting for input

4. Set the TP protocol for output 1A to

View current TP protocol setting for output 1A.

Set the remote power on input 4 to

View remote power setting for input 4. Set the remote power for output 1A to

X6^

View remote power setting for output 1A.

X7^

of all contact ports.

X7^

of all tally ports.

X7^

of contact

X7^

of contact port

X7%

X6&

X6^

= DTP remote power status

X6&

= DTP protocol setting

0 = No remote power (default) 1 = DTP 2 = DTP2

0 = DTP format (default), 1 = XTP format, 2 = HDBaseT format

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 76

Command ASCII Command

(Host to Switcher)

Advanced Configuration (continued)

Resets

NOTE: The remote power state for HDBT/XTP mode is forced to Off (0). Attempts to change the power setting while the

unit is not in DTP mode result in an E14 (Not valid for current conﬁguration) error message.

System reset (soft reset)

Absolute system reset

Absolute system reset, retain IP settings

ZXXX

ZQQQ

EZY}

Serial Port Configuration

Set serial port parameters

View the serial port parameters

Set UART start point

View UART start point

Send commands over RS-232 insertion

KEY:

EX5&*X5*,X5(,X6),X6!CP}

EX5&CP} X5*,X5(,X6),X6!]

EX6%MD}

EMD}

+snds

command

}

X5&*X3#}

Response (Switcher to Host)

]

Zpx

]

Zpq

]

Zpy

Cpn

X5&

X5*,X5(,X6),X6!]

•Ccp

Verbose modes 2 and 3:

Cpn

Pmd

X5&

X6%]

X5*,X5(,X6),X6!]

•Ccp

X6%]

X5&]

Snds

Additional Description

Reset all device settings to factory defaults. Set all device settings plus DHCP and the IP address to factory defaults.

DHCP = O, IP address =

192.168.254.254.

This command also removes the initial serial number password that is set at the factory and resets it to no password. Same as absolute system reset except that IP address, subnet mask, gateway address, DHCP, and port mapping are not reset.

Set the RS-232 port parameters

X5*, X5(, X6)

X3#

characters from

, and

View port parameters

X6!

of port

Set the port number start point for the over TP Universal asynchronous receivertransmitter (UART). View the port number start point for the over TP UART.

Send a command of port

X5&

to a TP endpoint.

X3#

= Command length

X5&

= Remote port number

X5*

= Baud rate of port

X5(

= Parity

X6)

= Data bits

X6!

= Stop bits

X6%

= UART port start point

Number of characters to be sent

1 = Remote port (3-pole captive screw) 4 = Universal asynchronous receiver-transmitter (UART) on TP input 4

(IN1804 DI and DI/DO only)

9 = UART on TP output 1A (IN1804 DO and IN1804 DI/DO only) 300, 600, 1200, 1800, 2400, 3600, 4800, 7200, 9600 (default),

14400, 19200, 28800, 38400, 57600, 115200 Odd, Even, None (default), Mark, Space (only the first letter is required). 7 or 8 (default) 1 (default) or 2

Start point for UART ports: TP IN4 = TP OUT 1A =

Default = 2000

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 77

X6%

+ 1 (IN1804 DI and IN1804 DI/DO only)

X6%

+ 3 (IN1804 DO and IN1804 DI/DO only)

Command ASCII Command

(Host to Switcher)

Backup and Restore Configuration

Save unit configuration

Restore unit configuration

KEY:

X8%

= Configuration type

NOTE: Configuration files are stored in the directory /nortxe-backup, created on the unit by the Save command.

E1*X8%XF}

E0*X8%XF}

Information Requests

General information

View model name

View unit description

Query firmware version

Query full firmware version

*I VidX!•TypX#•Amt

Q n.nn

*Q n.nn.nnnn

KEY:

= Input selection

= Digital video format

X1)

= On or off, enable or disable

X1#

= Horizontal and vertical frequencies

X3%

= Model name

X4@

= Video output mute

Response

Additional Description

(Switcher to Host)

Cfg1*

Cfg0*

X8%]

Back up the current unit configuration as

X8%

type Restore the saved configuration, type

X8%

to a file on the IN1804.

0 = IP configuration (ip.cfg) 2 = Unit-specific parameters (box.cfg)

X1)

Verbose modes 2 and 3:

Inf00*VidX!•TypX#•Amt

X3%]

Verbose modes 2 and 3:

X3% ]

Inf01*

Seamless•Scaling•Switcher

Verbose modes 2 and 3:

Inf02*Seamless•Scaling•Switcher

]

Verbose modes 2 and 3:

Ver01*n.nn

] ]

Verbose modes 2 and 3:

Bldn.nn.nnnn

]

X4@

•Vmt

X1)

View video input signal type, audio mute status, video mute status, and horizontal and vertical frequencies. View the IN1804 model name.

•Hrt

•Vmt

X1#

X4@

•Vrt

•Hrt

X1#]

X1#

•Vrt

X1# ]

]

View the IN1804 series description. View the firmware version to the second

decimal place.

View the firmware version with its build number.

1 = DisplayPort input 1 (all models) 2 = HDMI or DVI input 2 (all models) 3 = HDMI or DVI input 3 (all models) 4 = HDMI or DVI (standard and DO models)

TP (IN1804 DI and DI/DO)

0 = No signal, 1 = DVI, 2 = HDMI, 3 = DisplayPort 0 = Audio unmuted, 1 = Audio muted

nnn.nn. Response is three digits with two decimal places, padded

with zeros.

IN1804, IN1804 DI, IN1804 DO, or IN1804 DI/DO 0 = Unmute, 1 = Mute to black screen, 2 = Mute video and sync

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 78

Command ASCII Command

(Host to Switcher)

Information Requests (continued)

Query part number

View internal temperature

Set verbose mode

View verbose mode

KEY:

X1@

= Internal temperature

X3$

= Verbose mode (see the verbose mode

command description on page 55 for

more information)

X3^

= Part number

20STAT

EX3$CV}

ECV}

}

Response

Additional Description

(Switcher to Host)

X3^]

Verbose modes 2 and 3:

X3^]

Pno

X1@]

Verbose modes 2 and 3:

20Stat•

Vrb

X1@ ]

X3$]

In degrees Celsius. Response is two digits, padded with a zero.

View unit part number

View unit internal temperature degrees Celsius.

Set the verbose mode to without tagged responses. View the current verbose mode.

X3^

for the model.

X3$

, with or

0 = None (default for LAN connection) 1 = Verbose mode (default for RS-232 and USB connection) 2 = Tagged responses to queries 3 = Verbose mode and tagged responses

IN1804 (standard) — 60-1699-01 or 60-1699-11 IN1804 DI — 60-1699-02 or 60-1699-12 IN1804 DO — 60-1699-03 or 60-1699-13 IN1804 DI/DO — 60-1699-14

X1@

IP Control Port Commands

IP Setup

NOTES:

• Changes made to any TCP/IP settings do not take effect until the reboot network command (

• The following IP address setup commands that are followed by 24 require Administrator permission to enter. Attempts to

issue them without Administrator status result in an E24 (privilege violation) error message.

Set DHCP mode View DHCP mode Set IP address Read IP address Set subnet mask View subnet mask Set gateway IP address View gateway IP address

KEY:

X1)

X8&

X8*

X8(

X9)

= On or off, enable or disable = IP address

= Gateway address = Subnet mask = Hardware (MAC) address

EX1)DH}

EDH}

EX8&CI}

ECI}

EX8(CS}

ECS}

EX8*CG}

ECG}

Idh

X1)]

Ipi

X8&]

Ips

X8(]

Ipg

X8*]

X1)]

X8&]

•

X8(]

•

X8*]

•

Enable or disable DHCP. View the DHCP mode setting.

Set the IP address to View the current IP address.

Set the subnet mask to View the subnet mask setting.

Set the gateway IP address to View the gateway IP address setting.

2BOOT

X8&

}

) is issued.

X8(

X8*

0 = DHCP disabled (default), 1 = DHCP enabled

Format nnn.nnn.nnn.nnn (192.168.254.254 = default) Leading zeros in each of the four octets are optional in setting values,

and are suppressed in returned values.

nnn.nnn.nnn.nnn (0.0.0.0 = default) nnn.nnn.nnn.nnn (255.255.255.0 = default)

00-05-A6-xx-xx-xx

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 79

Command ASCII Command

(Host to Switcher)

Response (Switcher to Host)

Additional Description

IP Control Port Commands (continued)

IP Setup (continued)

View MAC address

Set LAN IP address, subnet mask, and gateway address

NOTE: Setting any values with a CISG command changes the DHCP setting to Off and the Cisg response is followed by

ECH}

E1*X8&/X9#*X8*

X9)]

Verbose modes 2 and 3:

X9)]

Iph

•

}

CISG

Cisg 1*

X8&/X9#*X8*]

View unit Media Access Code (MAC) address

Set the IP address to port (1), the subnet mask prefix to /

and the gateway address to same time.

X9)

X8&

for the LAN

X8*

at the

Boot2 response (when the unit is in verbose mode 2 or 3).

X9#

View all IP settings

Query the number of open connections

Reboot networking

Set unit name Set unit name to factory

default View unit name

KEY:

X1)

= On or off, enable or disable

X8!

= Unit name

X8^

= Number of open connections

X8&

= IP address

X8*

= Gateway address

X8(

= Subnet mask

X9)

= Hardware (MAC) address

X9@

= Default unit name

X9#

= Subnet mask in CISG commands

} X8&/X9#*X8*]

1CISG

ECC}

2BOOT

}

EX8!CN}

•CN

}

ECN}

View the IP address, subnet mask (prefix), and gateway address of the unit.

X8^]

Verbose modes 2 and 3:

X8^]

Icc

]

Boot2

X8!]

Ipn•

X9@]

Ipn•

X8!]

View the number of open connections.

Restart the network after IP setting or DHCP changes.

Assign a name for the unit. Reset the unit name to its factory default

name. View current unit name

X8!

0 = DHCP disabled (default), 1 = DHCP enabled

A text string of up to 32 characters.

• A-Z, 0-9, and the hyphen (–) are permitted.

• The first character must be a letter.

• The last character cannot be a hyphen.

• No distinction is made between uppercase and lowercase letters.

• Space or blank characters are not permitted.

0-<maximum number of open connections>

Format nnn.nnn.nnn.nnn (192.168.254.254 = default) Leading zeros in each of the four octets are optional in setting values,

and are suppressed in returned values.

nnn.nnn.nnn.nnn (0.0.0.0 = default) nnn.nnn.nnn.nnn (255.255.255.0 = default)

00-05-A6-xx-xx-xx

Combination of the model name and the last three hexadecimal character pairs of the unit MAC address.

Example: IN1804-DO-14-9A-B0.

Prefix representing subnet mask bits (subnet mask value in CISG commands).

Default = /24, which represents the default subnet mask,

255.255.255.0.

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 80

Command ASCII Command

(Host to Switcher)

Response (Switcher to Host)

Additional Description

IP Control Port Commands (continued)

Passwords

NOTE: The initial passwords set at the factory are the serial number of the unit. However, if the unit is reset (via the ZQQQ

SIS command or the rear panel Reset button), this password reverts to no password.

Set administrator password View administrator password

Reset (clear) administrator password

Set user password View user password

Reset (clear) user password

KEY:

X9!

= Password

NOTE: If there is a valid password, the response is ****]. if there is no password, the response is ].

EX9!CA}

ECA}

•CA

}

EX9!CU}

ECU}

•CU

}

X9!]

Ipa•

]

****

In verbose modes 2 and 3:

Ipa•**** Ipa•

Ipu•

****

In verbose modes 2 and 3:

Ipu•****

Ipu•

• Length is 1-128 characters.

• All human-readable characters are permitted except |.

• The password cannot be a single space.

• Passwords are case-sensitive.

• A user password cannot be assigned if no administrative password

exists. An E14 error code is returned.

• If the admin password is cleared, the user password is cleared also.

]

X9!]

]

or Ipa

or Ipu

]

Set the administrator password to View the administrator password.

Reset or clear the administrator password.

Set the user password. View the user password. If there is a

valid password, the response is ****]. If there is no password, the response is

]

Reset or clear the user password.

X9!

IN1804 Seamless Scaling Switchers • SIS Configuration and Control 81

Configuration Software

The Extron Product Configuration Software (PCS) offers another way to control the switchers via USB, or TCP/IP connection. The graphical interface includes the same functions as those on the device front panel with additional features that are available only through the software.

This section describes the software installation and communication (see the IN1804 Series PCS Help file for detailed control information). Topics in this section include:

• Software Installation

• Software Connection

• Software Overview

The control software is compatible with Microsoft Windows operating systems. The software program is available on the Extron website.

Software Installation

To download PCS from the Extron website, locate it on the Download Center page or go to the PCS product page.

Software Download Center Page

Figure 35. Download Center Page on the Extron Website

IN1804 Seamless Scaling Switchers • Configuration Software 82

1. On the Extron website, select the Download tab (see figure 35, 1, on the previous

page).

2. Move the pointer to the Software link (2) in the Downloads column and click it.

Figure 36. PCS Download Link

3. On the Download Center page, click the P link (see figure 36, 1).

4. If necessary, scroll to locate PCS from the list of available software programs and click

the Download link to the right of the name (2).

5. On the login page that appears next, fill in the required information to log into

www.extron.com (if you need an ID number, see your Extron representative).

6. Follow the instructions on the subsequent screens to complete the software program

installation. By default, the configuration program files are stored on your computer at: C:\Program Files (x86) \ Extron \ IN1804.

If there is not already an Extron folder in your Program Files (x86) folder, the installation program creates it as well.

IN1804 Seamless Scaling Switchers • Configuration Software 83

Software Connection

Open the Product Configuration Software program from the Start menu or desktop shortcut. The Extron Product Configuration Software window opens with the Device

Discovery panel open. Connect to the switcher using the Device Discovery panel or the TCP/IP panel.

Device Discovery Panel

The Device Discovery panel displays accessible Extron devices connected directly to the PC or to a LAN or WAN. Devices are identified and sorted by model, IP address, device name, or connection method.

Figure 37. Device Discovery Screen

To sort the list of available devices:

1. Click the Device Discovery tab (see figure 37, 1).

2. Click the desired column heading (2) to sort it in ascending or descending order.

To connect to a device:

1. Click the Device Discovery tab (1).

2. Select the desired device (3).

3. Click the Connect button (5). A new device configuration tab opens.

To edit communication settings from the Device Discovery panel:

1. Click the Device Discovery tab (1).

2. Click the Edit button of the desired device (4). The Communication Settings

dialog box opens.

IN1804 Seamless Scaling Switchers • Configuration Software 84

TCP/IP Panel

3. Finalize the settings in one of the following ways:

• Click the Apply button to accept the changes and return to the Device

Discovery panel.

• Click the Apply and Connect button to accept the changes and connect to the

selected device. A new device configuration tab opens.

• Click the Cancel button to cancel any pending changes and return to the Device

Discovery panel.

The TCP/IP panel connects PCS to a specific device through Ethernet.

Figure 38. TCP/IP Panel

1. Click the TCP/IP tab (see figure 38, 1).

2. In the IP Address field (2), enter the IP address of the desired device.

3. If required, enter the device password in the Password field (3).

NOTES:

• The factory configured passwords for all accounts on this device have been set to

the device serial number. Passwords are case sensitive.

• Select the Show Characters checkbox (5) to display the password characters.

4. In the Telnet Port field (4), enter the Telnet port of the desired device.

5. Click the Connect button (6). A new device tab opens.

IN1804 Seamless Scaling Switchers • Configuration Software 85

Offline Device Preview

Opening a new device tab for an offline device displays the interface and configuration options for the chosen model without connecting to it. However, settings cannot be changed.

To open a switcher device tab:

1. From the Configuration File drop-down menu, select New Configuration File.

Figure 39. Configuration File Drop-Down Menu

The New Configuration File dialog box opens.

Figure 40. New Configuration File Dialog Box

2. Select the desired device model from the Device Models list (see figure 40, 1). In

example, IN1804 (standard model) was selected.

3. Click the Configure button (2). A new offline device configuration tab opens.

IN1804 Seamless Scaling Switchers • Configuration Software 86

Software Overview

When you select a device on the Device Discovery screen (see figure 37 on page 84), the IN1804 main screen opens. All configuration tasks are initiated from this screen. Figure 41 shows an example of an IN1804 DI/DO main screen.

Figure 41. IN1804 DI/DO Main Window

NOTE: For details about specific software features, see the IN1804 Series PCS Help

file.

Software Menu

Each device screen has a Software drop-down menu for configuration options. This menu contains software and information options pertaining to PCS settings. To display this menu, click the PCS icon in the upper-right corner of the main screen (see figure 42, 1)

Figure 42. PCS Software Menu

IN1804 Seamless Scaling Switchers • Configuration Software 87

Show Expanded Device Tabs

This option displays the device IP address or connection method in the Device tab. From the Software menu, select Show Expanded Device Tabs.

Figure 43. Expanded Device Tab (IN1804 Connected through USB)

Software Settings

This option resets all disabled confirmation dialogs to the default settings.

1. From the Software menu, select Software Settings. The Software Settings

dialog box opens.

Figure 44. Software Settings Dialog Box

2. Click the Re-enable Confirmation Dialogs button (1). The dialog box closes

and the reset is complete. Click the Close button (2) to close the dialog box without re-enabling the confirmation dialogs.

Tutorial

This option displays a general overview of where to find features in the PCS framework.

1. From the Software menu, select Tutorial. The Tutorial dialog box opens.

2. Click the I Get It! button to close the dialog box.

Extron PCS Help

This options opens the PCS help file for general PCS operations. From the Software menu, select Extron PCS Help.

IN1804 Seamless Scaling Switchers • Configuration Software 88

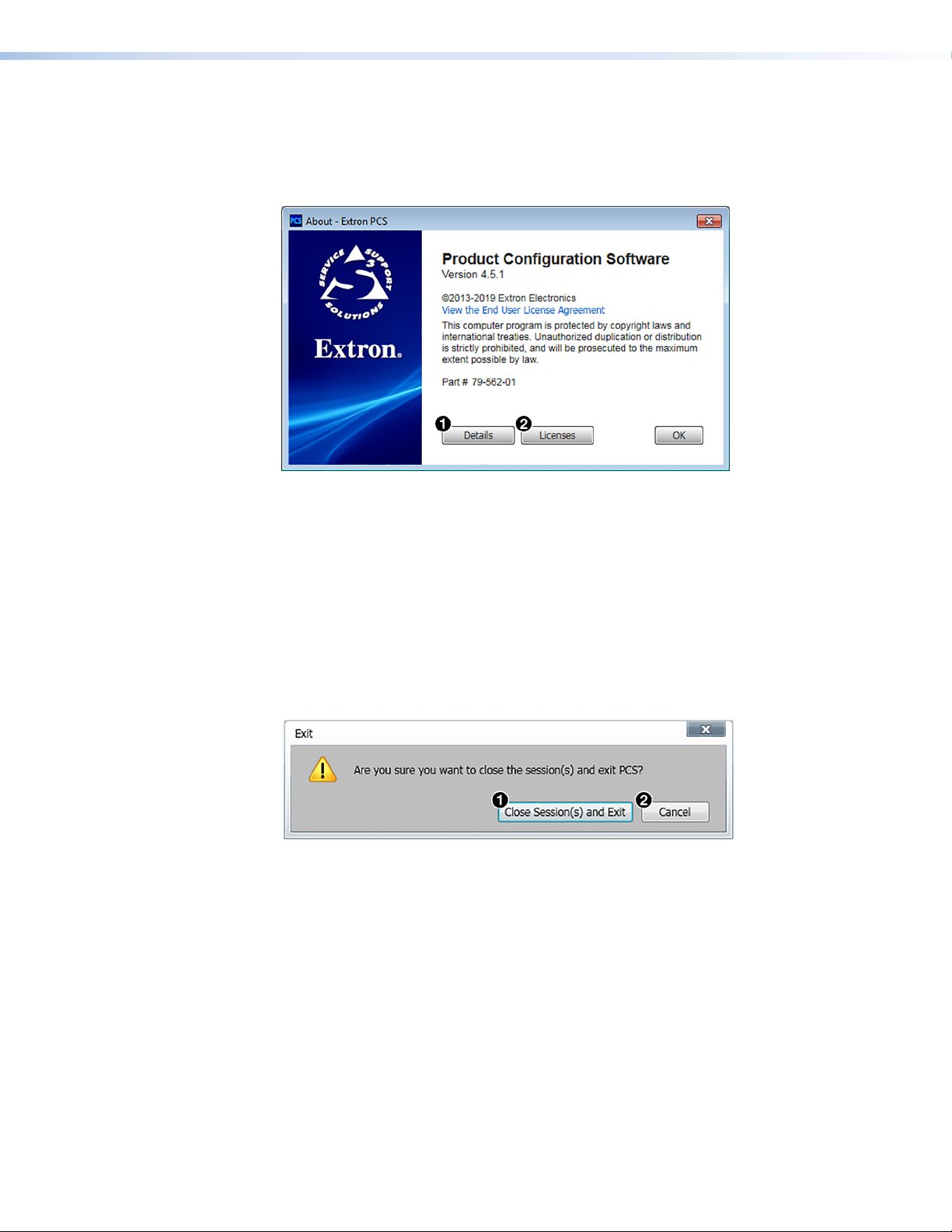

About Extron PCS

This option contains information about the current PCS version.

1. From the Software menu, select About Extron PCS. The About - Extron PCS dialog

box opens.

Figure 45. About - Extron PCS Dialog Box

2. Click the Details button (see figure 45, 1) for more information about the software.

To display details about third-party software packages and associated licensing, click Licensing (2).

3. Click the OK button to close the dialog box.

Exit

This option disconnects PCS from connected devices and closes the application.

1. From the Software menu, select Exit. If device tabs are open, the Exit dialog box

opens.

Figure 46. Exit Dialog Box

2. If necessary, click the Close Session(s) and Exit button (see figure 46, 1) to

disconnect the software from connected devices, close all offline device tabs, and close the software. Click the Cancel button (2) to leave the software open.

IN1804 Seamless Scaling Switchers • Configuration Software 89

Device Menu

The Device drop-down menu contains options pertaining to device connection, configuration, and information. For details about all these options, see the IN1804 Series PCS Help File.

Figure 47. Device Menu

• Disconnect — Disconnects the PCS program from the connected device and closes

the device tab.

NOTE: If a device is already disconnected, the Disconnect option is disabled until

the device is connected.

• Settings — Opens a submenu containing the following options:

• Hardware Settings — Displays the Hardware Settings dialog box containing

device information and side tabs that enable you to change the device name, internal clock, and password of the connected device.

It also contains an Edit Communication Settings button, which provides an alternative method of accessing the Communication Settings dialog box.

• Communication Settings — Opens the Communication Settings dialog box

on which you can change IP settings of the connected device.

• Reset Device — Opens the Reset Device dialog box, which contains selectable

modes for resetting the connected device. In addition, the Communication Settings dialog box contains the unit information that is also displayed in the Hardware Settings dialog box.

• Backup — Enables you to export all audio, video, and communication settings of the

connected device to the PC. This exported configuration can be saved as a backup file (with a .extz extension), or used to replicate settings from one device to other devices of the same model. When restoring a configuration, you can select specific device settings.

IN1804 Seamless Scaling Switchers • Configuration Software 90

• Restore — Opens a submenu containing the following restore options:

• Restore this Device — Lets you load a saved configuration for any IN1804

Series model to the connected device.

• Restore to Multiple Devices — Lets you load a saved configuration file for any

IN1804 Series model to multiple devices on the network.

NOTE: The connected devices must be connected via LAN.

Saved configurations may include audio, video, and communication settings.

• Update Firmware — Opens a submenu from which you can select to upload firmware

from the host device to the connected device or to multiple devices.

NOTE: If necessary, download new firmware from the Extron website (see

Downloading Updated Firmware on page 103).

• Update Firmware to this Device... — Uploads firmware from the host device

to the connected device only.

• Update Firmware to Multiple Devices... — Uploads firmware to multiple

devices on the network.

NOTE: The connected devices must be connected via LAN.

• IN1804 <model name> Help — Opens the IN1804 Series PCS Help file in a separate

window.

• About This Module — Opens About This Module dialog box, which contains the

module part number and firmware version of the connected device.

IN1804 Seamless Scaling Switchers • Configuration Software 91

Internal Web Page

The IN1804 Series switchers feature an internal web server, displayed as a web page. This page allows you to monitor and adjust certain settings of the IN1804 via a LAN or WAN connection. Use a web browser to view the pages on a PC connected to the switcher LAN port.

NOTE: The switcher internal web page does not support compatibility mode in

Microsoft® Internet Explorer® (see Disabling Compatibility Mode on the next page). Extron recommends using Mozilla® Firefox® or Google Chrome™.

This section gives an overview of the internal web page, which is always available and cannot be erased or overwritten. Topics in this section include:

• Accessing the Web Page

• Web Page Components

Accessing the Web Page

1. Connect the switcher to a network using the rear panel RJ-45 LAN connector (see

figures 5, 6, 7, and 8, I, on page 10).

2. Open a web browser on a connected PC.

3. Enter the IP address of the device in the browser Address field.

NOTE: The default IP address is 192.168.254.254.

4. Press <Enter> on the computer keyboard. The product sign-in page opens (see

figure 48 on the next page).

IN1804 Seamless Scaling Switchers • Internal Web Pages 92

Extron IN1804 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety Instructions

FCC Class A Notice

Conventions Used in this Guide

Notifications

Software Commands

Specifications Availability

Extron Glossary of Terms

Contents

Introduction

About this Guide

Product Description

Models

Integrated Digital Twisted Pair Extension

Features

Control Methods

Application Diagrams

Installation

Installation Overview

Rear Panel Connections

Connection Details

Analog Audio Connections

HDMI Connections

Twisted Pair Recommendations for DTP2, XTP, and HDBaseT Communication

Wiring the Contact/Tally Connectors

Connecting Using an SM Cable

Operation

Front Panel Overview

Powering Up

Selecting an Input

Using the On-Screen Menu System

Menu Selection Buttons

Menu Overview

Using the Menu Screens

Device Info Screen

Quick Setup Submenu

Picture Controls Submenu

Input Submenu

Output Submenu

Audio Submenu

Advanced Submenu

Communication Submenu

Front Panel Lockout (Executive Modes)

Input Presets

Reset Modes

RS-232 and IR Signal Insertion

Ethernet to RS-232 Insertion

Captive Screw IR Signal Insertion

Unidirectional RS-232 Insertion via SIS Commands

SIS Configuration and Control

Host and Switcher Communication

Copyright Information

Password Messages

Switcher-Initiated Messages

Error Responses

SIS Overview

Using the Command and Response Tables

Symbol Definitions

Command and Response Tables for IN1804 SIS Commands

Configuration Software

Software Installation

Software Download Center Page

Software Connection

Device Discovery Panel

TCP/IP Panel

Offline Device Preview

Software Overview

Software Menu

Device Menu

Internal Web Page

Accessing the Web Page
