User Guide

HAE 100

HDMI Audio Extractor

HDMI

68-2027-01 Rev. A

02 11

Precautions

Safety Instructions • English

This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.

Caution

Read Instructions • Read and understand all safety and operating instructions before using the equipment.

Retain Instructions • The safety instructions should be kept for future reference.

Follow Warnings • Follow all warnings and instructions marked on the equipment or in the user

information.

Avoid Attachments • Do not use tools or attachments that are not recommended by the equipment

manufacturer because they may be hazardous.

Consignes de Sécurité • Français

Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le matériel contient des instructions importantes concernant l’exploitation et la maintenance (réparation).

Ce symbole sert à avertir l’utilisateur de la présence dans le boîtier de l’appareil de tensions dangereuses non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de sécurité et d’exploitation avant

d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité aﬁn de pouvoir les consulter à l’avenir.

Respecter les avertissements • Observer tous les avertissements et consignes marqués sur le matériel ou

présentés dans la documentation utilisateur.

Eviter les pièces de xation • Ne pas utiliser de pièces de ﬁxation ni d’outils non recommandés par le

fabricant du matériel car cela risquerait de poser certains dangers.

Sicherheitsanleitungen • Deutsch

Dieses Symbol soll dem Benutzer in der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam machen, daß im Inneren des Gehäuses dieses Produktes gefährliche Spannungen, die nicht isoliert sind und die einen elektrischen Schock verursachen können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden, sollten Sie alle Sicherheits-und

Bedienungsanleitungen genau durchlesen und verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit des Produktes sollten Sie

aufbewahren, damit Sie im Bedarfsfall darauf zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und Anleitungen auf dem Gerät oder in der

Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte, die nicht ausdrücklich vom

Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen können.

Warning

Power sources • This equipment should be operated only from the power source indicated on the product. This

equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third (grounding) pin is a safety feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all power cords from the rear of

the equipment, or the desktop power module (if detachable), or from the power source receptacle (wall plug).

Power cord protection • Power cords should be routed so that they are not likely to be stepped on or pinched by

items placed upon or against them.

Servicing • Refer all servicing to qualiﬁed service personnel. There are no user-serviceable parts inside. To

prevent the risk of shock, do not attempt to service this equipment yourself because opening or removing covers may expose you to dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are provided to prevent

overheating of sensitive components inside. These openings must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly replaced. Replace it only with the

same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

Avertissement

Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation indiquée sur l’appareil. Ce

matériel doit être utilisé avec une alimentation principale comportant un ﬁl de terre (neutre). Le troisième contact (de mise à la terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger, déconnectez tous les cordons

d’alimentation de l’arrière de l’appareil ou du module d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de manière à ce que personne ne

risque de marcher dessus et à ce qu’ils ne soient pas écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-maintenance par un technicien

qualiﬁé. Aucun des éléments internes ne peut être réparé par l’utilisateur. Aﬁn d’éviter tout danger d’électrocution, l’utilisateur ne doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et orices • Si le boîtier de l’appareil comporte des fentes ou des oriﬁces, ceux-ci servent à empêcher

les composants internes sensibles de surchauffer. Ces ouvertures ne doivent jamais être bloquées par des objets.

Lithium Batterie • Il a danger d’explosion s’ll y a remplacment incorrect de la batterie. Remplacer uniquement

avec une batterie du meme type ou d’un ype equivalent recommande par le constructeur. Mettre au reut les batteries usagees conformement aux instructions du fabricant.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene Stromquelle betrieben werden.

Dieses Gerät wurde für eine Verwendung mit einer Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese sollte nicht umgangen oder außer Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten Sie alle Netzkabel

aus der Rückseite des Gerätes, aus der externen Stomversorgung (falls dies möglich ist) oder aus der Wandsteckdose ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im Weg liegen und niemand

darauf treten kann oder Objekte darauf- oder unmittelbar dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von qualiziertem Servicepersonal durchgeführt werden.

Die internen Komponenten des Gerätes sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist, dienen diese zur

Vermeidung einer Überhitzung der empndlichen Teile im Inneren. Diese Öffnungen dürfen niemals von

anderen Objekten blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird. Ersetzen Sie verbrauchte

Batterien nur durch den gleichen oder einen vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Instrucciones de seguridad • Español

Este símbolo se utiliza para advertir al usuario sobre instrucciones importantes de operación y mantenimiento (o cambio de partes) que se desean destacar en el contenido de la documentación suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre la presencia de elementos con voltaje peligroso sin protección aislante, que puedan encontrarse dentro de la caja o alojamiento del producto, y que puedan representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de operación y seguridad, antes de usar el

equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad para futura consulta.

Obedecer las advertencias • Todas las advertencias e instrucciones marcadas en el equipo o en la

documentación del usuario, deben ser obedecidas.

Evitar el uso de accesorios • No usar herramientas o accesorios que no sean especiﬁcamente recomendados

por el fabricante, ya que podrian implicar riesgos.

安全须知 • 中文

这个符号提示用户该设备用户手册中有重要的操作和维护说明。

这个符号警告用户该设备机壳内有暴露的危险电压，有触电危险。

注意

阅读说明书 • 用户使用该设备前必须阅读并理解所有安全和使用说明。保存说明书 • 用户应保存安全说明书以备将来使用。遵守警告 • 用户应遵守产品和用户指南上的所有安全和操作说明。避免追加 • 不要使用该产品厂商没有推荐的工具或追加设备，以避免危险。

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo de alimentación eléctrica

indicada en el mismo. La alimentación eléctrica de este equipo debe provenir de un sistema de distribución general con conductor neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida de alimentación eléctrica

al equipo, desenchufar todos los cables de alimentación en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera independiente), o desenchufar el cable del receptáculo de la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se deben instalar en lugares donde

no sean pisados ni apretados por objetos que se puedan apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal calicado. En el interior no

hay partes a las que el usuario deba acceder. Para evitar riesgo de electrocución, no intentar personalmente la reparación/mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o oriﬁcios en su caja/alojamiento, es para evitar el

sobrecalientamiento de componentes internos sensibles. Estas aberturas nunca se deben obstruir con otros

objetos.

Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición incorrecta. Cambiar esta

batería únicamente con el mismo tipo (o su equivalente) recomendado por el fabricante. Desachar las baterías usadas siguiendo las instrucciones del fabricante.

警告

电源 • 该设备只能使用产品上标明的电源。设备必须使用有地线的供电系统供电。第三条线

（地线）是安全设施，不能不用或跳过。

拔掉电源 • 为安全地从设备拔掉电源，请拔掉所有设备后或桌面电源的电源线，或任何接到市电

系统的电源线。

电源线保护 • 妥善布线，避免被踩踏，或重物挤压。维护 • 所有维修必须由认证的维修人员进行。设备内部没有用户可以更换的零件。为避免出现触

电危险不要自己试图打开设备盖子维修该设备。

通风孔 • 有些设备机壳上有通风槽或孔，它们是用来防止机内敏感元件过热。不要用任何东西

挡住通风孔。

锂电池 • 不正确的更换电池会有爆炸的危险。必须使用与厂家推荐的相同或相近型号的电池。按

照生产厂的建议处理废弃电池。

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

The Class A limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

NOTE: This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with the

unit to ensure compliance with FCC emissions limits. For more information on safety guidelines, regulatory compliances, EMI/EMF compliance, accessibility, and

Introduction

This section gives an overview of the user guide and describes the Extron HAE 100 HDMI Audio Extractor and its features. Topics that are covered include:

 About this Guide

 About the HAE 100 HDMI Audio Extractor

 Features

About this Guide

This guide contains installation, conﬁguration, and operating information for the HAE 100 HDMI Audio Extractor.

About the HAE 100 HDMI Audio Extractor

The HAE 100 is a one HDMI input, one HDMI output audio extractor. Its primary function is to accept an HDMI input, de-embed (extract) the digital audio from the HDMI signal, and provide a digital S/PDIF audio output and an analog stereo audio output. In addition, it provides an HDMI output, with the digital audio still embedded on the HDMI signal. For example, if the HDMI input is presented with an embedded 5.1 Dolby® Digital audio signal, the 5.1 Dolby Digital audio signal outputs on the HDMI output and on the S/PDIF output. The audio output over HDMI can be disabled by using the DIP switch located on the back of the HAE 100 if necessary. Figure 1 shows a typical HAE 100 application.

Extron XPA 1002

Power Amplier

LIMITER/PROTECT

SIGNAL OVER TEMP

Extron SI 26

Surface-mount Speaker

XPA 1002

LIMITER/PROTECT

SIGNAL OVER TEMP

Extron XPA 1002

Power Amplier

XPA 1002

Subwoofer

Extron SI 26

Surface-mount Speakers

AUDIO

ANALOG

FORMAT

L R

INPUT

S/PDIF

HDMI

OUTPUTS

POWER 12V

0.4A MAX

Extron HAE 100

HDMI Audio Extractor

HDMI

HAE 100

HDMI OUTPUT AUDIO

EDID STORE

1 2

OFF

Blu-ray

S/PDIF

100-240V 0.5A

50-60Hz

Extron SSP 7.1

Surround Sound Processor

Left and Right Front

Extron XPA 1002

Power Amplier

Left and Right Surround

SSP 7.1

RS-232

SUB

TxRx

WOOFER

RB SUB

BACK

OUTPUTS

LB/CB

SURROUND

CENTER

FRONT

L C

INPUTS

ANALOG

DIGITAL

XPA 1002

LIMITER/PROTECT

SIGNAL OVER TEMP

LIMITER/PROTECT

SIGNAL

OVER

TEMP

Extron XPA 1002

Power Amplier

Left and Right Back

Extron SI 26

Surface-mount Speakers

Extron SI 26

Surface-mount Speakers

XPA 1002

Center and Subwoofer

Figure 1. HAE 100 Application Diagram

NOTE: This product does not decode or downmix Dolby Digital or DTS® audio formats.

HAE 100 HDMI Audio Extractor • Introduction 1

Features

The HAE 100 incorporates EDID Minder® to deﬁne speciﬁc audio formats and video resolutions for the input. It also has the ability to store EDID obtained from the display device to non-volatile memory. In addition, the HAE 100 has a front panel conﬁguration port which is used to conﬁgure and update the product in the ﬁeld in the event that new ﬁrmware is required.

The product is HDCP compliant and supports HDMI 1.3 standards. The HAE 100 is housed in a 1U high, ¼ rack width, 3 inch deep metal enclosure.

S/PDIF output — Allows for digital audio output over a single RCA connector.

Analog output — Allows for two channel stereo analog audio output over a 5-pole,

3.5 mm captive screw connector.

S/PDIF & Analog audio toggle switch — Selects the output format of the audio which is taken from the HDMI input signal.

Embedded digital audio output — The HDMI output re-embeds the audio taken from the HDMI input.

HDMI 1.3 compatible — Supports HDMI 1.3 speciﬁcation features, including data rates up to 6.75 Gbps and Deep Color.

EDID Minder — A proprietary EDID management process from Extron. EDID Minder automatically manages the EDID between a digital display device and one or more input sources. By maintaining continuous EDID communication with all sources, EDID Minder ensures that digital sources power up properly and maintain their video output, whether or not they are actively connected to the digital display device.

Selectable HDMI audio pass-through — The user can control whether the HDMI output passes audio by setting a DIP switch on the rear panel.

Automatic input cable equalization — Automatically compensates for weak source signals or signal loss when using long input cable assemblies.

Input and Output LEDs — Eight green LEDs provide the status of the various functions of the product.

Front panel USB configuration port — One female mini USB type B is used to update the ﬁrmware of the product and check the status of the various functions of the product.

Versatile mounting options — The unit is 1U high, 3 inches deep, and ¼ rack wide, allowing it to be conveniently mounted in a rack, mounted under a desk, or set on a tabletop.

HDCP compliant — Prevents the reproduction of copyright protected content.

External universal ENERGY STAR® qualified power supply included, replacement part number 70-775-01 — Provides worldwide compatibility, low power consumption, and

reduced operating costs.

HAE 100 HDMI Audio Extractor • Introduction 2

Panels and Cabling

This section provides information on:

 Installation Overview

 Front Panel Features

 Rear Panel Features

Installation Overview

1. Make sure that the input source, the HAE 100, and all output devices are turned off.

Disconnect all power sources.

2. If necessary, mount the unit (page 20).

3. Connect an HDMI input device (page 6).

4. Connect an HDMI output device (page 6).

NOTE: It is not required to connect an HDMI output device.

5. Connect audio devices to the analog and/or S/PDIF outputs (page 6).

6. Set the Audio Format toggle switch as desired (page 6).

7. Set the DIP switches as desired (page 7).

8. Plug in the power supply for the HAE 100 (page 5) and all necessary devices. Turn on

all devices.

NOTE: See the "Troubleshooting" section on page 10 for audio and video issues.

HAE 100 HDMI Audio Extractor • Panels and Cabling 3

Front Panel Features

The front panel of the HAE 100 is shown in ﬁgure 2 below.

1 2 3 4

CONFIG

INPUT

SIGNAL

HDCP

2-CH PCM

BITSTREAM

OUTPUT

SIGNAL

HDCP

ANALOG

S/PDIF

HDMI AUDIO EXTRACTOR

HAE 100

Figure 2. HAE 100 Front Panel

Power LED — The LED indicator lights when the unit is receiving power.

Config port — One female type B mini USB is used to update the ﬁrmware of the

product, conﬁgure various functions of the unit, and view the current status of the unit.

Input LEDs — Four LEDs are used to provide the status of the HDMI input.

 Signal — This LED lights when the unit is receiving a signal on the HDMI input.

 HDCP — This LED lights when the input signal is HDCP encrypted.

 2-CH PCM — This LED lights when the incoming embedded audio signal is a

2-channel Digital LPCM audio format.

 Bitstream — This LED lights when the incoming embedded audio signal is a

Dolby Digital or DTS audio format.

Output LEDs — Four LEDs are used to provide the status of the various functions of the

HDMI and audio outputs.

 Signal — This LED lights when the unit is providing video on the HDMI output

connector.

 HDCP — This LED lights when the HDMI output signal is encrypted with HDCP.

 Analog — This LED lights when the unit is providing audio on the analog output.

 S/PDIF — This LED lights when the unit is providing audio on the S/PDIF output.

HAE 100 HDMI Audio Extractor • Panels and Cabling 4

Rear Panel Features

The rear panel of the HAE 100 is shown in ﬁgure 3.

1 2 54 6

POWER 12V

0.4A MAX

INPUT

HDMI

AUDIO

FORMAT

S/PDIF ANALOG

OUTPUTS

HAE 100

HDMI OUTPUT AUDIO

EDID

STORE

OFF

Figure 3. HAE 100 Rear Panel

Power input — Connect the provided power supply to the 3.5 mm, 2-pole captive

screw power receptacle (see ﬁgure 4).

Smooth

Ridges

Power Supply

Output Cord

SECTION A–A

Tie Wrap

Captive Screw

Connector

Figure 4. Power Connection

CAUTION: • This product is intended to be supplied by a Listed Power Unit marked

“Class 2” or “LPS,” rated 12 VDC, maximum 1.0 A. Always use a power supply supplied or speciﬁed by Extron. Use of an unauthorized power supply voids all regulatory compliance certiﬁcation and may cause damage to the supply and the end product.

• Unless otherwise stated, the AC/DC adapters are not suitable for use in air handling spaces or in wall cavities. The power supply is to be located within the same vicinity as the Extron A/V processing equipment in an ordinary location, Pollution Degree 2, secured to the equipment rack within the dedicated closet, podium, or desk.

• The installation must always be in accordance with the applicable provisions of National Electrical Code ANSI/NFPA 70, article 75, and the Canadian Electrical Code part 1, section 16. The power supply shall not be permanently ﬁxed to building structure or similar structure.

NOTES: • The length of the exposed wires in the stripping process is critical. The

ideal length is 3/16 inches (5 mm). If the exposed section is longer, the exposed wires may touch, causing a short circuit between them. If it is shorter, the wires can be easily pulled out, even if tightly fastened by the captive screws.

• Do not tin the wires. Tinned wire does not hold its shape and can

become loose over time.

HAE 100 HDMI Audio Extractor • Panels and Cabling 5

HDMI input — Connect an HDMI input source into this female HDMI type A connector.

Pixel clock rates up to 225 MHz (2.25 Gbps per channel) are supported.

HDMI output — Connect an HDMI output device into this female HDMI type A

connector.

NOTES: • It is not required to connect an HDMI output device to extract audio from

the HDMI input device.

• If the HDMI input signal is HDCP encrypted, the HDMI output signal will

also be encrypted. If the HDMI input signal is not HDCP encrypted, the output signal will not be encrypted.

• If the HDMI input signal is HDCP encrypted and the HDMI output device

is not HDCP compliant, the unit will output a green screen.

S/PDIF audio output — Connect an S/PDIF audio output device into this female RCA

connector. This connector outputs digital S/PDIF audio formats (2-channel LPCM, Dolby Digital, or DTS).

NOTE: The audio format that is present on this output is determined by the content

on the source device (see the "Troubleshooting" section on page 10 for more information).

Audio Format toggle switch — This toggle switch is used to select the audio format

that the HAE 100 will extract from the HDMI input signal. The position of this toggle switch also governs the EDID presented to the input source device.

NOTE: See the "EDID Conguration Table" on page 9 for more information on

using this switch with EDID.

 Analog (up) — When the Audio Format toggle switch is set to this position, the

2-channel PCM audio signal is extracted from the HDMI input signal and output as a stereo analog signal via the analog output connector. 2-channel PCM audio is simultaneously output via the S/PDIF audio output. The HAE 100 provides EDID to the input source which lists support for 2-channel LPCM audio only.

 S/PDIF (down) — When the Audio Format toggle switch is set to this position, the

S/PDIF audio signal is extracted from the HDMI input signal and output via the S/PDIF output connector. The HAE 100 provides EDID to the input source which lists support for 2-channel LPCM, Dolby Digital (up to 6 channels), and DTS (up to 7 channels).

Analog audio output — Connect an audio output device to this 5-pole 3.5 mm

captive screw connector (see ﬁgure 5). This connector outputs a 2-channel stereo analog audio format.

CAUTION

For unbalanced audio, connect the

sleeve(s) to the ground contact.

DO NOT connect the sleeve(s) to the

negative (-) contacts.

Tip

NO GROUND

Sleeve(s)

Tip

NO GROUND

Unbalanced Output

Tip

Ring

Sleeve(s)

Tip

Ring

Do not tin the wires!

Balanced Output

Figure 5. Analog Output Connector Wiring

HAE 100 HDMI Audio Extractor • Panels and Cabling 6

EDID Store button and LED — An LED and a recessed push button switch is available

for EDID Store status and conﬁguration.

NOTE: The EDID Store DIP switch must be in the On (up) position to store EDID.

 EDID Store LED — A tricolored LED provides the status of the EDID.

 Unlit — EDID Store is not enabled; the EDID Store DIP switch is in the

Off (down) position. The factory default EDID is being used.

 Red — EDID Store is enabled, but EDID from an external source has not been

stored. The factory default EDID is still present.

 Green — EDID Store is enabled and external EDID is currently stored.

 Amber — EDID Store is enabled and an external EDID is currently being read

and stored. When complete, the LED turns green.

 EDID Store push-button — Use this recessed push-button switch to store the EDID

of the display that is connected to the HDMI output.

NOTE: See the "EDID Conguration Table" on page 9 for more information

on using this switch with EDID.

Configuration DIP switches — A 2-pole DIP switch is used to conﬁgure the following

features of the HAE 100.

 EDID Store — Use this DIP switch to enable or disable the EDID Store function.

When in the Off (down) position, EDID Store is disabled and the factory default EDID is being used. When in the On (up) position, EDID Store is enabled and allows a stored EDID to be used.

NOTE: See the "EDID Conguration Table" on page 9 for more information

on using this switch with EDID.

 HDMI Output Audio — Use this DIP switch to enable or disable audio on the

HDMI output. When in the Off (down) position, audio will only be present over the S/PDIF output and/or analog output. When in the On (up) position, audio is present over the HDMI output, the Analog output, and/or the S/PDIF output simultaneously.

NOTE: If the incoming audio signal is bitstream (Dolby Digital or DTS), it may

be necessary to set this switch to the Off (down) position since many display devices do not support these formats.

HAE 100 HDMI Audio Extractor • Panels and Cabling 7

EDID Conguration

This section provides information on:

 EDID Conguration Overview

 EDID Conguration Table

EDID Conguration Overview

EDID Minder automatically manages the EDID between a digital display device and one or more input sources. By maintaining continuous EDID communication with all sources, EDID Minder ensures that digital sources power up properly and maintain their video output, whether or not they are actively connected to the digital display device.

EDID Minder is built into this product, which provides EDID to the input source device. The EDID provided by the HAE 100 forces the source to output the correct audio format.

The EDID can be communicated in two modes:

 Factory default

 User assigned

Factory Default Mode

In factory default mode, a factory default EDID will be used depending on which audio format is chosen with the Audio Format toggle switch. To communicate the EDID using the factory default mode, make sure that the EDID Store DIP switch is in the Off (down) position. For more information on this mode, see the "EDID Conguration Table" on the next page.

User Assigned Mode

In user assigned mode, a stored EDID can be used. The EDID can be stored from an output device (display) connected to the HDMI output. After the EDID has been stored, the EDID is modiﬁed in real time, depending on the particular characteristics of the EDID and the position of the Audio Format toggle switch. This allows for the proper audio format to be output from the source. For more information on this mode, see the "EDID Conguration

Table" on the next page.

NOTE: Changing the Audio Format toggle switch updates the stored EDID

automatically.

HAE 100 HDMI Audio Extractor • EDID Conguration 8

To set a user assigned EDID, follow the steps below.

1. Ensure that an output device (display) is connected to the HDMI output connector.

2. Set the EDID Store switch to the On (up) position.

3. Using a small screwdriver, press and release the EDID Store button to store the EDID

of the output device (display).

After EDID Store has been enabled, the push button switch is used to record the EDID from the display device connected to the HDMI output of the HAE 100. Press and release the push button to initiate the EDID recording process. The EDID is stored in non-volatile memory and is retained even during a power cycle of the product.

NOTES: • See the "EDID Store button and LED" section on page 7 for more

information on using the EDID Store button and the associated LED.

• To erase a stored EDID, press the EDID Store button with no output device connected to the HDMI output connector or see the "Command and

Response Table for SIS Commands" on page 19.

EDID Conguration Table

Settings

Audio Format

Toggle Switch

Analog Off

S/PDIF Off

Analog On Stored

S/PDIF On Stored

*The factory default EDID uses 720p as a native resolution. 1080p can be

selected by using the "Assign factory EDID" SIS command (see the "Command

and Response Table for SIS Commands" on page 19).

S/PDIF supported audio formats include the following:

• LPCM 2-channel, 16/20/24 bit depths, 32/44.1/48 kHz sampling

• Dolby Digital (AC-3) 6-channel, 640k max bit rate,

32/44.1/48 kHz sampling

• DTS 7-channel, 1536k max bit rate, 44.1/48 kHz sampling

2-Ch LPCM audio format is as follows:

• LPCM 2-channel, 16/20/24 bit depths, 32/44.1/48 kHz sampling

EDID Store

DIP Switch

EDID

Origin

Factory

default

Factory

default

Output Capabilities

Video Audio

720p

1080p*

720p

1080p*

Copied from

stored EDID

Copied from

stored EDID

2-Ch LPCM

S/PDIF formats

2-Ch LPCM

S/PDIF formats

HAE 100 HDMI Audio Extractor • EDID Conguration 9

Reference Information

This section provides information on:

 Troubleshooting

 Specications

 Part Numbers and Accessories

Troubleshooting

Use this section to troubleshoot the HAE 100. Check the following possibilities before contacting an Extron representative (see the back cover for contact information).

 The audio format selected with the Audio Format toggle switch is output from

the source device incorrectly.

The HAE 100 relies on EDID to “force” the source device to output the correct audio format. In a small percentage of source devices, the EDID may be ignored. In this case, the source device must be manually conﬁgured to output the desired audio format. Check the documentation of the source device for instructions on how to do this.

 The Audio Format toggle switch is set to output S/PDIF audio, but the source

will only output 2-channel PCM (not Dolby Digital or DTS).

This is normal, as 2-channel PCM is an S/PDIF format. However, it is possible that the source device has been manually conﬁgured to downsample to 2-channel PCM, or the content itself is using a 2-channel PCM audio track. Check the settings of the source device and ensure the content contains a bitstream (Dolby Digital or DTS) audio track.

 The audio produces a static or popping sound on the device connected to the

HDMI output.

The audio format of the HDMI input device is bitstream and the connected HDMI output device does not support that particular format. Set the HDMI Output Audio DIP switch to the Off (down) position or change the Audio Format toggle switch to the Analog (up) position (see "Rear Panel Features" on page 5).

 The audio signal is present on the Analog output and/or the S/PDIF output, but

not on the HDMI output.

Ensure that the HDMI Output Audio DIP switch is in the On (up) position (see "Rear

Panel Features" on page 5) and that the device connected to the HDMI output is

compatible with the format of the audio signal.

If the issue continues, power cycle the input source, the display (HDMI output device), and/or the HAE 100.

 A green screen is shown on the display connected to the HDMI output.

The source device is outputting HDCP encrypted content and the display connected to the HDMI output is not HDCP compliant. This can be conﬁrmed using the HDCP input and output LEDs on the front panel (see "Front Panel Features" on page 4). Connect a display that is HDCP compliant.

HAE 100 HDMI Audio Extractor • Reference Information 10

Specications

Video

Maximum data rate ........................ 6.75 Gbps (2.25 Gbps per color)

Maximum pixel clock ...................... 225 MHz

Resolution range ............................ Up to 1920x1200 or 1080p @ 60 Hz, 12-bit color

Formats .......................................... RGB and YCbCr digital video

Standards ....................................... DVI 1.0, HDMI 1.3, HDCP 1.2, EDID 1.3

Video input

Number/signal type ........................ 1 single link HDMI

Connectors .................................... 1 female HDMI type A

Equalization ................................... Automatic for up to -12 dB of cable loss

Input cable length .......................... Up to 25' (7.6 m)

 Video and/or audio cuts in and out.

This is most likely an HDCP issue. If the HDCP output LED is not lit (see "Front Panel

Features" on page 4), disconnect the HDMI output device to see if the extracted audio

stabilizes. Power cycle the HAE 100 and the connected HDMI devices, paying attention to the HDCP status LEDs.

If the issue continues, call the Extron S3 Sales and Technical Support Hotline.

 No image, the image is showing incorrect colors, or other video problems are

visible on the HDMI output.

The source content has been corrupted or there is a compatibility problem. Power cycle the source, display, and/or HAE 100.

If the issue occurred after changing the Audio Format or EDID Store switch settings (see "Rear Panel Features" on page 5), note that it is best to make these adjustments prior to connecting a source device to the HAE 100.

If the issue continues, call the Extron S3 Sales and Technical Support Hotline.

NOTE: The transmission distance varies greatly depending on the signal resolution and on the type of cable,

graphics card, and display used in the system.

Video output

Number/signal type ........................ 1 single link HDMI

Connectors .................................... 1 female HDMI type A

Output cable length ....................... Up to 15' (5 m)

Audio

S/N ................................................. >90 dB, balanced, at maximum output

Audio input

Source formats ............................... PCM, Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1,

Dolby Digital EX, DTS Digital Surround 5.1, DTS-ES Matrix 6.1, DTS-ES Discrete 6.1

Audio output — analog

Number/signal type ........................ 1 stereo balanced/unbalanced

Connector ...................................... (1) 3.5 mm captive screw connector, 5 pole

Impedance ..................................... Stereo: 50 ohms unbalanced, 100 ohms balanced

Maximum level (Hi-Z) ...................... >16 dBu, balanced; >7.8 dBV, unbalanced at 1% THD+N

HAE 100 HDMI Audio Extractor • Reference Information 11

Audio output — digital

Number/signal type ........................ 1 S/PDIF

Connectors .................................... 1 female RCA jack (tip, ring)

Impedance ..................................... 75 ohms

Control/remote

USB control ports ........................... 1 front panel female mini USB B

USB standards ................................ USB 2.0, low speed

Program control ............................. Extron Simple Instruction Set (SIS™)

General

External power supply .................... Input: 100 VAC to 240 VAC, 50-60 Hz, external power supply

Output: 12 VDC, 1 A, regulated

Power input requirements .............. 12 VDC, 0.4 A

Temperature/humidity .................... Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling .......................................... Convection, no vents

Thermal dissipation

115 VAC, 60 Hz ....................... 7.3 BTU/hr

240 VAC, 50 Hz ....................... 8.1 BTU/hr

Mounting

Rack mount ............................. Yes, with optional 1U rack shelf

Furniture mount ...................... Yes, with optional mini under-desk mounting kit

Enclosure type ................................ Metal

Enclosure dimensions ..................... 1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide)

(4.2 cm H x 11.0 cm W x 7.6 cm D)

(Depth excludes connectors and switches.)

Product weight ............................... 0.6 lbs (0.3 kg)

Shipping weight ............................. 2 lbs (1 kg)

Vibration ........................................ ISTA 1A in carton (International Safe Transit Association)

Regulatory compliance

Safety ...................................... CE, c-UL, UL

EMI/EMC ................................. CE, C-tick, FCC Class A, ICES, VCCI

MTBF ............................................. 30,000 hours

Warranty ........................................ 3 years parts and labor

NOTE: All nominal levels are at ±10%.

NOTE: Speciﬁcations are subject to change without notice.

HAE 100 HDMI Audio Extractor • Reference Information 12

Part Numbers and Accessories

Included Parts

Description Part Number

HAE 100 60-1075-01

12 VDC 1.0 A power supply 70-775-01

IEC power cord

3.5 mm, 5-pole captive screw connector

(4) Rubber feet (not attached)

Setup Guide — HAE 100

Optional Accessories

Description Part Number

MBU 123 (Under-desk mount kit) 70-212-01

RSF 123 (3.5 inches deep, 1U rack shelf kit) 60-190-20

RSB 123 (3.5 inches deep, 1U basic rack shelf) 60-604-21

RSU 126 (6 inches deep, 1U rack shelf kit) 60-190-10

RSB 126 (6 inches deep, 1U basic rack shelf) 60-604-11

RSU 129 (9.5 inches deep, 1U rack shelf kit) 60-190-01

RSB 129 (9.5 inches deep, 1U basic rack shelf) 60-604-02

HAE 100 HDMI Audio Extractor • Reference Information 13

Firmware Updates

This section provides information on:

 Downloading the HAE 100 Firmware

 Updating the Firmware

Downloading the HAE 100 Firmware

Use the following procedure to download the latest HAE 100 ﬁrmware.

1. Go to www.extron.com/download.

2. On the Download Center screen, click the Firmware link on the left sidebar menu.

3. Find the HAE 100 ﬁrmware download from the alphabetical list.

TIP: Clicking on the H in the alphabetical menu bar brings up all of the ﬁrmware

downloads that start with "H" and should assist with ﬁnding the HAE 100 ﬁrmware download link.

4. Click the

appear on the screen.

5. The ﬁle is saved onto the computer. Note the folder where the ﬁrmware ﬁle is saved.

Updating the Firmware

Extron periodically updates product ﬁrmware. When updating any Extron product to the latest ﬁrmware, be sure to read the supplied release notes, or contact an Extron Application Engineer to determine if an Extron product requires a ﬁrmware update.

The following sections detail how to download and install ﬁrmware for the HAE 100.

Downloading and Installing the Firmware Loader Software

Extron recommends using the latest version of the Firmware Loader software to update the ﬁrmware on the HAE 100. If necessary, use the following procedure to download and install the Firmware Loader software.

1. Go to www.extron.com/download.

2. On the Download Center screen, click the Software link on the left sidebar menu.

3. On the next Download Center screen, locate and click the Download link for the

Firmware Loader software (see ﬁgure 6).

Download link for the HAE 100 ﬁrmware and follow the instructions that

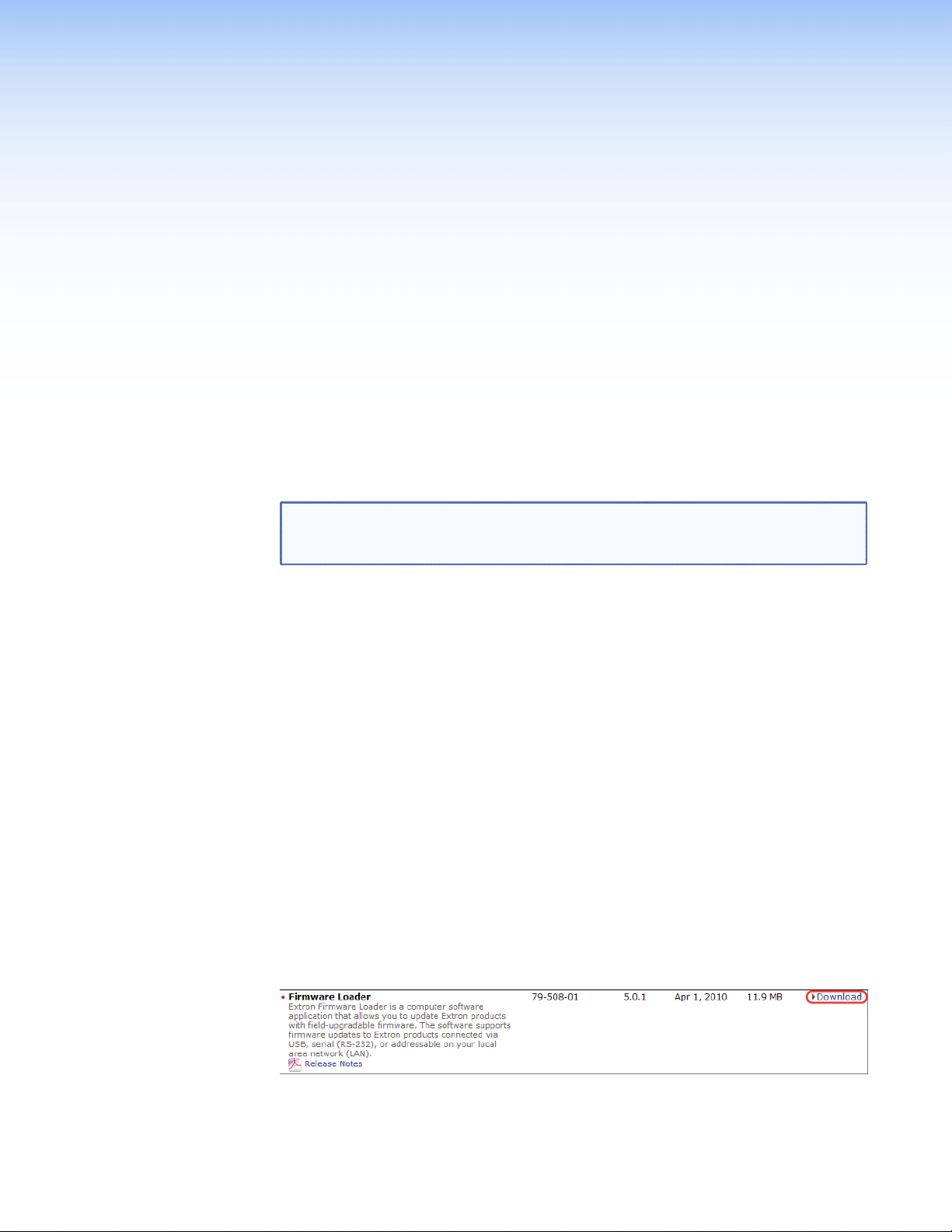

Figure 6. Firmware Loader Download Link

HAE 100 HDMI Audio Extractor • Firmware Updates 14

4. On the next screen, enter the requested information, then click

Download fw_loader_vnxnxn.exe (where n is the Firmware Loader version number).

5. Follow the instructions on the rest of the download screens to save the executable

Firmware Loader installer ﬁle to the computer. Note the folder where the ﬁle is saved.

6. Using the ﬁle browser, locate the downloaded executable installer ﬁle and run it.

7. Follow the instructions on the Installation Wizard screens to install the Firmware Loader

software. Unless speciﬁed, the installer program places the Firmware Loader software at

C:\Program Files\Extron\FWLoader.

Using Firmware Loader

Use the following procedure to install ﬁrmware to the HAE 100 using Firmware Loader. For more information on Firmware Loader, access the help ﬁle by selecting Help > Help from the menu bar or by pressing the <F1> key from within the program.

1. Open the Firmware Loader program by double-clicking on the HAE 100 icon on the

desktop.

2. The Add Device window appears.

NOTE: If the Add Device window does not appear, select Edit > Add Device(s)

from the menu bar.

3. On the Add Device window (see ﬁgure 7):

Figure 7. Add Device Window

a. Select the HAE 100 device from the Device Name drop-down menu.

b. Select the USB option from the Connection Method drop-down menu.

c. Select the Extron USB Device option from the Available Devices drop-down

menu.

d. Click Connect. When the connection is made, the HAE 100 appears in green text

with a check mark next to it.

e. Click the Browse button to open the Choose Firmware File browser.

HAE 100 HDMI Audio Extractor • Firmware Updates 15

f. Navigate to the HAE 100 ﬁrmware ﬁle using the ﬁle browser. Select the ﬁle and click

Open (see ﬁgure 8).

NOTE: The extension of the ﬁrmware ﬁle must be .s19.

Figure 8. Choose Firmware File Window

g. On the Add Device window, click Add (see gure 7). The Add Device window

closes.

4. The main Firmware Loader window appears (see ﬁgure 9).

Figure 9. Firmware Loader Main Window

CAUTION: Before clicking Begin, check to make sure the appropriate ﬁrmware ﬁle

is applied to the HAE 100. Uploading a ﬁle with an incorrect extension may cause the unit to stop functioning.

5. Click

Begin. The ﬁrmware update is complete when the Total Progress box reads 100%

and the Status column reads Complete. Close the Firmware Loader window.

CAUTION: Closing the Firmware Loader window before the ﬁrmware update is

complete may result in corrupt ﬁrmware. For assistance with ﬁrmware issues, contact the Extron S3 Sales and Technical Support Hotline.

HAE 100 HDMI Audio Extractor • Firmware Updates 16

SIS Commands

This section provides information on:

 Connecting a Control Computer

 Simple Instruction Set (SIS) Control

 Command and Response Table for SIS Commands

Connecting a Control Computer

Connect a control PC to the front panel conﬁg port using a USB cable (see "Front Panel

Features" on page 4). Remote communications are via SIS commands (see page 19). Use a

communication utility, such as Telnet, to send SIS commands and view the responses.

Simple Instruction Set (SIS) Control

Host-to-Interface Communications

SIS commands consist of one or more characters per ﬁeld. No special characters are required to begin or end a command sequence. When a command is valid, the interface executes the command and sends a response to the host device. All responses from the interface to the host end with a carriage return and a line feed (CR/LF = ]), which signals the end of the response character string. A string is one or more characters.

Error Responses

When the interface receives a valid SIS command, it executes the command and sends a response to the host device. If the interface is unable to execute the command because the command is invalid or it contains invalid parameters, it returns an error response to the host.

The error response codes and their descriptions are as follows:

E10 – Invalid command

E13 – Invalid parameter

Timeout

Pauses of 10 seconds or longer between command ASCII characters result in a timeout. The command operation is aborted with no other indication.

Using the Command and Response Table

The "Command and Response Table for SIS Commands" is on page 19. Lowercase letters are allowed in the command ﬁeld only as indicated. Symbols are used throughout the table to represent variables in the command/response ﬁelds. Command and response examples are shown throughout the table. The ASCII to HEX conversion table, on the next page, is for use with the command/response table.

HAE 100 HDMI Audio Extractor • SIS Commands 17

Symbol deﬁnitions

Space

= CR/LF (carriage return/line feed)

]

= Carriage return (no line feed, hex 0D)

}

• = space

= 0 = Not detected / Off

1 = Detected / On

 = Audioinputformat:

  0=Nosignal 1 = 2CH PCM

  2=Bitstream

 = Audiooutputformat:

  0=Nosignal 1 = Analog and S/PDIF 2 = S/PDIF only

0 = Analog 1 = S/PDIF

  2=1080p@60HznativeEDID

= AudioFormattoggleswitchposition:

 = 1=720p@60HznativeEDID(default)

 = Nativeresolutionandrefreshrate(translatedfromEDIDdetailedtimingI)

 = EDID256bytesinHEXformat

 = Controllersoftwareversiontotheseconddecimalplace

ASCII to Hex Conversion Table

•

HAE 100 HDMI Audio Extractor • SIS Commands 18

Command and Response Table for SIS Commands

Command ASCII

Command (host to unit)

Signal status

Request all signal status

ELS}

Switch status

Request all rear panel

STAT

}

switch status

EDID Minder

Assign factory EDID

View factory EDID

View EDID native resolution

View current EDID in hex

EA*X%

A*EDID

N*EDID

R*EDID

}

EDID

} X%]

} X^]

} X&]

View information, part number, and rmware

Request part number

Query ﬁrmware version

N/n

Q/q

Reset

ZXXX

}

Response (unit to host)

SigI HdcpO

AudFmt HdmiAud

EdidA

60-xxxx-xx

•SigOX!•HdcpIX!•

•AudIX@•AudO

•EdidStrX!•

X!]

X%]

X*]

]

Zpx

Additional Description

X#]

Unsolicited response.

Example: 720p @ 60Hz

View EDID in HEX format.

]

View ﬁrmware build with two decimals (for example, x.xx).

Resets the unit.

HAE 100 HDMI Audio Extractor • SIS Commands 19

Mounting

This section outlines the various mounting options available for HAE 100:

 Tabletop Placement

 Rack Mounting

 Under-desk Mounting

Tabletop Placement

Attach the four provided rubber feet to the bottom of the unit and place it in any convenient location.

Rack Mounting

UL Guidelines for Rack Mounting

The following Underwriters Laboratories (UL) guidelines are relevant to the safe installation of these products in a rack:

1. Elevated operating ambient temperature — If the unit is installed in a closed or

multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient temperature. Therefore, install the equipment in an environment compatible with the maximum ambient temperature (TMA: +122 °F, +50 °C) speciﬁed by Extron.

2. Reduced air ow — Install the equipment in the rack so that the equipment gets

adequate air ﬂow for safe operation.

3. Mechanical loading — Mount the equipment in the rack so that uneven mechanical

loading does not create a hazardous condition.

4. Circuit overloading — Connect the equipment to the supply circuit and consider the

effect that circuit overloading might have on overcurrent protection and supply wiring. Consider the equipment nameplate ratings when addressing this concern.

5. Reliable earthing (grounding) — Maintain reliable grounding of rack-mounted

equipment. Pay particular attention to supply connections other than direct connections to the branch circuit (such as the use of power strips).

HAE 100 HDMI Audio Extractor • Mounting 20

Rack Mounting Procedure

The unit can be mounted on any of these optional rack systems, including:

 RSF 123: 3.5 inches deep, 1U rack shelf kit (part number 60-190-20)

 RSB 123: 3.5 inches deep, 1U basic rack shelf (part number 60-604-21)

 RSU 126: 6 inches deep, 1U rack shelf kit (part number 60-190-10)

 RSB 126: 6 inches deep, 1U basic rack shelf (part number 60-604-11)

 RSU 129: 9.5 inches deep, 1U rack shelf kit (part number 60-190-01)

 RSB 129: 9.5 inches deep, 1U basic rack shelf (part number 60-604-02)

To mount the HAE 100 on a rack shelf, follow the instructions provided with the shelf accessories.

Under-desk Mounting

Mount the unit under a desk or podium, using the optional Extron MBU 123 under-desk mounting kit (part number 70-212-01). Follow the instructions provided with the kit.

HAE 100 HDMI Audio Extractor • Mounting 21

Extron® Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, and Central America:

Extron Electronics 1001 East Ball Road Anaheim, CA 92805 U.S.A.

Europe, Africa, and the Middle East:

Extron Europe Hanzeboulevard 10 3825 PH Amersfoort The Netherlands

Asia:

Extron Asia 135 Joo Seng Road, #04-01 PM Industrial Bldg. Singapore 368363

Japan:

Extron Electronics, Japan Kyodo Building, 16 Ichibancho Chiyoda-ku, Tokyo 102-0082 Japan

China:

Extron China 686 Ronghua Road Songjiang District Shanghai 201611 China

Middle East:

Extron Middle East Dubai Airport Free Zone F12, PO Box 293666 United Arab Emirates, Dubai

Singapore

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions, or modiﬁcations to the product that were not authorized by Extron.

NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return

Authorization) number. This will begin the repair process.

USA: (714) 491-1500 Europe: +31.33.453.4040 Asia: +65.6383.4400 Japan: +81.3.3511.7655

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or ﬁtness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

Extron USA - West Headquarters

+800.633.9876

Inside USA/Canada Only

+1.714.491.1500 +1.714.491.1517 FAX

Extron USA - East

+800.633.9876

Inside USA/Canada Only

+1.919.863.1794 +1.919.863.1797 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040 +31.33.453.4050 FAX

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400 +65.6383.4664 FAX

Extron Japan

+81.3.3511.7655 +81.3.3511.7656 FAX

Extron China

+400.883.1568

Inside China Only

+86.21.3760.1568 +86.21.3760.1566 FAX

Extron Middle East

+971.4.2991800 +971.4.2991880 FAX

EXtron HAE100 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction

About this Guide

About the HAE 100 HDMI Audio Extractor

Features

Panels and Cabling

Installation Overview

Front Panel Features

Rear Panel Features

Factory Default Mode

User Assigned Mode

Reference Information

Troubleshooting

Part Numbers and Accessories

Included Parts

Optional Accessories

Firmware Updates

Downloading the HAE 100 Firmware

Updating the Firmware

Downloading and Installing the Firmware Loader Software

Using Firmware Loader

SIS Commands

Connecting a Control Computer

Simple Instruction Set (SIS) Control

Host-to-Interface Communications

Error Responses

Timeout

Using the Command and Response Table

Command and Response Table for SIS Commands

Mounting

Tabletop Placement

Rack Mounting

UL Guidelines for Rack Mounting

Rack Mounting Procedure

Under-desk Mounting
