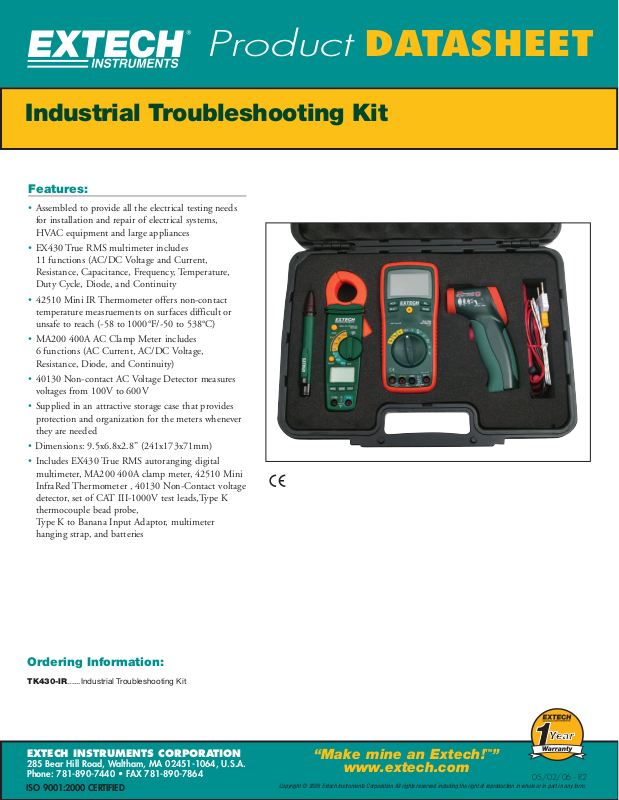

Extech TK430-IR Data Sheet

Product DATASHEET

Industrial Troubleshooting Kit

Features:

• Assembled to provide all the electrical testing needs

for installation and repair of electrical systems,
HVAC equipment and large appliances

• EX430 True RMS multimeter includes

11 functions (AC/DC Voltage and Current,
Resistance, Capacitance, Frequency, Temperature,
Duty Cycle, Diode, and Continuity

• 42510 Mini IR Thermometer offers non-contact

temperature measruements on surfaces difficult or
unsafe to reach (-58 to 1000°F/-50 to 538°C)

• MA200 400A AC Clamp Meter includes

6 functions (AC Current, AC/DC Voltage,
Resistance, Diode, and Continuity)

• 40130 Non-contact AC Voltage Detector measures

voltages from 100V to 600V

• Supplied in an attractive storage case that provides

protection and organization for the meters whenever
they are needed

• Dimensions: 9.5x6.8x2.8” (241x173x71mm)

• Includes EX430 True RMS autoranging digital

multimeter, MA200 400A clamp meter, 42510 Mini
InfraRed Thermometer , 40130 Non-Contact voltage
detector, set of CAT III-1000V test leads,Type K
thermocouple bead probe,

nput Adaptor, multimeter

ype K to B

T
hanging strap, and batteries

anana I

Ordering Information:

TK430-IR......Industrial T

EXTECH INSTRUMENTS CORPORA

285 Bear Hill Road, Waltham, MA 02451-1064, U.S.A.
Phone: [phone] • FAX [phone]

ISO 9001:2000 CERTIFIED

roubleshooting Kit

TION

“Make mine an Extech!™”

www.extech.com

Copyright © 2006 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form.

05/02/06 - R2
