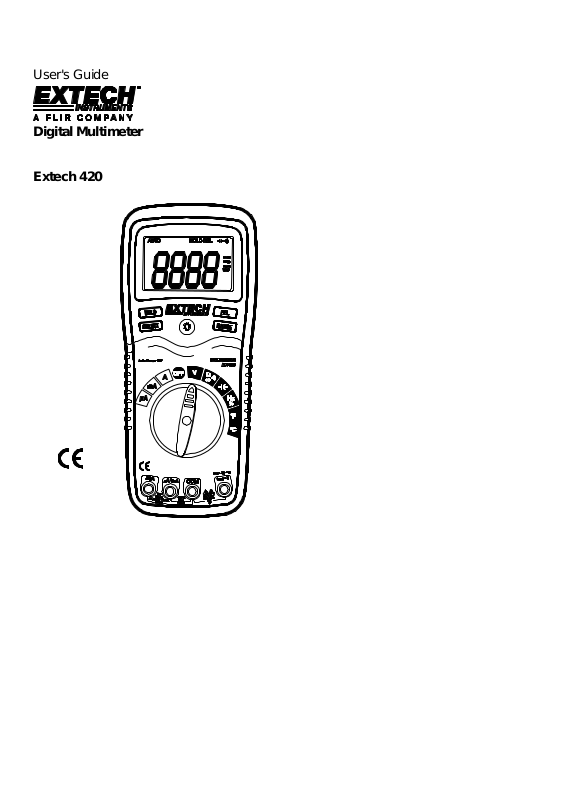

User's Guide
Digital Multimeter
Extech 420
2
Introduction
MAX
Congratulations on your purchase of the Extech 420 (part number EX420) Autoranging
Multimeter. This meter measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance,
Frequency, Duty Cycle, Diode Test, and Continuity plus Thermocouple Temperature. Proper
use and care of this meter will provide many years of reliable service.
Safety
International Safety Symbols
This symbol, adjacent to another symbol or terminal, indicates the user must refer
to the manual for further information.
This symbol, adjacent to a terminal, indicates that, under normal use, hazardous
voltages may be present
Double insulation
WARNING
CAUTION
600V
This WARNING symbol indicates a potentially hazardous situation, which
if not avoided, could result in death or serious injury.
This CAUTION symbol indicates a potentially hazardous situation, which
if not avoided, may result damage to the product.
This symbol advises the user that the terminal(s) so marked must not be
connected to a circuit point at which the voltage with respect to earth
ground exceeds (in this case) 600 VAC or VDC.
EX420-EU_ENG V3.1 6/09
3
CAUTIONS
Improper use of this meter can cause damage, shock, injury or death. Read and
understand this user manual before operating the meter.
Always remove the test leads before replacing the battery or fuses.
Inspect the condition of the test leads and the meter itself for any damage before
operating the meter. Repair or replace any damage before use.
Use great care when making measurements if the voltages are greater than 25VAC
rms or 35VDC. These voltages are considered a shock hazard.
Warning! This is a class A equipment. This equipment can cause interferences in the
living quarters; in this case the operator can be required to carry out adequate
measures.
Always discharge capacitors and remove power from the device under test before
performing Diode, Resistance or Continuity tests.
Voltage checks on electrical outlets can be difficult and misleading because of the
uncertainty of connection to the recessed electrical contacts. Other means should be
used to ensure that the terminals are not "live".
If the equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
This device is not a toy and must not reach children’s hands. It contains hazardous
objects as well as small parts that the children could swallow. In case a child
swallows any of them, please contact a physician immediately
Do not leave batteries and packing material lying around unattended; they can be
dangerous for children if they use them as toys
In case the device is going to be unused for an extended period of time, remove the
batteries to prevent them from training
Expired or damaged batteries can cause cauterization on contact with the skin.
Always, therefore, use suitable hand gloves in such cases
See that the batteries are not short-circuited. Do not throw batteries into the fire.
EX420-EU_ENG V3.1 6/09
4
OVERVOLTAGE CATEGORY III
V DC or V AC
10
00V DC
/
750VAC,
200Vrms on 4
00mV range
mA
AC/DC500mA
250V fast acting fuse
This meter meets the IEC 610-1-2001 standard for OVERVOLTAGE CATEGORYIII. Cat III
meters are protected against overvoltage transients in fixed installation at the distribution
level. Examples include switches in the fixed installation and some equipment for industrial
use with permanent connection to the fixed installation.
SAFETY INSTRUCTIONS
This meter has been designed for safe use, but must be operated with caution. The rules
listed below must be carefully followed for safe operation.
1. NEVER apply voltage or current to the meter that exceeds the specified maximum:
Function Maximum Input
Input Protection Limits
AAC/DC 20A 250V fast acting fuse(30 seconds max every
Frequency, Resistance, Capacitance,
Duty Cycle, Diode Test,Continuity
Temperature 60V DC/24V AC
2. USE EXTREME CAUTION when working with high voltages.
3. DO NOT measure voltage if the voltage on the "COM" input jack exceeds 600V above
earth ground.
4. NEVER connect the meter leads across a voltage source while the function switch is in
the current, resistance, or diode mode. Doing so can damage the meter.
5. ALWAYS discharge filter capacitors in power supplies and disconnect the power when
making resistance or diode tests.
6. ALWAYS turn off the power and disconnect the test leads before opening the covers to
replace the fuse or battery.
7. NEVER operate the meter unless the back cover and the battery and fuse covers are in
place and fastened securely.
15 minutes)
250Vrms for 15sec max
EX420-EU_ENG V3.1 6/09
5
Controls and Jacks
1. 4000 count LCD display
2. HOLD
3. SELECT button
4. Function switch
5. mA, uA and A input jacks
6. COM input jack
7. Positive input jack
8. RANGE hold button
9. RELATIVE button
10. Backlight button
11. Protective holster
Note: Tilt stand and battery compartment are on rear of unit.
Symbols and Annunciators
•))) Continuity
Diode test
Battery status
Test lead connection
n nano (10-9) (capacitance)
µ micro (10-6) (amps, cap)
m milli (10-3) (volts, amps) A Amps
k kilo (103) (ohms) F Farads (capacitance)
M mega (106) (ohms) Ohms
Hz Hertz (frequency) V Volts
% Percent(duty ratio) REL Relative
AC Alternating current AUTO Autoranging
DC Directcurrent HOLD Display hold
ºF Degrees Fahrenheit ºC Degrees Centigrade
error
EX420-EU_ENG V3.1 6/09
6
Operating Instructions
WARNING: Risk of electrocution. High-voltage circuits, both AC and DC, are very
dangerous and should be measured with great care.
1. ALWAYS turn the function switch to the OFF position when the meter is not in use.
2. If “OL” appears in the display during a measurement, the value exceeds the range you
have selected. Change to a higher range.
NOTE: On some low AC and DC voltage ranges, with the test leads not connected to a
device, the display may show a random, changing reading. This is normal and is caused
by the high-input sensitivity. The reading will stabilize and give a proper measurement
when connected to a circuit.

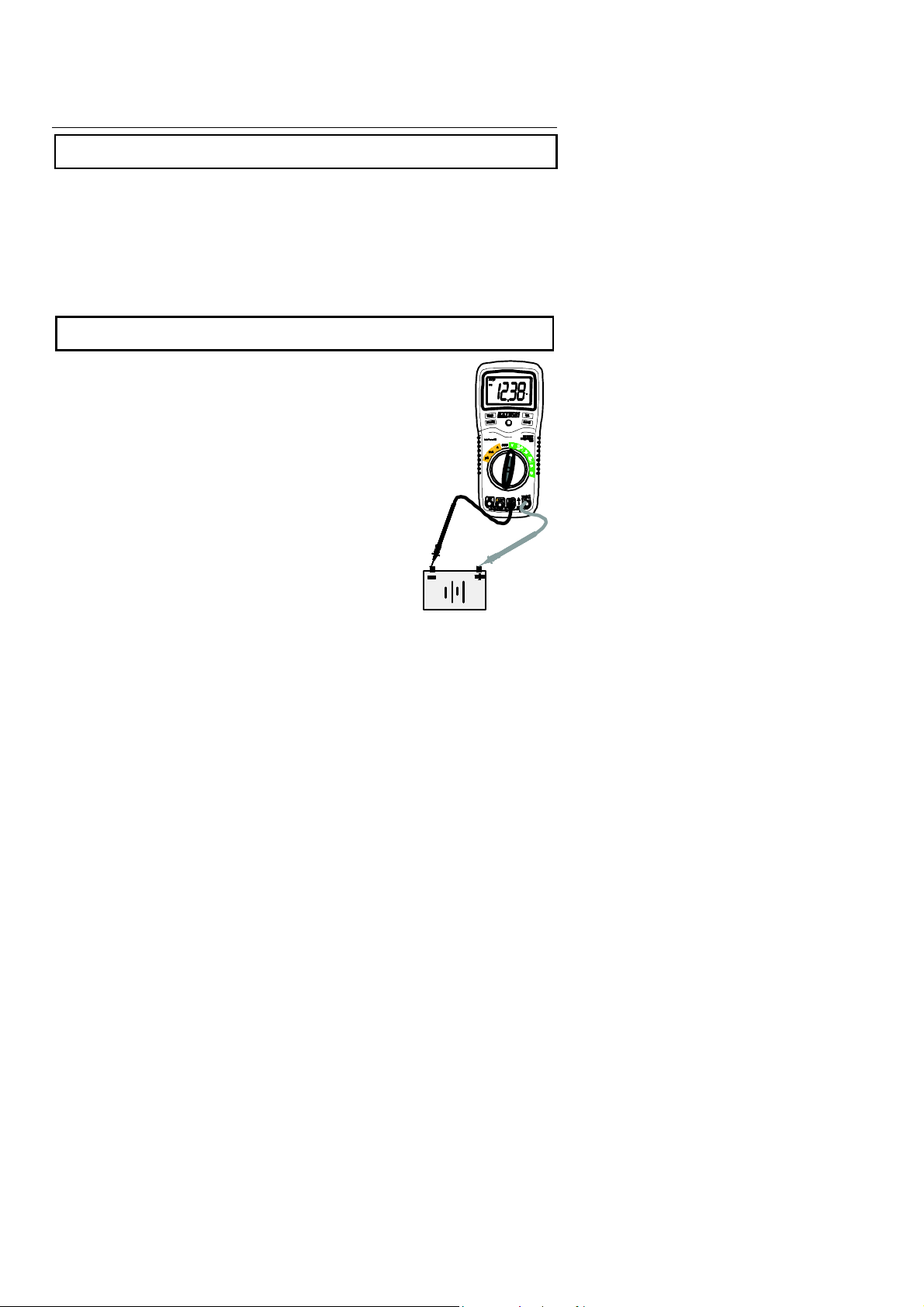

DC VOLTAGE MEASUREMENTS
CAUTION: Do not measure DC voltages if a motor on the circuit is being switched ON or
OFF. Large voltage surges may occur that can damage the meter.
1. Set the function switch to the green V position.
2. Press the SELECT button to indicate “DC” on the display.
3. Insert the black test lead banana plug into the negative COM
jack.
Insert the red test lead banana plug into the positive V jack.
4. Touch the black test probe tip to the negative side of the
circuit.
Touch the red test probe tip to the positive side of the circuit.
5. Read the voltage in the display.
EX420-EU_ENG V3.1 6/09
7
AC VOLTAGE MEASUREMENTS
WARNING: Risk of Electrocution. The probe tips may not be long enough to contact the
live parts inside some 240V outlets for appliances because the contacts are recessed
deep in the outlets. As a result, the reading may show 0 volts when the outlet actually has
voltage on it. Make sure the probe tips are touching the metal contacts inside the outlet
before assuming that no voltage is present.
CAUTION: Do not measure AC voltages if a motor on the circuit is being switched ON or
OFF. Large voltage surges may occur that can damage the meter.
1. Set the function switch to the green V position.
2. Press the SELECT button to indicate “AC” on the display.
3. Insert the black test lead banana plug into the negative COM
jack.
Insert red test lead banana plug into the positive V jack.
4. Touch the black test probe tip to the neutral side of the circuit.
Touch the red test probe tip to the “hot” side of the circuit.
5. Read the voltage in the display.
DC CURRENT MEASUREMENTS
CAUTION: Do not make current measurements on the 20A scale for longer than 30
seconds. Exceeding 30 seconds may cause damage to the meter and/or the test leads.
1. Insert the black test lead banana plug into the negative
COM jack.
2. For current measurements up to 4000µA DC, set the
function switch to the yellow µA position and insert the
red test lead banana plug into the µA/mA jack
3. For current measurements up to 400mA DC, set the
function switch to the yellow mA position and insert the
red test lead banana plug into the µA/mA jack.
4. For current measurements up to 20A DC, set the
function switch to the yellow 20A range and insert the
red test lead banana plug into the 20A jack.
5. Press the SELECT button to indicate “DC” on the
display.
6. Remove power from the circuit under test, then open up
the circuit at the point where you wish to measure
current.
7. Touch the black test probe tip to the negative side of the
circuit.
Touch the red test probe tip to the positive side of the circuit.
8. Apply power to the circuit.
9. Read the current in the display.
EX420-EU_ENG V3.1 6/09
8
AC CURRENT MEASUREMENTS
CAUTION: Do not make current measurements on the 20A scale for longer than 30
seconds. Exceeding 30 seconds may cause damage to the meter and/or the test leads.
1. Insert the black test lead banana plug into the negative
COM jack.
2. For current measurements up to 4000µA AC, set the
function switch to the yellow µA position and insert the
red test lead banana plug into the µA/mA jack
3. For current measurements up to 400mA AC, set the
function switch to the yellow mA position and insert the
red test lead banana plug into the µA/mA jack.
4. For current measurements up to 20A AC, set the
function switch to the yellow 20A range and insert the
red test lead banana plug into the 20A jack.
5. Press the SELECT button to indicate “AC” on the
display.
6. Remove power from the circuit under test, then open up
the circuit at the point where you wish to measure
current.
7. Touch the black test probe tip to the negative side of
the circuit.
Touch the red test probe tip to the positive side of the
circuit.
8. Apply power to the circuit.
9. Read the current in the display.
RESISTANCE MEASUREMENTS
WARNING: To avoid electric shock, disconnect power to the unit under test and
discharge all capacitors before taking any resistance measurements. Remove the
batteries and unplug the line cords.
1. Set the function switch to the green position.
2. Insert the black test lead banana plug into the negative
COM jack.
Insert the red test lead banana plug into the positive jack.
3. Press the SELECT button to indicate on the display.
4. Touch the test probe tips across the circuit or part under test.
It is best to disconnect one side of the part under test so the
rest of the circuit will not interfere with the resistance
reading.
5. Read the resistance in the display.
EX420-EU_ENG V3.1 6/09
9

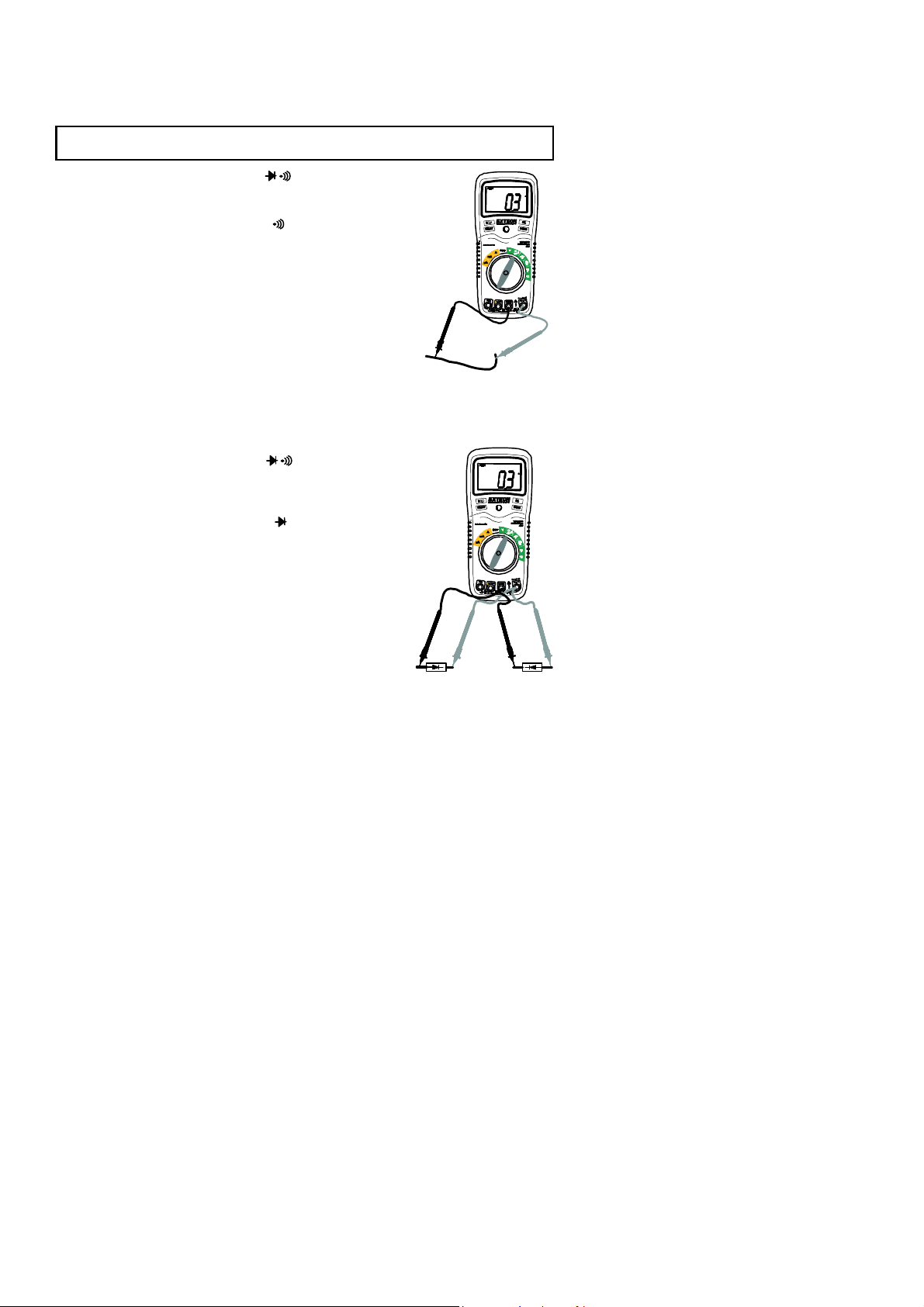

CONTINUITY CHECK
WARNING: To avoid electric shock, never measure continuity on circuits or wires that
have voltage on them.
1. Set the function switch to the green position.
2. Insert the black lead banana plug into the negative COM jack.
Insert the red test lead banana plug into the positive jack.
3. Press the SELECT button to indicate on the display.
4. Touch the test probe tips to the circuit or wire you wish to
check.
5. If the resistance is less than approximately 150, the audible
signal will sound. If the circuit is open, the display will indicate
“OL”.
DIODE TEST
1. Set the function switch to the green position.
2. Insert the black test lead banana plug into the negative COM
jack and the red test lead banana plug into the positive
diode jack.
3. Press the SELECT button to indicate on the display.
4. Touch the test probes to the diode under test. Forward
voltage will typically indicate 0.400 to 0.700V. Reverse
voltage will indicate “OL”.. Shorted devices will indicate near
0V and an open device will indicate “OL” in both polarities.
EX420-EU_ENG V3.1 6/09
10
CAPACITANCE MEASUREMENTS
WARNING: To avoid electric shock, disconnect power to the unit under test and
discharge all capacitors before taking any capacitance measurements. Remove the
batteries and unplug the line cords.
1. Set the rotary function switch to the green position.
2. Insert the black test lead banana plug into the negative
COM jack.
Insert the red test lead banana plug into the positive jack.
3. Touch the test leads to the capacitor to be tested.
4. Read the capacitance value in the display
FREQUENCY MEASUREMENTS
1. Set the rotary function switch to the green “Hz” position.
2. Insert the black lead banana plug into the negative COM
jack and the red test lead banana plug into the positive Hz
jack.
3. Touch the test probe tips to the circuit under test.
4. Read the frequency on the display.
% DUTY CYCLE
1. Set the rotary function switch to the “Hz” position.
2. Insert the black lead banana plug into the negative COM
jack and the red test lead banana plug into the positive Hz
jack.
3. Press the SELECT key momentarily to select % in the
display.
4. Touch the test probe tips to the circuit under test.
5. Read the % duty cycle on the display.
EX420-EU_ENG V3.1 6/09
11
CONTACT TEMPERATURE MEASUREMENTS
1. Set the function switch to the black Type K ºC or ºF position.
2. Insert the Temperature Probe into the input jacks, making sure to observe the correct
polarity.
3. Touch the Temperature Probe head to the part whose temperature you wish to measure.
Keep the probe touching the part under test until the reading stabilizes (about 30
seconds).
4. Read the temperature in the display.
Note: The temperature probe is fitted with a type K mini connector. A mini
connector to banana connector adaptor is supplied for connection to
the input banana jacks.
EX420-EU_ENG V3.1 6/09
12
AUTORANGING/MANUAL RANGE SELECTION
When the meter is first turned on, it automatically goes into AutoRanging. This
automatically selects the best range for the measurements being made and is generally
the best mode for most measurements. For measurement situations requiring that a range
be manually selected, perform the following:
1. Press the RANGE key. The AUTO display indicator will turn off.
2. Press the RANGE key to step through the available ranges until you select the range
you want.
3. To exit the Manual Ranging mode and return to AutoRanging, press and hold the
RANGE key for 2 seconds.
Note: Manual ranging does not apply for the Capacitance, Frequency and Temperature
functions.
RELATIVE MODE
The relative measurement feature allows you to make measurements relative to a stored
reference value. A reference voltage, current, etc. can be stored and measurements made
in comparison to that value. The displayed value is the difference between the reference
value and the measured value.
1. Perform the measurement as described in the operating instructions.
2. Press the REL button to store the reading in the display and the "REL" indicator will
appear on the display.
3. The display will now indicate the difference between the stored value and the measured
value.
4. Press the REL button to exit the relative mode.
Note: The Relative function does not operate in the Frequency function.
DISPLAY BACKLIGHT
Press the key for to turn on or off the display backlight function.
HOLD
The hold function freezes the reading in the display. Press the HOLD key momentarily to
activate or to exit the hold function.
AUTO POWER OFF
The auto off feature will turn the meter off after 15 minutes.
LOW BATTERY INDICATION
The icon will appear in the lower left conner of the display when the battery voltage
becomes low. Replace the battery when this appears.
WRONG CONNECTION INDICATION
The icon will appear in the upper right conner of the display and the buzzer will sound
whenever the positive test lead is inserted into the 20A or uA/mA input jack and a noncurrent (green, black or red) function is selected. If this occurs, turn the meter off and
reinsert the test lead into the proper input jack for the function selected.
EX420-EU_ENG V3.1 6/09
13
Specifications
Function Range Resolution Accuracy
DC Voltage 400mV 0.1mV
4V 0.001V
40V 0.01V
400V 0.1V
1000V 1V
AC Voltage 50 to 400Hz 400Hz to 1kHz
400mV 0.1mV
4V 0.001V
40V 0.01V
400V 0.1V
750V 1V
DC Current
AC Current 50 to 400Hz 400Hz to 1KHz
Resistance
Capacitance 40nF 0.01nF
NOTE: Accuracy is stated at 18oC to 28oC (65oF to 83oF) and less than 75% RH.
400A 0.1A
4000A 1A
40mA 0.01mA
400mA 0.1mA
4A 0.001A
20A 0.01A
400A 0.1A
4000A 1A
40mA 0.01mA
400mA 0.1mA
4A 0.001A
20A 0.01A
400 0.1
4k 0.001k
40k 0.01k
400k 0.1k
4M 0.001M
40M 0.01M
400nF 0.1nF
4F 0.001F
40F 0.01F
100F 0.1F (5.0% reading + 5 digits)
(1.5% reading + 15
(1.5% reading + 6
(1.8% reading + 6
(1.8% reading + 8
(3.0% reading + 8
(0.3% reading + 2 digits)
(0.5% reading + 2 digits)
(0.8% reading + 3 digits)
(2.5% reading +
digits)
(2.5% reading + 8
digits)
(3% reading + 8 digits)
digits)
(1.5% reading + 3 digits)
(2.5% reading + 5 digits)
(3.0% reading + 7
digits)
(3.5% reading + 10
digits)
(0.8% reading + 4 digits)
(0.8% reading + 2 digits)
(1.0% reading + 2 digits)
(3.0% reading + 5 digits)
(5.0% reading + 7 digits)
(3.0% reading + 5 digits)
(3.5% reading + 5 digits)
15digits)
digits)
digits)
digits)
EX420-EU_ENG V3.1 6/09
14
Function Range Resolution Accuracy
Frequency 5.000Hz 0.001Hz
50.00Hz 0.01Hz
500.0Hz 0.1Hz
5.000kHz 0.001kHz
50.00kHz 0.01kHz
500.0kHz 0.1kHz
5.000MHz 0.001MHz
10.00MHz 0.01MHz
Sensitivity: 0.8V rms min. @ 20% to 80% duty cycle and <100kHz; 5Vrms min @ 20% to
80% duty cycle and > 100kHz.
Duty Cycle 0.1 to 99.9% 0.1%
Pulse width: 100µs - 100ms, Frequency: 5Hz to 150kHz
Temp
(type-K)
NOTE: Accuracy specifications consist of two elements:
(% reading) – This is the accuracy of the measurement circuit.
(+ digits) – This is the accuracy of the analog to digital converter.
-20 to 750C 1C (3.0%reading + 3 digits)
-4 to 1382F 1F
(1.2% reading + 2 digits)
(probe accuracy not included)
(1.5% reading + 5 digits)
(1.2% reading + 2 digits)
(1.5% reading + 4 digits)
Diode Test Test current of 0.3mA maximum, open circuit voltage 1.5V DC
Continuity Check Audible signal will sound if the resistance is less than 150
Temperature Sensor Requires type K thermocouple
Input Impedance >7.5MΩ (VDC & VAC)
AC Response Average responding
ACV Bandwidth 50Hz to 1kHz
Display 4000 count backlit liquid crystal
Overrange indication “OL” is displayed
Auto Power Off 15 minutes (approximately)
Polarity Automatic (no indication for positive); Minus (-) sign for
Measurement Rate 2 times per second, nominal
Low Battery Indication “ ” is displayed if battery voltage drops below operating
Battery One 9 volt (NEDA 1604) battery
Fuses mA, µA ranges; 0.5A/250V fast blow
Operating Temperature 5ºC to 40ºC (41ºF to 104ºF)
Storage Temperature -20oC to 60oC (-4oF to 140oF)
Operating Humidity Max 80% up to 31ºC (87ºF) decreasing linearly to 50% at
Storage Humidity <80%
Operating Altitude 2000 meters (7000ft) maximum.
Weight 342g (0.753lb) (includes holster).
Size 187 x 81 x 50mm (7.36” x 3.2” x 2.0”) (includes holster)
Safety For indoor use and in accordance with the requirements for
typical
(approx.), test current <0.7mA
negative
voltage
A range; 20A/250V ceramic fast blow
40ºC(104ºF)
double insulation to IEC1010-1 (2001): EN61010-1 (2001)
Overvoltage Category III 600V and Category II 1000V,
Pollution Degree 2.
EX420-EU_ENG V3.1 6/09
15
Maintenance
WARNING: To avoid electrical shock, disconnect the meter from any circuit, remove the
test leads from the input terminals, and turn OFF the meter before opening the case. Do
not operate the meter with an open case.
This MultiMeter is designed to provide years of dependable service, if the following care
instructions are performed:
1. KEEP THE METER DRY. If it gets wet, wipe it off.
2. USE AND STORE THE METER IN NORMAL TEMPERATURES. Temperature extremes
can shorten the life of the electronic parts and distort or melt plastic parts.
3. HANDLE THE METER GENTLY AND CAREFULLY. Dropping it can damage the
electronic parts or the case.
4. KEEP THE METER CLEAN. Wipe the case occasionally with a damp cloth. DO NOT use
chemicals, cleaning solvents, or detergents.
5. USE ONLY FRESH BATTERIES OF THE RECOMMENDED SIZE AND TYPE. Remove
old or weak batteries so they do not leak and damage the unit.
6. IF THE METER IS TO BE STORED FOR A LONG PERIOD OF TIME, the batteries
should be removed to prevent damage to the unit.
Battery Replacement
1. Remove the Phillips head screw that secures the rear battery door
2. Open the battery compartment
3. Replace the 9V battery
4. Secure the battery compartment
You, as the end user, are legally bound (Battery ordinance) to return all used
batteries and accumulators; disposal in the household garbage is prohibited!
You can hand over your used batteries / accumulators, gratuitously, at the
collection points for our branches in your community or wherever batteries /
accumulators are sold!
Disposal
Follow the valid legal stipulations in respect of the disposal of the device at the
end of its lifecycle
WARNING: To avoid electric shock, do not operate the meter until the battery cover is in
place and fastened securely.
NOTE:: If your meter does not work properly, check the fuses and batteries to make sure that
they are still good and that they are properly inserted.
EX420-EU_ENG V3.1 6/09
16
REPLACING THE FUSES
WARNING: To avoid electrical shock, disconnect the meter from any circuit, remove the
test leads from the input terminals, and turn OFF the meter before opening the case. Do
not operate the meter with an open case.
1. Disconnect the test leads from the meter.
2. Remove the protective rubber holster.
3. Remove the battery cover (two “B”
screws) and the battery.
4. Remove the four “A” screws securing the
rear cover.
5. Lift the center circuit board straight up
from the connectors to gain access to
the fuse holders.
6. Gently remove the old fuse and install
the new fuse into the holder.
7. Always use a fuse of the proper size and
value (0.5A/250V fast blow for the 400mA range, 20A/250V fast blow for the 20A range).
8. Align the center board with the connectors and gently press into place.
9. Replace and secure the rear cover, battery and battery cover.
WARNING: To avoid electric shock, do not operate your meter until the fuse cover is in
place and fastened securely.
All rights reserved including the right of reproduction in whole or in part in any form.
EX420-EU_ENG V3.1 6/09
Copyright © 2005 Extech Instruments Corporation
Loading...
