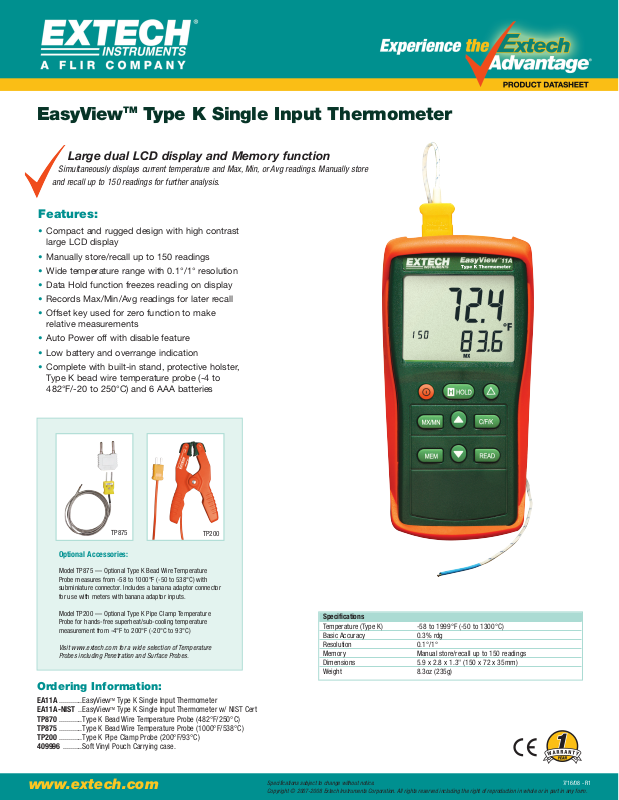

Extech EA11A Data Sheet

Ordering Information:

EA11A ............EasyViewTMType K Single Input Thermometer

EA11A-NIST ..EasyViewTMType K Single Input Thermometer w/ NIST Cert

TP870 ............Type K Bead Wire Temperature Probe (482°F/250°C)

TP875 ............Type K Bead Wire Temperature Probe (1000°F/538°C)

TP200 ............Type K Pipe Clamp Probe (200°F/93°C)

409996 ..........Soft Vinyl Pouch Carrying case.

www.extech.com

7/16/08 - R1

Features:

• Compact and rugged design with high contrast

large LCD display

• Manually store/recall up to 150 readings

• Wide temperature range with 0.1°/1° resolution

• Data Hold function freezes reading on display

• Records Max/Min/Avg readings for later recall

• Offset key used for zero function to make

relative measurements

• Auto Power off with disable feature

• Low battery and overrange indication

• Complete with built-in stand, protective holster,

Type K bead wire temperature probe (-4 to 482°F/-20 to 250°C) and 6 AAA batteries

Large dual LCD display and Memory function

Simultaneously displays current temperature and Max, Min, or Avg readings. Manually store

and recall up to 150 readings for further analysis.

EasyView

Type K Single Input Thermometer

Specifications

Temperature (Type K) -58 to 1999°F (-50 to 1300°C) Basic Accuracy 0.3% rdg Resolution 0.1°/1° Memory Manual store/recall up to 150 readings Dimensions 5.9 x 2.8 x 1.3" (150 x 72 x 35mm) Weight 8.3oz (235g)

Model TP875 — Optional Type K Bead Wire Temperature Probe measures from -58 to 1000°F (-50 to 538°C) with subminiature connector. Includes a banana adaptor connector for use with meters with banana adaptor inputs.

Model TP200 — Optional Type K Pipe Clamp Temperature Probe for hands-free superheat/sub-cooling temperature measurement from -4°F to 200°F (-20°C to 93°C)

Visit www.extech.com for a wide selection of Temperature Probes including Penetration and Surface Probes.

Optional Accessories:

TP875

TP200
