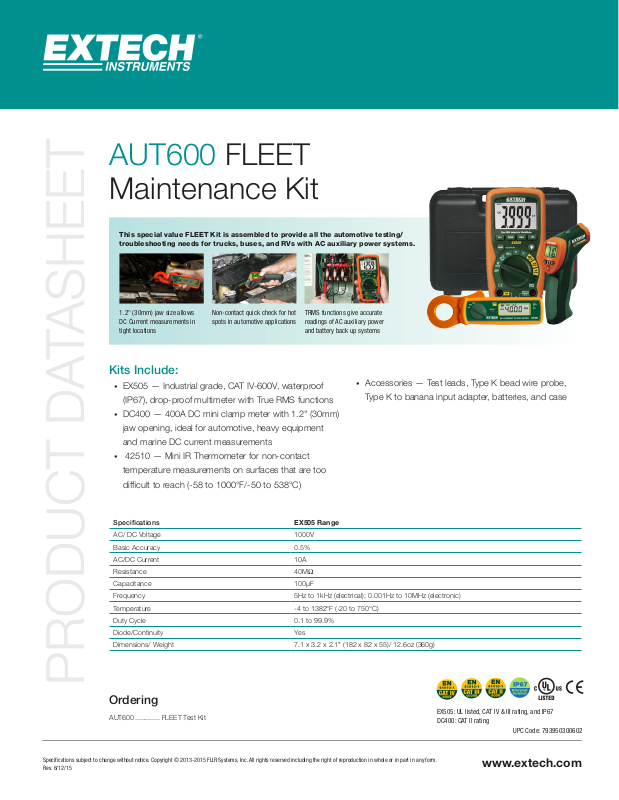

Extech AUT600 Data sheet
AUT600 FLEET
Maintenance Kit
This special value FLEET Kit is assembled to provide all the automotive testing/
troubleshooting needs for trucks, buses, and RVs with AC auxiliary power systems.
1.2" (30mm) jaw size allows
DC Current measurements in
tight locations
Non-contact quick check for hot
spots in automotive applications
TRMS functions give accurate
readings of AC auxiliary power
and battery back up systems
Kits Include:
• EX505 — Industrial grade, CAT IV-600V, waterproof
(IP67), drop-proof multimeter with True RMS functions
• DC400 — 400A DC mini clamp meter with 1.2" (30mm)
jaw opening, ideal for automotive, heavy equipment
and marine DC current measurements
• 42510 — Mini IR Thermometer for non-contact
temperature measurements on surfaces that are too
difficult to reach (-58 to 1000°F/-50 to 538°C)
Specifications
AC/ DC Voltage 1000V
Basic Accuracy 0.5%
AC/DC Current 10A
Resistance 40MΩ
Capacitance 100µF
Frequency 5Hz to 1kHz (electrical); 0.001Hz to 10MHz (electronic)
Temperature -4 to 1382°F (-20 to 750°C)
Duty Cycle 0.1 to 99.9%
Diode/Continuity Yes
Dimensions/ Weight 7.1 x 3.2 x 2.1" (182 x 82 x 55)/ 12.6oz (360g)
EX505 Range
• Accessories — Test leads, Type K bead wire probe,
Type K to banana input adapter, batteries, and case
PRODUCT DATASHEETPRODUCT DATASHEET
Ordering
AUT600 ............. FLEET Test Kit
Specifications subject to change without notice. Copyright © 2013-2015 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form.
Rev. 6/12/15
EX505: UL listed, CAT IV & III rating, and IP67
DC400: CAT II rating
UPC Code: 793950300602
www.extech.com
