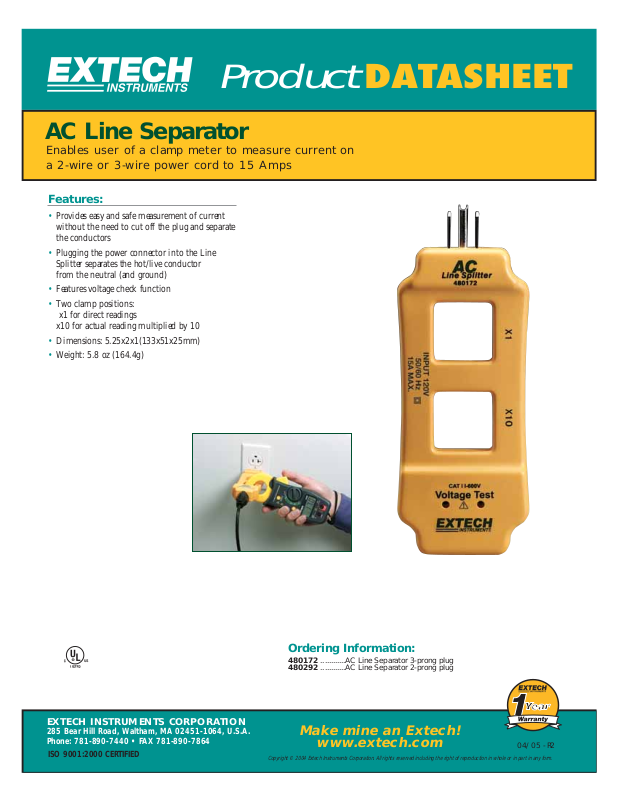

Extech 480172, TK505 Data Sheet

EXTECH INSTRUMENTS CORPORATION

285 Bear Hill Road, Waltham, MA 02451-1064, U.S.A. Phone: 781-890-7440 • FAX 781-890-7864

ISO 9001:2000 CERTIFIED

04/05 - R2

Features:

• Provides easy and safe measurement of current

without the need to cut off the plug and separate the conductors

• Plugging the power connector into the Line

Splitter separates the hot/live conductor from the neutral (and ground)

• Features voltage check function

• Two clamp positions:

x1 for direct readings

x10 for actual reading multiplied by 10

• Dimensions: 5.25x2x1(133x51x25mm)

• Weight: 5.8 oz (164.4g)

Product

DATASHEET

AC Line Separator

Enables user of a clamp meter to measure current on a 2-wire or 3-wire power cord to 15 Amps

Ordering Information:

480172 ............AC Line Separator 3-prong plug

480292 ............AC Line Separator 2-prong plug
