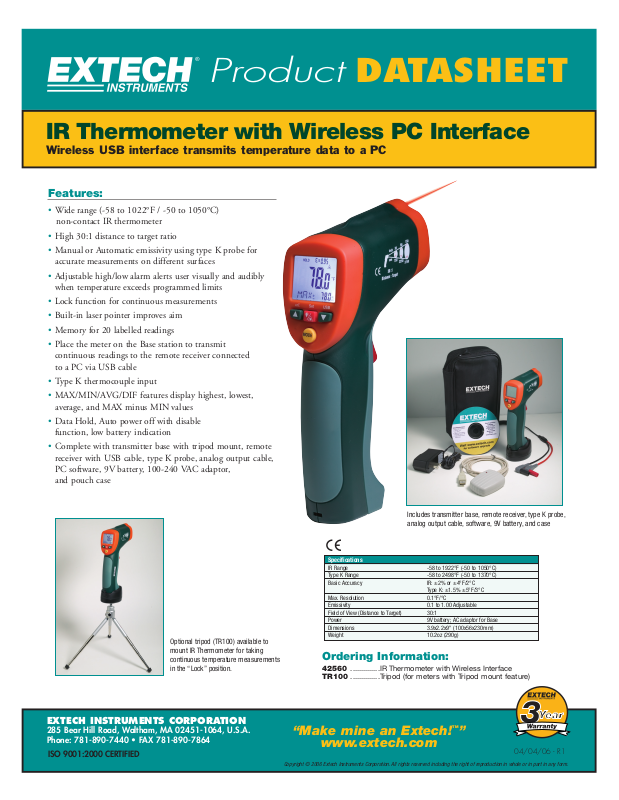

Extech 42560 Data Sheet

EXTECH INSTRUMENTS CORPORATION

285 Bear Hill Road, Waltham, MA 02451-1064, U.S.A.
Phone: [phone] • FAX [phone]

ISO 9001:2000 CERTIFIED

04/04/06 - R1

Features:

• Wide range (-58 to 1022°F / -50 to 1050°C)

non-contact IR thermometer

• High 30:1 distance to target ratio

• Manual or Automatic emissivity using type K probe for

accurate measurements on different surfaces

• Adjustable high/low alarm alerts user visually and audibly

when temperature exceeds programmed limits

• Lock function for continuous measurements

• Built-in laser pointer improves aim

• Memory for 20 labelled readings

• Place the meter on the Base station to transmit

continuous readings to the remote receiver connected
to a PC via USB cable

• Type K thermocouple input

• MAX/MIN/AVG/DIF features display highest, lowest,

average, and MAX minus MIN values

• Data Hold, Auto power off with disable

function, low battery indication

• Complete with transmitter base with tripod mount, remote

receiver with USB cable, type K probe, analog output cable,
PC software, 9V battery, 100-240 VAC adaptor,
and pouch case

IR Thermometer with Wireless PC Interface

Wireless USB interface transmits temperature data to a PC

Ordering Information:

42560 ..............IR Thermometer with Wireless Interface

TR100 ..............Tripod (for meters with Tripod mount feature)

“Make mine an Extech!™”

www.extech.com

Specifications

IR Range -58 to 1922°F (-50 to 1050°C)
Type K Range -58 to 2498°F (-50 to 1370°C)
Basic Accuracy IR: ±2% or ±4°F/2°C

Type K: ±1.5% ±5°F/3°C
Max. Resolution 0.1°F/°C
Emissivity 0.1 to 1.00 Adjustable
Field of View (Distance to Target) 30:1
Power 9V battery; AC adaptor for Base
Dimensions 3.9x2.2x9" (100x56x230mm)
Weight 10.2oz (290g)

Product

DATASHEET

Copyright © 2006 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form.

Includes transmitter base, remote receiver, type K probe,
analog output cable, software, 9V battery, and case

Optional tripod (TR100) available to
mount IR Thermometer for taking
continuous temperature measurements
in the “Lock” position.
