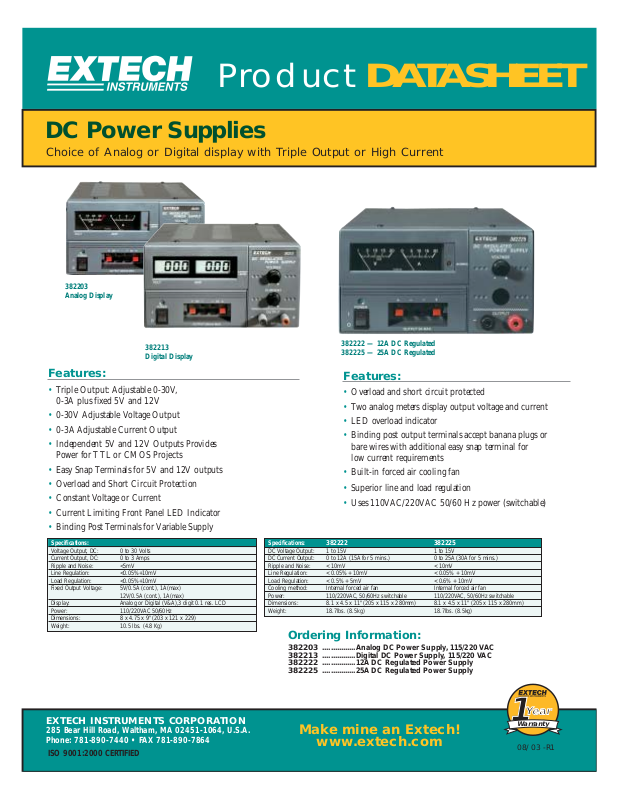

Product DATASHEET

DC Power Supplies

Choice of Analog or Digital display with Triple Output or High Current

1

Warranty

Year

Specifications:

Voltage Output, DC: 0 to 30 Volts
Current Output, DC: 0 to 3 Amps
Ripple and Noise: <5mV
Line Regulation: <0.05%+10mV
Load Regulation: <0.05%+10mV
Fixed Output Voltage: 5V/0.5A (cont.), 1A(max)

12V/0.5A (cont.), 1A(max)
Display: Analog or Digital (V&A),3 digit 0.1 res. LCD
Power: 110/220VAC 50/60Hz
Dimensions: 8 x 4.75 x 9" (203 x 121 x 229)
Weight: 10.5 lbs. (4.8 Kg)

Specifications: 382222 382225

DC Voltage Output: 1 to 15V 1 to 15V
DC Current Output: 0 to 12A (15A for 5 mins.) 0 to 25A (30A for 5 mins.)
Ripple and Noise: < 10mV < 10mV
Line Regulation: < 0.05% + 10mV < 0.05% + 10mV
Load Regulation: < 0.5% + 5mV < 0.6% + 10mV
Cooling method: Internal forced air fan Internal forced air fan
Power: 110/220VAC, 50/60Hz switchable 110/220VAC, 50/60Hz switchable
Dimensions: 8.1 x 4.5 x 11" (205 x 115 x 280mm) 8.1 x 4.5 x 11" (205 x 115 x 280mm)
Weight: 18.7lbs. (8.5kg) 18.7lbs. (8.5kg)

Make mine an Extech!

www.extech.com

Ordering Information:

382203 ................Analog DC Power Supply, 115/220 VAC

382213 ................Digital DC Power Supply, 115/220 VAC

382222 ................12A DC Regulated Power Supply

382225 ................25A DC Regulated Power Supply

Features:

• Triple Output: Adjustable 0-30V,

0-3A plus fixed 5V and 12V

• 0-30V Adjustable Voltage Output

• 0-3A Adjustable Current Output

• Independent 5V and 12V Outputs Provides

Power for TTL or CMOS Projects

• Easy Snap Terminals for 5V and 12V outputs

• Overload and Short Circuit Protection

• Constant Voltage or Current

• Current Limiting Front Panel LED Indicator

• Binding Post Terminals for Variable Supply

Features:

• Overload and short circuit protected

• Two analog meters display output voltage and current

• LED overload indicator

• Binding post output terminals accept banana plugs or

bare wires with additional easy snap terminal for
low current requirements

• Built-in forced air cooling fan

• Superior line and load regulation

• Uses 110VAC/220VAC 50/60 Hz power (switchable)

382203
Analog Display

382213
Digital Display

382222 — 12A DC Regulated
382225 — 25A DC Regulated
