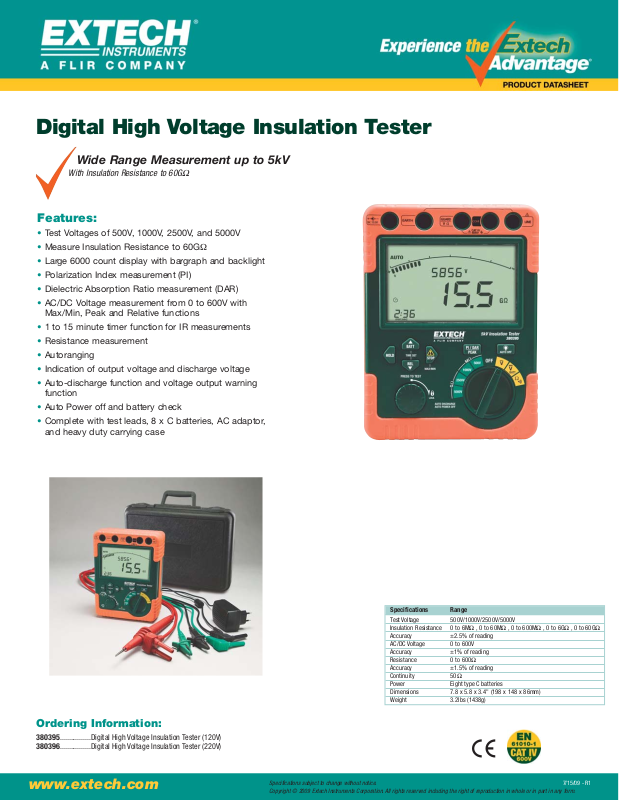

Extech 380395 Specifications

Specifications subject to change without notice.
Copyright © 2009 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form.

www.extech.com

7/15/09 - R1

Wide Range Measurement up to 5kV

With Insulation Resistance to 60GΩ

Digital High Voltage Insulation Tester

Ordering Information:

380395................Digital High Voltage Insulation Tester (120V)

380396................Digital High Voltage Insulation Tester (220V)

Features:

• Test Voltages of 500V, 1000V, 2500V, and 5000V

• Measure Insulation Resistance to 60GΩ

• Large 6000 count display with bargraph and backlight

• Polarization Index measurement (PI)

• Dielectric Absorption Ratio measurement (DAR)

• AC/DC Voltage measurement from 0 to 600V with

Max/Min, Peak and Relative functions

• 1 to 15 minute timer function for IR measurements

• Resistance measurement

• Autoranging

• Indication of output voltage and discharge voltage

• Auto-discharge function and voltage output warning

function

• Auto Power off and battery check

• Complete with test leads, 8 x C batteries, AC adaptor,

and heavy duty carrying case

Specifications Range

Test Voltage 500V/1000V/2500V/5000V
Insulation Resistance 0 to 6MΩ , 0 to 60MΩ , 0 to 600MΩ , 0 to 6GΩ , 0 to 60GΩ
Accuracy ±2.5% of reading
AC/DC Voltage 0 to 600V
Accuracy ±1% of reading
Resistance 0 to 600Ω
Accuracy ±1.5% of reading
Continuity 50Ω
Power Eight type C batteries
Dimensions 7.8 x 5.8 x 3.4" (198 x 148 x 86mm)
Weight 3.2lbs (1438g)
