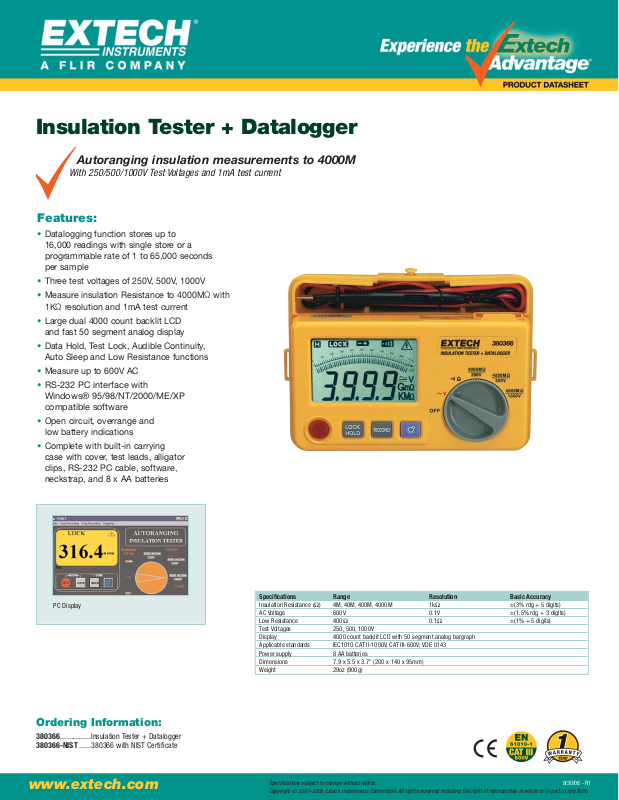

Extech 380366 Specifications
Specifications subject to change without notice.
Copyright © 2007-2008 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form.
www.extech.com
9/30/08 - R1
Autoranging insulation measurements to 4000M
With 250/500/1000V Test Voltages and 1mA test current
Insulation Tester + Datalogger
Ordering Information:
380366................Insulation Tester + Datalogger
380366-NIST ......380366 with NIST Certificate
Features:
• Datalogging function stores up to
16,000 readings with single store or a
programmable rate of 1 to 65,000 seconds
per sample
• Three test voltages of 250V, 500V, 1000V
• Measure insulation Resistance to 4000MΩ with
1KΩ resolution and 1mA test current
• Large dual 4000 count backlit LCD
and fast 50 segment analog display
• Data Hold, Test Lock, Audible Continuity,
Auto Sleep and Low Resistance functions
• Measure up to 600V AC
• RS-232 PC interface with
Windows® 95/98/NT/2000/ME/XP
compatible software
• Open circuit, overrange and
low battery indications
• Complete with built-in carrying
case with cover, test leads, alligator
clips, RS-232 PC cable, software,
neckstrap, and 8 x AA batteries
Specifications Range Resolution Basic Accuracy
Insulation Resistance (Ω) 4M, 40M, 400M, 4000M 1kΩ ±(3% rdg + 5 digits)
AC Voltage 600V 0.1V ±(1.5% rdg + 3 digits)
Low Resistance 400Ω 0.1Ω ±(1% + 5 digits)
Test Voltages 250, 500, 1000V
Display 4000 count backlit LCD with 50 segment analog bargraph
Applicable standards IEC1010 CAT II-1000V, CAT III-600V; VDE 0143
Power supply 8 AA batteries
Dimensions 7.9 x 5.5 x 3.7" (200 x 140 x 95mm)
Weight 29oz (900g)
PC Display
