Explorer 2200 Installation Instructions Manual
Before Installing the DHCT
Before you begin to install the DHCT, locate the DHCT serial number. The serial number is located on the back panel of the DHCT, and looks
similar to this example:
The serial number is located in the lower left corner of the bar code. Write the serial number here: _______________ . It is always good to
have the serial number on file. If your system requires troubleshooting in the future, our customer service professional may ask for the serial
number. If you plug the DHCT into an outlet that is controlled by a wall switch, keep the switch in the ON position. The on-scr een guide is
updated nightly. If the wall switch is in the OFF position, your DHCT will not receive the latest programming updates. Keep the top of the
DHCT free of all objects and electronic devices, including your T V. It is recommended that you use a surge protector with your cable equipment and electronic devices.
1 Message Indicator Indicates a message from Everest is waiting when blinking or illuminated. To access
the message, press the Info key.
2 LED Display Displays the selected channel number and time of day
3 Guide Accesses on-screen services, such as the on-screen guide and pay-per-view
4 Info Displays a description of the selected program; available from the on-screen guide and while viewing a
program
5Bypass Indicator Indicates the optional bypass feature is on when illuminated*
6USB (Universal Serial Bus) Connects to external equipment, such as a keyboard, ext ernal modem, or similar equipment*
7 Exit Exits menus, on-screen guide, and program information
8 Settings Accesses the Settings menu
9Smart card slot Allows smart card access*
10 Select Accesses your on-screen selection
11 CH+ and CH- Scrolls up and down through the channels
12 VOL+ and VOL- Increases and decreases volume
13 Power Provides power to the DHCT. The light to the left of the Power key illuminates when the power is on. To
receive nightly programming updates, keep the power on.
*Contact our Customer Service Professionals at 816-268-3000 for more information.

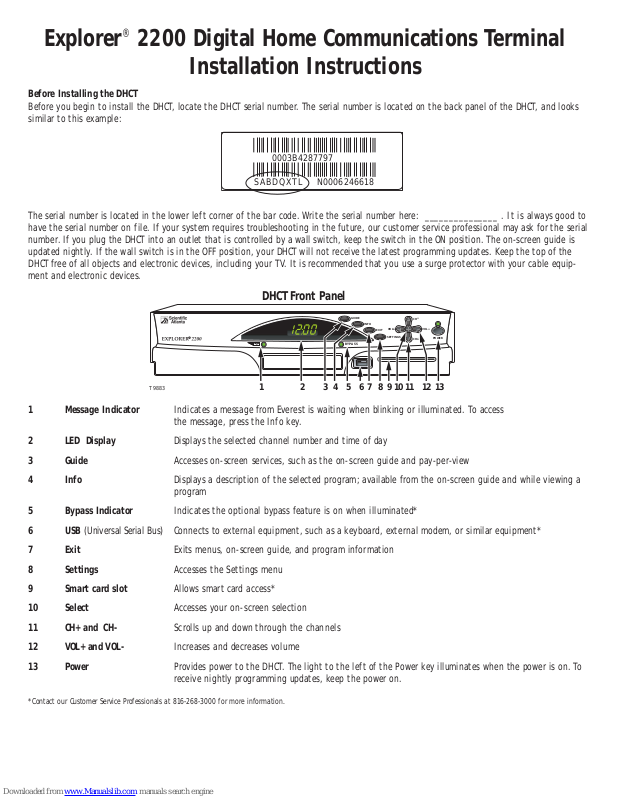

Explorer®2200 Digital Home Communications Terminal
Installation Ins tructions
DHCT Front Panel
0003B4287797
SABDQXTL
N0006246618
T9883
GUIDE
INFO
ó
VOL
EXIT
BYPASS
1 5 8 9 131176234 1210
SETTINGS
+
CH
+
VOL
POWER
ó
CH
1 Serial Number Located in the lower left corner of the bar code. We may ask for this number if your system requires
troubleshooting in the future. You must know the serial number to join the Scientific Atlanta Explorer
Club (www.scientificatlanta.com/explorerclub).
2 IR Port Connect to optional VCR Commander service
3S-Video Out Connect to S-Video input of TV or VCR (standard definition)
4 Digital Audio Out Connect to external digital inputs surround-sound receiver
5 Video Out Connect to video input of TV or VCR (standard definition)
6Audio Out Connect to left/right (L/R) audio inputs of a stereo receiver or a TV with stereo sound
7 Cable Out Connect to cable input of TV or VCR (standard definition)
8 Cable In Connect to cable signal from cable service provider
9 Bypass Connect an optional RF Bypass module
10 AC Power Input Connect the DHCT to an AC electrical outlet using the cord provided
11 AC Switched Outlet Connect the AC power cord from another device, such as a TV
Connect the DHCT to a Stereo TV and Non-Stereo VC R
Use the connection diagram and follow these steps to connect the DHCT to a stereo TV and a non-stereo VCR.
Required Cables:
Set of Video/Audio Cables
75 ohm Coaxil Cables
1. Unplug all electronic devices before connecting the DHCT.
2. Connect the DHCT to the TV and VCR as shown in the
diagram.
3. Connect the DHCT to the coaxial cable coming from the
wall.
4. Plug the DHCT and the TV into an AC power source.
Important: Do not press the Power key on the DHCT yet.
5. Turn on the power to your TV, and set the input channel
to 3.
6. Wait for the time to display on the LED display.
Important: It takes 2 to 3 minutes for the DHCT to be
updated with the latest programming and service information. When the front panel displays the time, the update is
complete.
7. Press the Power key on the DHCT.
T9885
DHCT Back Panel
0003B4287797
SABDQXTL N0006246618
T9884
11109345 6 8712
WARNING:
Electric shock hazard! Unplug all
electronic devices before connecting
or disconnecting any device cables.
0003B4287797
SABDQXTL N0006246618
CABLE/
ANTENNA
Back
of VCR
Back
of TV
LEFT
OUT
AUDIO
OUT
RIGHT
IN
VIDEO
IN
OUT
IN
Cable Input
OUT TO TVIN FROM ANT.
T9885
